Pack 03

BUILD INSTRUCTIONS

      If you'd prefer to download a PDF version of these instructions, choose to save as PDF from the print dialog.

      Advice from the experts

      Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly.

      Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly. Using the wrong screws may damage the parts. Only use the correct size screwdriver that fits the screw head firmly.

      When securing parts together using multiple screws, fit each screw loosely to ensure all the parts are correctly aligned before gently tightening them firmly, but not overtight, in the order in which you placed them.

      If the paint on the painted screws is scratched during the build, you can repaint it with Sand yellow (RAL 1002).

      The screwdriver can be magnetized by stroking it with a magnet (fridge magnet, etc.) enabling it to hold the screws and make assembly easier.

      If a screw is tight going into a metal part, do not force it as you may shear the head off. Remove it and put a tiny smear of Vaseline, soap or light oil on the thread. That will lubricate it and make it easier to tighten.

      Some parts will require a little glue for assembly. Please apply glue sparingly and use a cocktail stick so that you don’t use too much nor apply the glue too heavily. We recommend superglue gel or Extra Thin Liquid modeling glue. Where possible, parts should be test-fitted in place before gluing.

      Make sure you have good ventilation when using adhesives and to replace caps firmly.

      Use a magnet to help find screws that have fallen on the floor.

      Use masking tape to hold parts temporarily in place.

      Cut parts from a sprue (framework) with side cutters or a craft knife. Side cutters tend to be easiest.

      During the course of this build, you will receive many pieces that you will assemble immediately – following the instructions in the corresponding stage – and other pieces that you should store safely to one side, for use in future assembly stages.

      Always protect the paint finish on components by placing a cutting mat, sheet of white paper or soft cloth on your work surface.

      When plugging cables in, ensure the power is switched off. Tweezers can be used to fit the PVC cables by gripping carefully around 5mm from the end of the cable. If a cable needs to be removed from a socket, do not pull on the cable as this could damage the connection. Grip the plug with tweezers to remove it.

      Left and Right! When building your SAS Willys Jeep, the left- or right-hand side refers to that side as if you are sitting in the car.

      When you see this symbol, pay attention to the instruction text in bold and check the orientation of the parts in the image as this will be particularly important for assembly in later stages.

      WARNING: Some parts are assembled using magnets. These magnets can cause serious injury if they are swallowed. Keep away from children. If you suspect a magnet has been swallowed, seek medical help straight away.

      This is not a toy. Not suitable for children under 14 years old due to small parts. Adult supervision required.

      Stage 14: Fitting the front axle

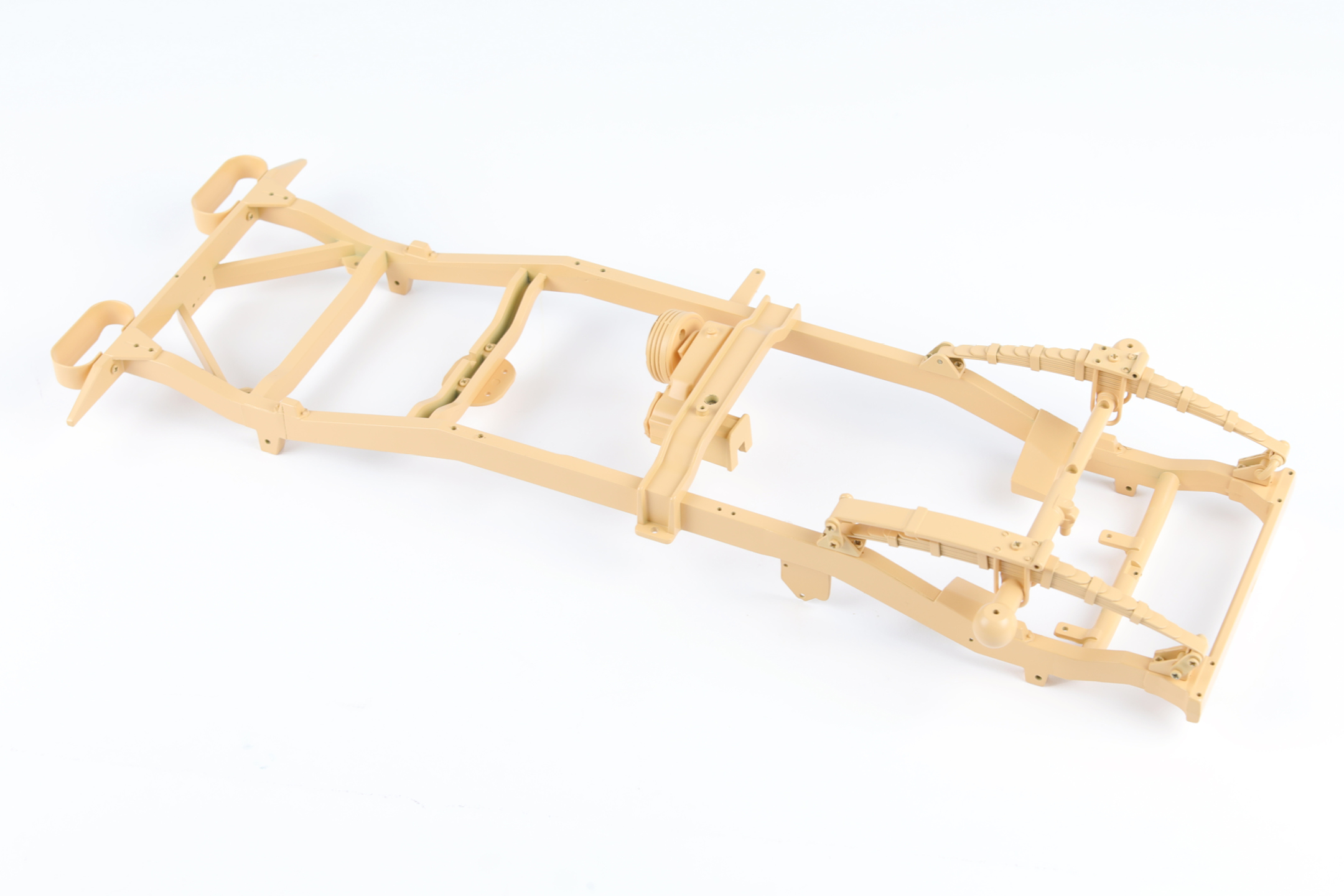

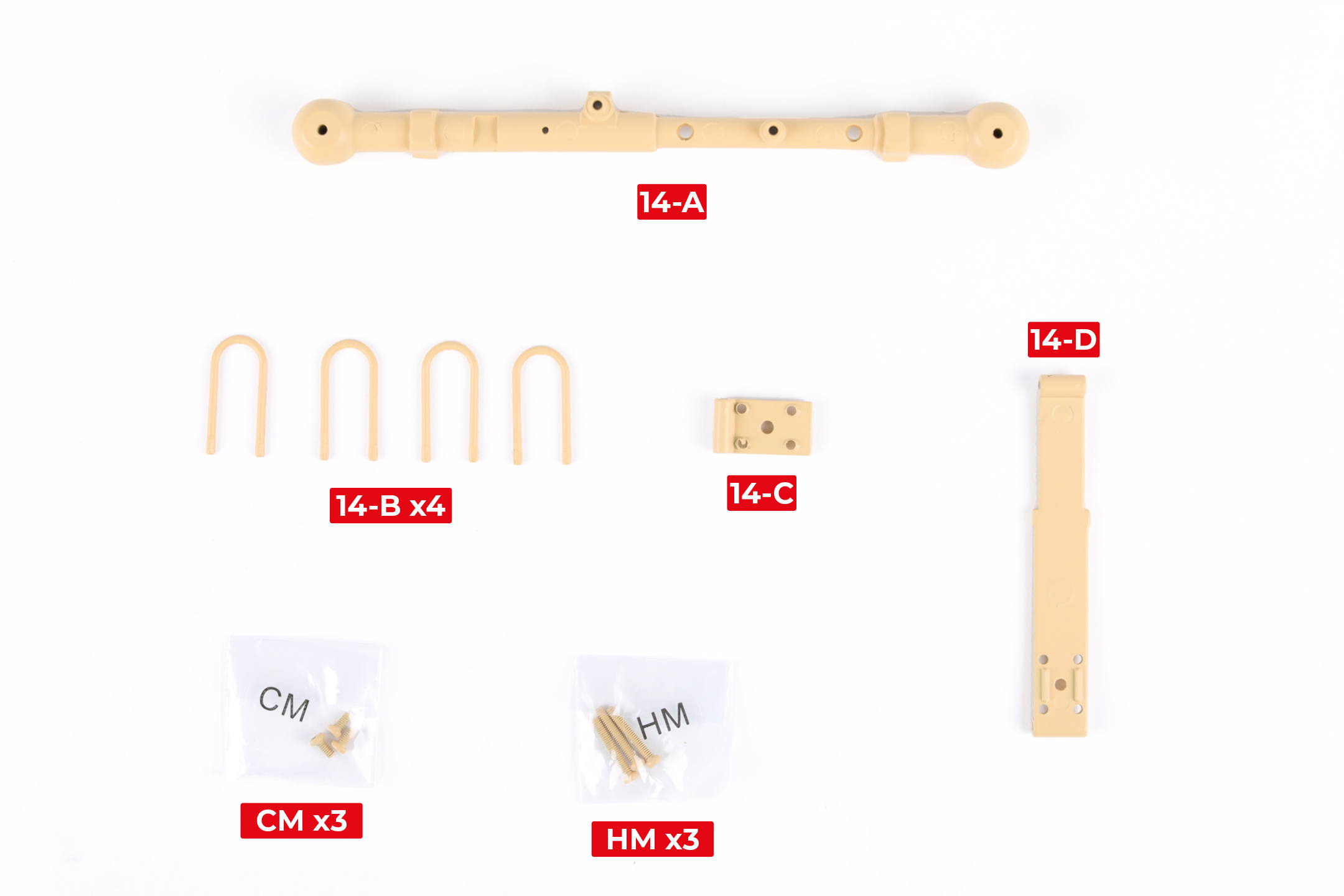

      STAGE 14 PARTS

      Step 1

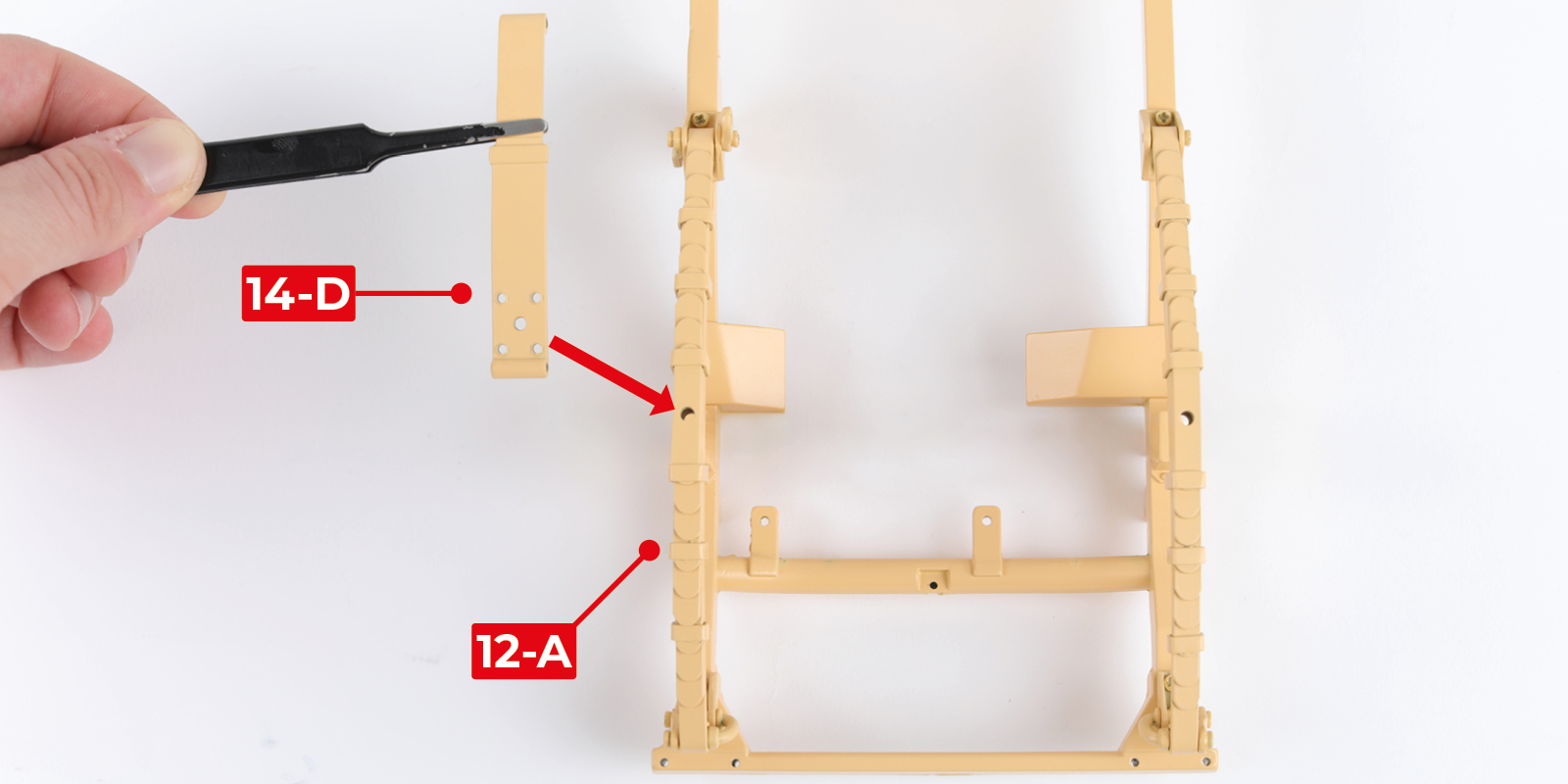

      Place part 14-D onto part 12-A.

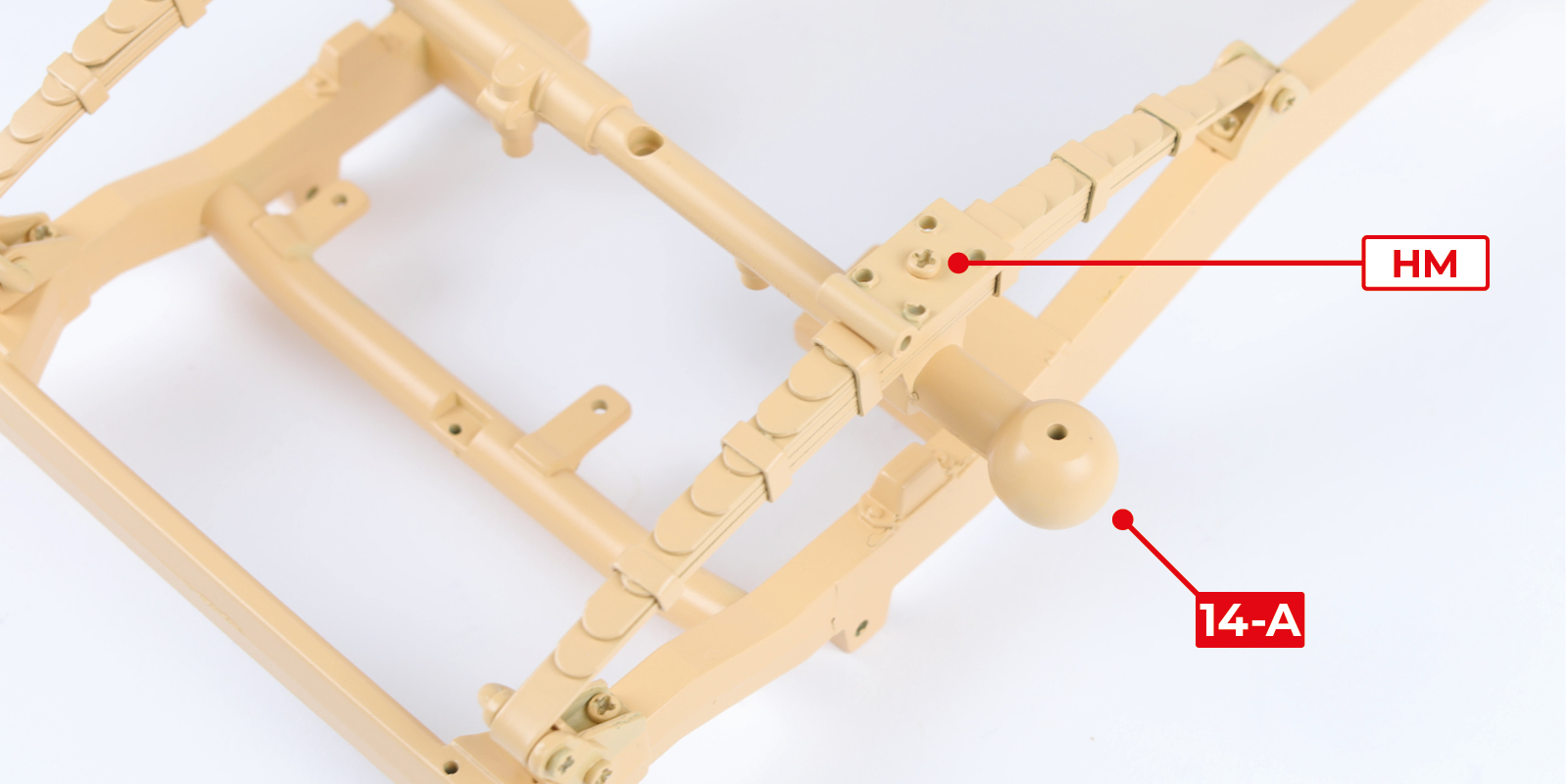

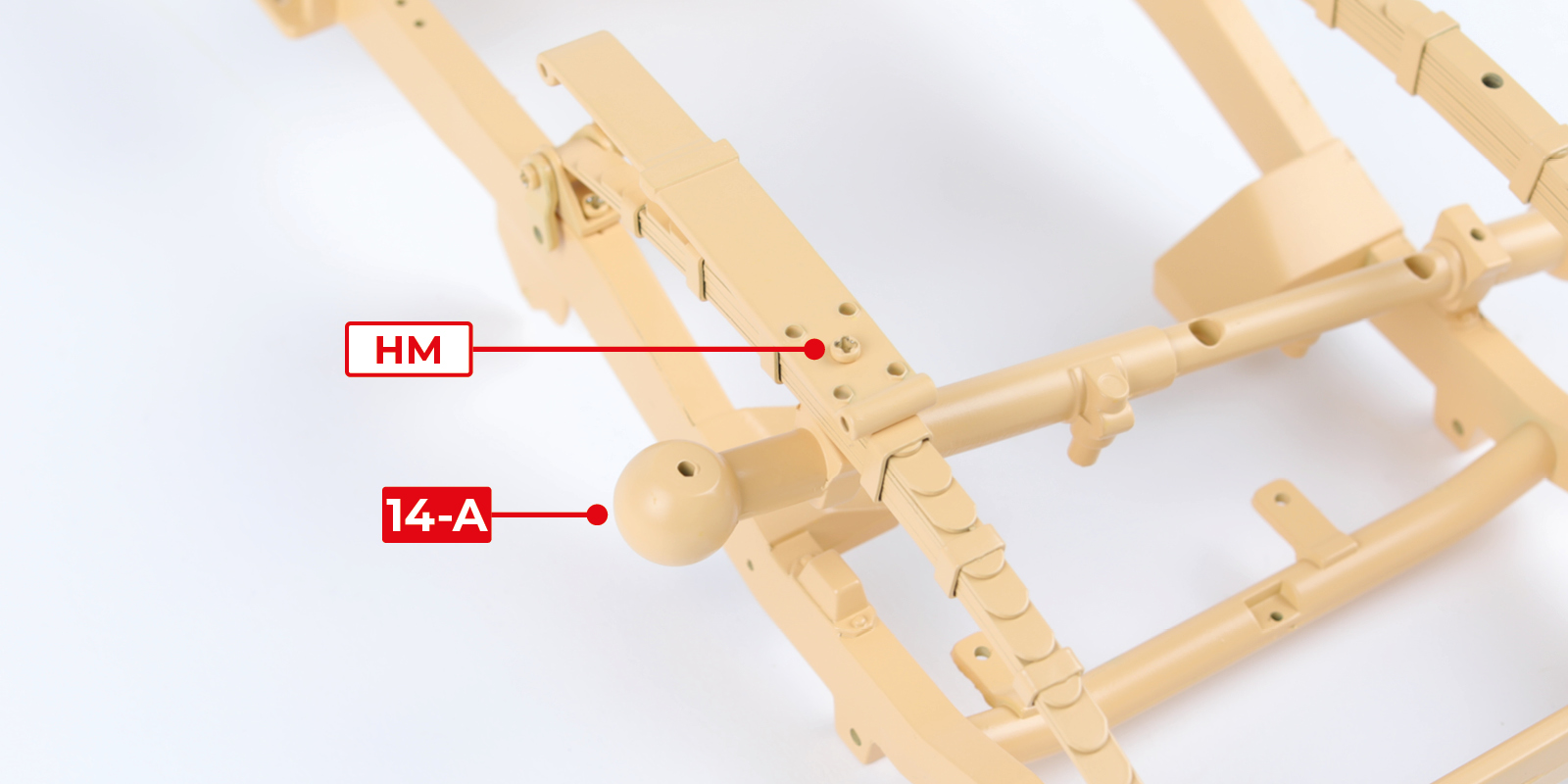

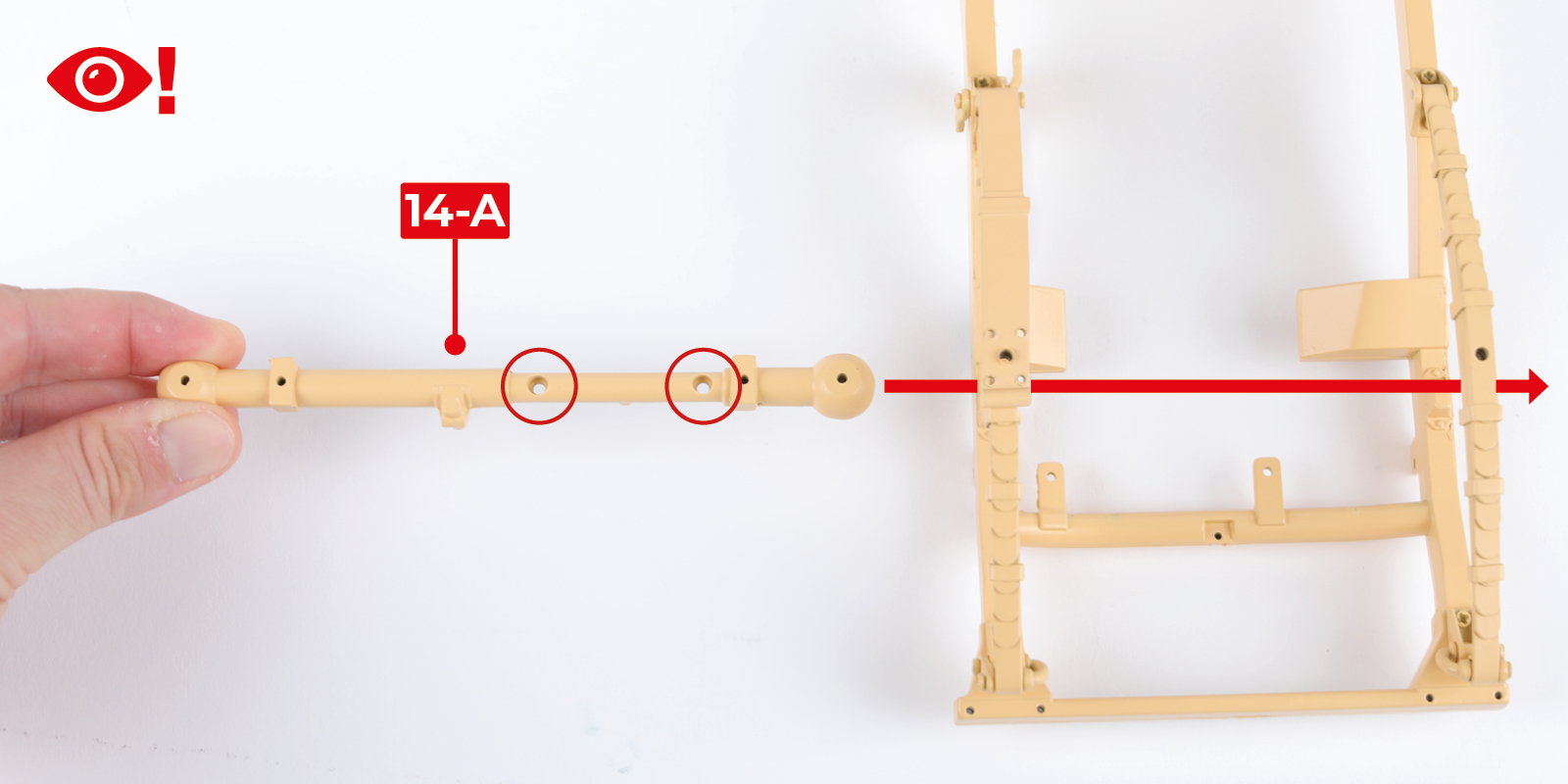

      Fit part 14-A through the chassis as shown and fix with 1 HM screw. Make sure the HM screw fits through part 12-A and into part 14-A.

      a
      b
      c

      Step 2

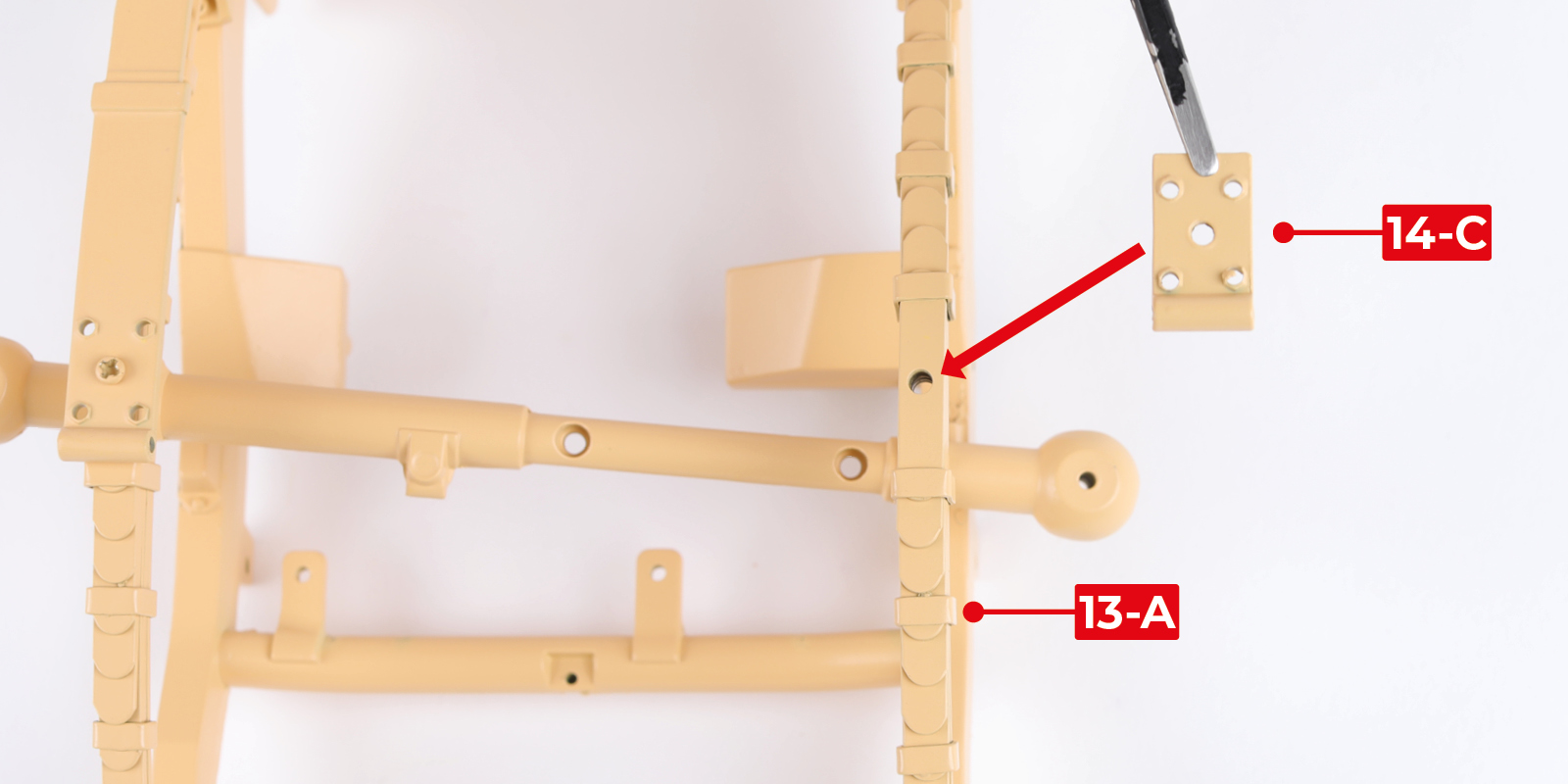

      Fit part 14-C onto part 13-A with 1 HM screw, ensuring the screw goes through both parts and into part 14-A as shown.

      a
      b

      Step 3

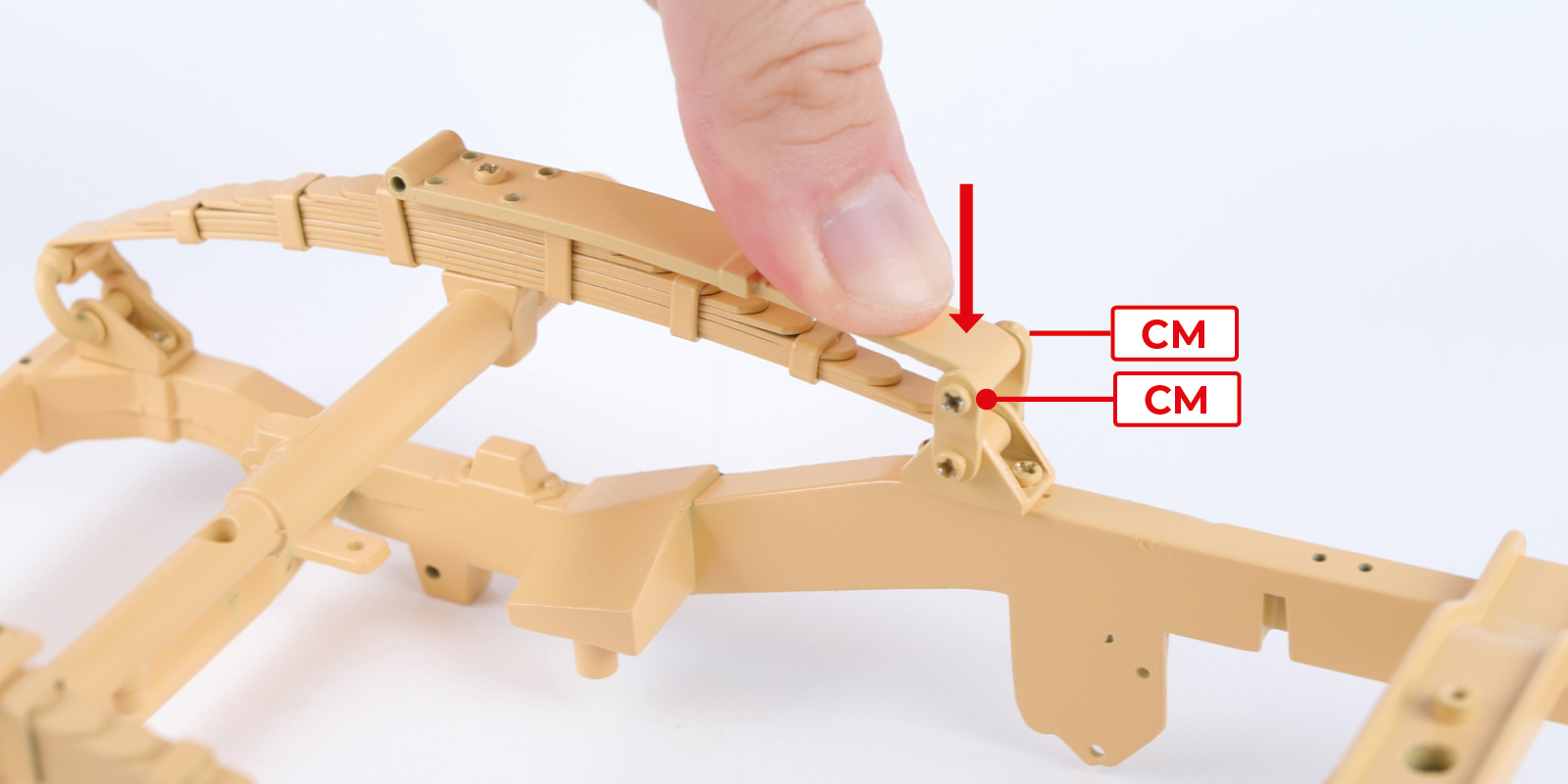

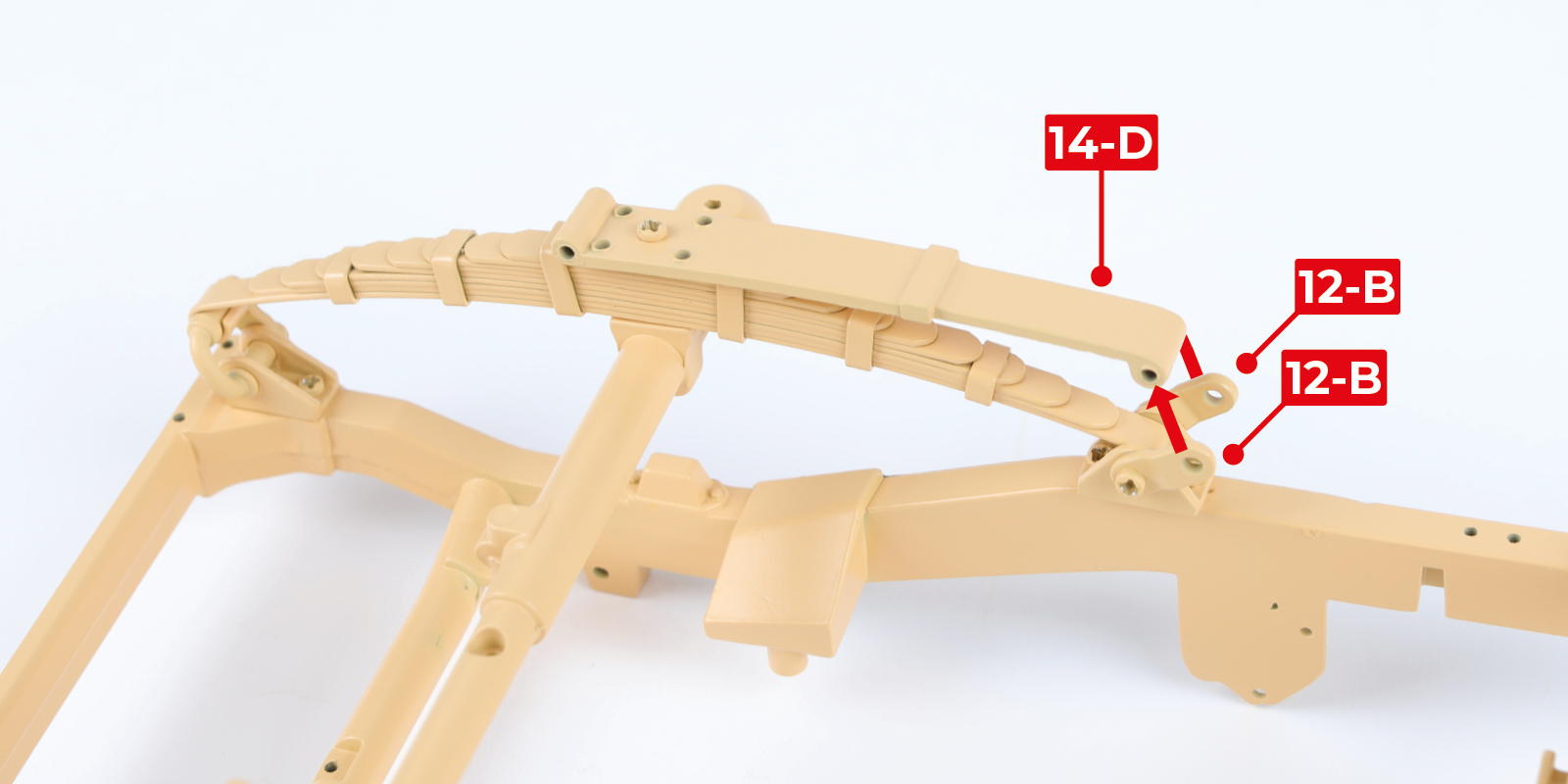

      Rotate parts 12-B into place towards part 14-D. Align the screw holes and fix with 2 CM screws.

      a
      b

      Step 4

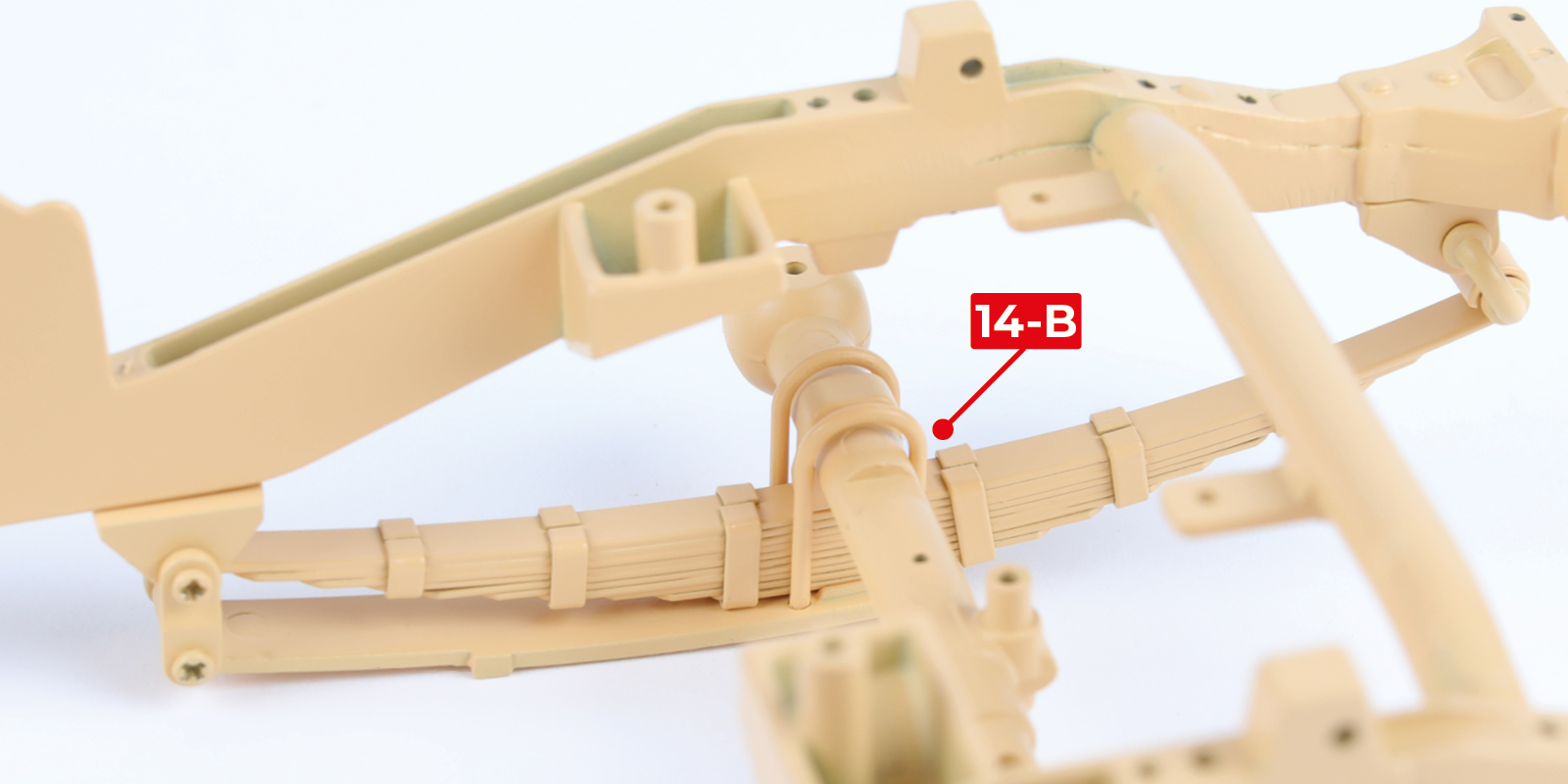

      Turn the assembly over and fit part 14-B in place.

      a
      b

      Step 5

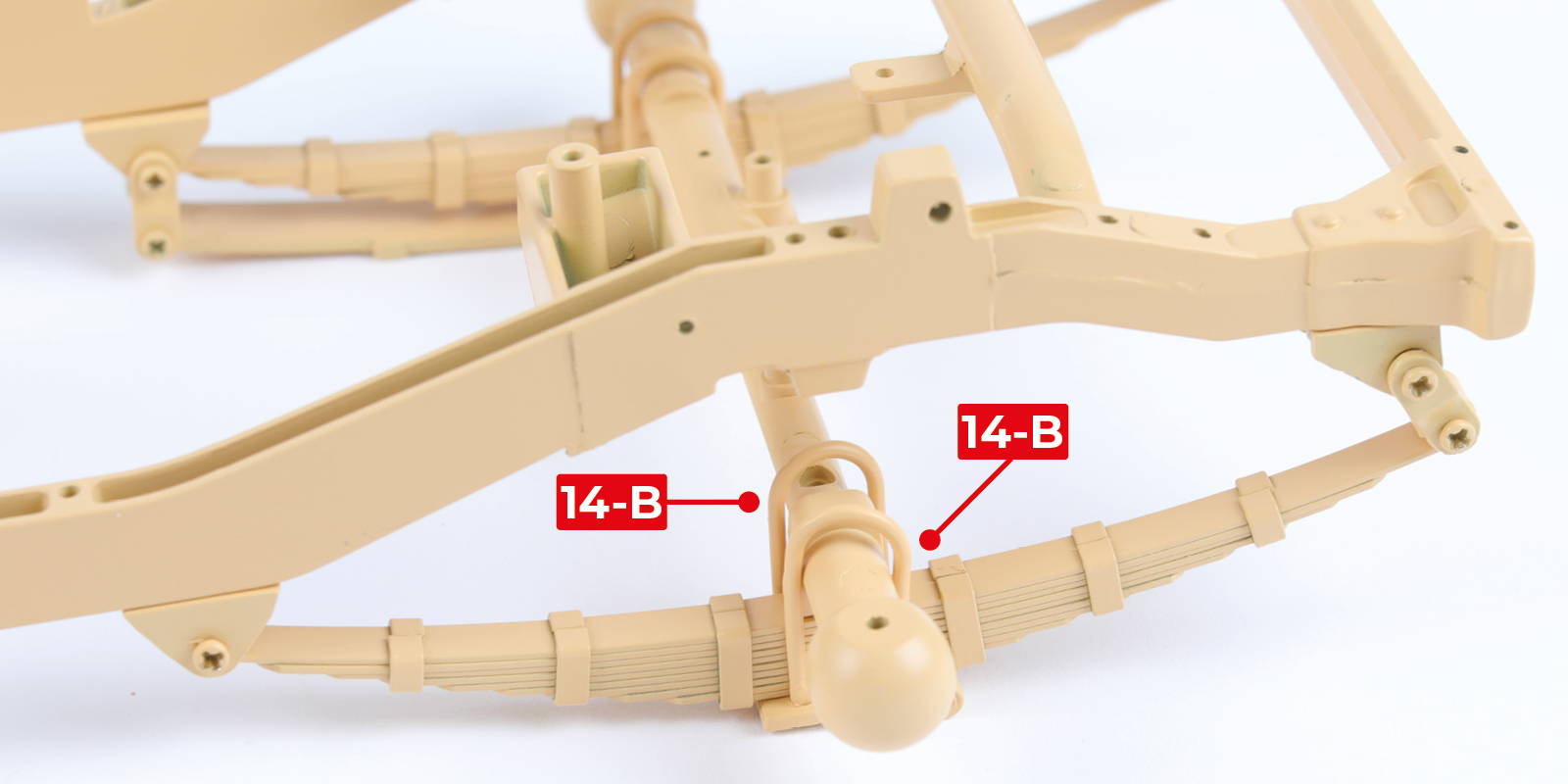

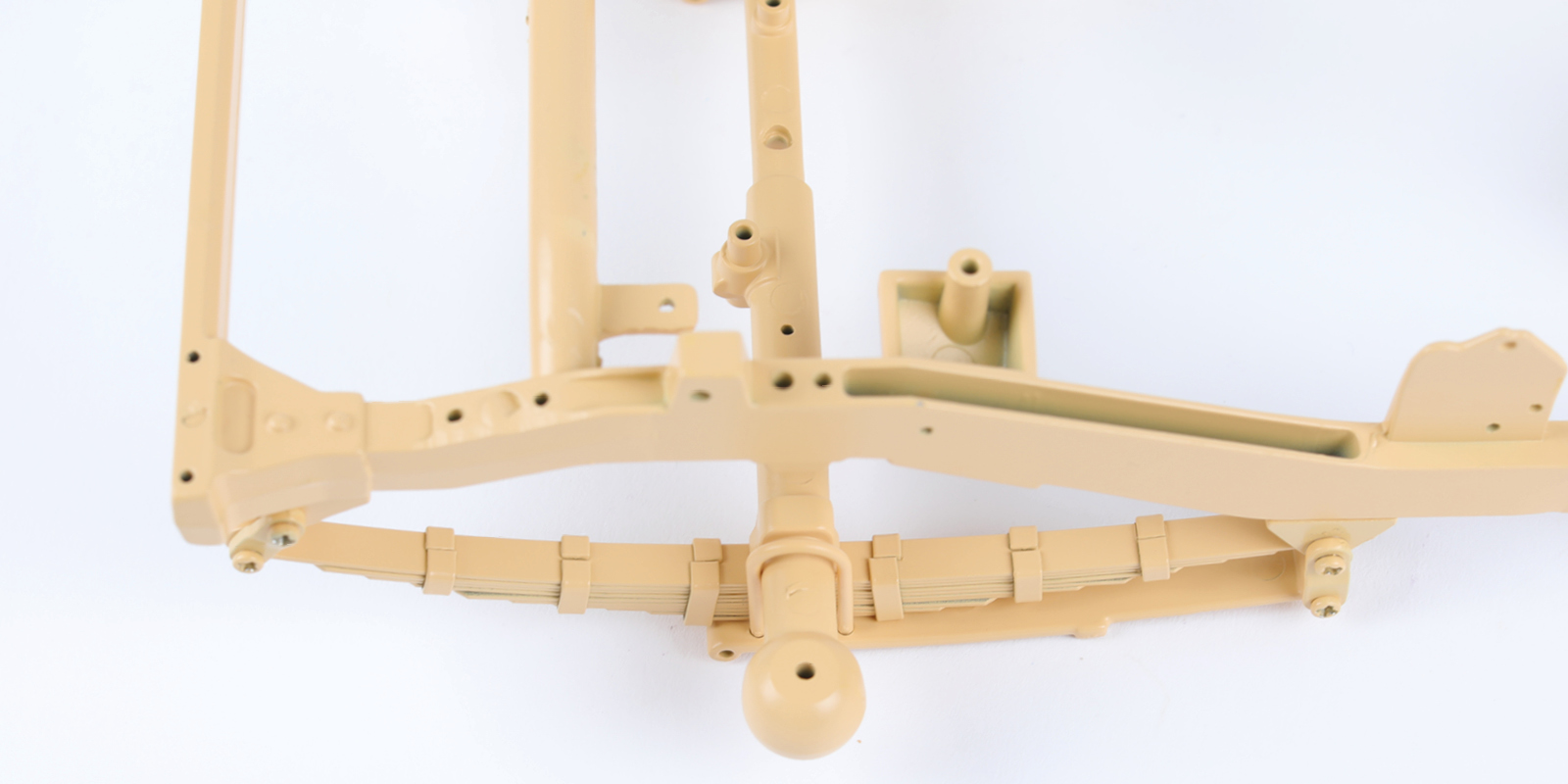

      Fit the other parts 14-B in place as shown.

      a
      b

      STAGE COMPLETE

      Stage 15: Building the differential

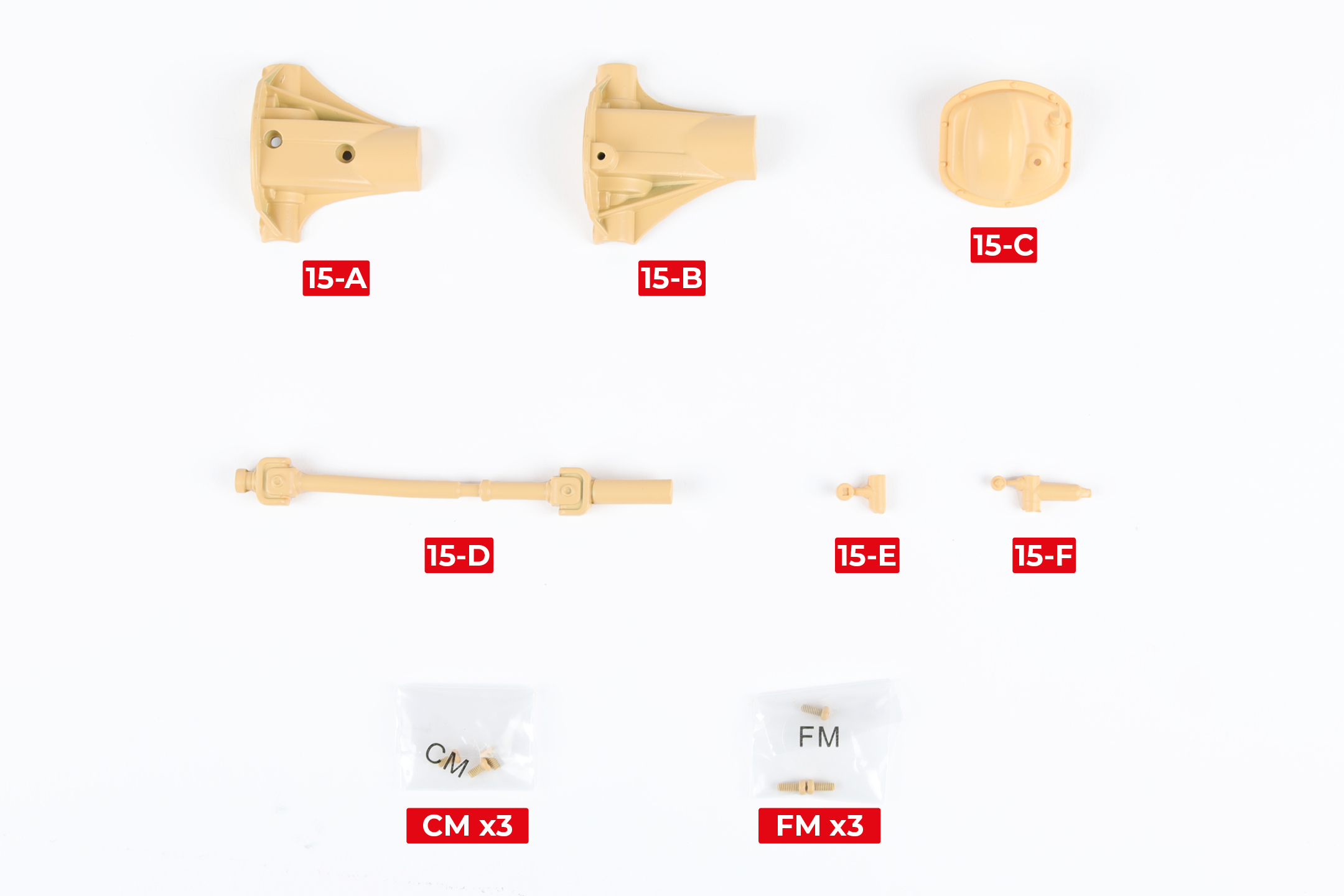

      STAGE 15 PARTS

      Step 1

      Cut part 15-F from the sprue.

      a

      Step 2

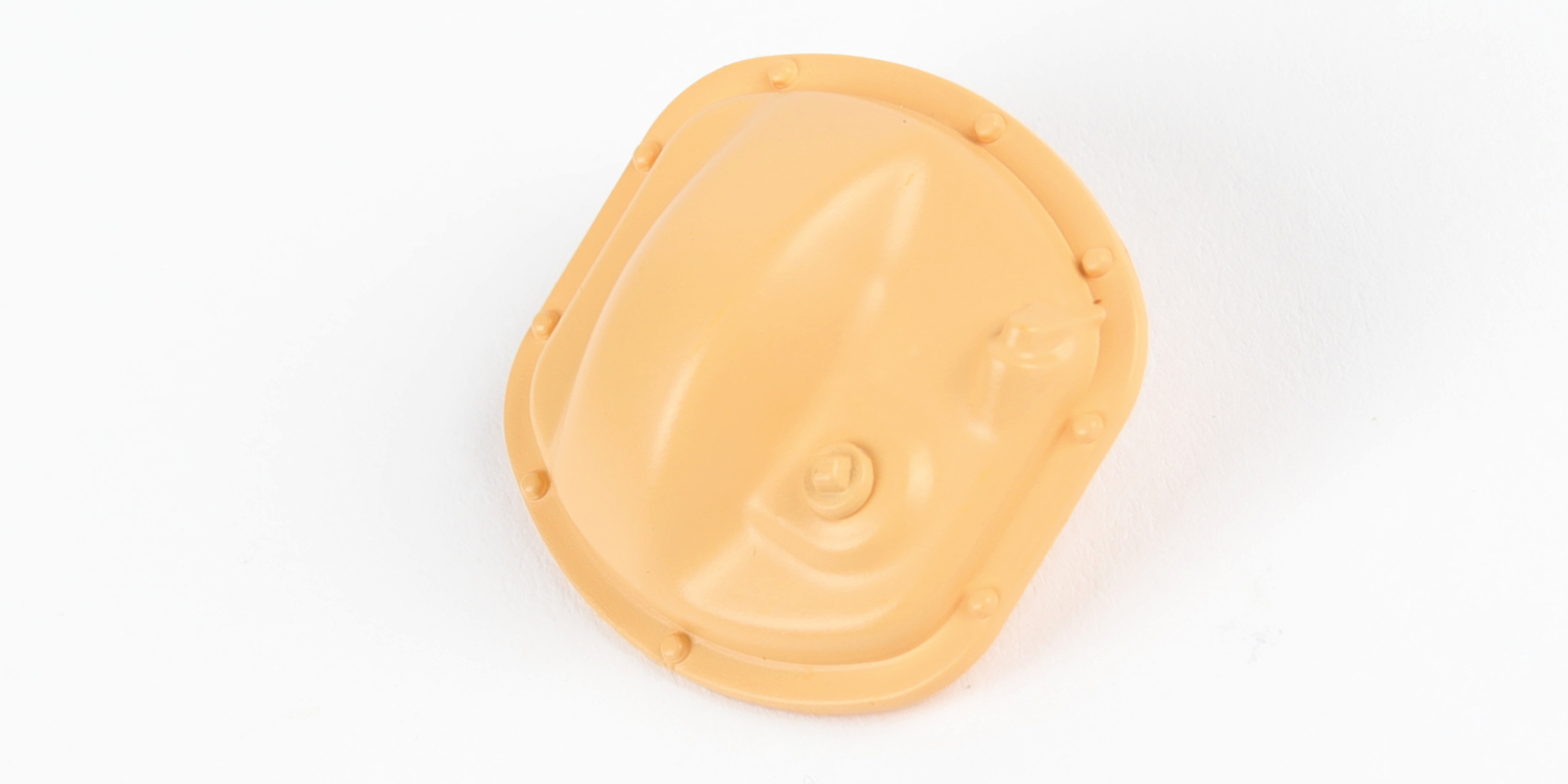

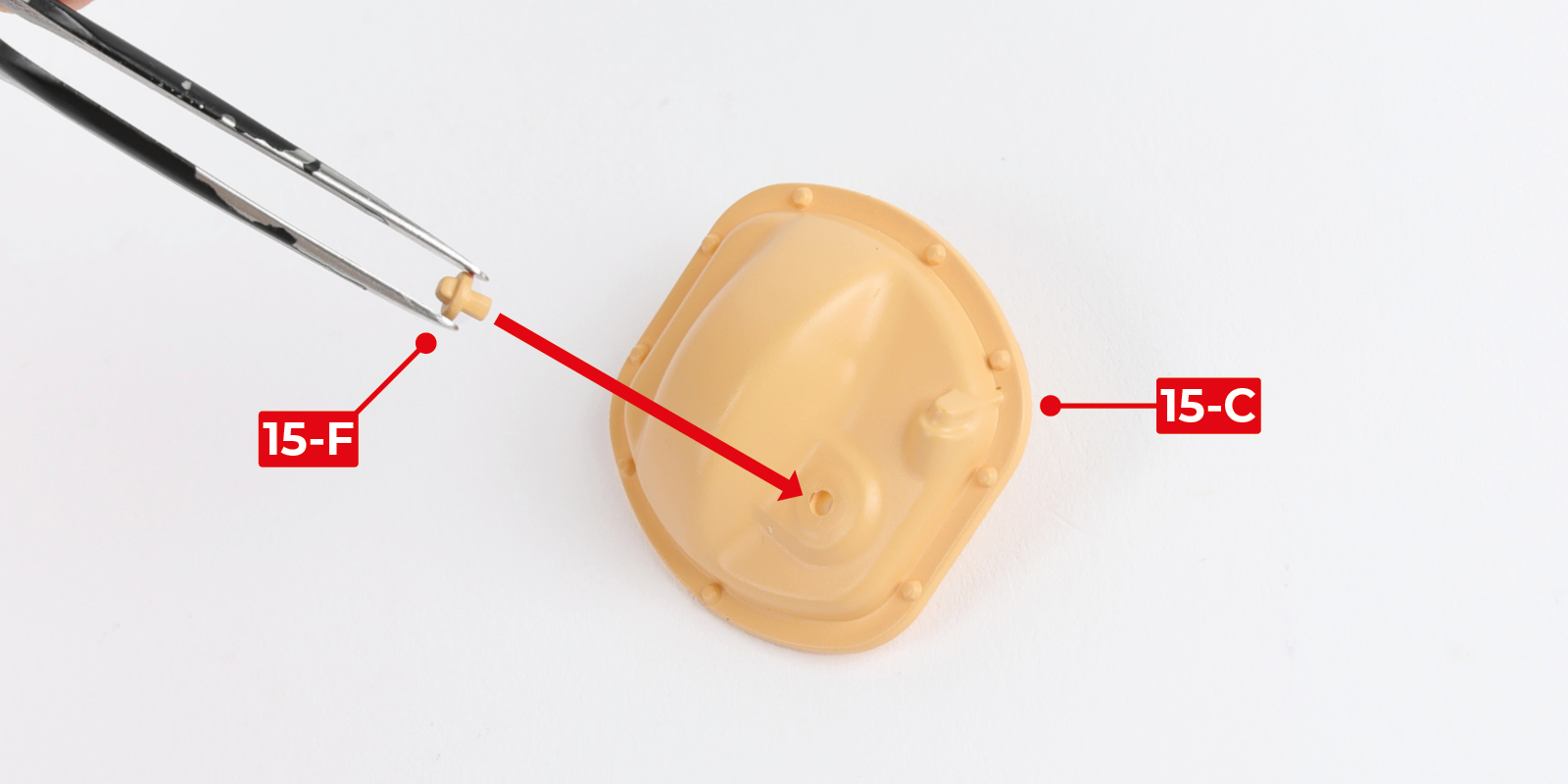

      Fit part 15-F to part 15-C.

      a
      b

      Step 3

      Cut part 15-E from the sprue.

      a

      Step 4

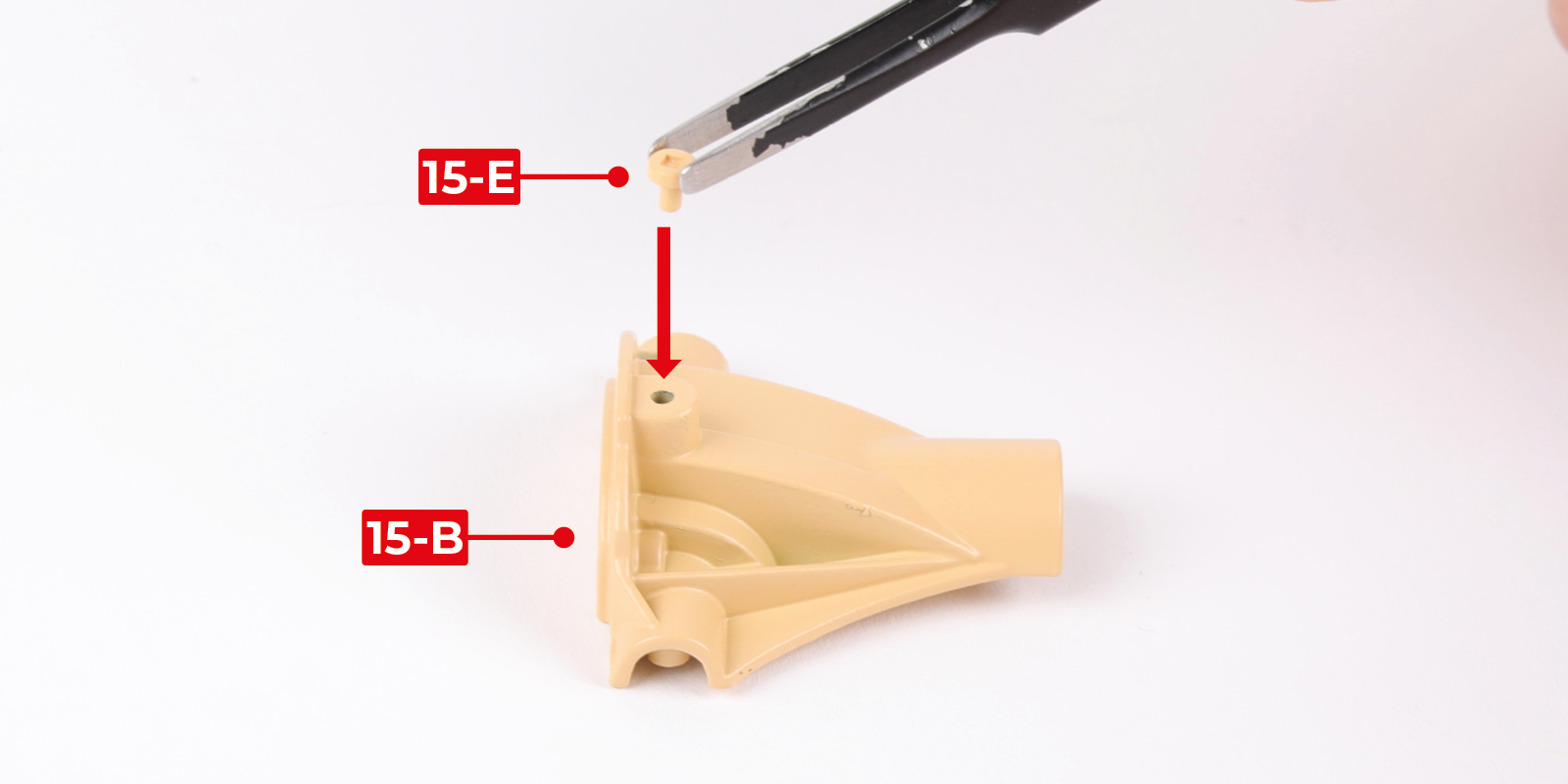

      Fit part 15-E to part 15-B.

      a
      b

      Step 5

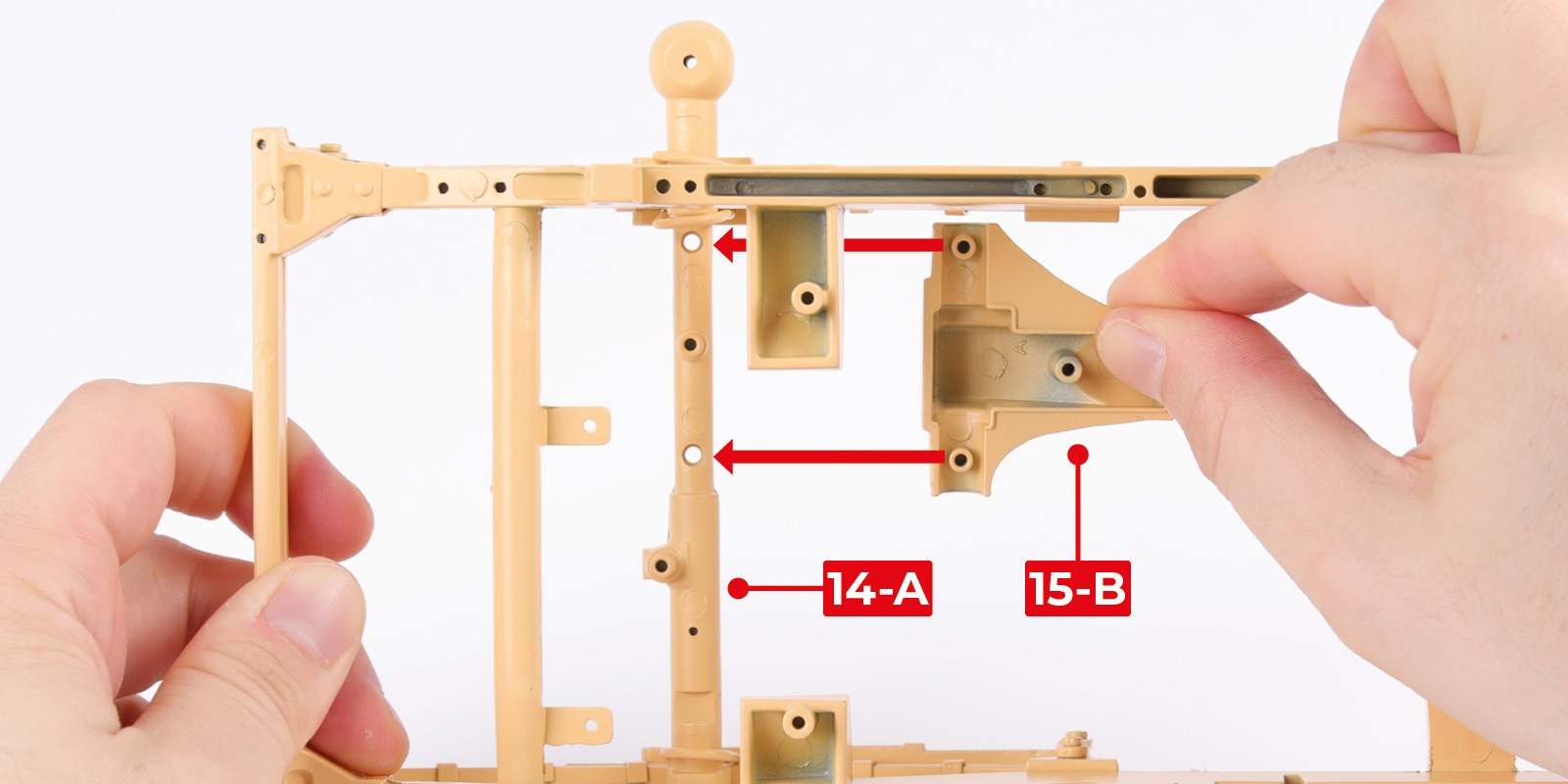

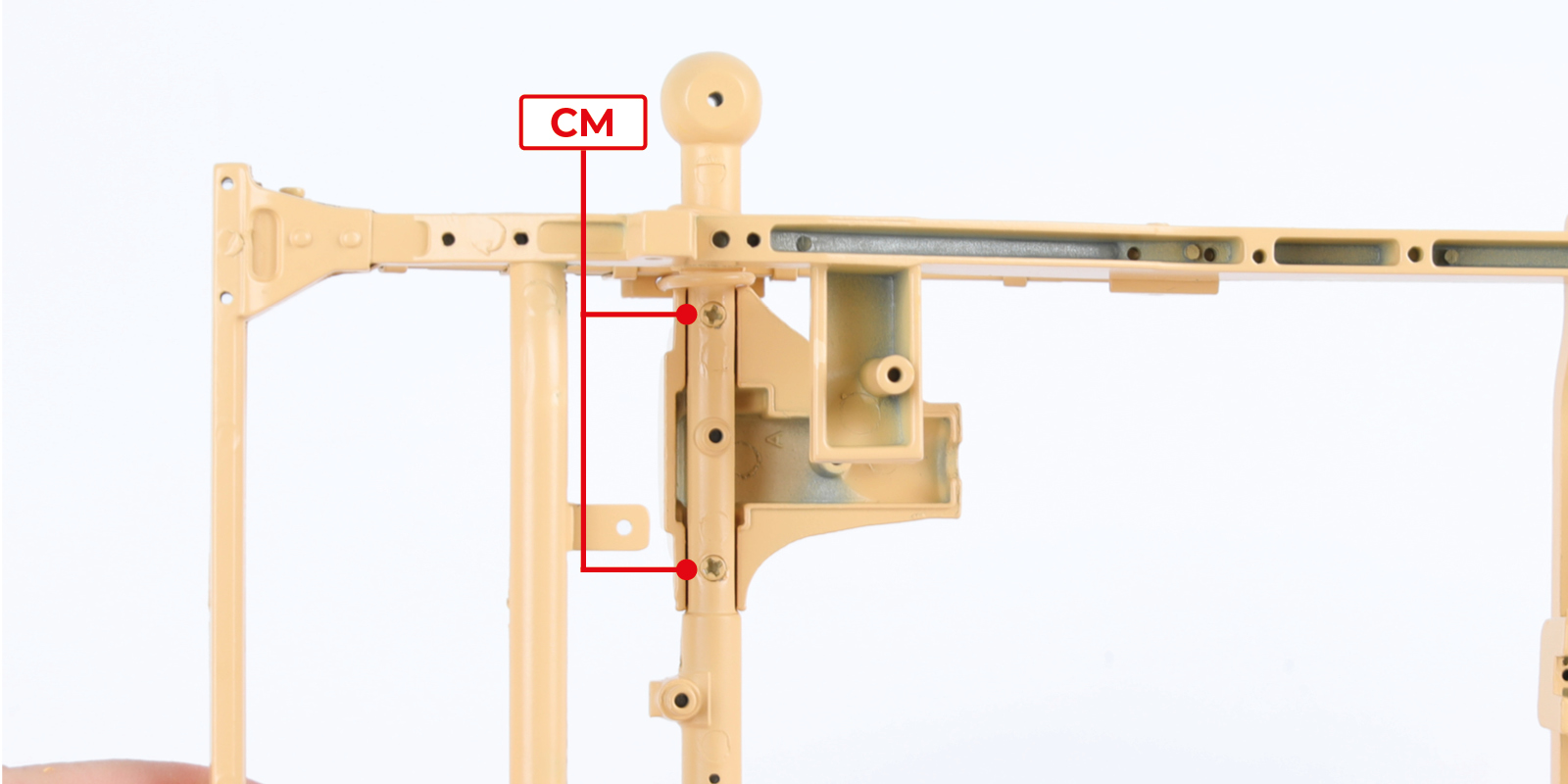

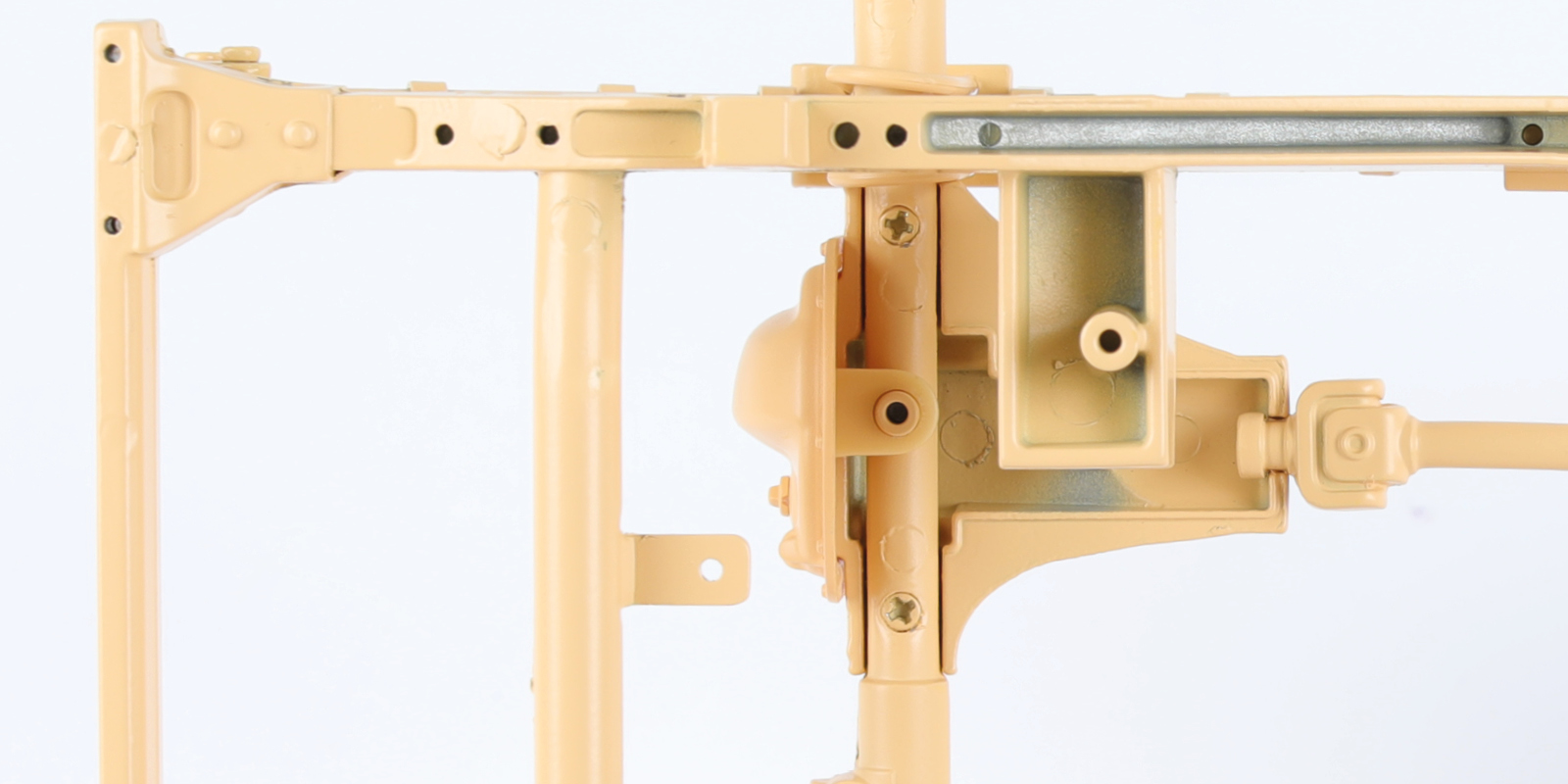

      Fit part 15-B to part 14-A with 2 CM screws.

      a
      b

      Step 6

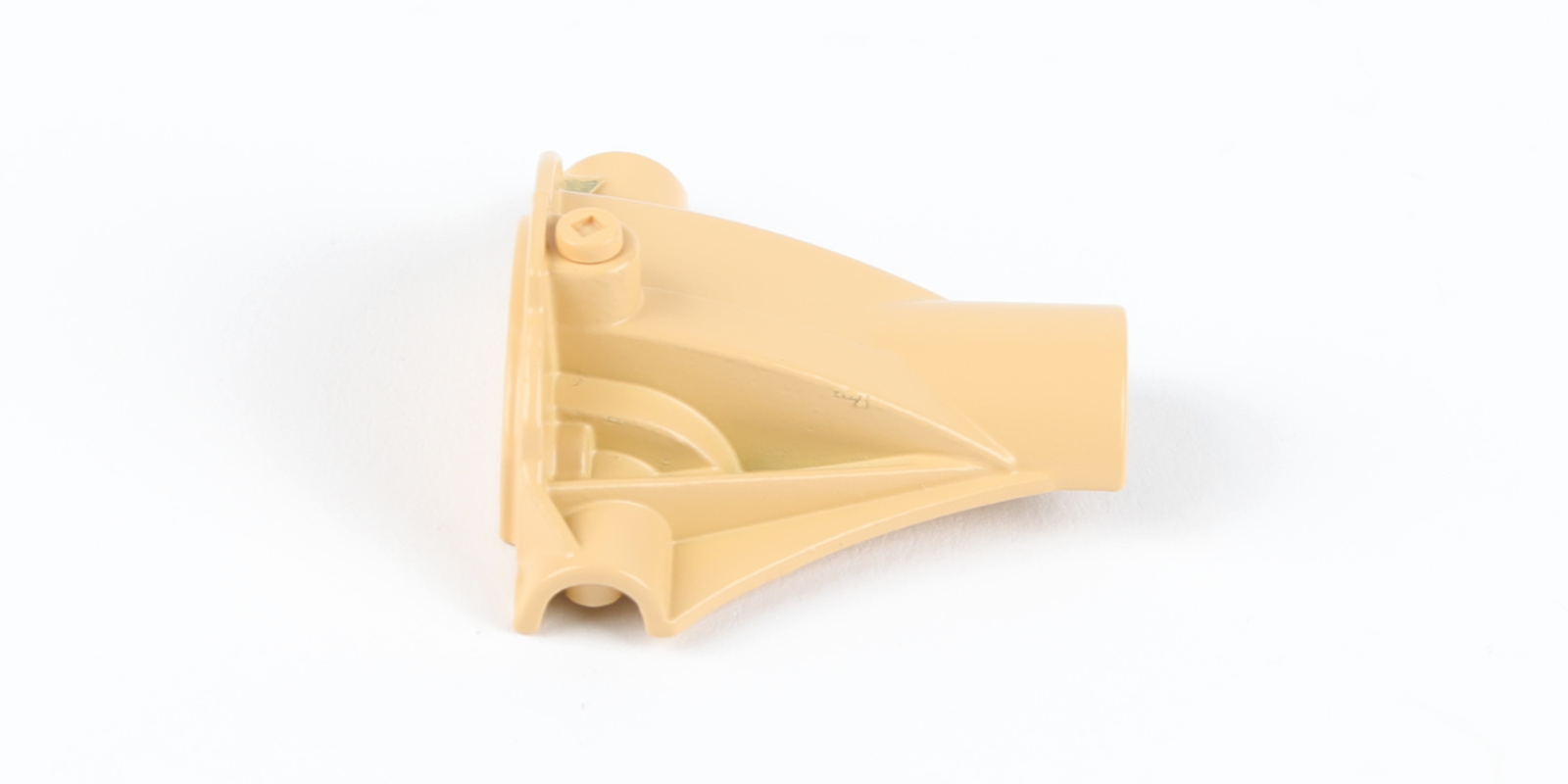

      Fit part 15-D into parts 11-C and 15-B.

      a
      b

      Step 7

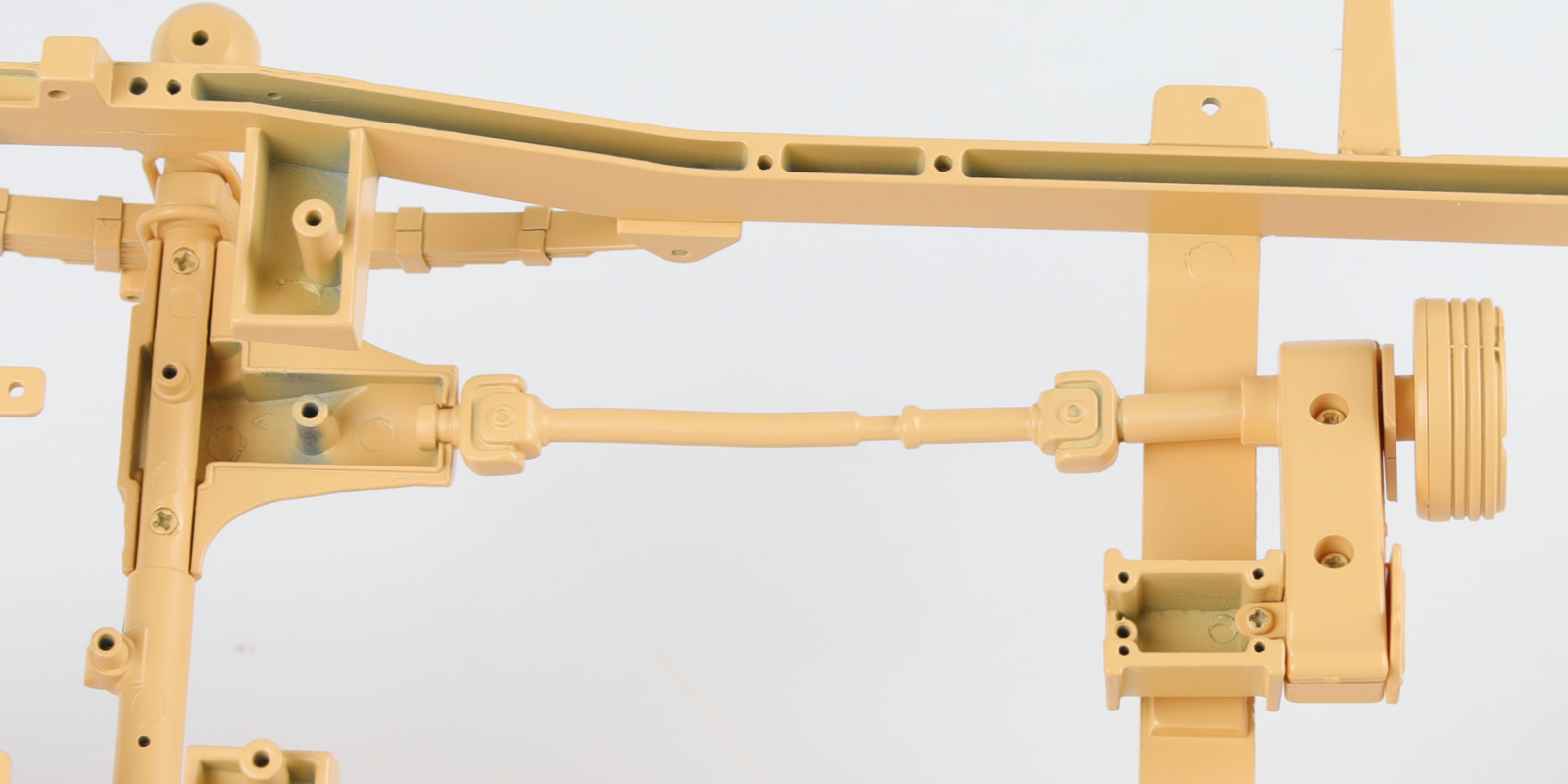

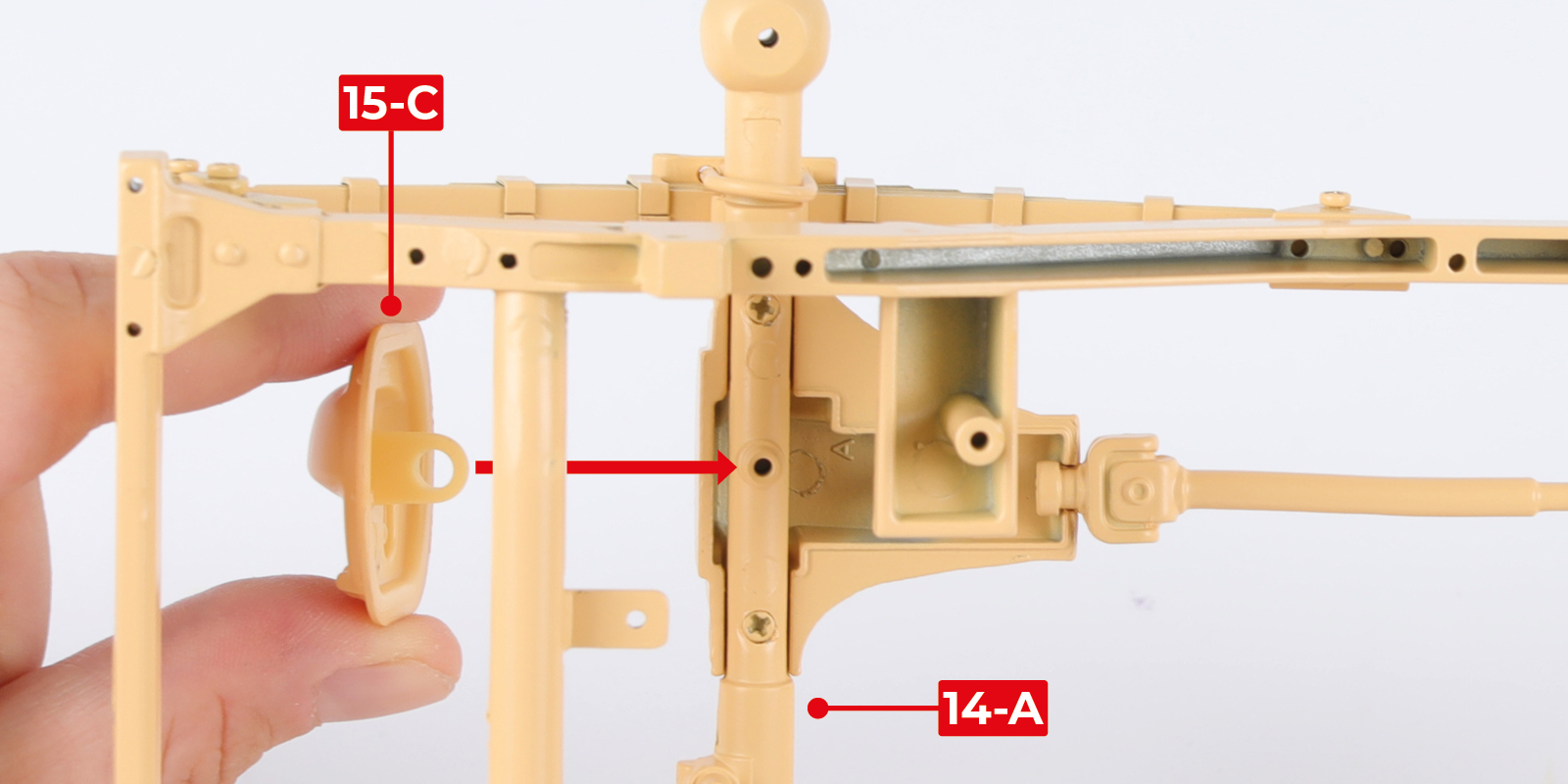

      Fit part 15-C to part 14-A.

      a
      b

      Step 8

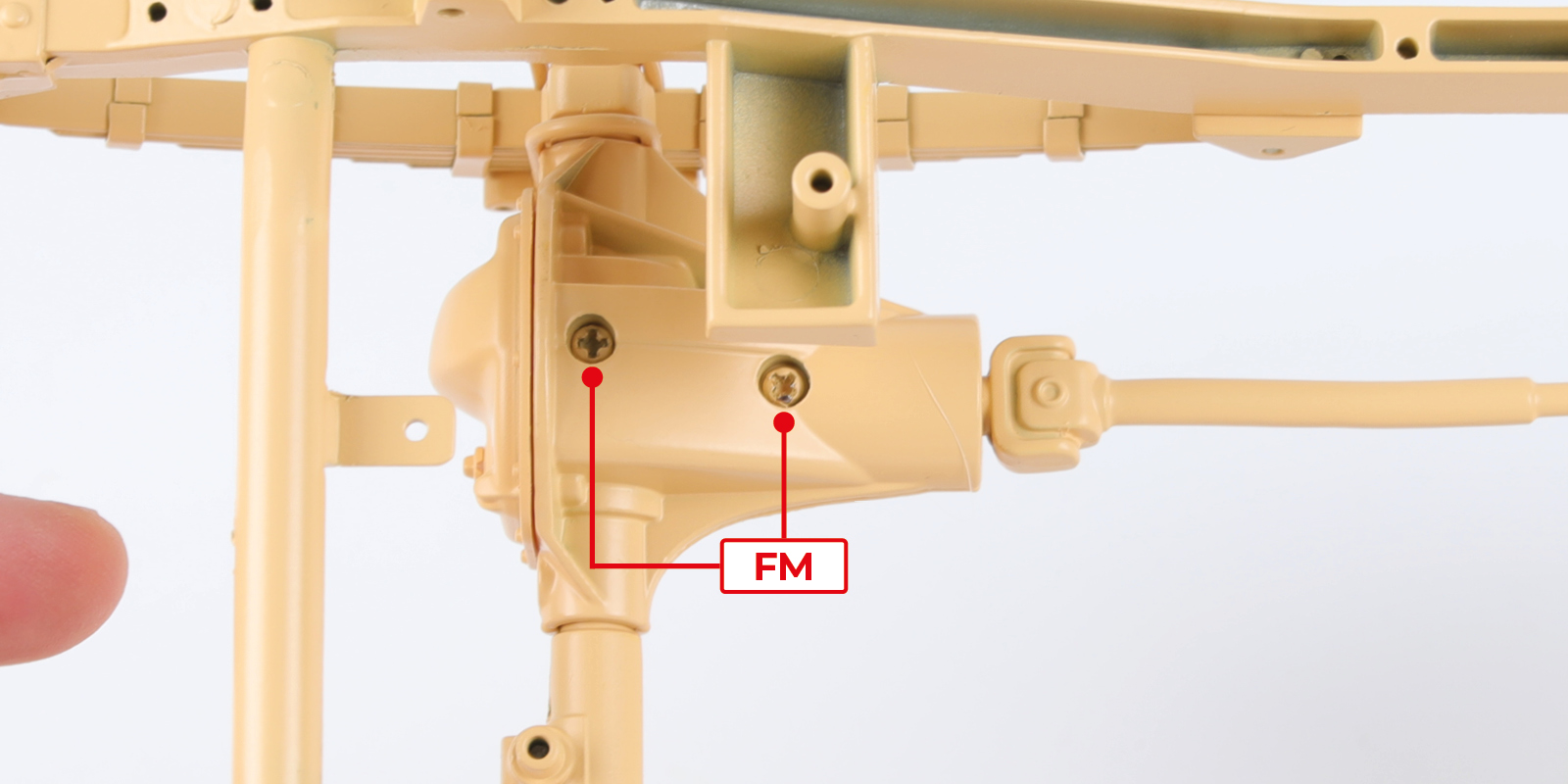

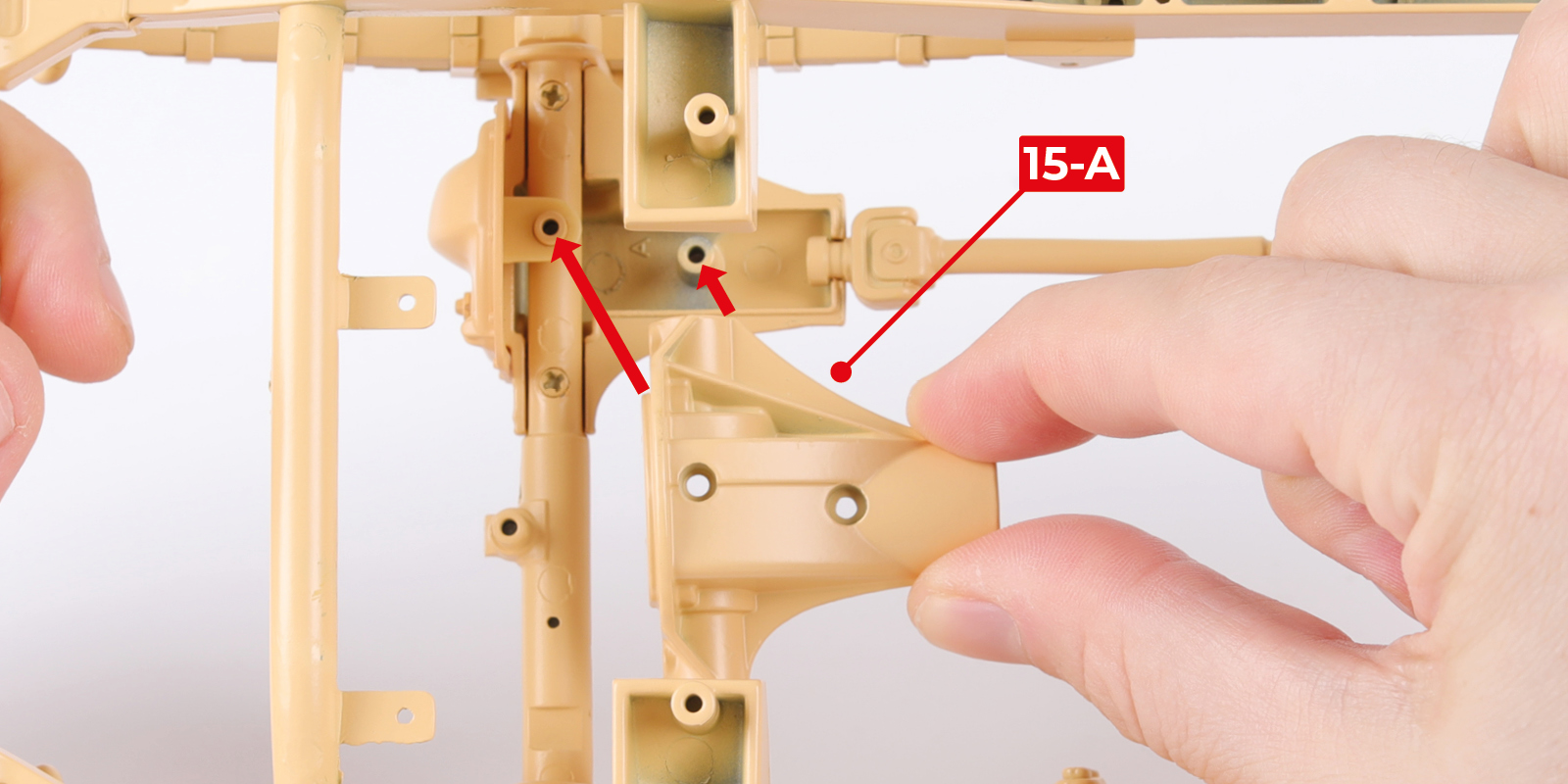

      Fit part 15-A to the assembly with 2 FM screws.

      a
      b

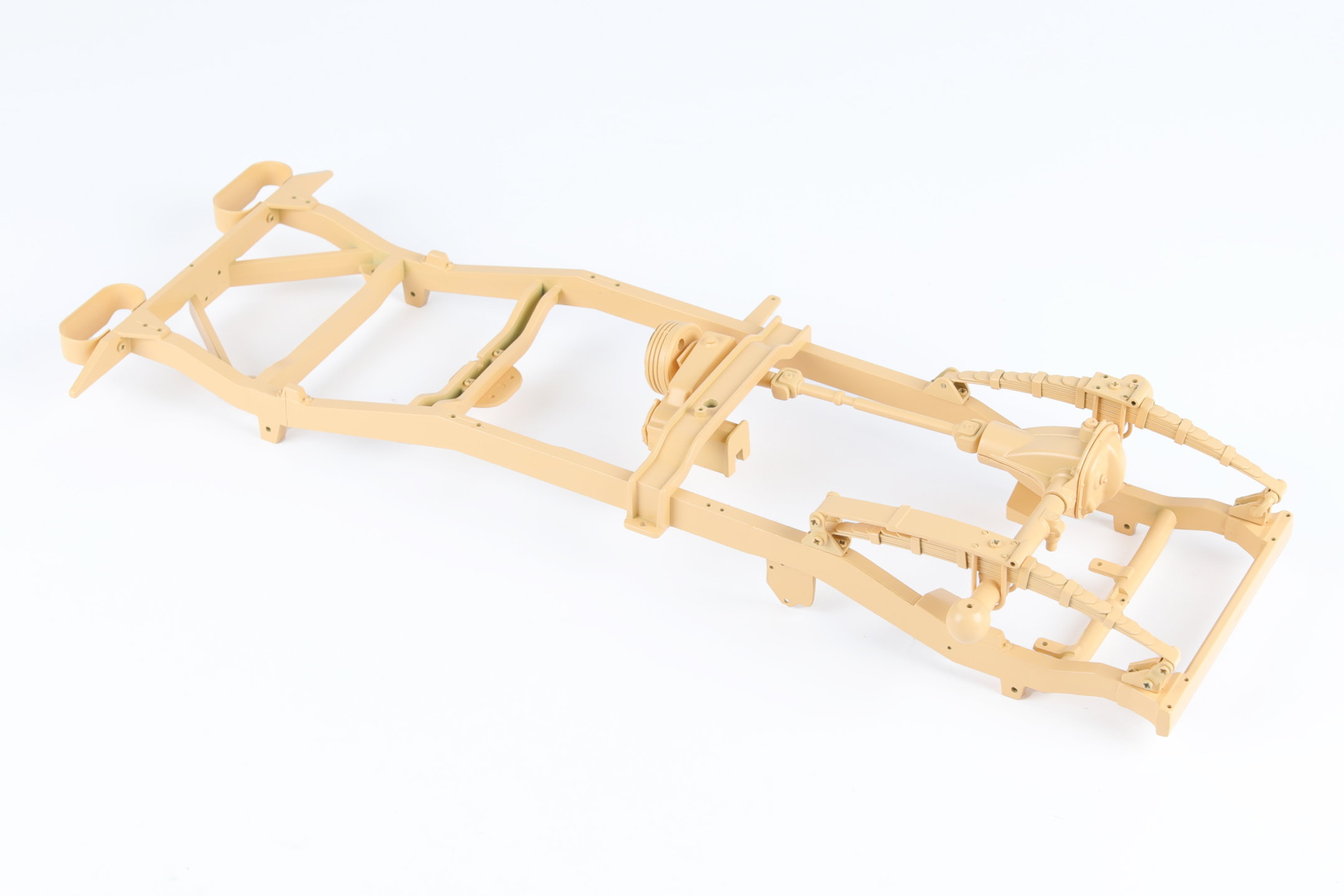

      STAGE COMPLETE

      Stage 16: Fitting the front shock absorbers

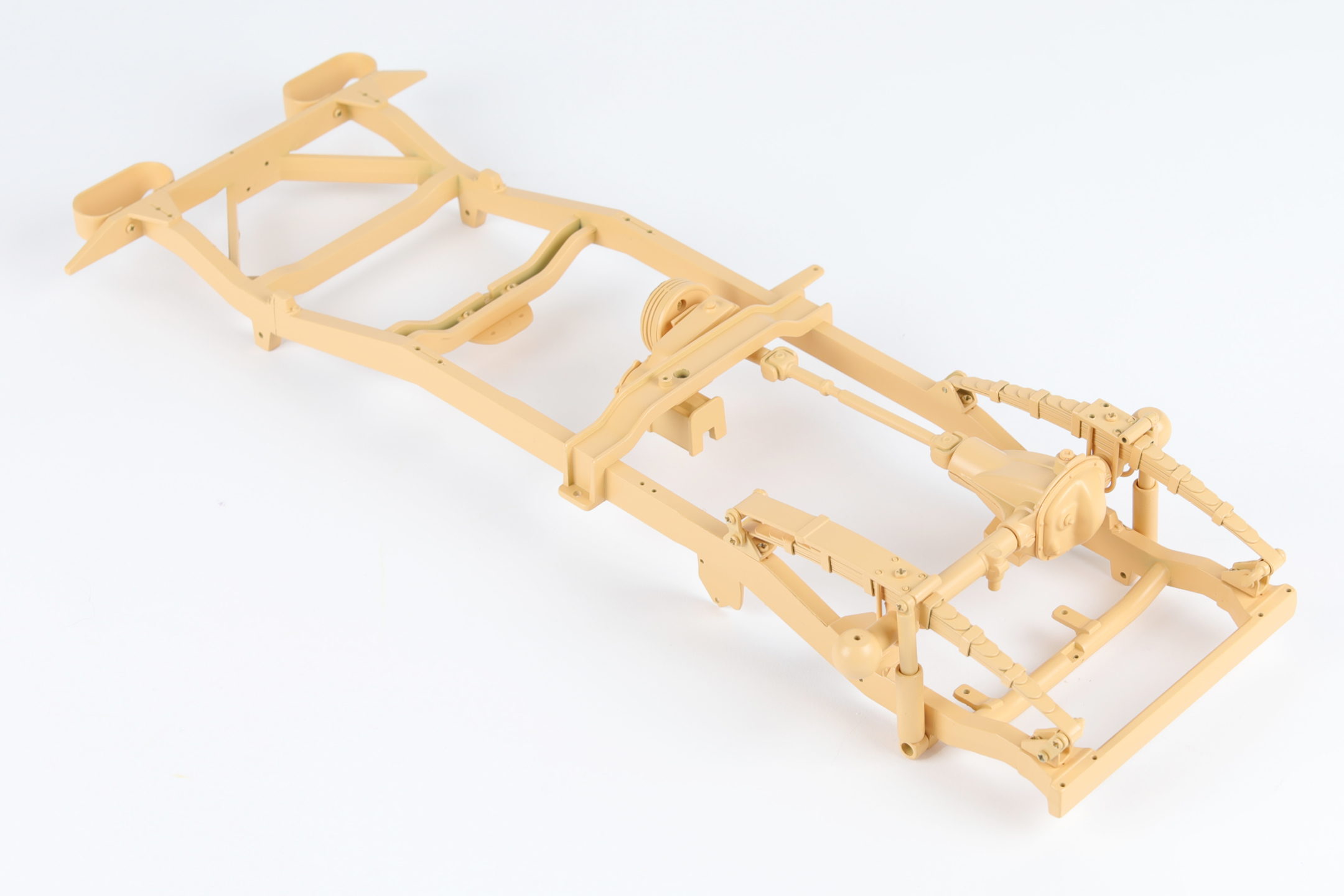

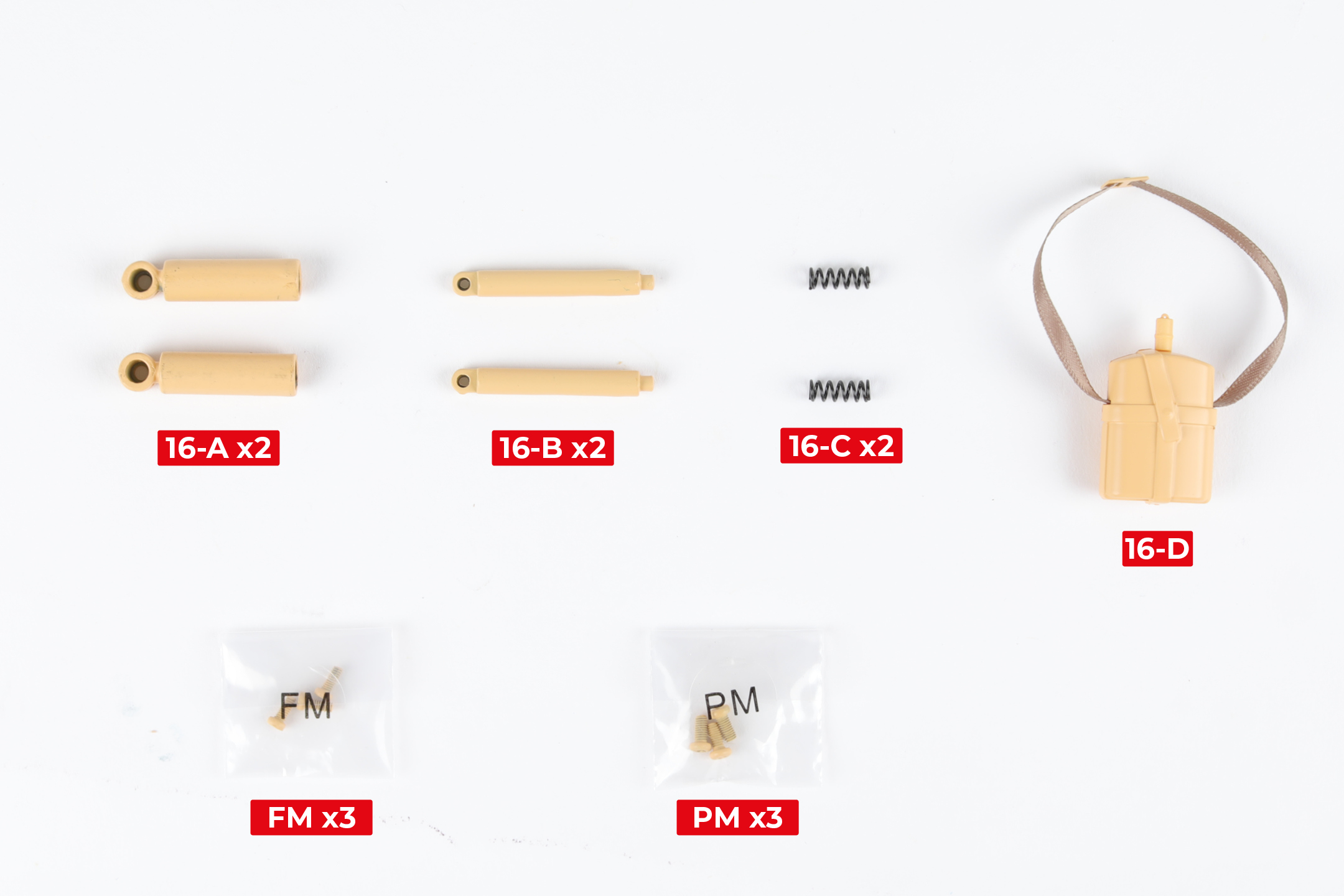

      STAGE 16 PARTS

      Step 1

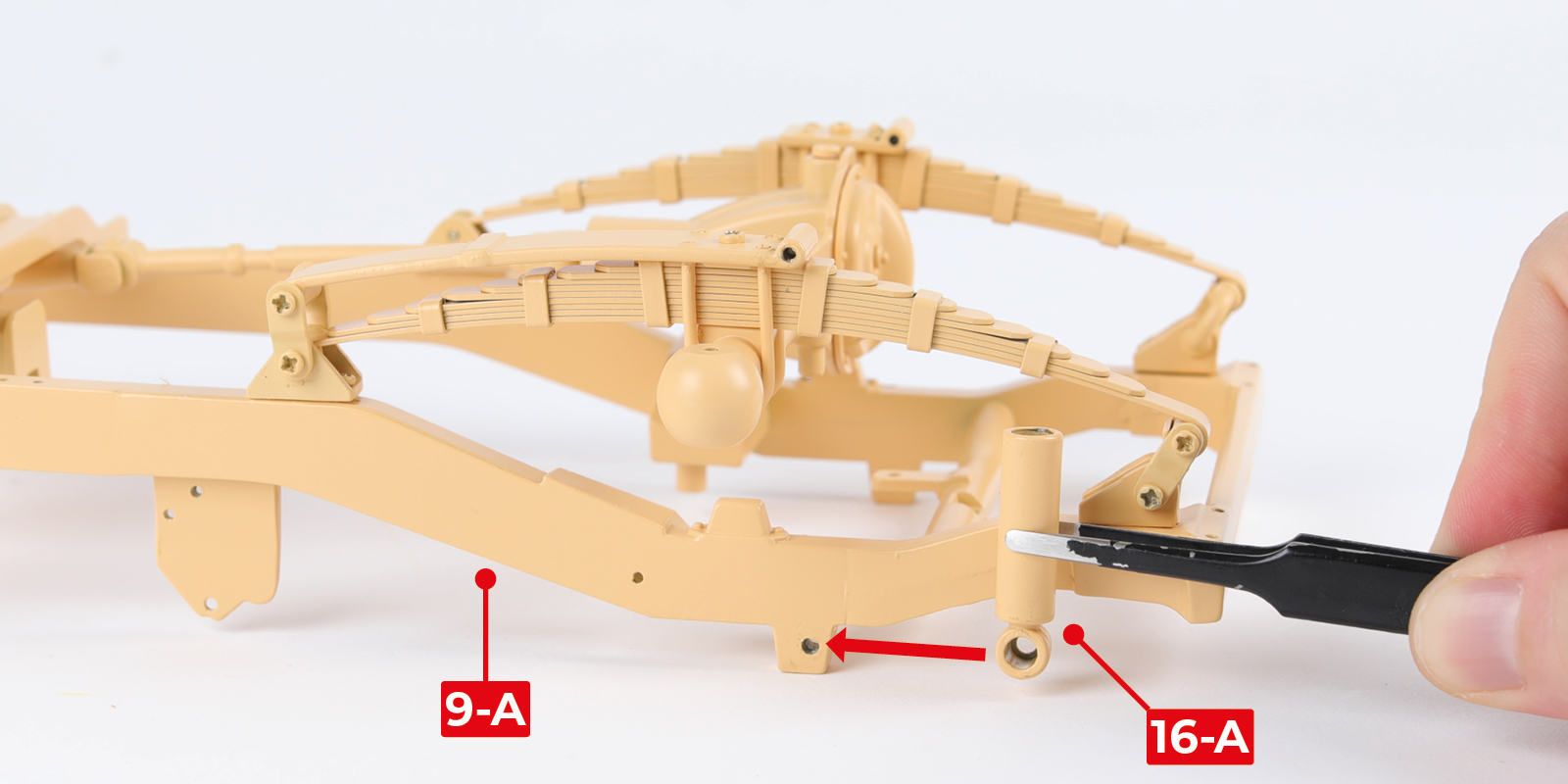

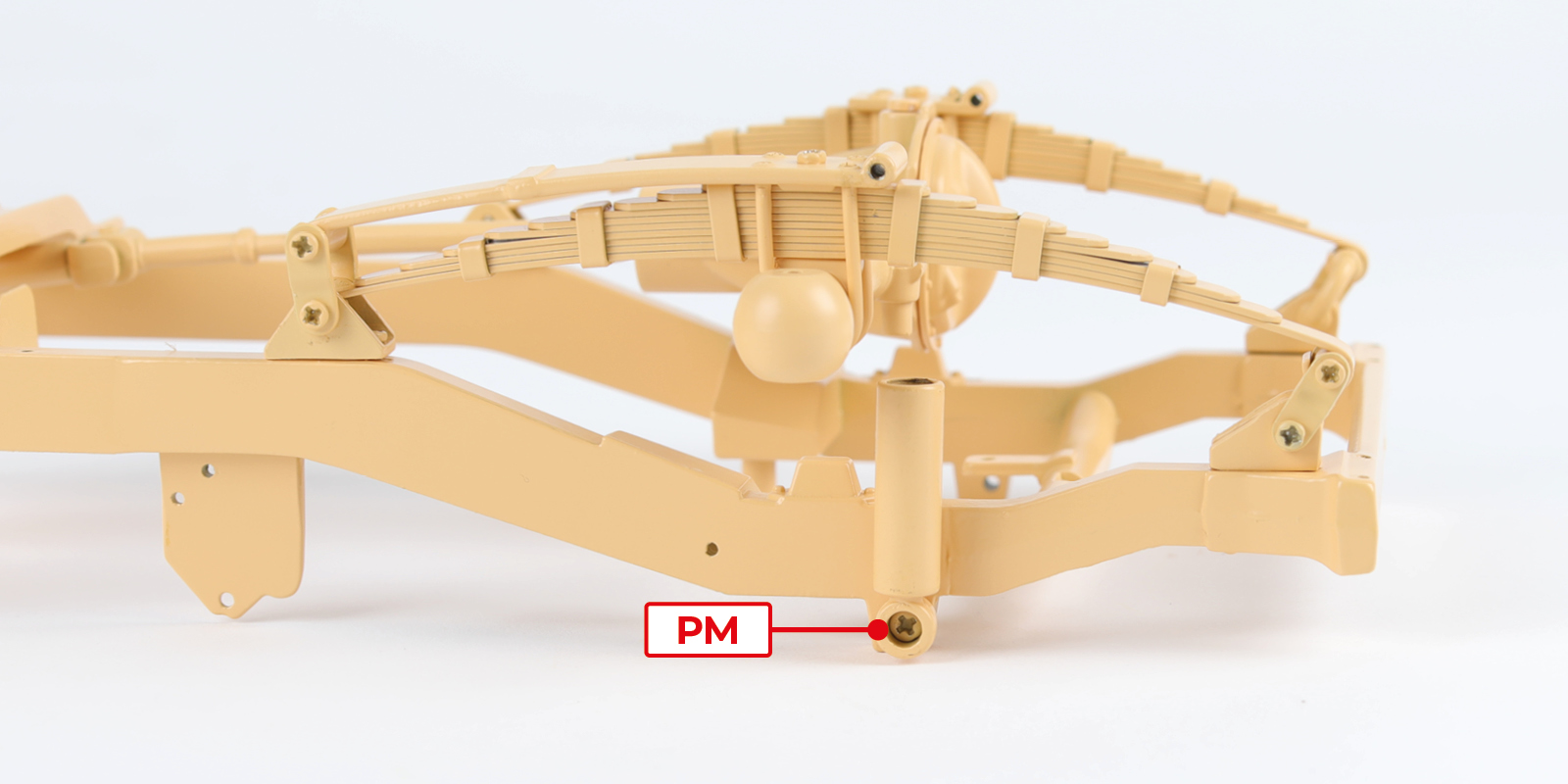

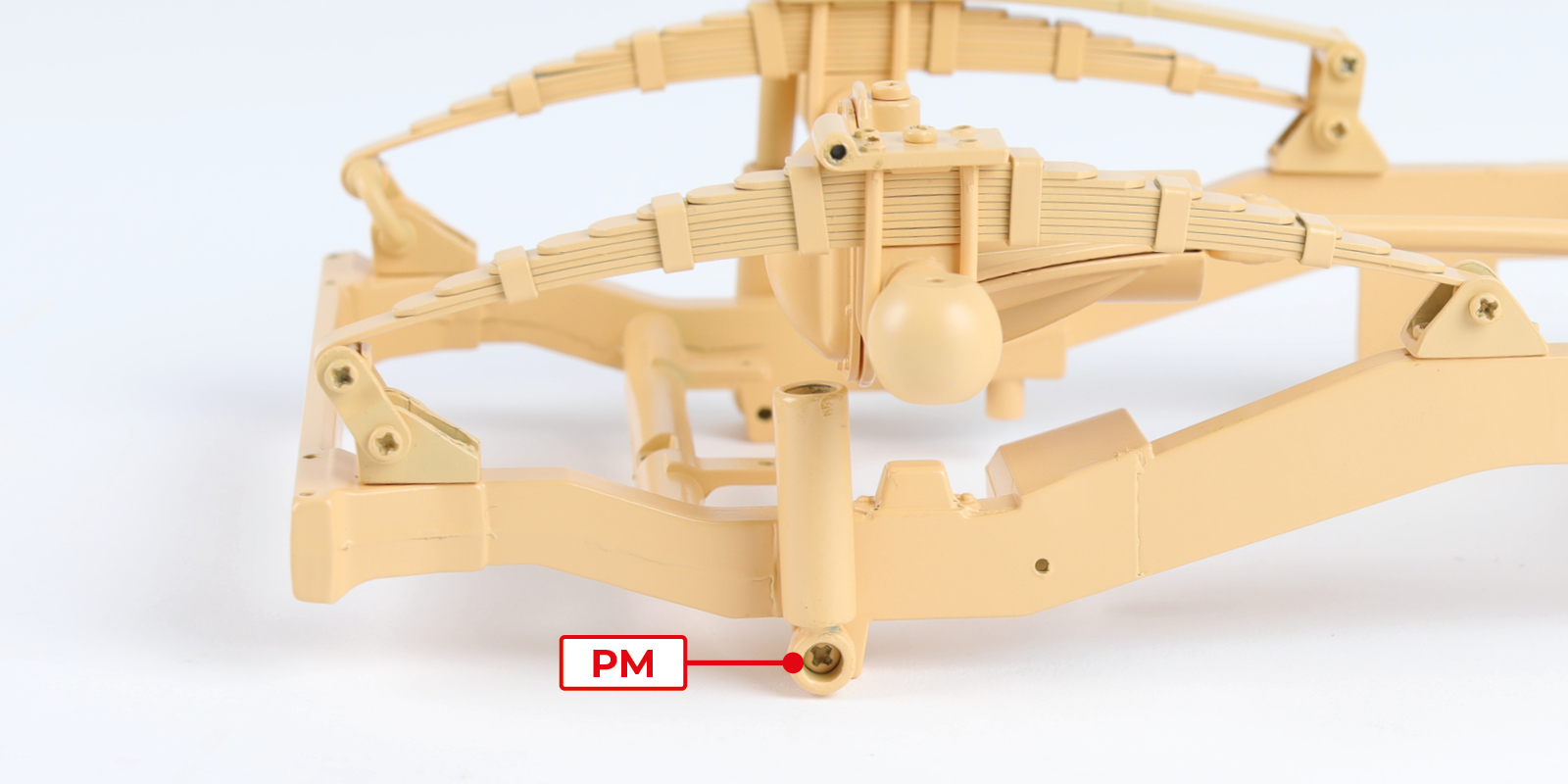

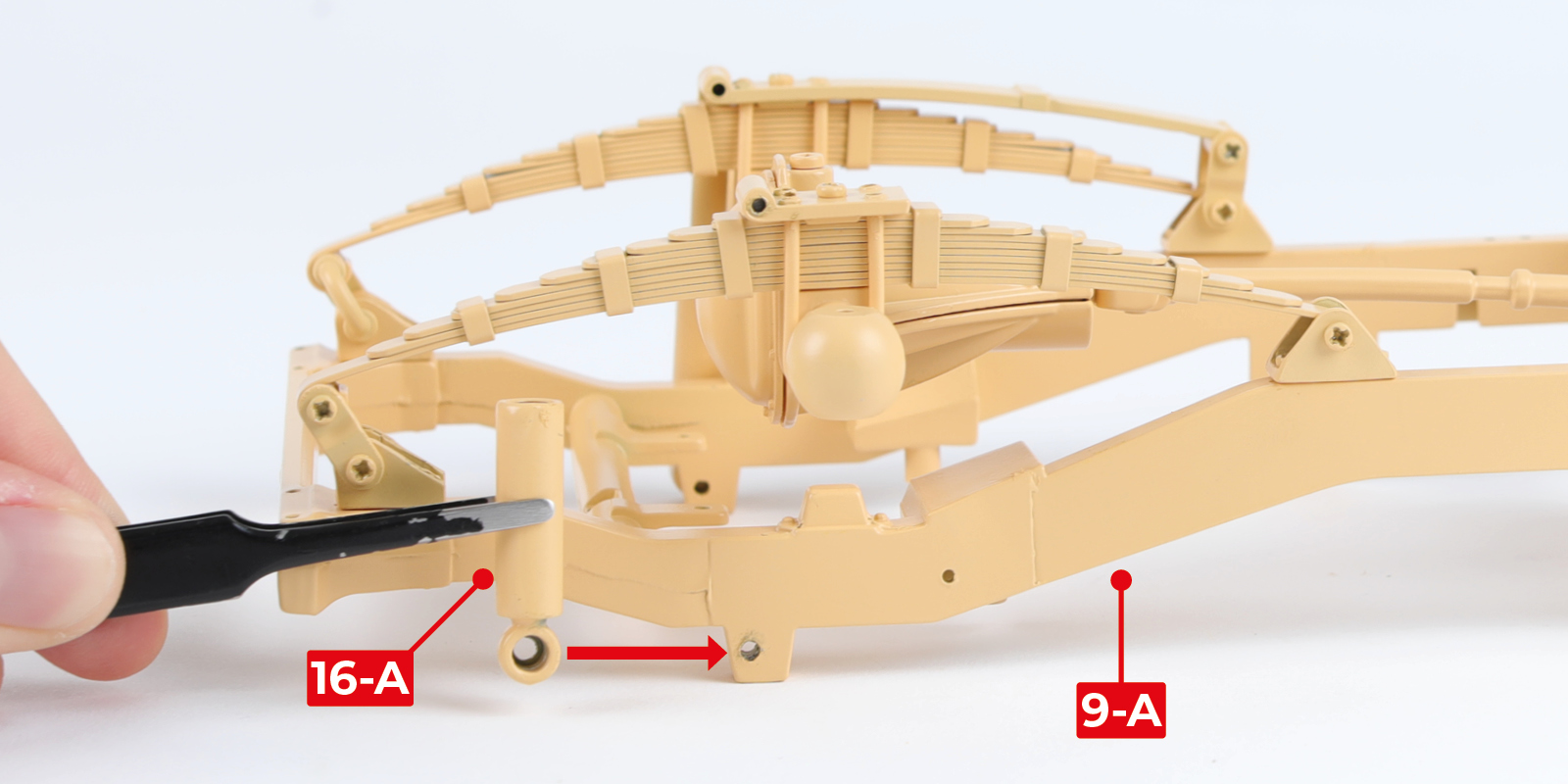

      Fit part 16-A to part 9-A with 1 PM screw.

      a
      b

      Step 2

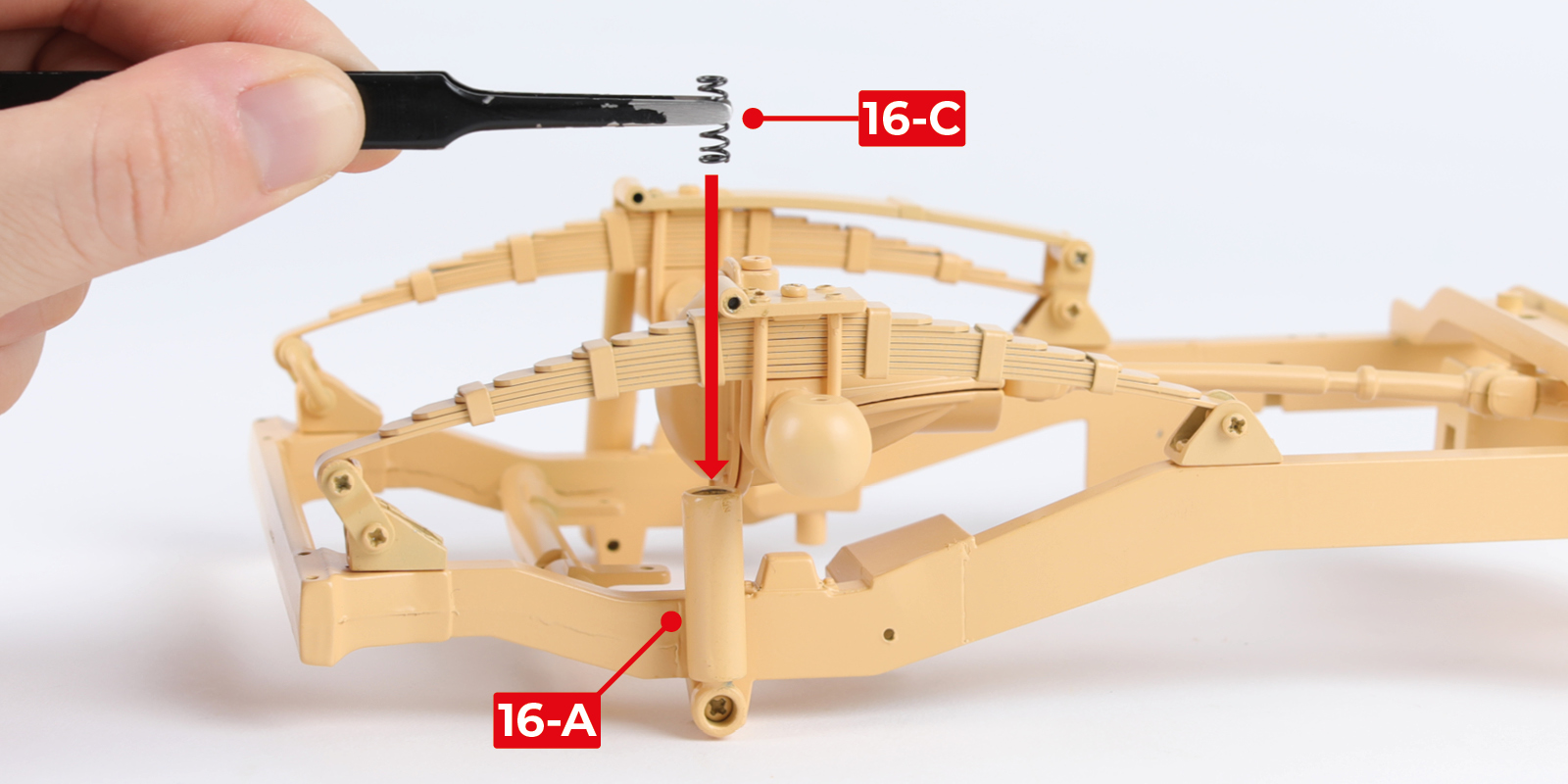

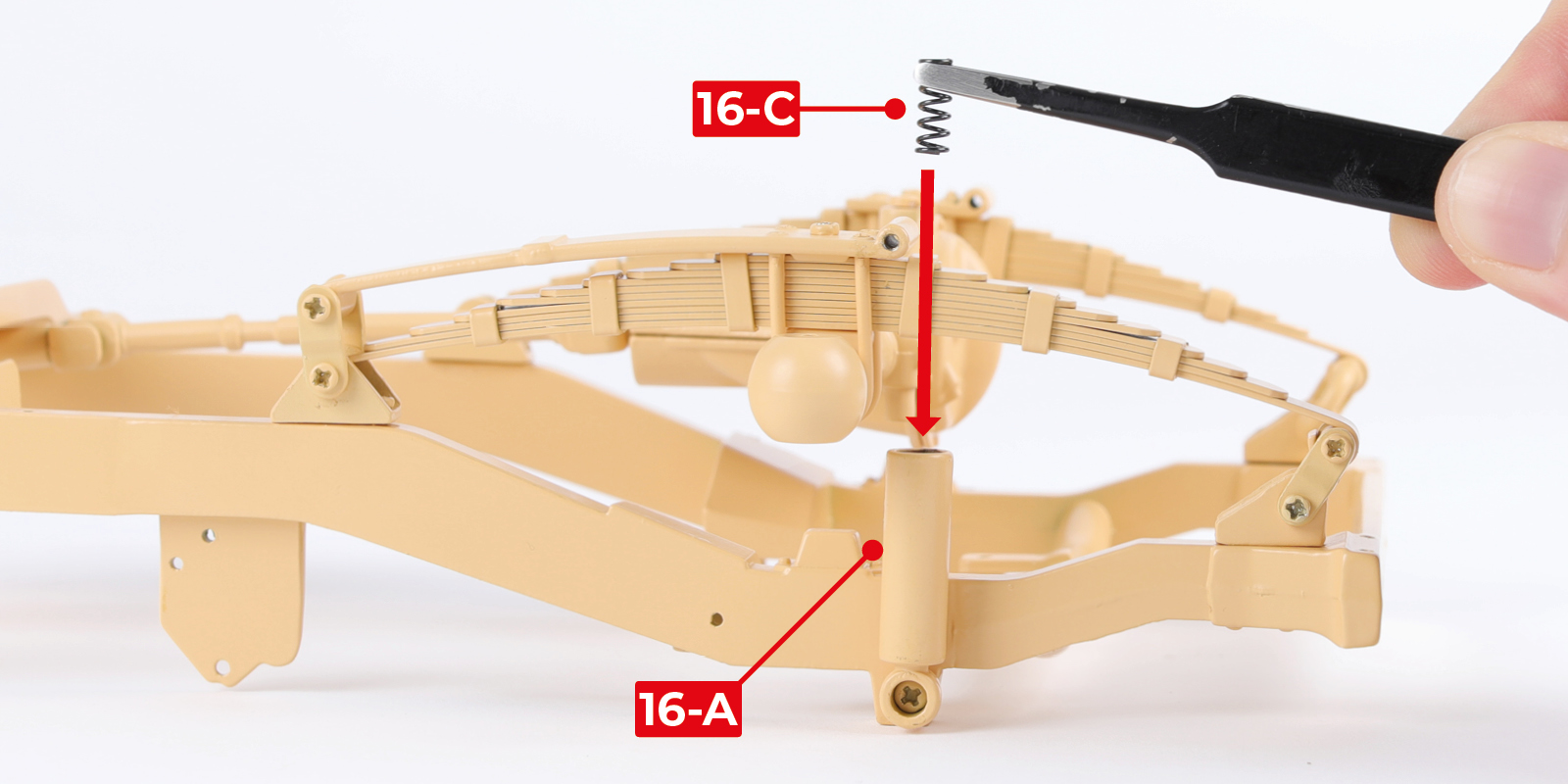

      Insert part 16-C into part 16-A.

      a

      Step 3

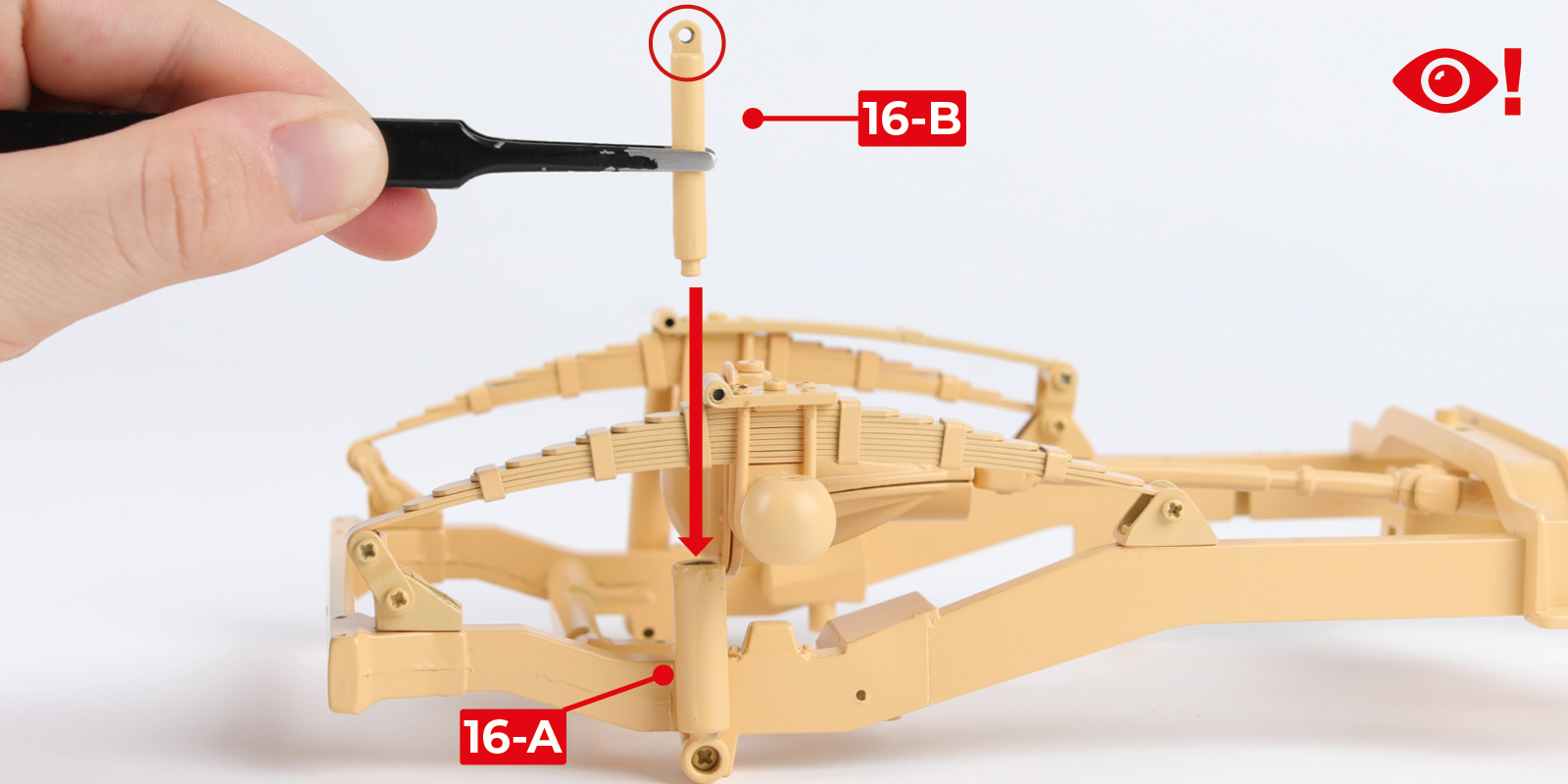

      Fit part 16-B into part 16-A. Make sure the flat side (circled) is facing outwards.

      Fix part 16-B to part 14-D with 1 FM screw.

      a
      b

      Step 4

      Fit part 16-A to the other side of part 9-A with 1 PM screw.

      a
      b

      Step 5

      Insert part 16-C into part 16-A.

      a

      Step 6

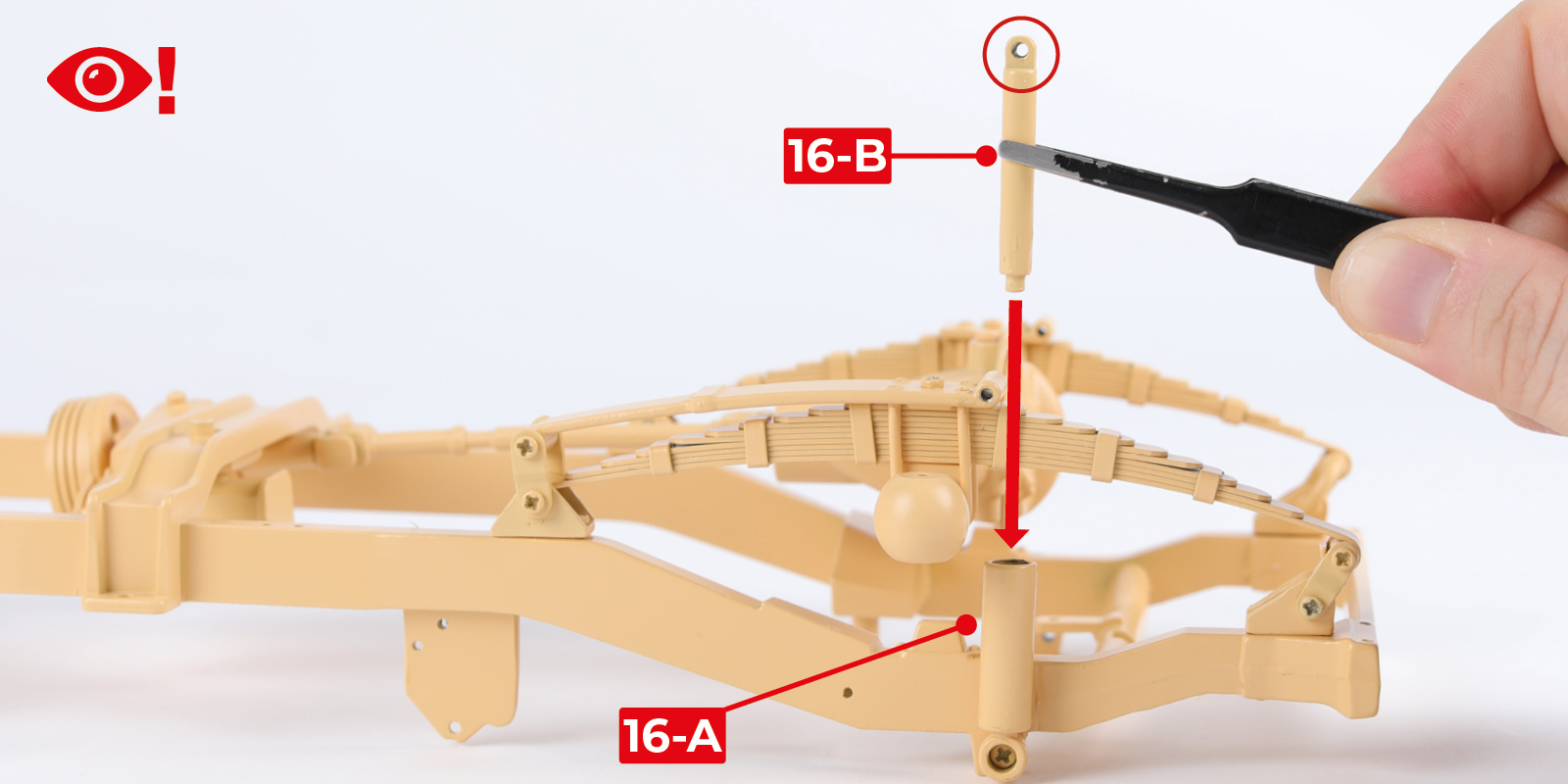

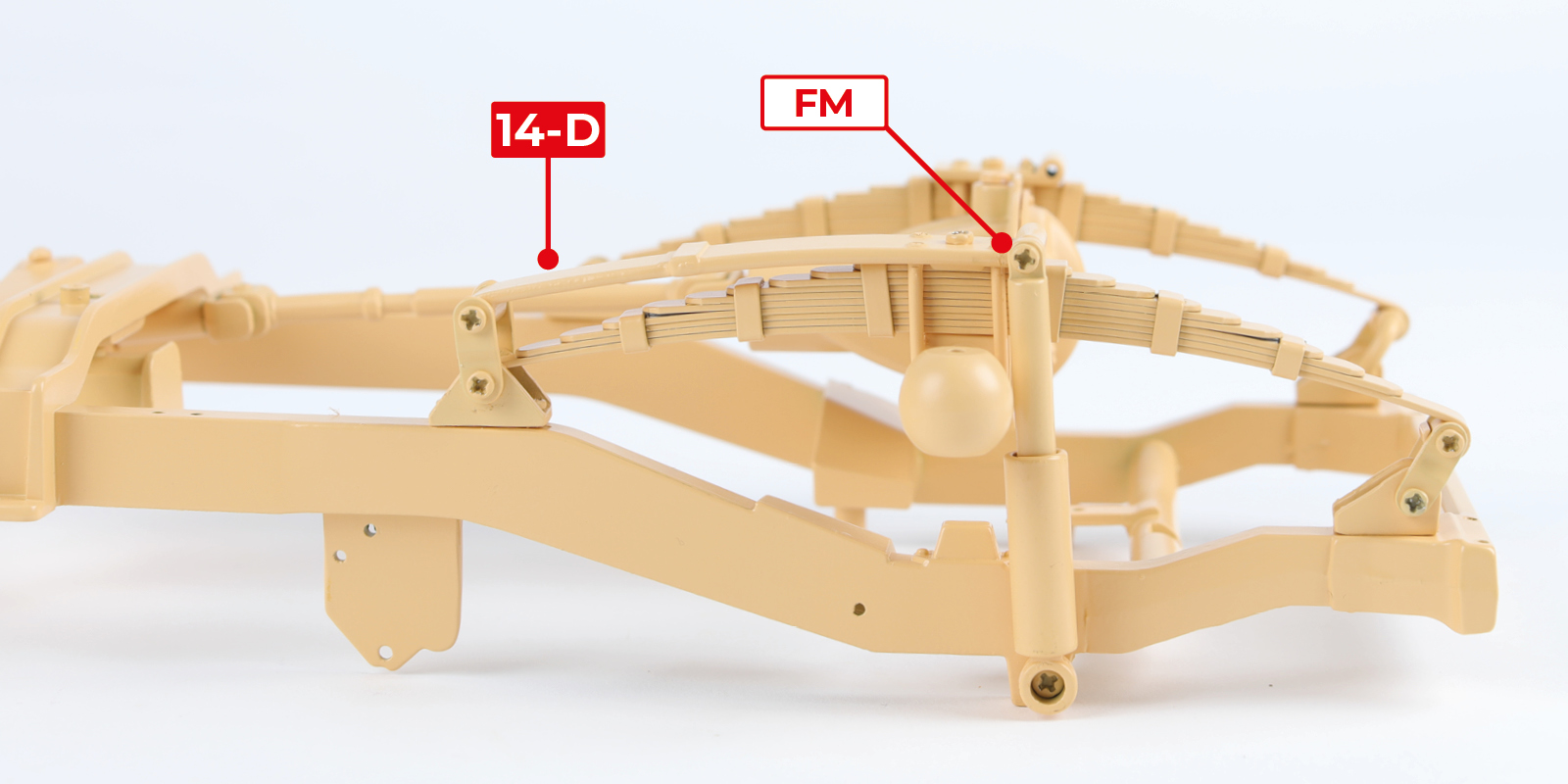

      Fit part 16-B into part 16-A. Make sure the flat side (circled) is facing outwards.

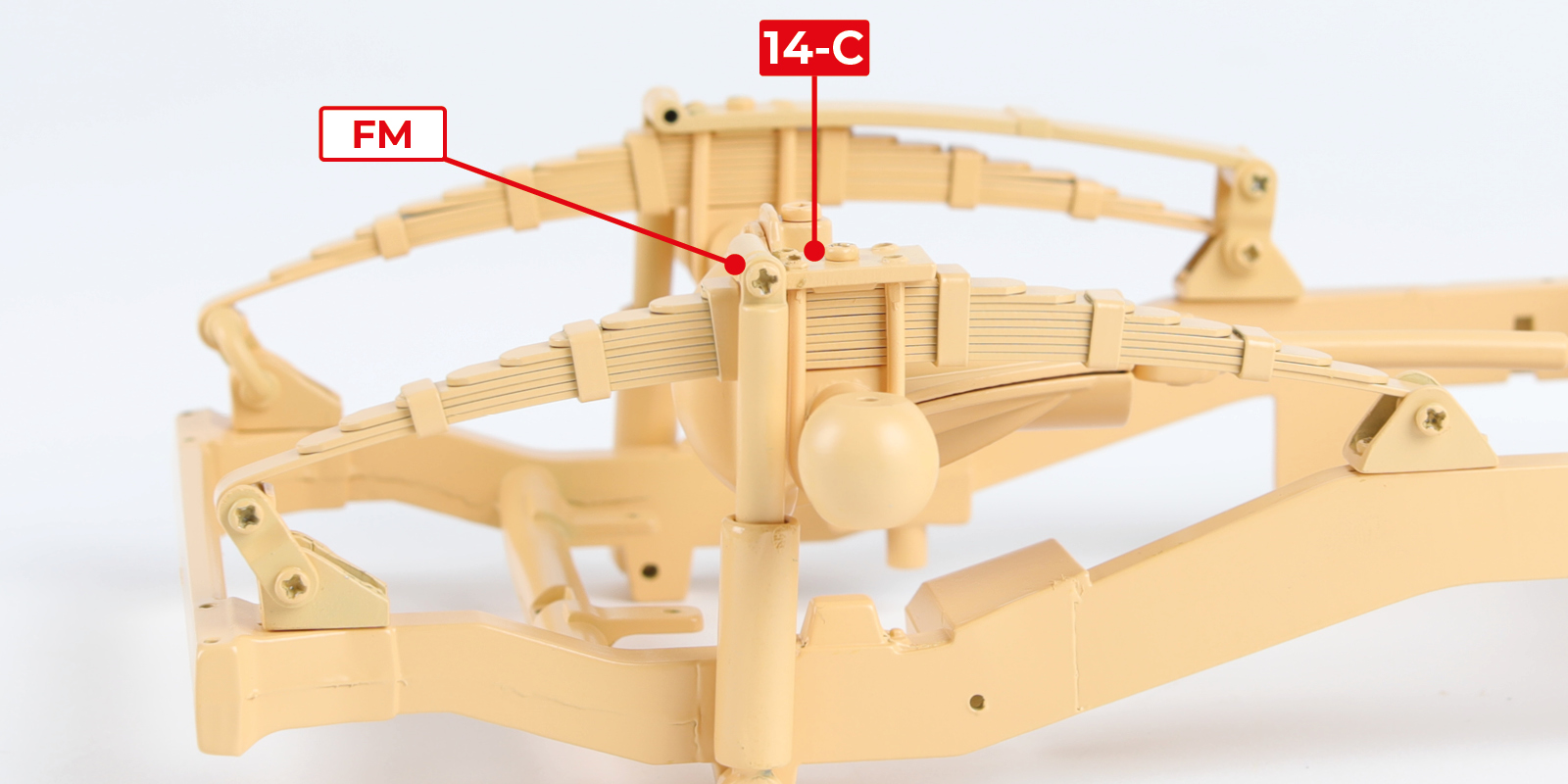

      Fix part 16-B to part 14-C with 1 FM screw.

      a
      b

      STAGE COMPLETE

      Stage 17: Fitting the steering gear

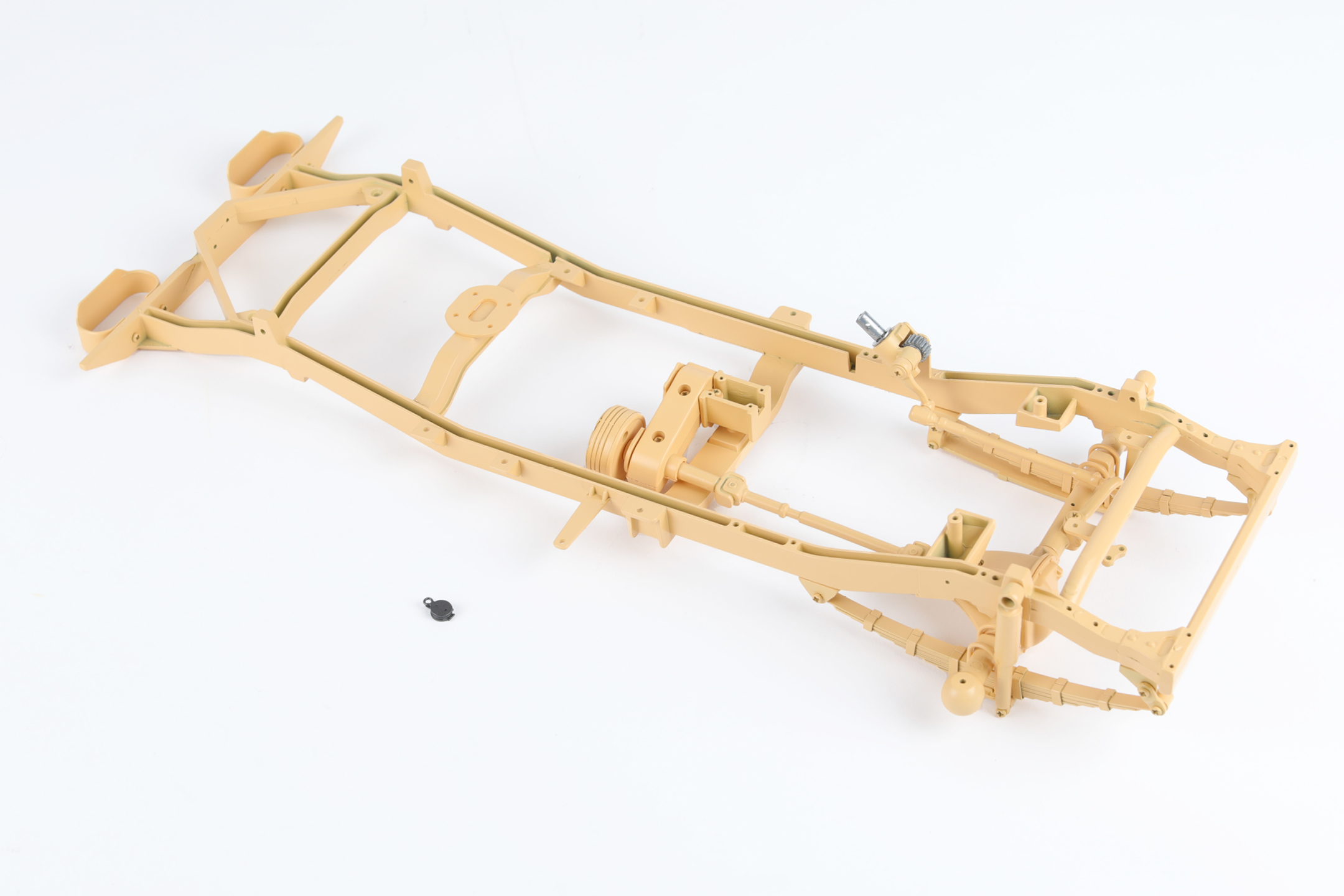

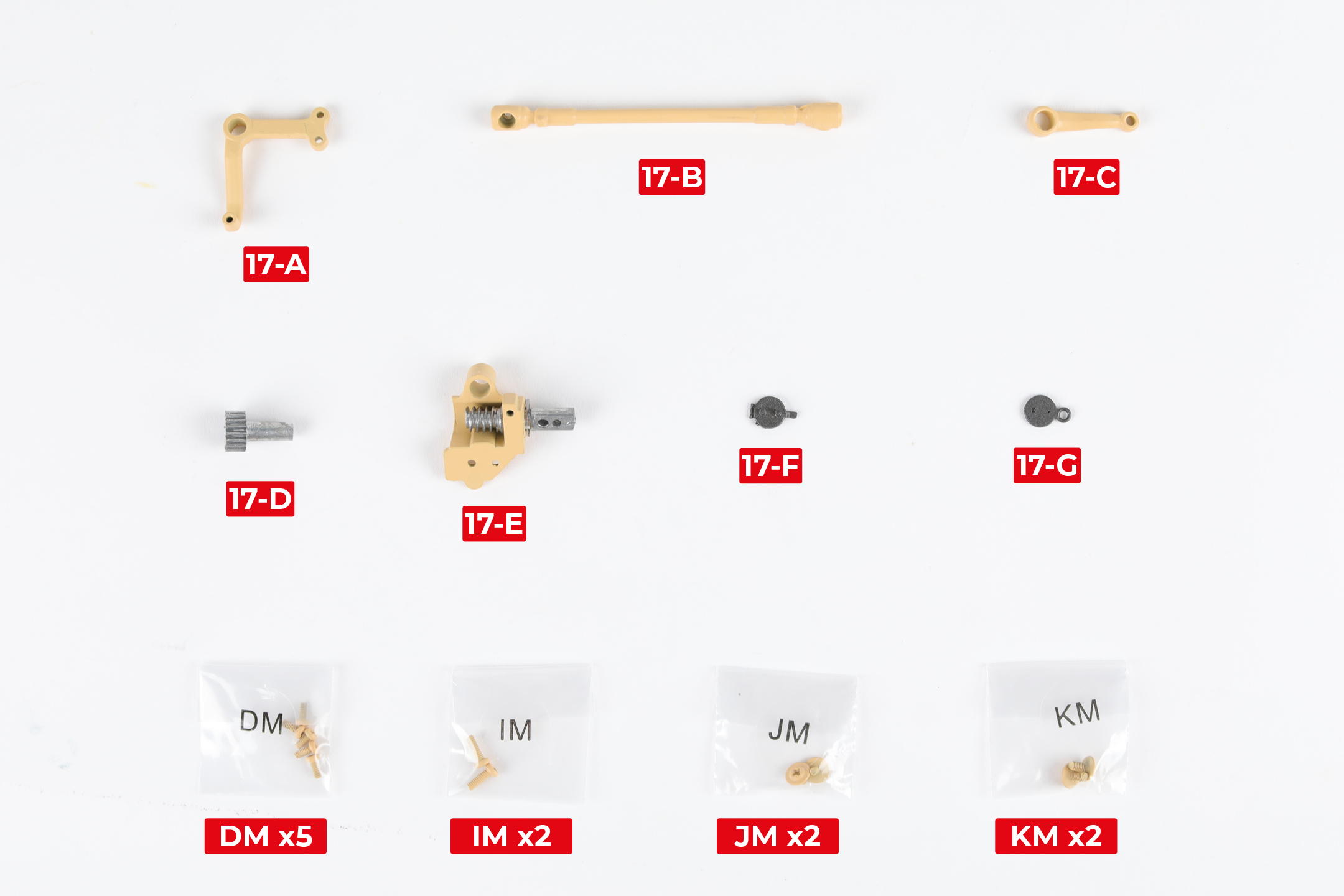

      STAGE 17 PARTS

      Step 1

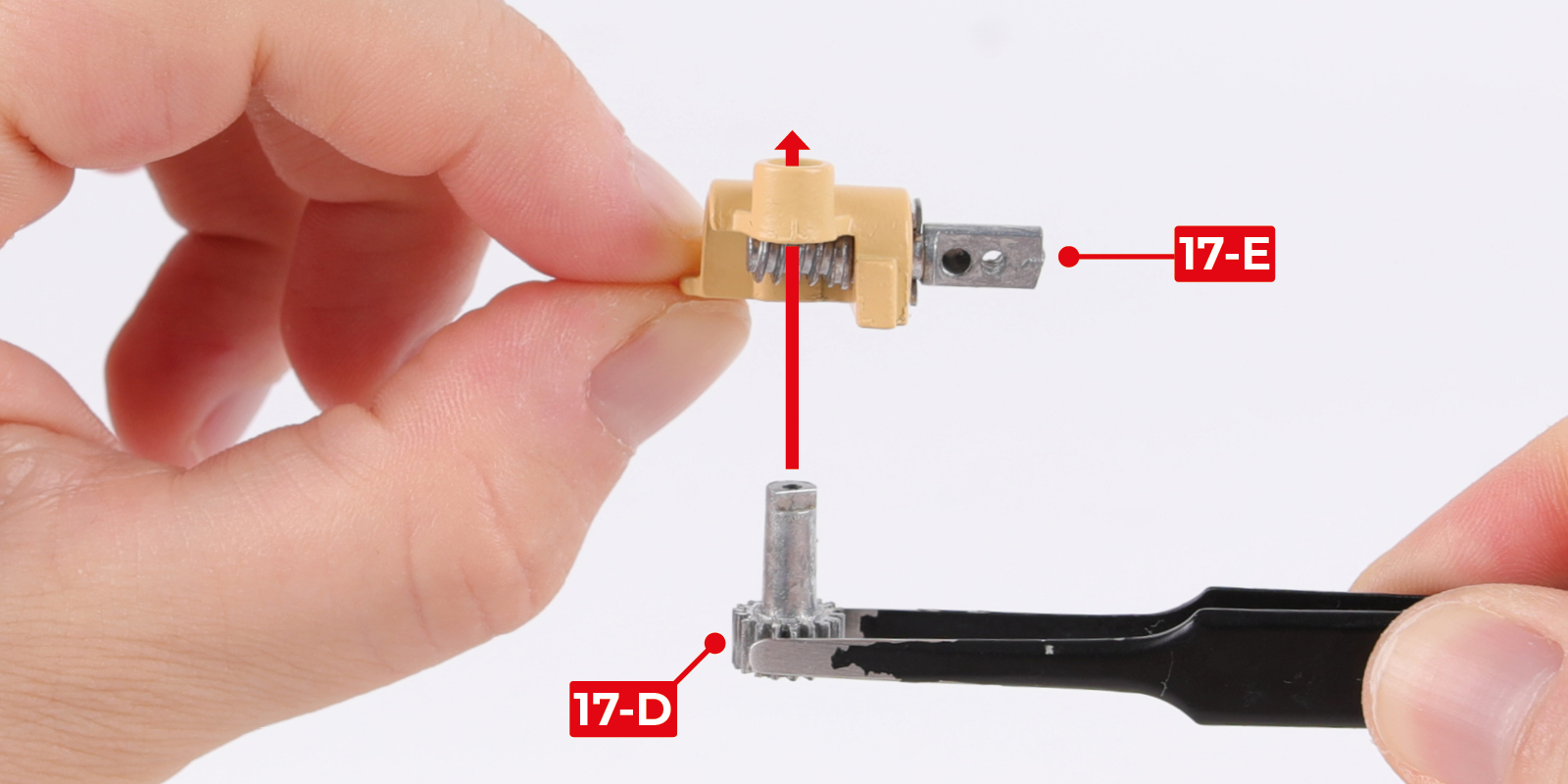

      Fit part 17-D into part 17-E.

      a
      b

      Step 2

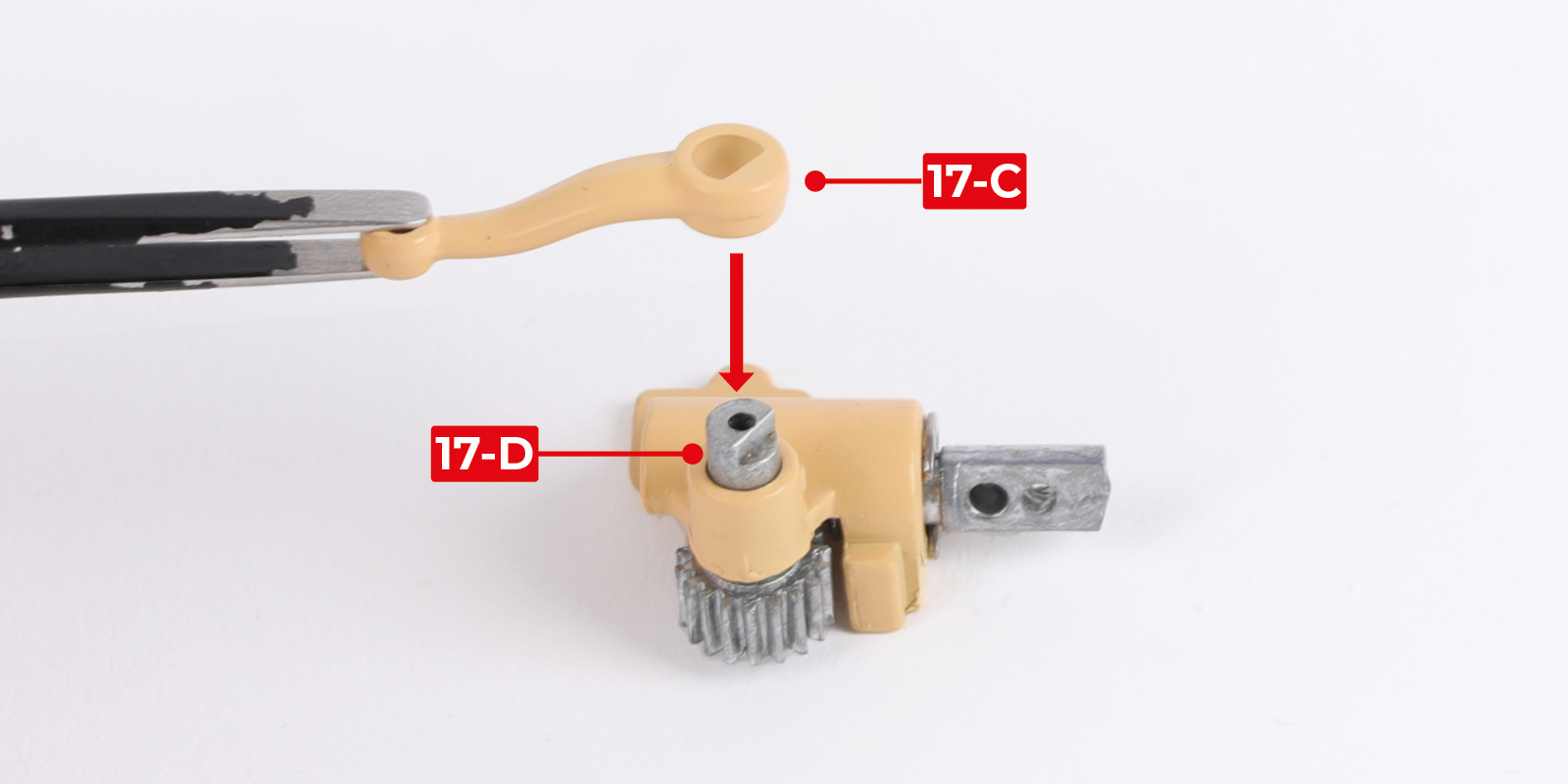

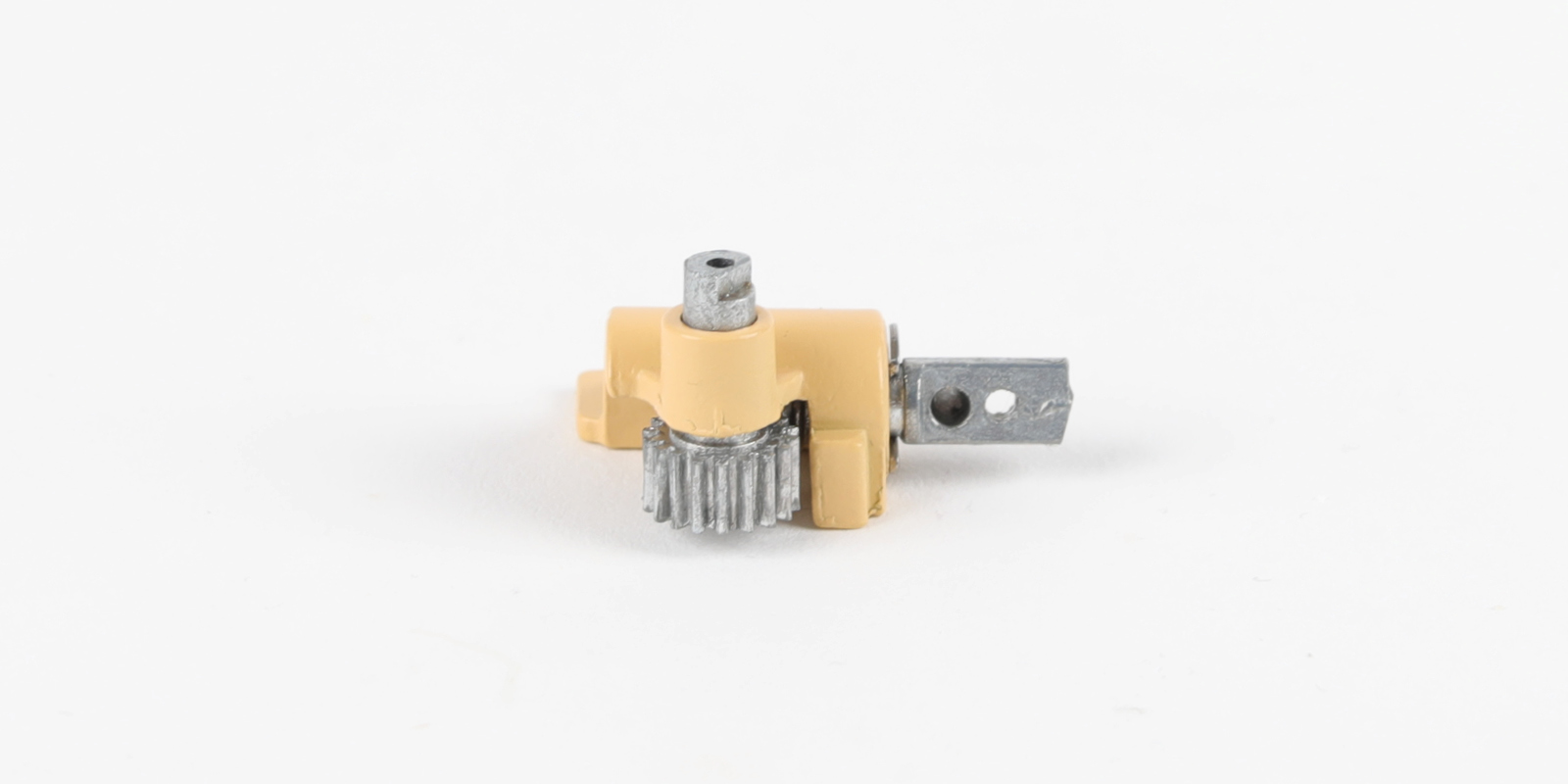

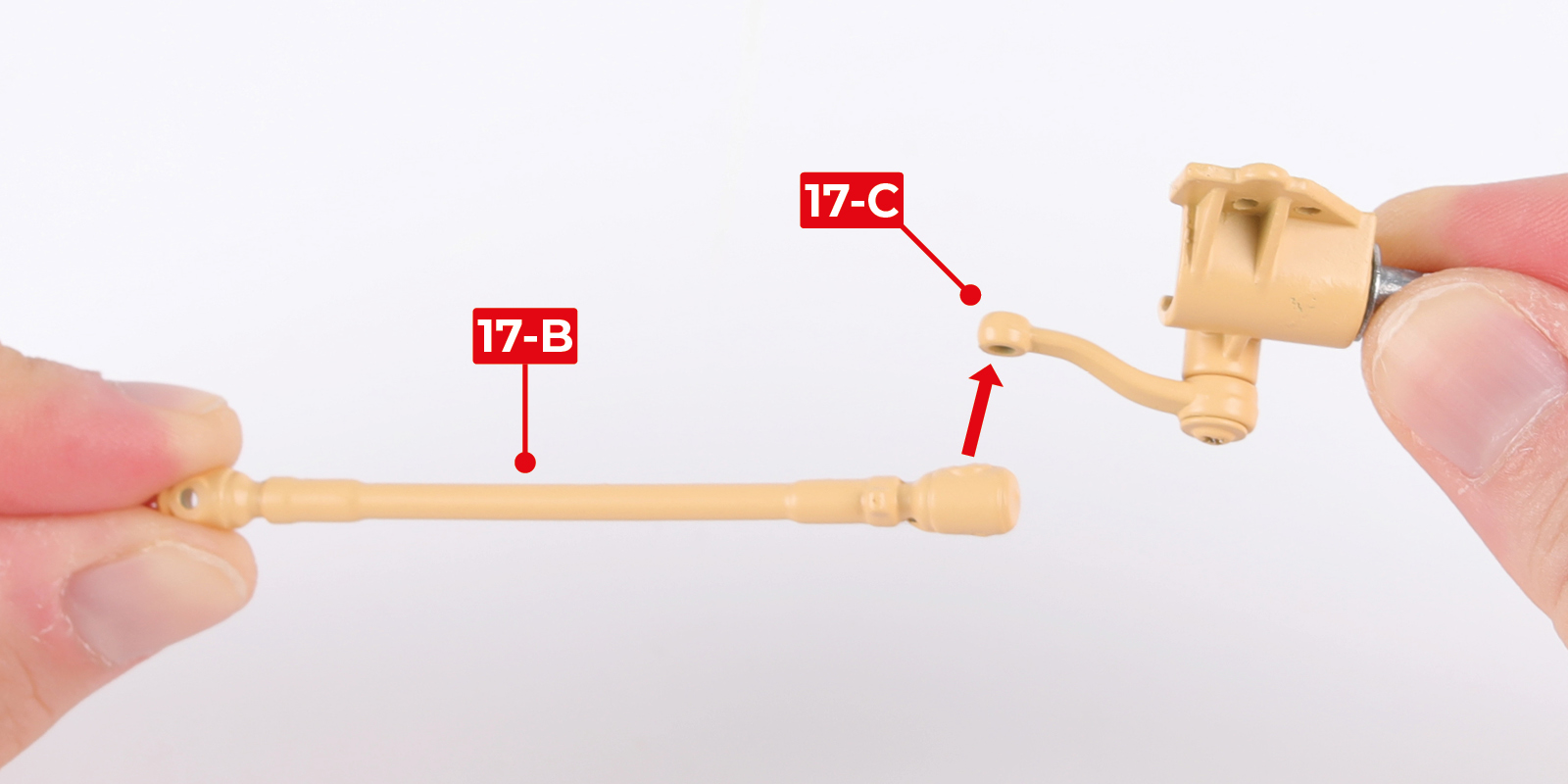

      Fit part 17-C to part 17-D with 1 JM screw.

      a
      b

      Step 3

      Identify the fixing point for the next step, as circled in the image.

      a

      Step 4

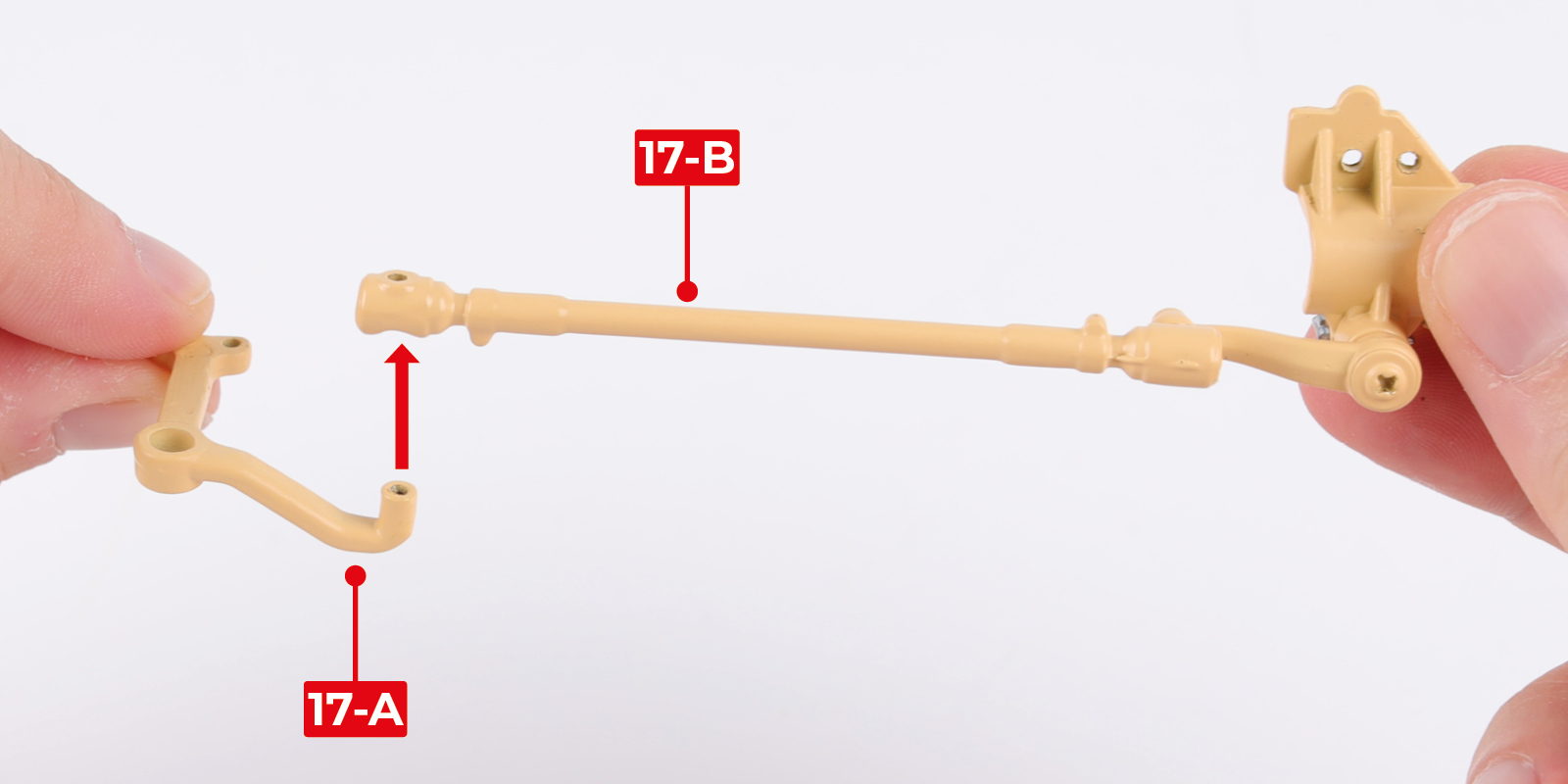

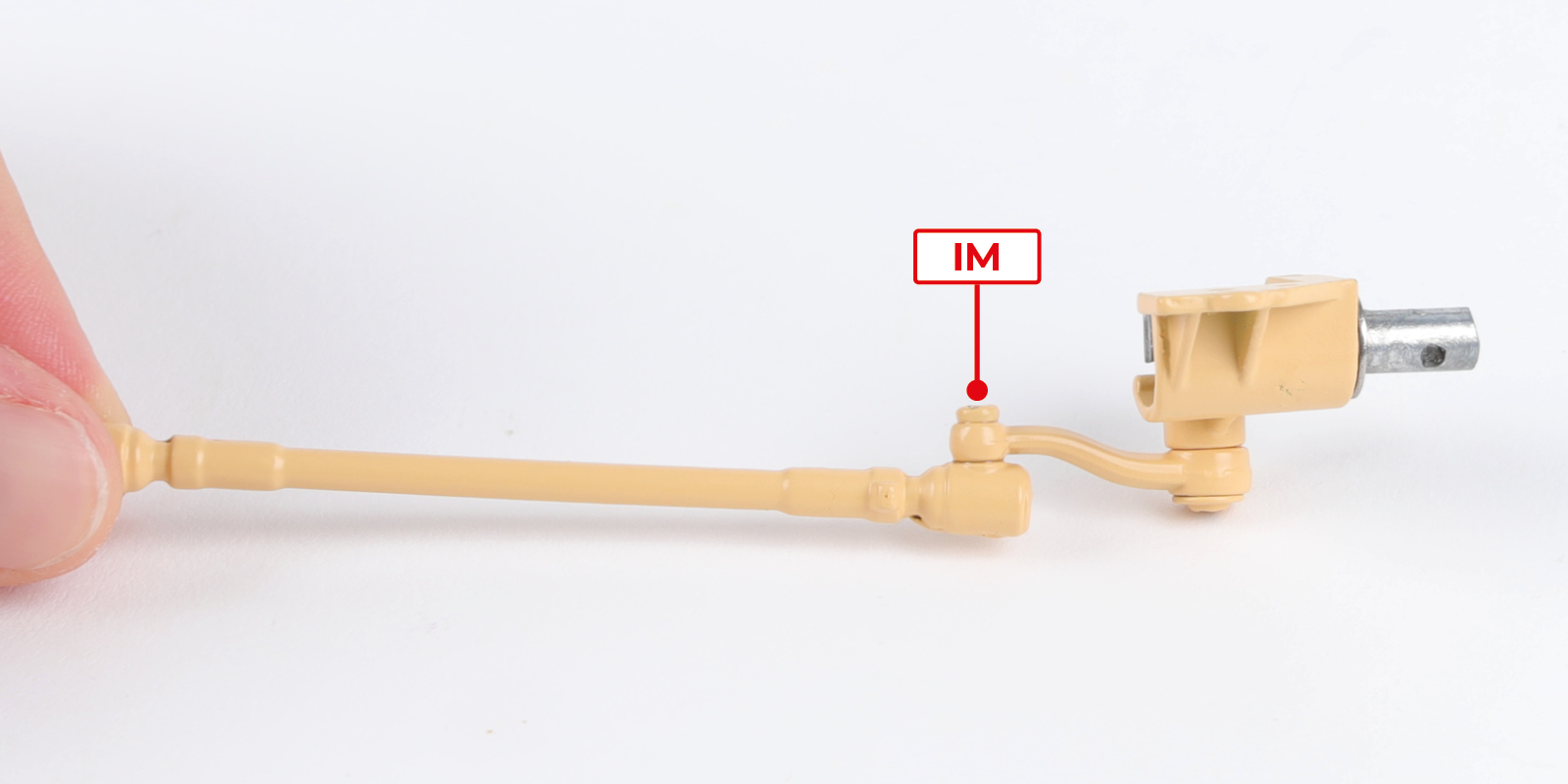

      Fit part 17-B to part 17-C with 1 IM screw. Don't overtighten the screw.

      a
      b

      Step 5

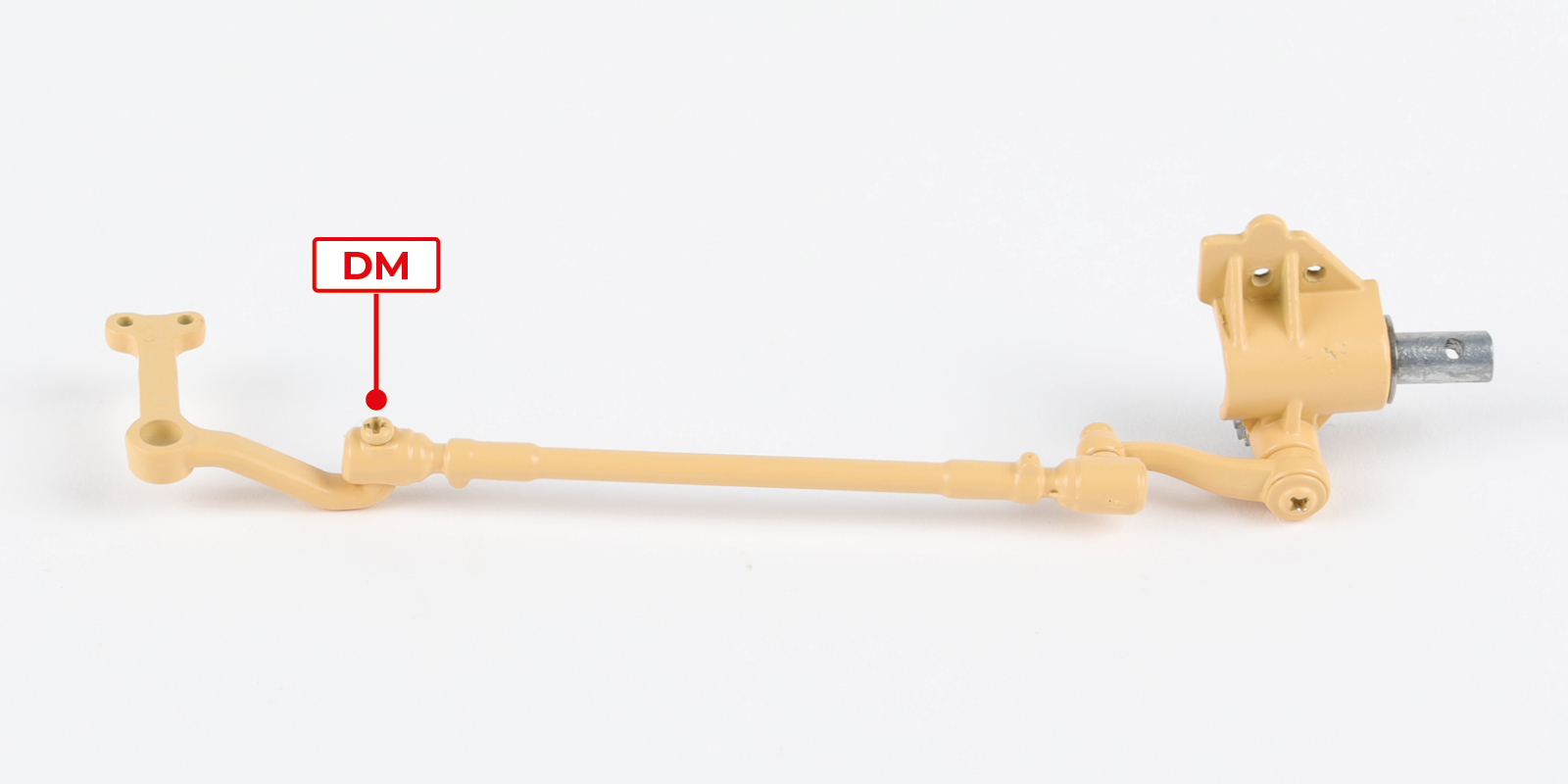

      Fit part 17-A to part 17-B with 1 DM screw. Don't overtighten the screw.

      a
      b

      Step 6

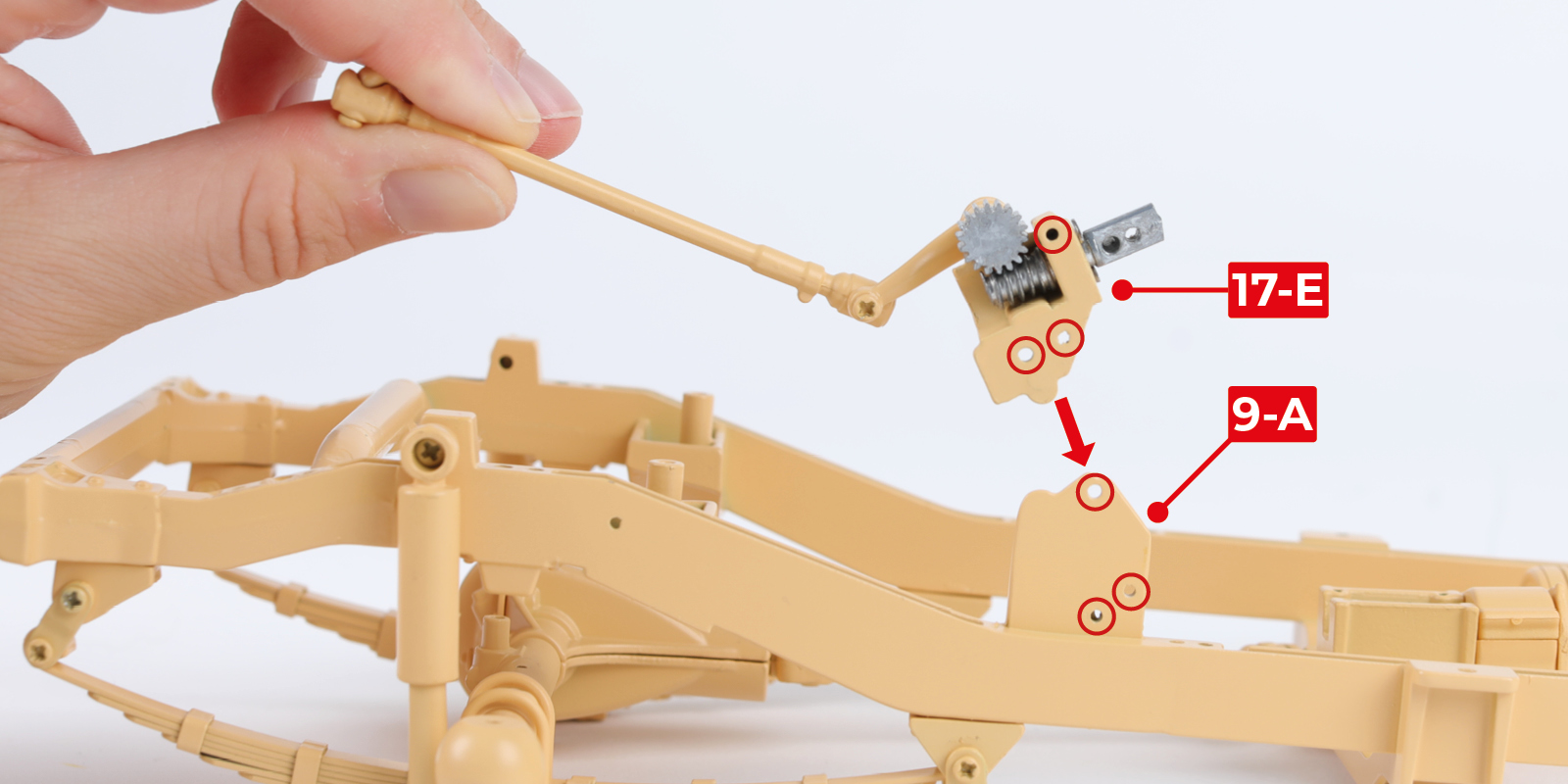

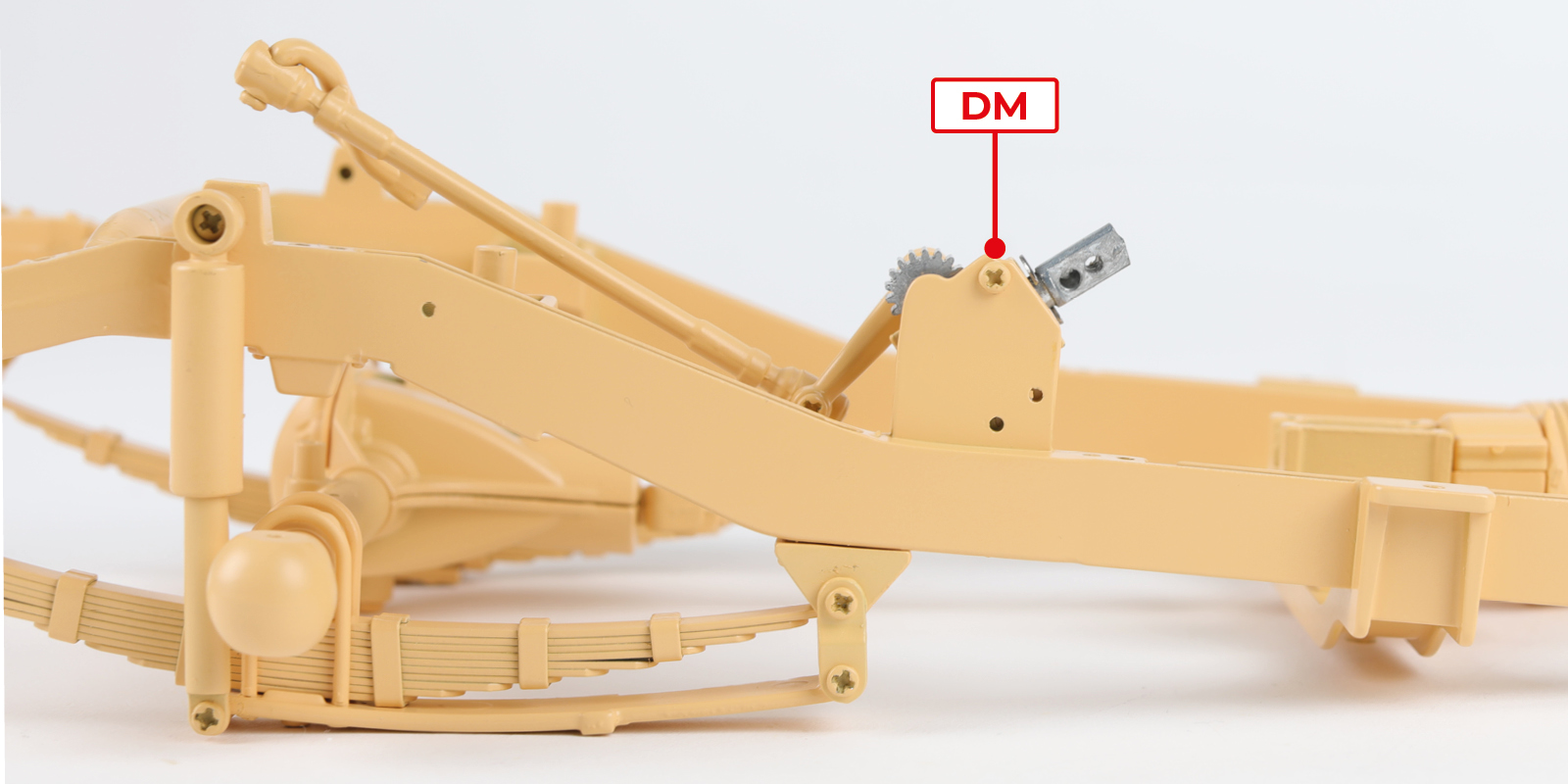

      Fit part 17-E to part 9-A with 3 DM screws.

      a
      b
      c

      Step 7

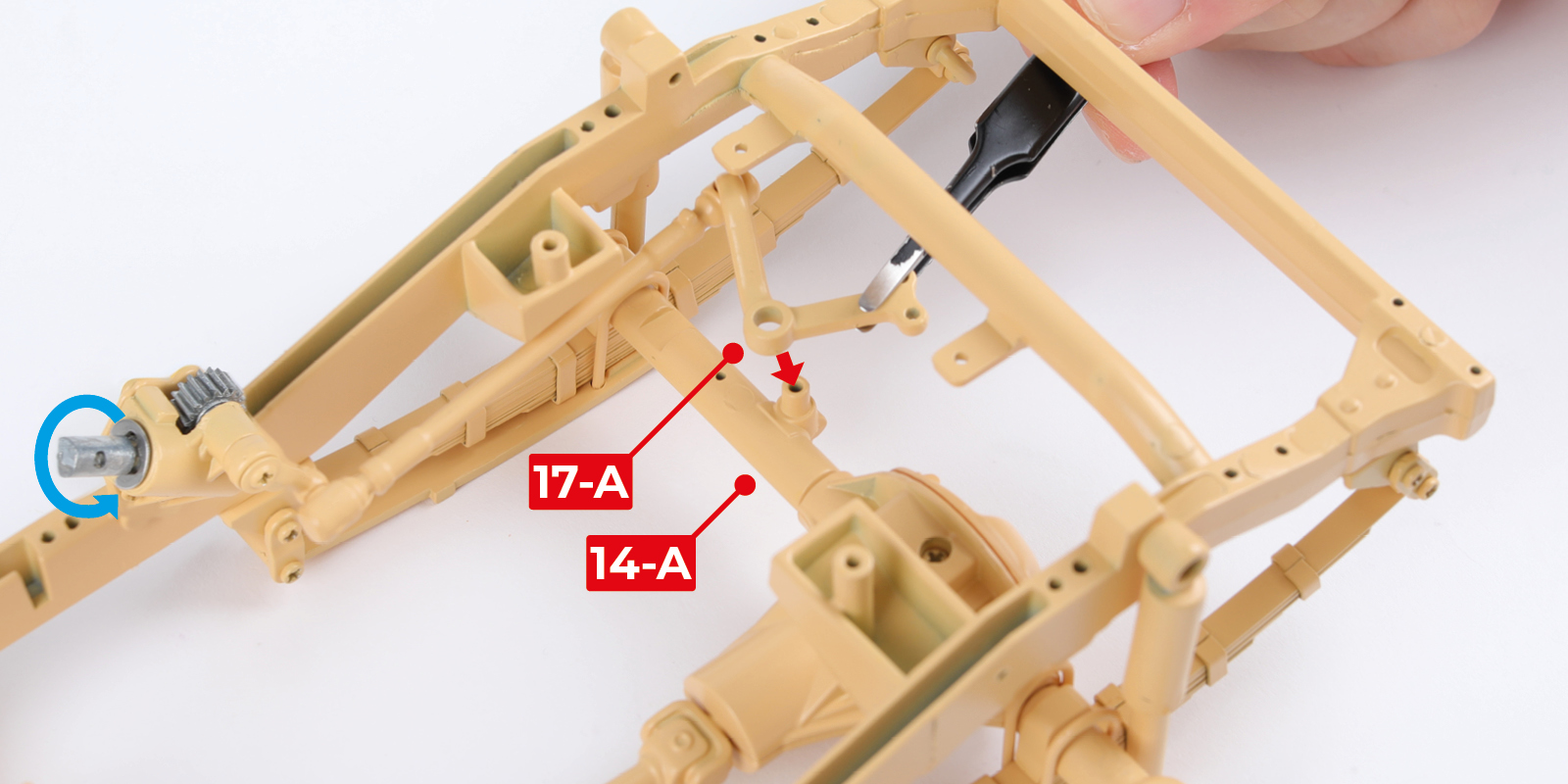

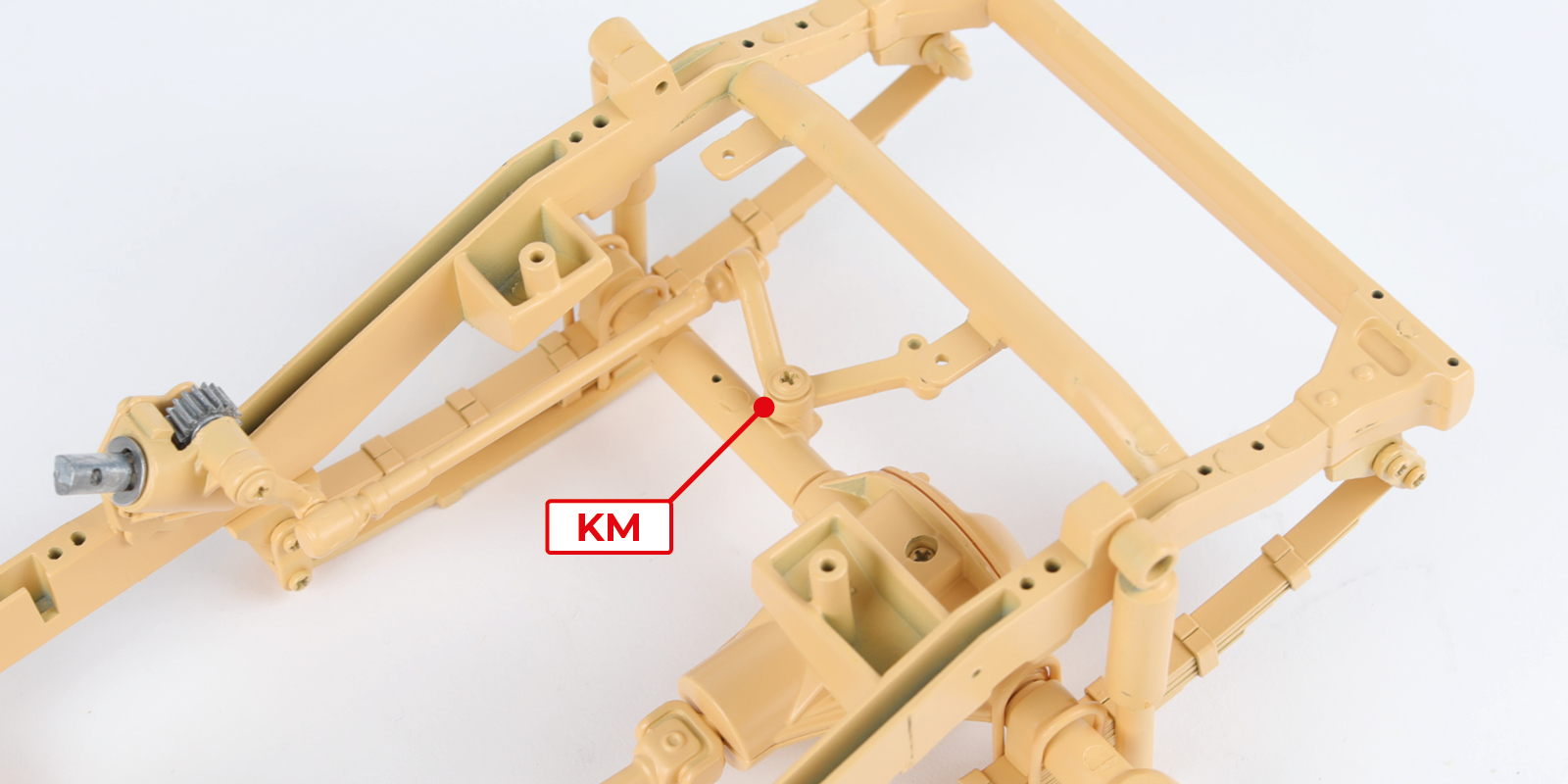

      Fit part 17-A to part 14-A with 1 KM screw. You may need to turn the steering gear (blue arrow) to lower part 17-A into place.

      a
      b

      Step 8

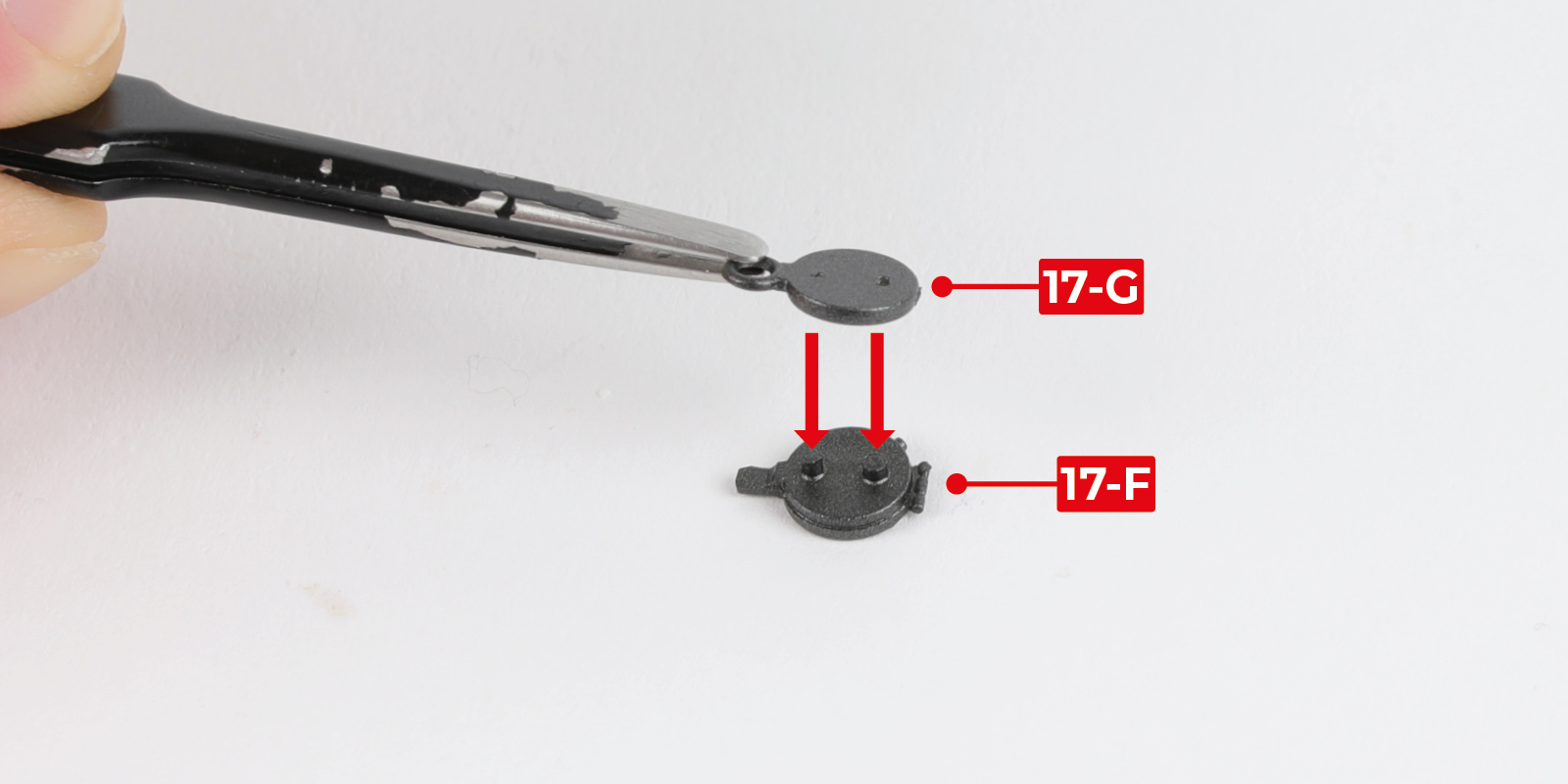

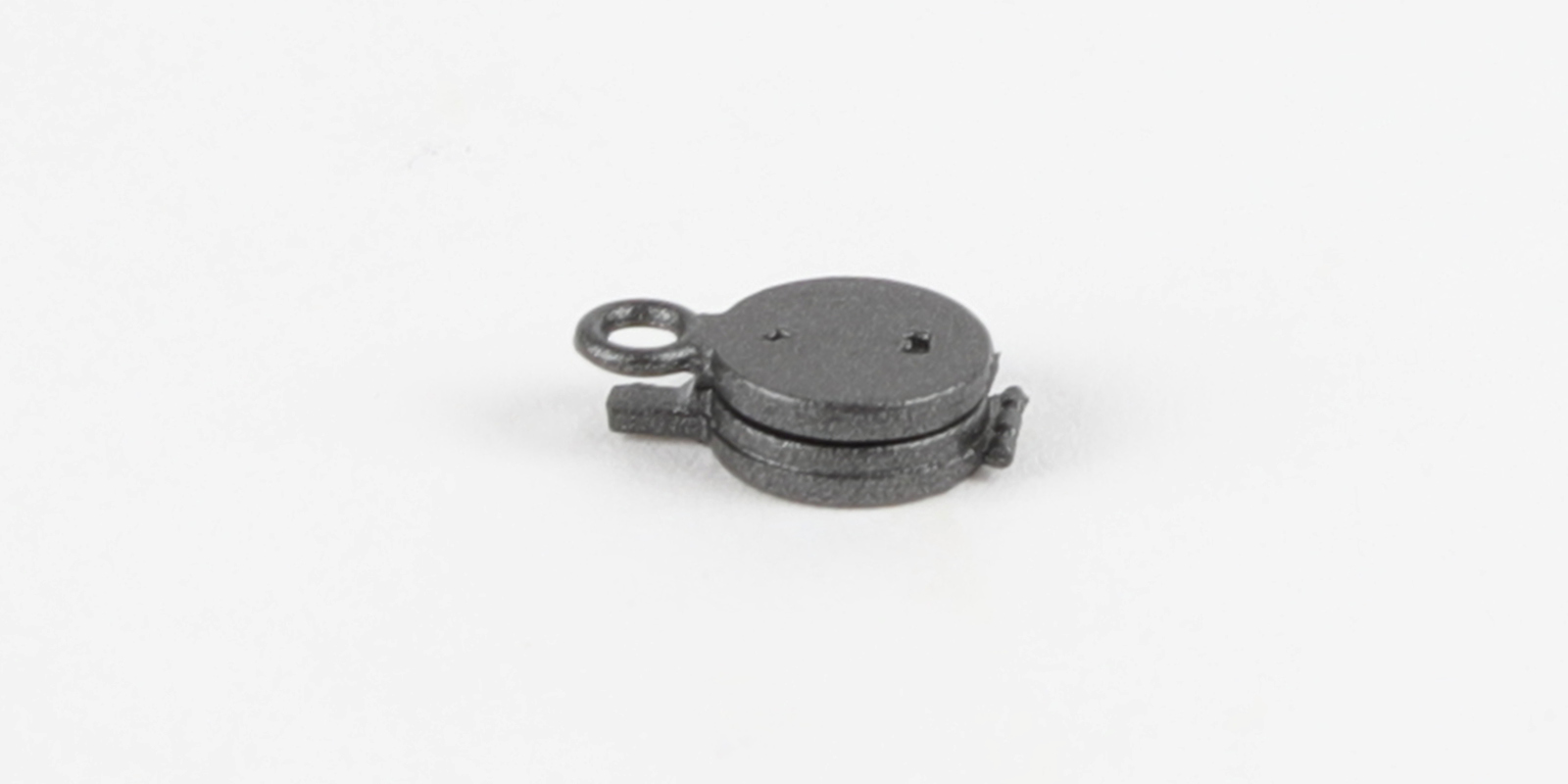

      Fit part 17-G to part 17-F.

      a
      b

      STAGE COMPLETE

      Stage 18: Fitting the front wheel hubs

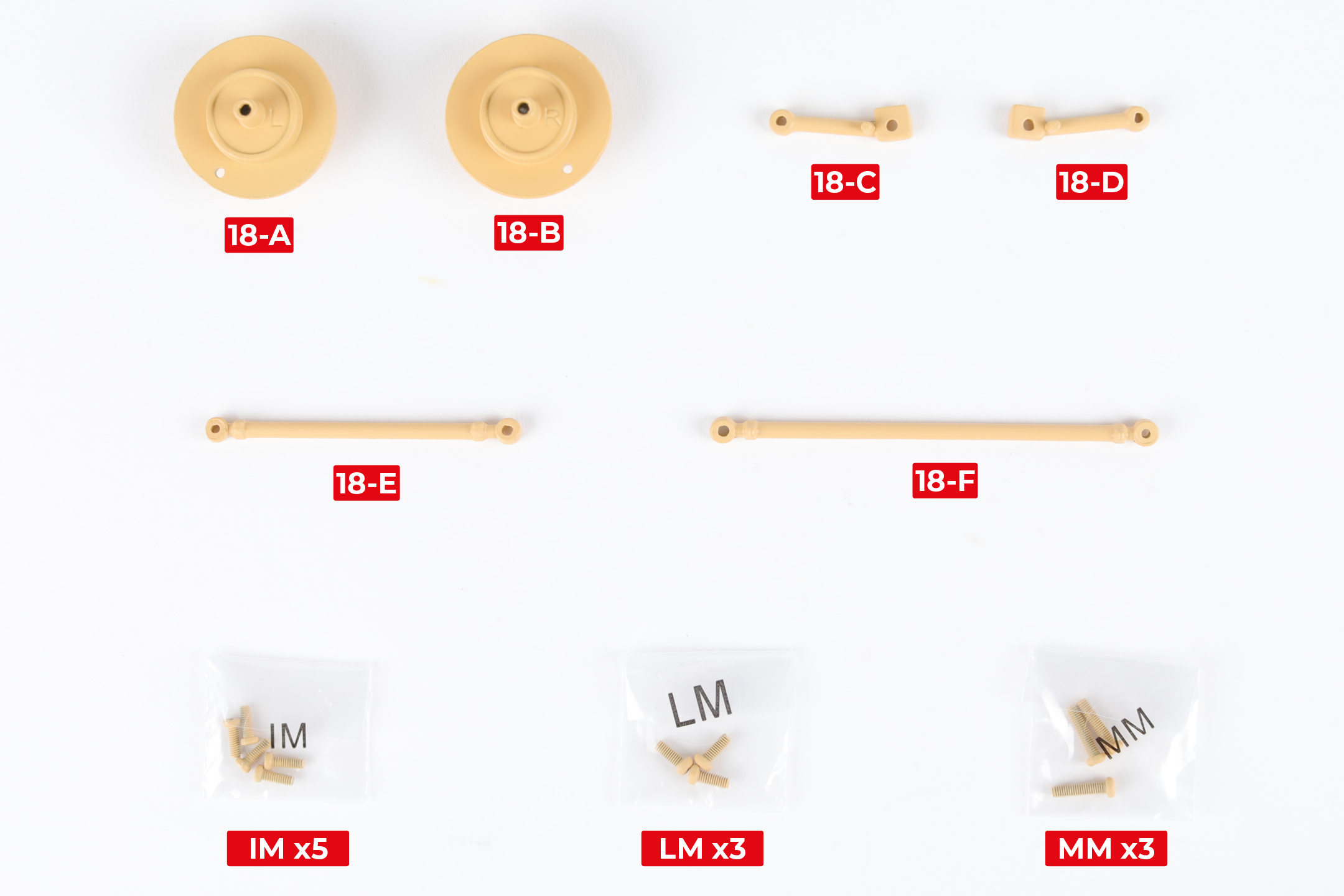

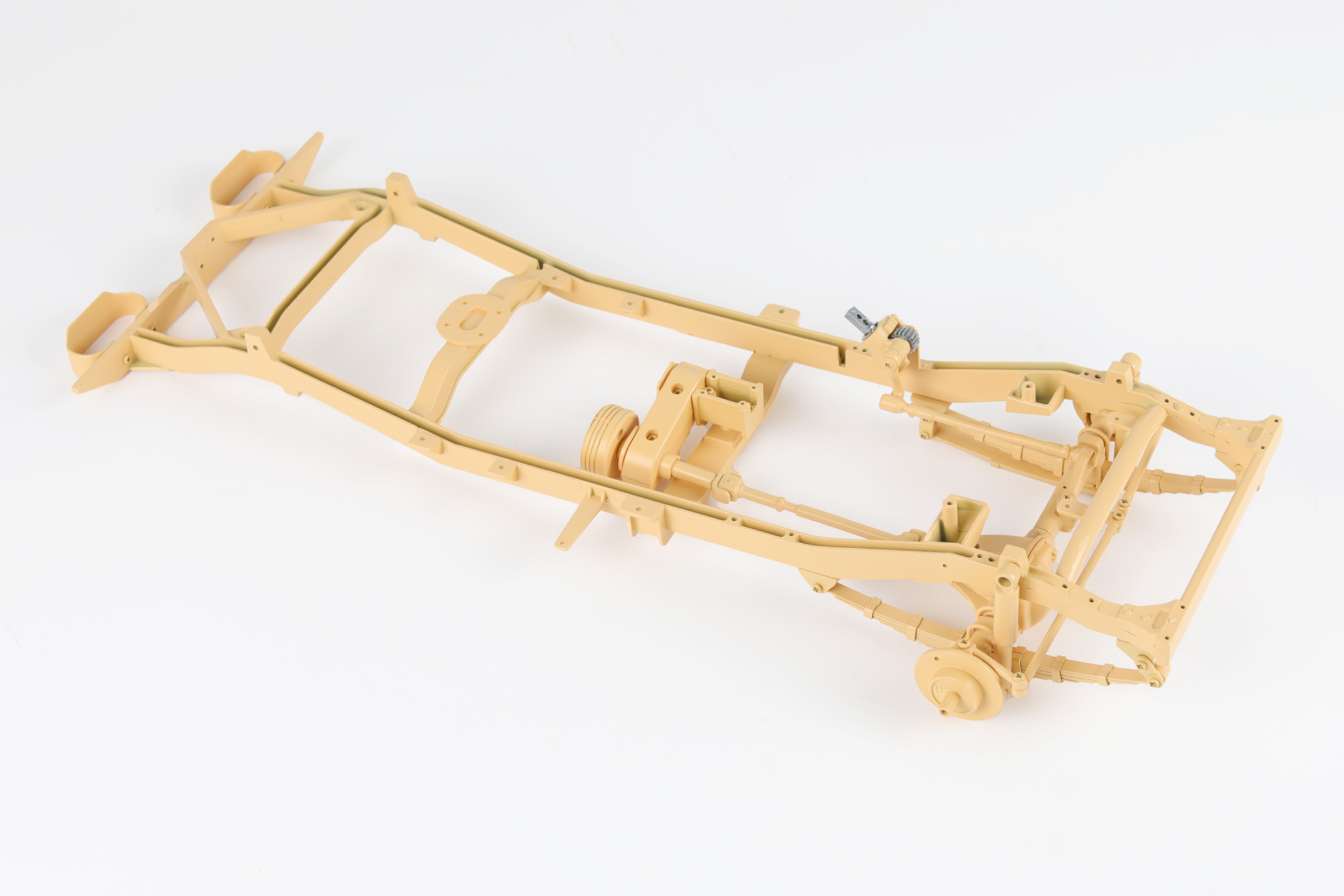

      STAGE 18 PARTS

      Step 1

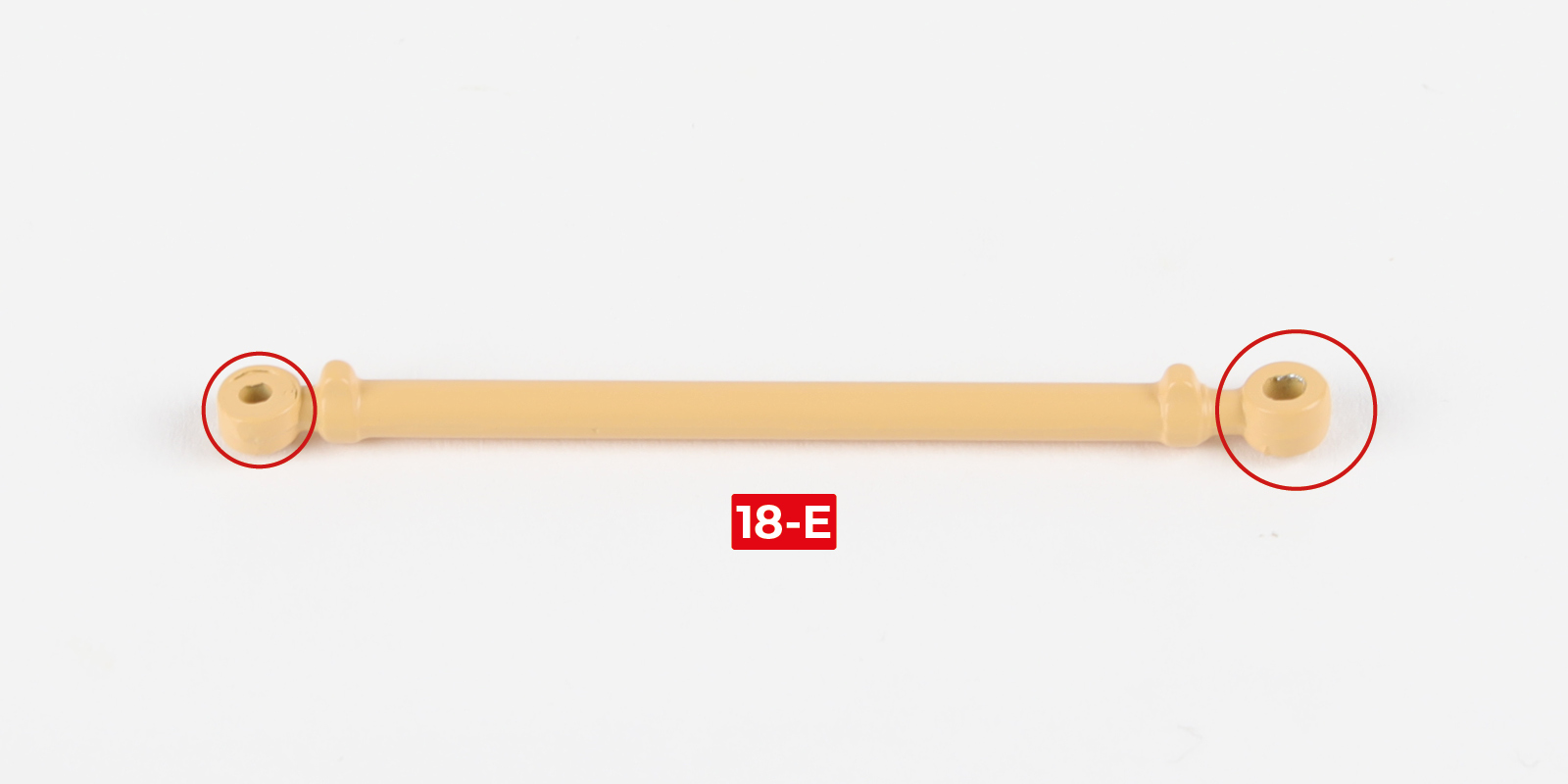

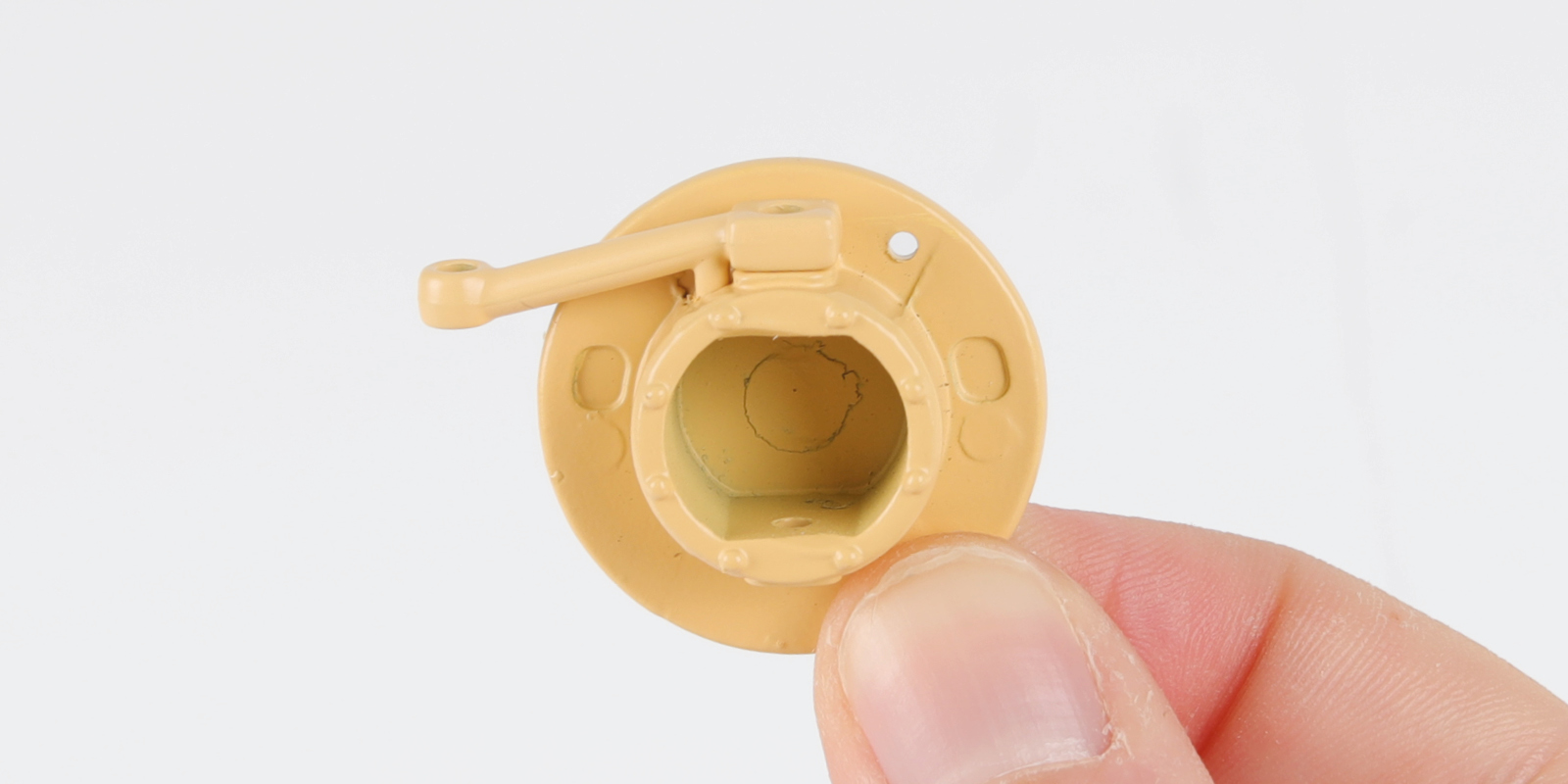

      Note that one end of part 18-E has a larger screw hole; use this one in the next step.

      a

      Step 2

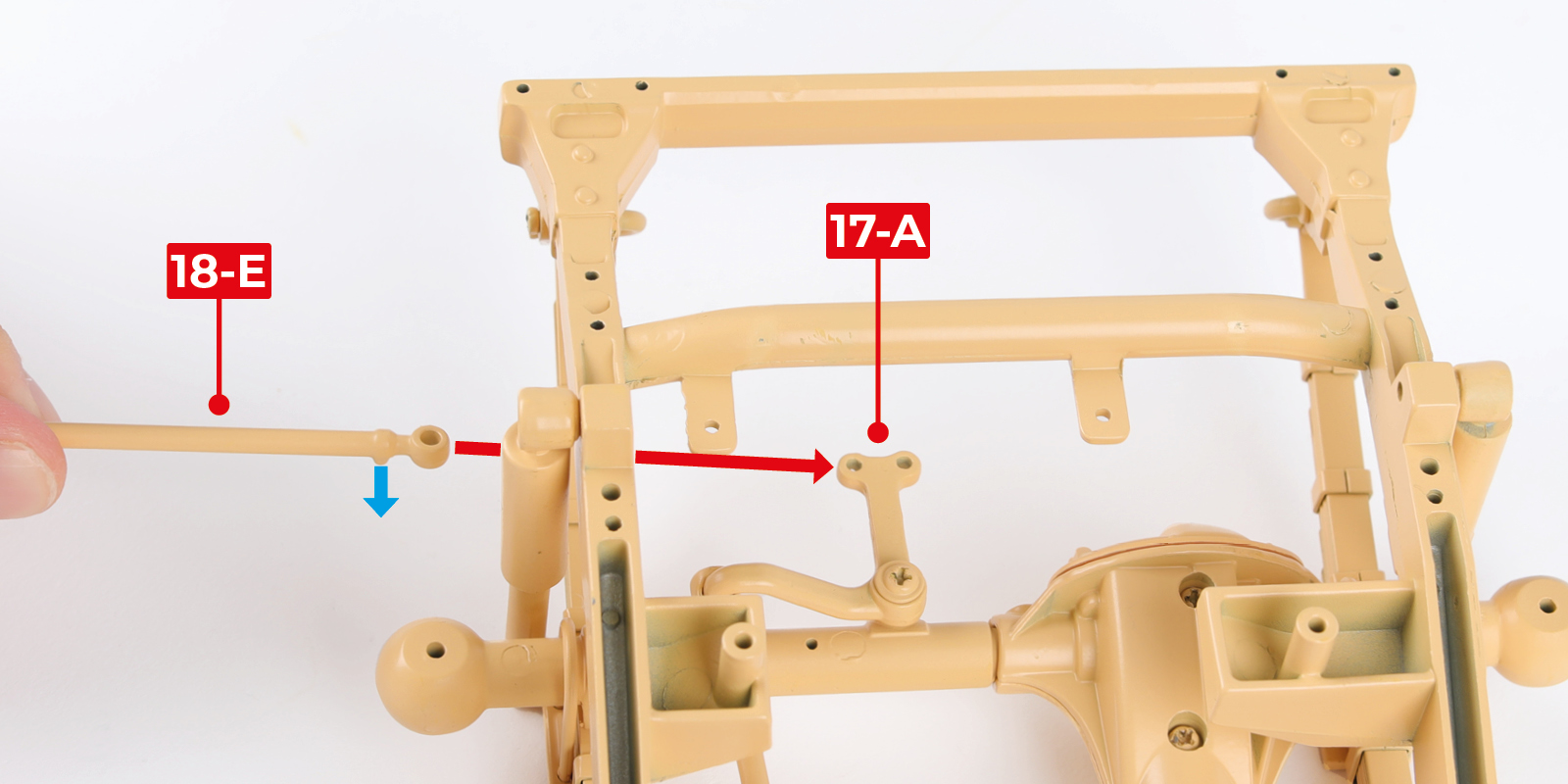

      Fit part 18-E to part 17-A with 1 IM screw. The raised details on part 18-E must face downwards as shown (blue arrow).

      a
      b

      Step 3

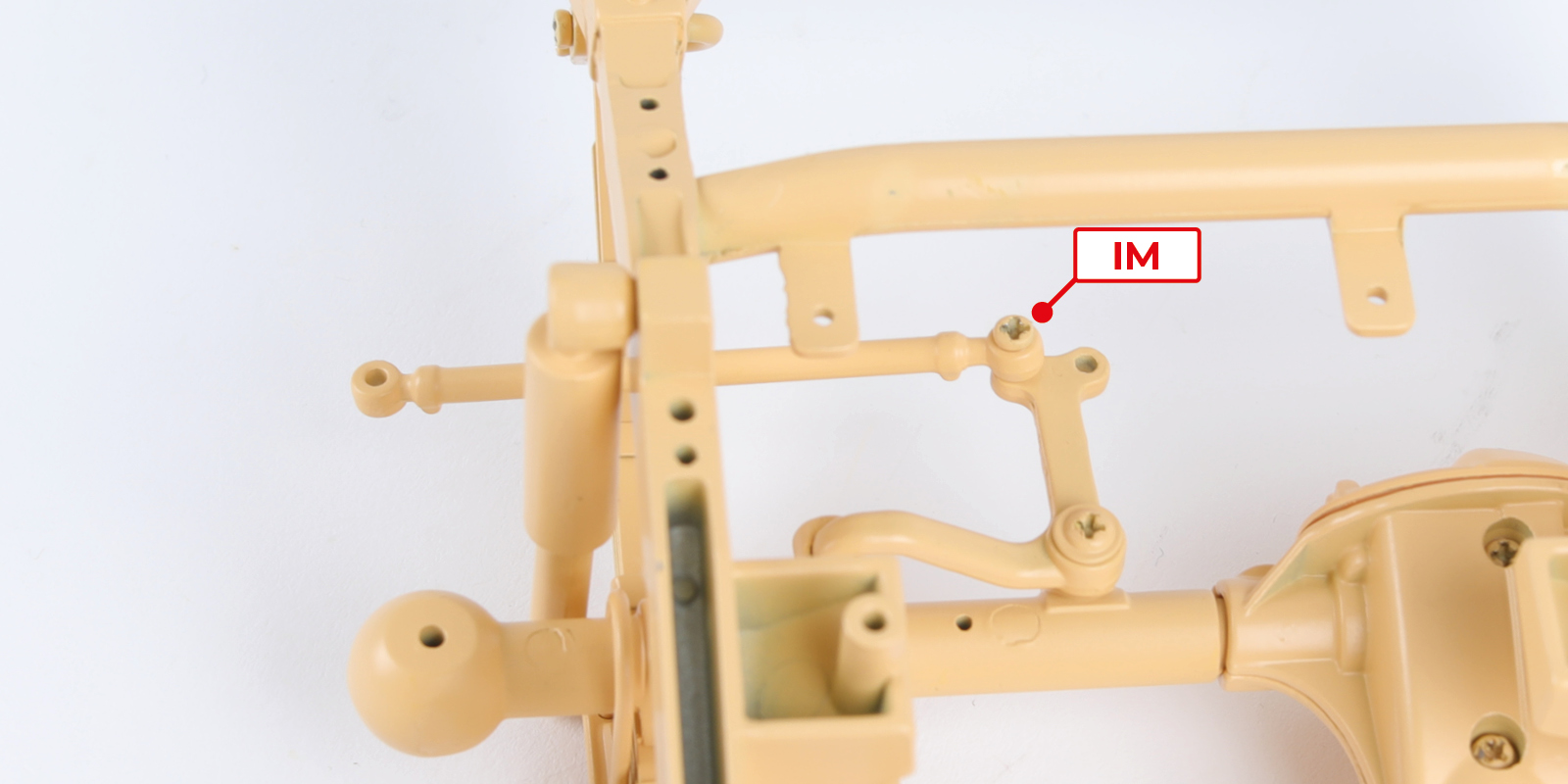

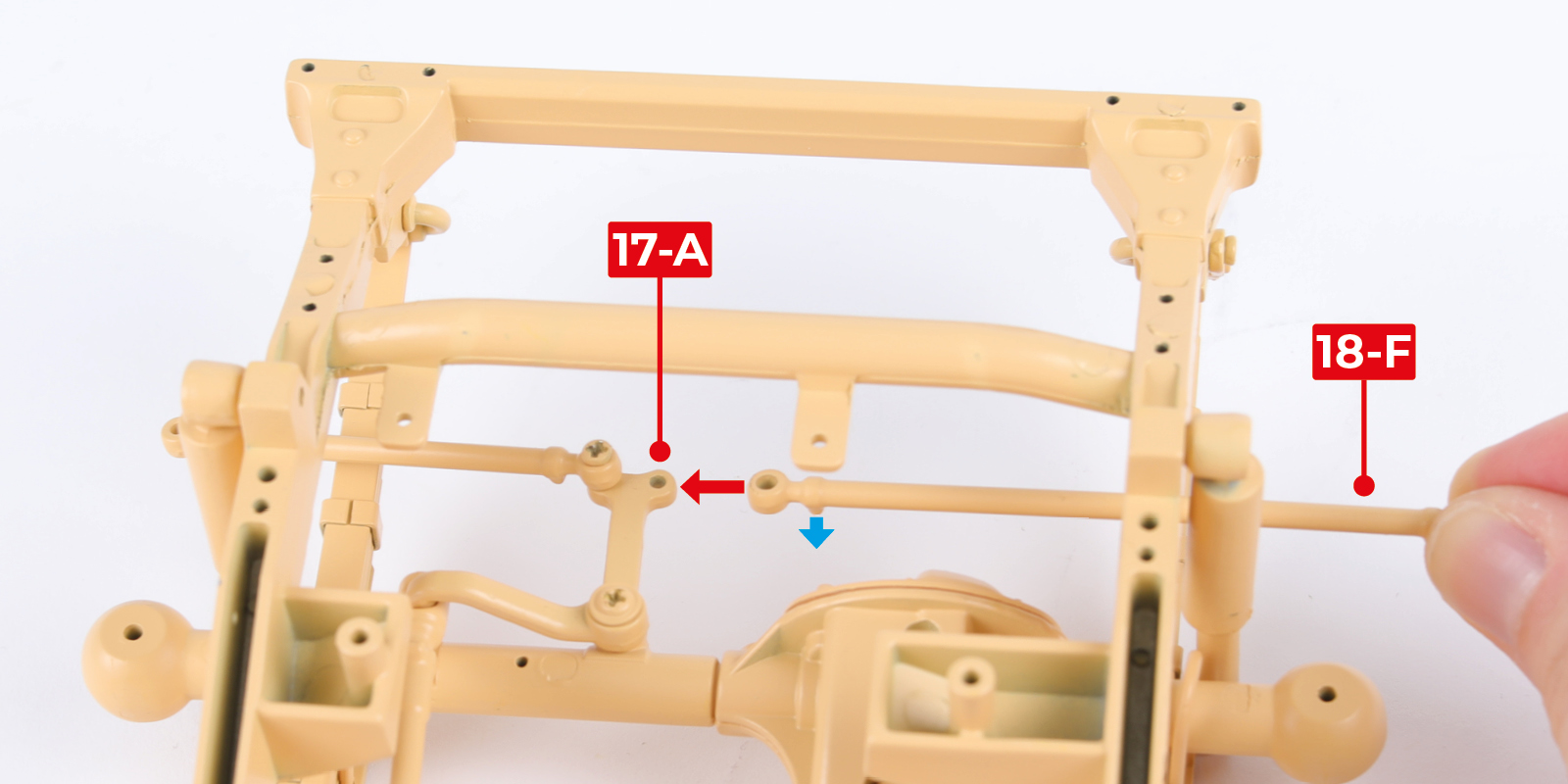

      Fit part 18-F to part 17-A in the same way with 1 IM screw.

      a
      b

      Step 4

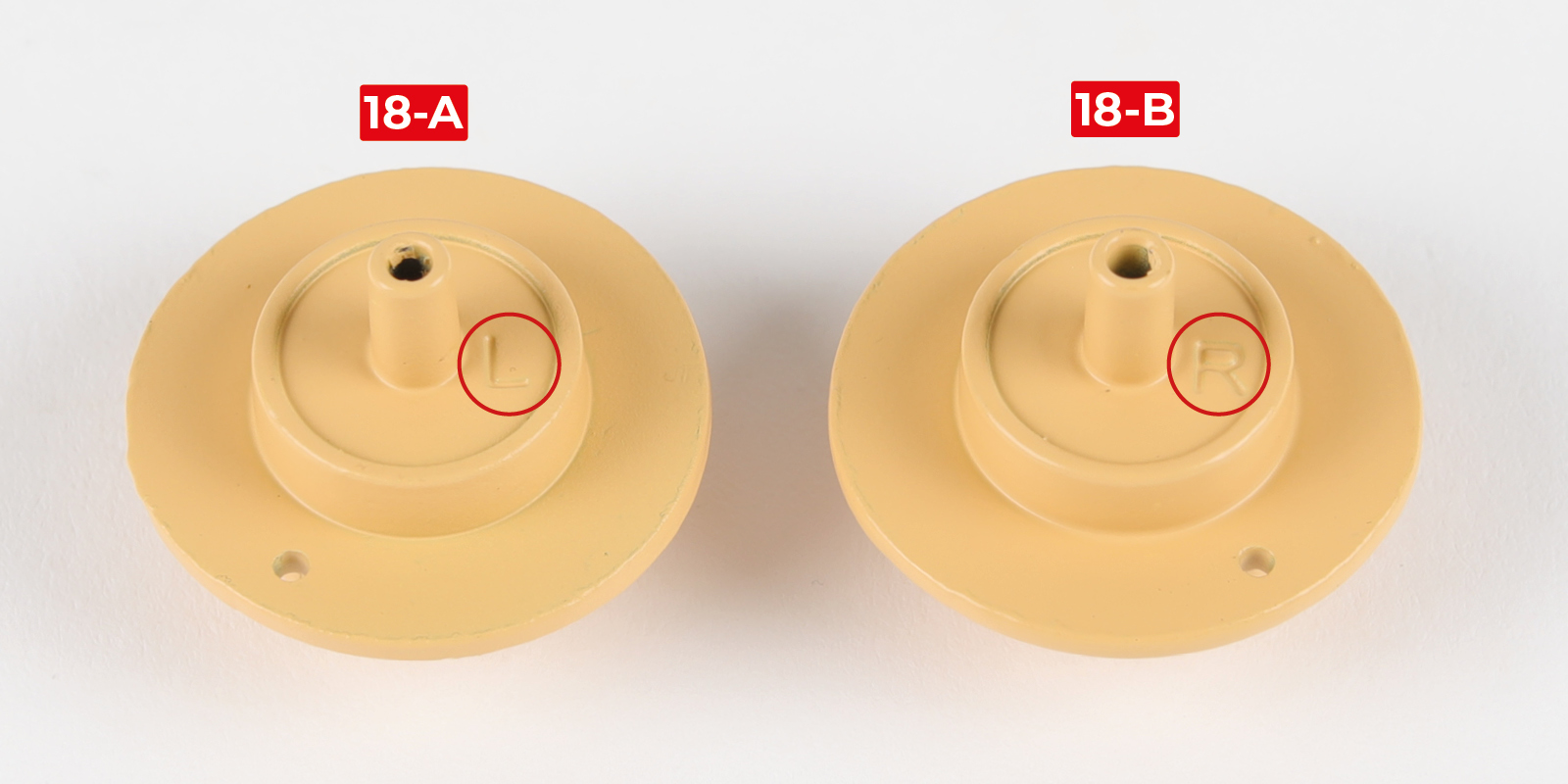

      Part 18-A is marked with L (left), part 18-B is marked with R (right).

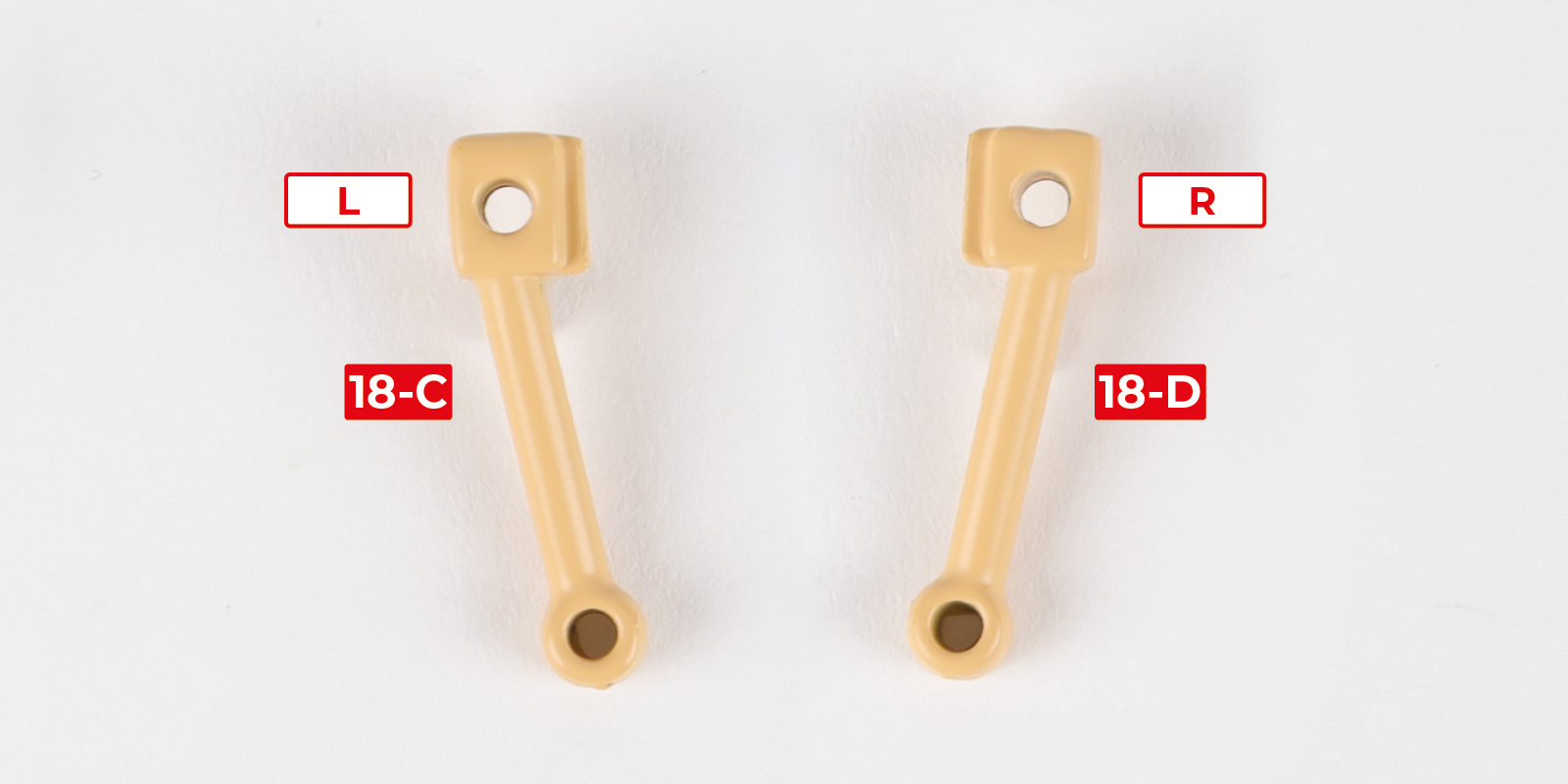

      Refer to image b to identify part 18-C (left) and part 18-D (right).

      a
      b

      Step 5

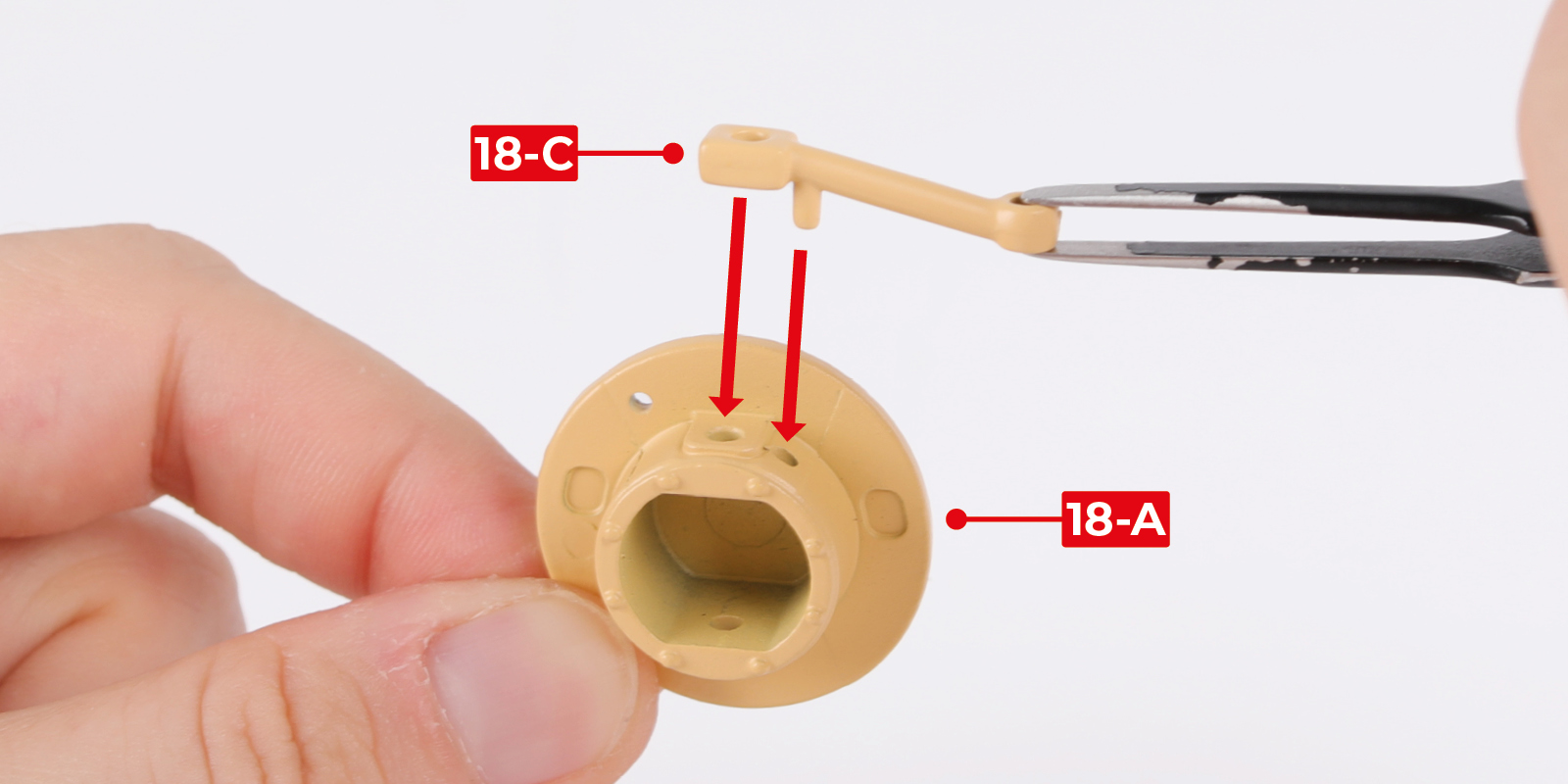

      Fit part 18-C to part 18-A.

      a
      b

      Step 6

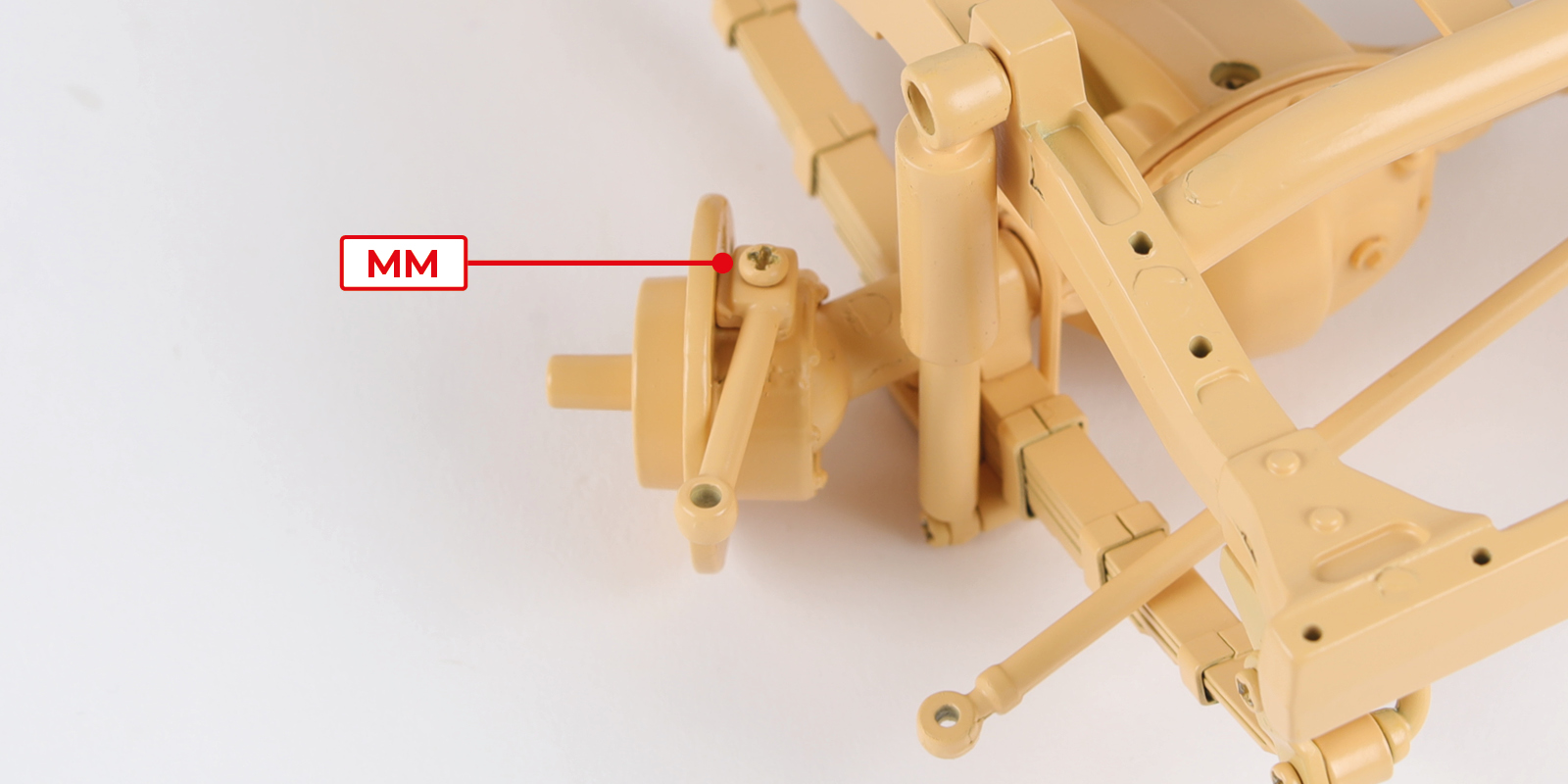

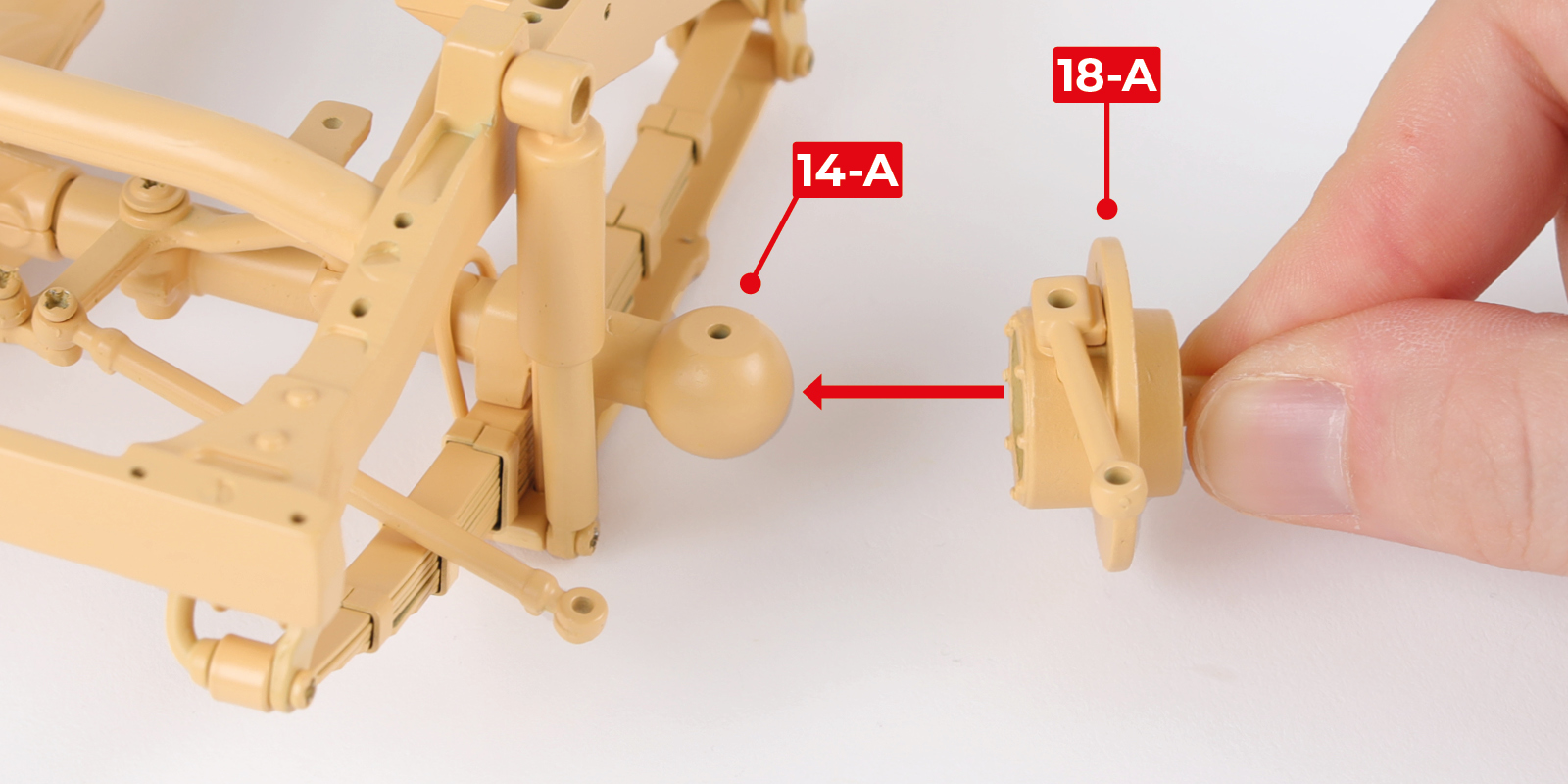

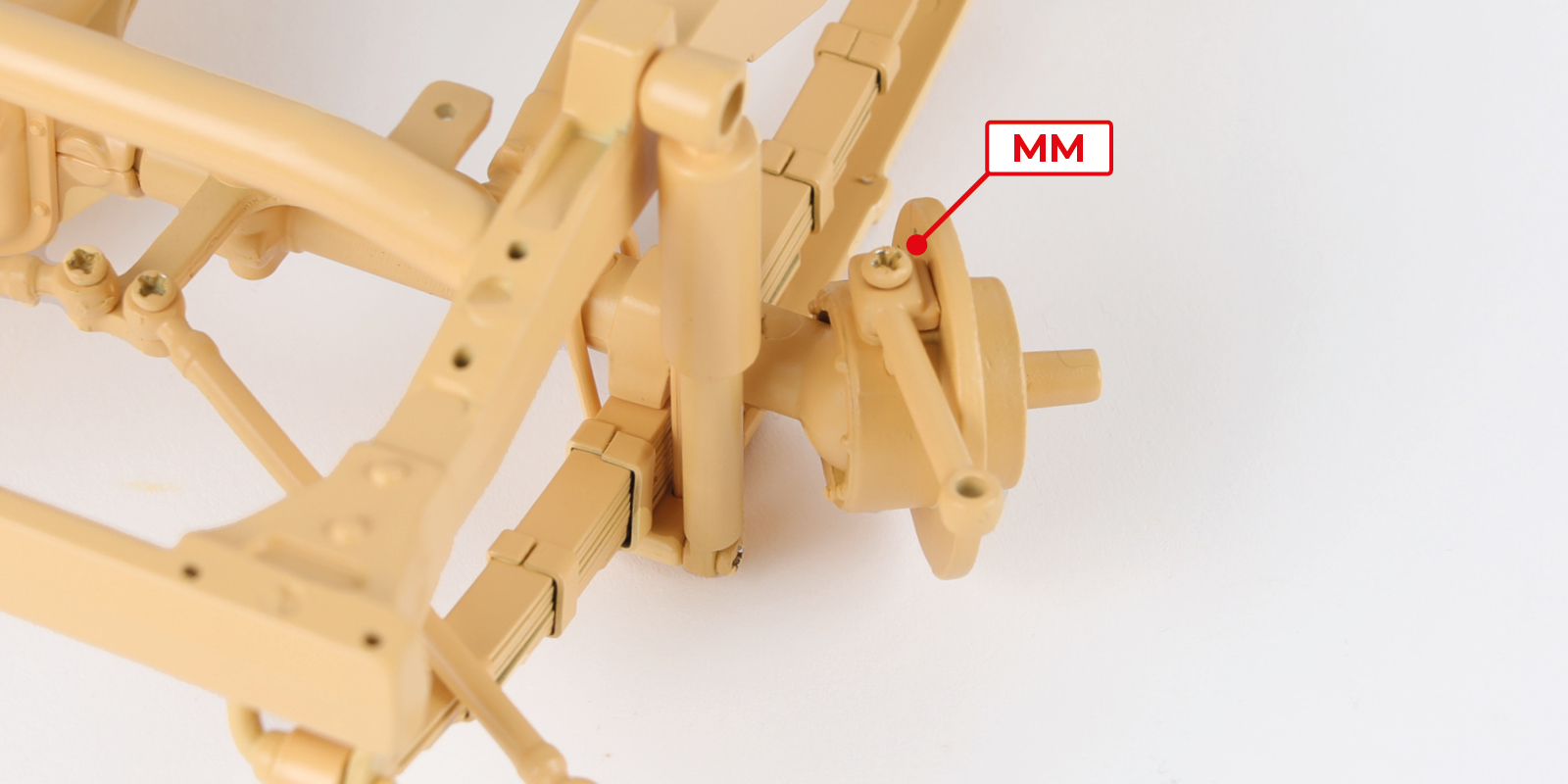

      Fit part 18-A to part 14-A with 1 MM screw.

      a
      b

      Step 7

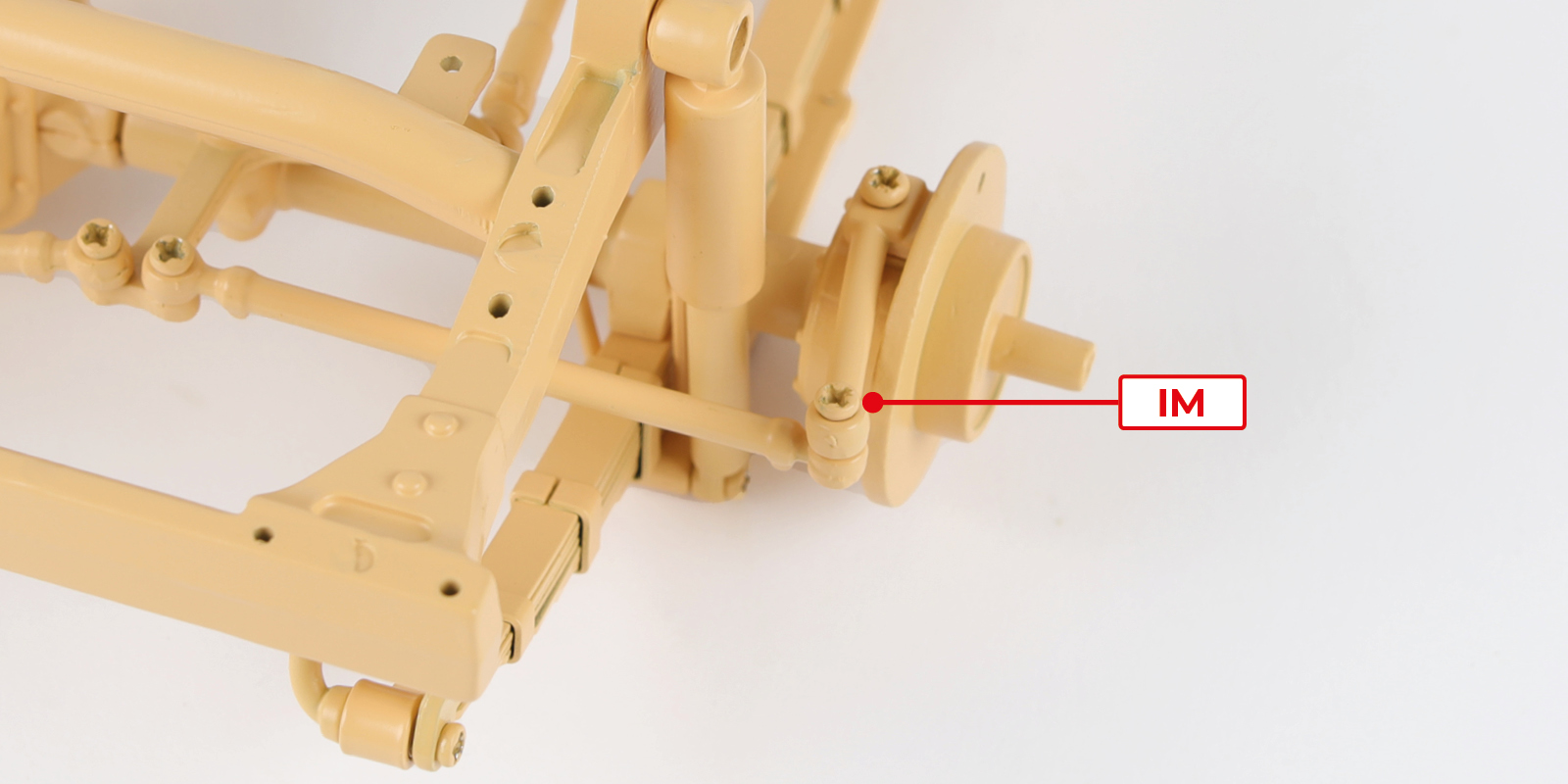

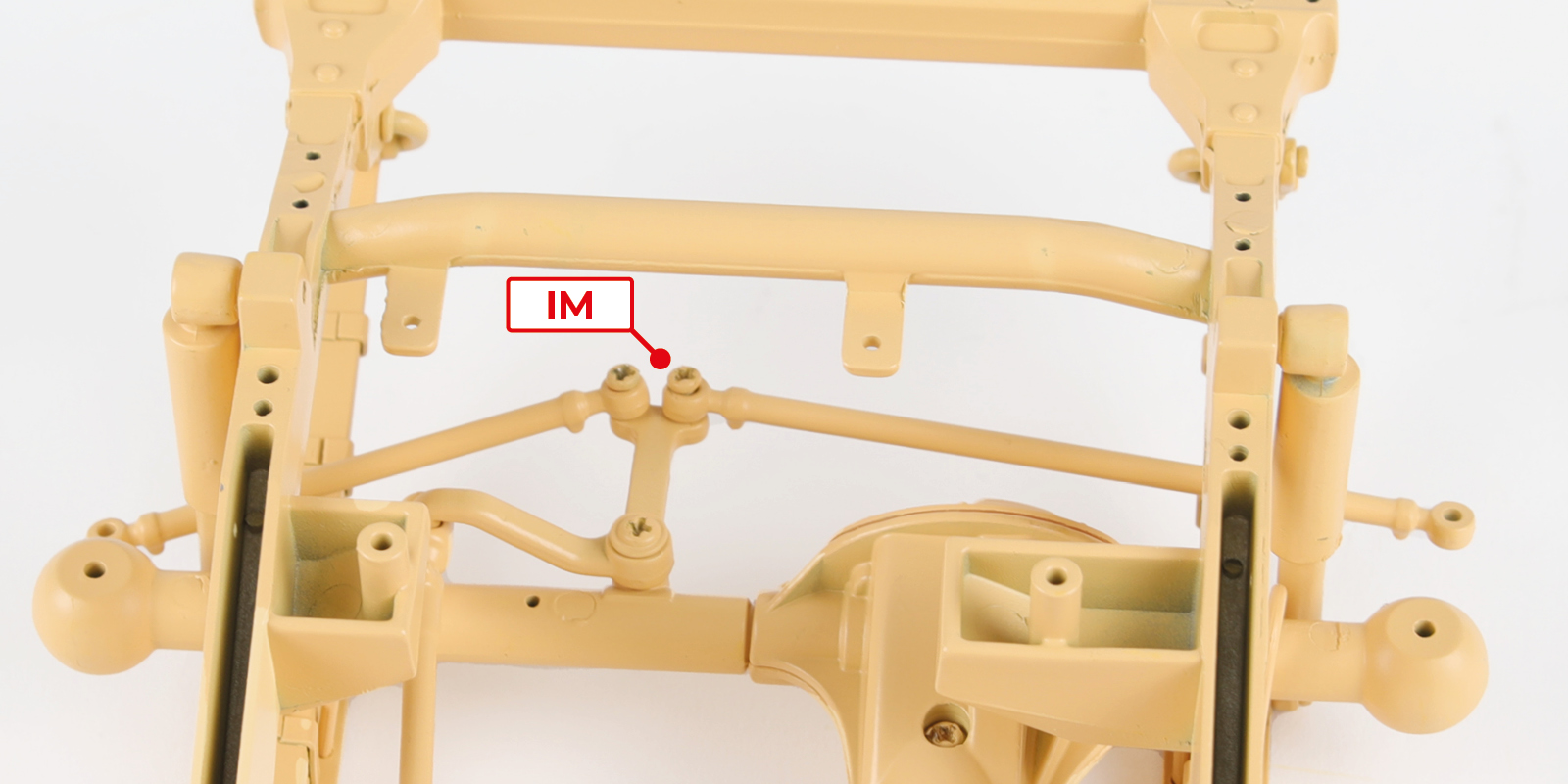

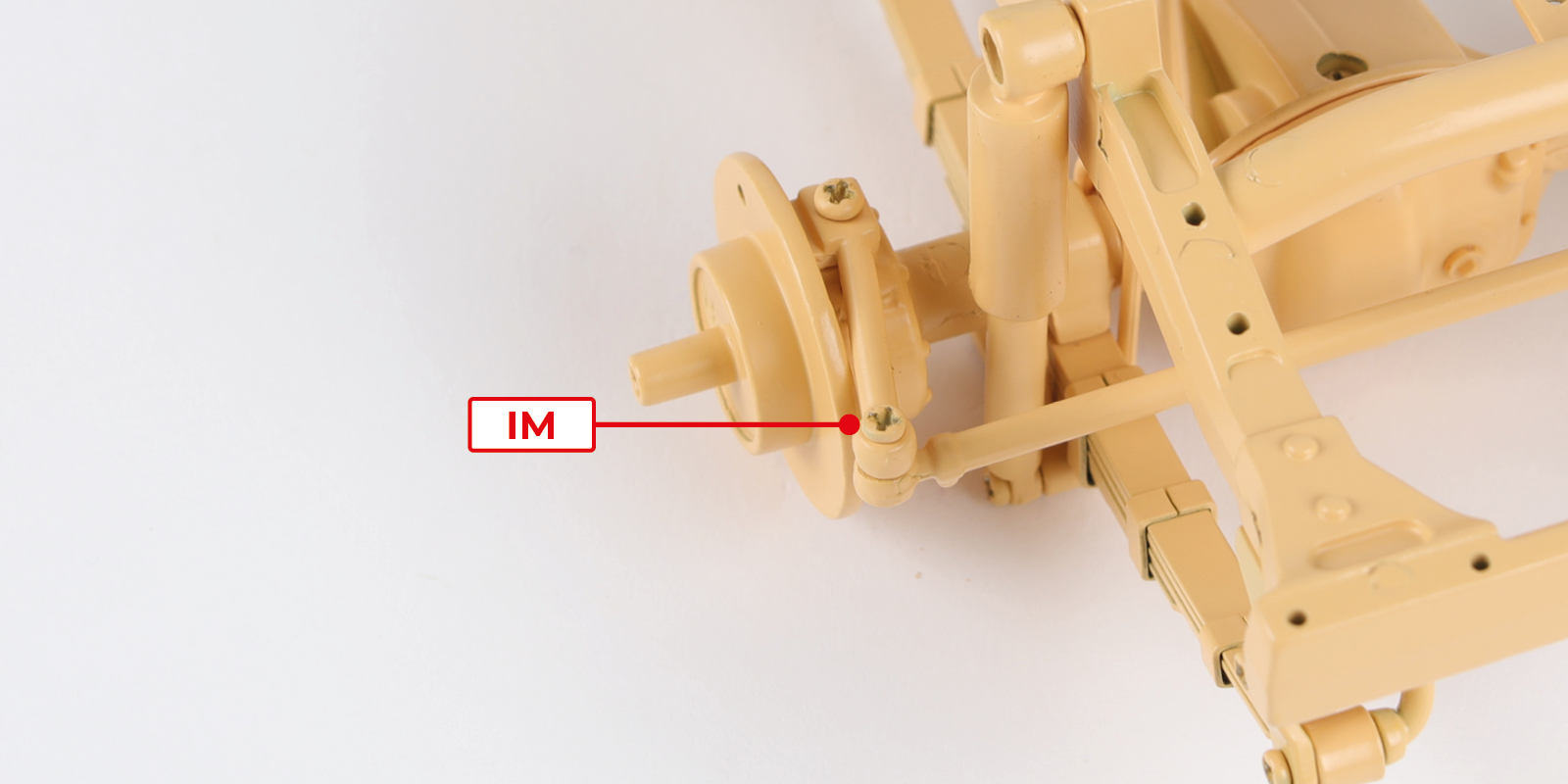

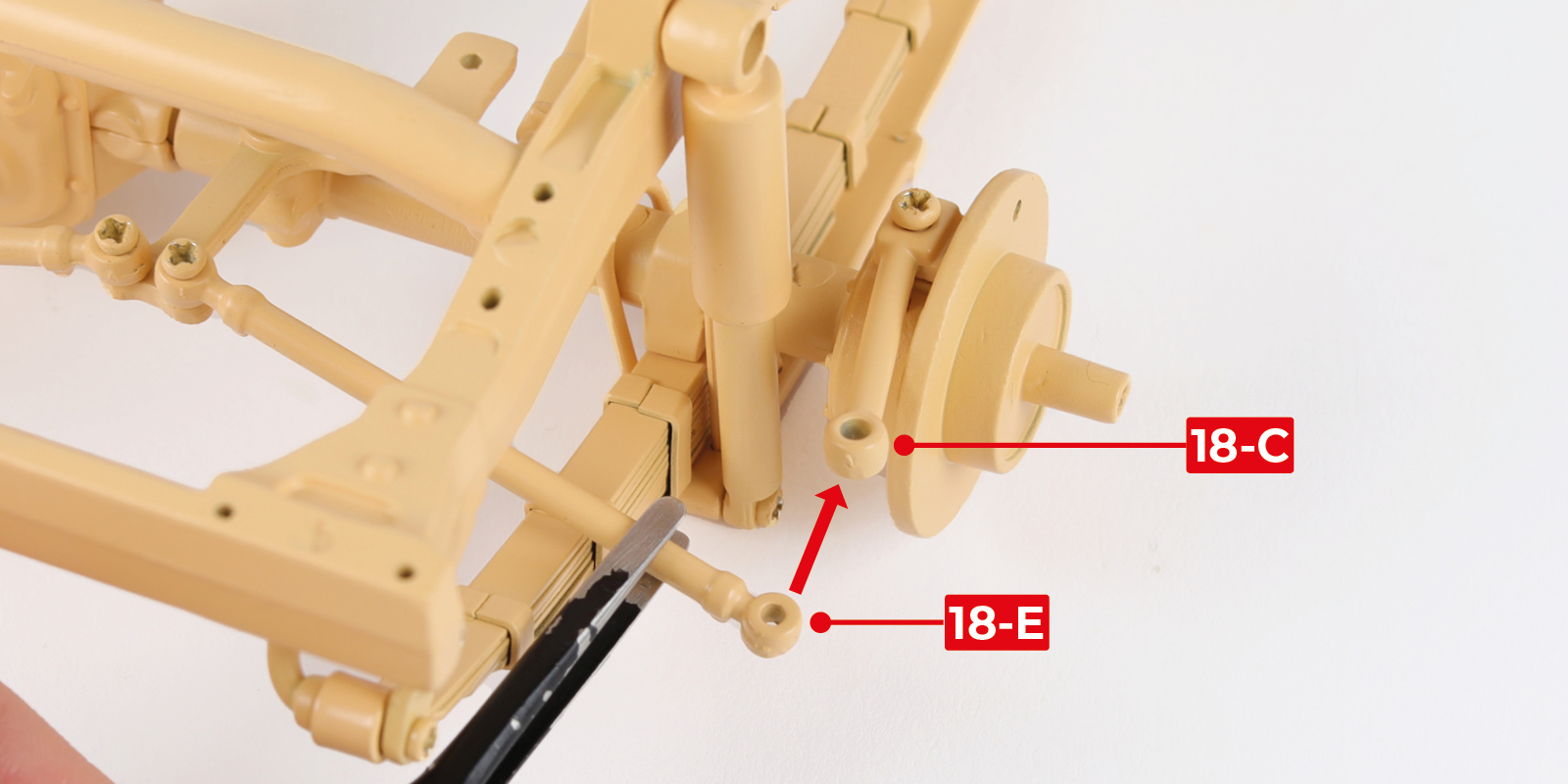

      Fit part 18-E to part 18-C with 1 IM screw.

      a
      b

      Step 8

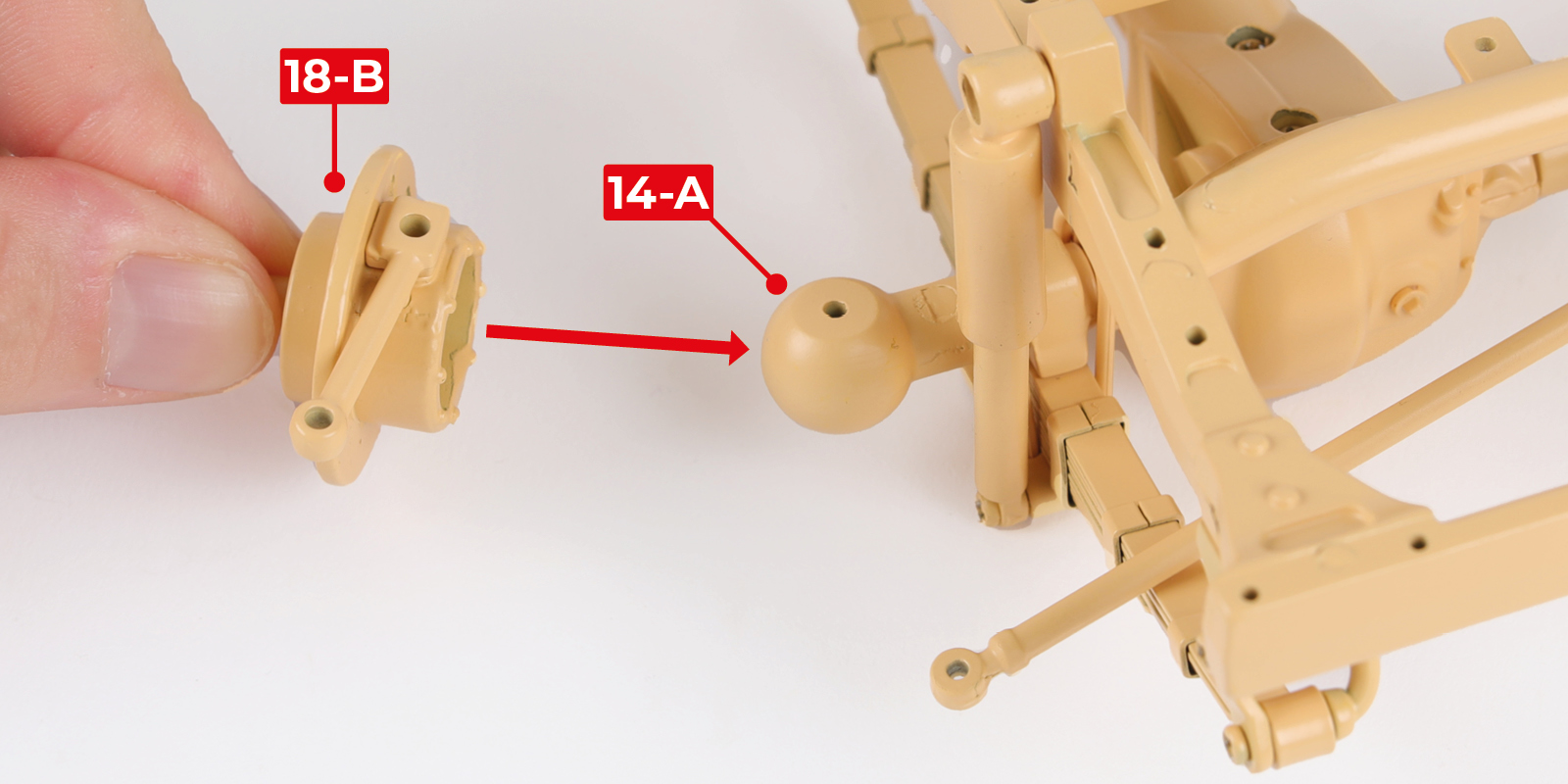

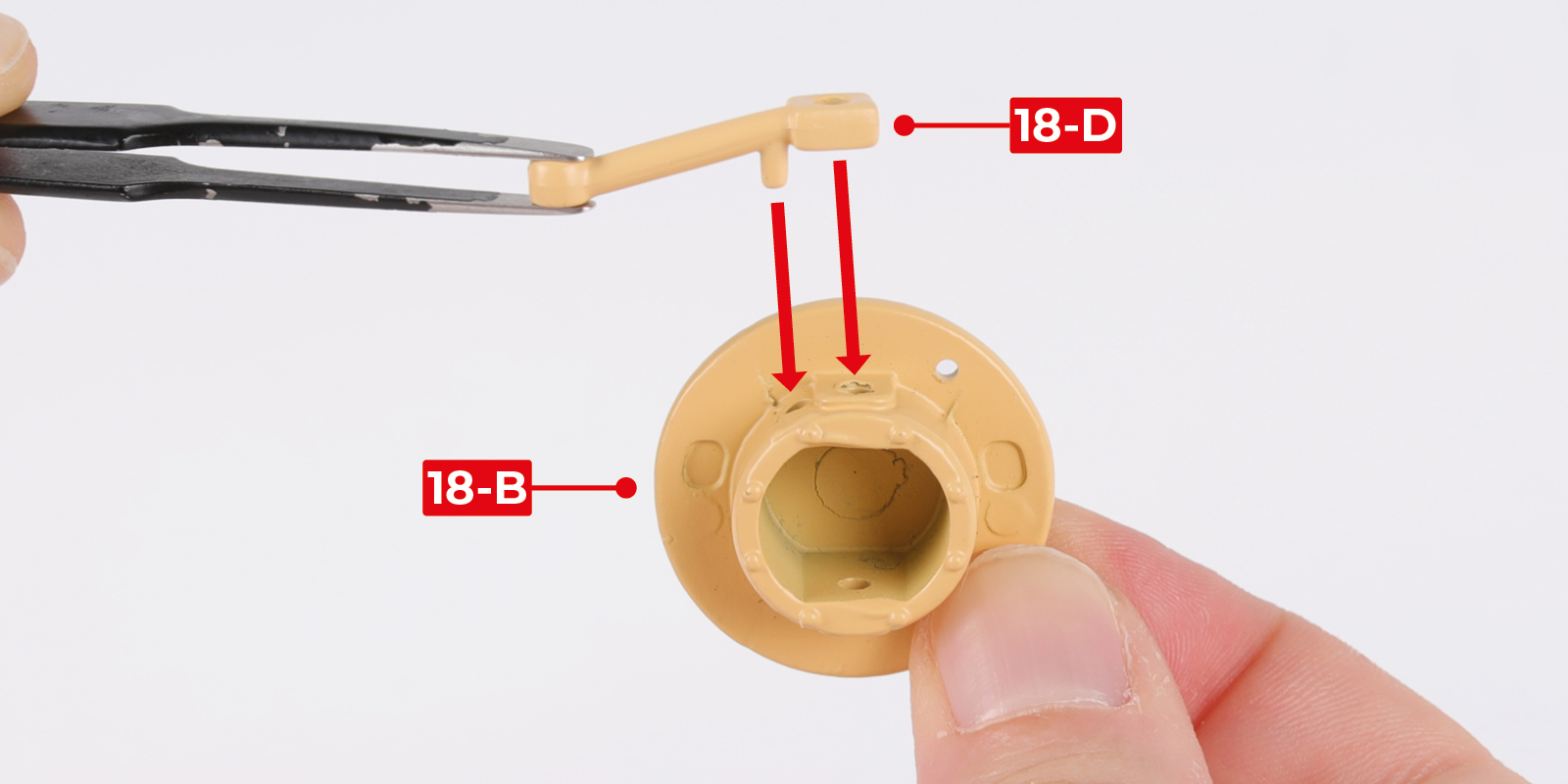

      Fit part 18-D to part 18-B.

      a
      b

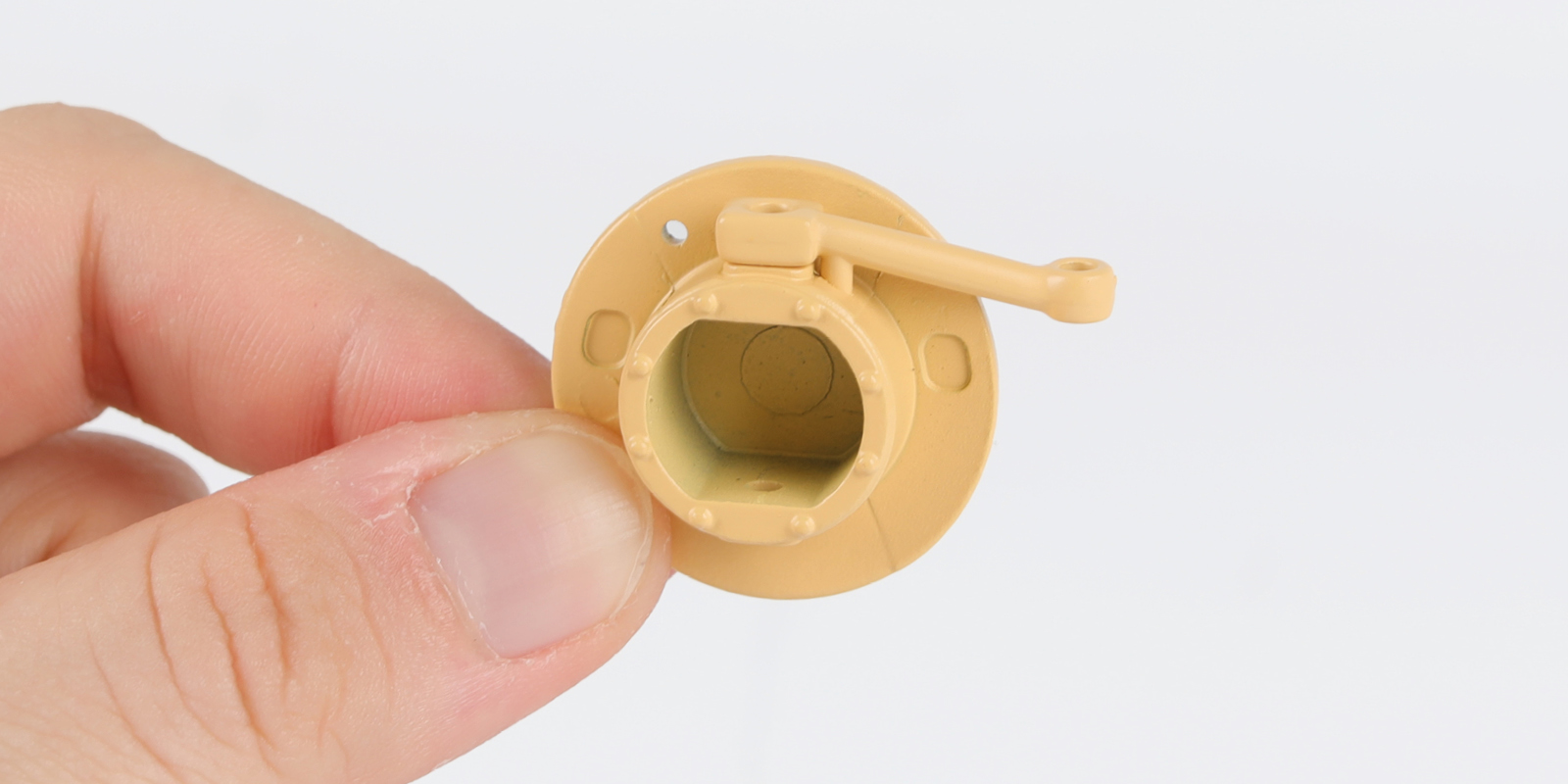

      Step 9

      Fit part 18-B to part 14-A with 1 MM screw.

      a
      b

      Step 10

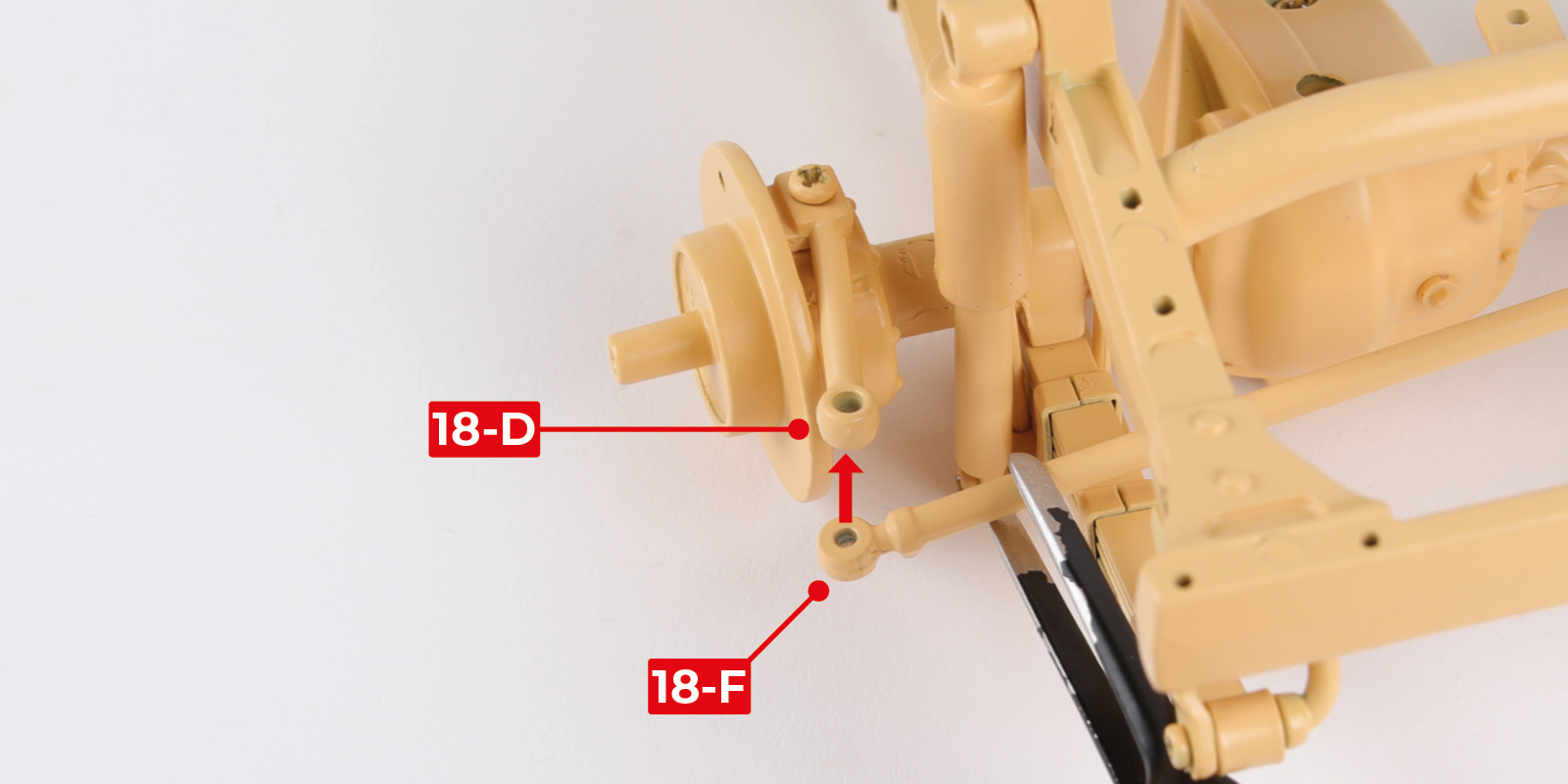

      Fit part 18-F to part 18-D with 1 IM screw.

      a
      b

      Step 11

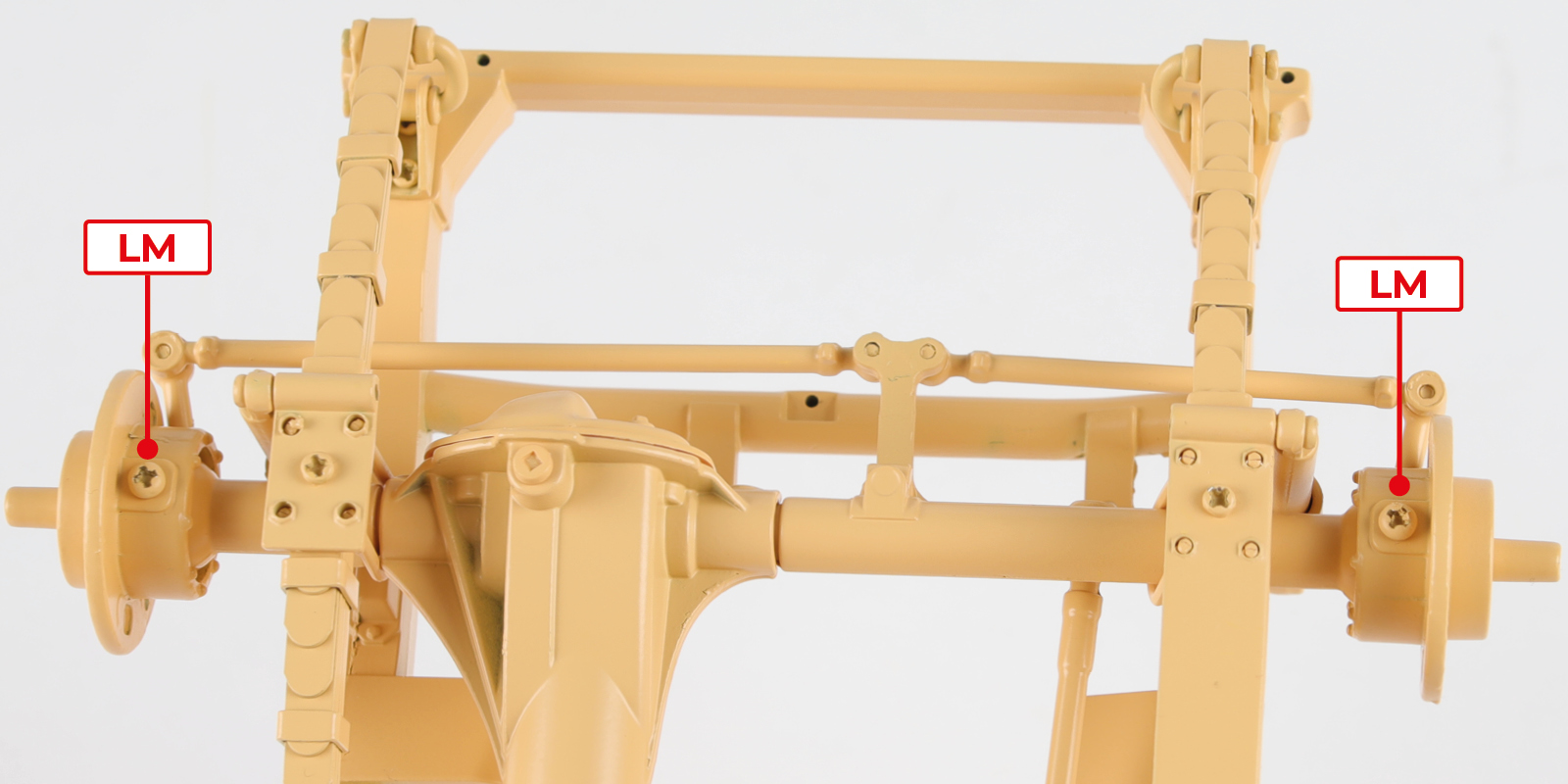

      Fix the parts from underneath with 2 LM screws.

      a

      STAGE COMPLETE

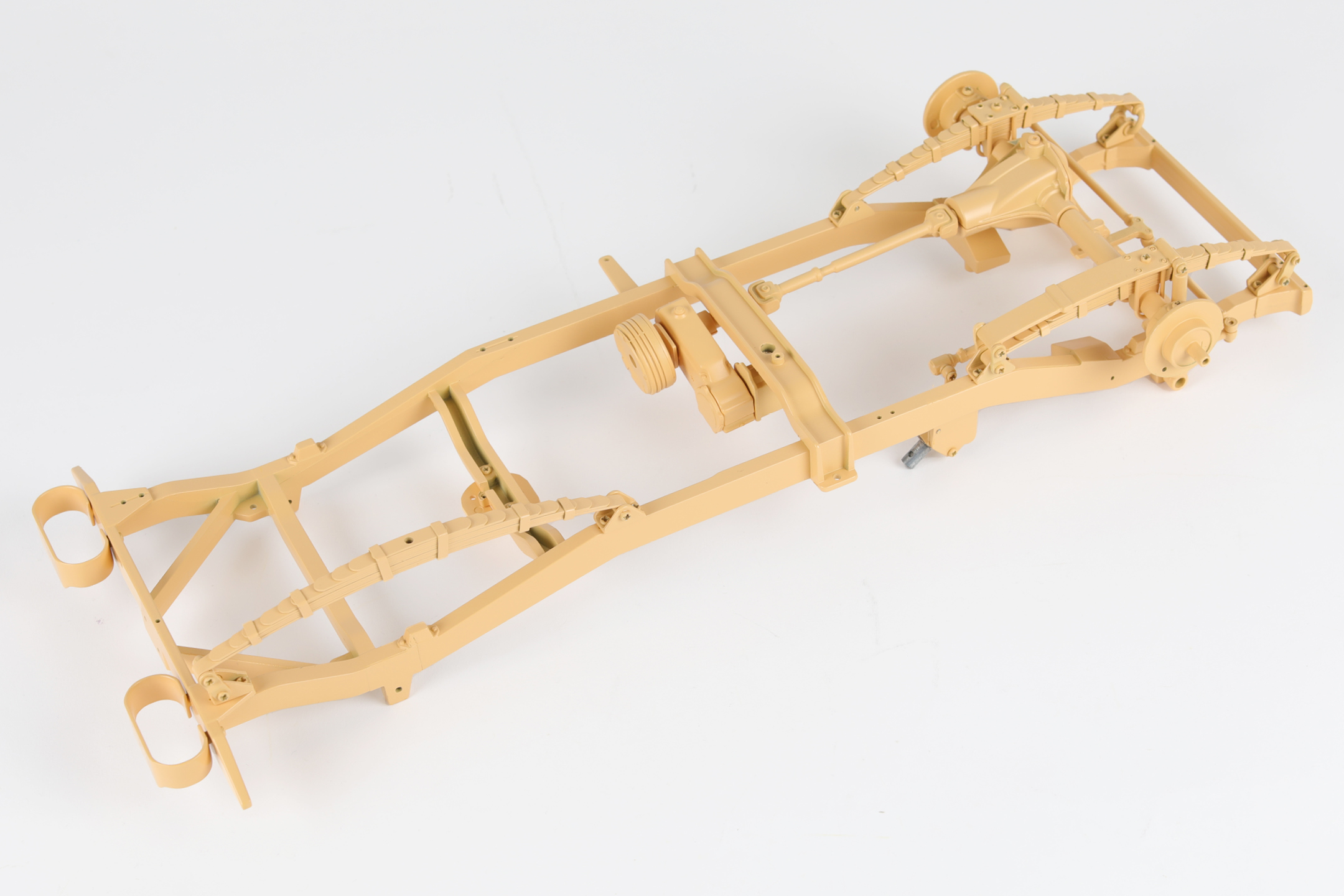

      Stage 19: Fitting the rear left leaf spring

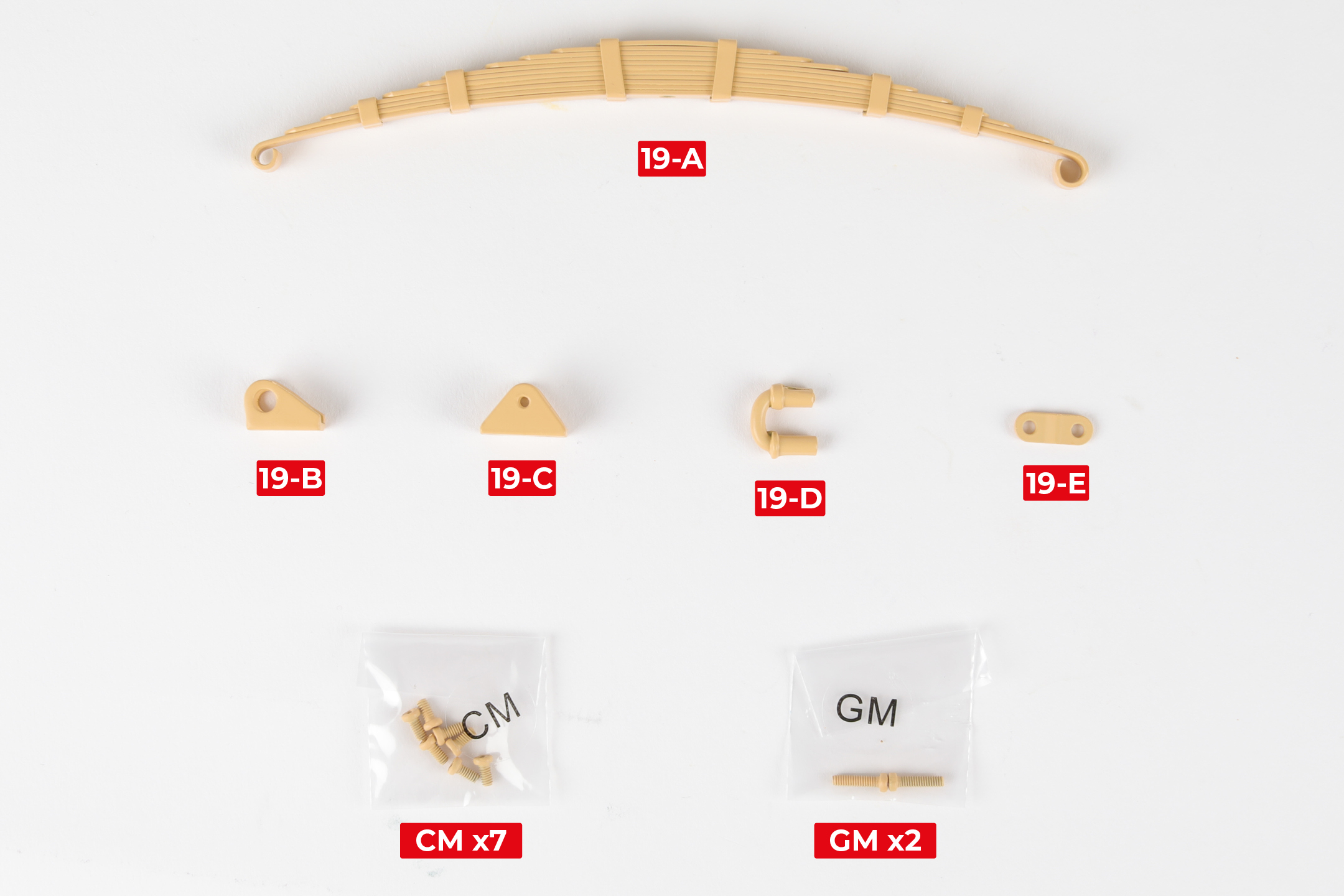

      STAGE 19 PARTS

      Step 1

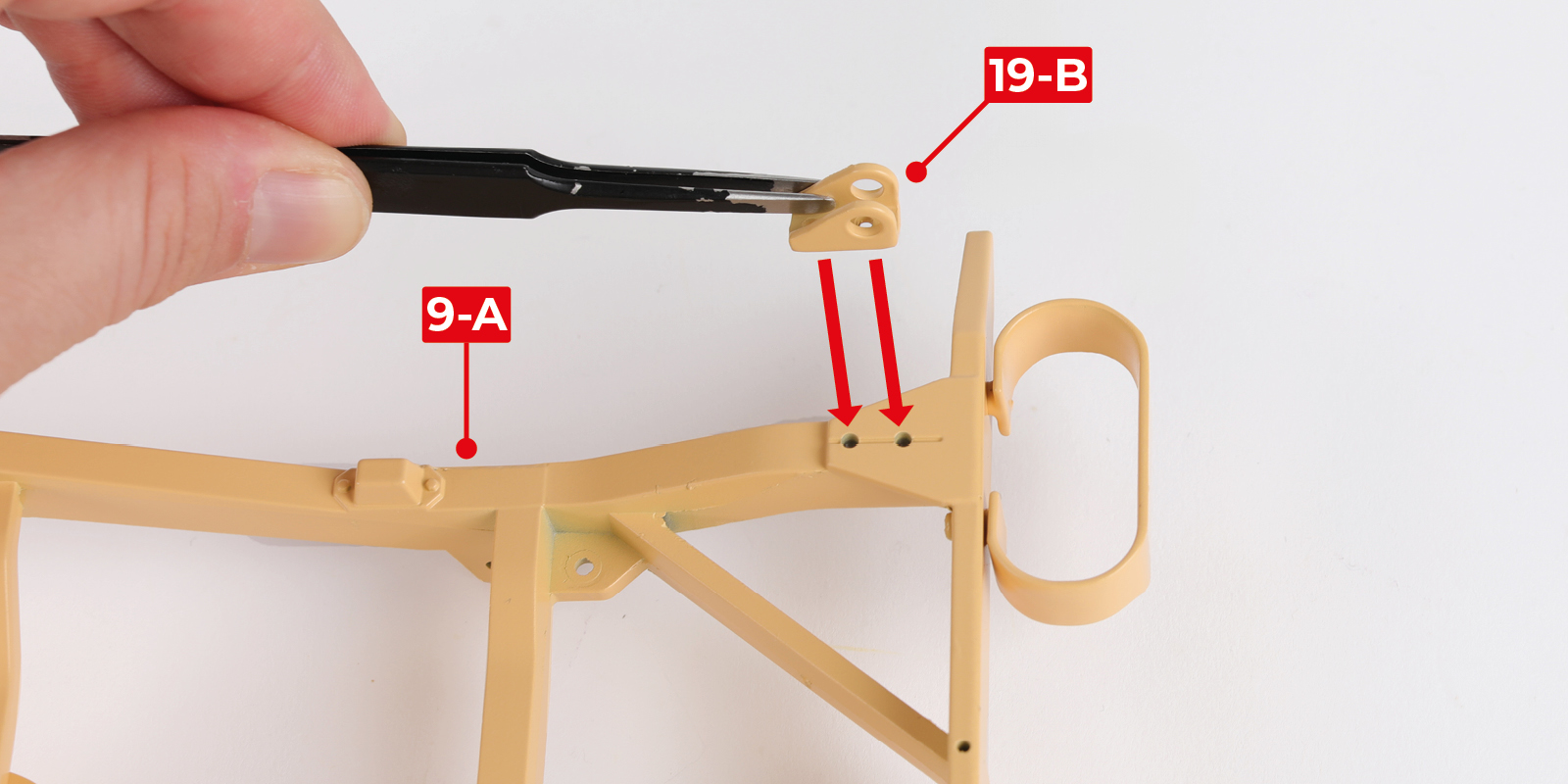

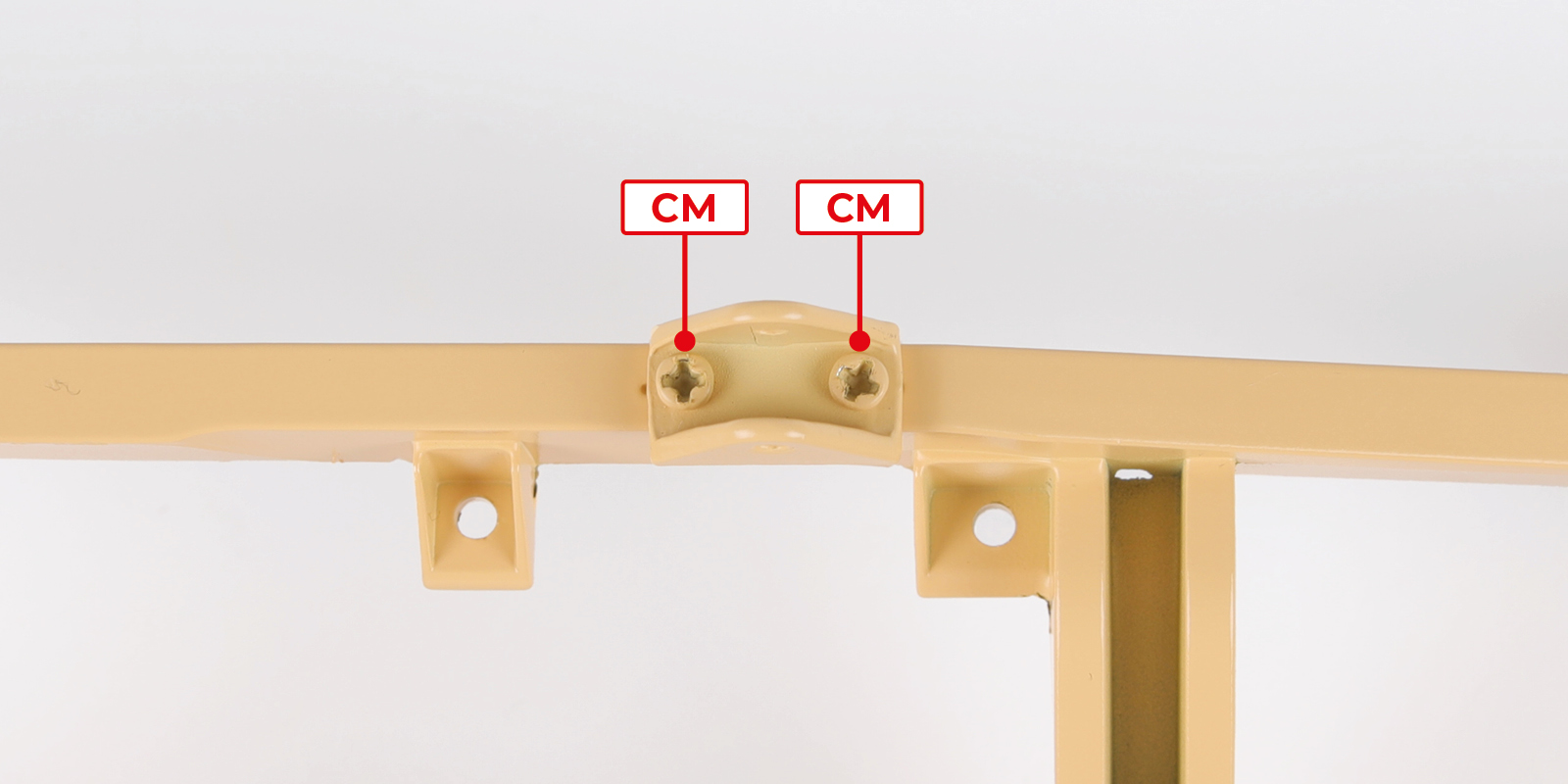

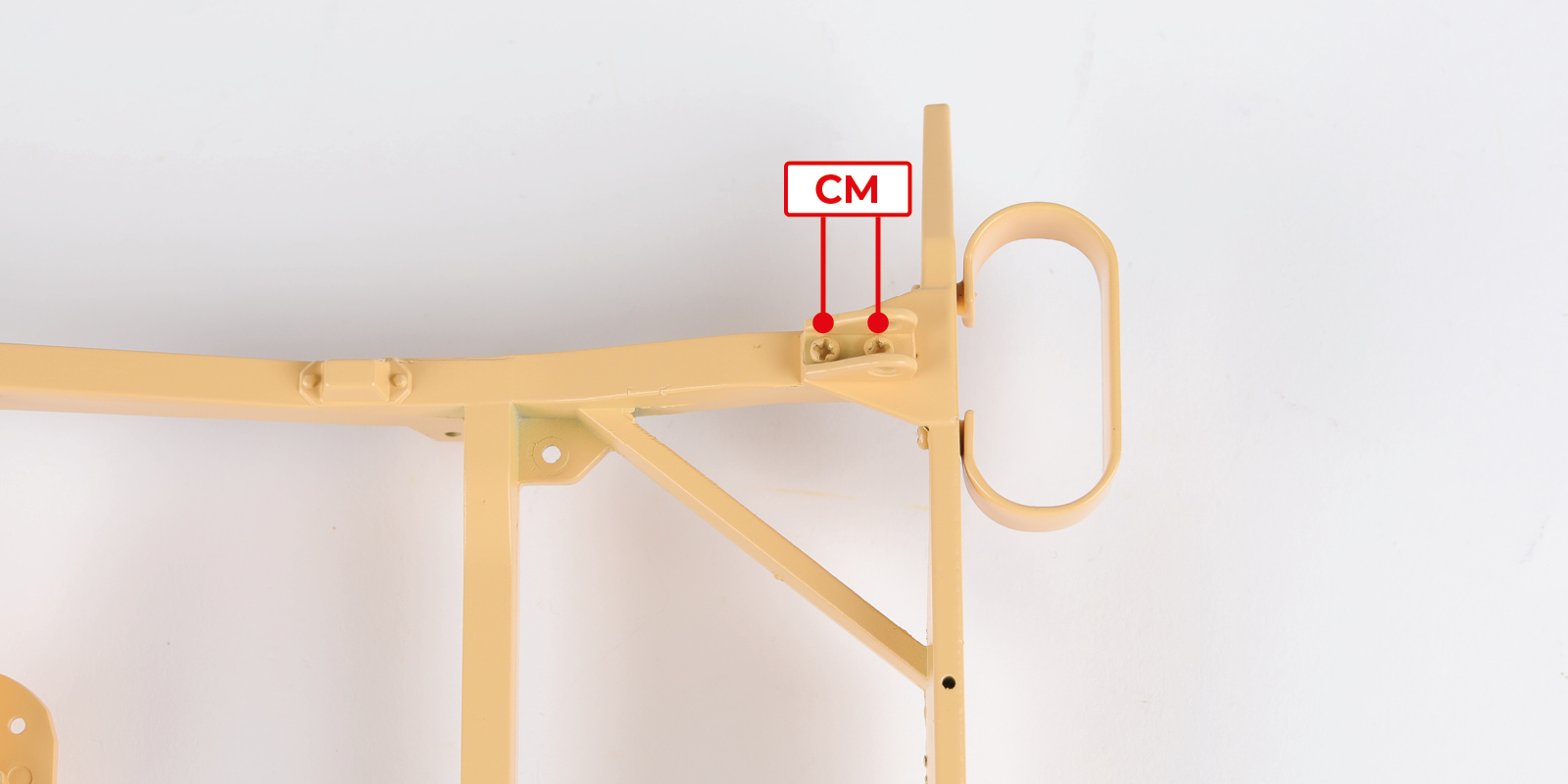

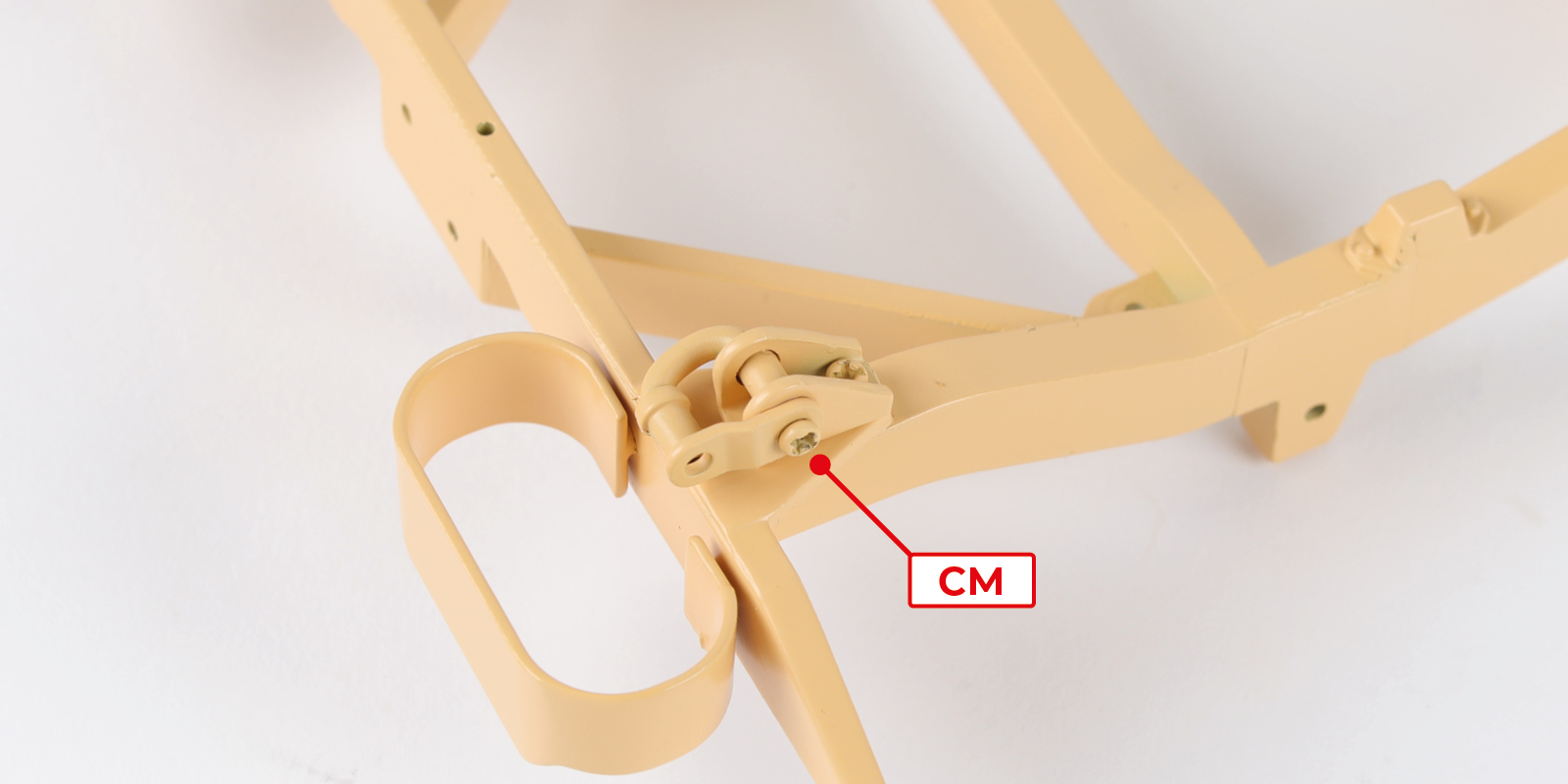

      Fit part 19-B to part 9-A with 2 CM screws.

      a
      b

      Step 2

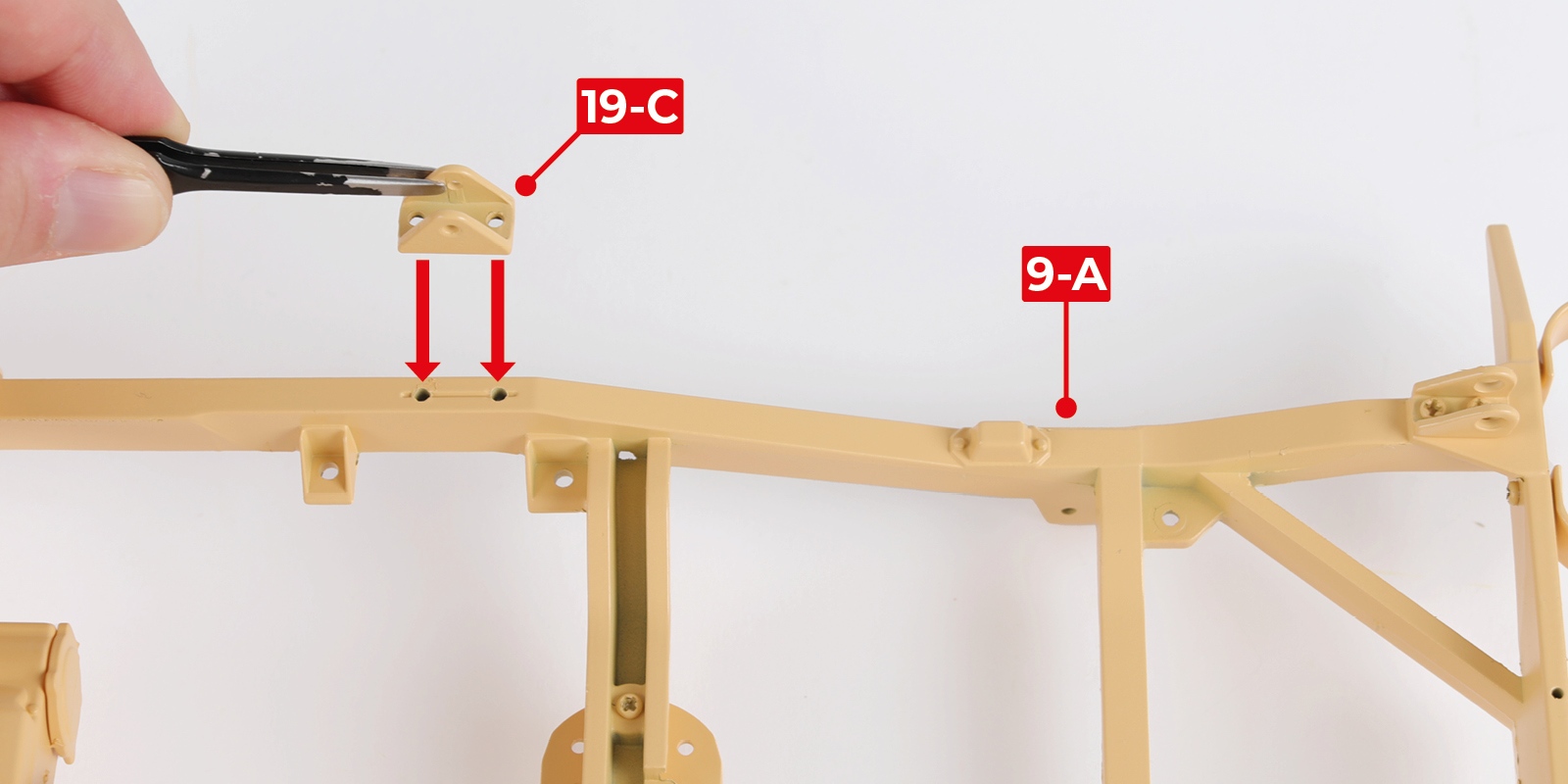

      Fit part 19-C to part 9-A with 2 CM screws. Make sure the part protrudes from the inner edge of the chassis (image b).

      a
      b
      c

      Step 3

      Fit part 19-D into part 19-B.

      a
      b

      Step 4

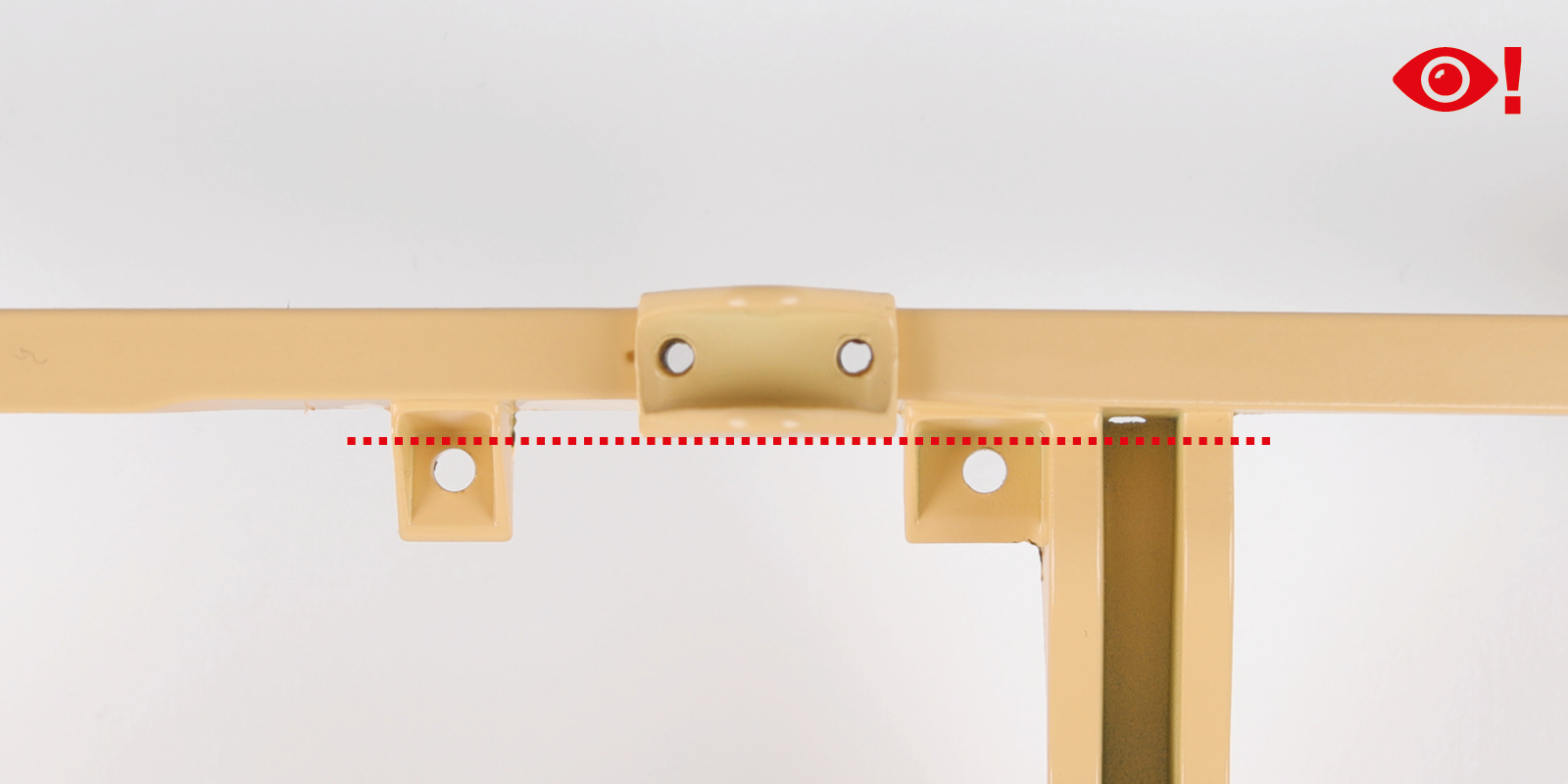

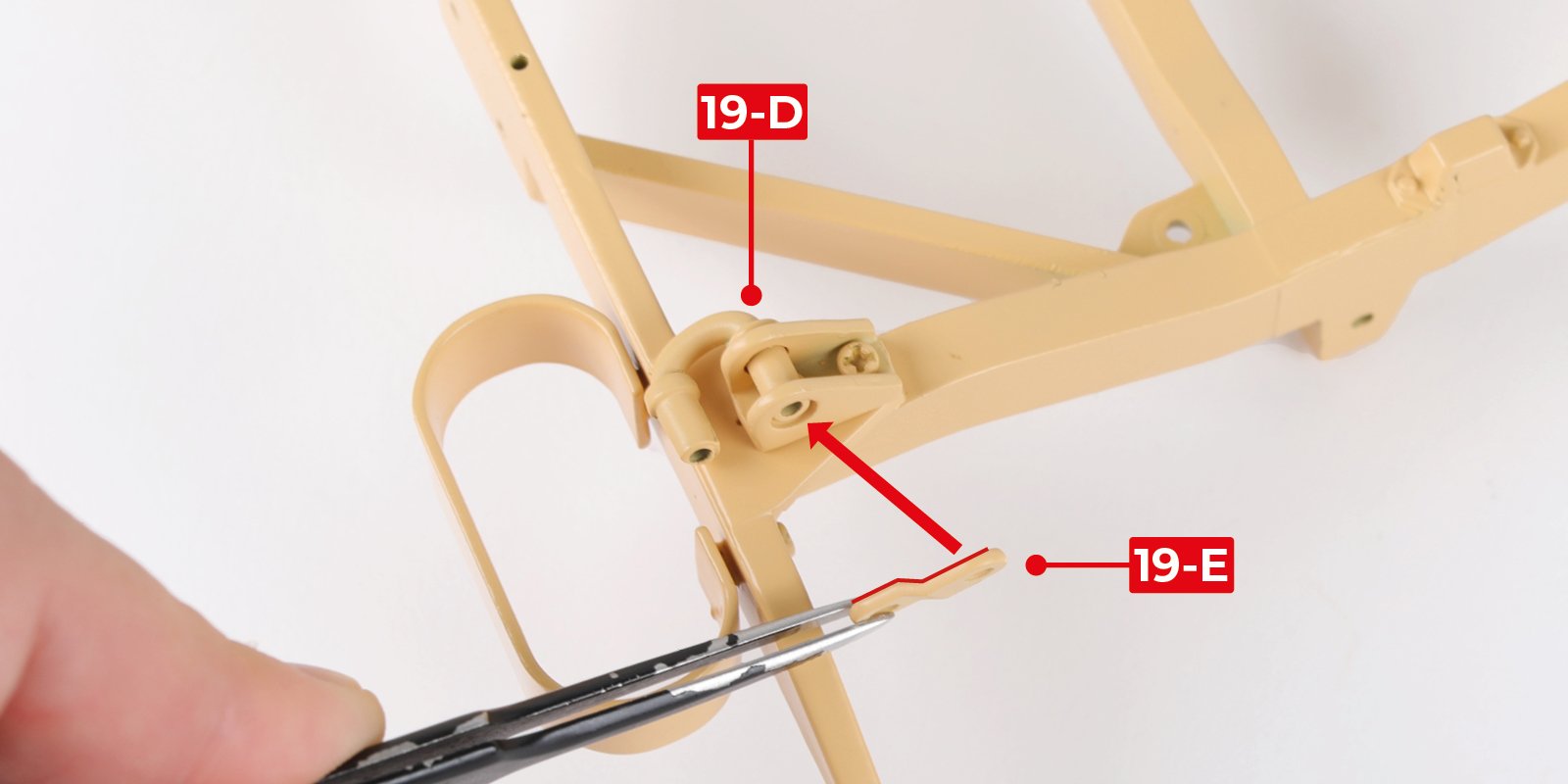

      Fit part 19-E to part 19-D with 1 CM screw. Part 19-E must be in the orientation shown by the red line.

      a
      b

      Step 5

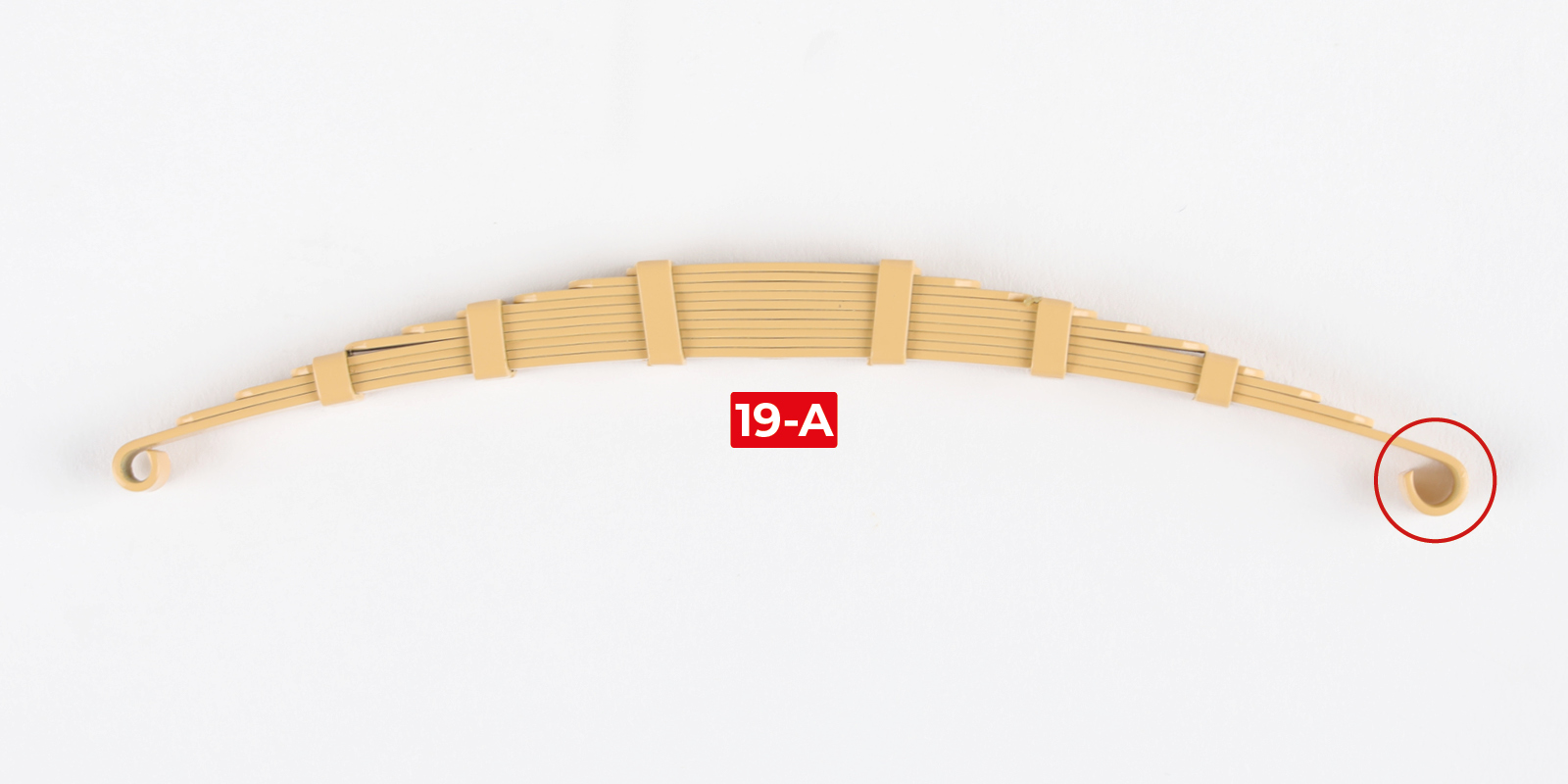

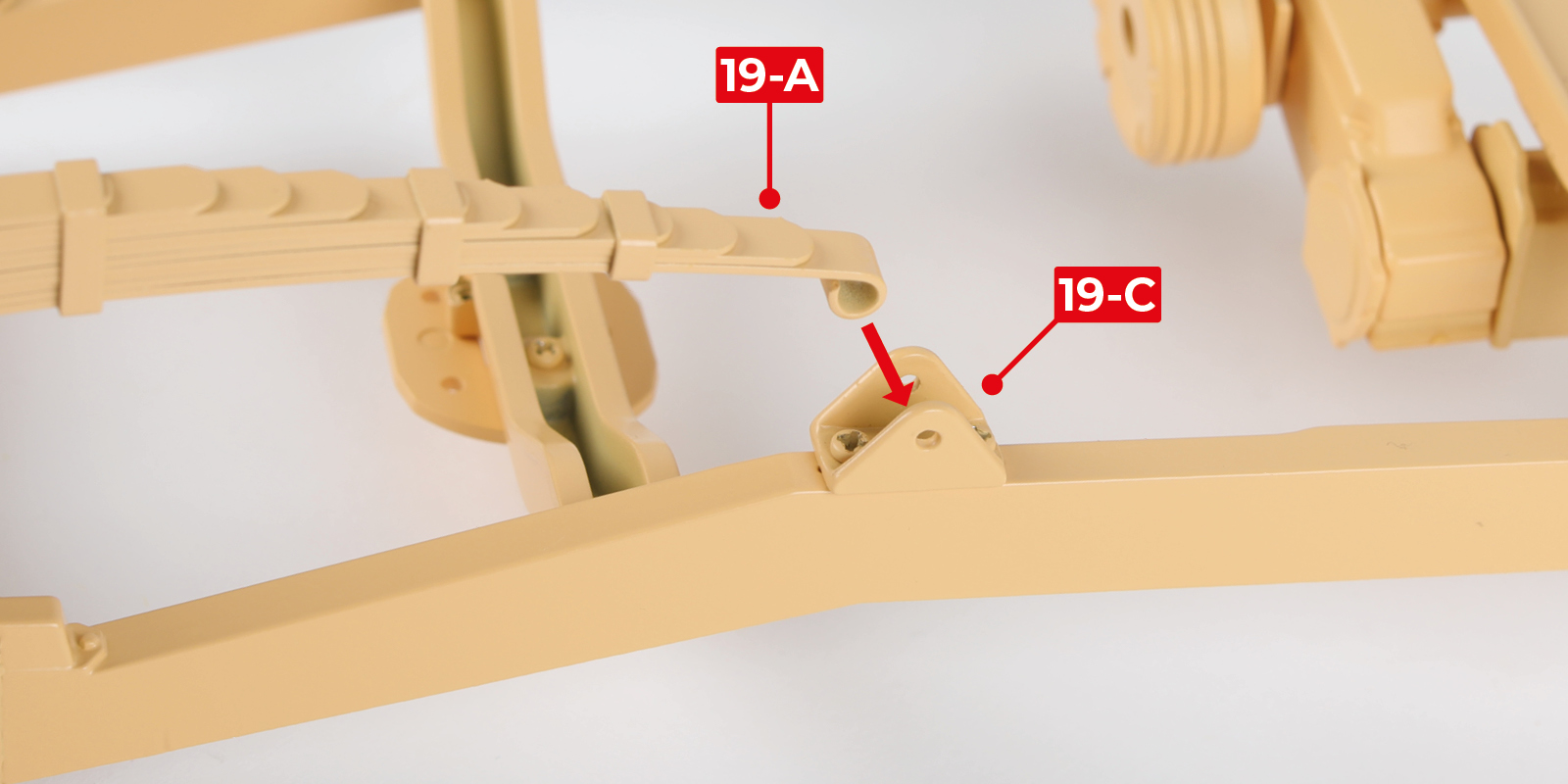

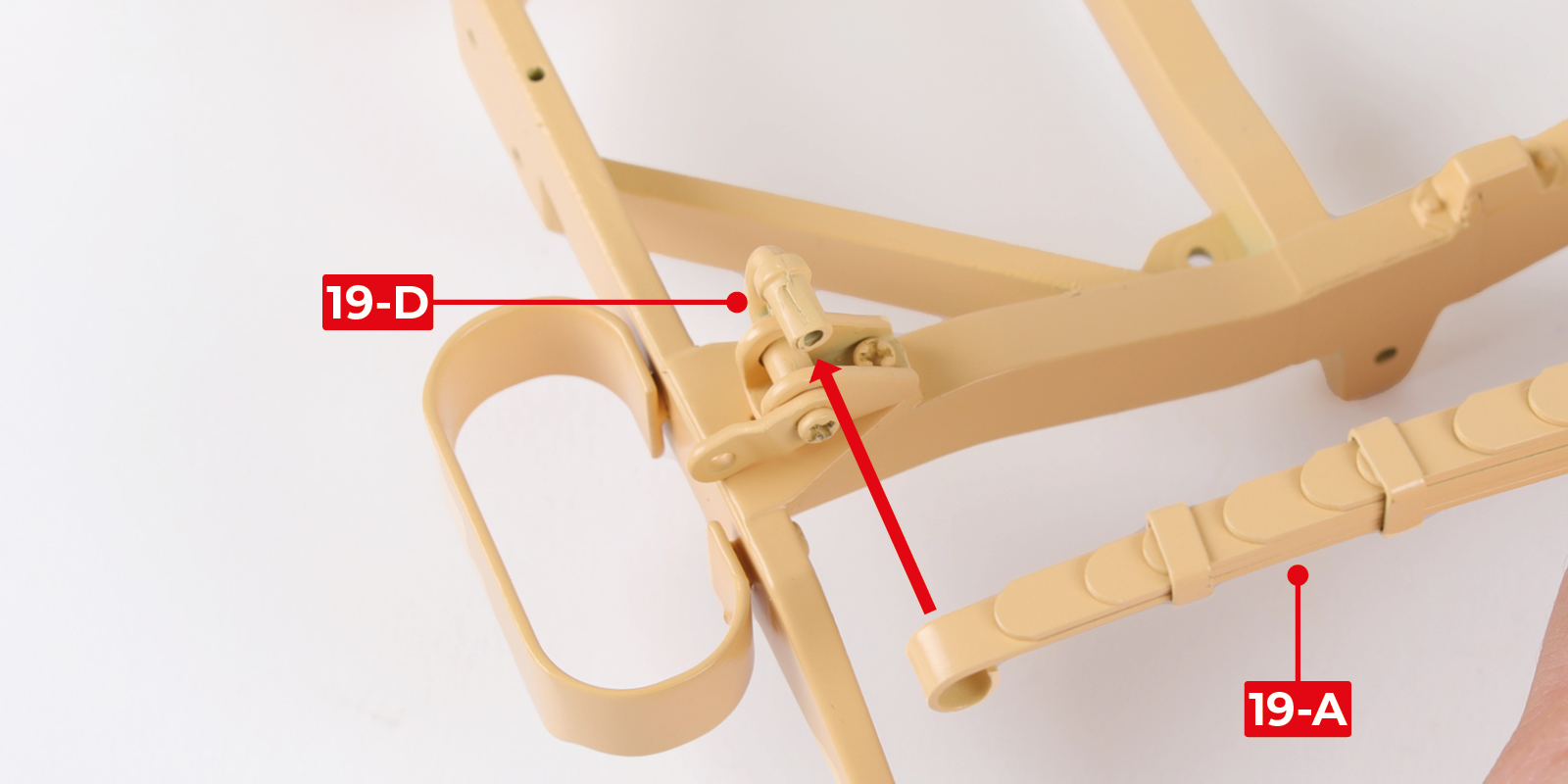

      Part 19-A has one end that is larger than the other. Fit the large end onto part 19-D as shown.

      a
      b

      Step 6

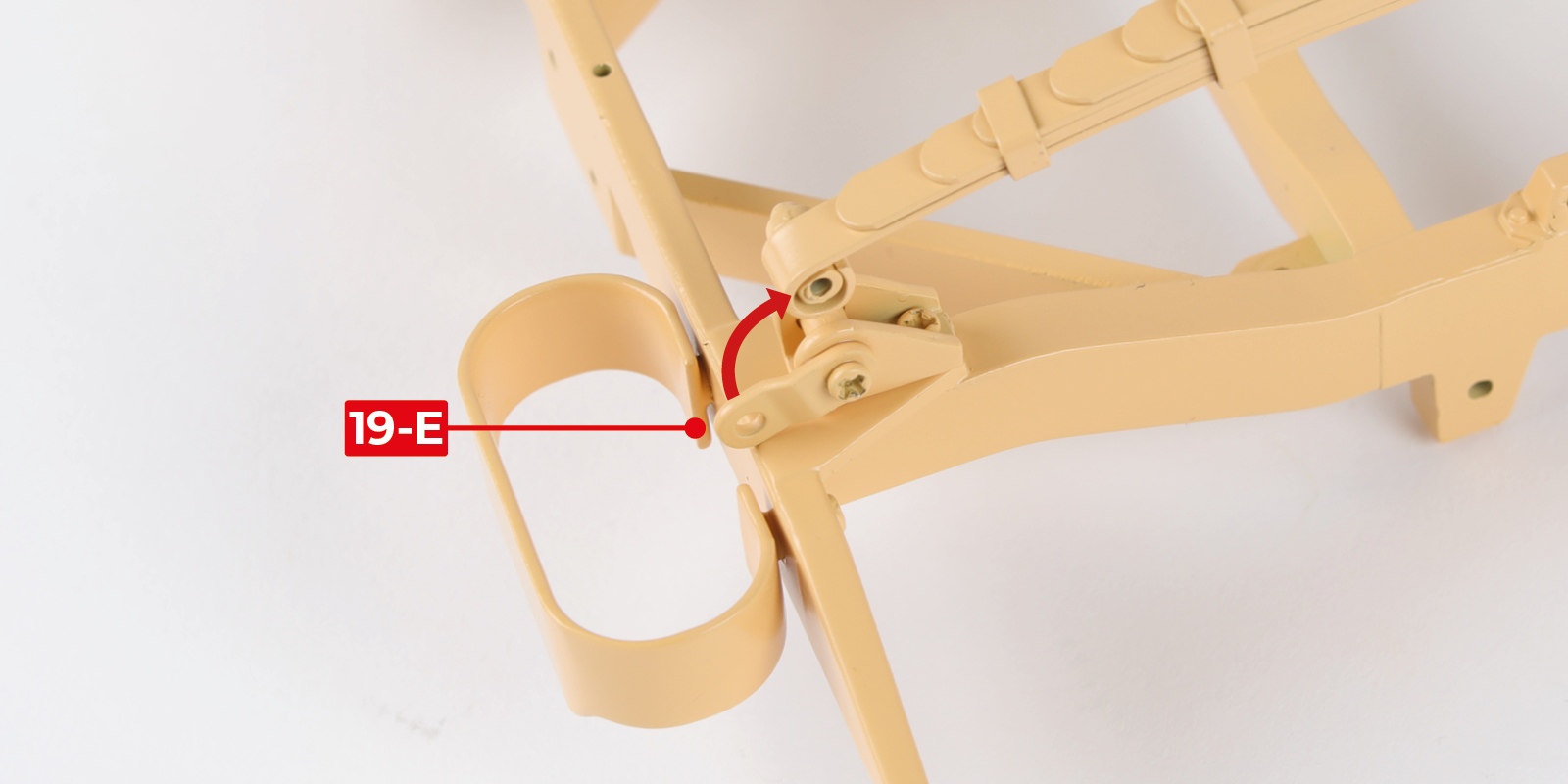

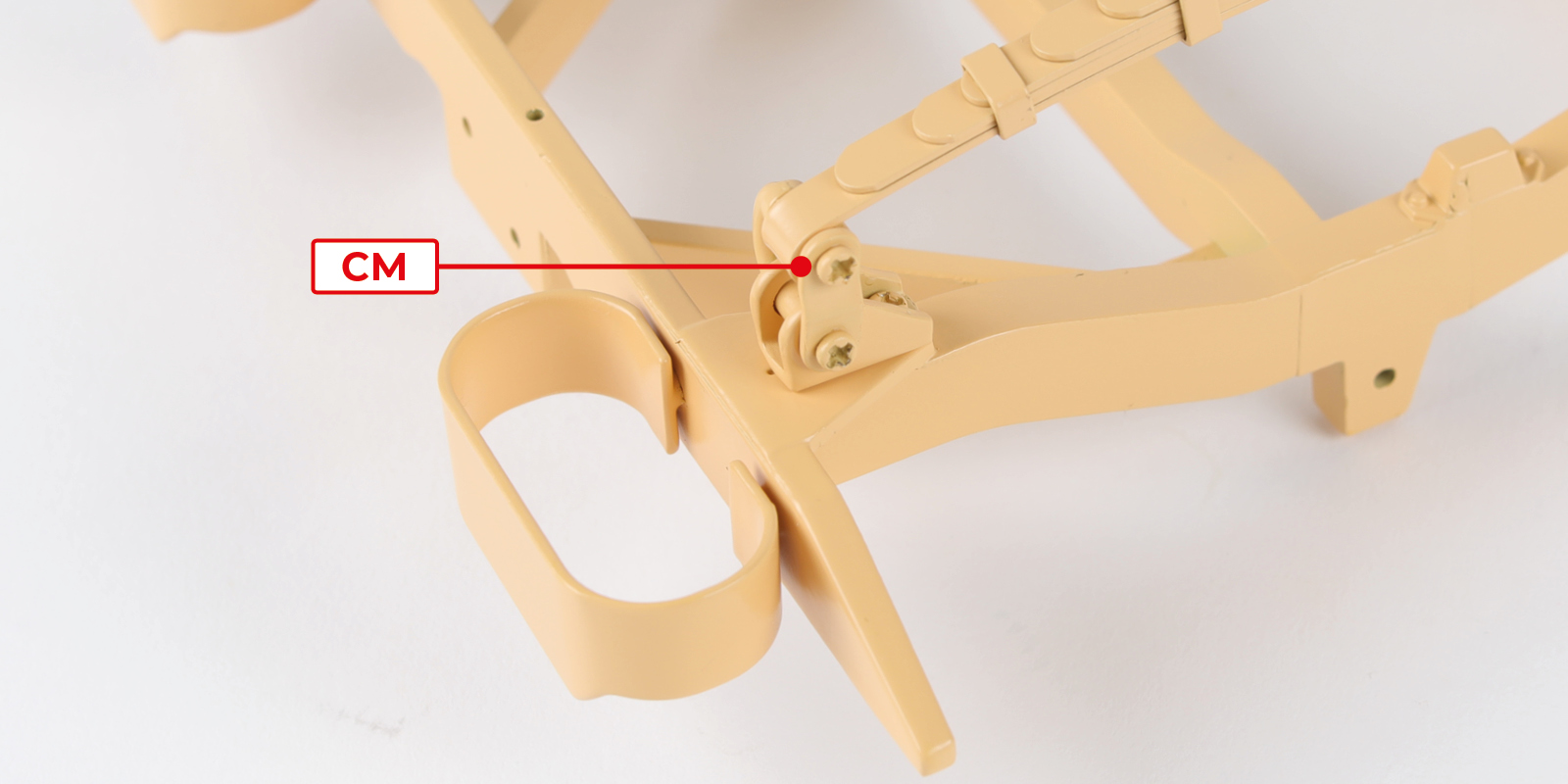

      Rotate part 19-E in place then fix with 1 CM screw.

      a
      b

      Step 7

      Fit part 19-A into part 19-C with 1 GM screw.

      a
      b

      STAGE COMPLETE

      Stage 20: Fitting the rear right leaf spring

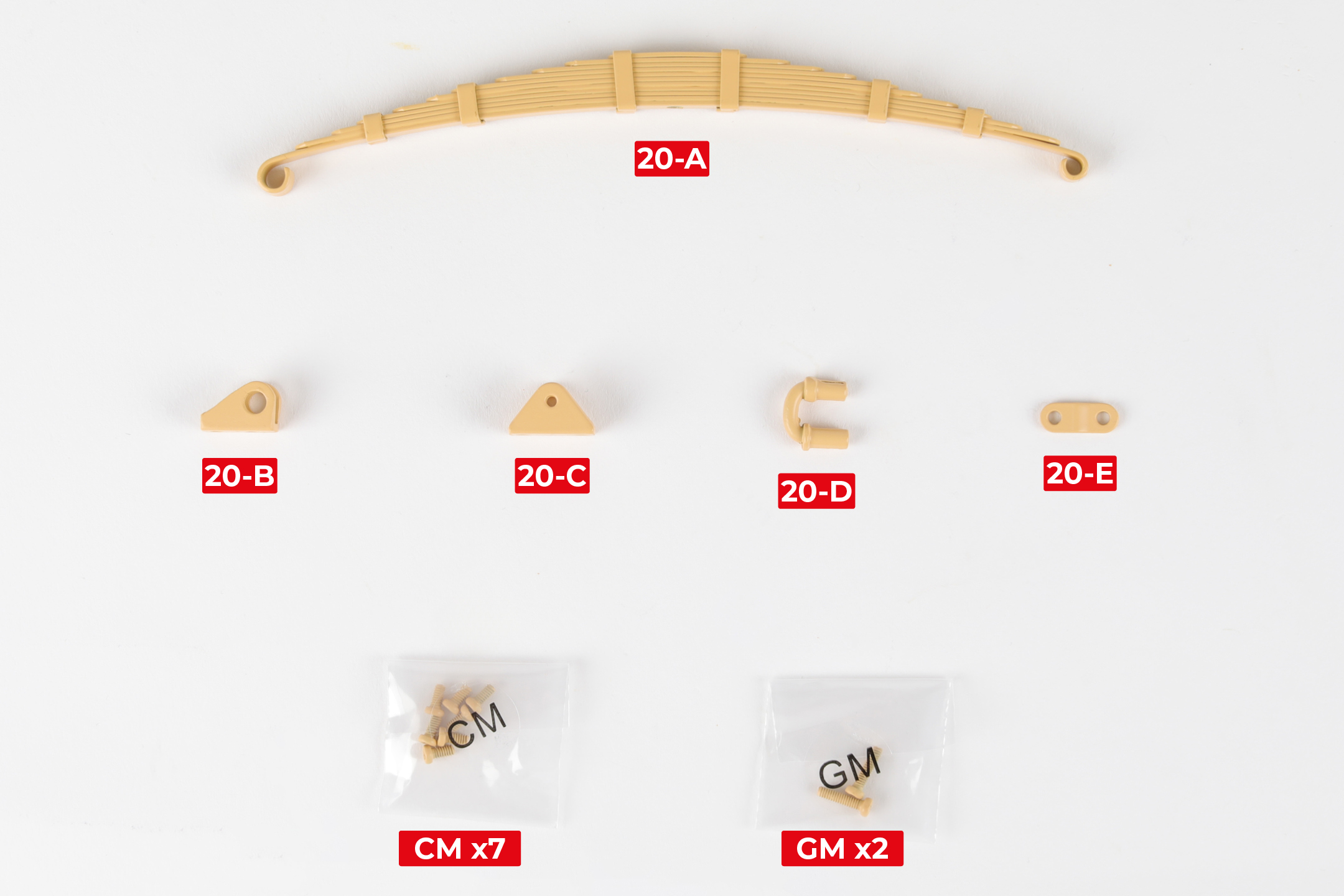

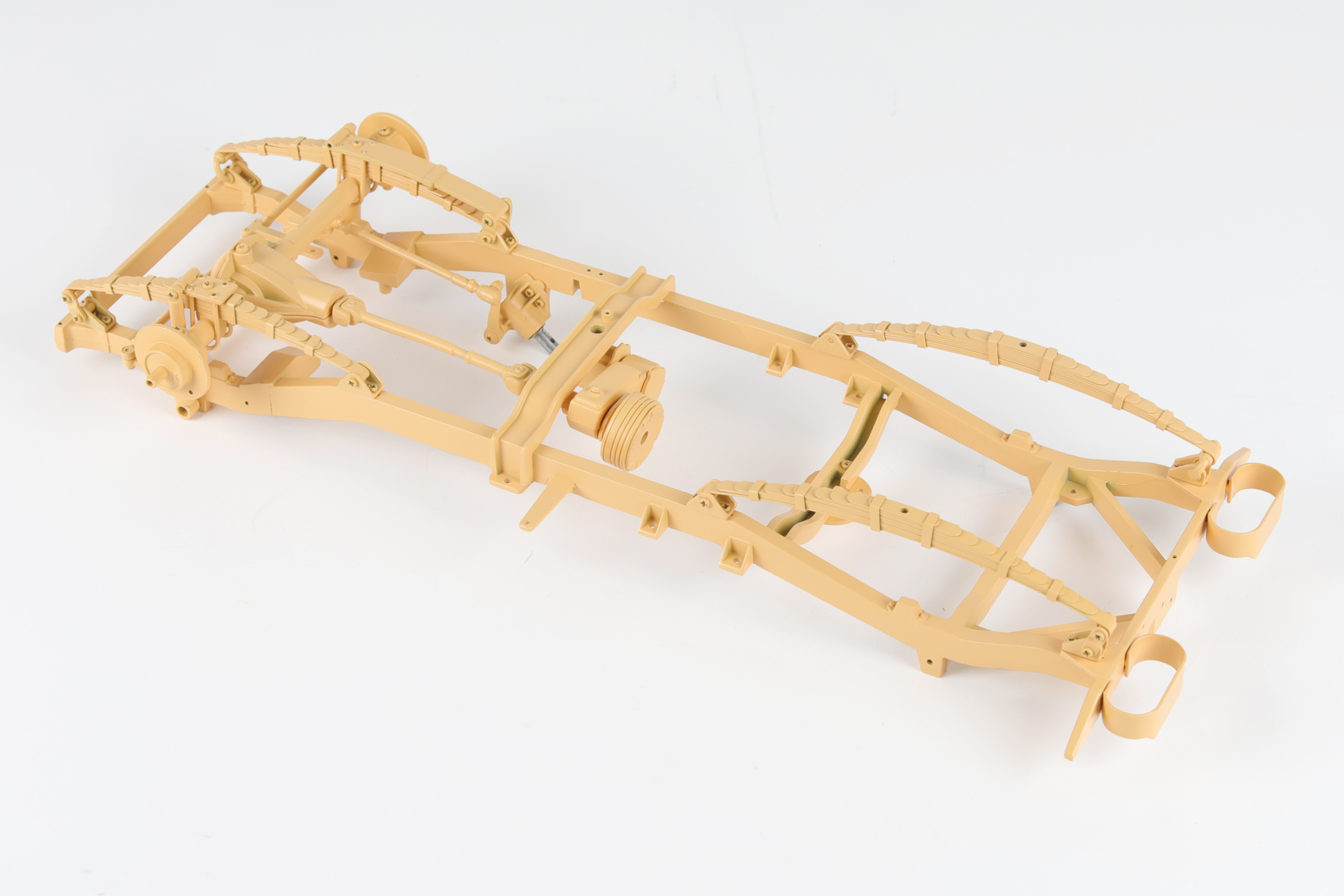

      STAGE 20 PARTS

      Step 1

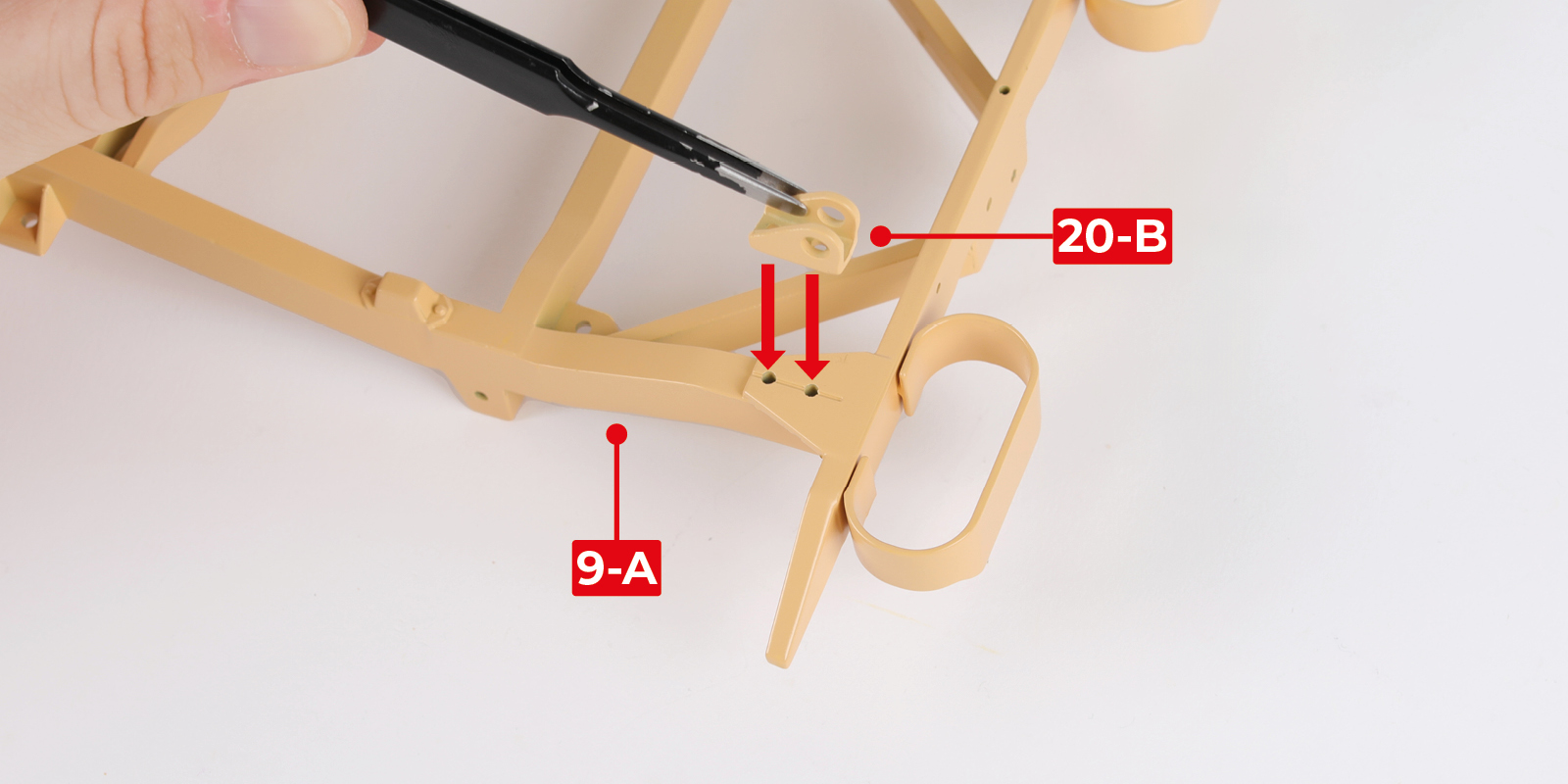

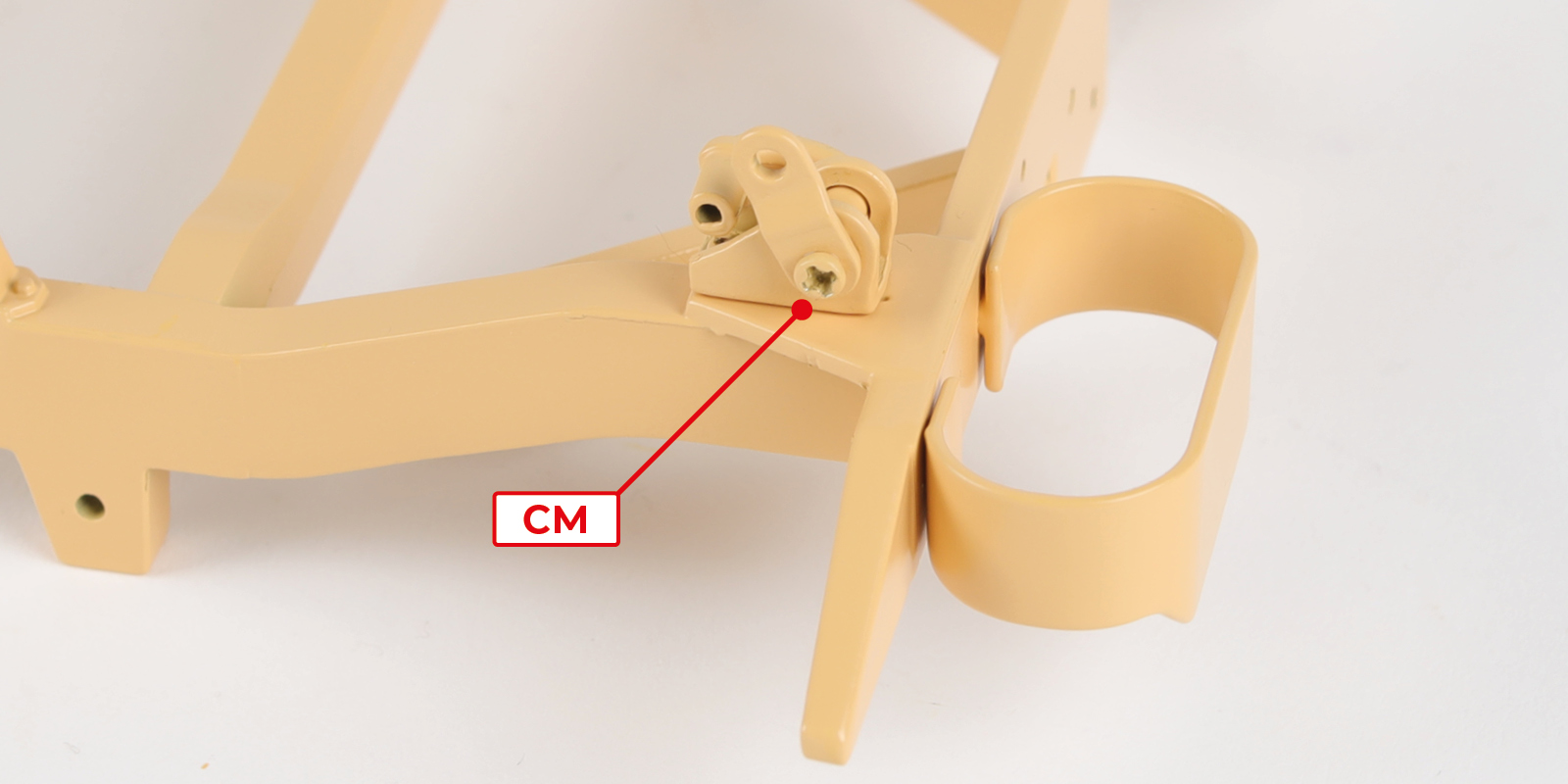

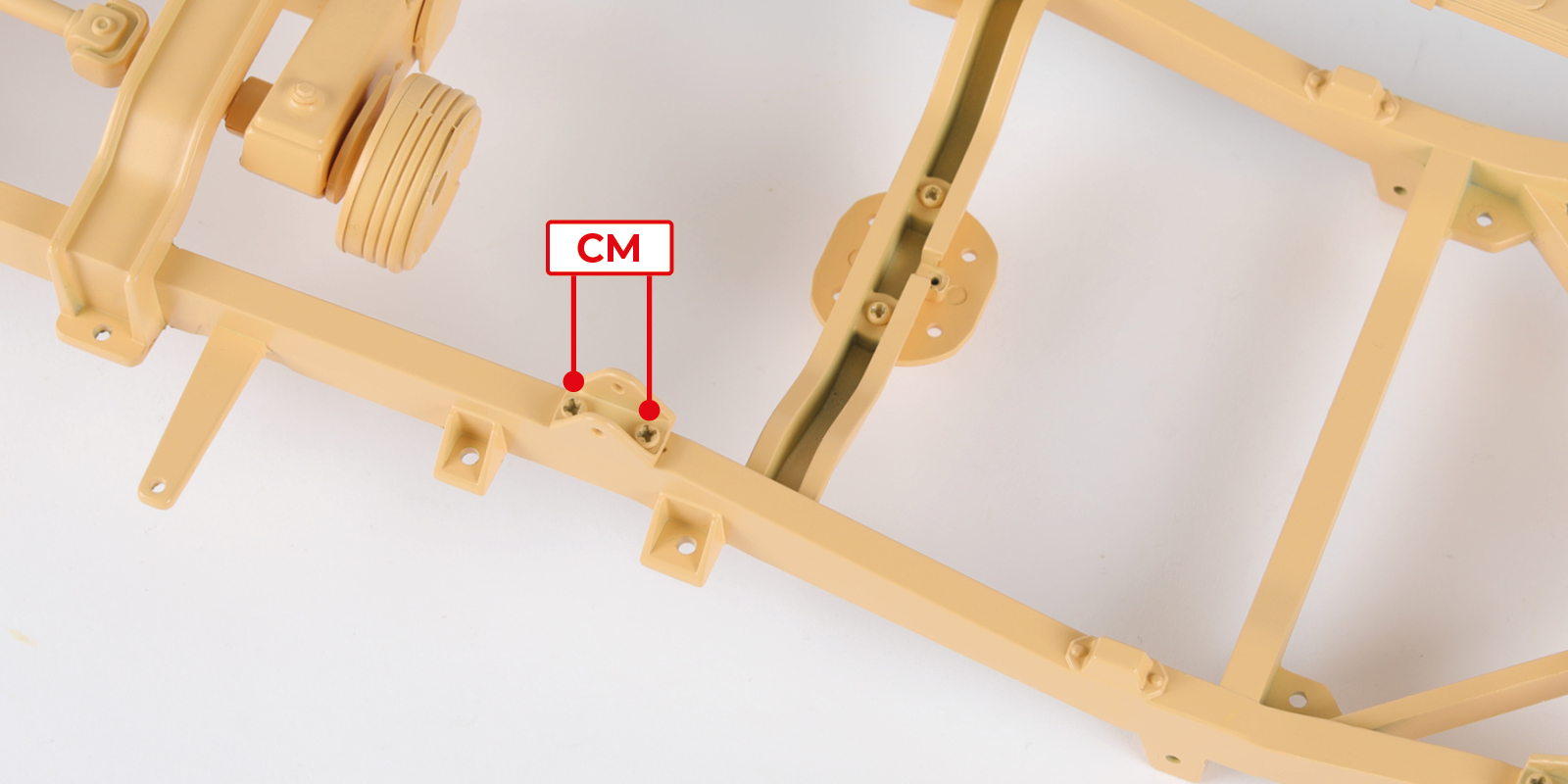

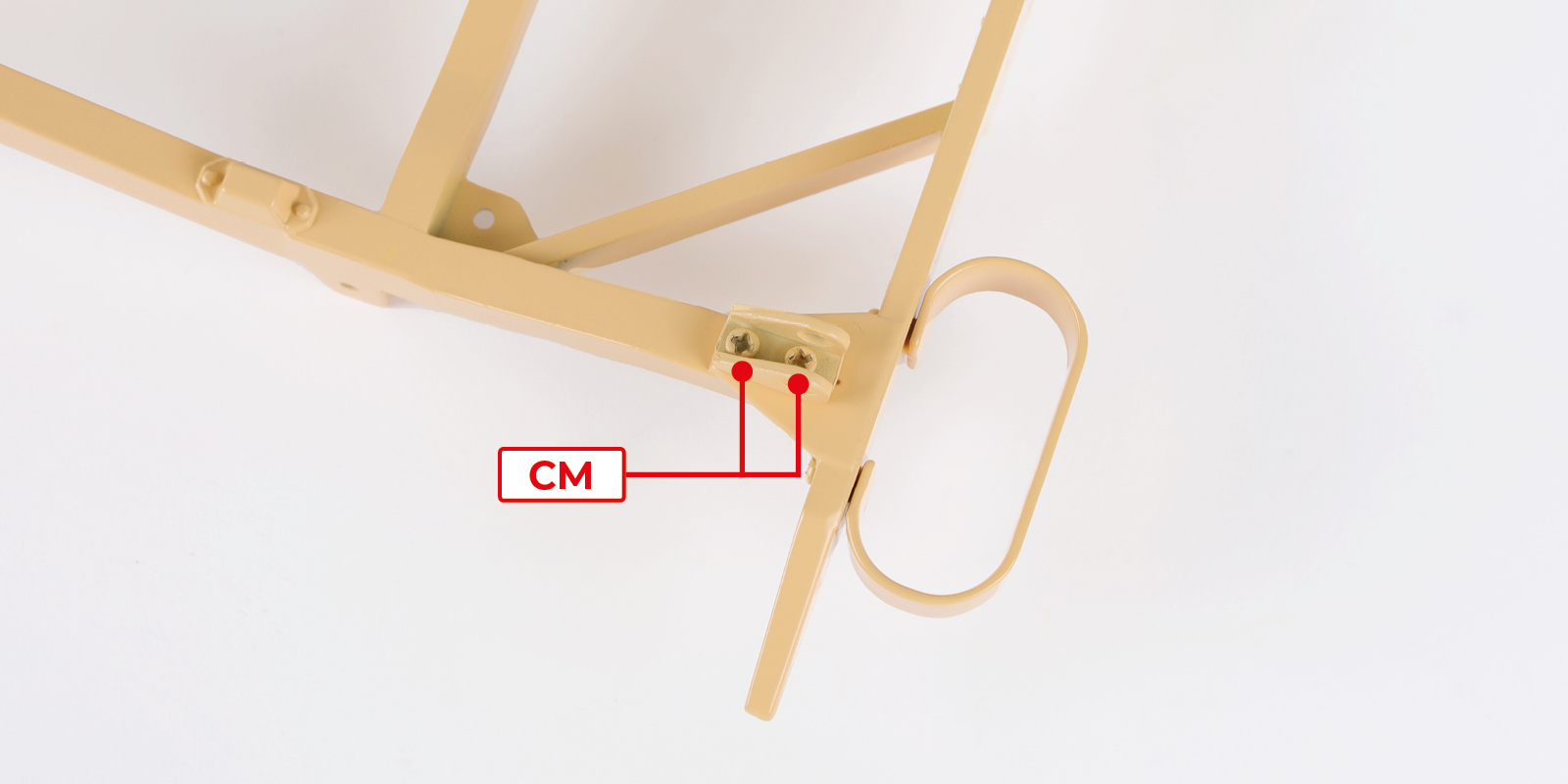

      Fit part 20-B to part 9-A with 2 CM screws.

      a
      b

      Step 2

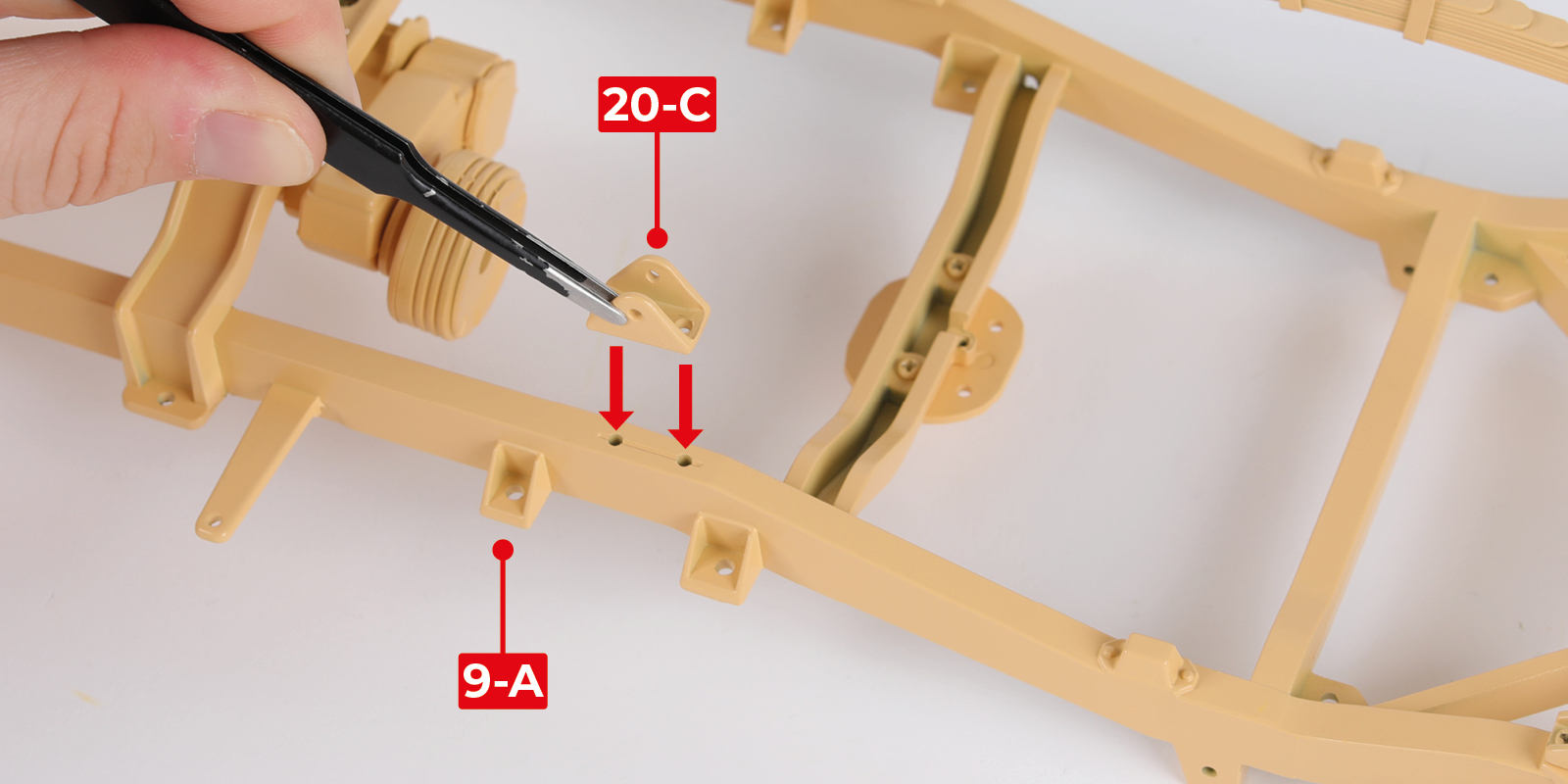

      Fit part 20-C to part 9-A with 2 CM screws. Make sure the part protrudes from the inner edge of the chassis.

      a
      b

      Step 3

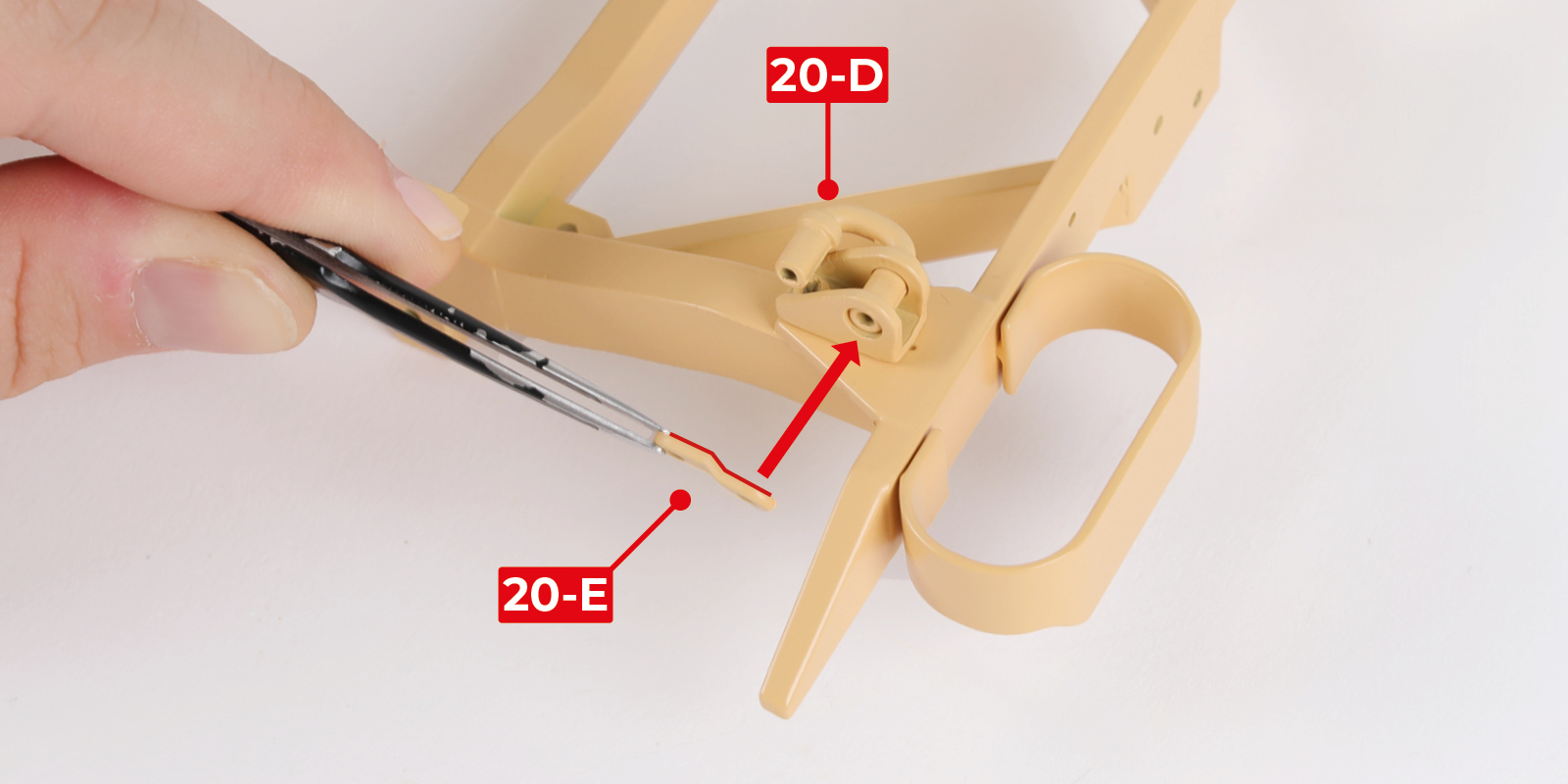

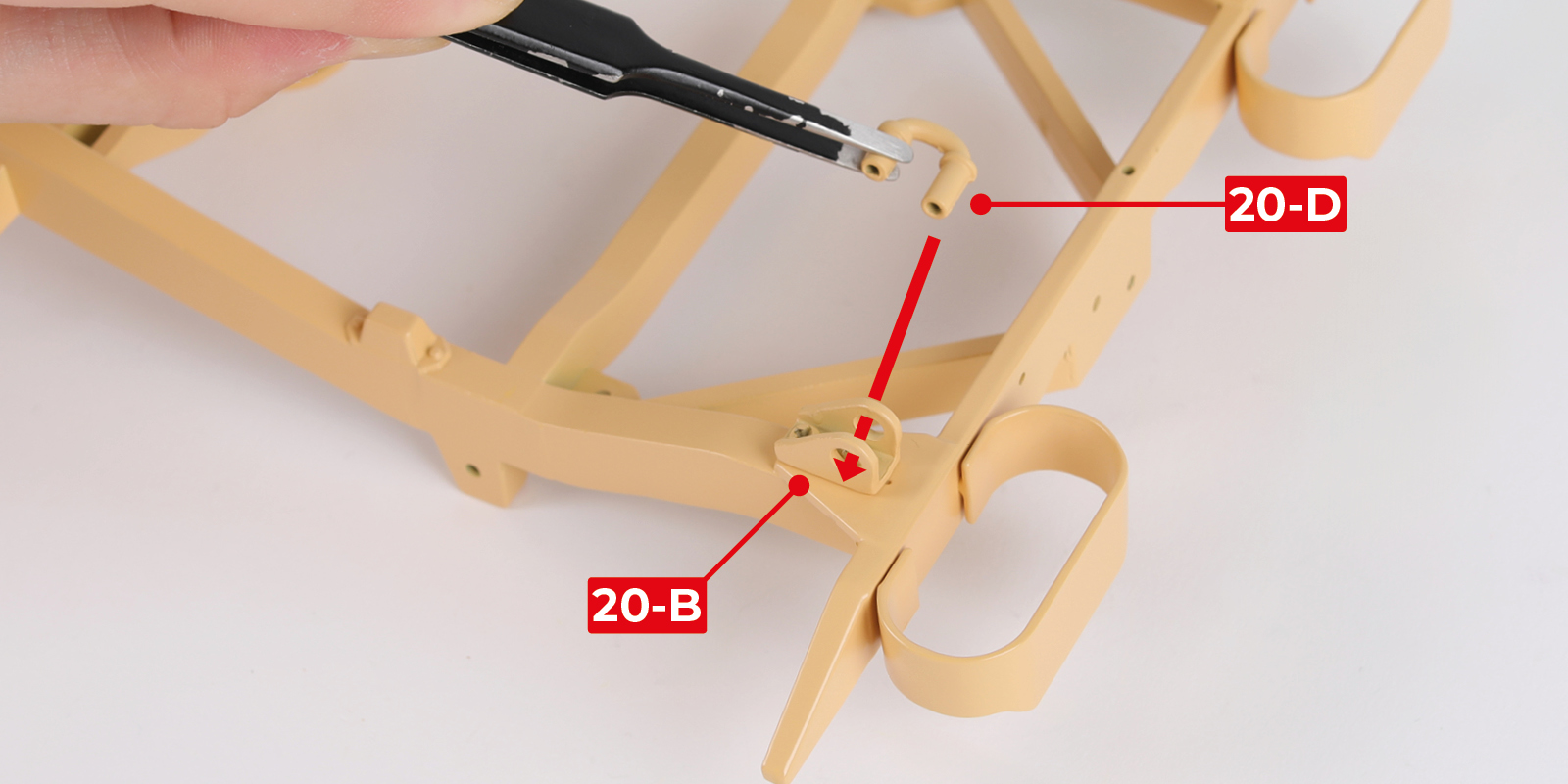

      Fit part 20-D into 20-B, then fit part 20-E to part 20-D with 1 CM screw.

      a
      b
      c

      Step 4

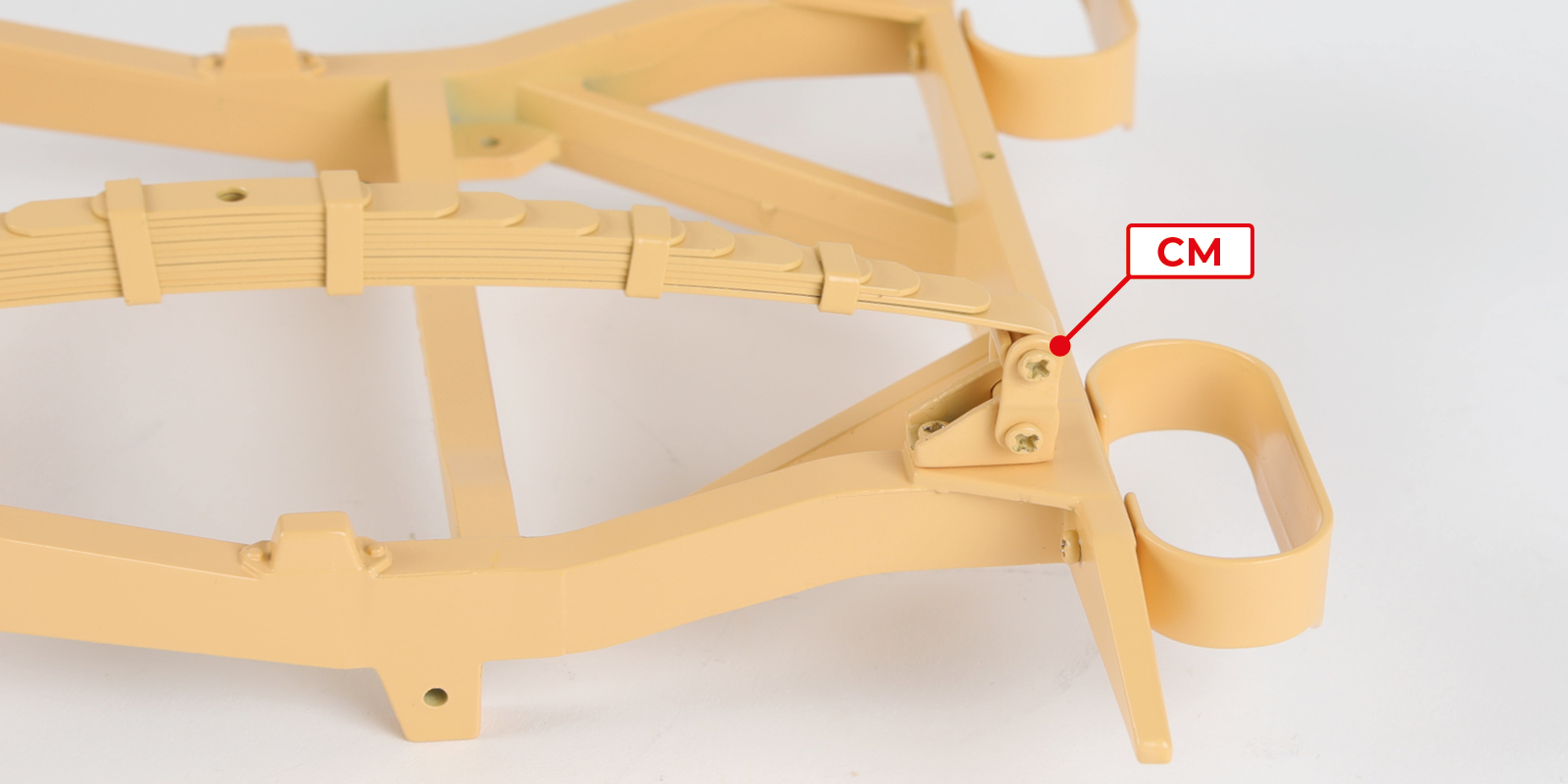

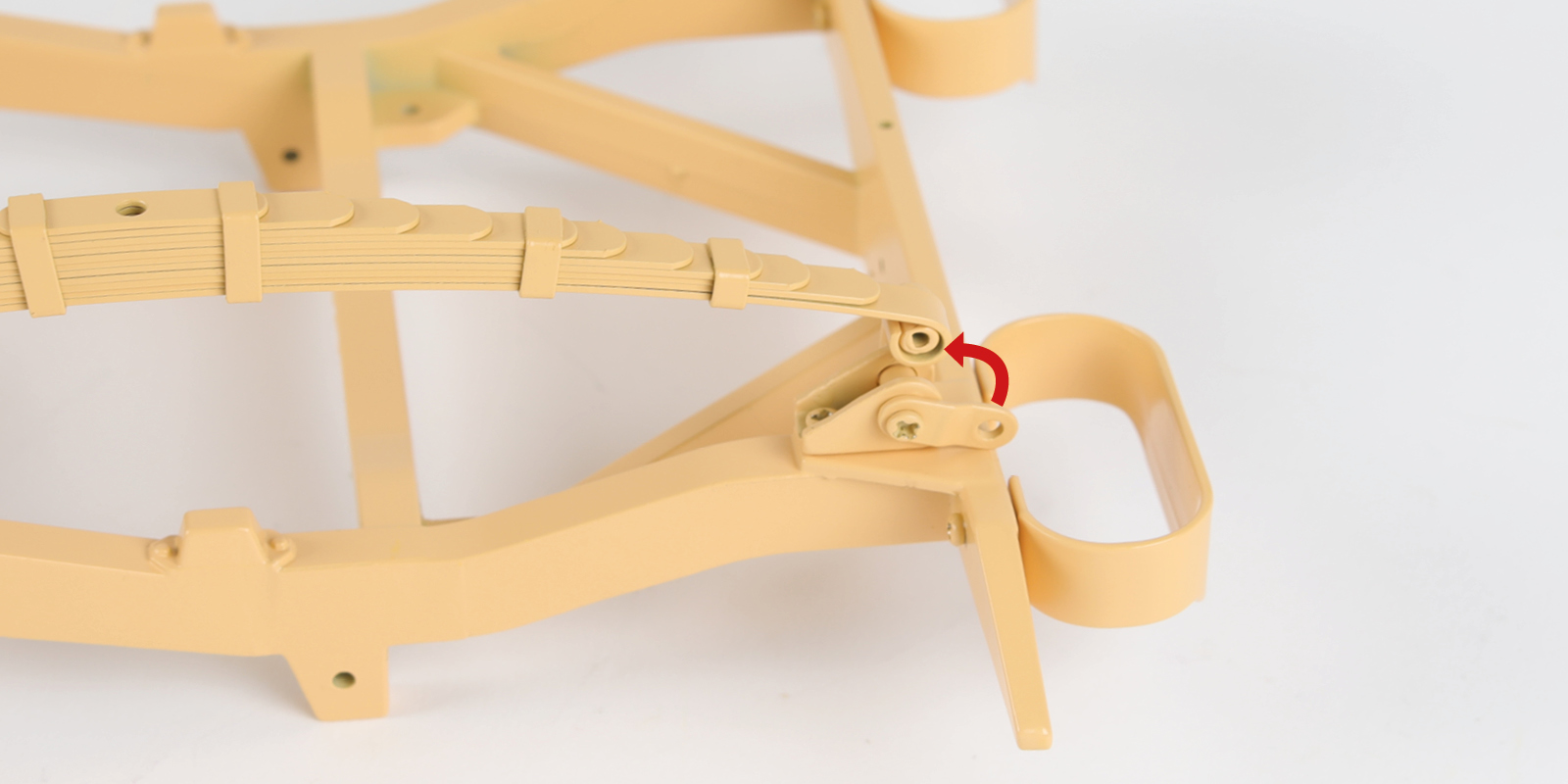

      Fit part 20-A to part 20-D with 1 CM screw.

      a
      b
      c

      Step 5

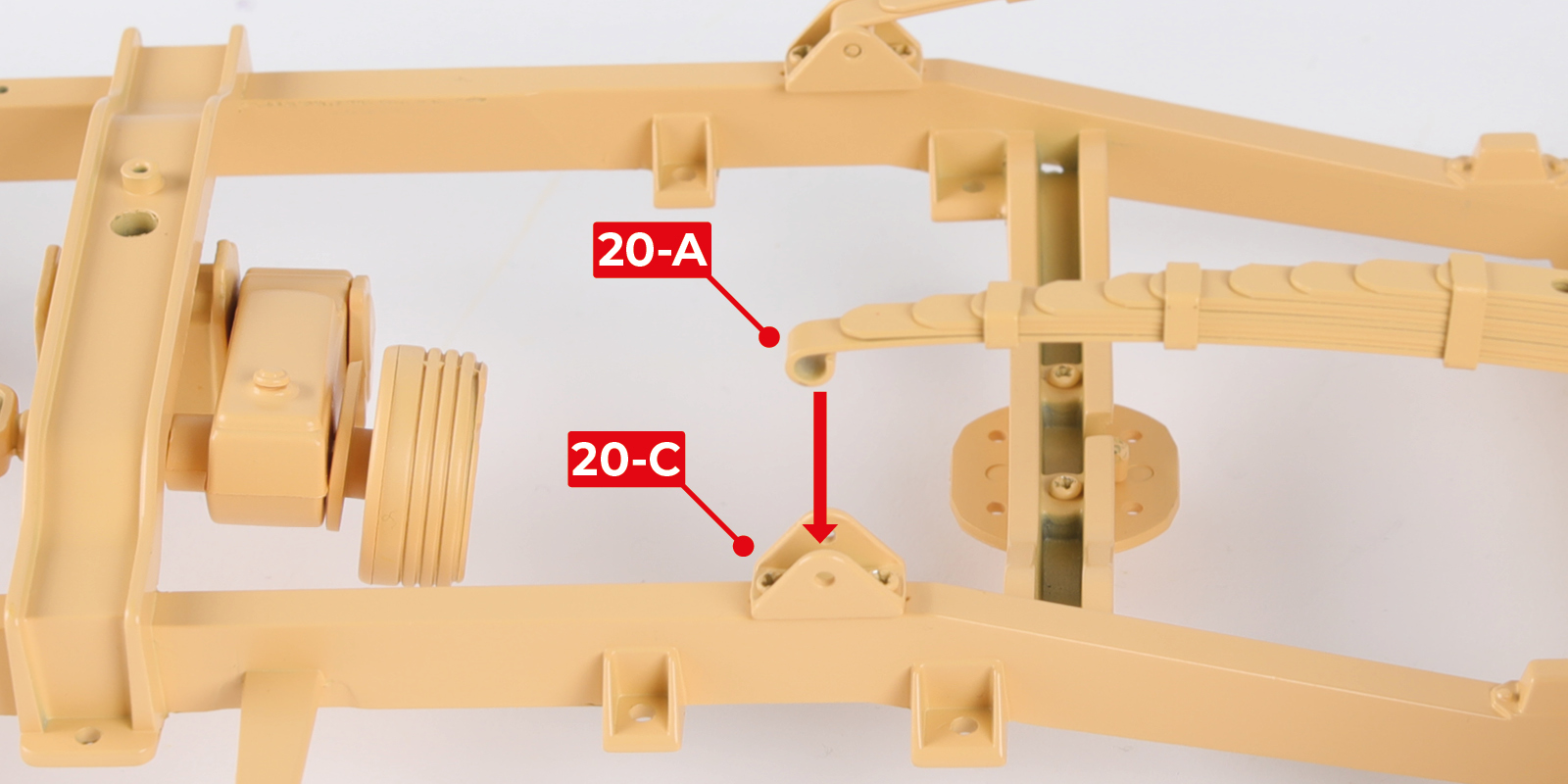

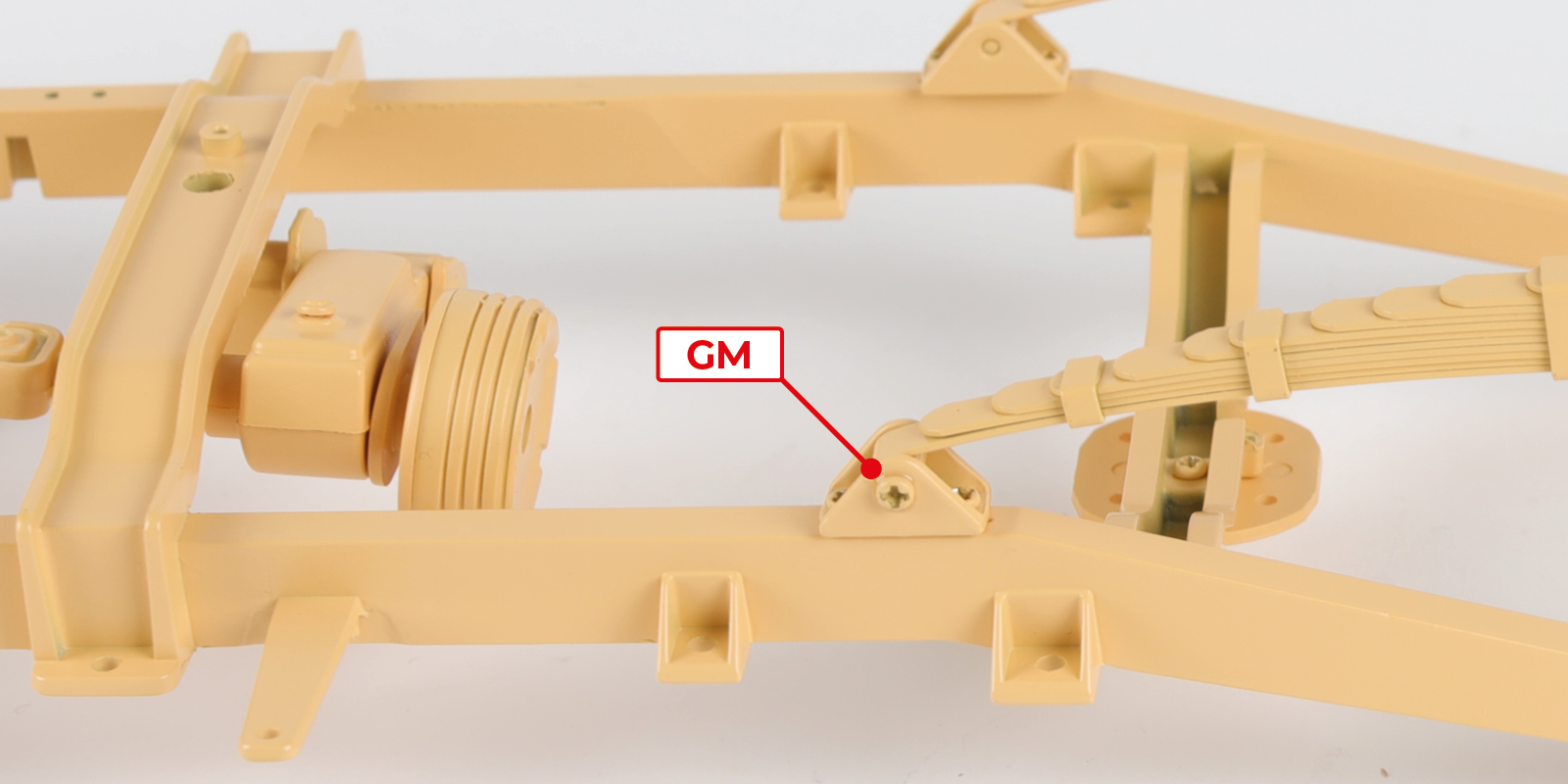

      Fit part 20-A to part 20-C with 1 GM screw.

      a
      b

      STAGE COMPLETE

      Stage 21: Fitting the rear axle

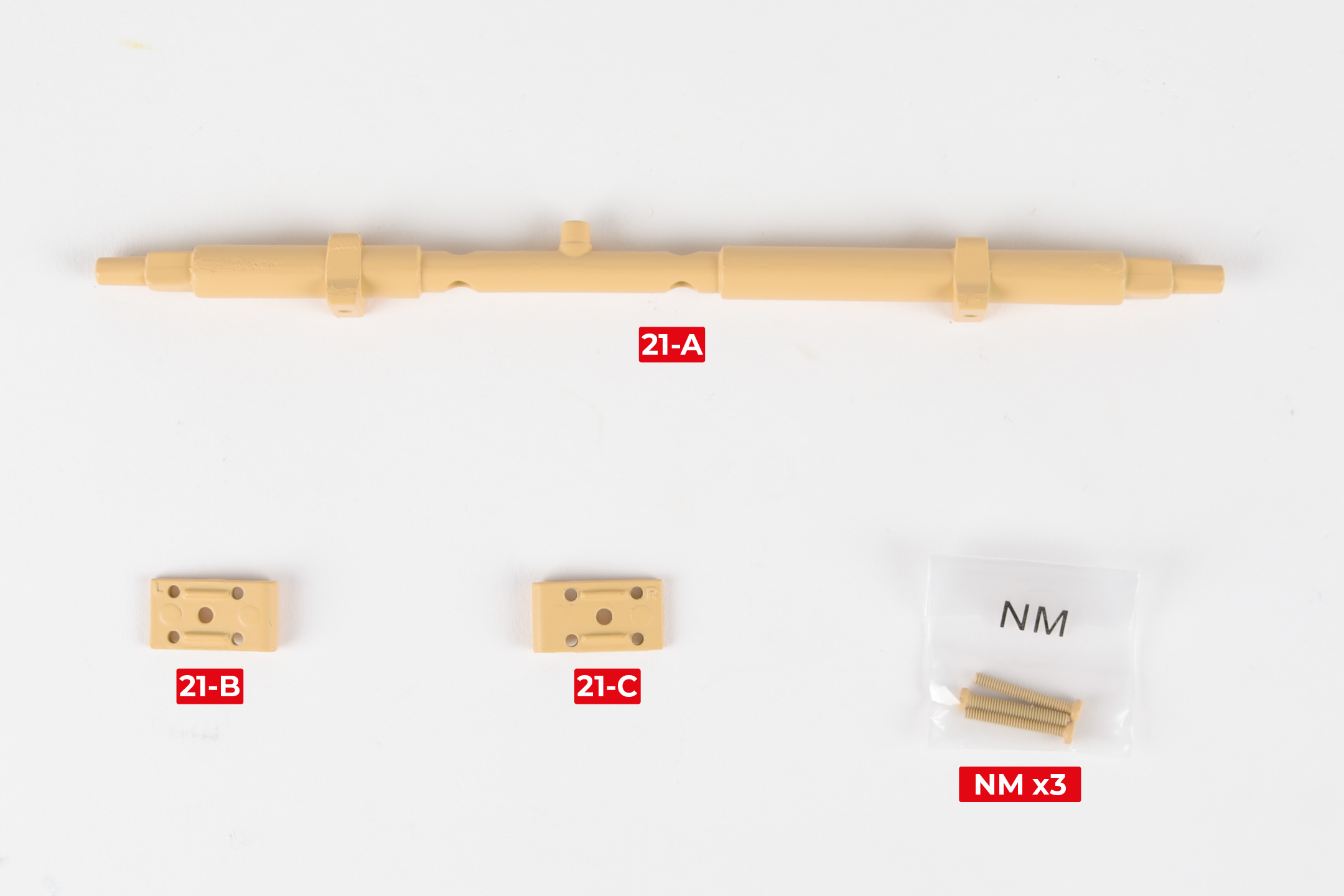

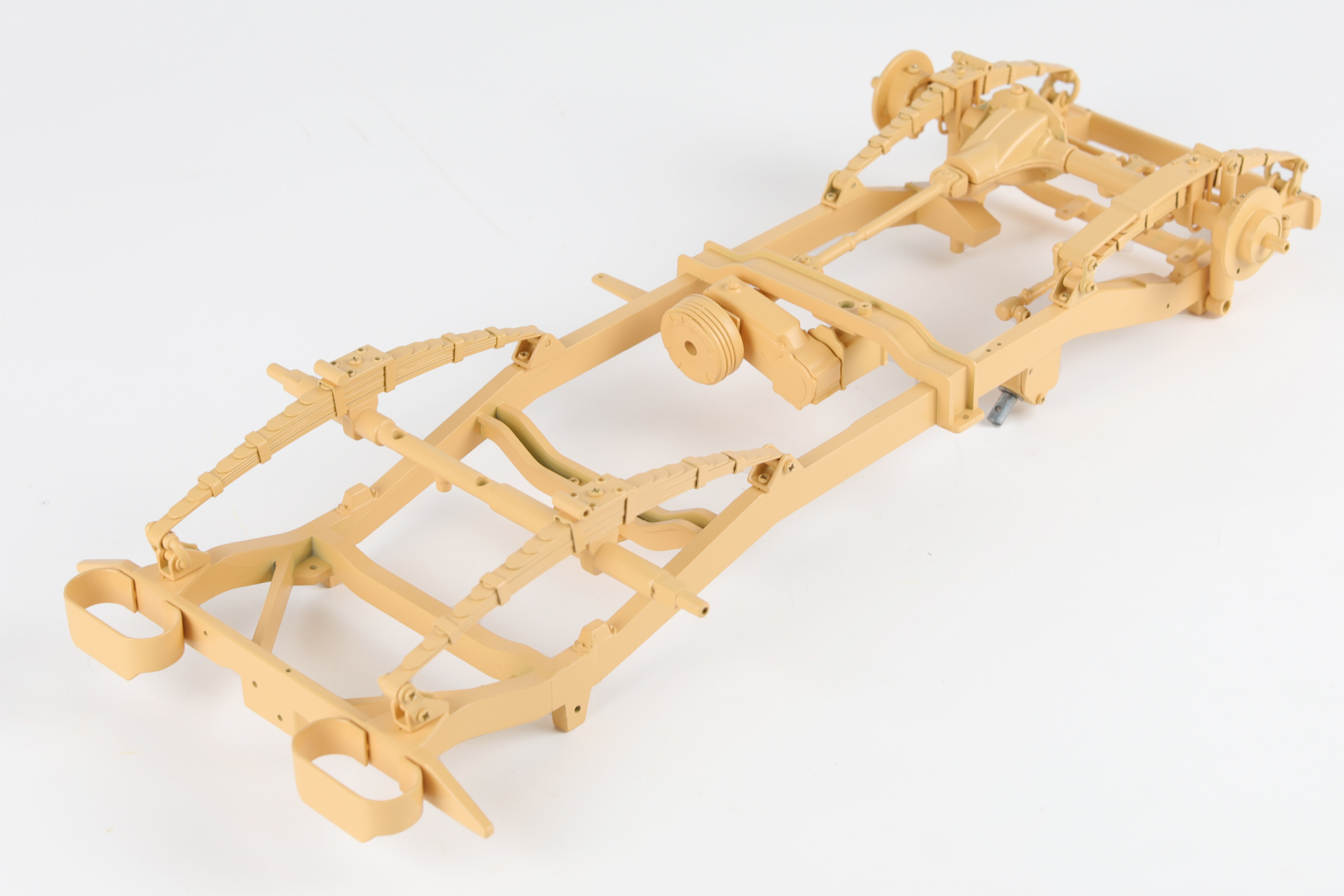

      STAGE 21 PARTS

      Step 1

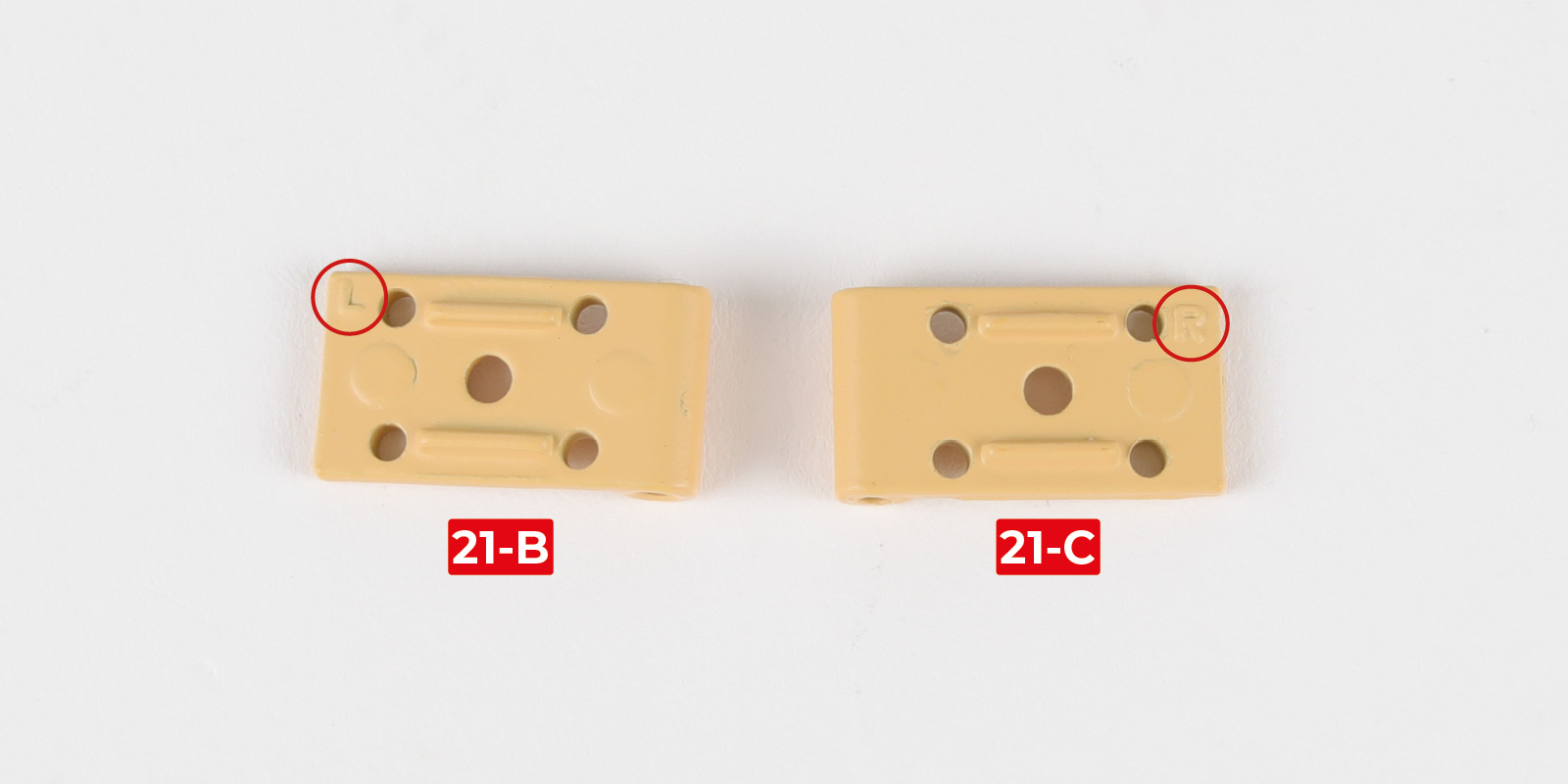

      Part 21-B is marked with L (left), part 21-C is marked with R (right).

      a

      Step 2

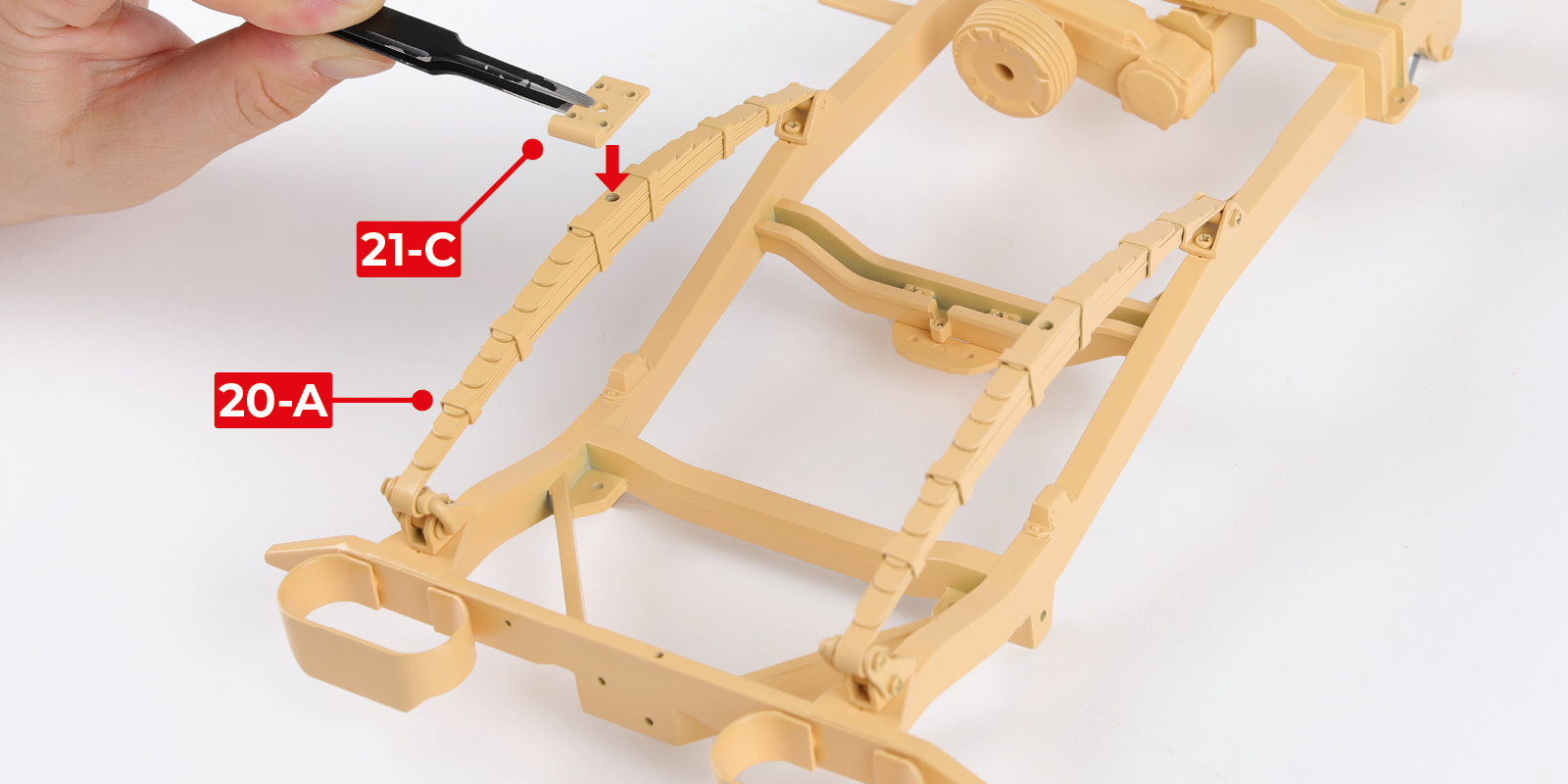

      Place part 21-C onto part 20-A.

      a
      b

      Step 3

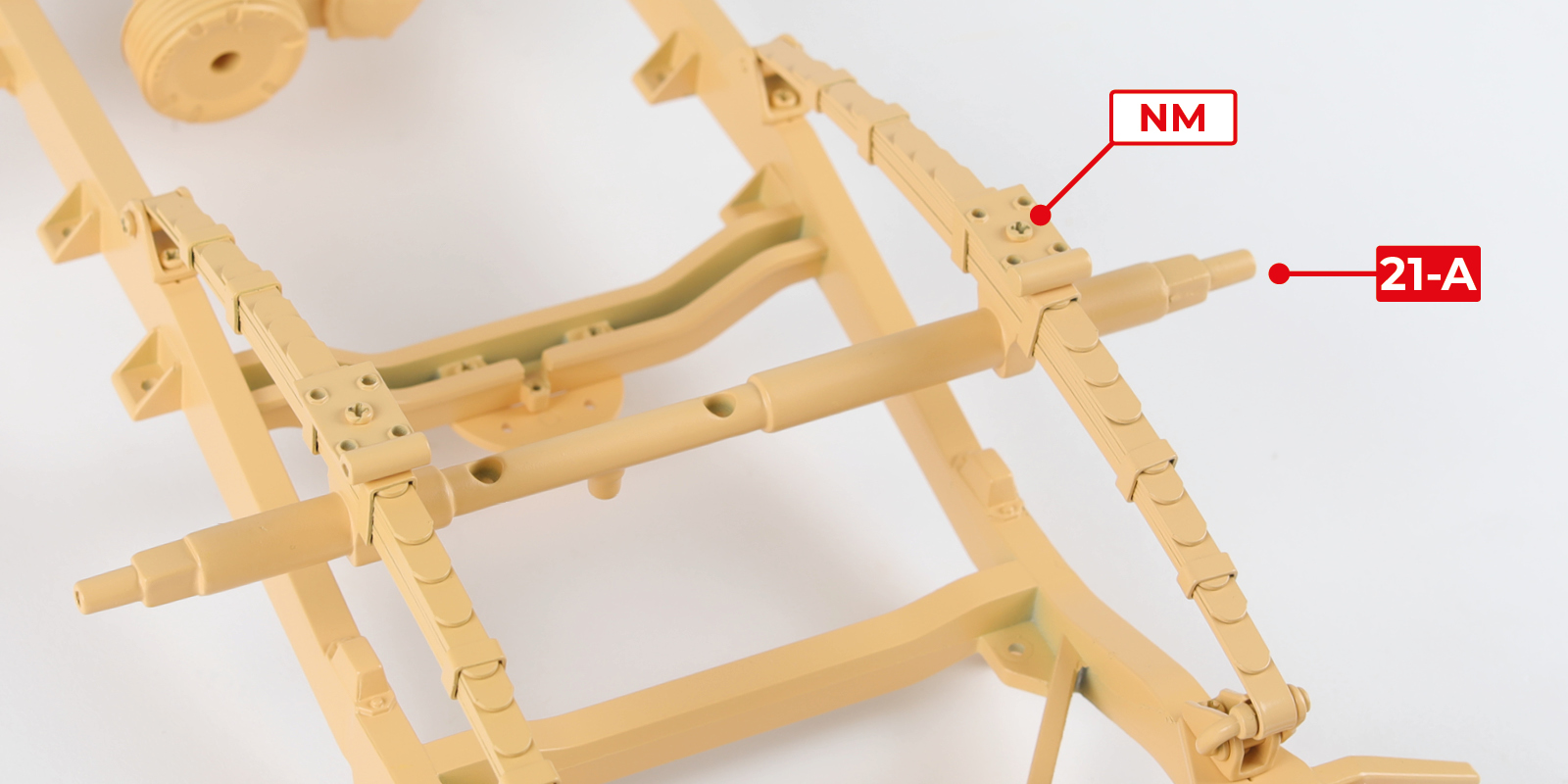

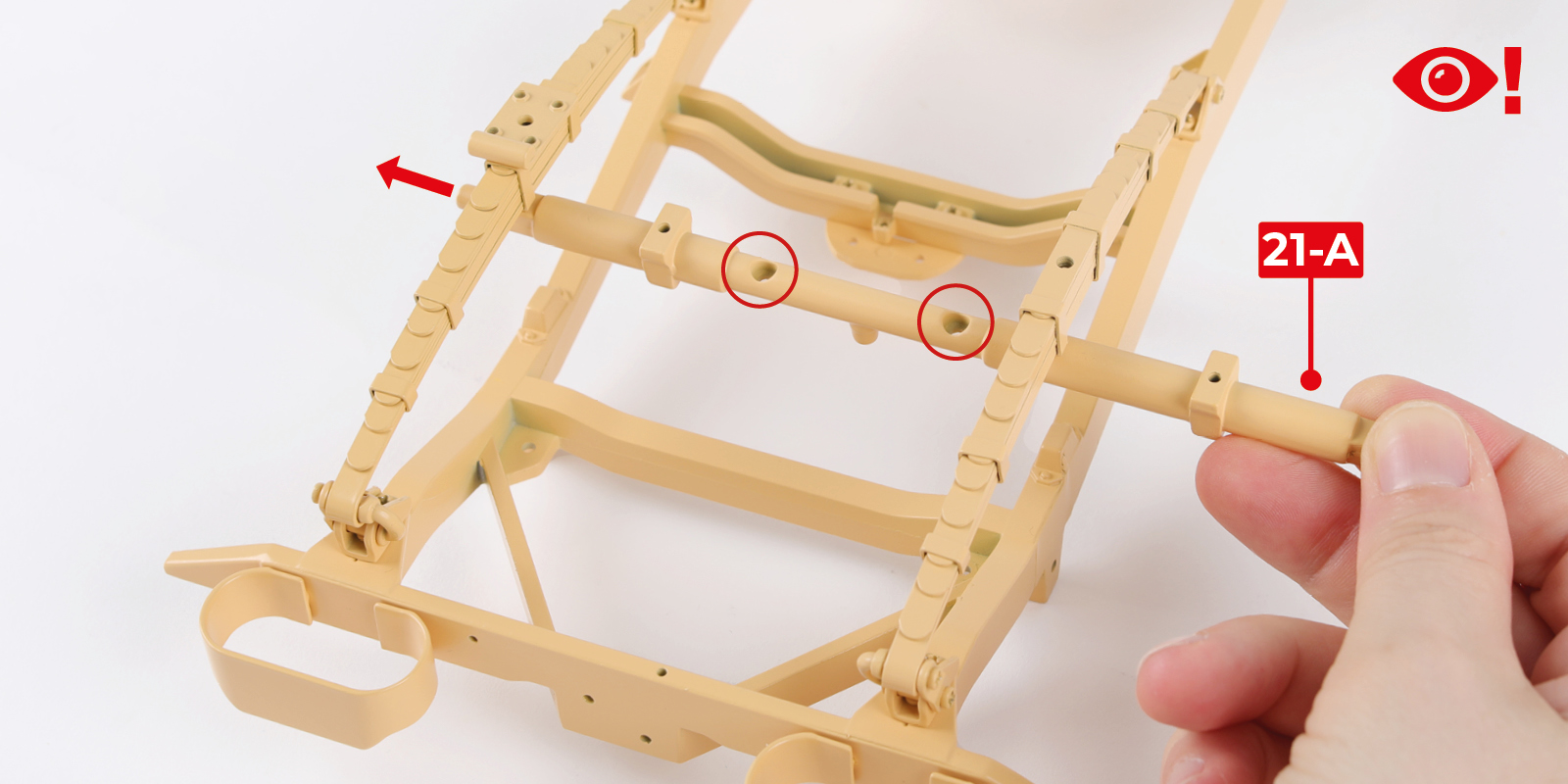

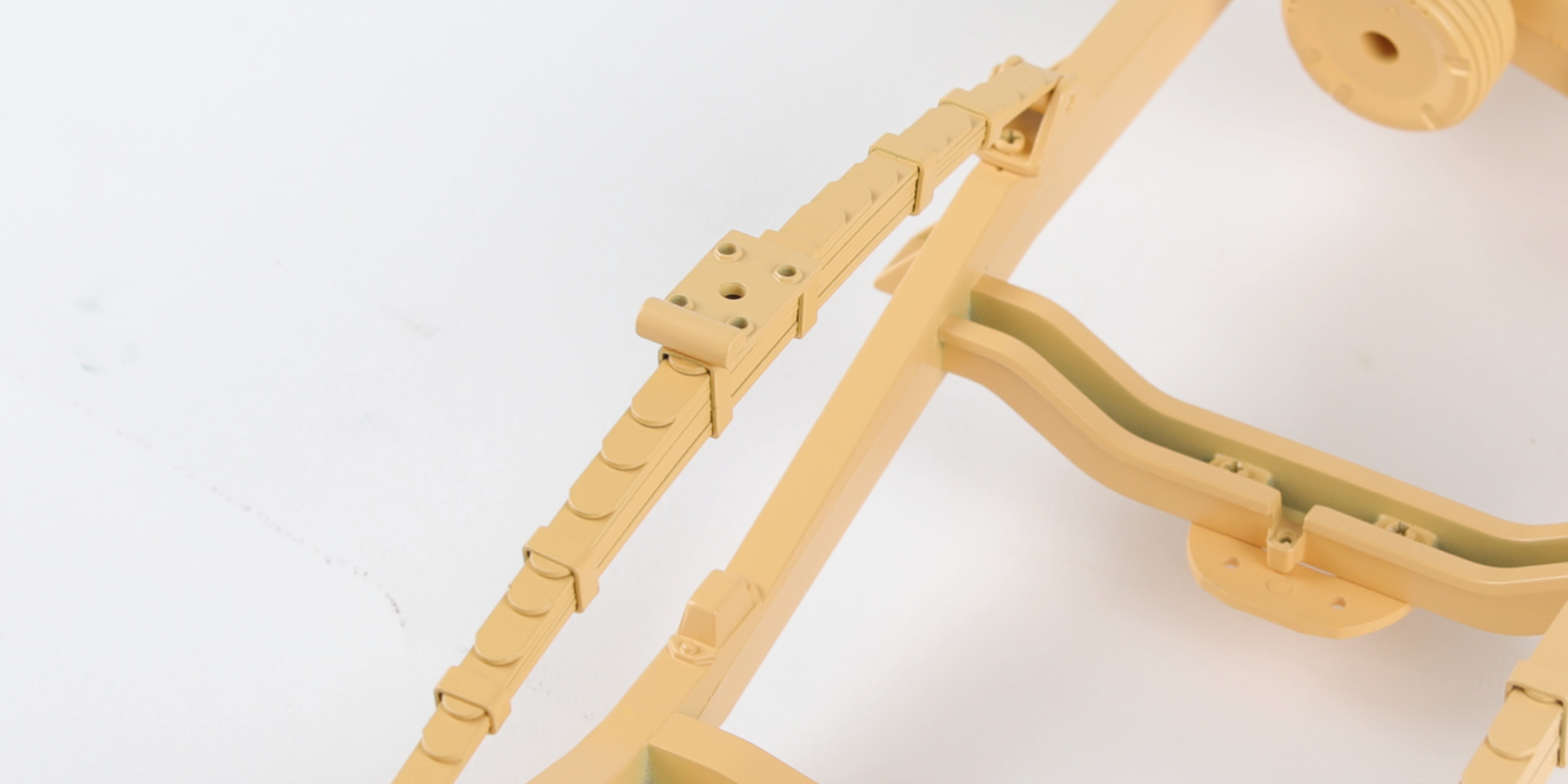

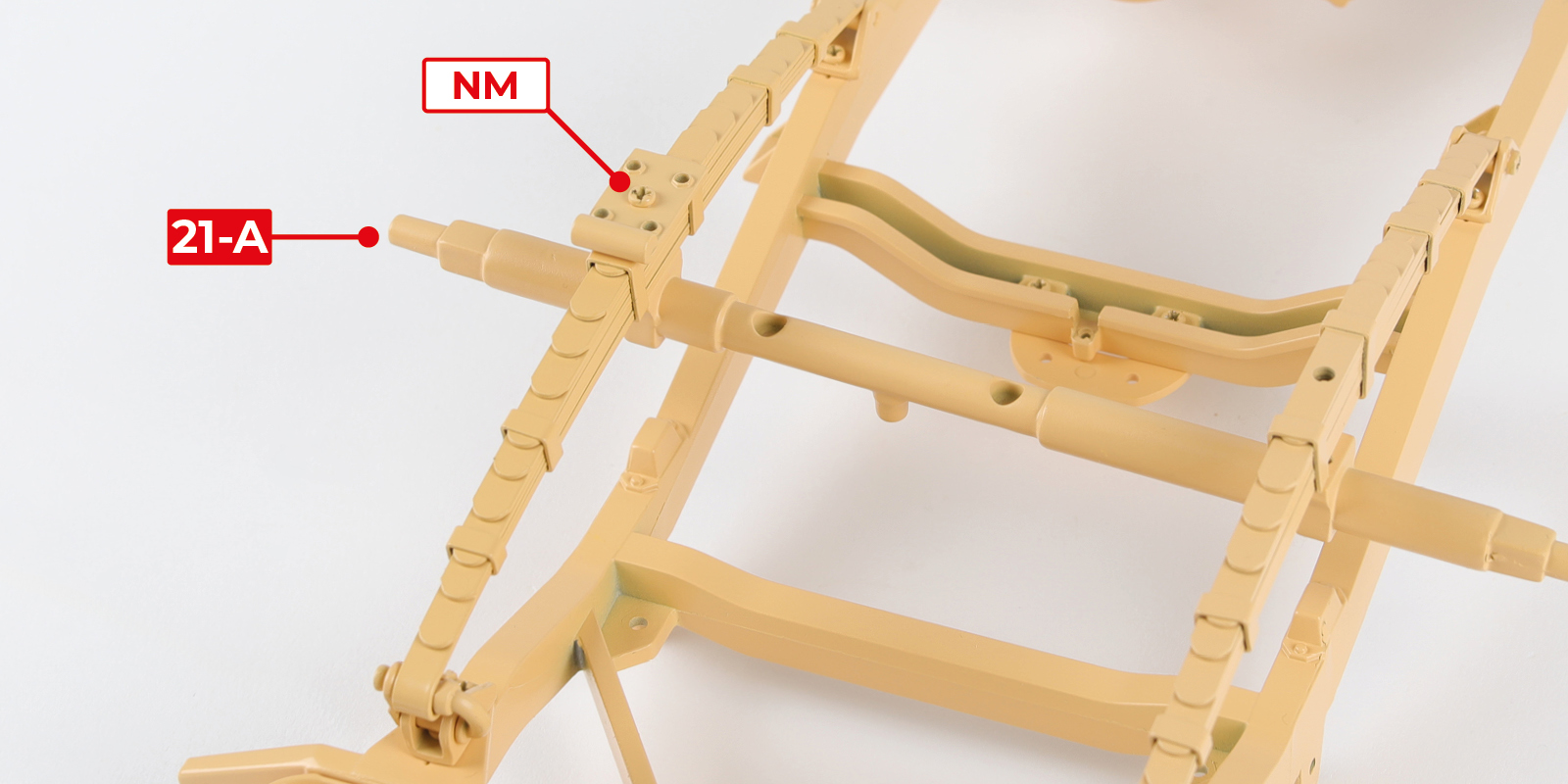

      Fit 21-A through the chassis as shown and fix with 1 NM screw. Make sure the NM screw fits into part 21-A.

      a
      b

      Step 4

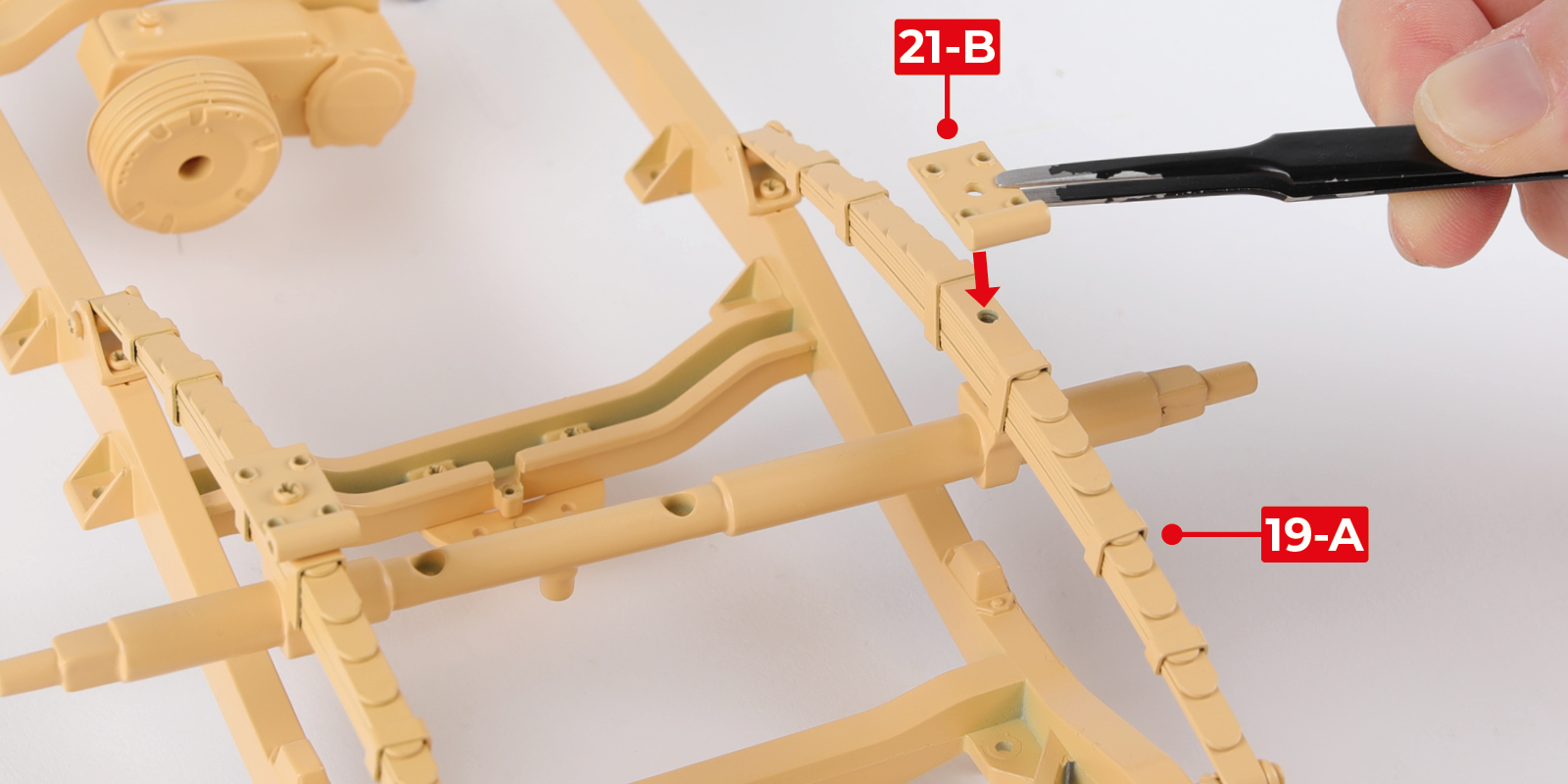

      Fit part 21-B onto part 19-A with 1 NM screw, ensuring the screw goes through both parts and into part 21-A as shown.

      a
      b

      STAGE COMPLETE

      Stage 22: Fitting the rear shock absorbers

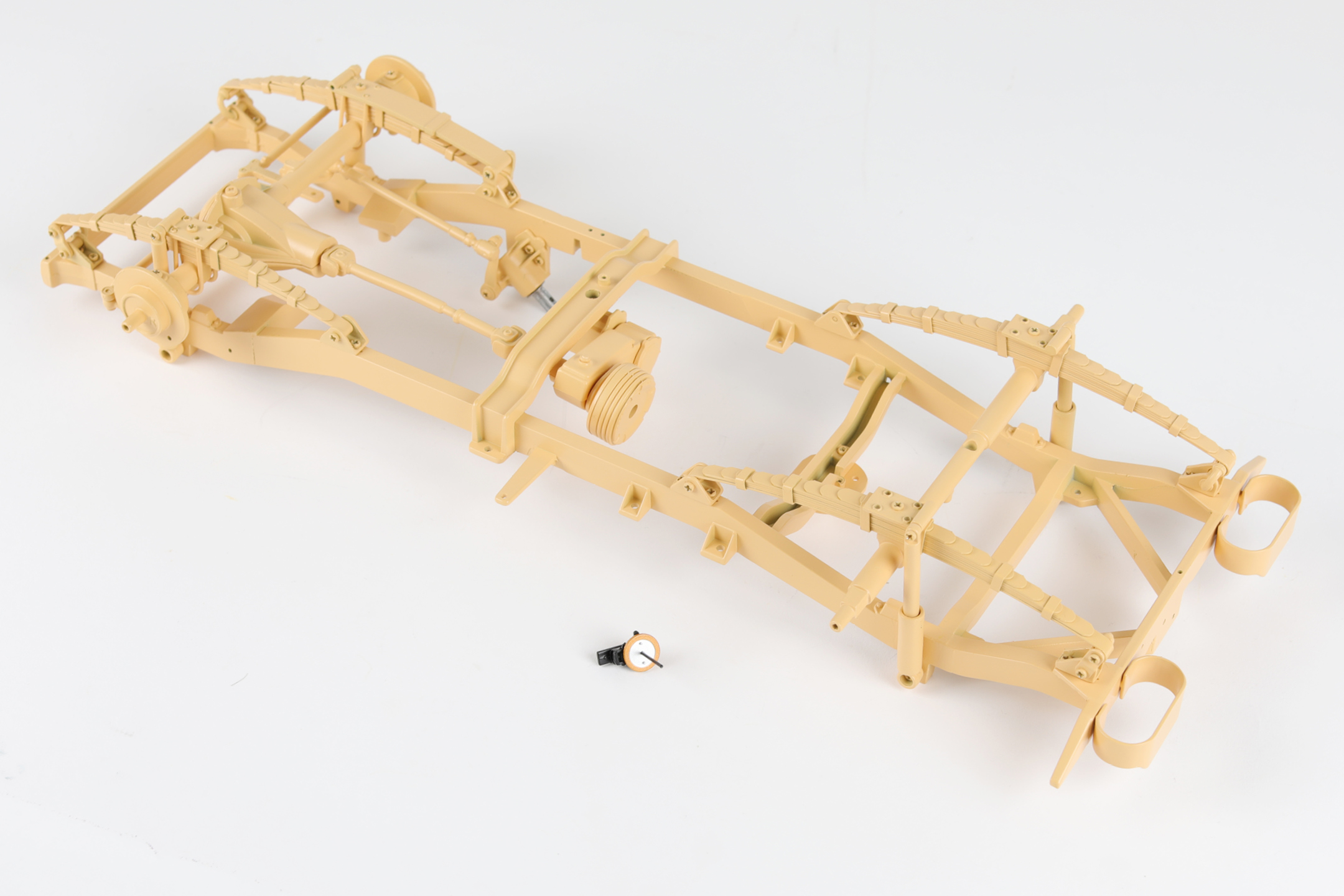

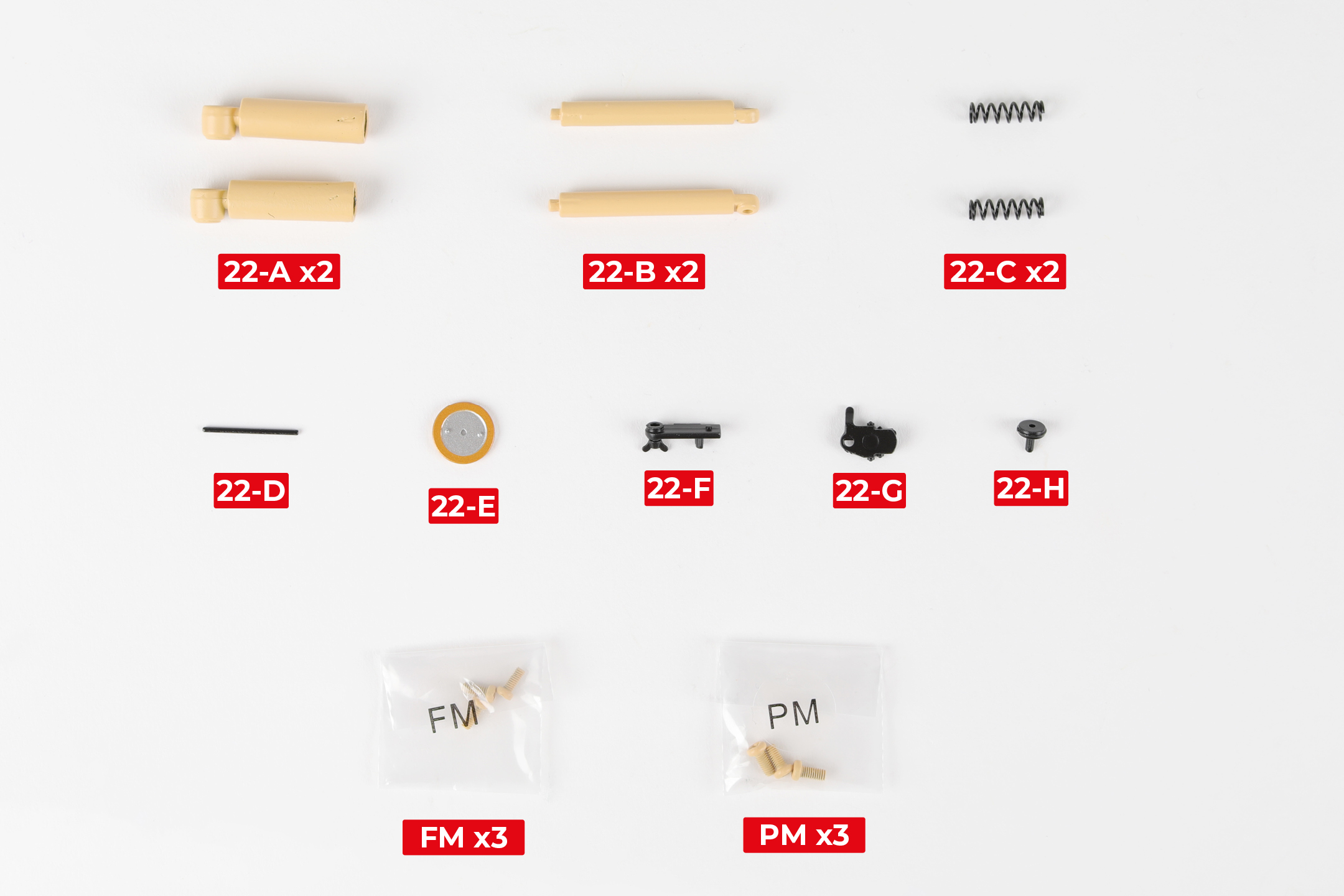

      STAGE 22 PARTS

      Step 1

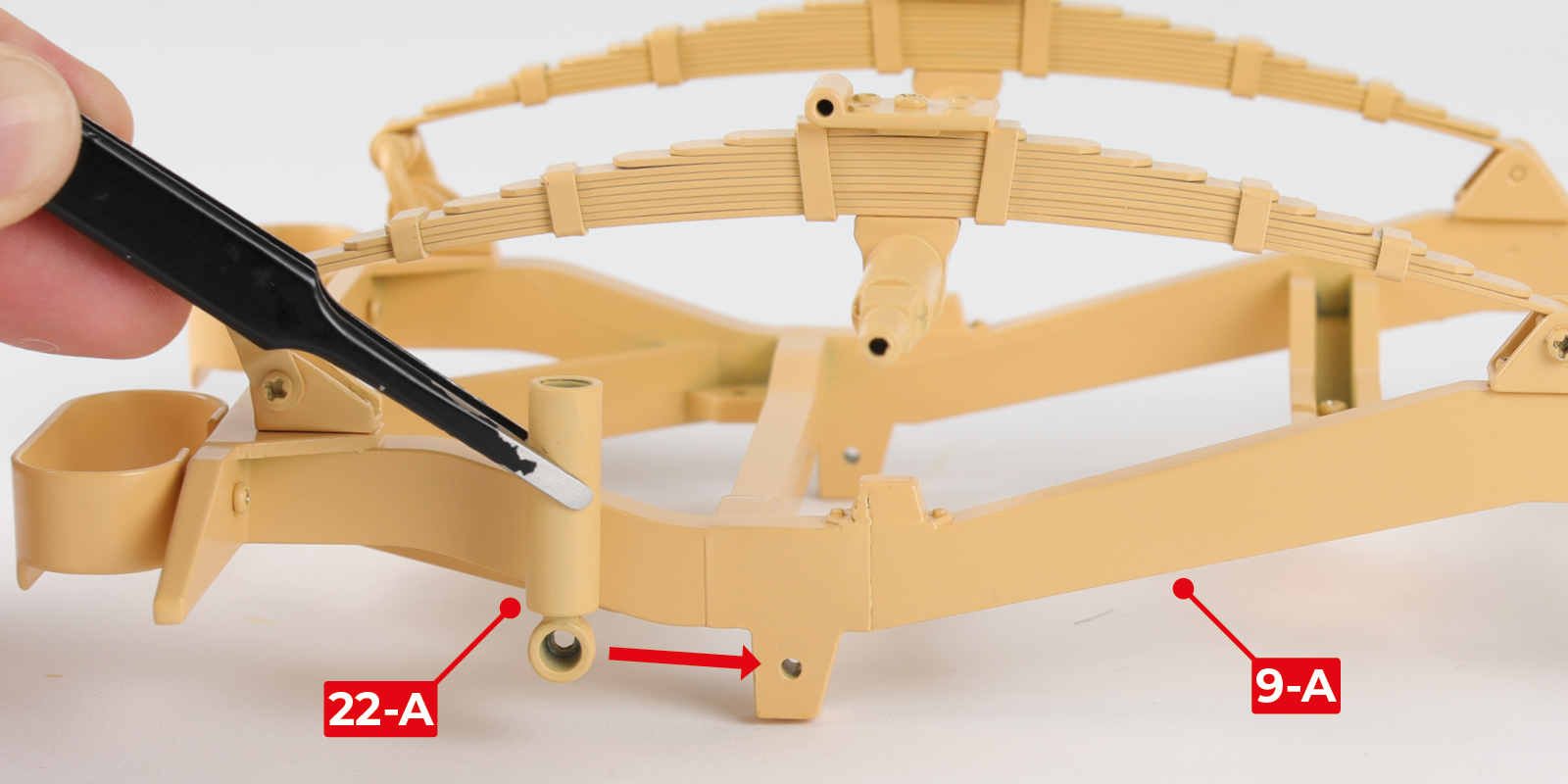

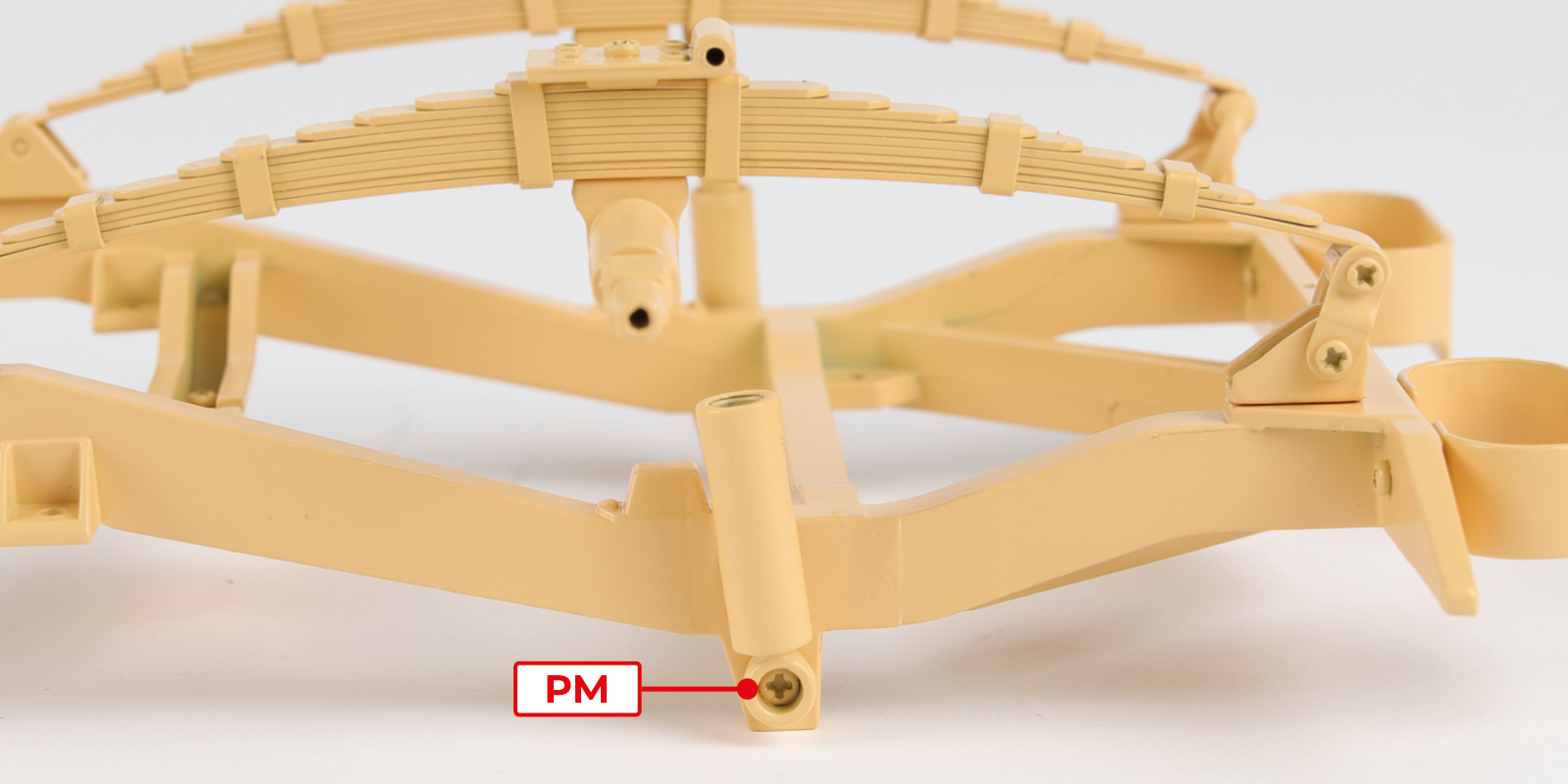

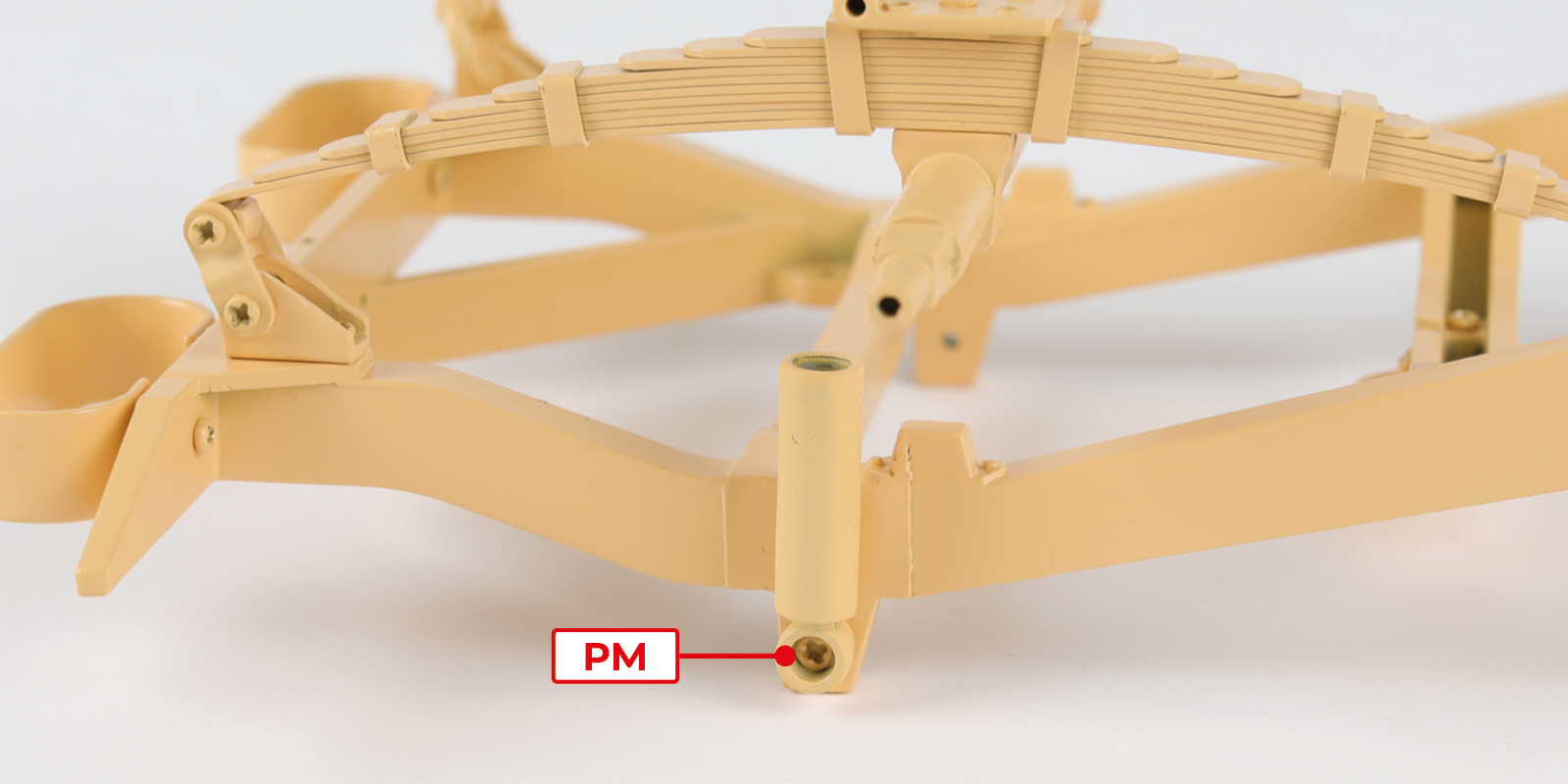

      Fit part 22-A to part 9-A with 1 PM screw.

      a
      b

      Step 2

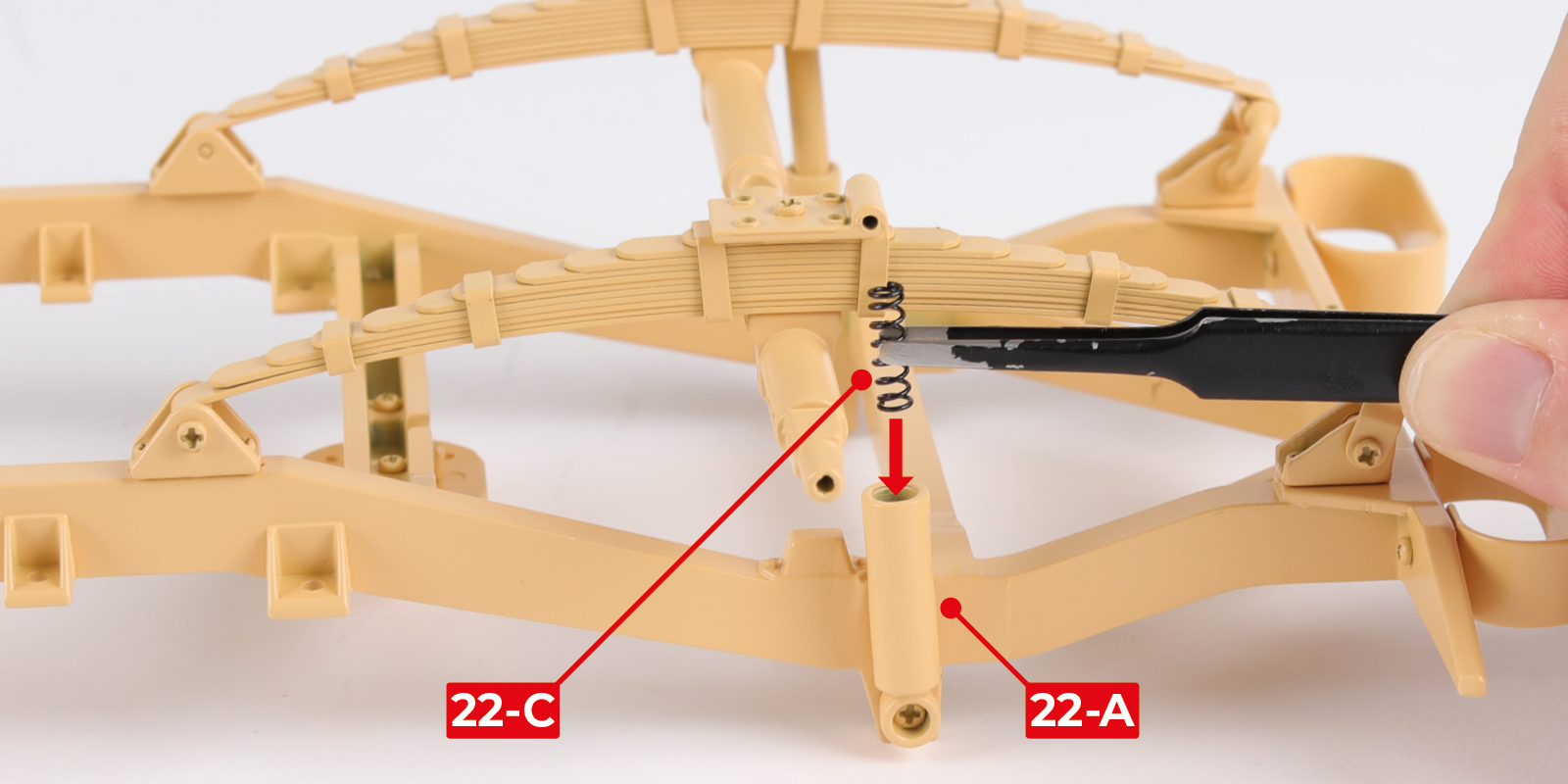

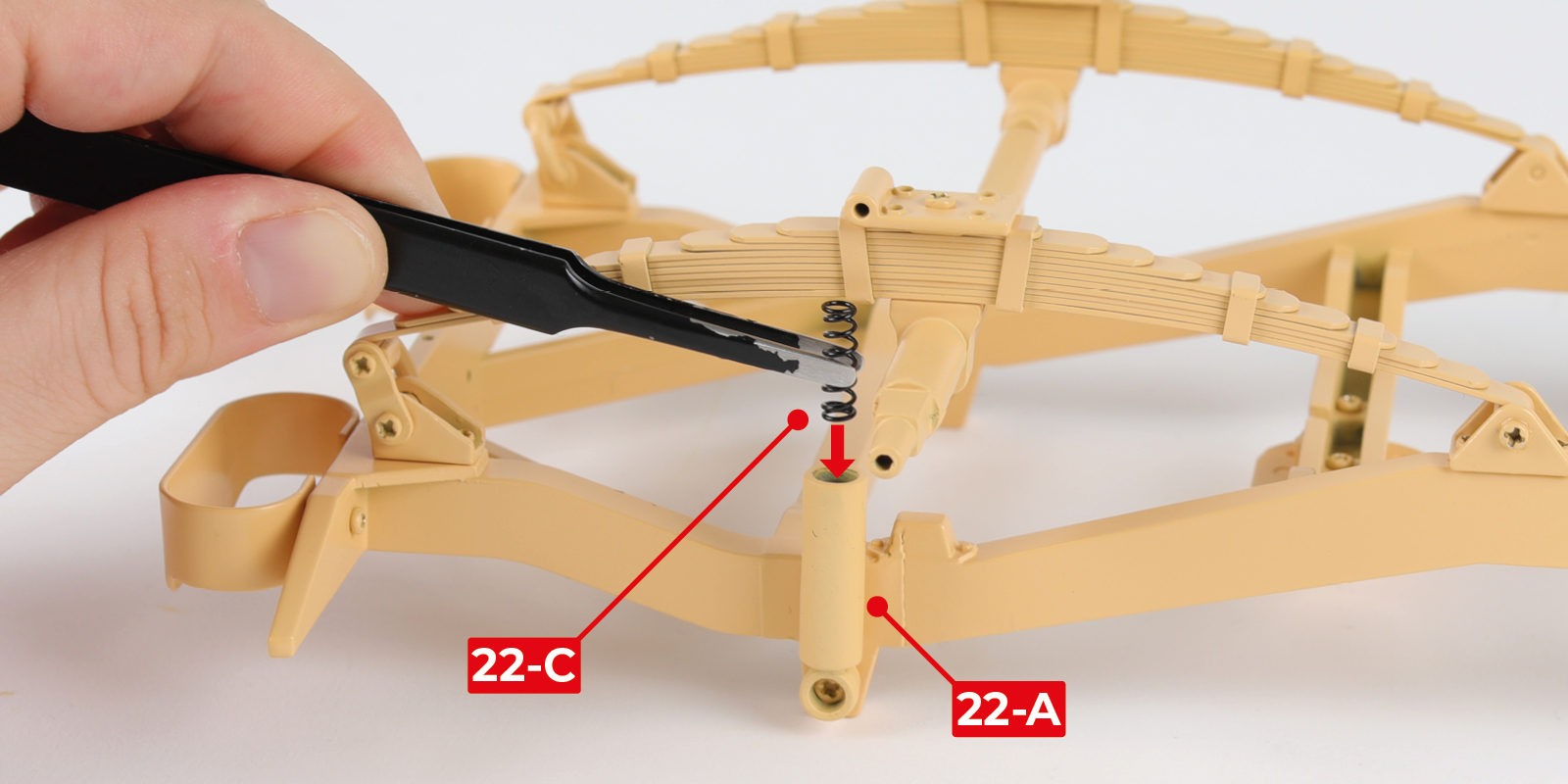

      Insert part 22-C into part 22-A.

      a

      Step 3

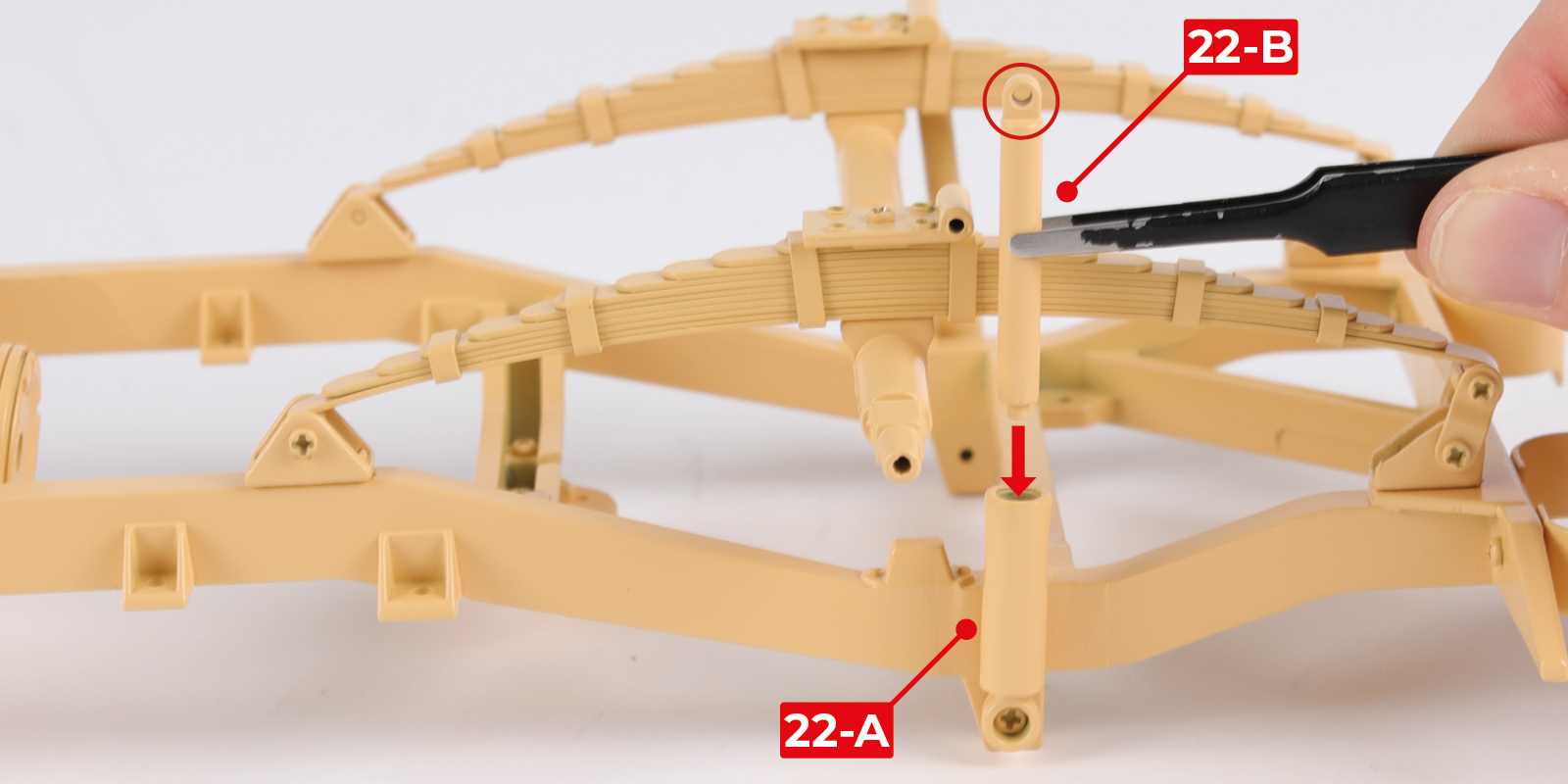

      Fit part 22-B into part 22-A. Make sure the flat side (circled) is facing outwards.

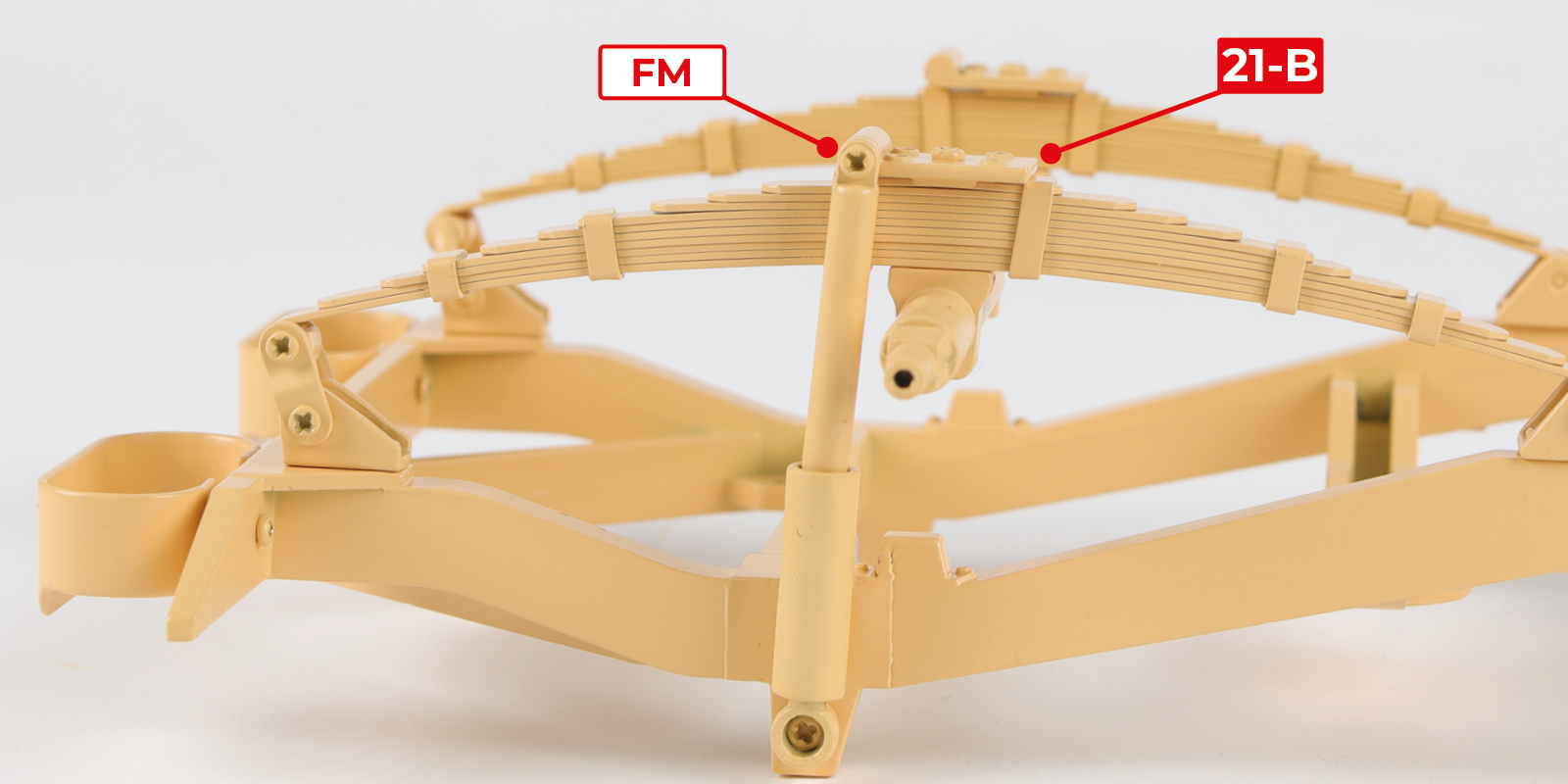

      Fit part 22-B to part 21-B with 1 FM screw.

      a
      b

      Step 4

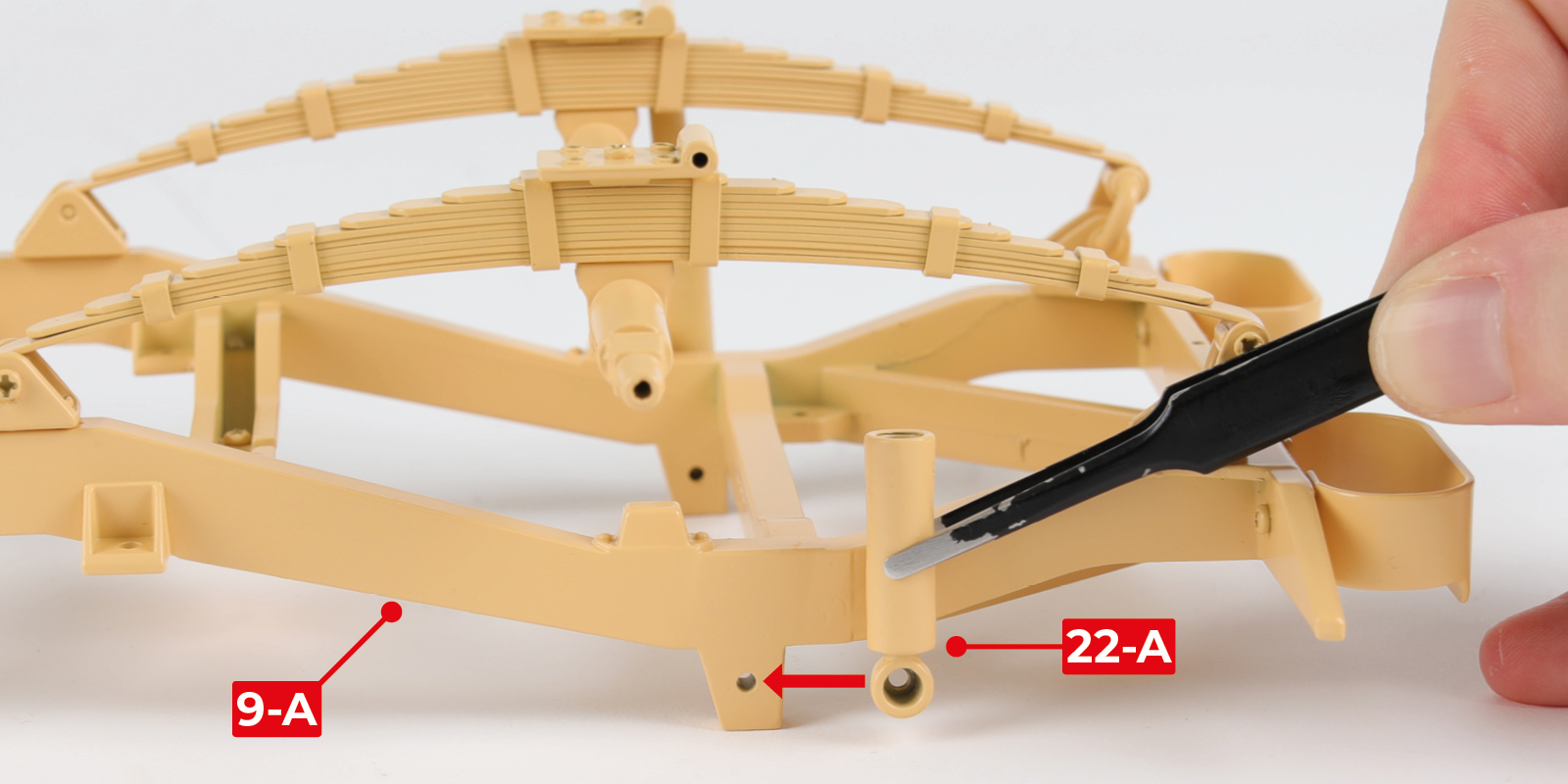

      Fit part 22-A to part 9-A with 1 PM screw.

      a
      b

      Step 5

      Insert part 22-C into part 22-A.

      a

      Step 6

      Fit part 22-B into part 22-A. Make sure the flat side (circled) is facing outwards.

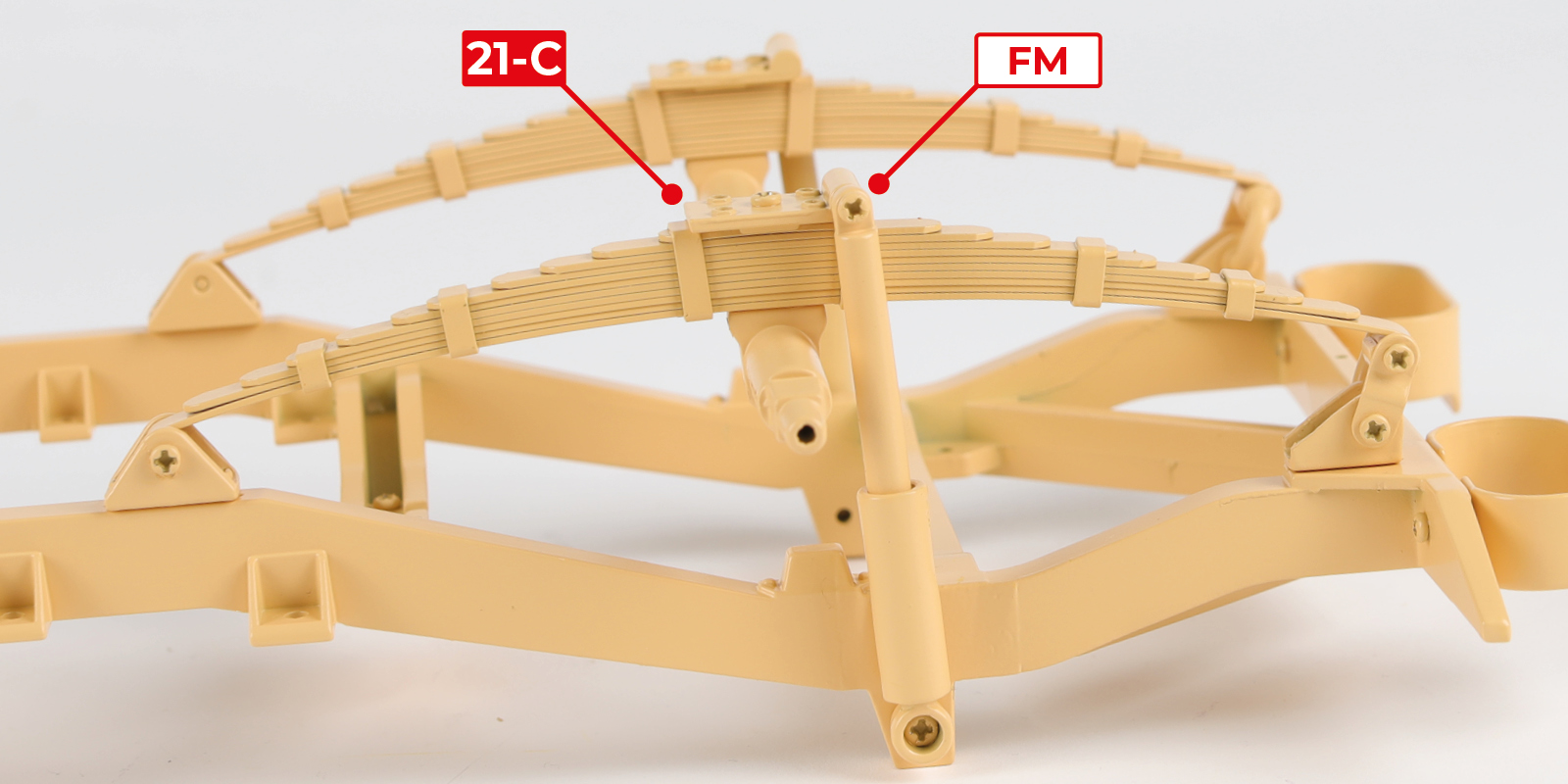

      Fit part 22-B to part 21-C with 1 FM screw.

      a
      b

      Step 7

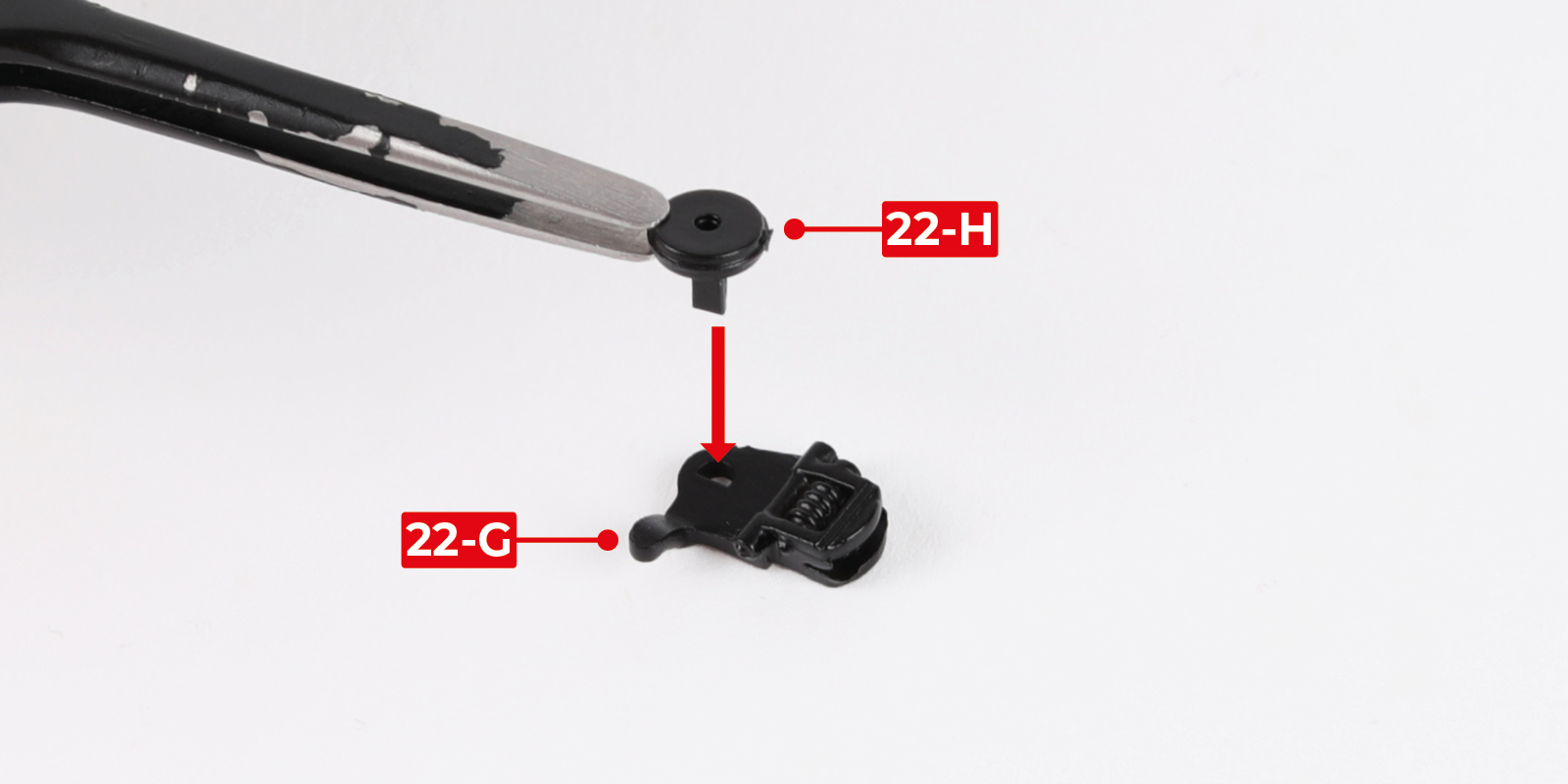

      Fit part 22-H to part 22-G.

      a
      b

      Step 8

      Fit part 22-H to part 22-F.

      a
      b

      Step 9

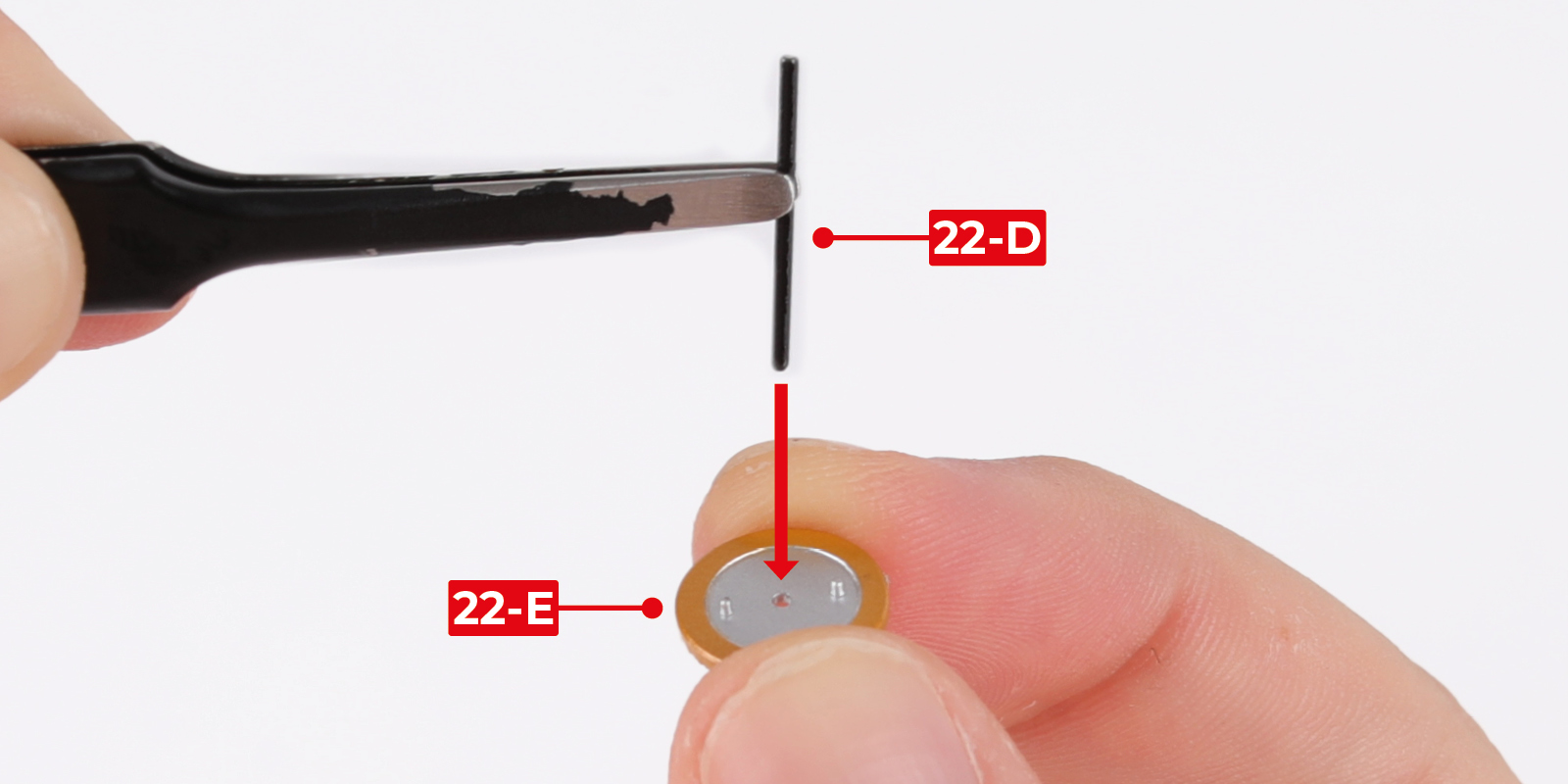

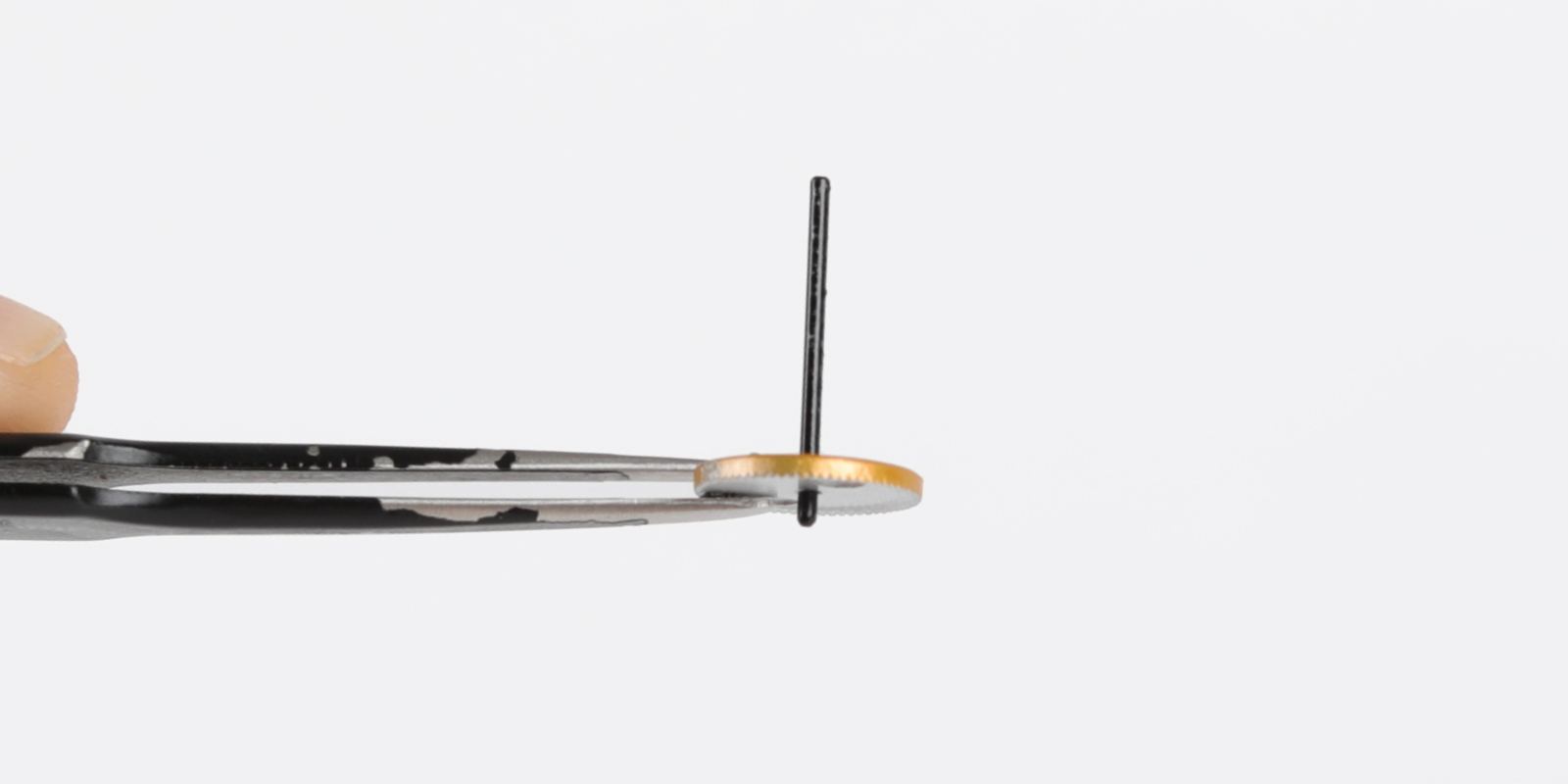

      Fit part 22-D through part 22-E.

      a
      b

      Step 10

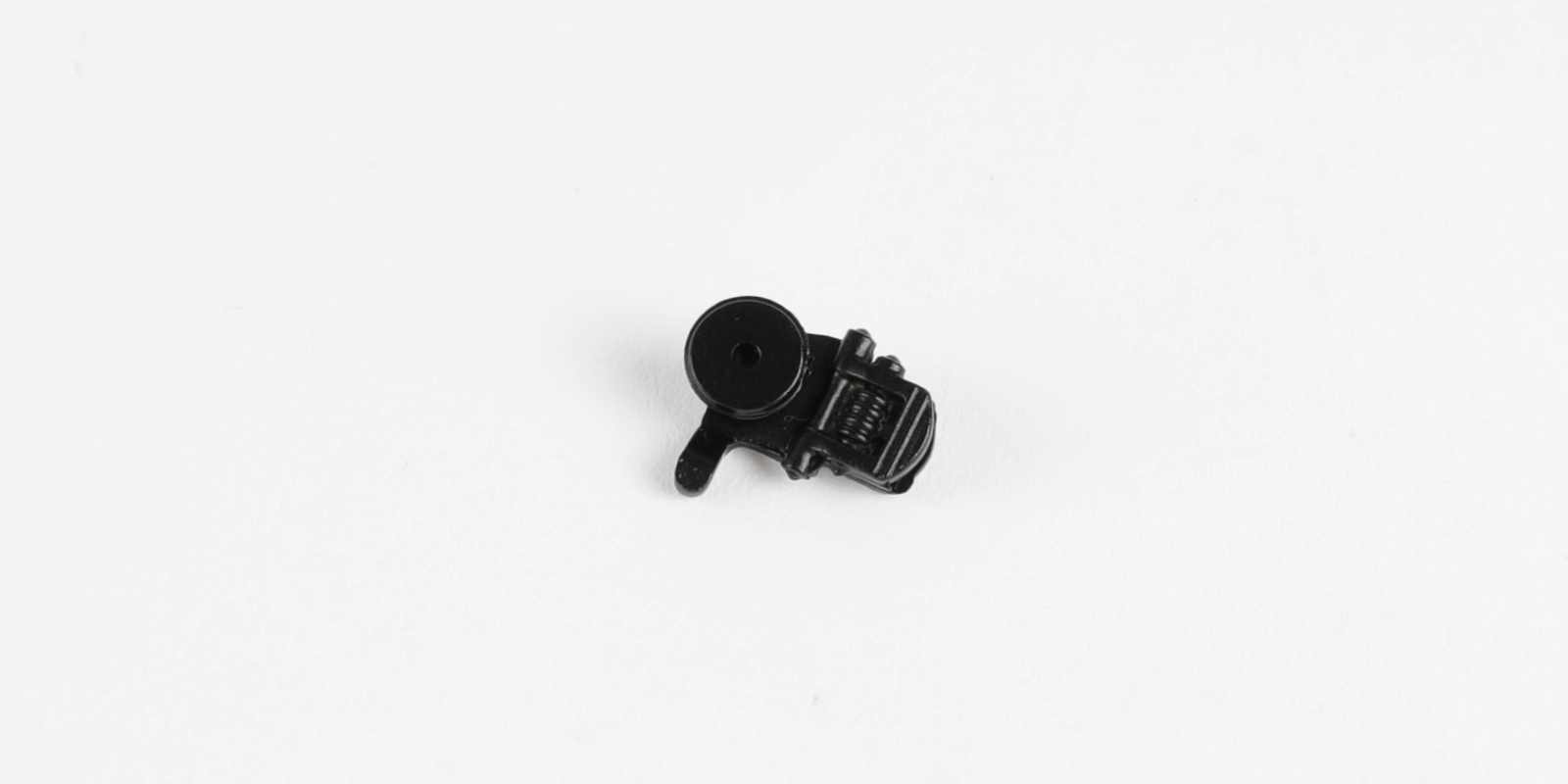

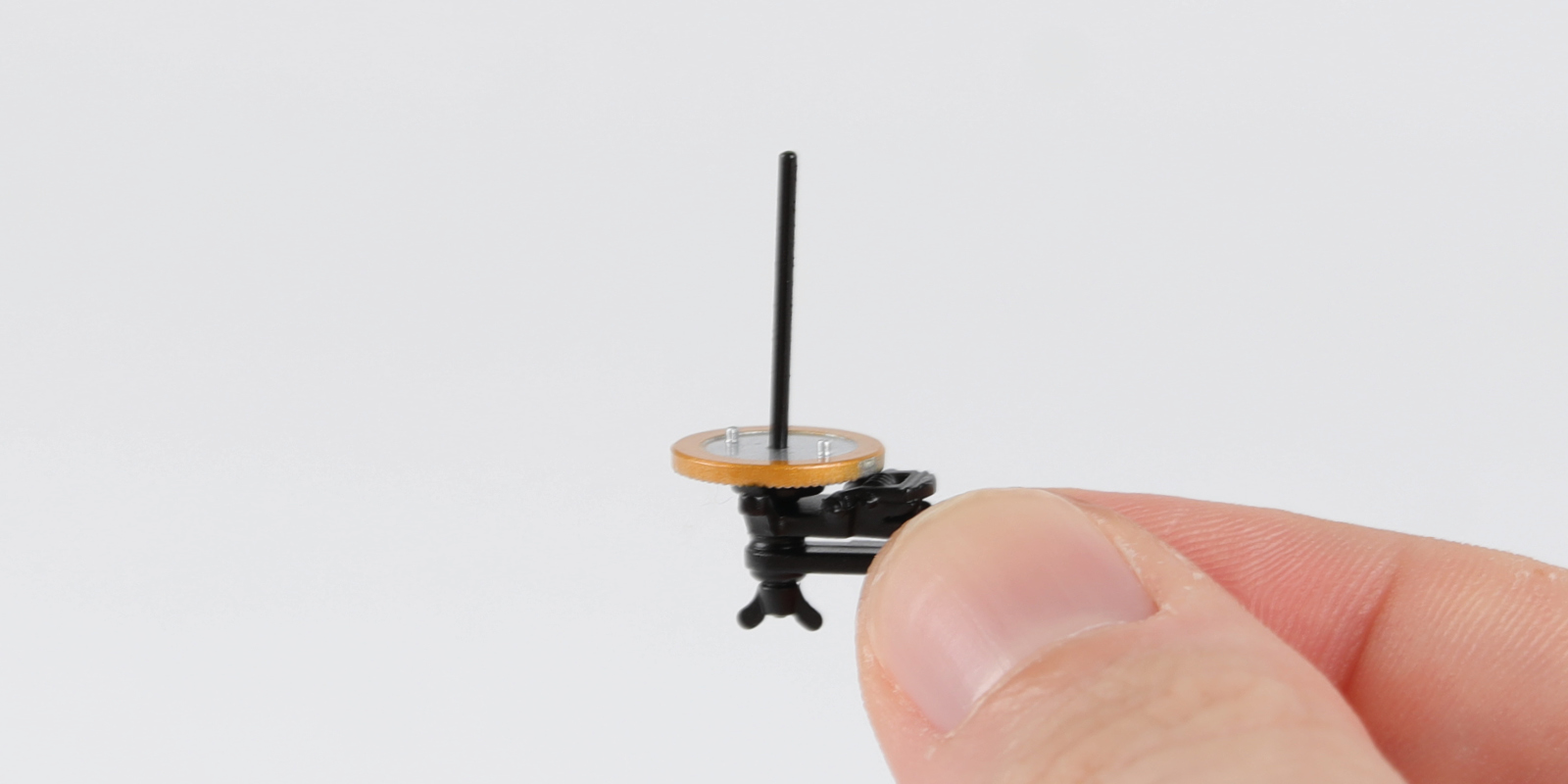

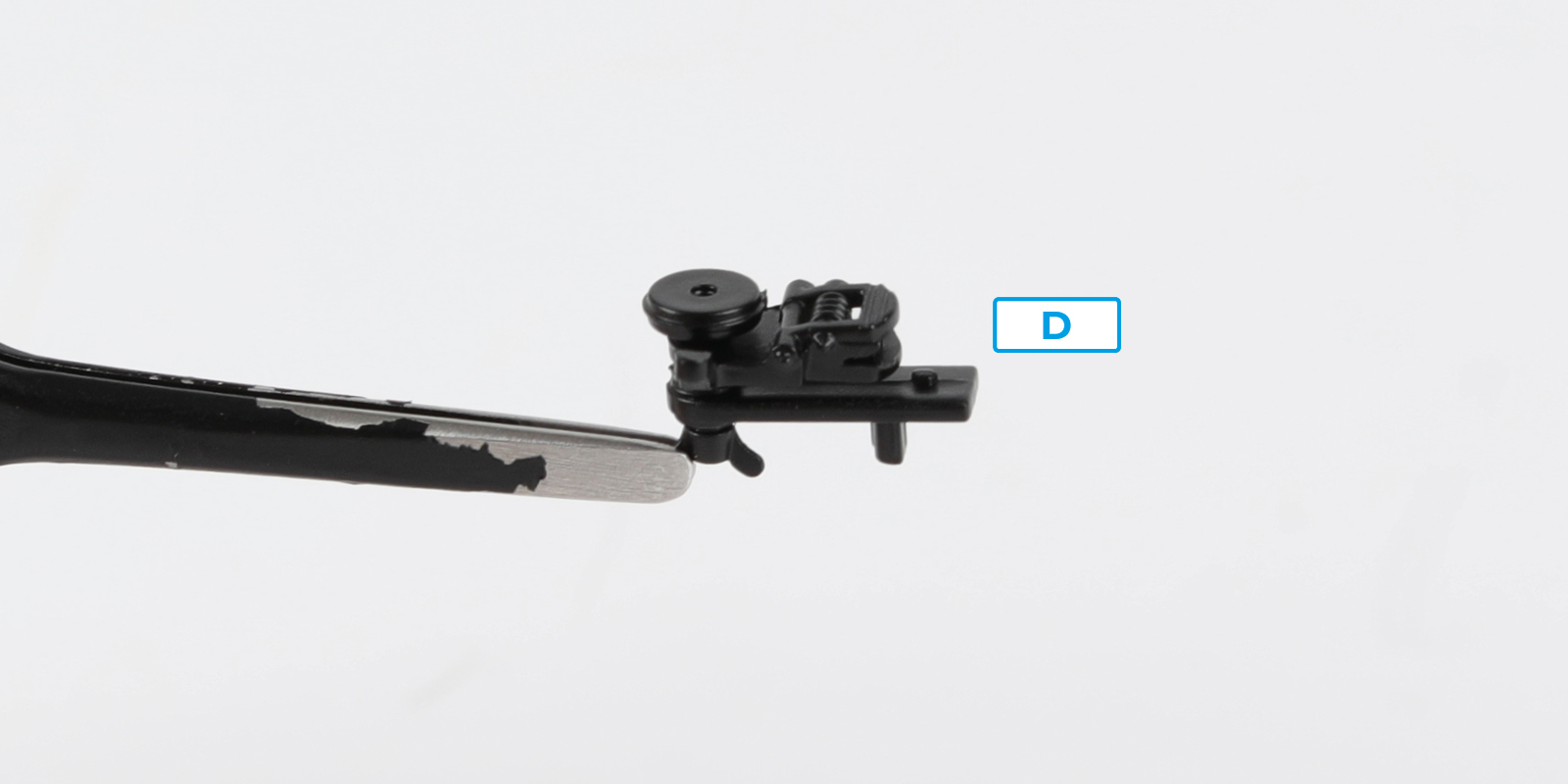

      Fit part 22-D to assembly D.

      a
      b

      STAGE COMPLETE
