      Stage 39: Building the gear lever

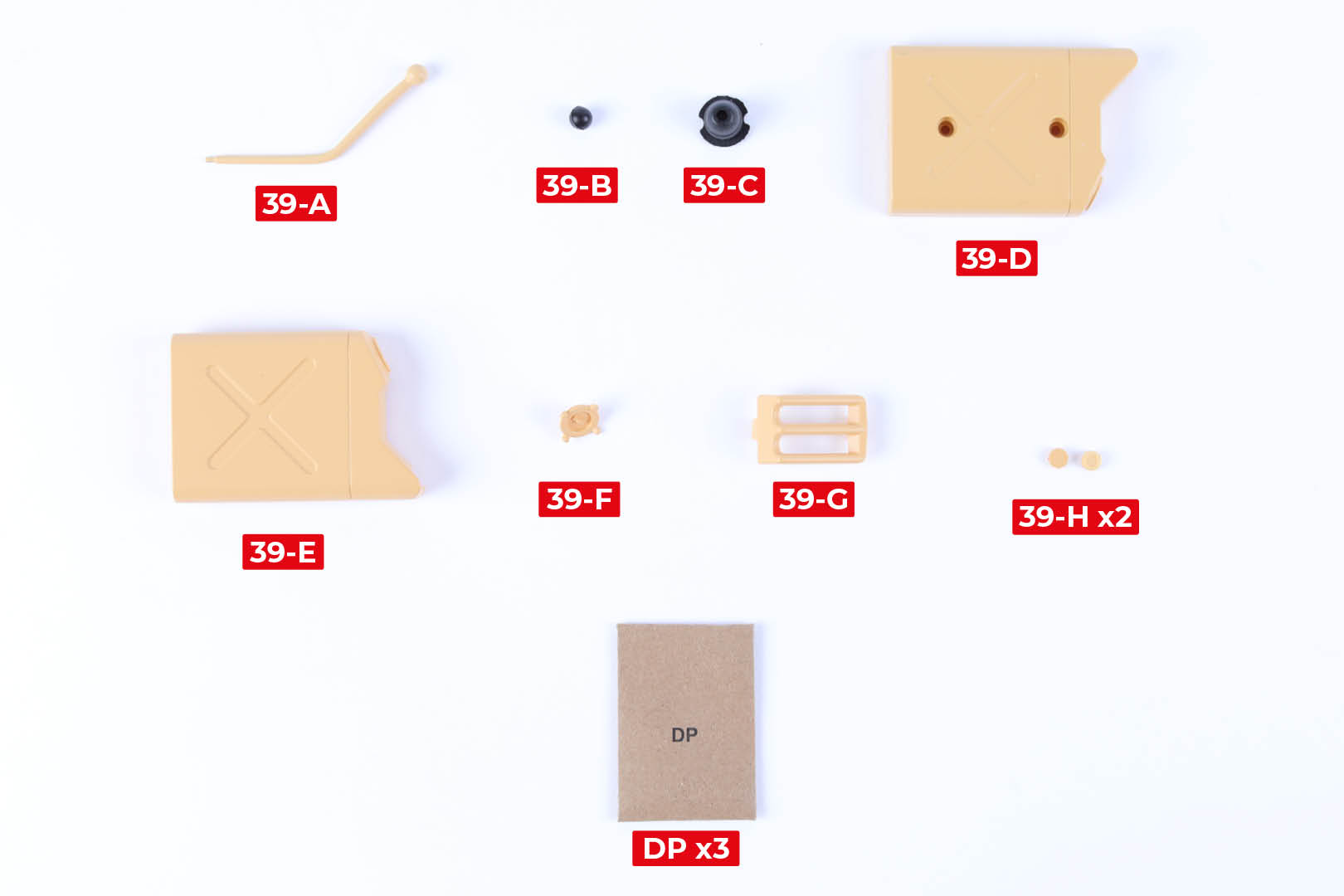

      STAGE 39 PARTS

      Step 1

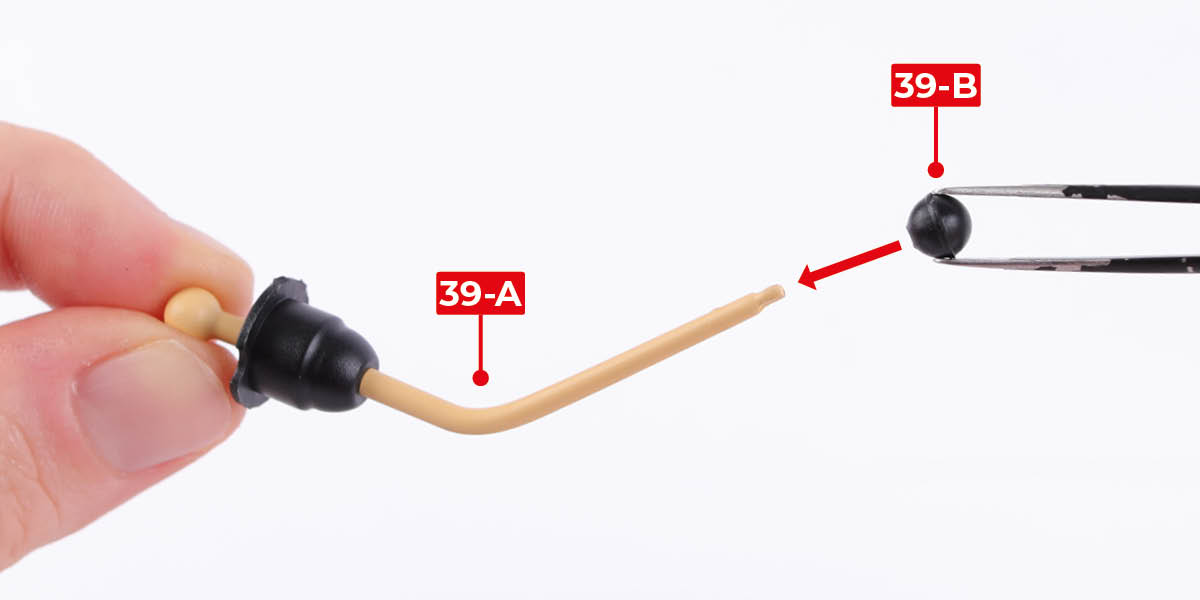

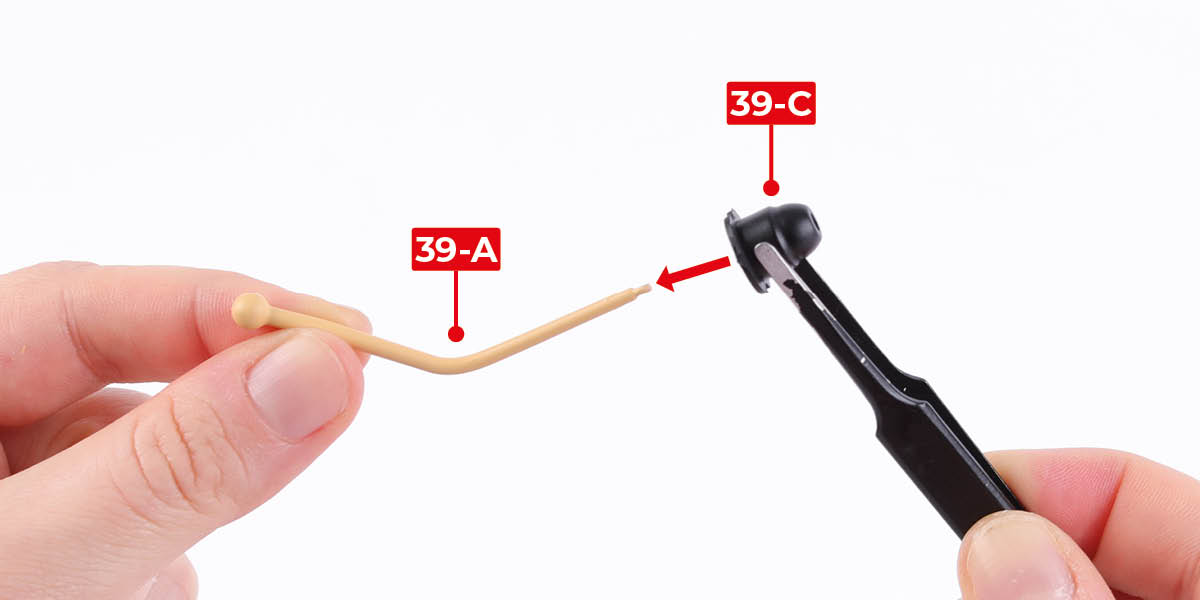

      Slide part 39-C onto part 39-A, then push part 39-B to part 39-A.

      a
      b
      c

      Step 2

      Building a jerry can

      Fit part 39-D to part 39-E with 2 DP screws.

      a
      b

      Step 3

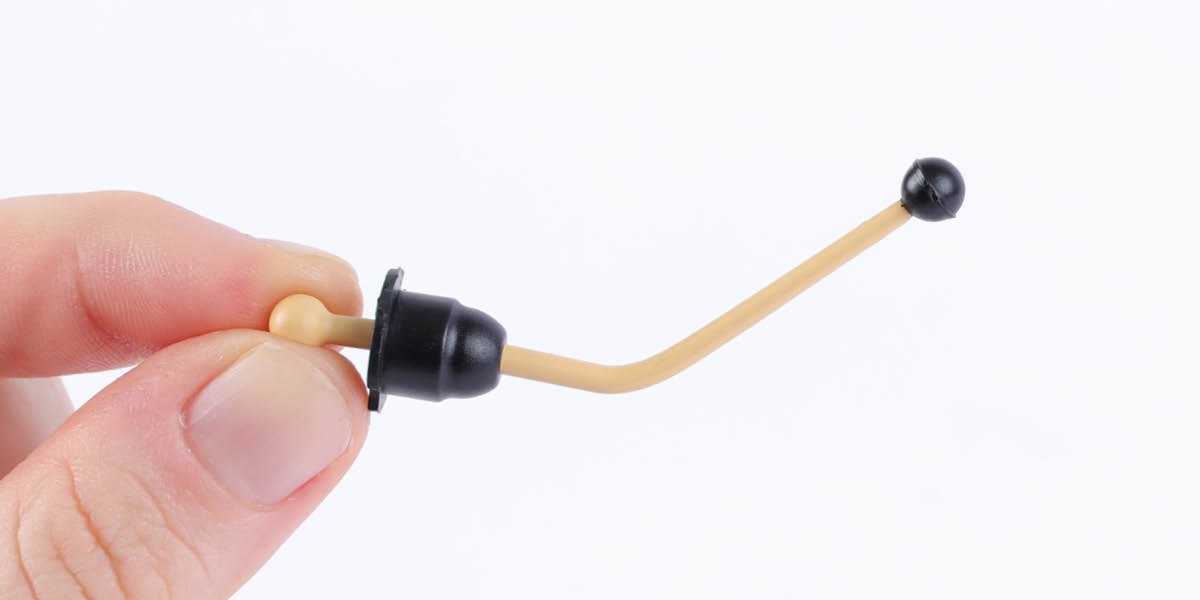

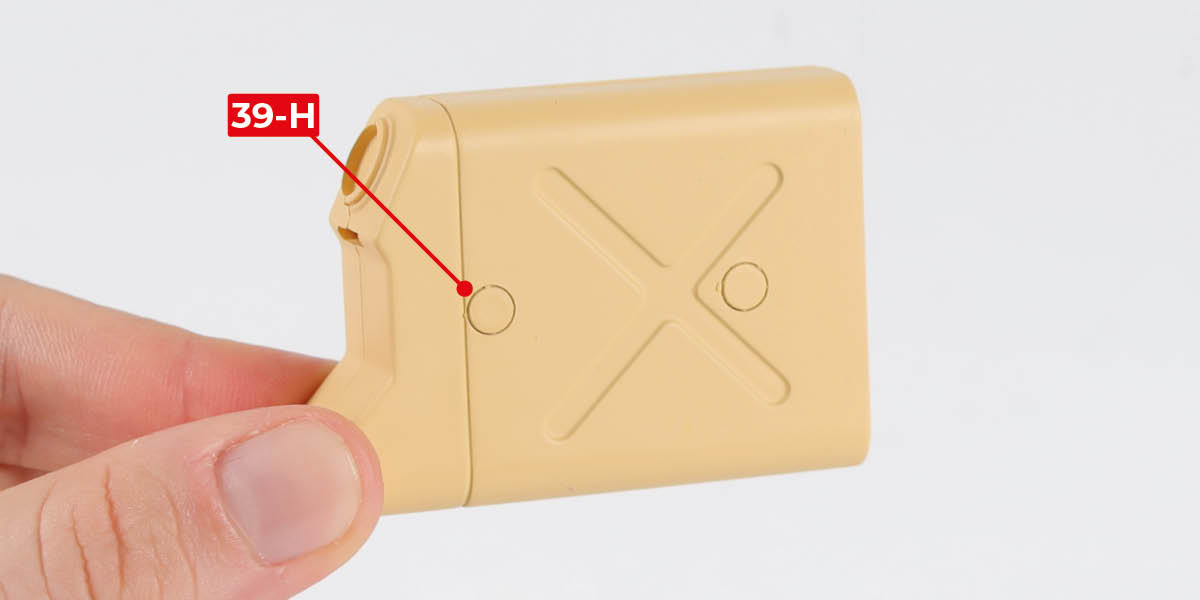

      Fit parts 39-H to part 39-D.

      a
      b

      Step 4

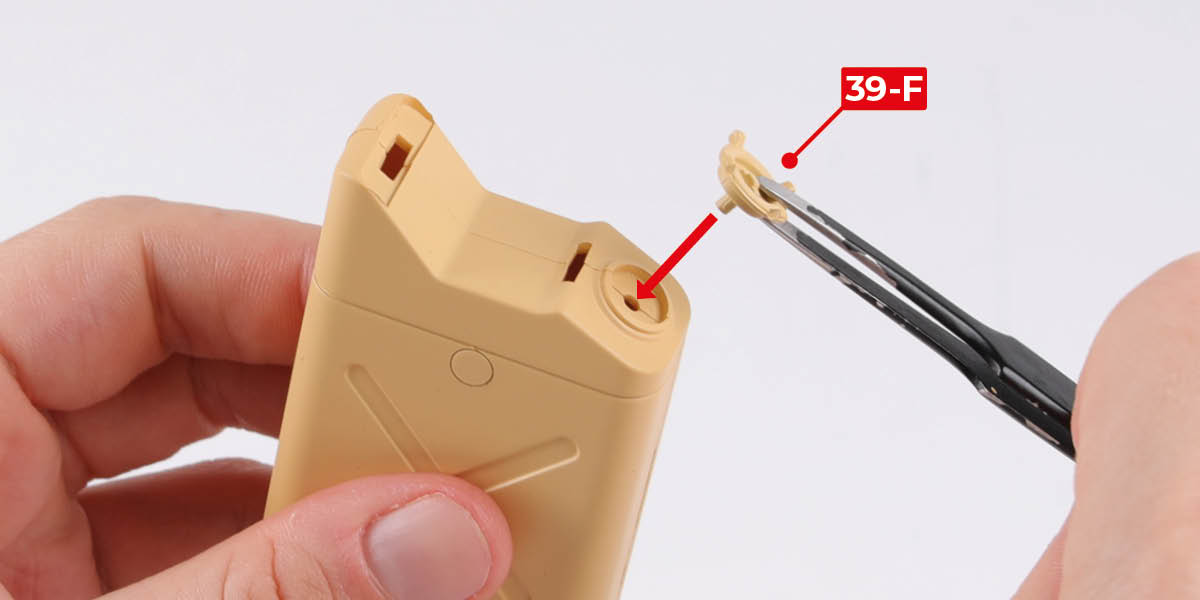

      Fit part 39-F and part 39-G to complete the jerry can as shown.

      a
      b
      c

      STAGE COMPLETE

      Stage 40: Fitting the gear lever

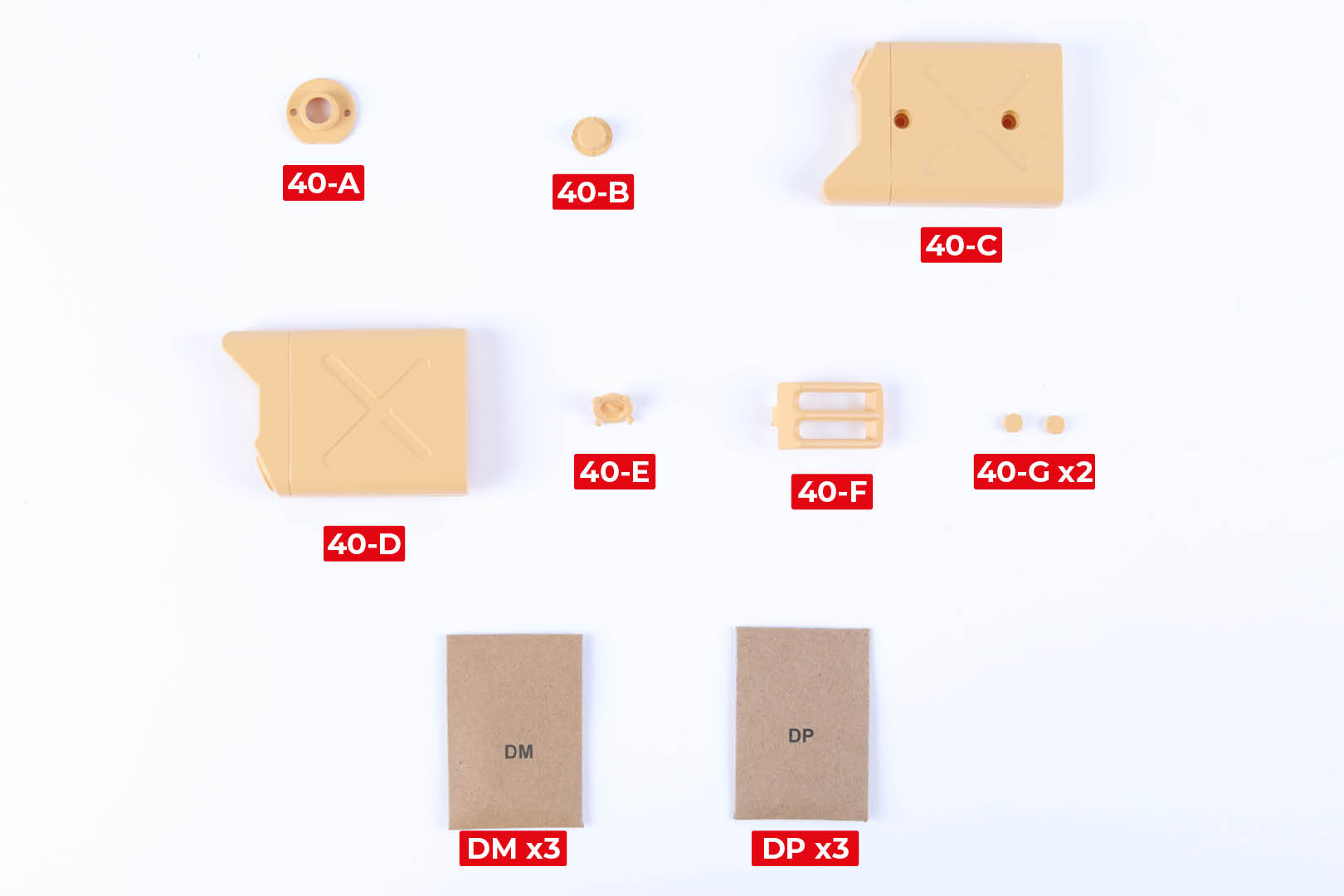

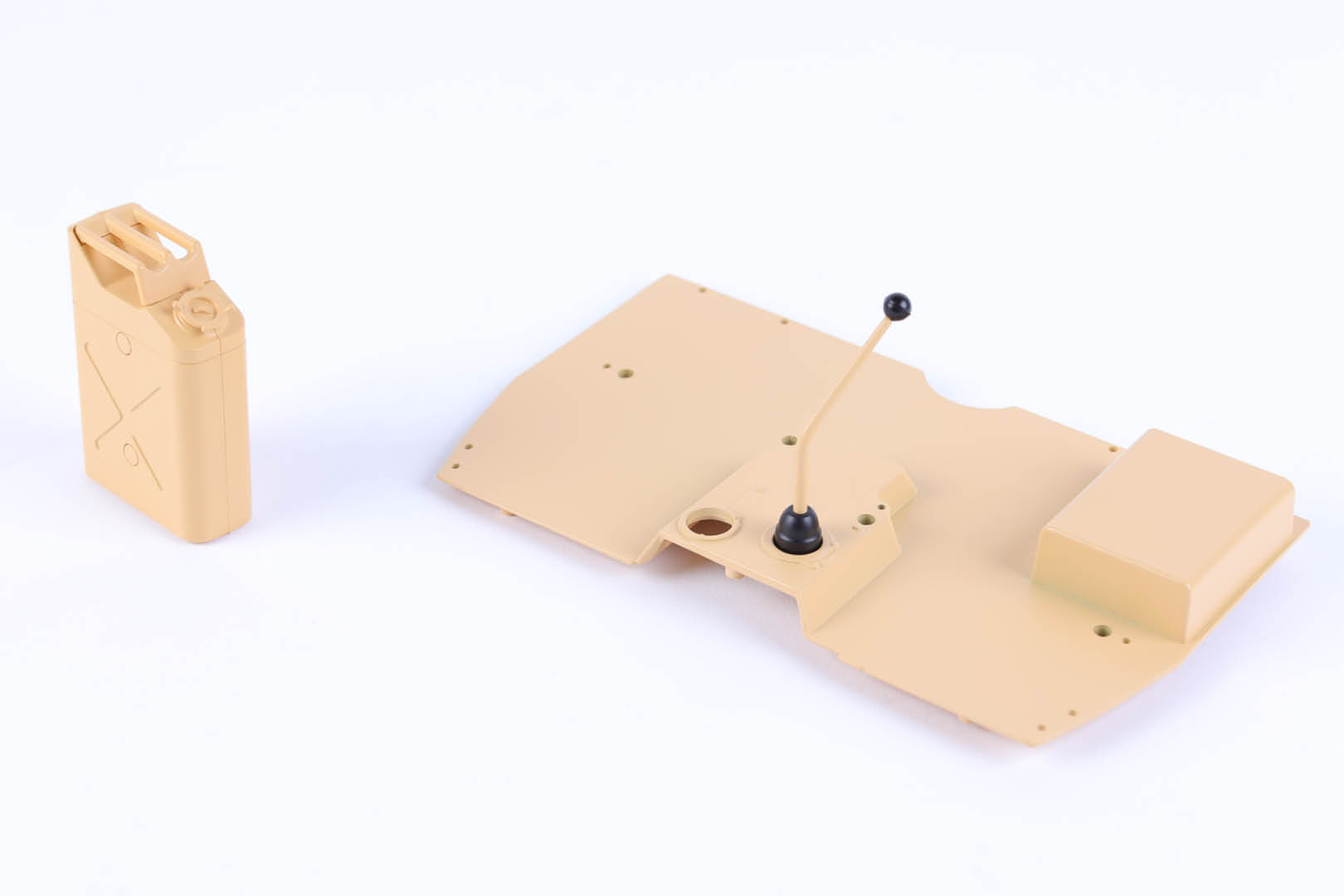

      STAGE 40 PARTS

      Step 1

      Insert the gear stick assembly (stage 39) to part 38-A (stage 38).

      a
      b

      Step 2

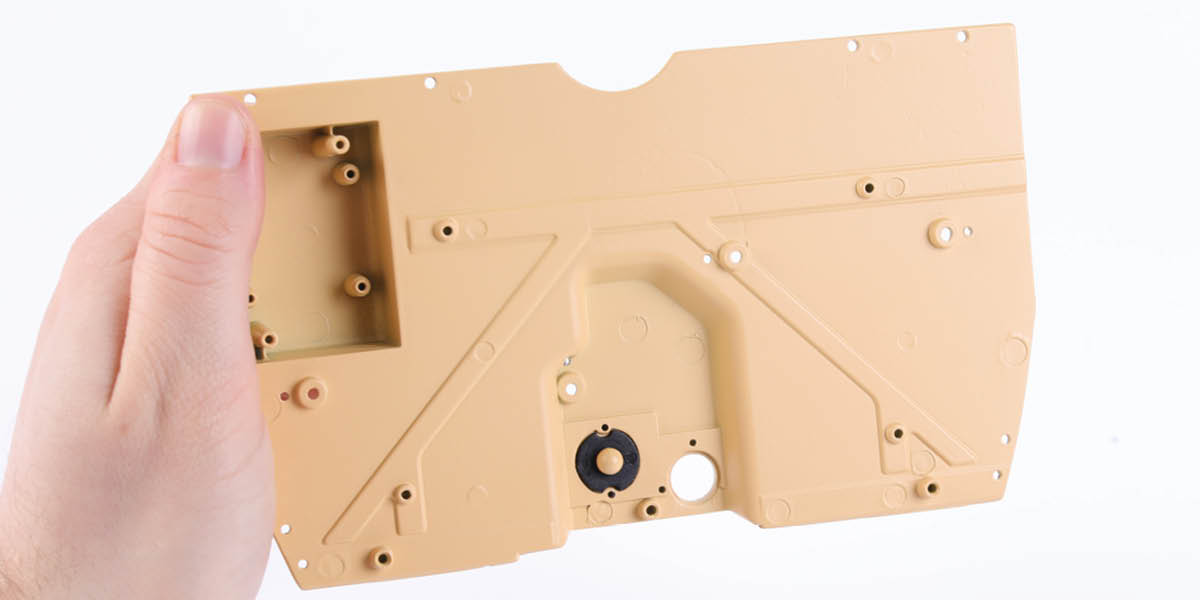

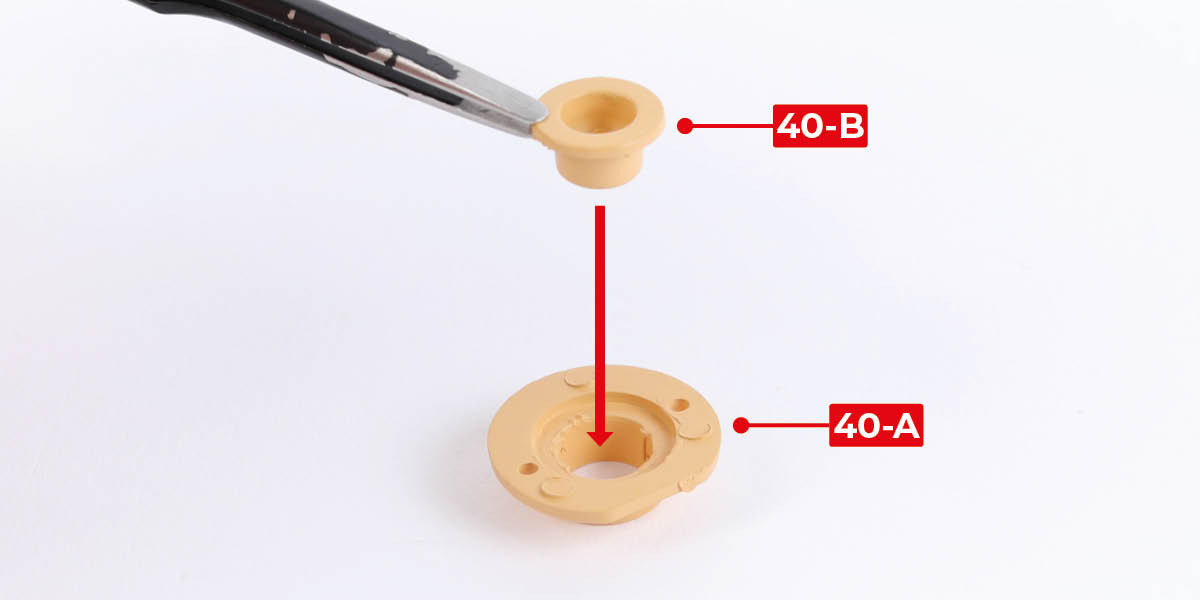

      Fit part 40-B into part 40-A.

      a
      b

      Step 3

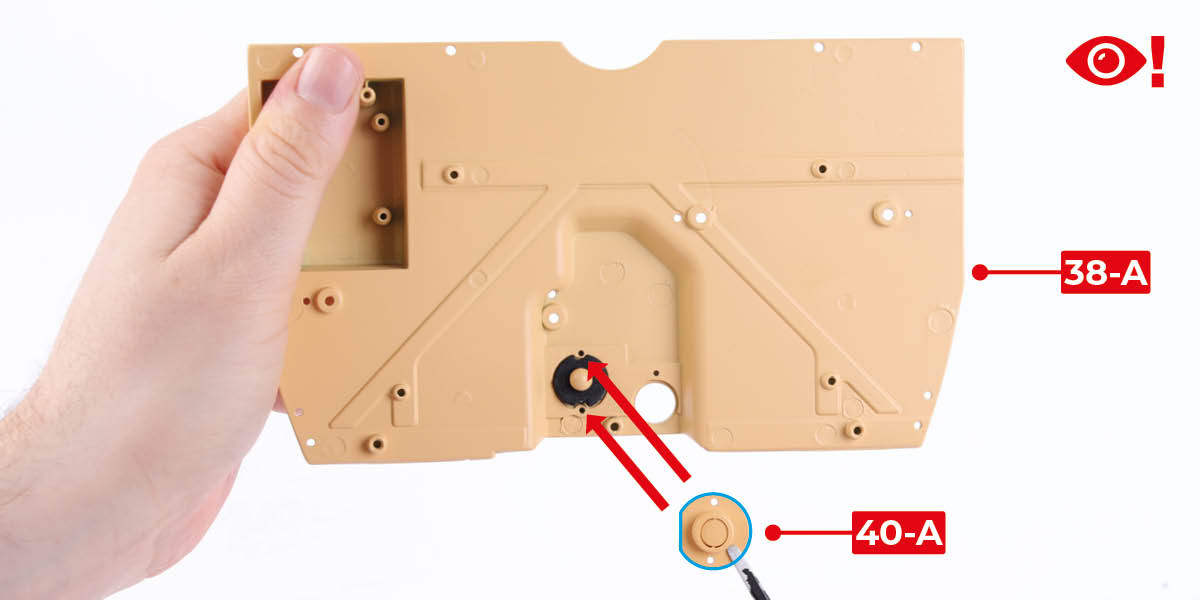

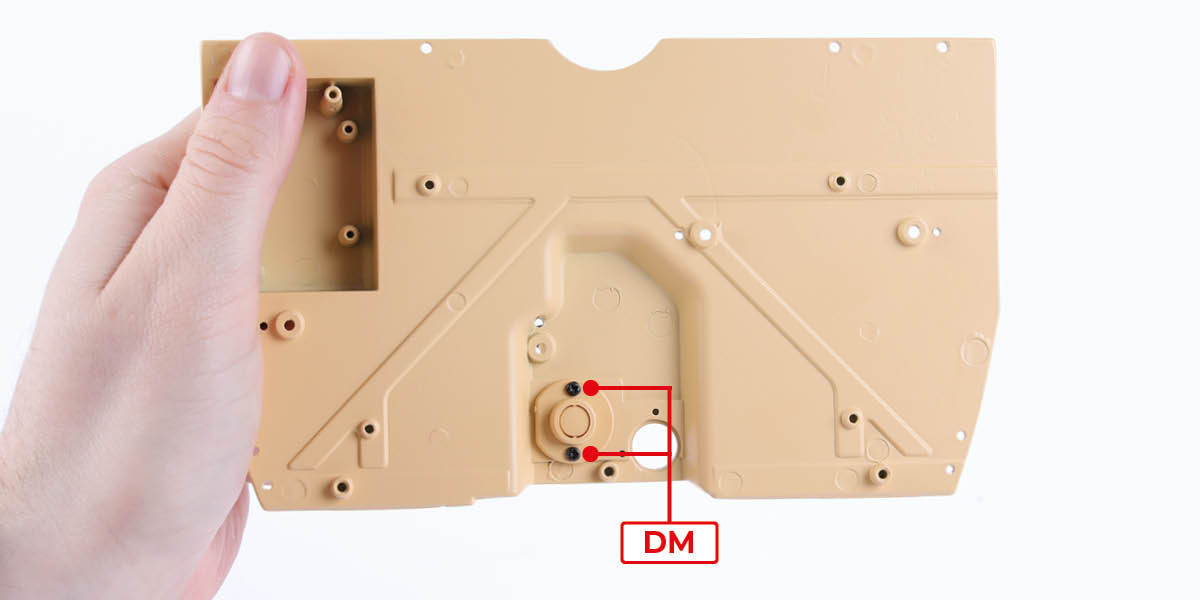

      Fit part 40-A to part 38-A in the orientation shown, using 2 DM screws.

      a
      b

      Step 4

      Building a jerry can

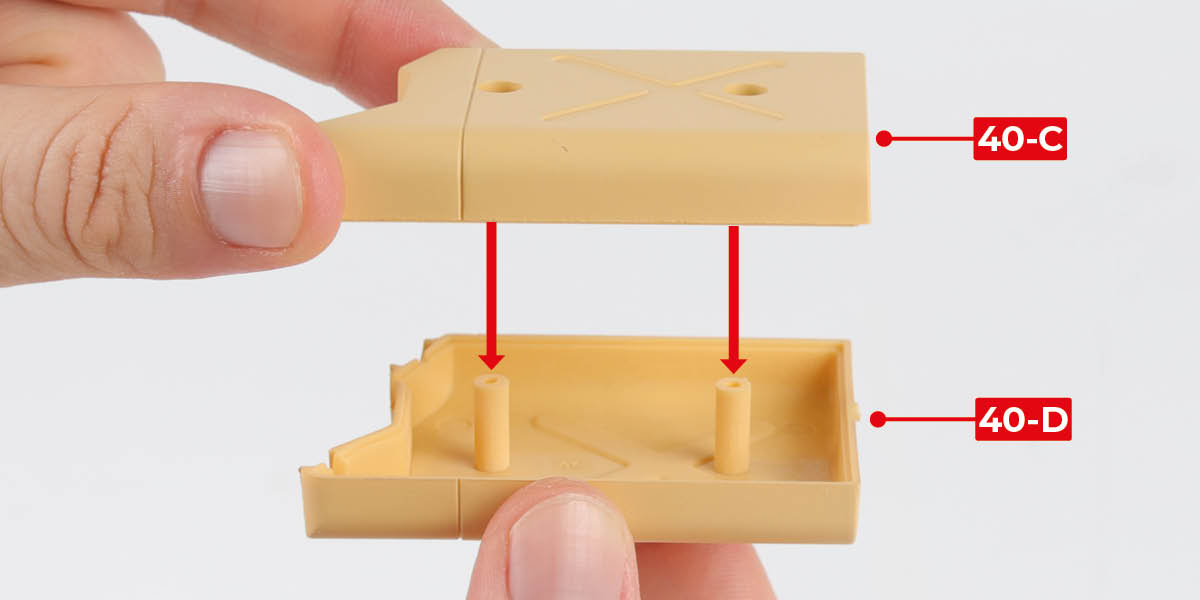

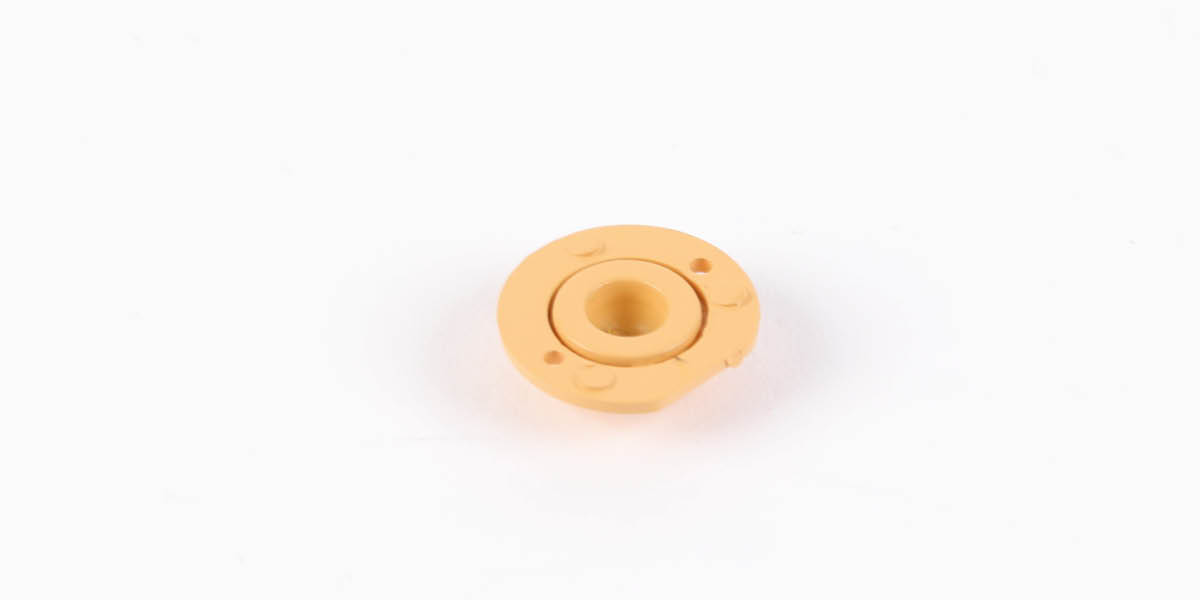

      Fit part 40-C to part 40-D with 2 DP screws.

      a
      b

      Step 5

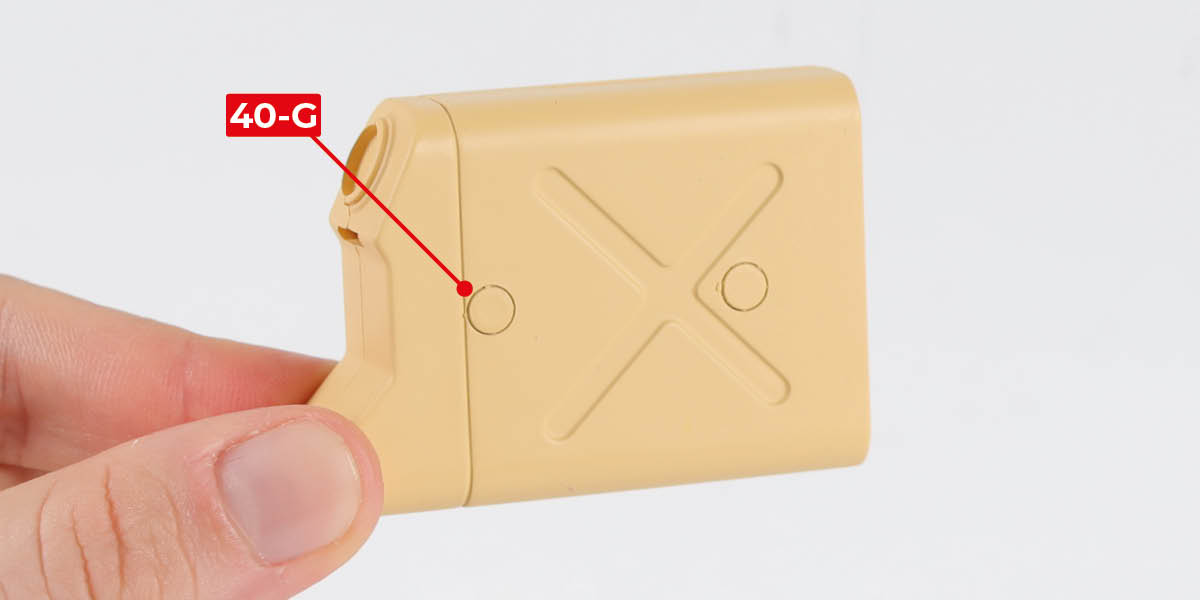

      Fit parts 40-G to part 40-C.

      a
      b

      Step 6

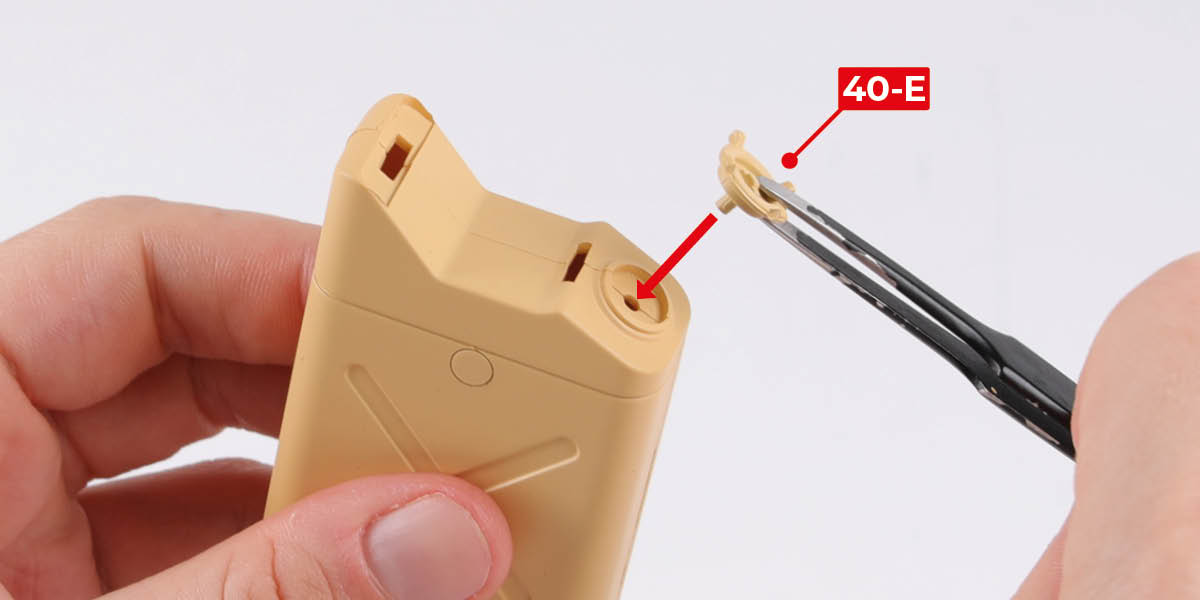

      Fit part 40-E and part 40-F to complete the jerry can as shown.

      a
      b
      c

      STAGE COMPLETE

      Stage 41: Building the transfer case levers

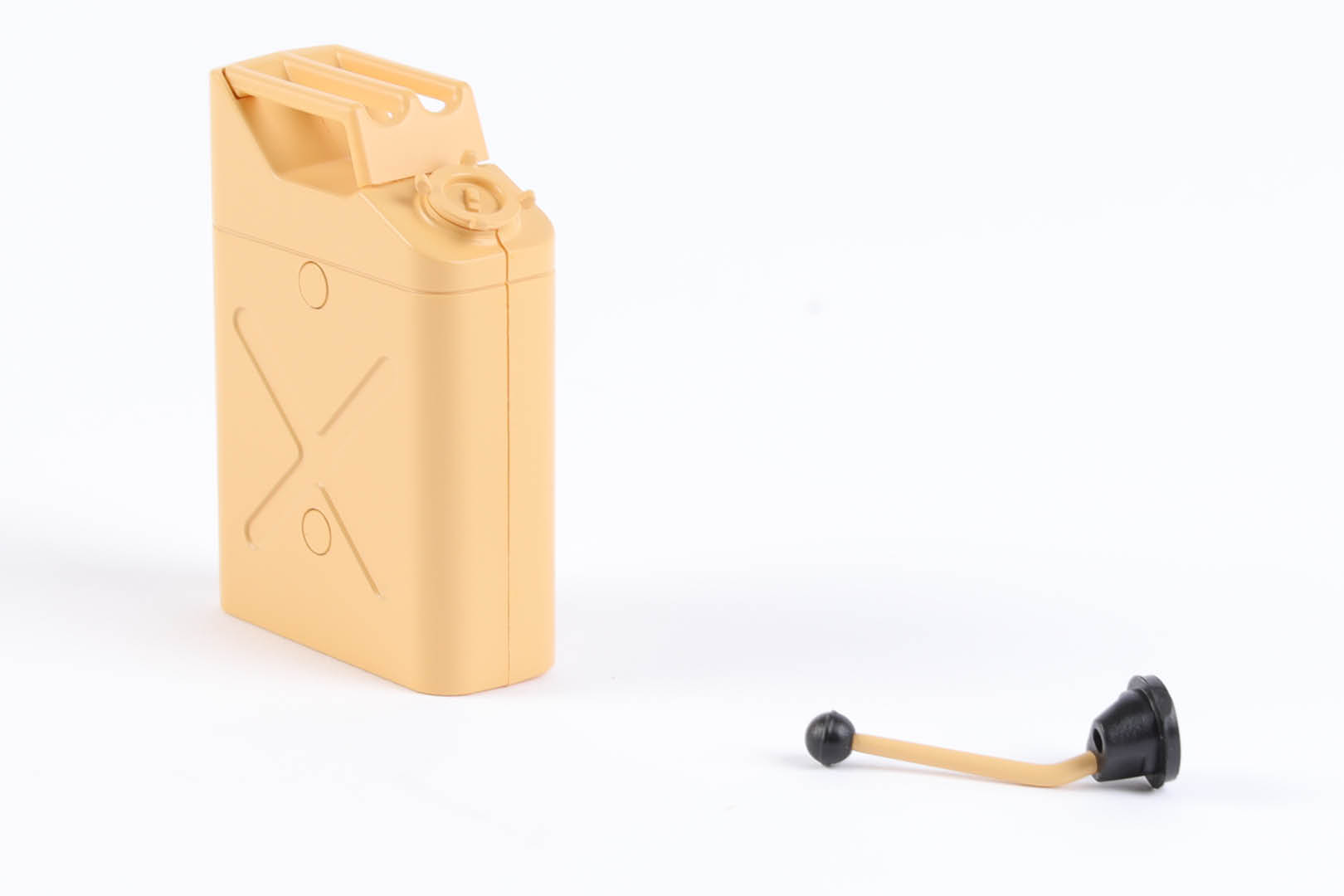

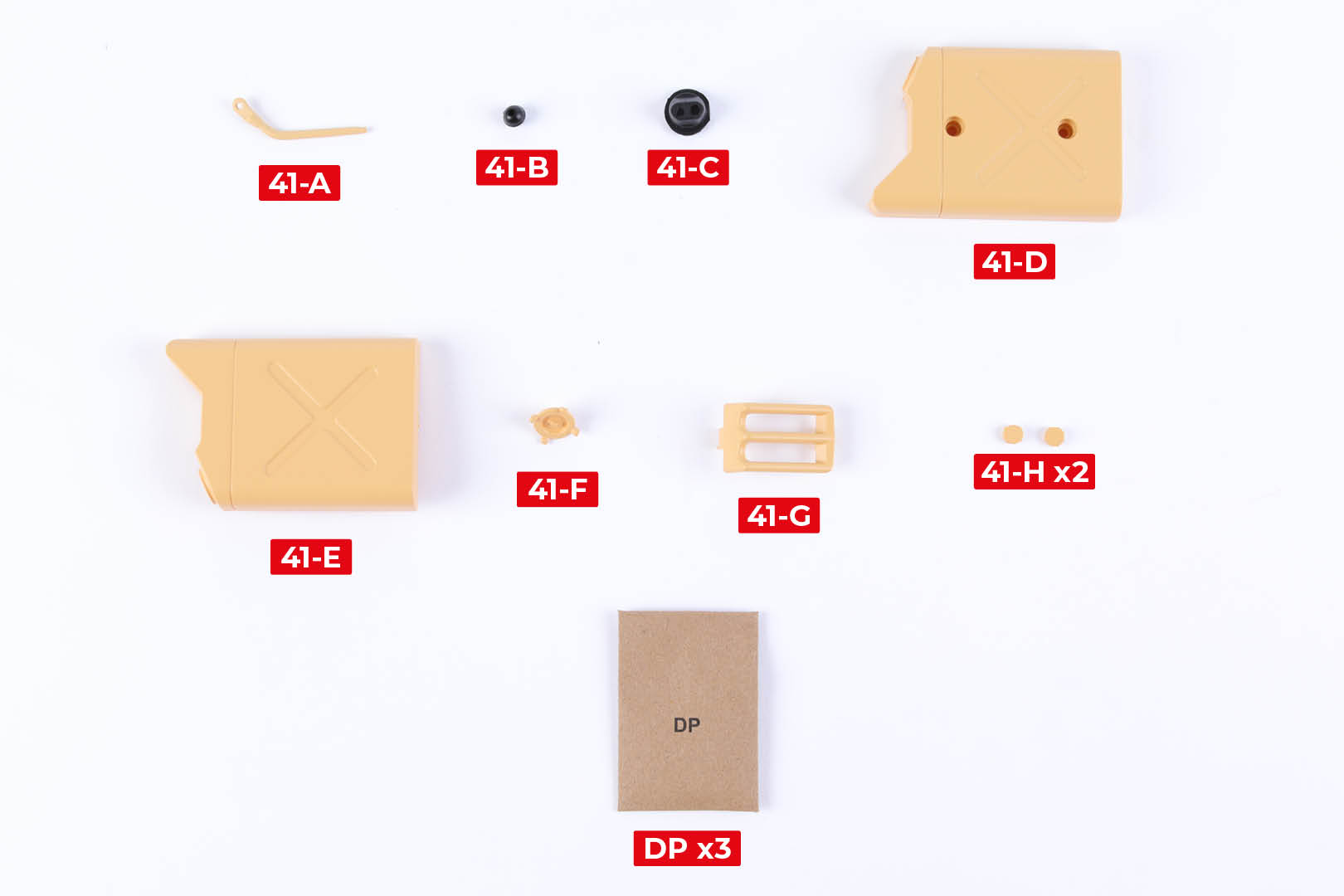

      STAGE 41 PARTS

      Step 1

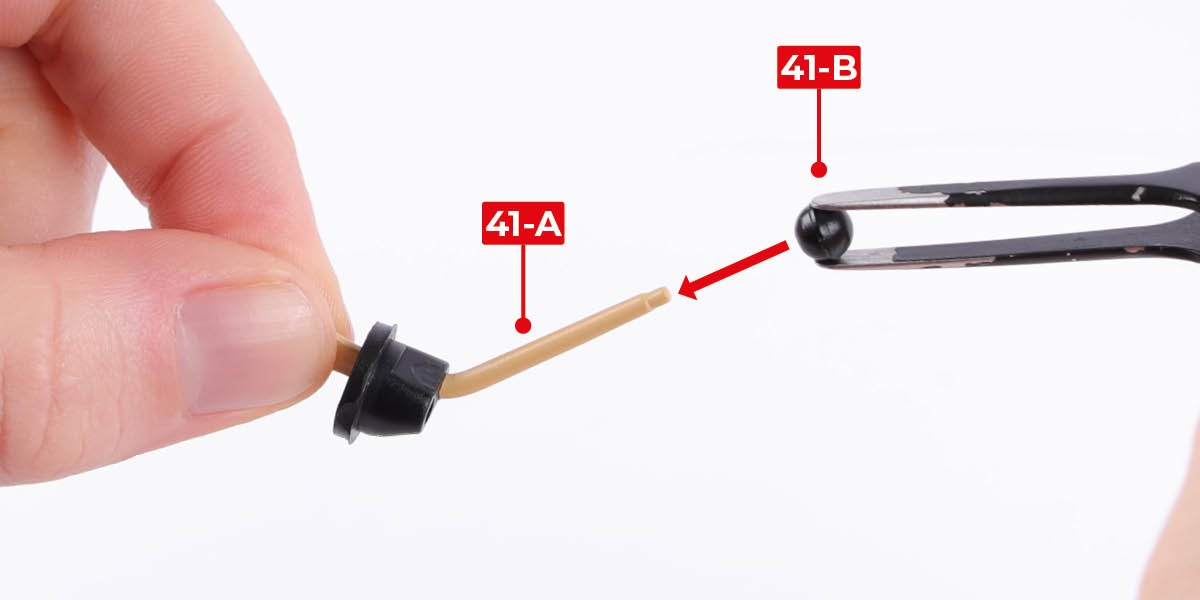

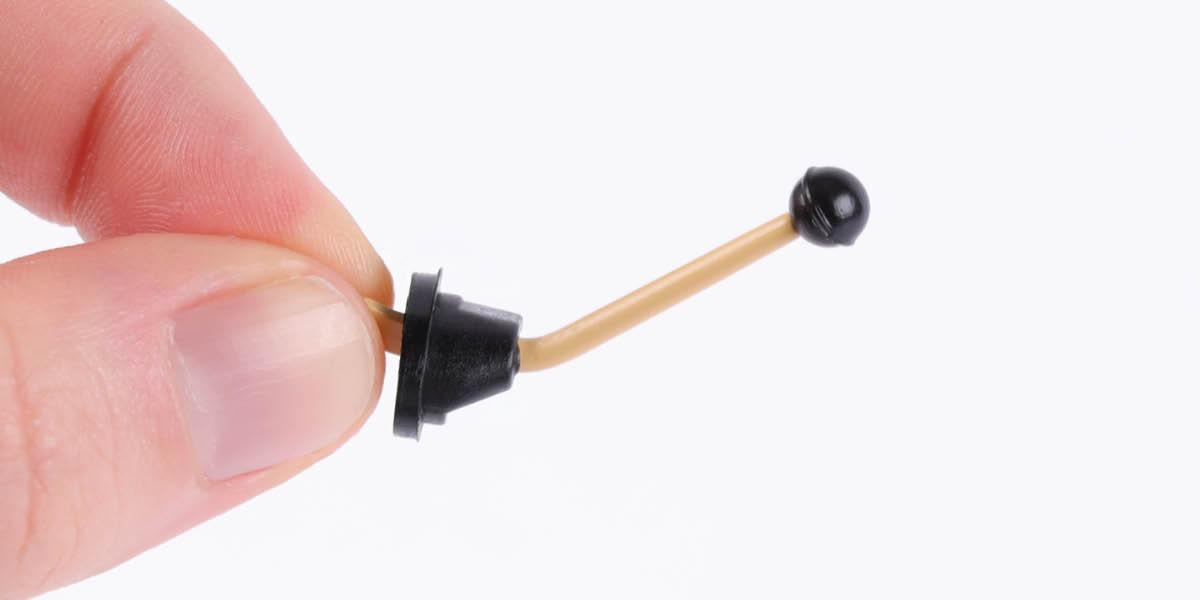

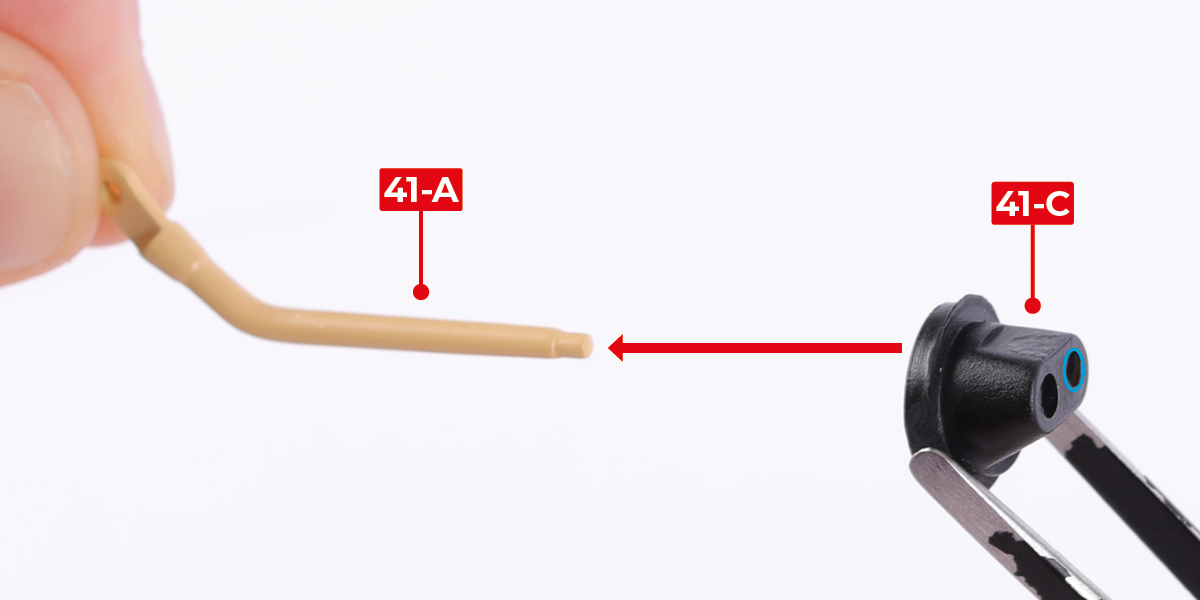

      Fit part 41-C to part 41-A through the hole circled in blue, then fit part 41-B to part 41-A.

      a
      b
      c

      Step 2

      Building a jerry can

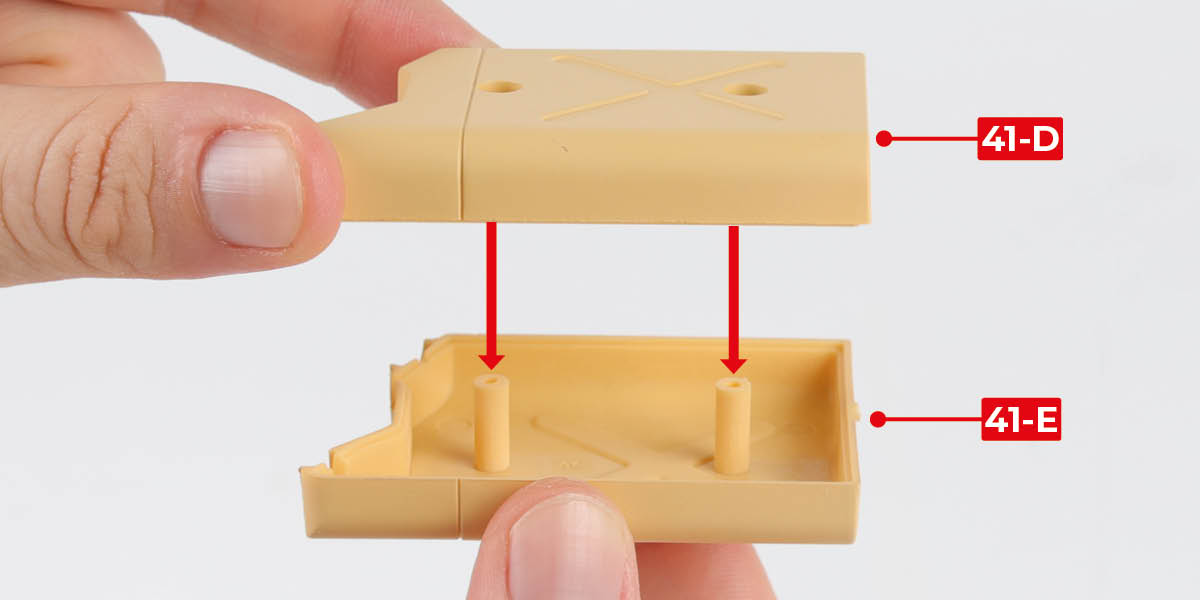

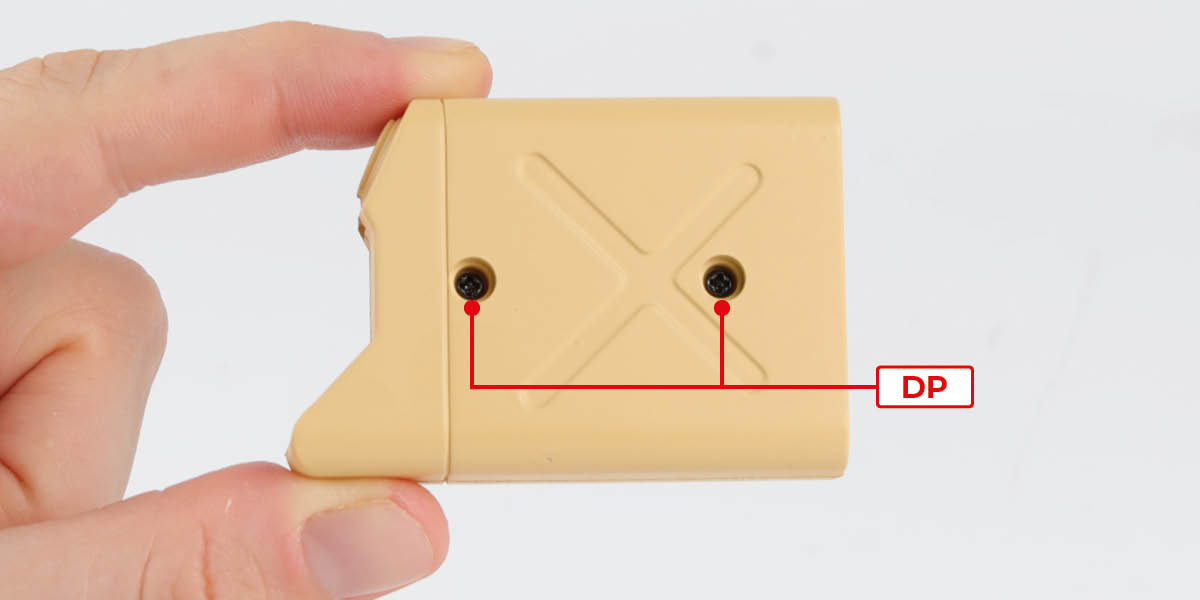

      Fit part 41-D to part 41-E with 2 DP screws.

      a
      b

      Step 3

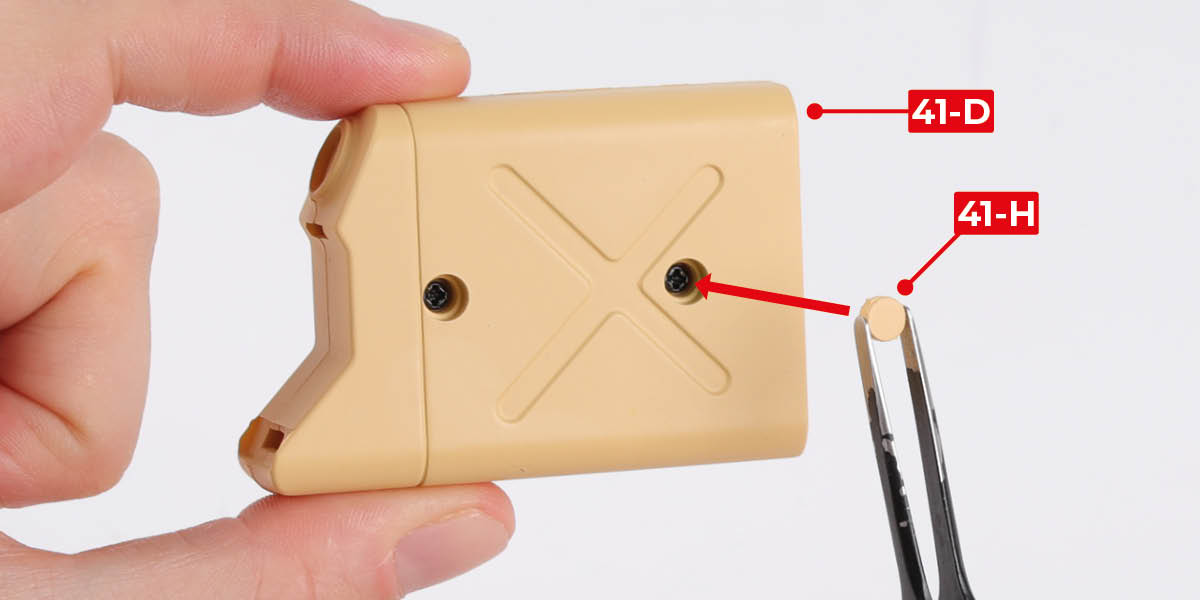

      Fit parts 41-H to part 41-D.

      a
      b

      Step 4

      Fit part 41-F and part 41-G to complete the jerry can as shown.

      a
      b
      c

      STAGE COMPLETE

      Stage 42: Fitting the transfer case levers

      STAGE 42 PARTS

      Step 1

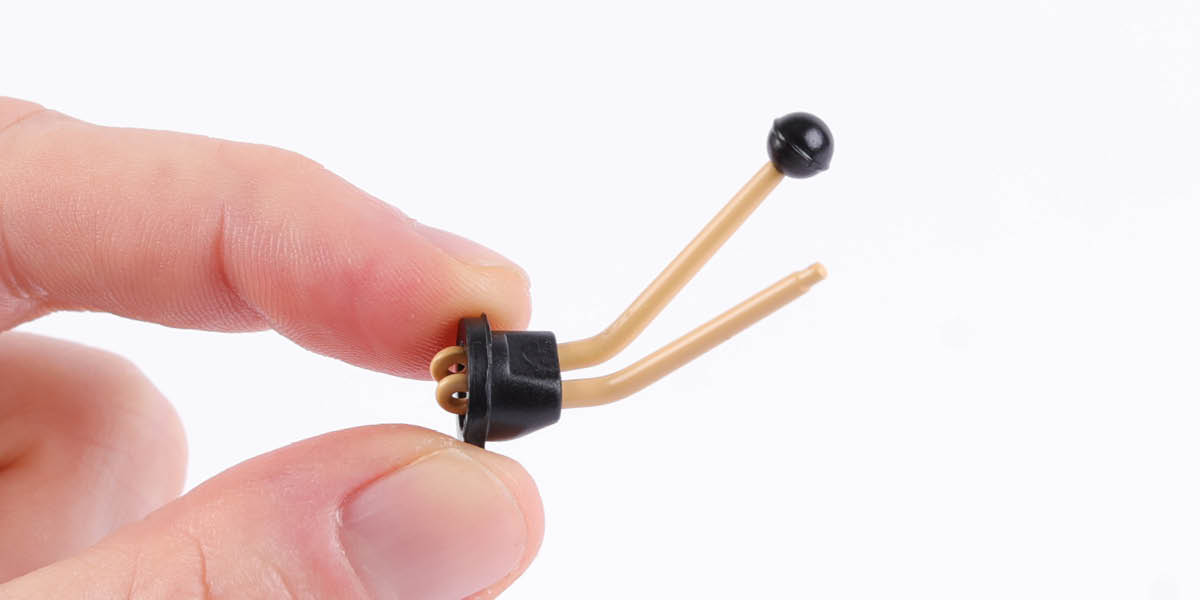

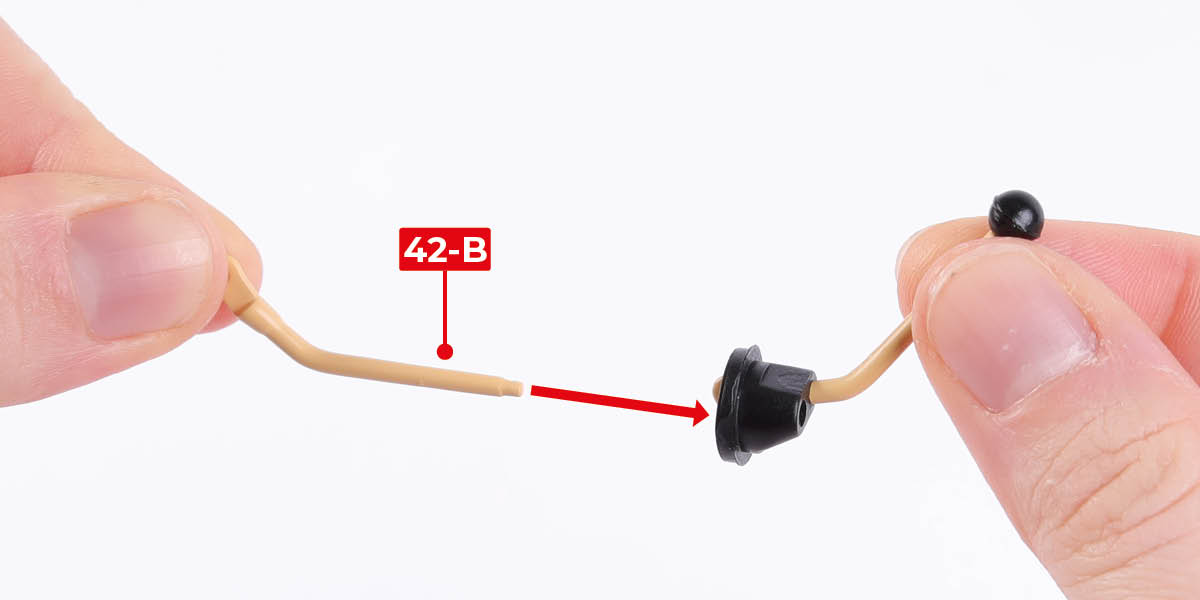

      Insert part 42-B into the transfer case lever assembly (stage 41).

      a
      b

      Step 2

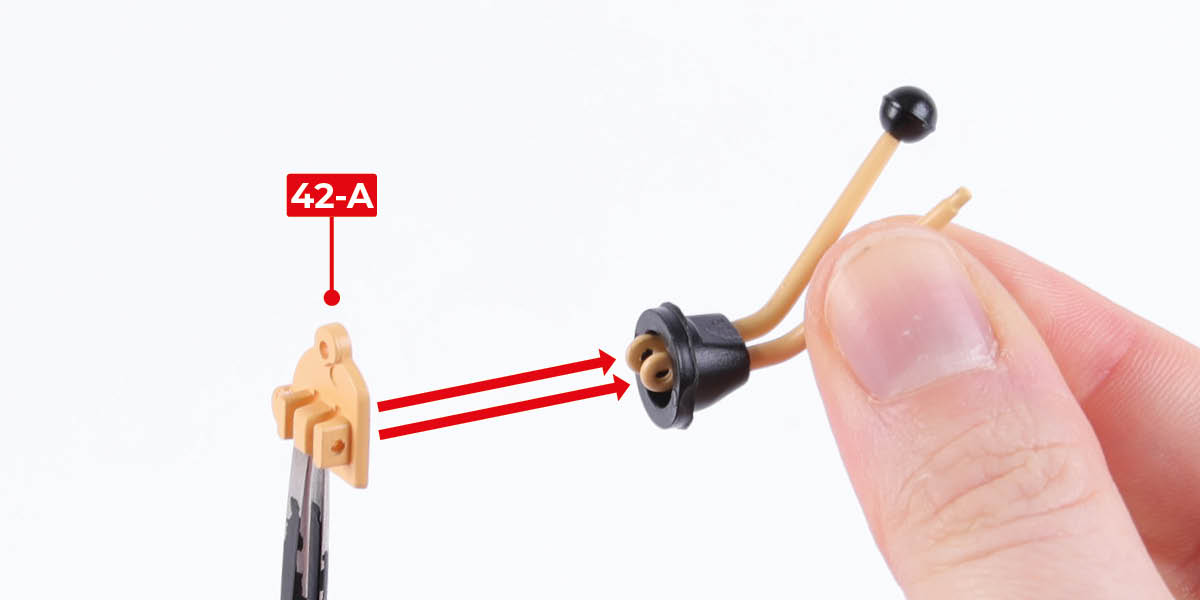

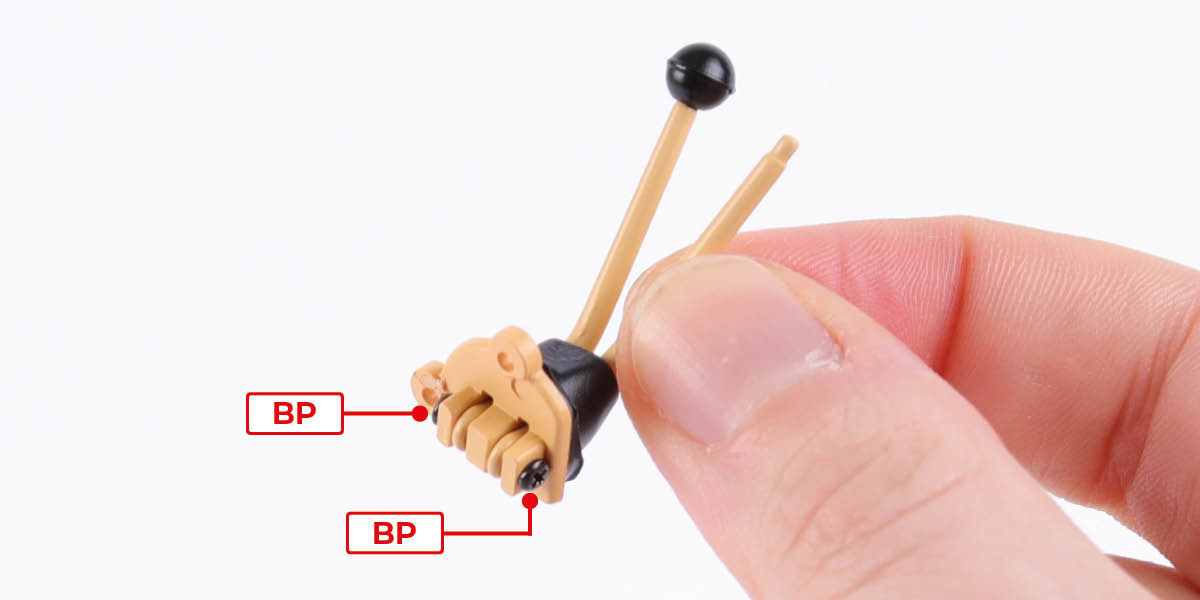

      Fit part 42-A to the assembly with 2 BP screws.

      a
      b

      Step 3

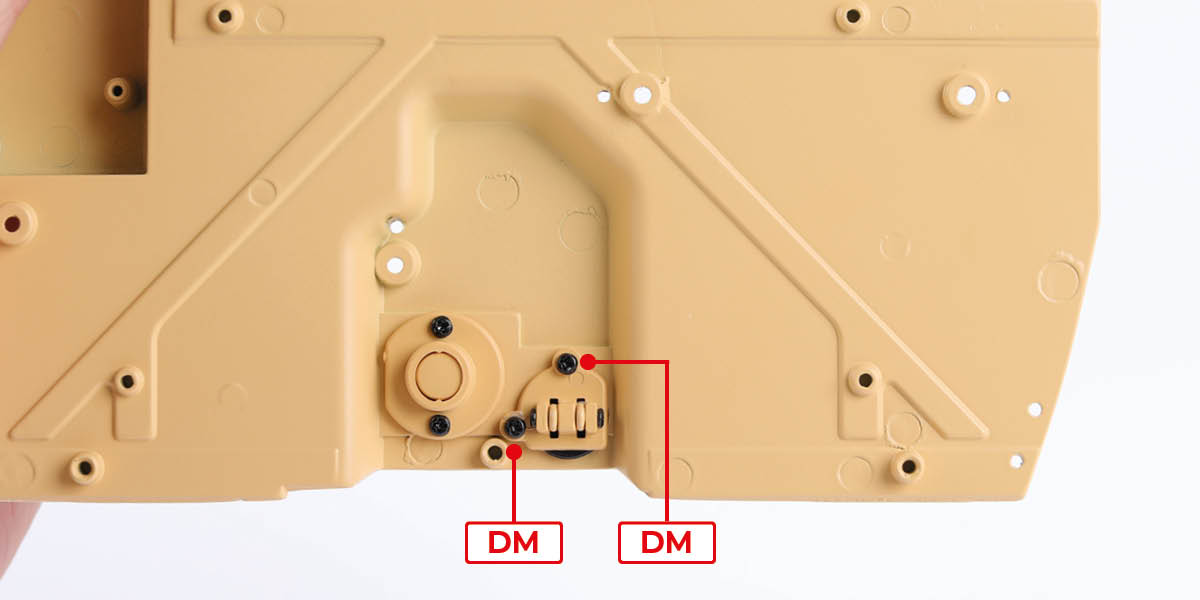

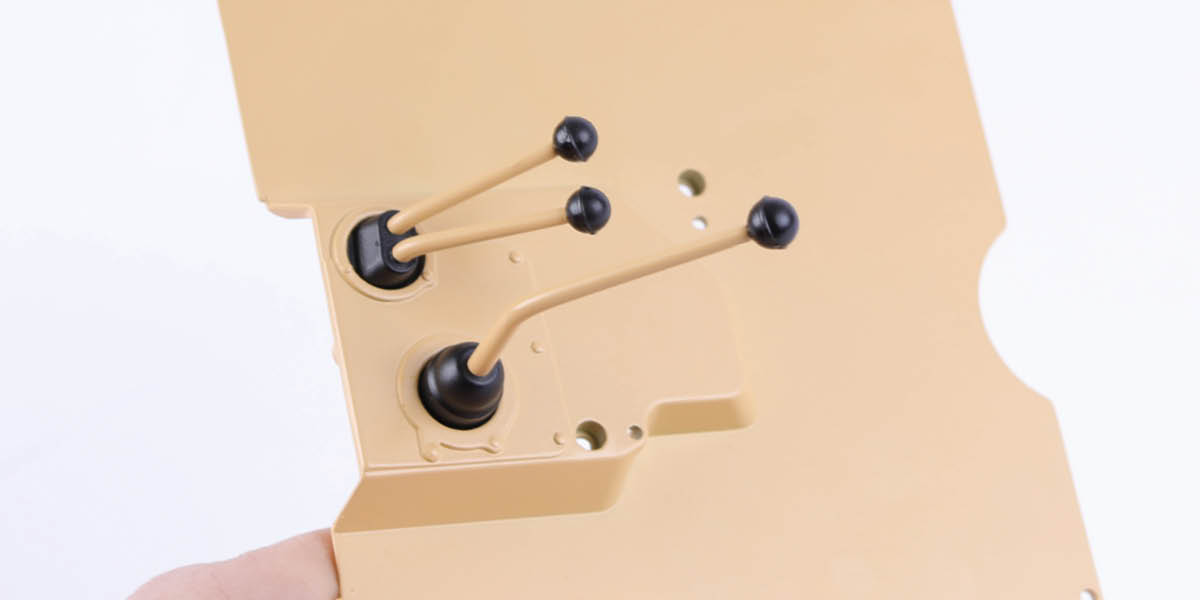

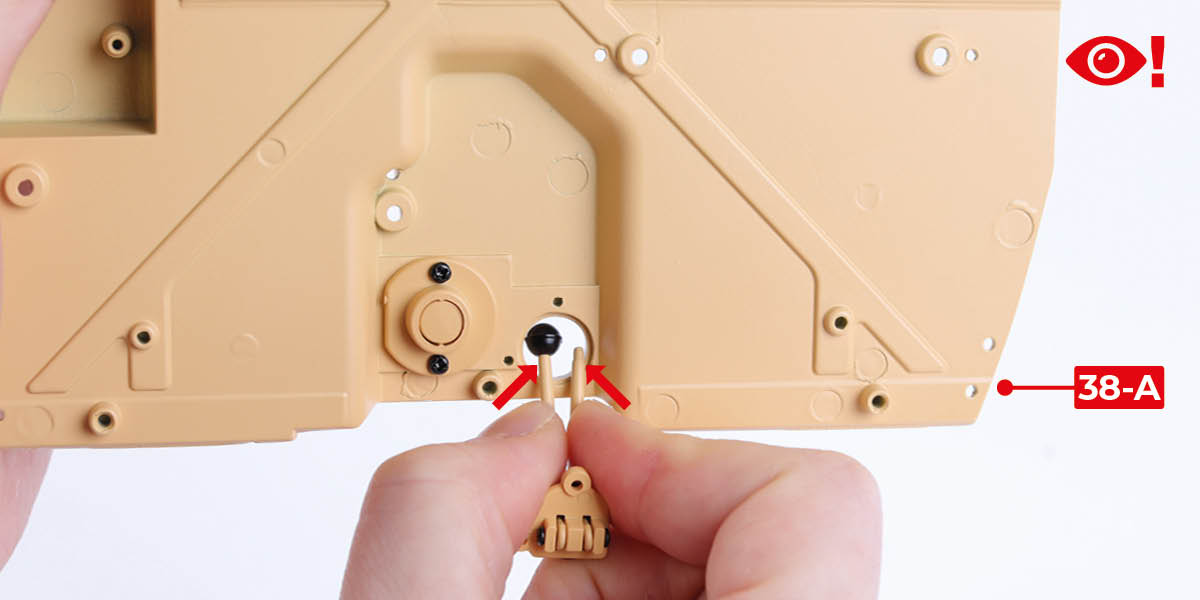

      Insert the levers through the opening by squeezing them together, then fit the lever assembly to part 38-A with 2 DM screws as shown.

      a
      b

      Step 4

      Fit part 42-C to part 42-B.

      a
      b

      Step 5

      Building a jerry can

      Fit part 42-D to part 42-E with 2 DP screws.

      a
      b

      Step 6

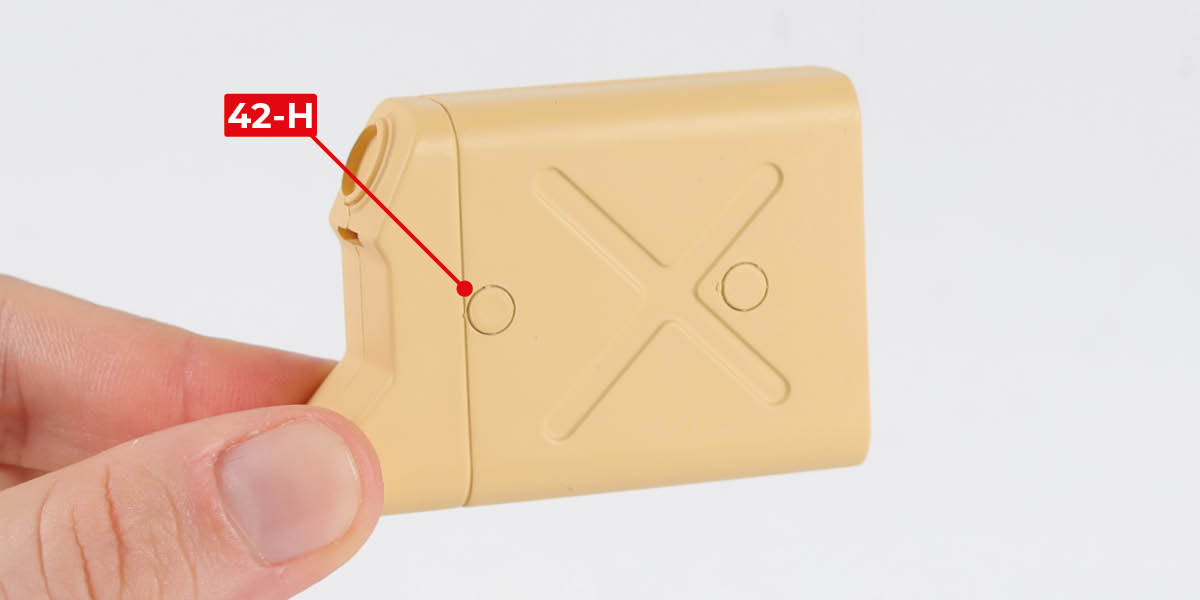

      Fit parts 42-H to part 42-D.

      a
      b

      Step 7

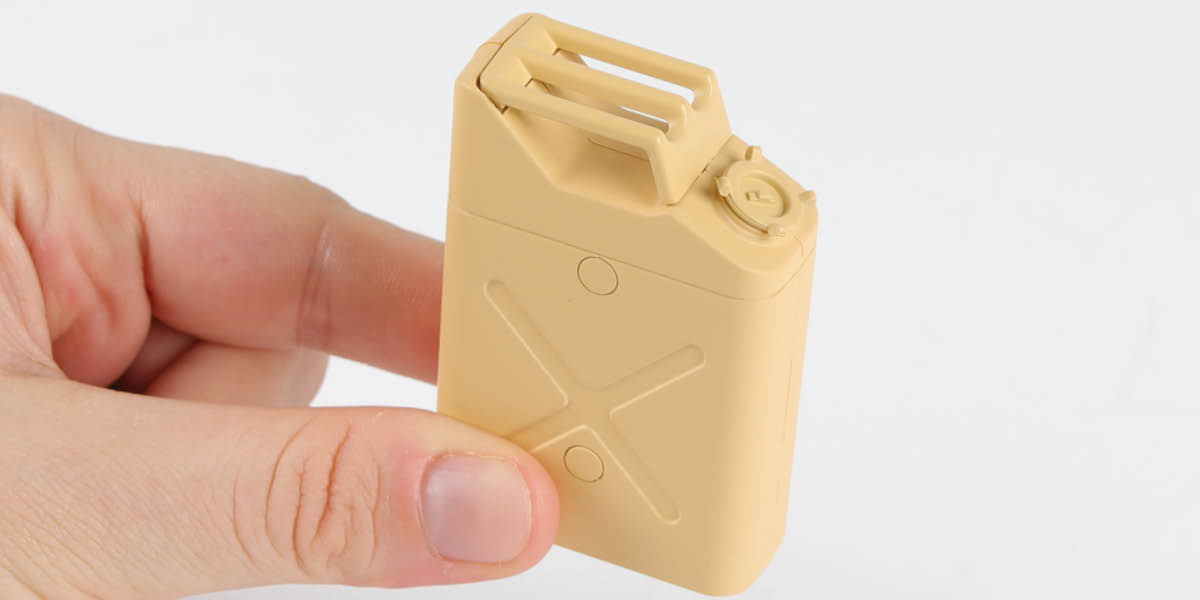

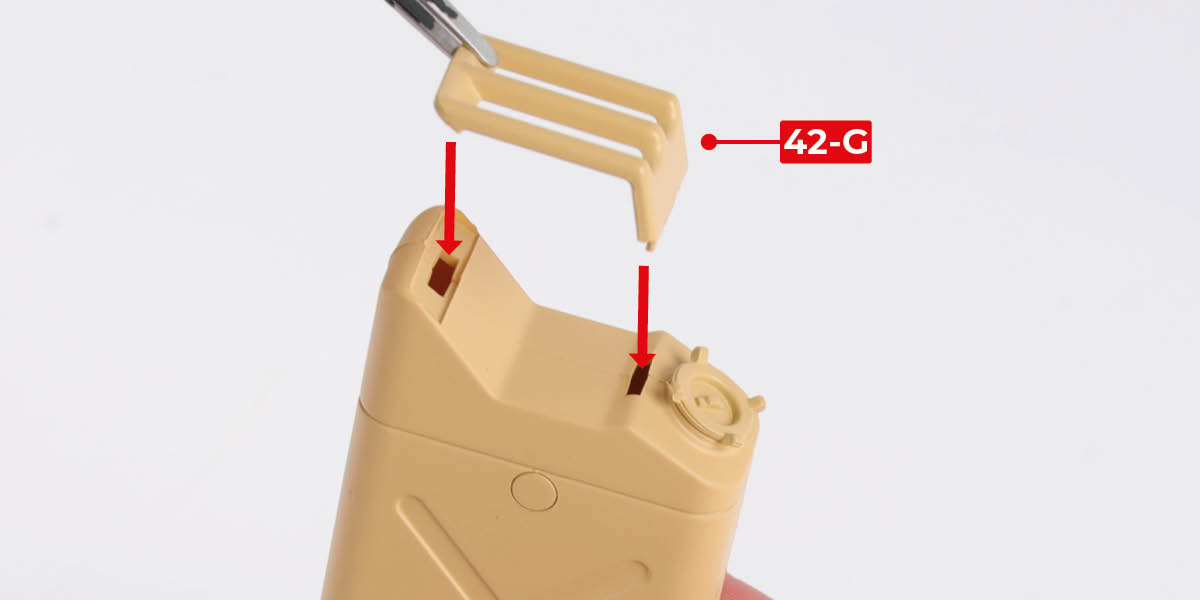

      Fit part 42-F and part 42-G to complete the jerry can as shown.

      a
      b
      c

      STAGE COMPLETE

      Stage 43: Fitting the canvas cover and the jerry cans to the bonnet

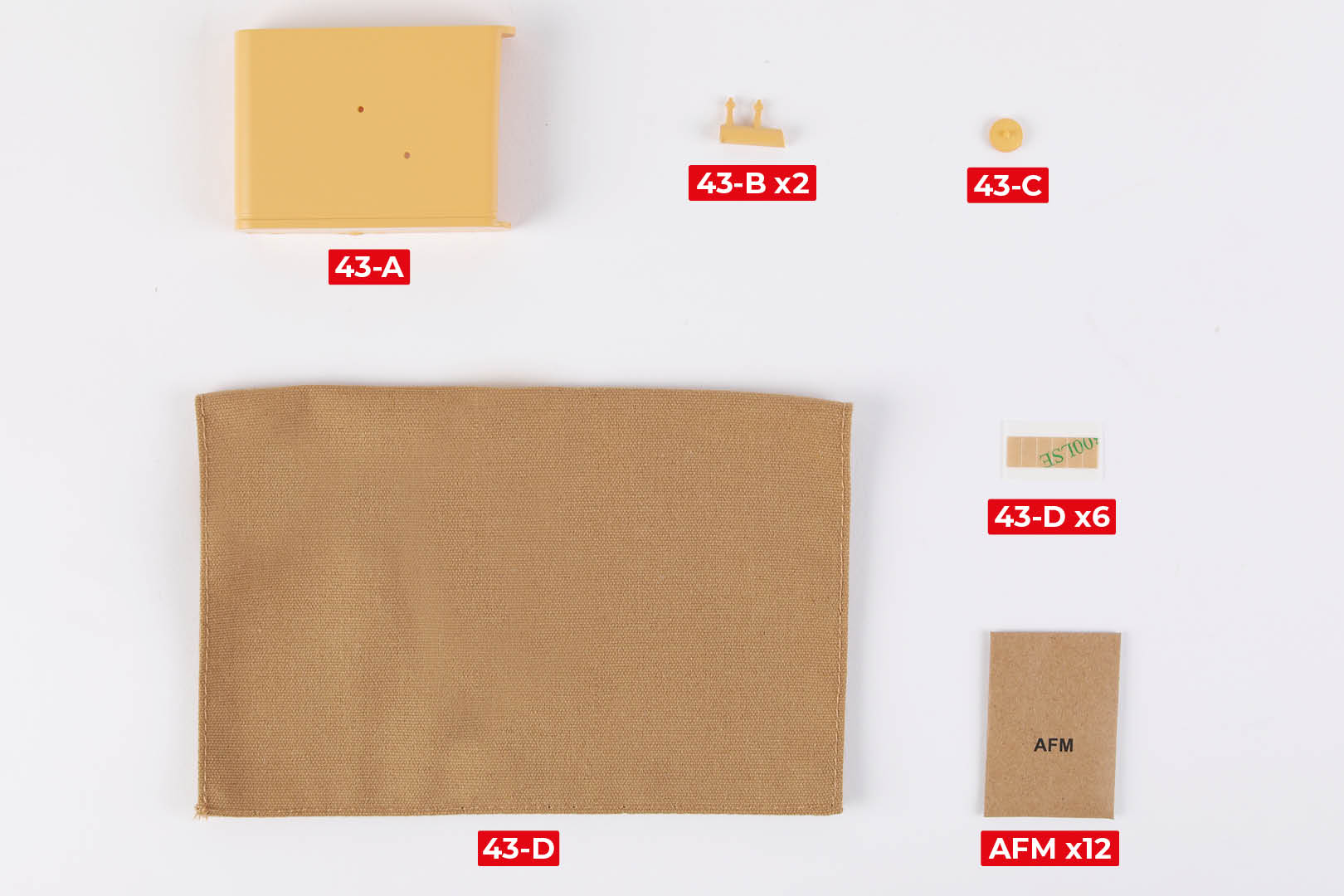

      STAGE 43 PARTS

      Step 1

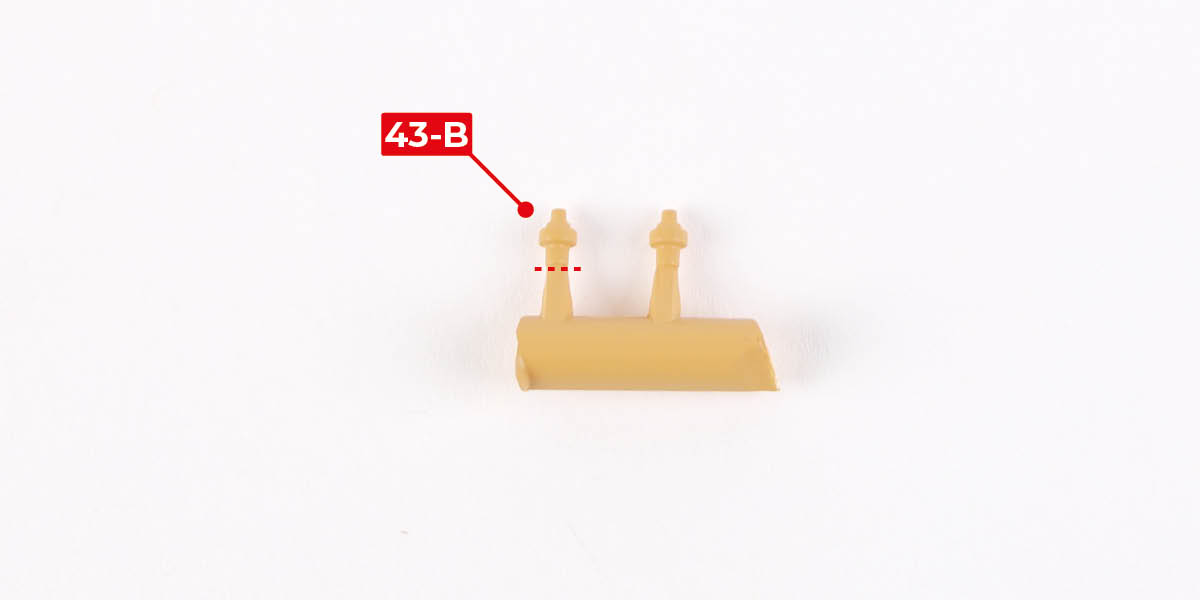

      Cut part 43-B from the sprue.

      a

      Step 2

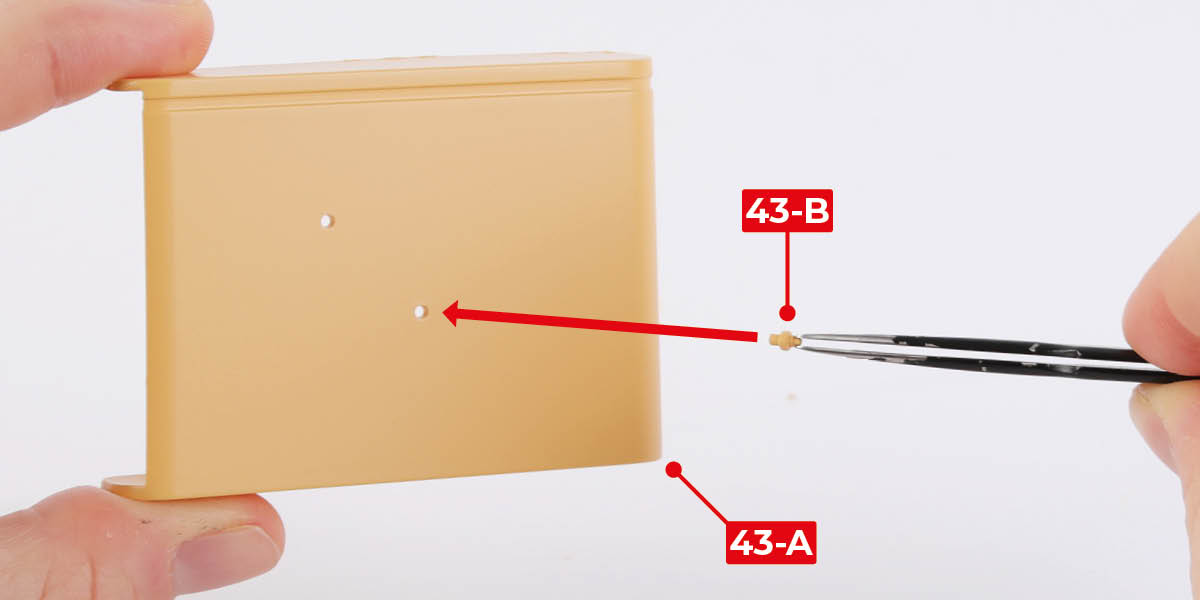

      Fit part 43-B to part 43-A.

      a
      b

      Step 3

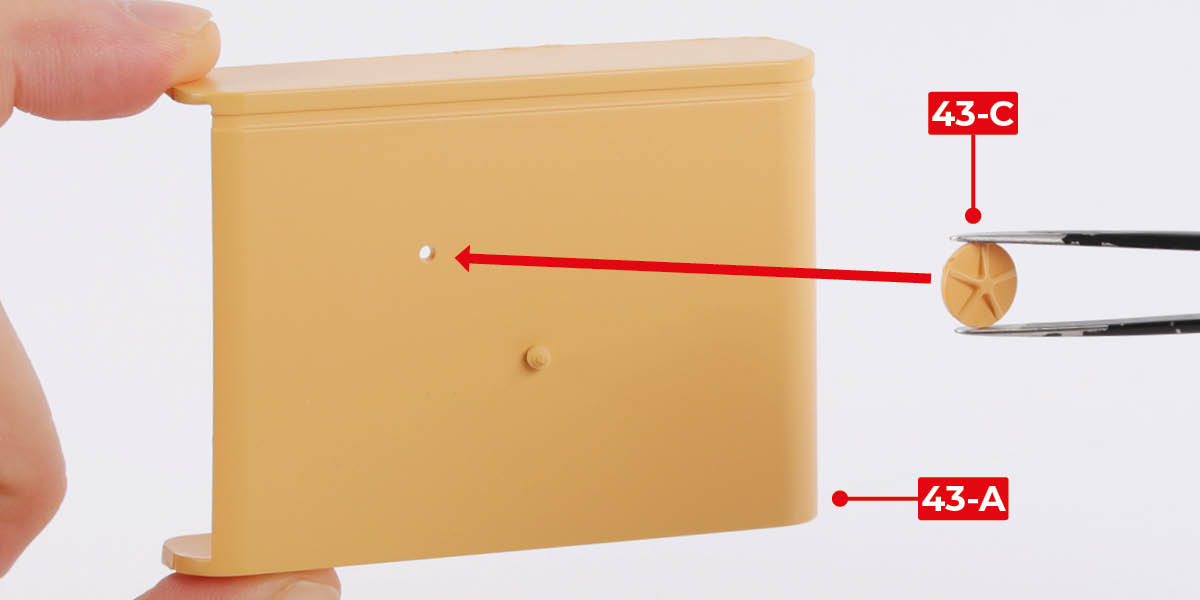

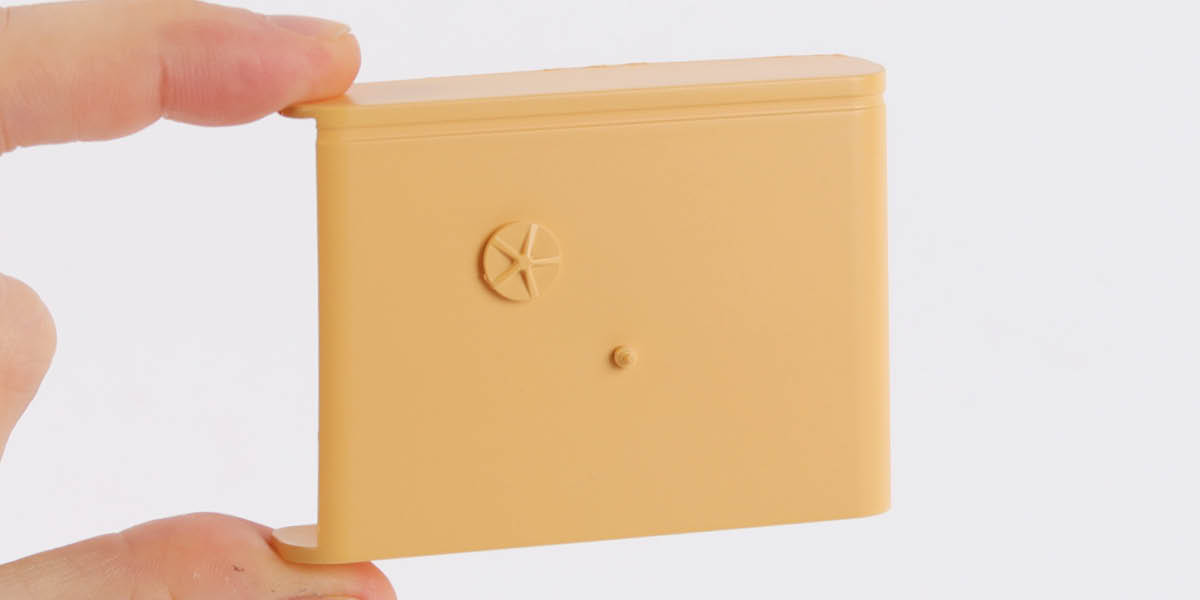

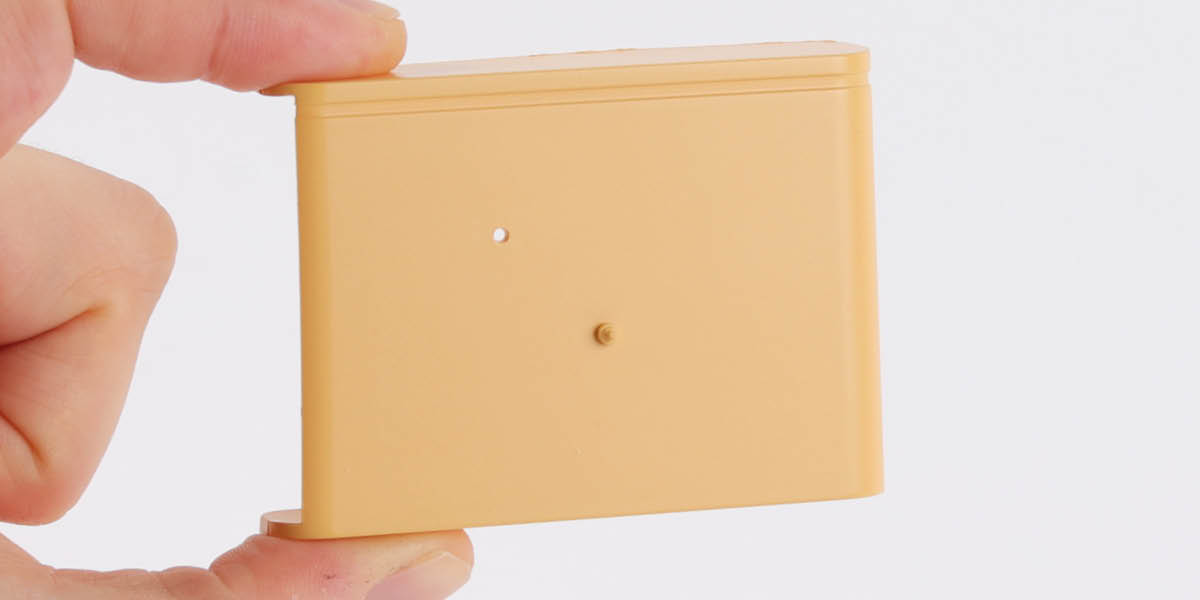

      Fit part 43-C to part 43-A.

      a
      b

      Step 4

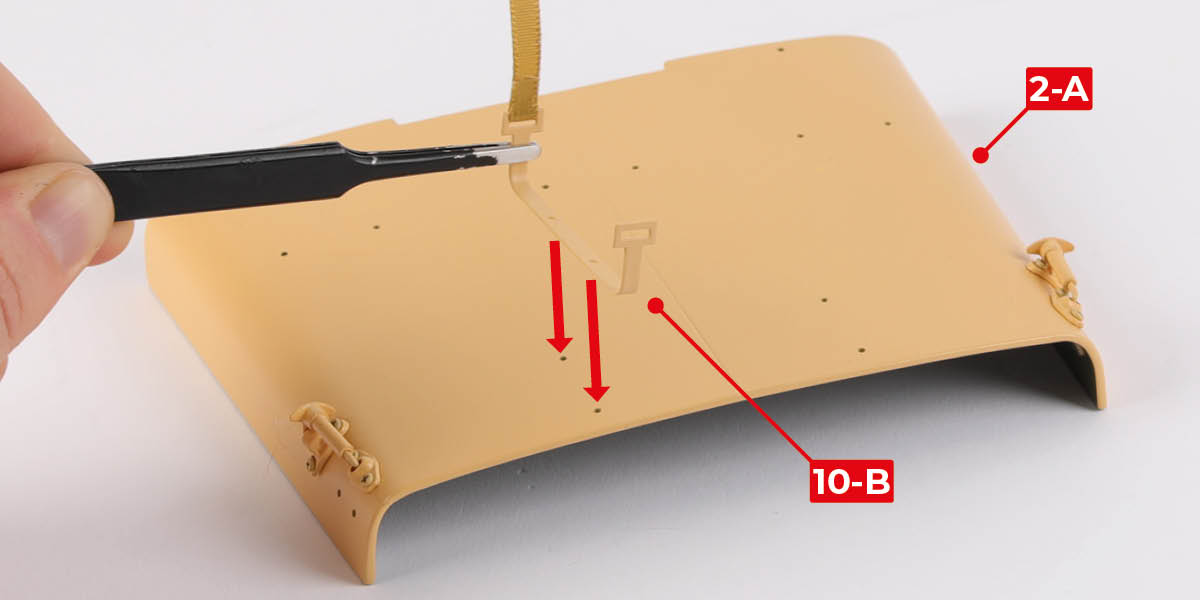

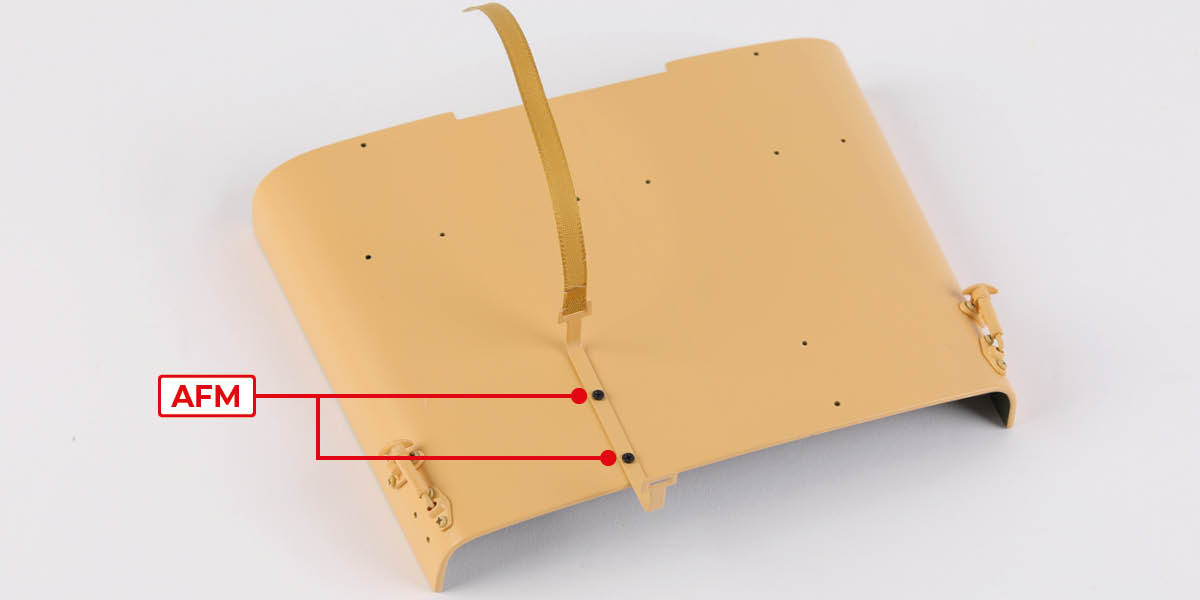

      Take two parts 10-B (stage 10), and part 2-A (stage 2). Fit 10-B to 2-A using 2 AFM screws. Repeat to fit another part 10-B as shown.

      a
      b
      c

      Step 5

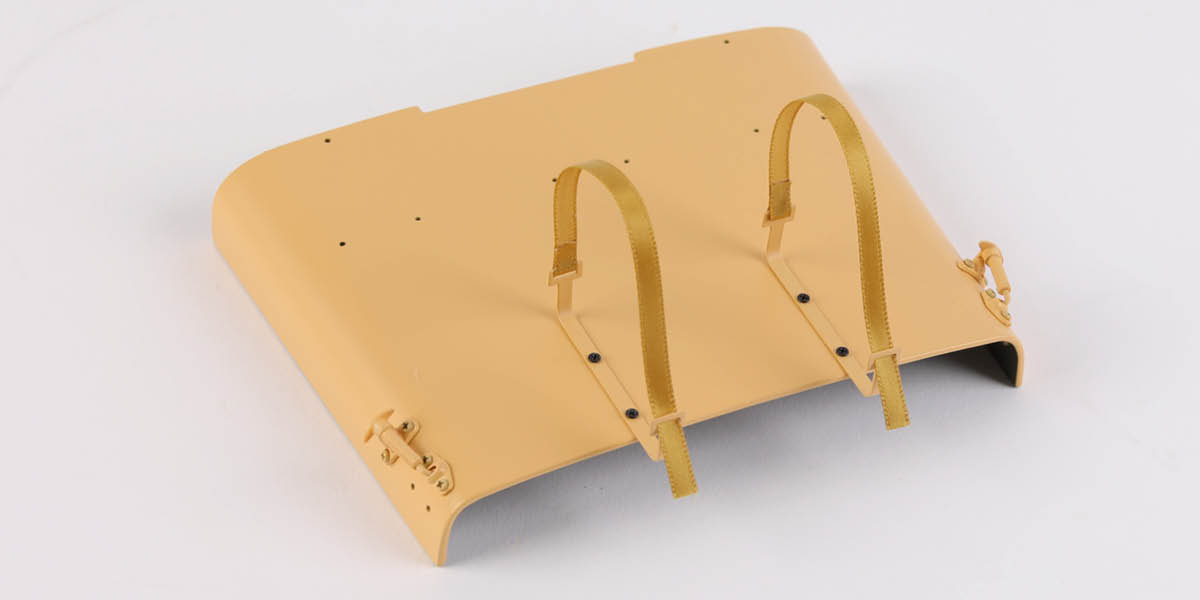

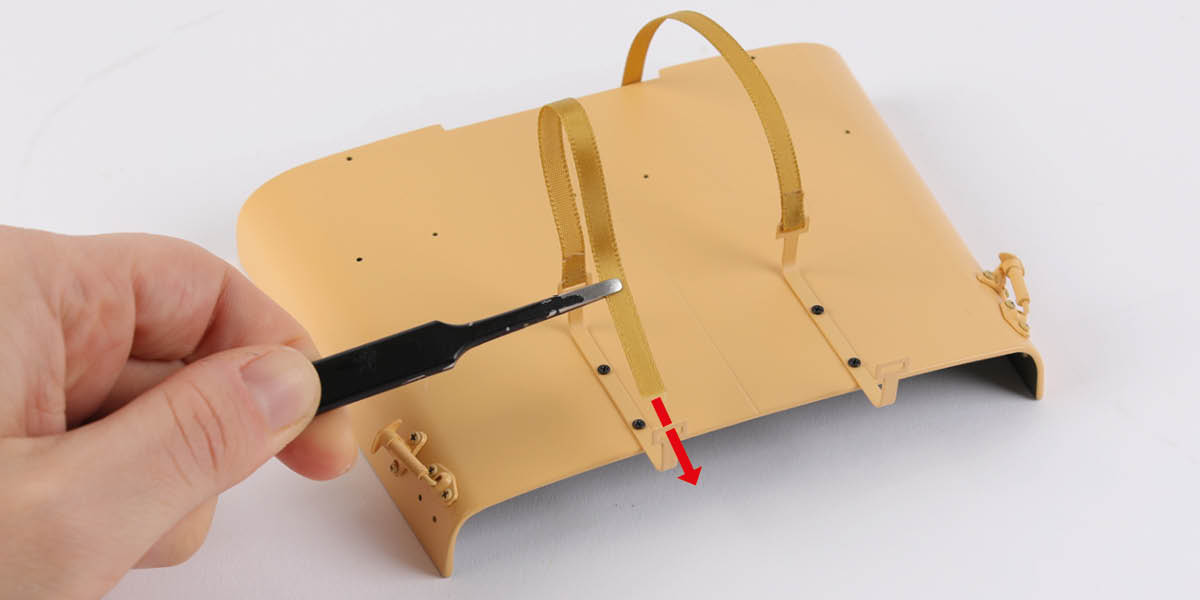

      Thread each strap through the buckles.

      a
      b

      Step 6

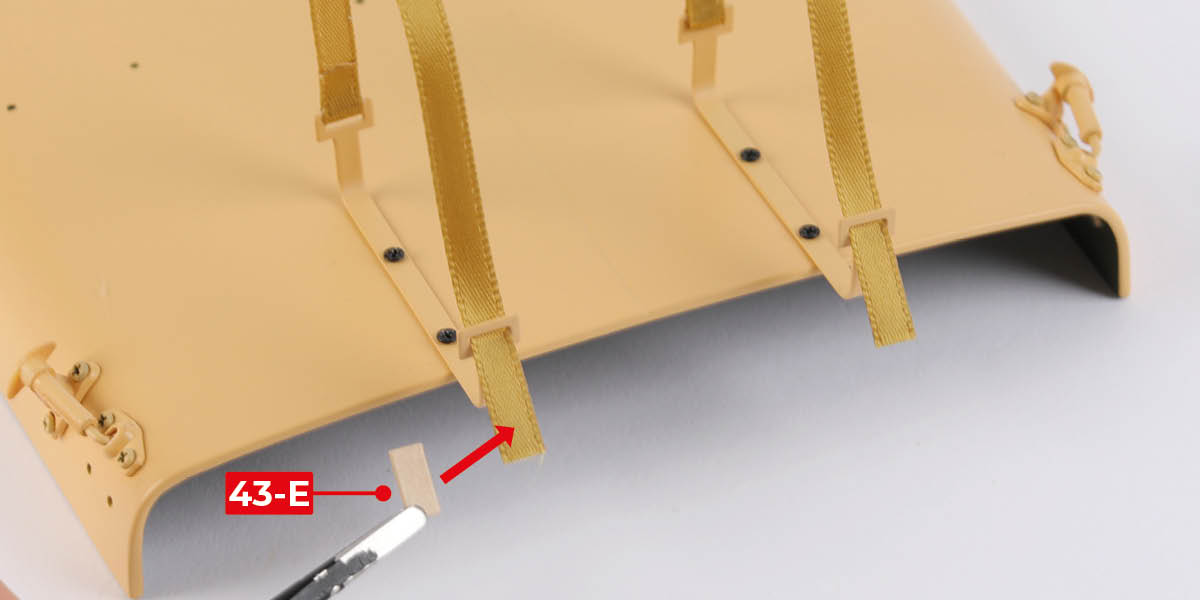

      Peel pieces of double-sided tape (parts 43-E) from the backing paper, then stick them to the ends of the straps as shown.

      a
      b
      c

      Step 7

      Fit two jerry cans under the straps as shown.

      a
      b

      Step 8

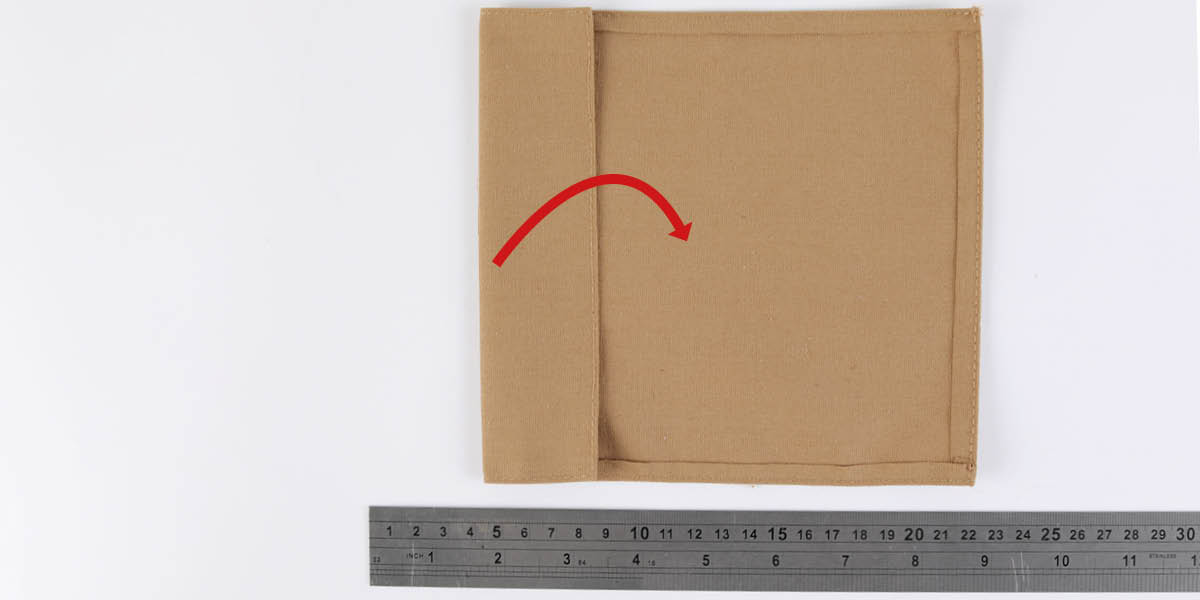

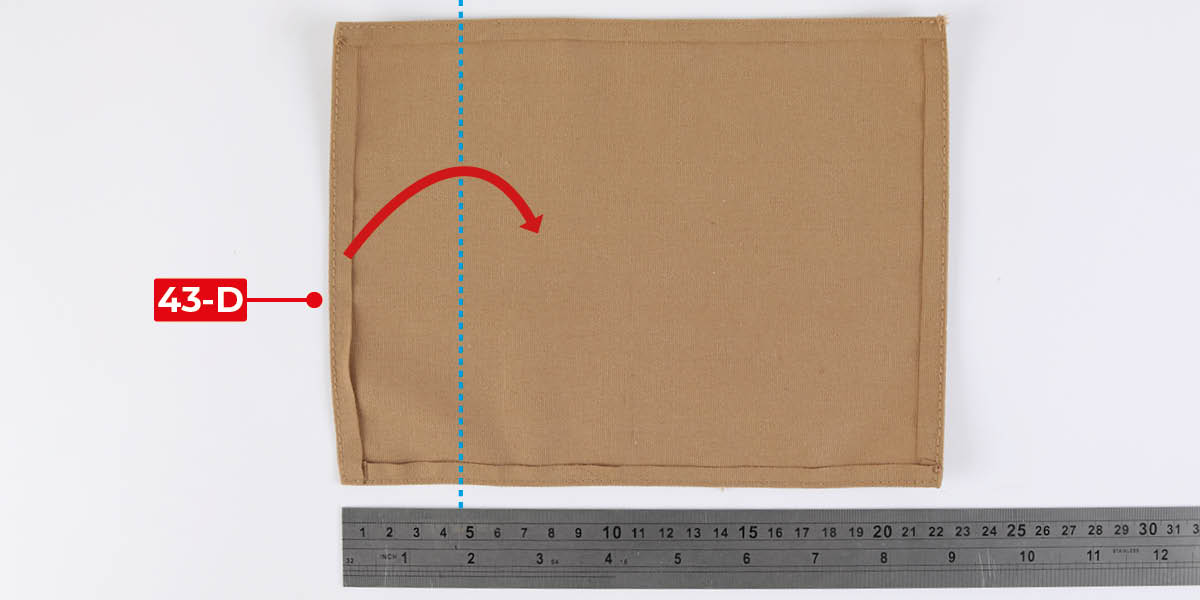

      Measure 4.5 cm on part 43-D as shown, then fold the fabric, and continue to fold the fabric to create the shape shown in image c.

      a
      b
      c

      Step 9

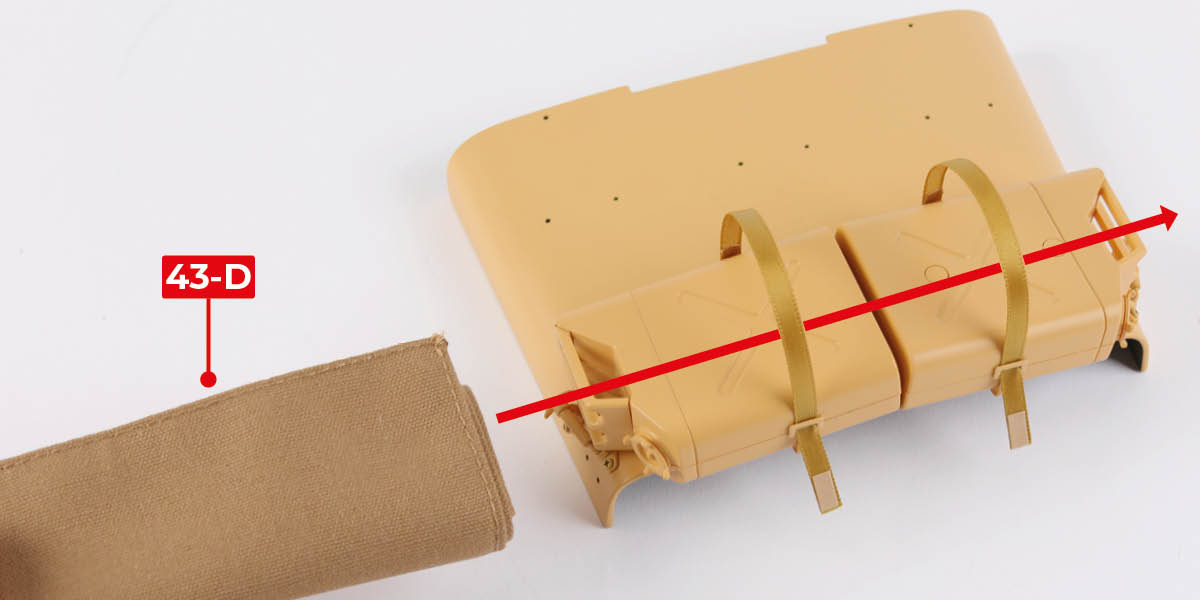

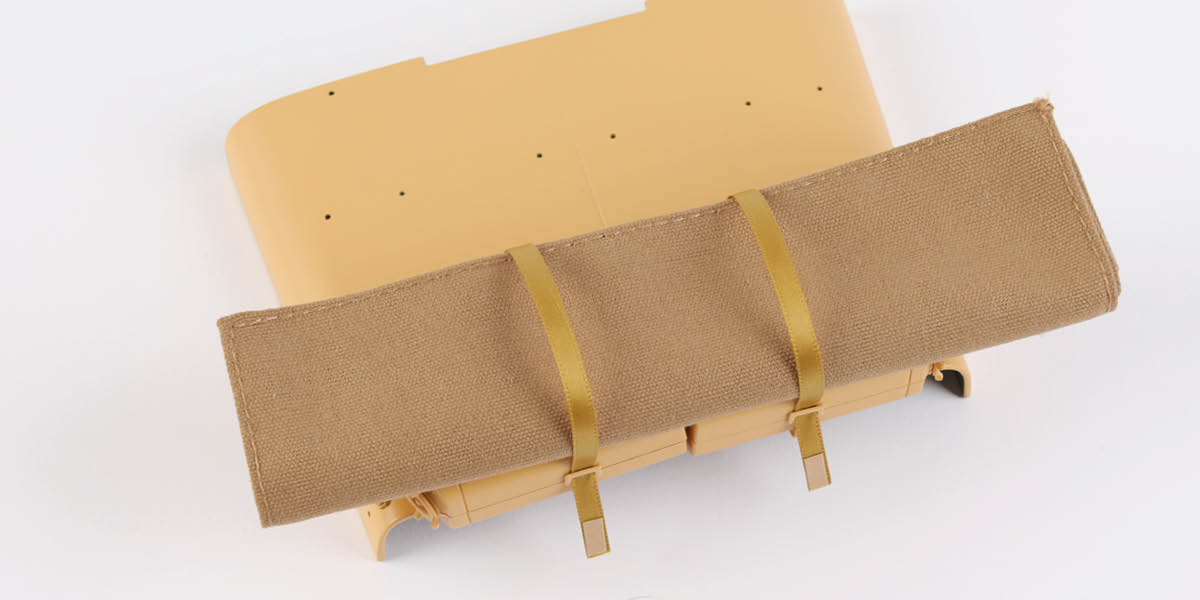

      Fit part 43-D under the straps as shown.

      a
      b

      Step 10

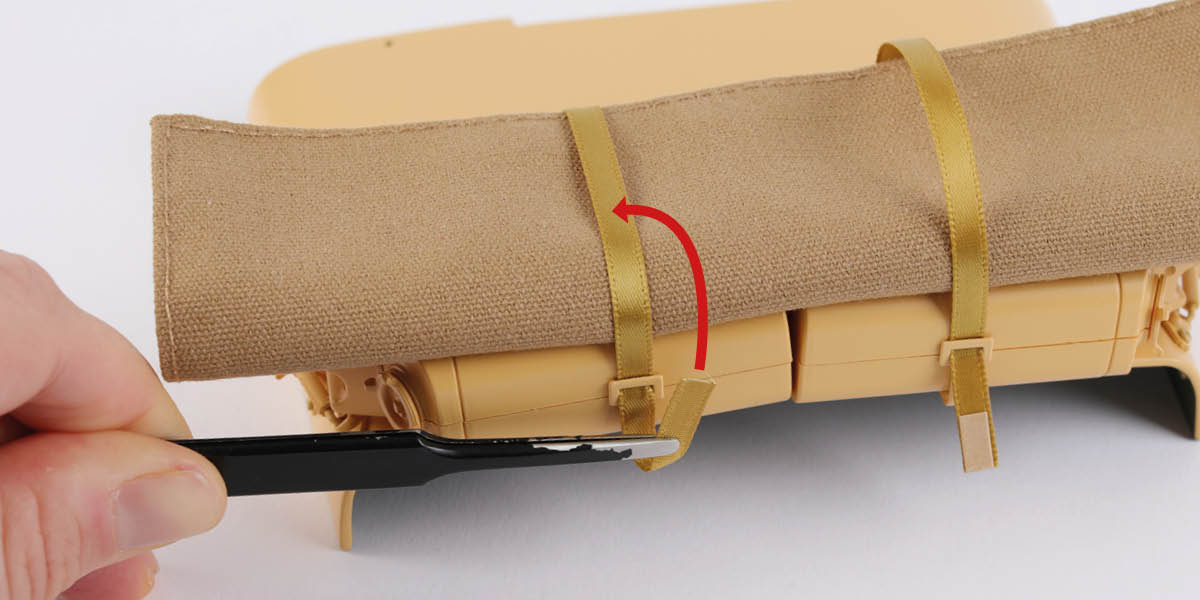

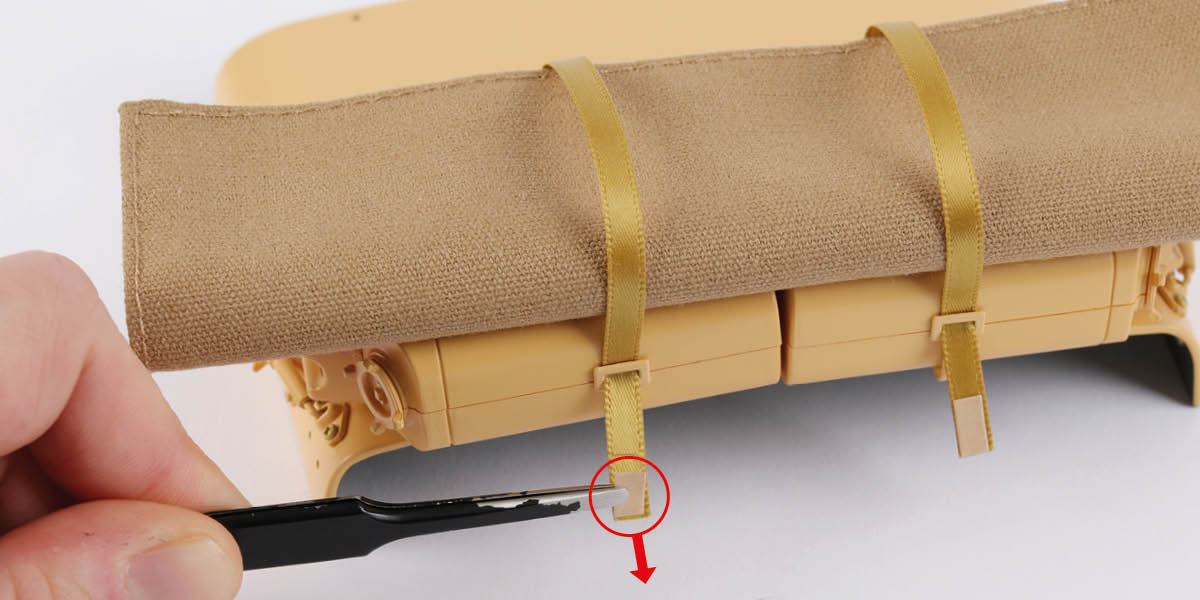

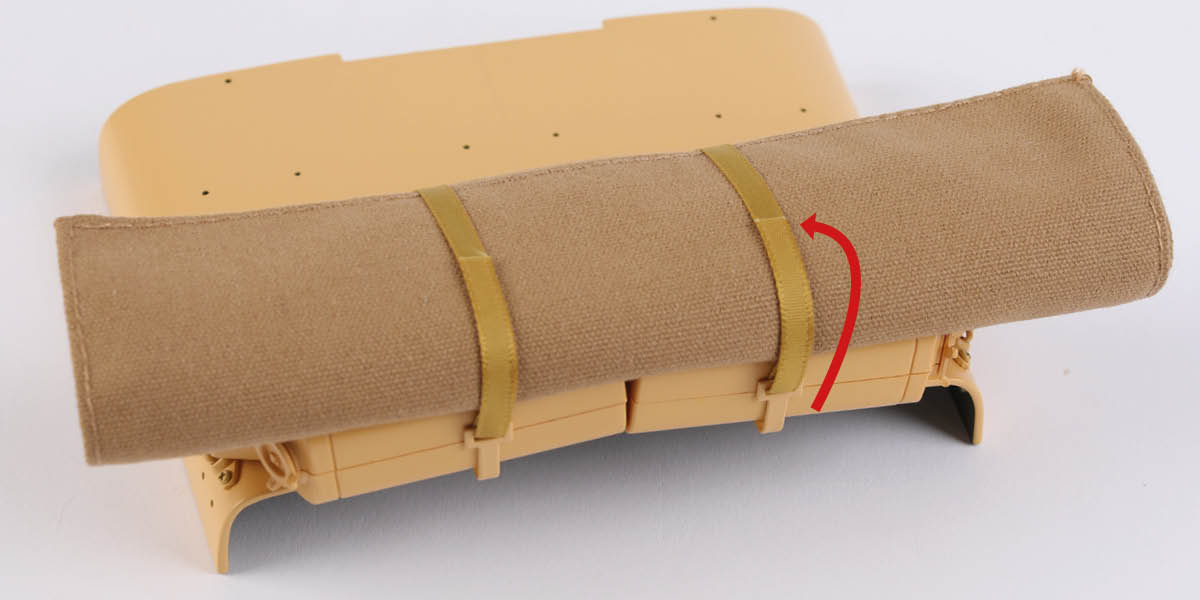

      Remove the backing paper from the double-sided tape, then pull the straps tight and press on the ends of the straps as shown.

      a
      b
      c

      Step 11

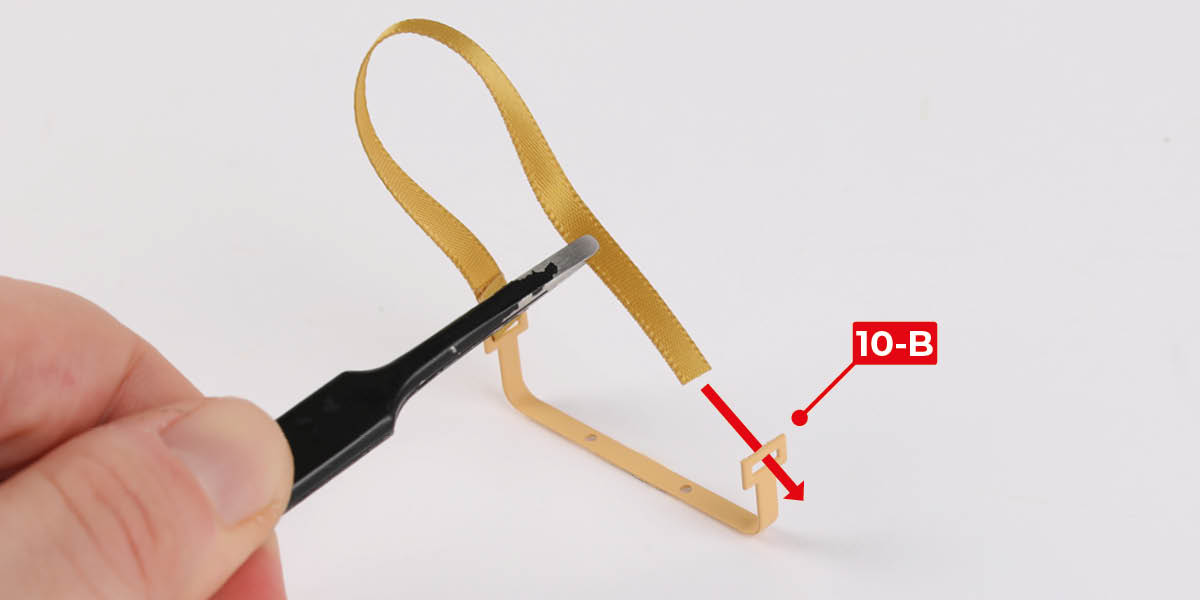

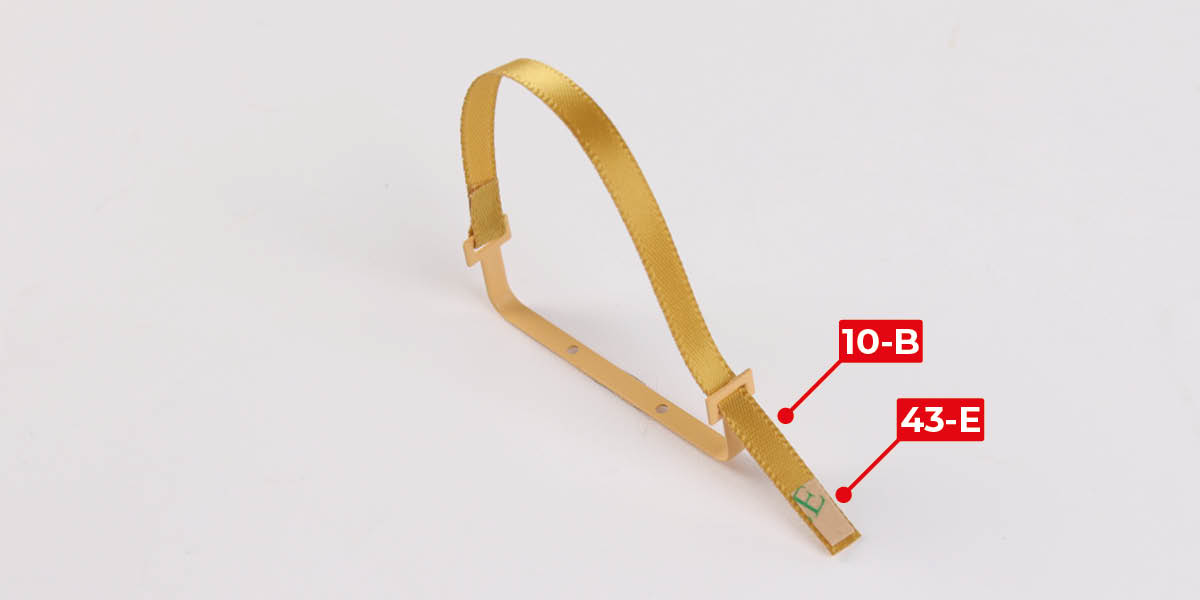

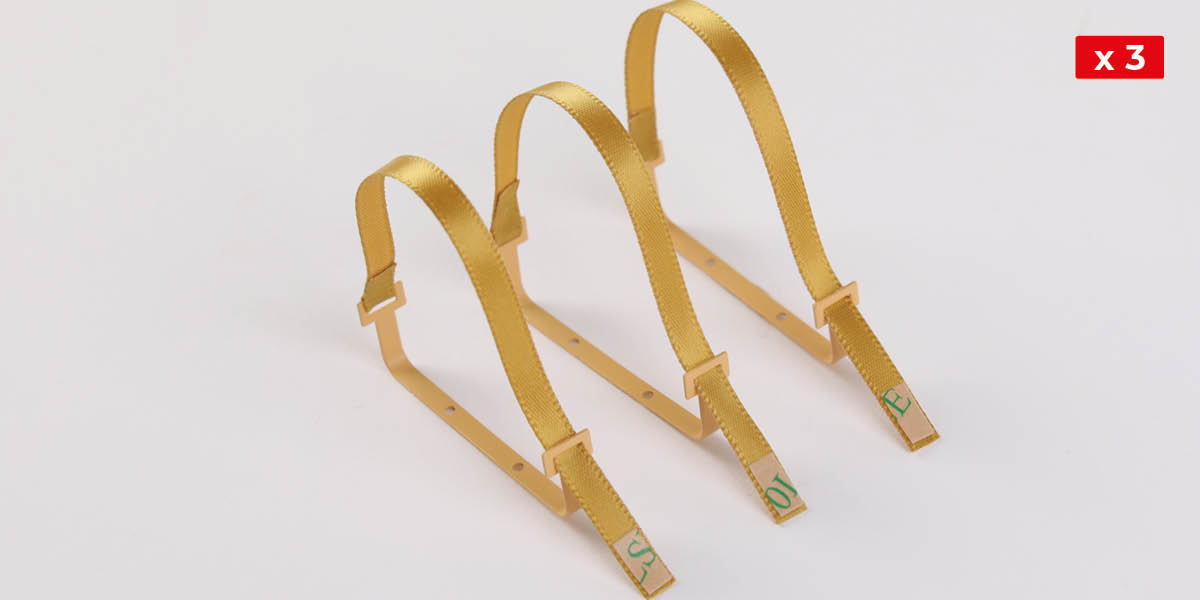

      Take the remaining three parts 10-B. Thread the straps through the buckles, then stick double-sided tape (parts 43-E) to the ends of the straps.

      a
      b
      c

      Step 12

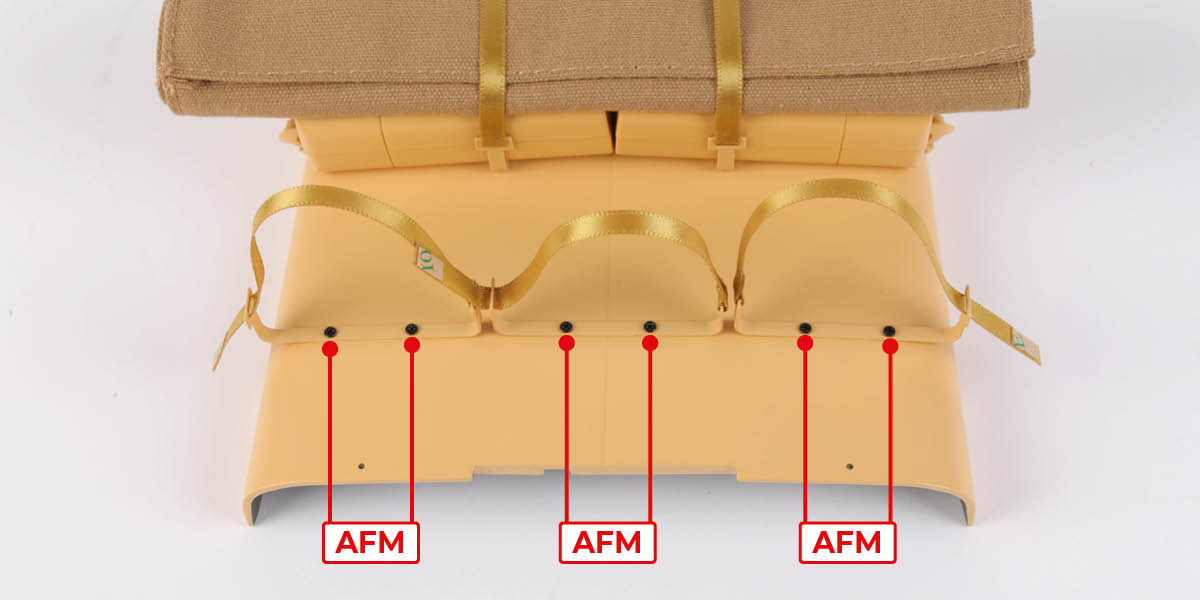

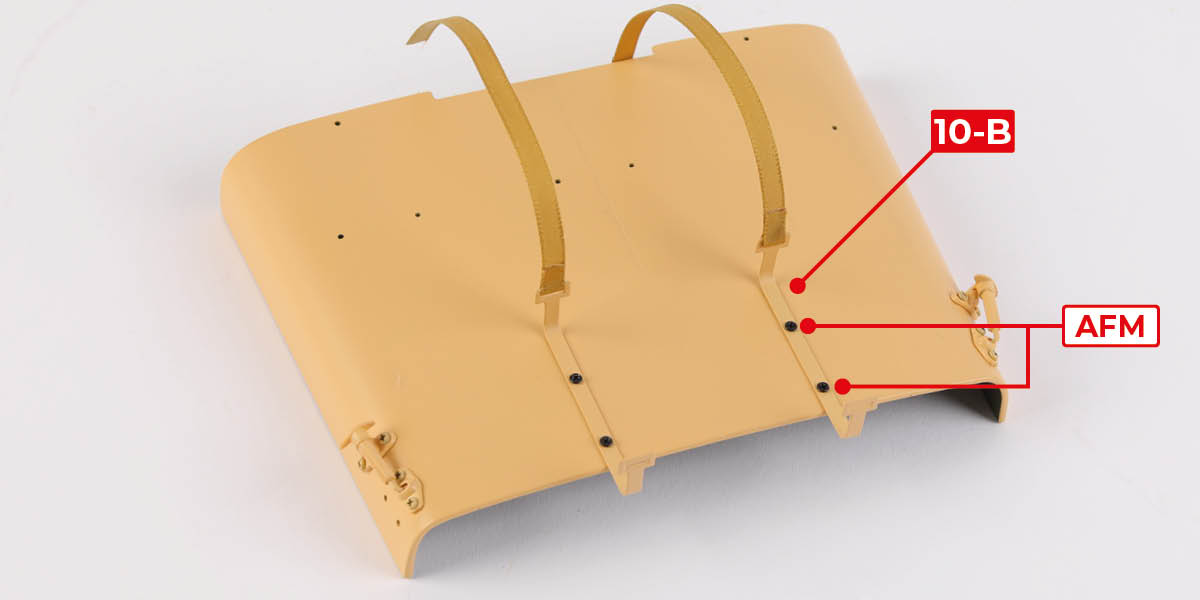

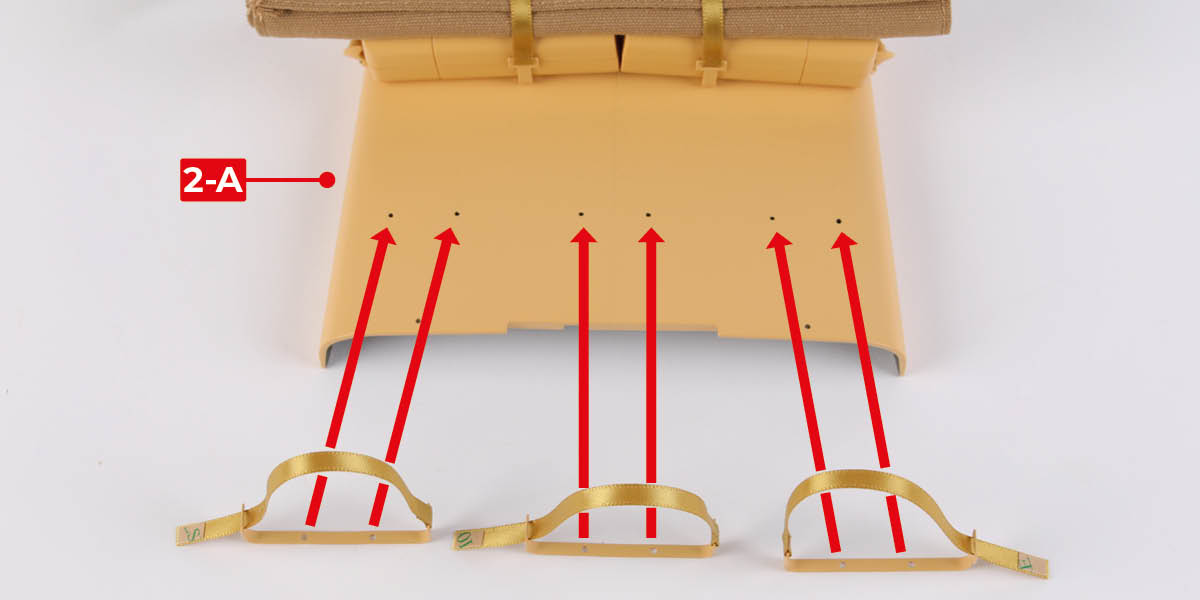

      Fit parts 10-B to part 2-A with 6 AFM screws, ensuring the parts are in the orientation shown.

      a
      b

      Step 13

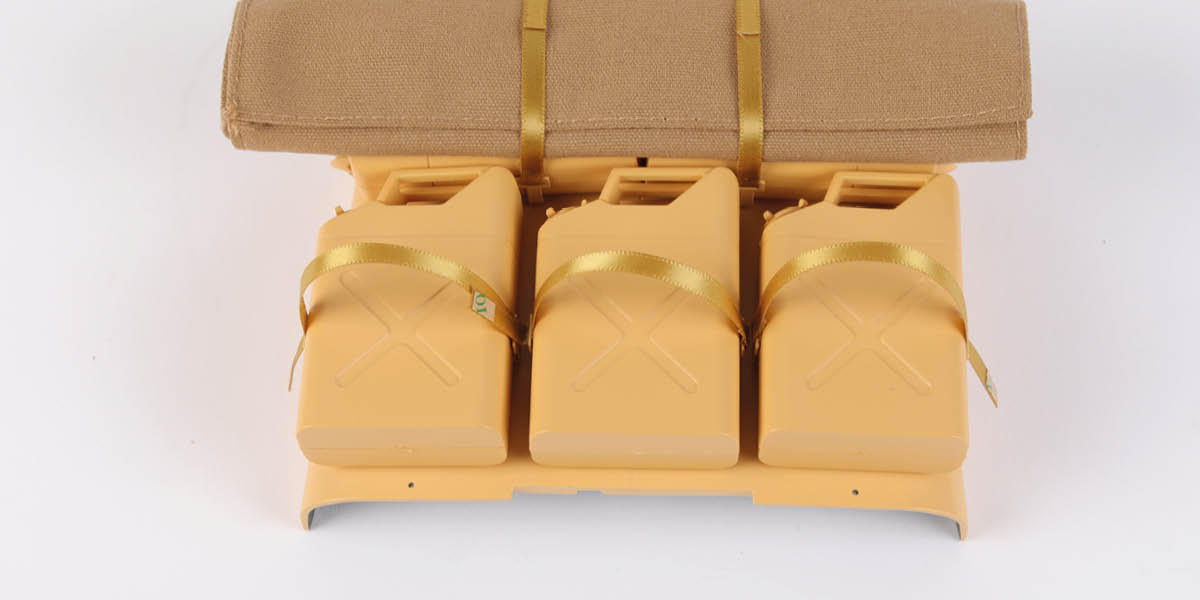

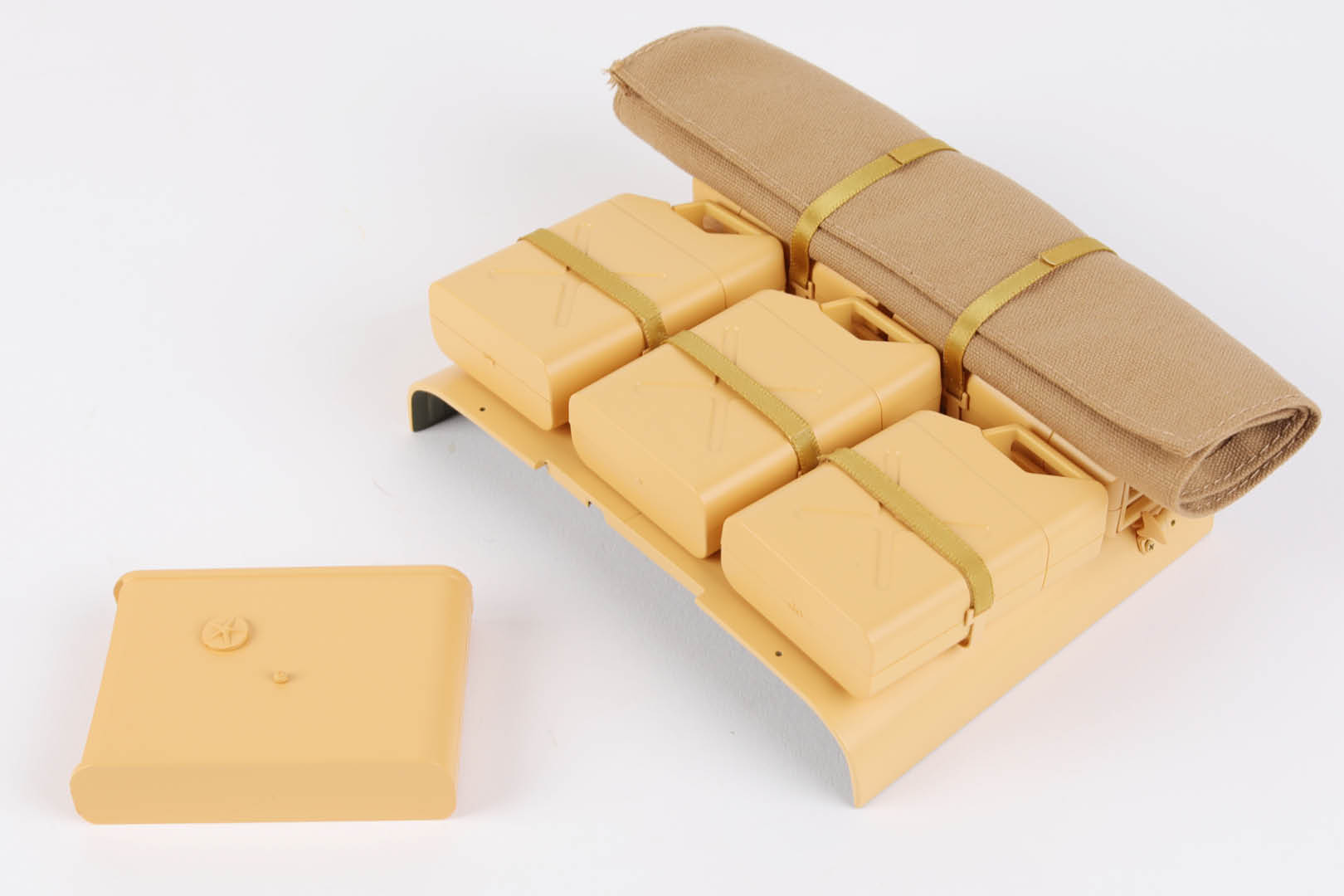

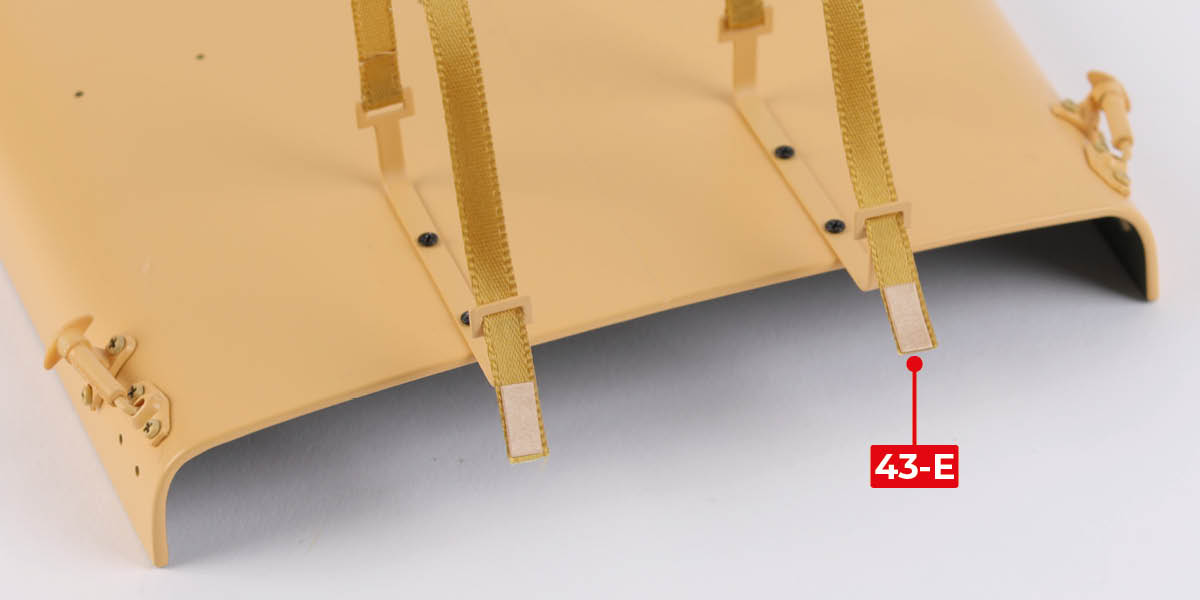

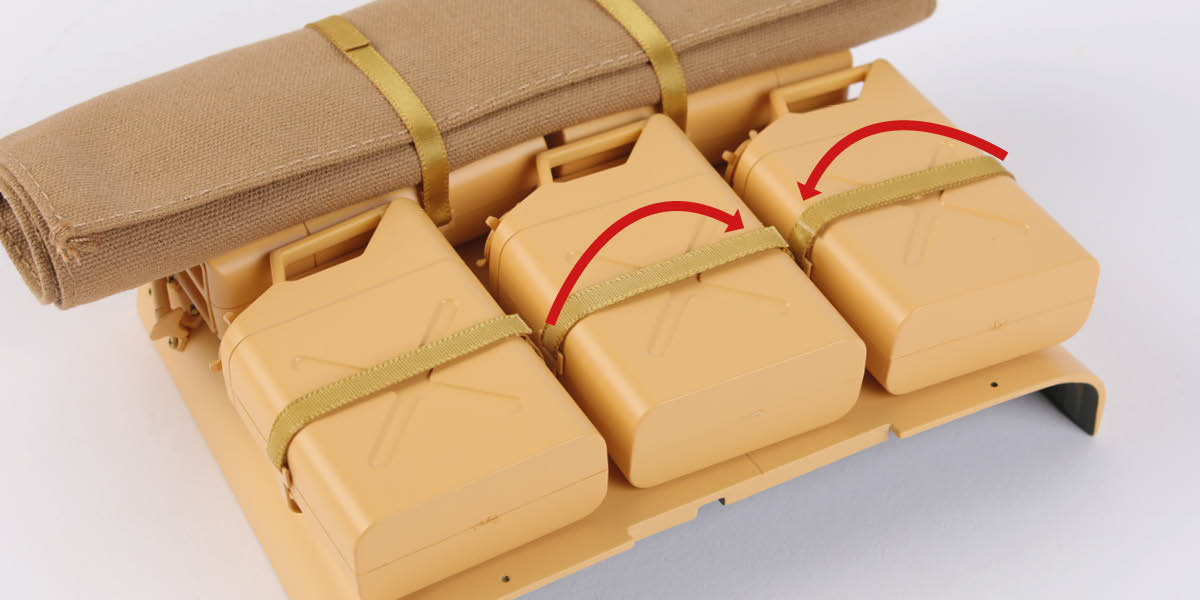

      Fit three jerry cans under the straps as shown.

      a
      b

      Step 14

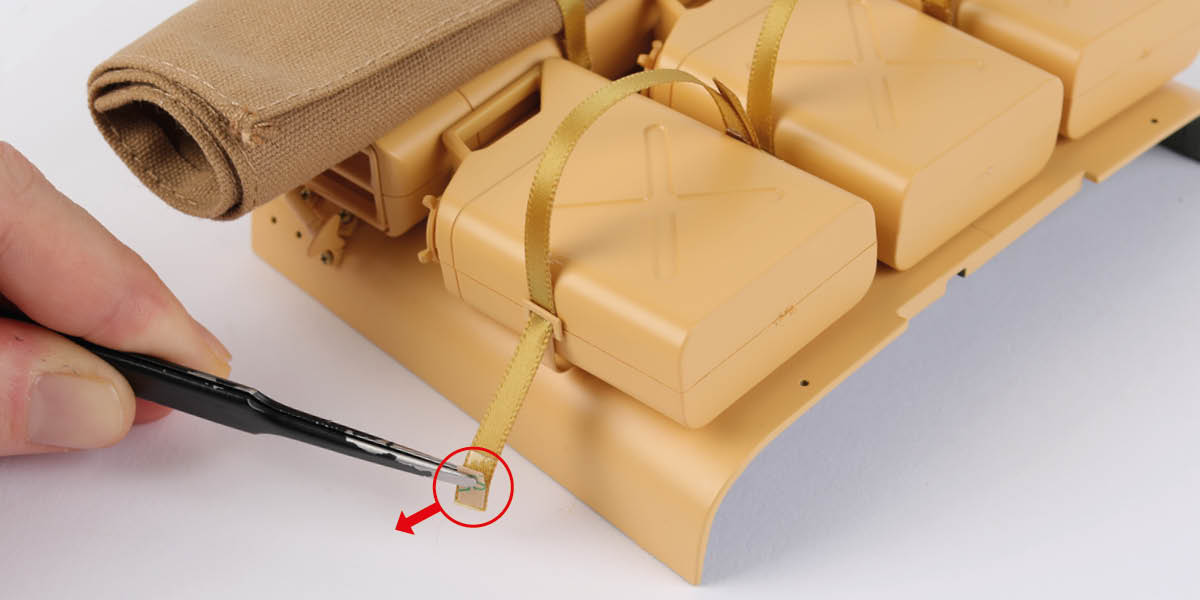

      Remove the backing paper from the double-sided tape, then pull the strap tight and press on the end to stick it in place as shown.

      a
      b
      c

      Step 15

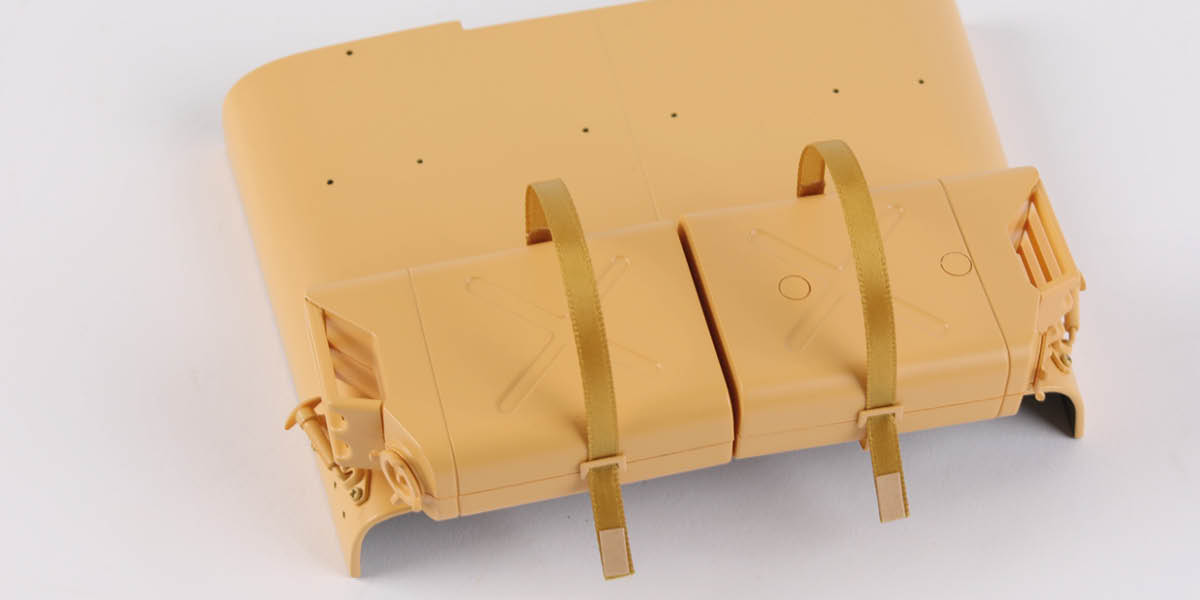

      Repeat this procedure for the other straps as shown.

      a

      STAGE COMPLETE

      Stage 44: Building the rear right wheel

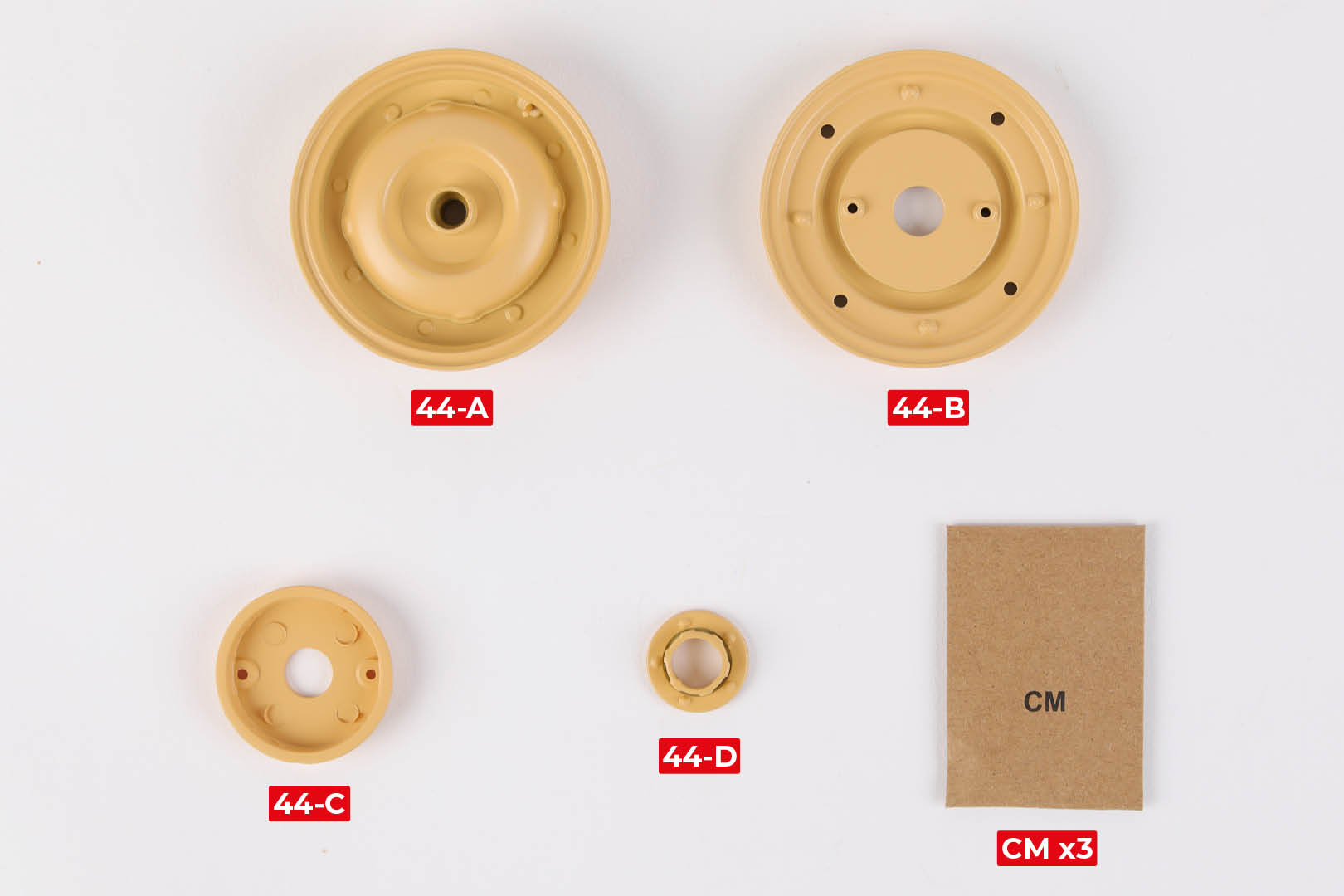

      STAGE 44 PARTS

      Step 1

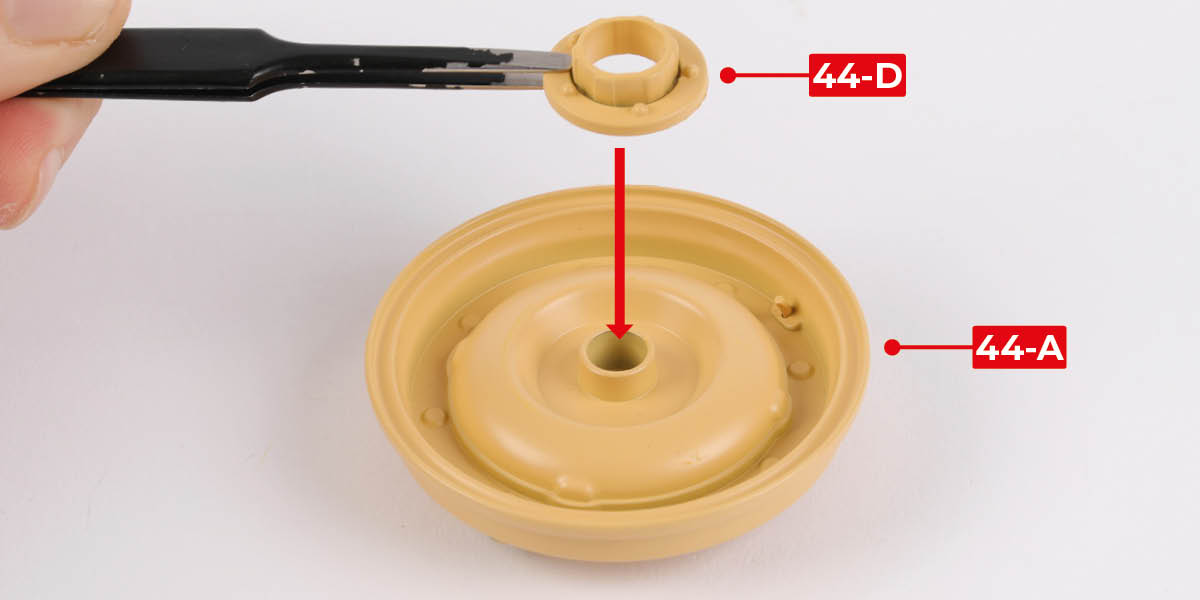

      Fit part 44-D onto part 44-A.

      a
      b

      Step 2

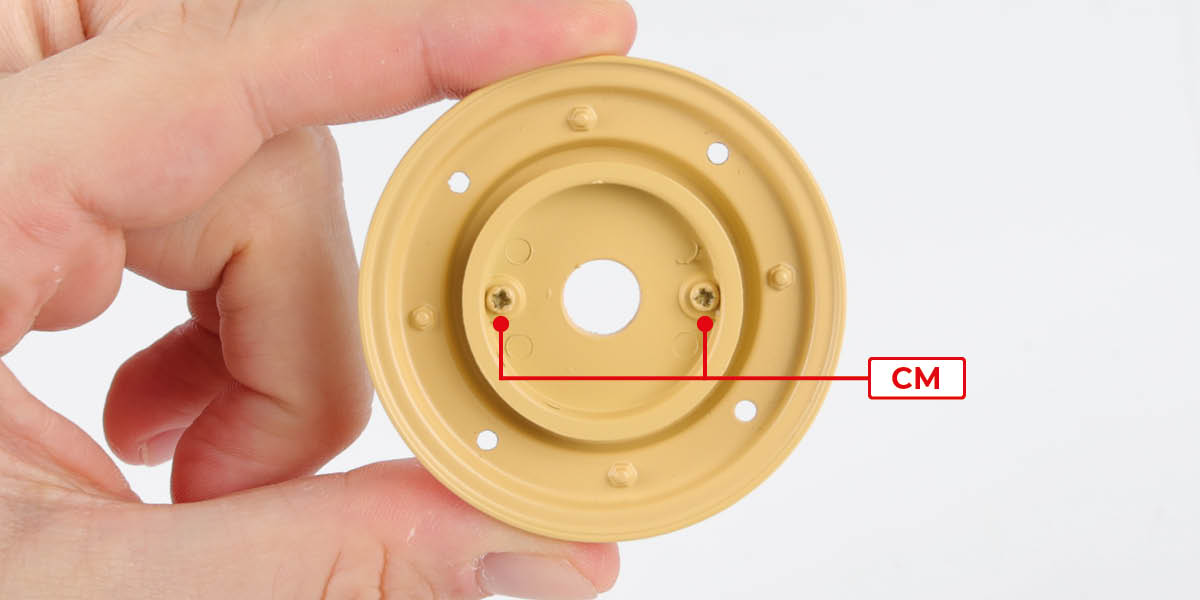

      Fit part 44-C to part 44-B with 2 CM screws.

      a
      b

      STAGE COMPLETE

      Stage 45: Fitting the rear right wheel

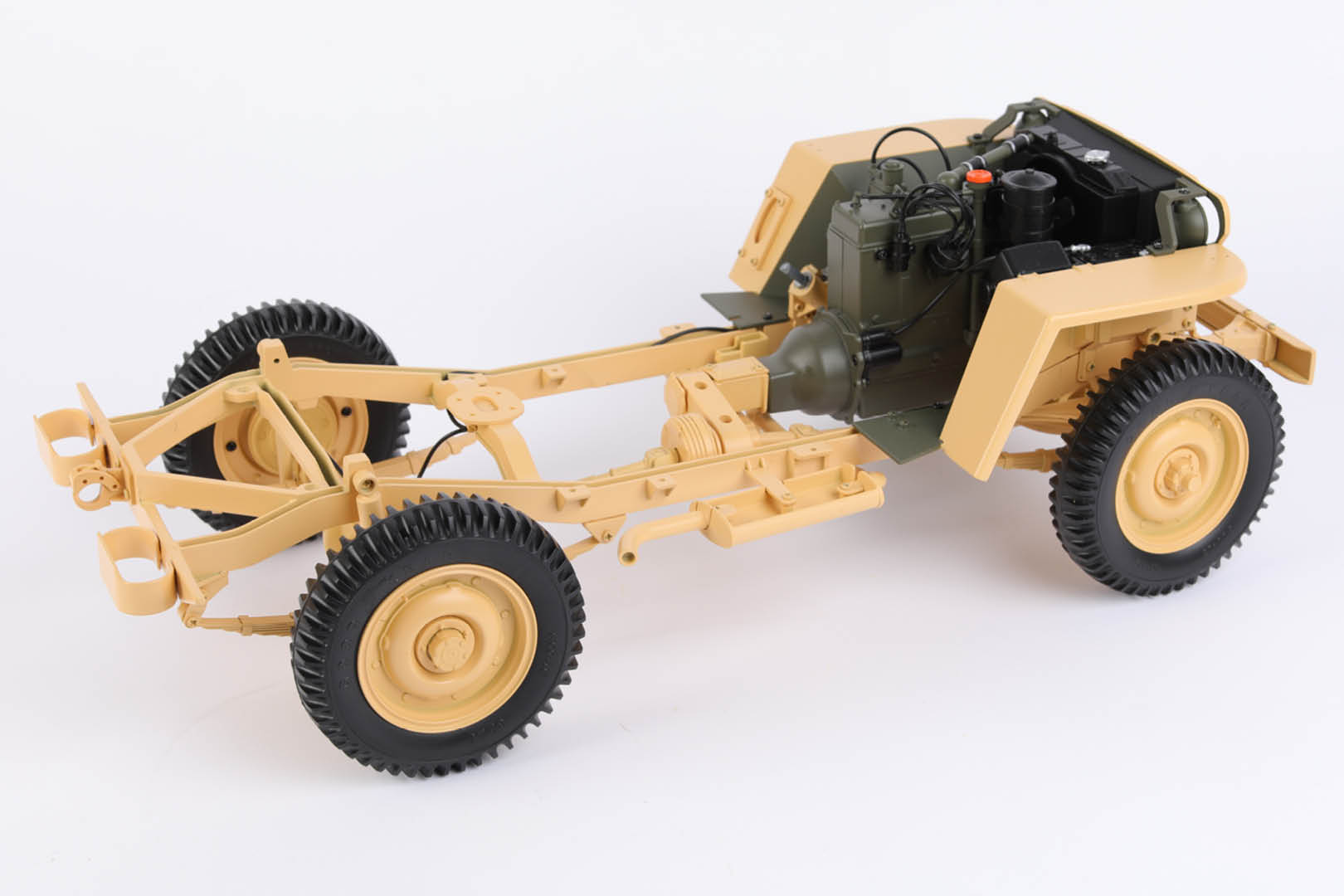

      STAGE 45 PARTS

      Step 1

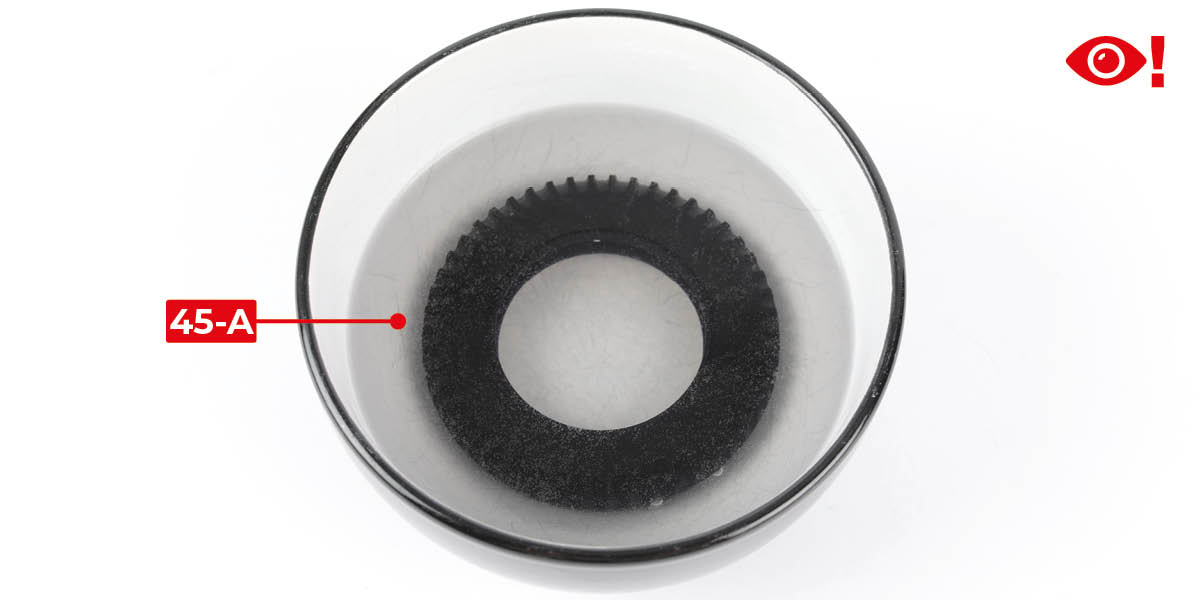

      Place part 45-A in a bowl of hot water to soften it. After 1–2 minutes, remove part 45-A with tweezers, then dry with a cloth.

      a

      Step 2

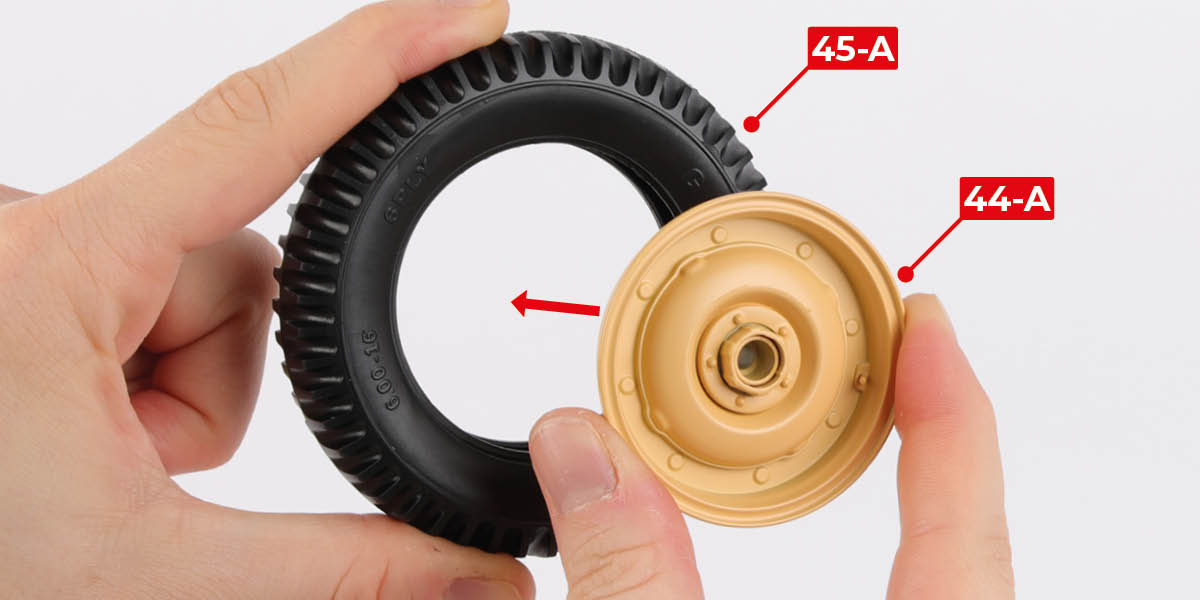

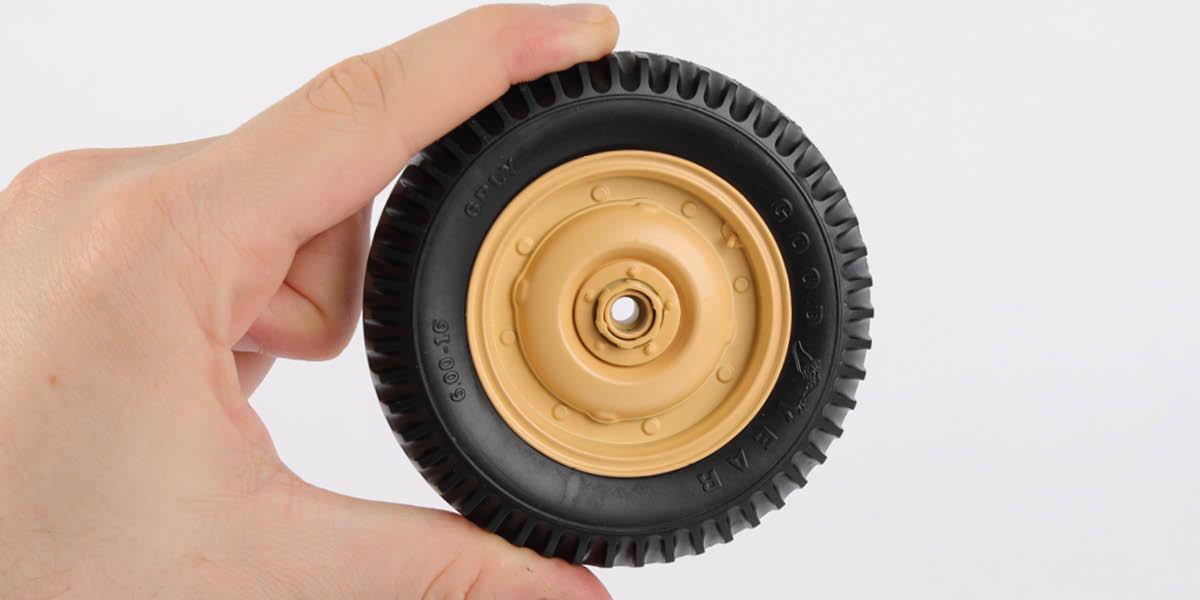

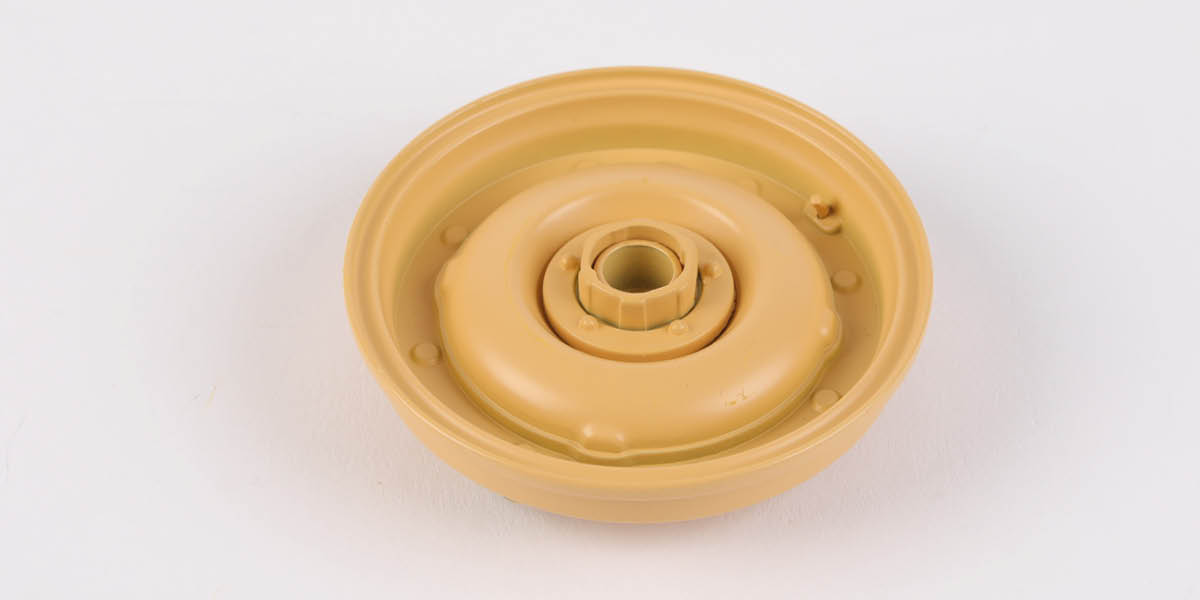

      Fit part 44-A (stage 44) to part 45-A.

      a
      b

      Step 3

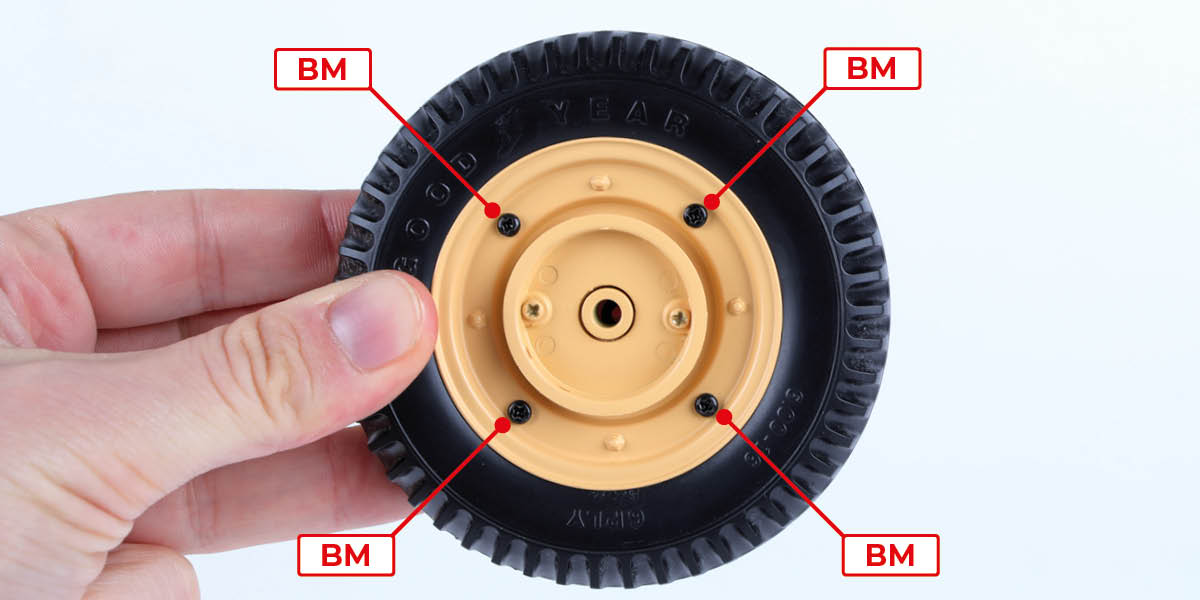

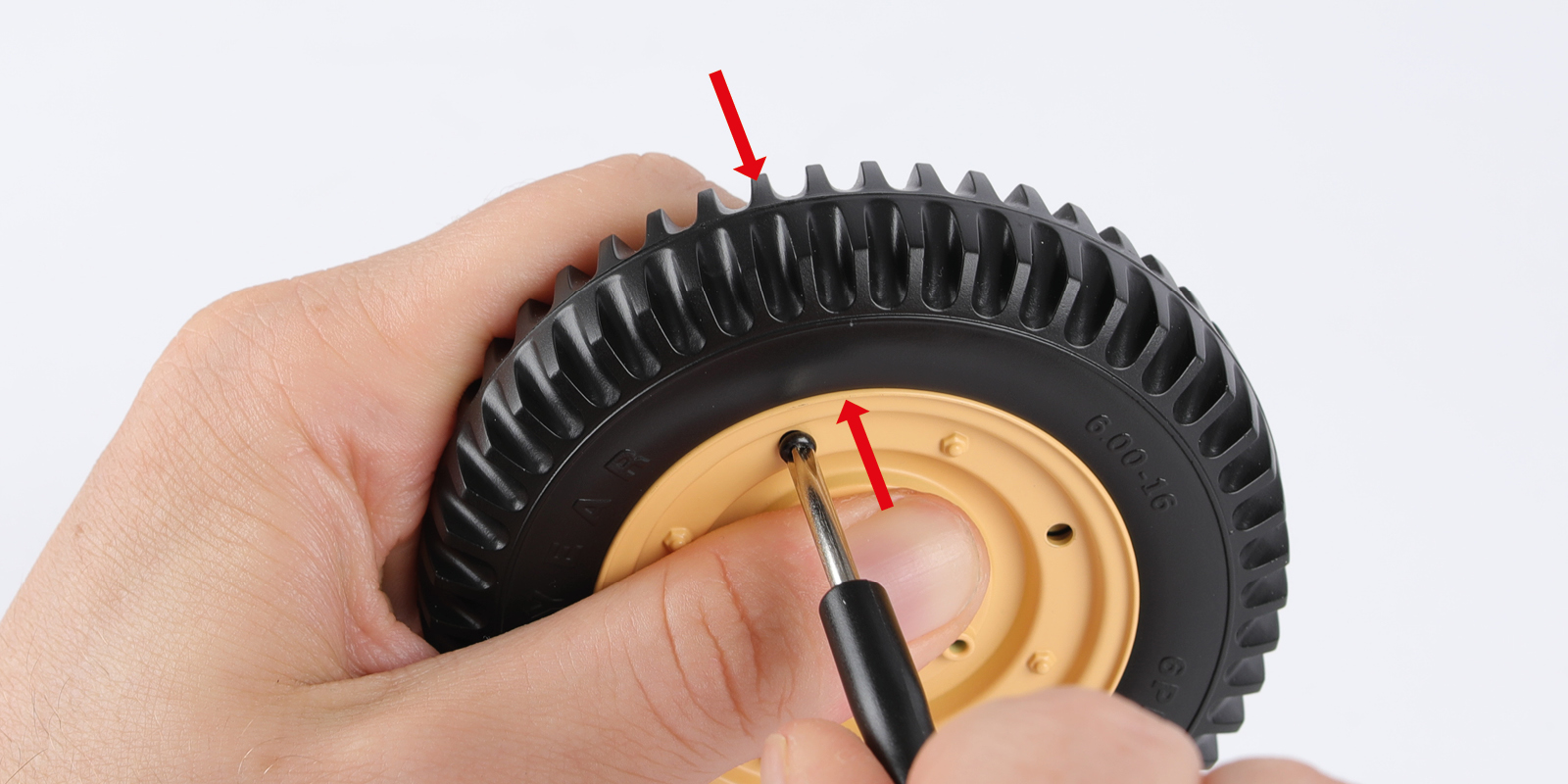

      Fit part 44-B (stage 44) to part 44-A, ensuring the screw holes are aligned (circled). Squeeze the parts together and fix with 4 BM screws.

      a
      b
      c

      Step 4

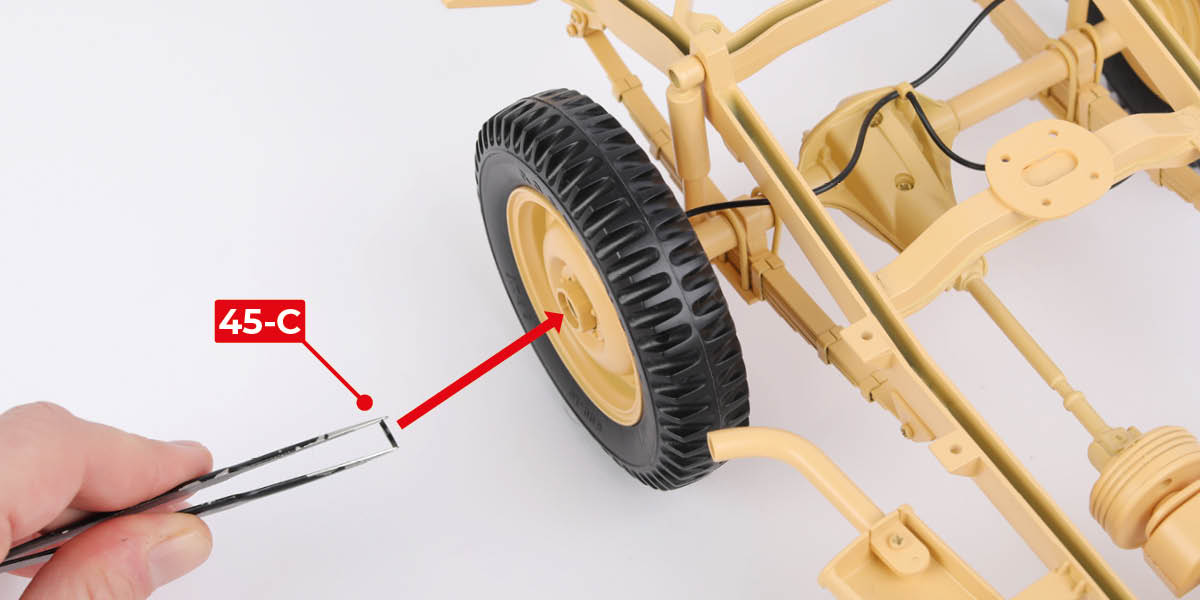

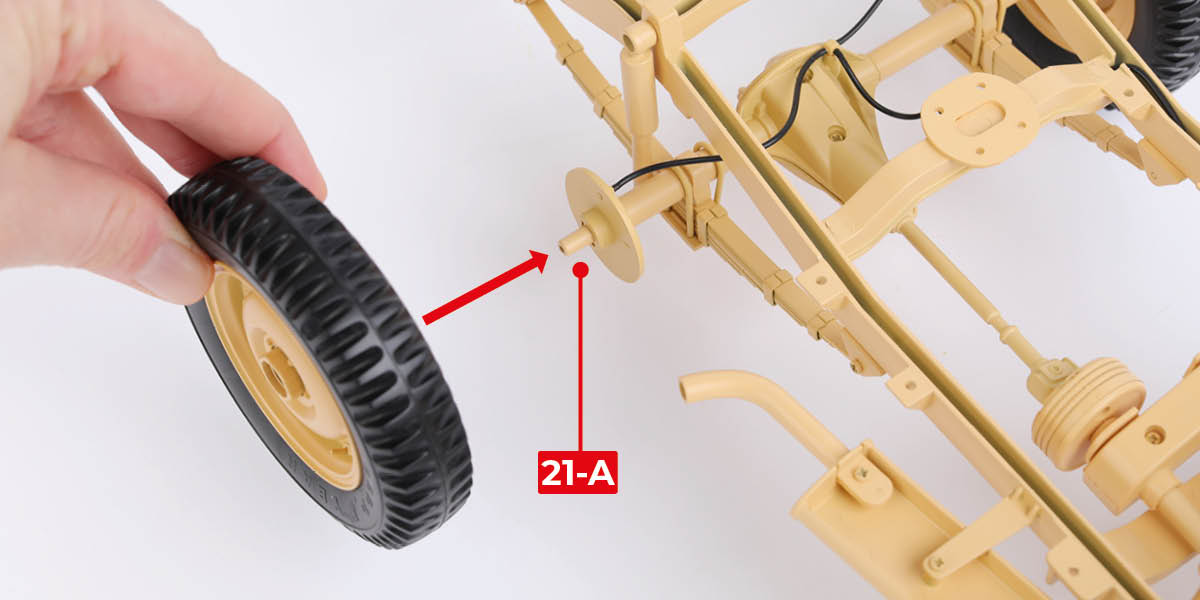

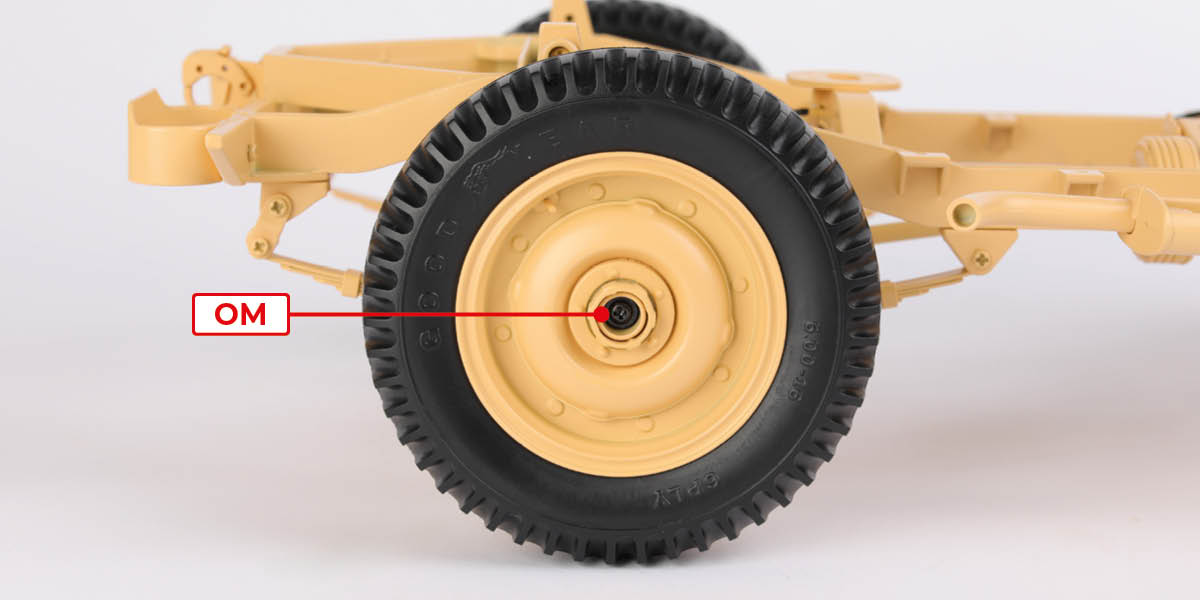

      Fit the wheel to part 21-A, then insert part 45-C as shown. Fix the parts together with an OM screw.

      a
      b
      c

      Step 5

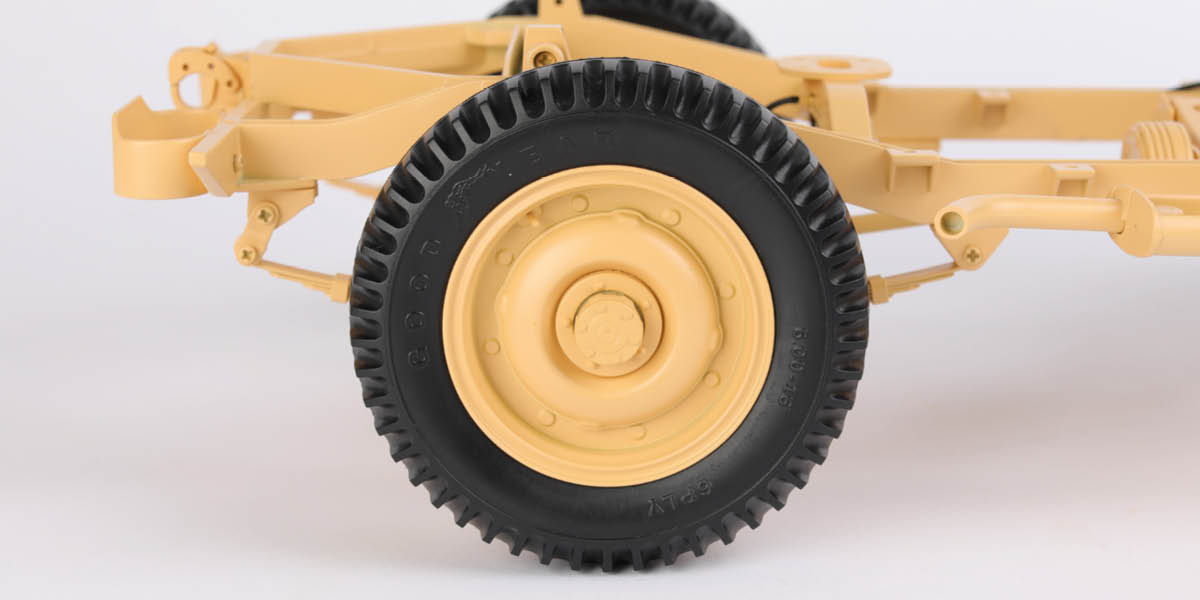

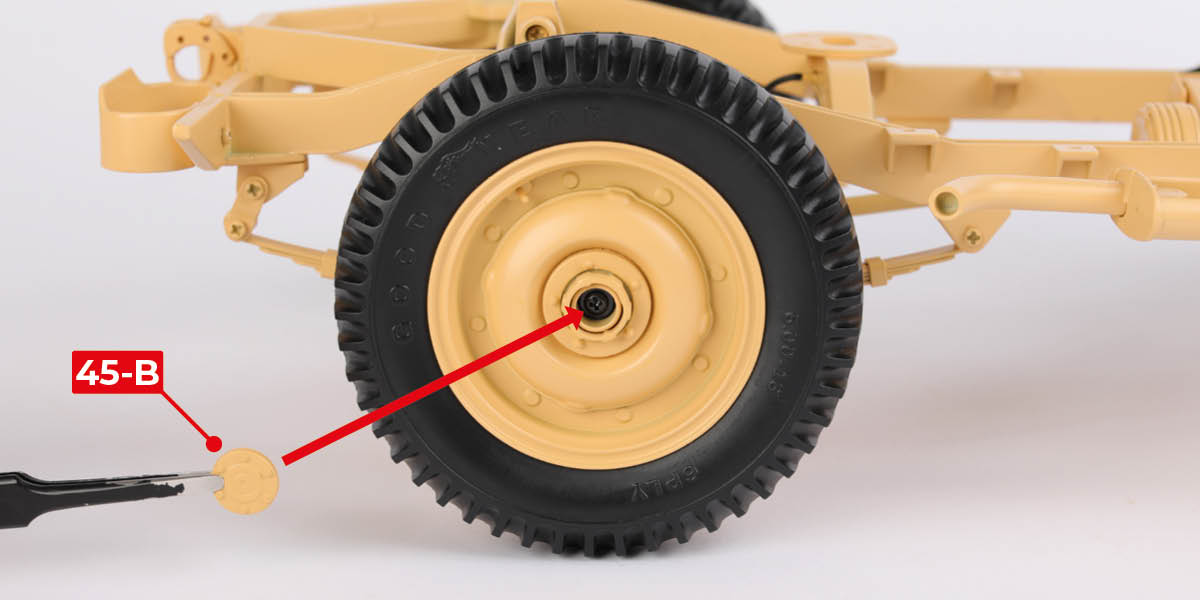

      Fit part 45-B to the wheel.

      a
      b

      STAGE COMPLETE
