Pack 08

BUILD INSTRUCTIONS

      If you'd prefer to download a PDF version of these instructions, choose to save as PDF from the print dialog.

      Advice from the experts

      Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly.

      Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly. Using the wrong screws may damage the parts. Only use the correct size screwdriver that fits the screw head firmly.

      When securing parts together using multiple screws, fit each screw loosely to ensure all the parts are correctly aligned before gently tightening them firmly, but not overtight, in the order in which you placed them.

      If the paint on the painted screws is scratched during the build, you can repaint it with Sand yellow (RAL 1002).

      The screwdriver can be magnetized by stroking it with a magnet (fridge magnet, etc.) enabling it to hold the screws and make assembly easier.

      If a screw is tight going into a metal part, do not force it as you may shear the head off. Remove it and put a tiny smear of Vaseline, soap or light oil on the thread. That will lubricate it and make it easier to tighten.

      Some parts will require a little glue for assembly. Please apply glue sparingly and use a cocktail stick so that you don’t use too much nor apply the glue too heavily. We recommend superglue gel or Extra Thin Liquid modeling glue. Where possible, parts should be test-fitted in place before gluing.

      Make sure you have good ventilation when using adhesives and to replace caps firmly.

      Use a magnet to help find screws that have fallen on the floor.

      Use masking tape to hold parts temporarily in place.

      Cut parts from a sprue (framework) with side cutters or a craft knife. Side cutters tend to be easiest.

      During the course of this build, you will receive many pieces that you will assemble immediately – following the instructions in the corresponding stage – and other pieces that you should store safely to one side, for use in future assembly stages.

      Always protect the paint finish on components by placing a cutting mat, sheet of white paper or soft cloth on your work surface.

      When plugging cables in, ensure the power is switched off. Tweezers can be used to fit the PVC cables by gripping carefully around 5mm from the end of the cable. If a cable needs to be removed from a socket, do not pull on the cable as this could damage the connection. Grip the plug with tweezers to remove it.

      Left and Right! When building your SAS Willys Jeep, the left- or right-hand side refers to that side as if you are sitting in the car.

      When you see this symbol, pay attention to the instruction text in bold and check the orientation of the parts in the image as this will be particularly important for assembly in later stages.

      WARNING: Some parts are assembled using magnets. These magnets can cause serious injury if they are swallowed. Keep away from children. If you suspect a magnet has been swallowed, seek medical help straight away.

      This is not a toy. Not suitable for children under 14 years old due to small parts. Adult supervision required.

      Stage 54: The body

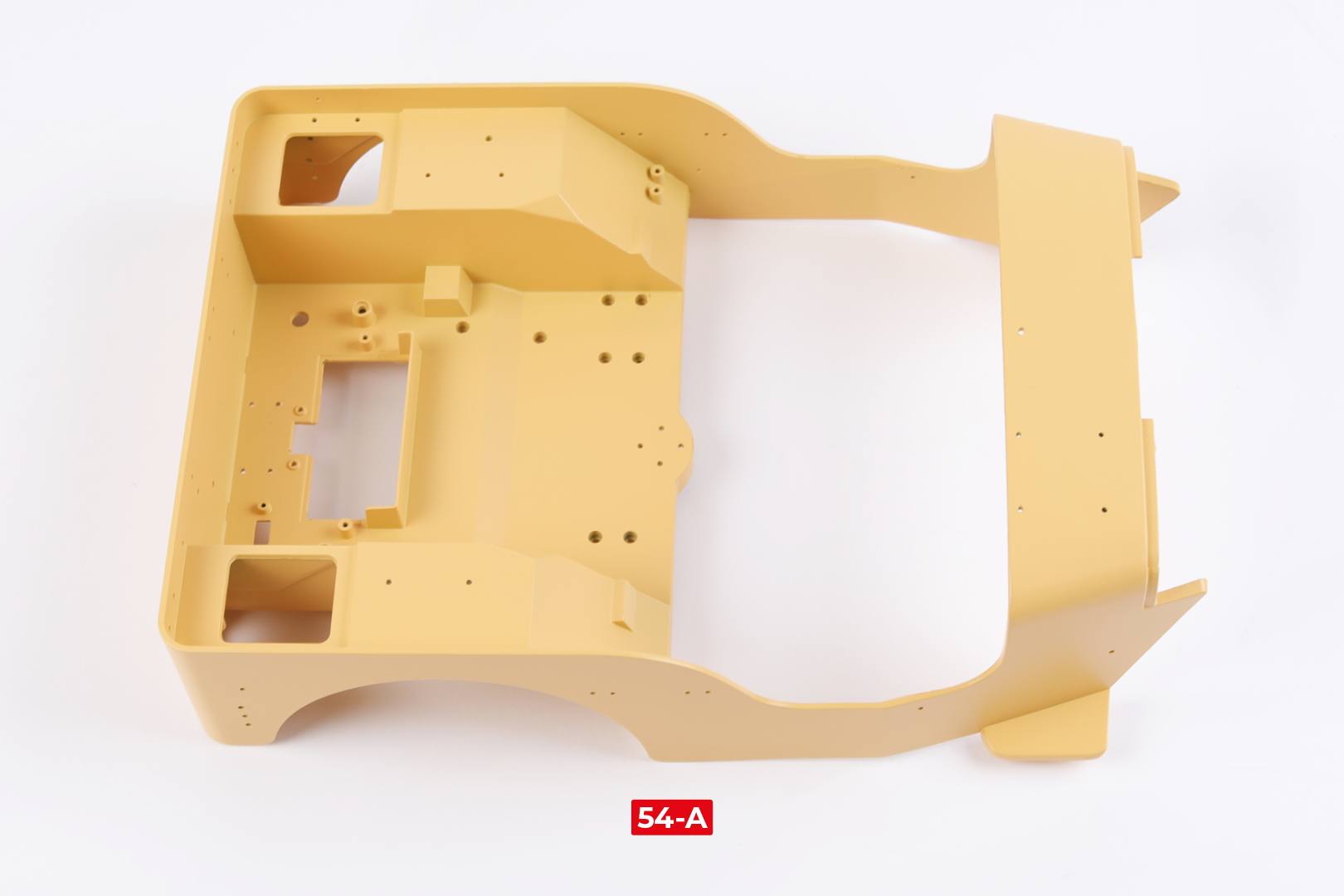

      STAGE 54 PARTS

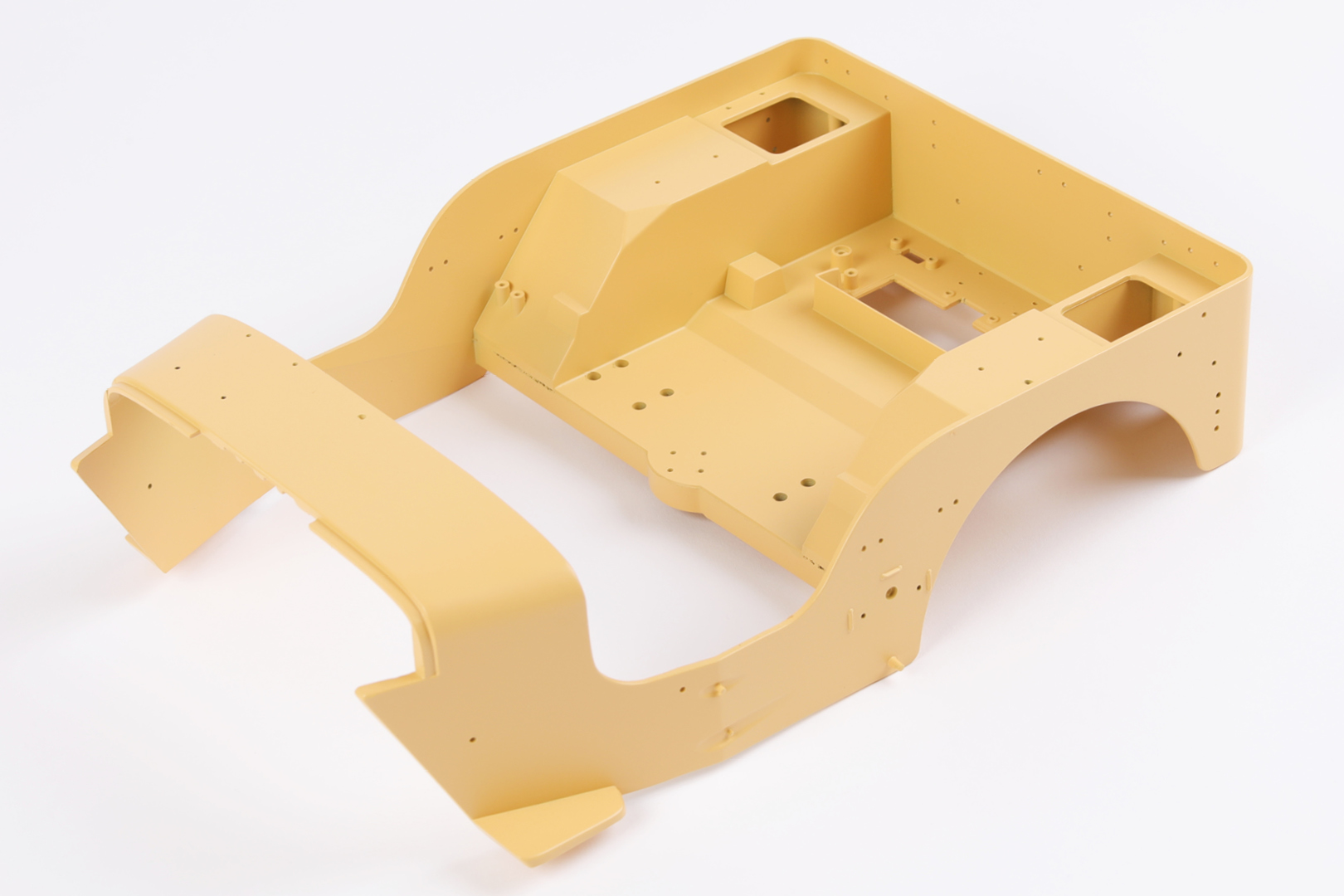

      There is no assembly in this stage. Keep the body in a safe place until it is needed in stage 62.

      STAGE COMPLETE

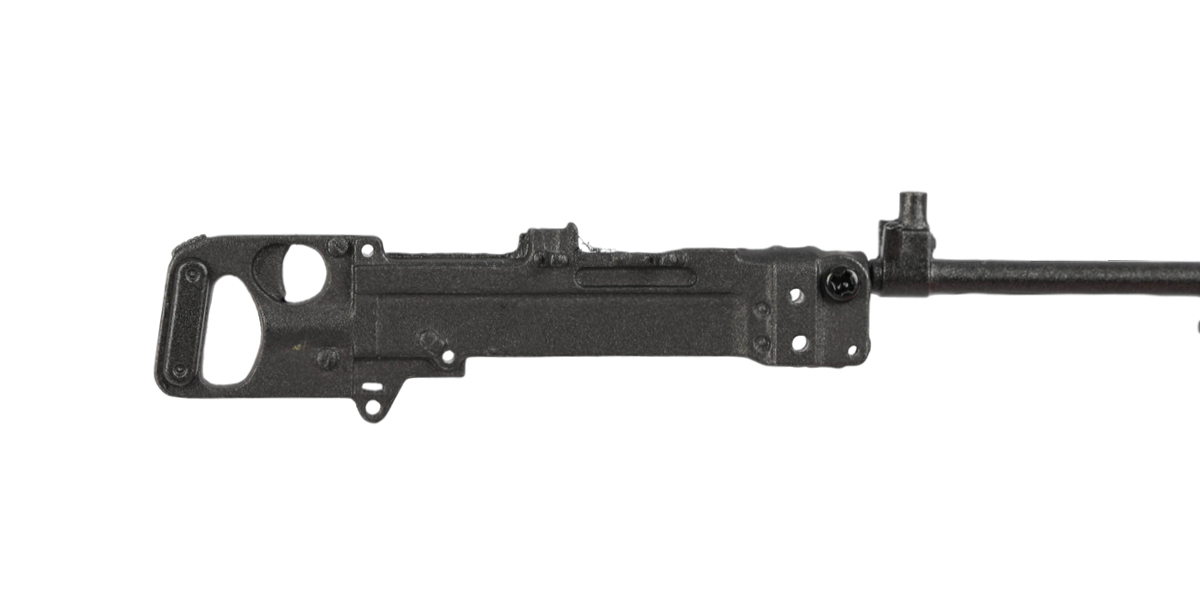

      Stage 55: Fitting the pedals and assembling a Vickers K machine gun (1)

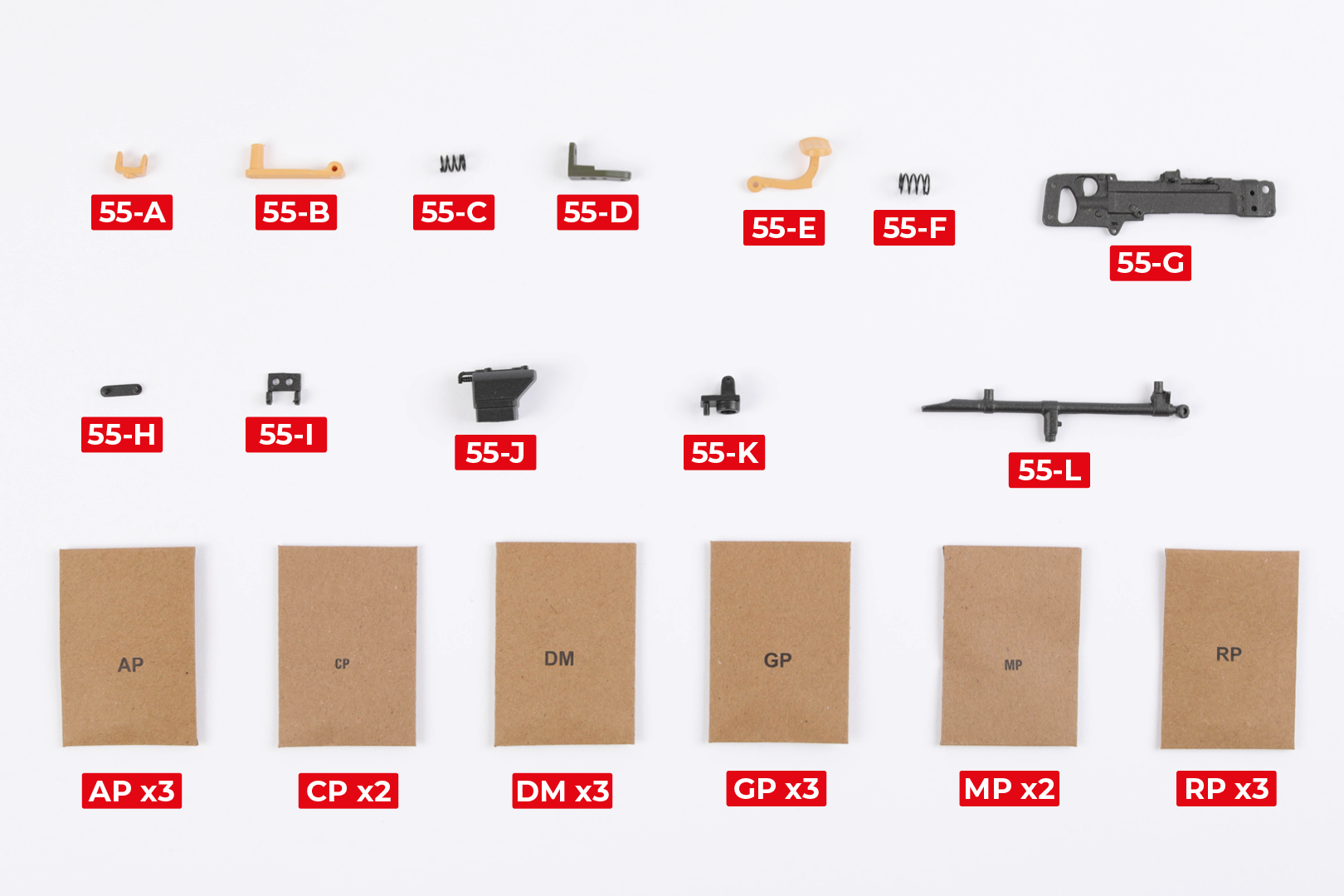

      STAGE 55 PARTS

      Step 1

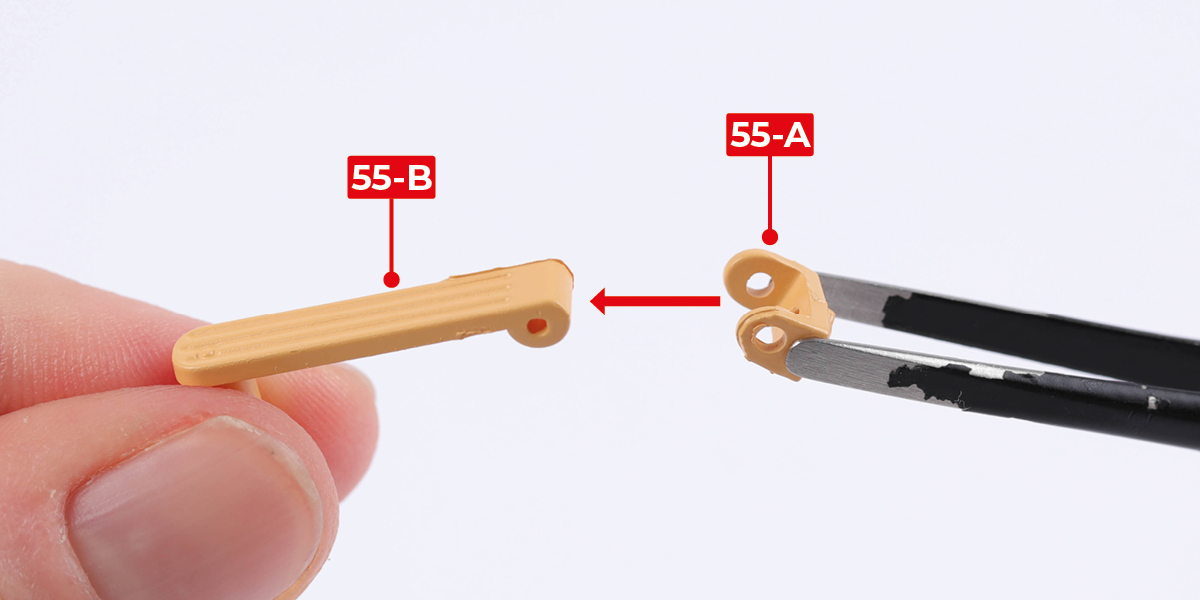

      Fit part 55-A to part 55-B with 2 AP screws.

      a
      b

      Step 2

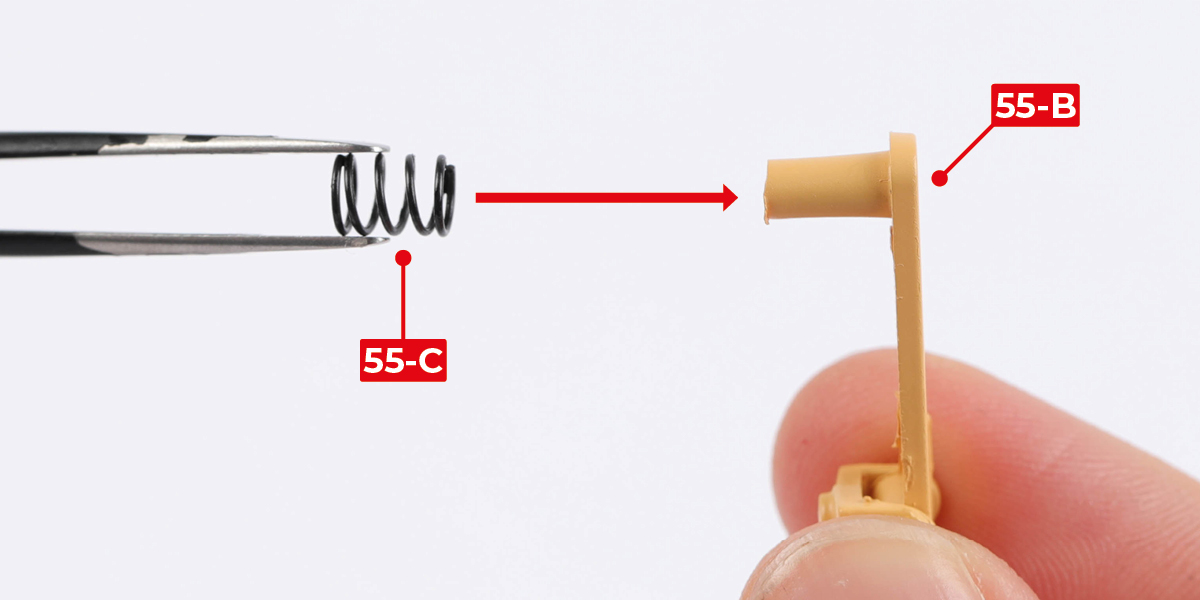

      Fit part 55-C to part 55-B.

      a
      b

      Step 3

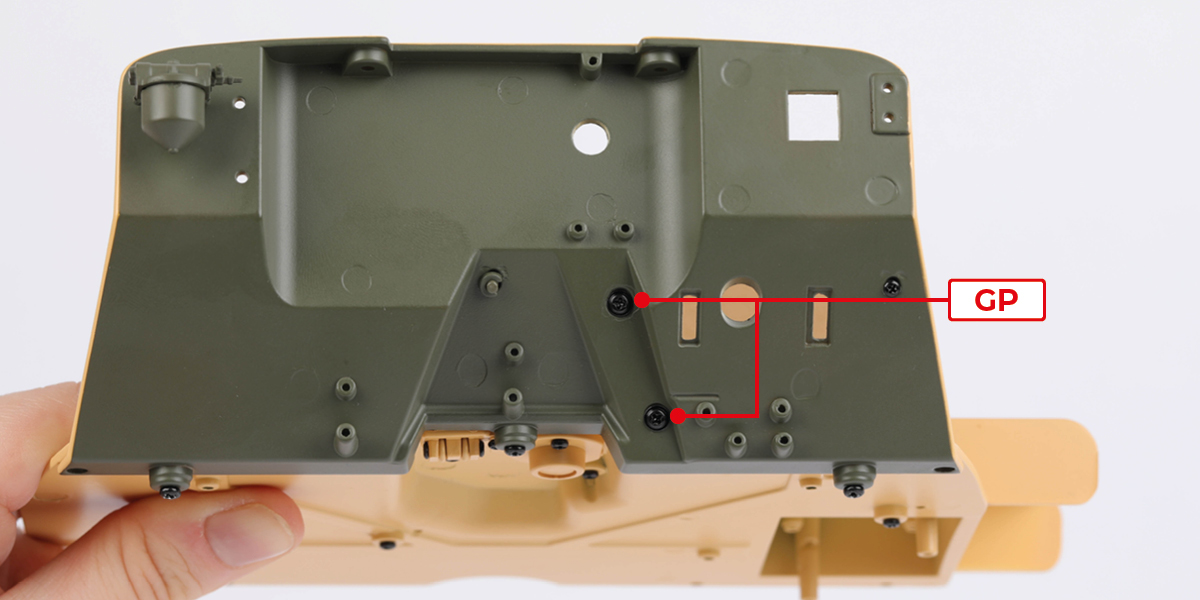

      Fit the accelerator pedal to part 52-A (stage 53) with 2 GP screws.

      a
      b
      c

      Step 4

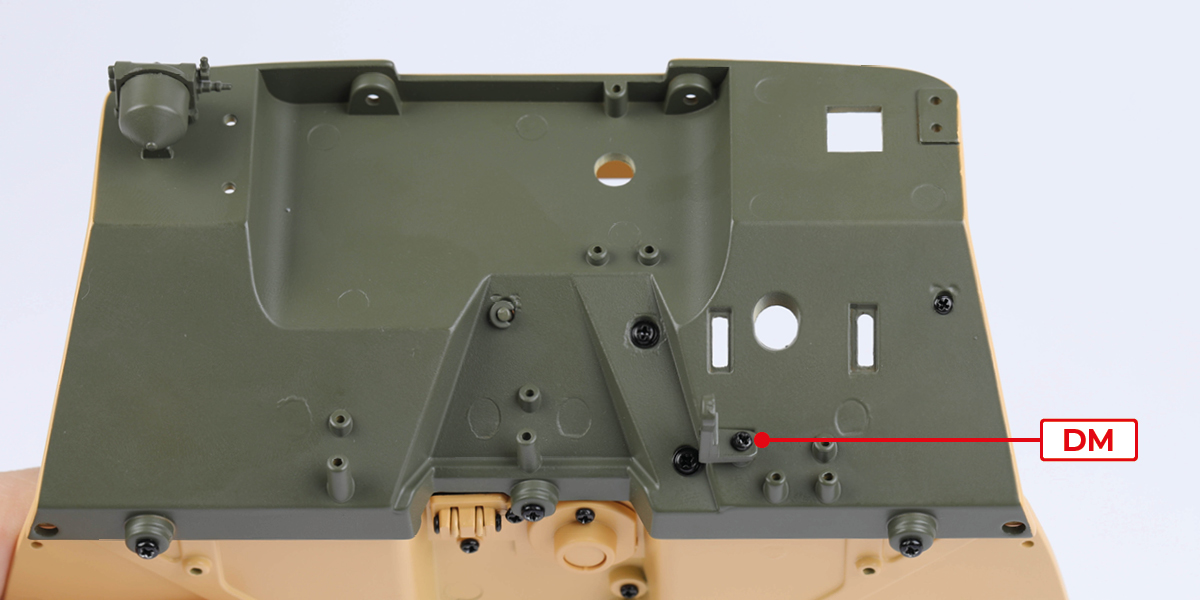

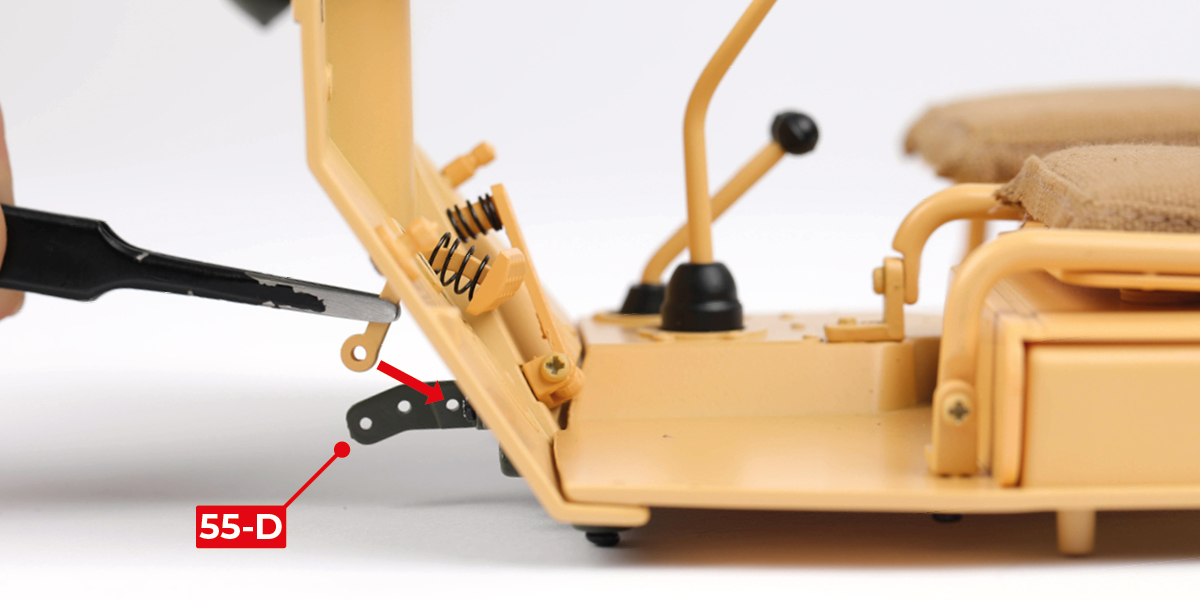

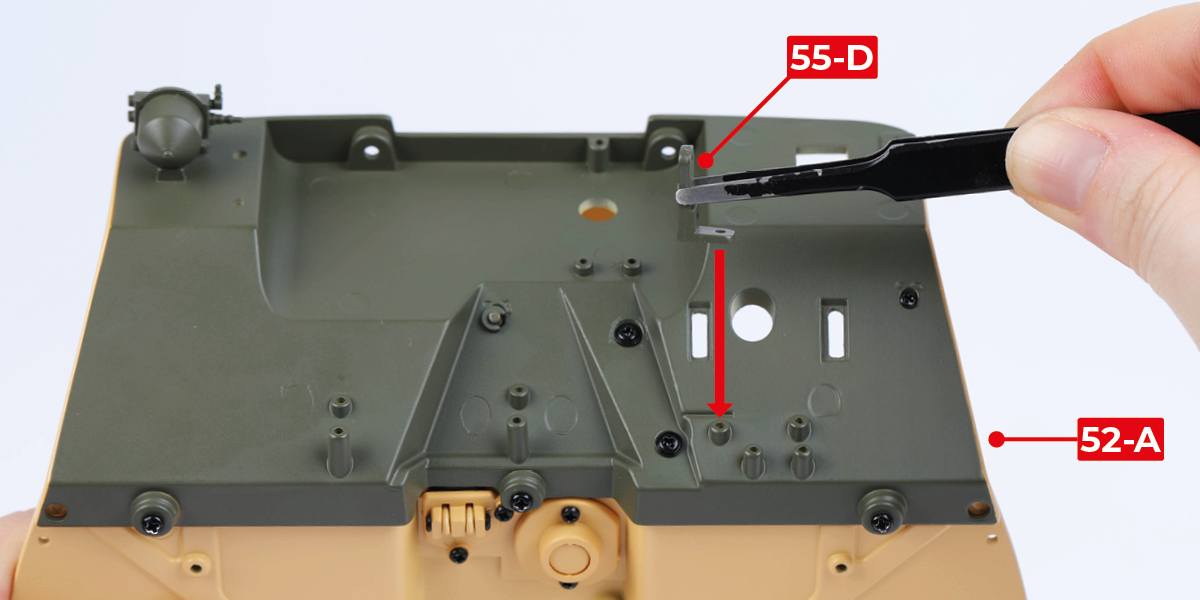

      Fit part 55-D to part 52-A with 1 DM screw.

      a
      b

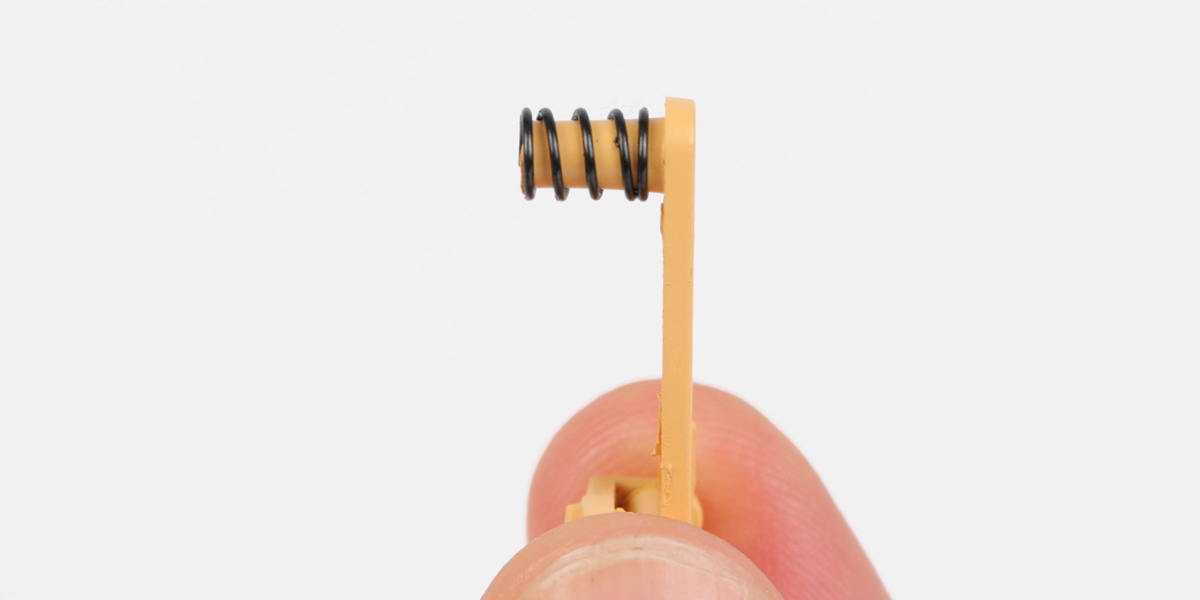

      Step 5

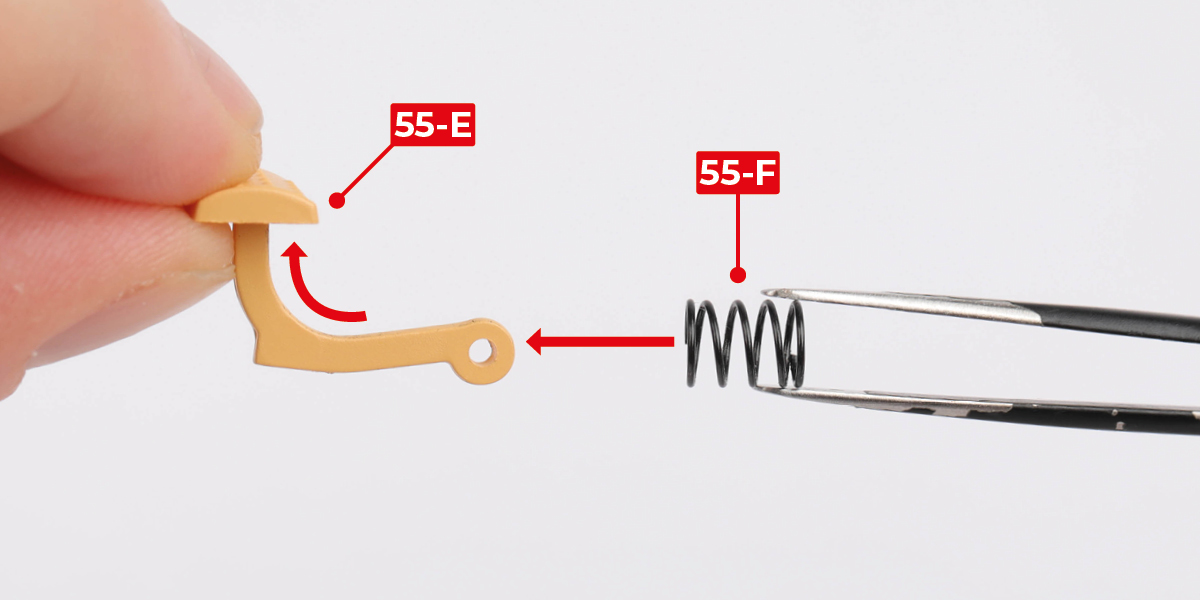

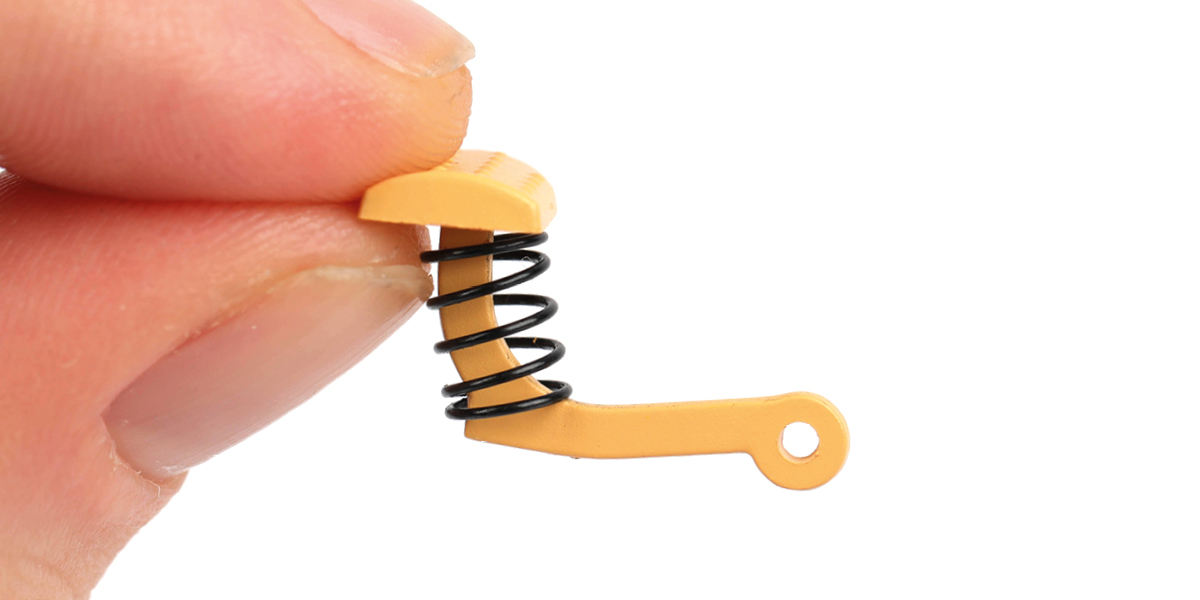

      Fit part 55-F to part 55-E, as shown.

      a
      b

      Step 6

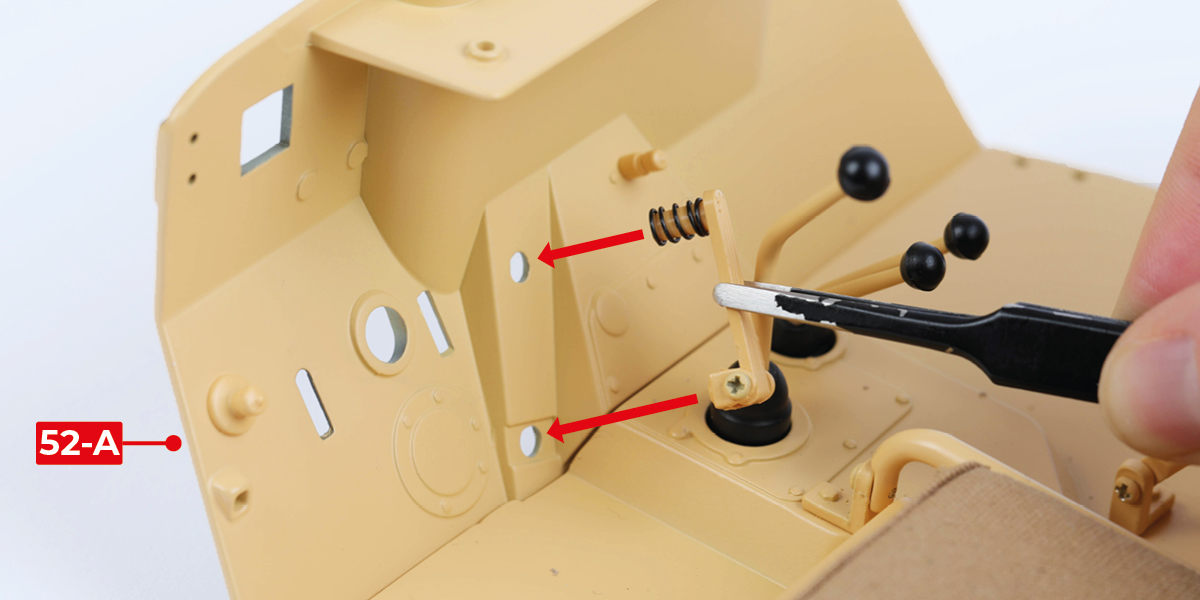

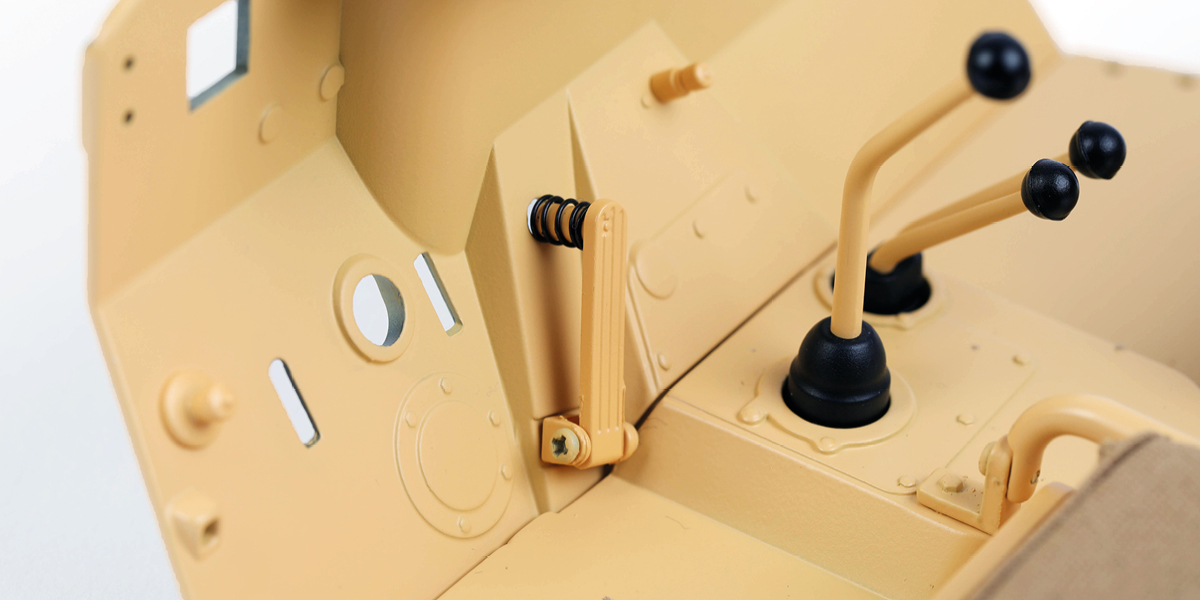

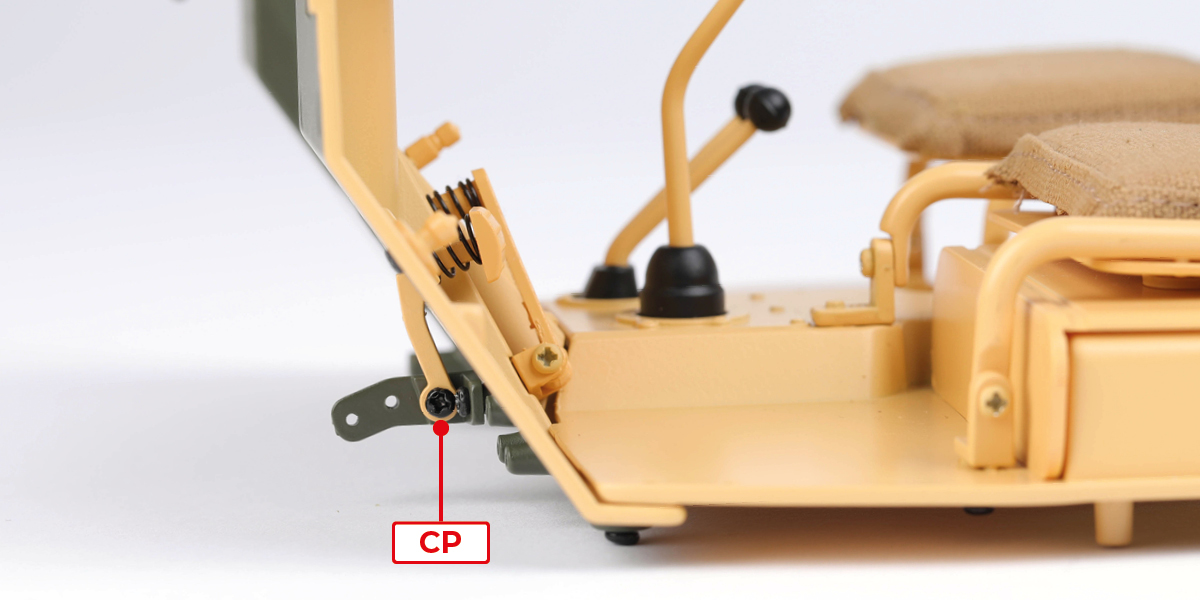

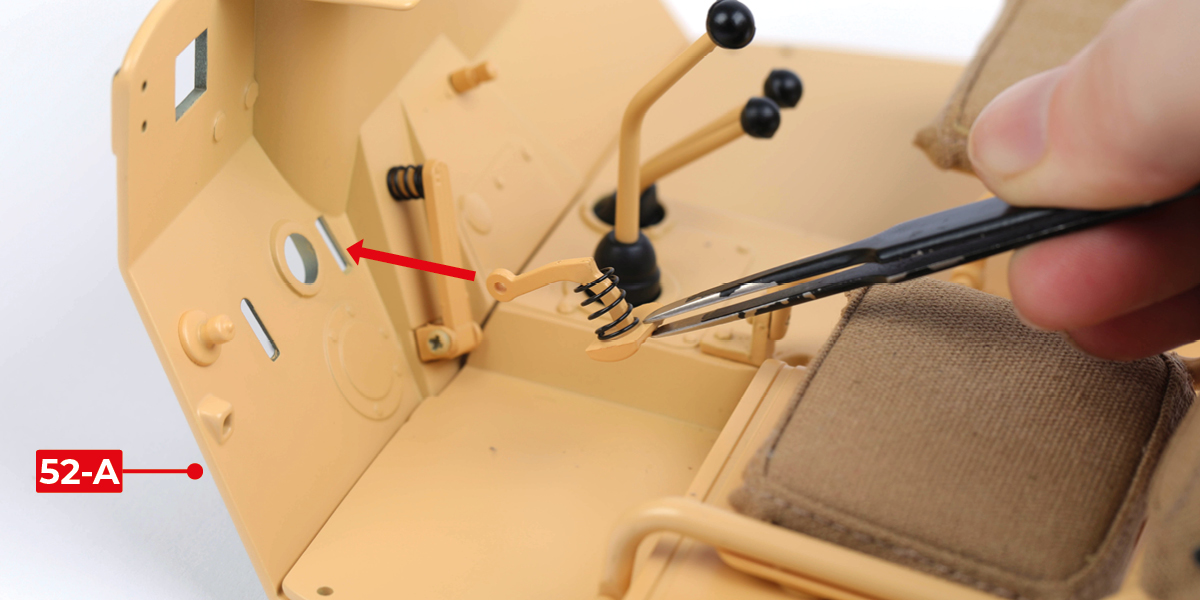

      Fit the brake pedal through part 52-A and onto part 55-D with 1 CP screw.

      a
      b
      c

      Step 7

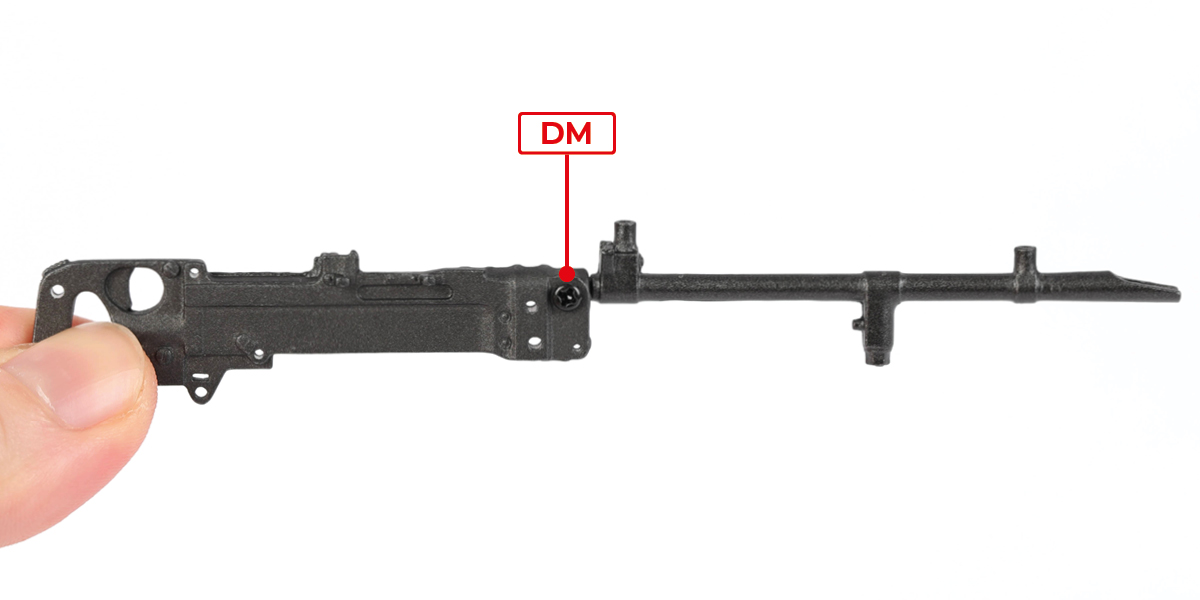

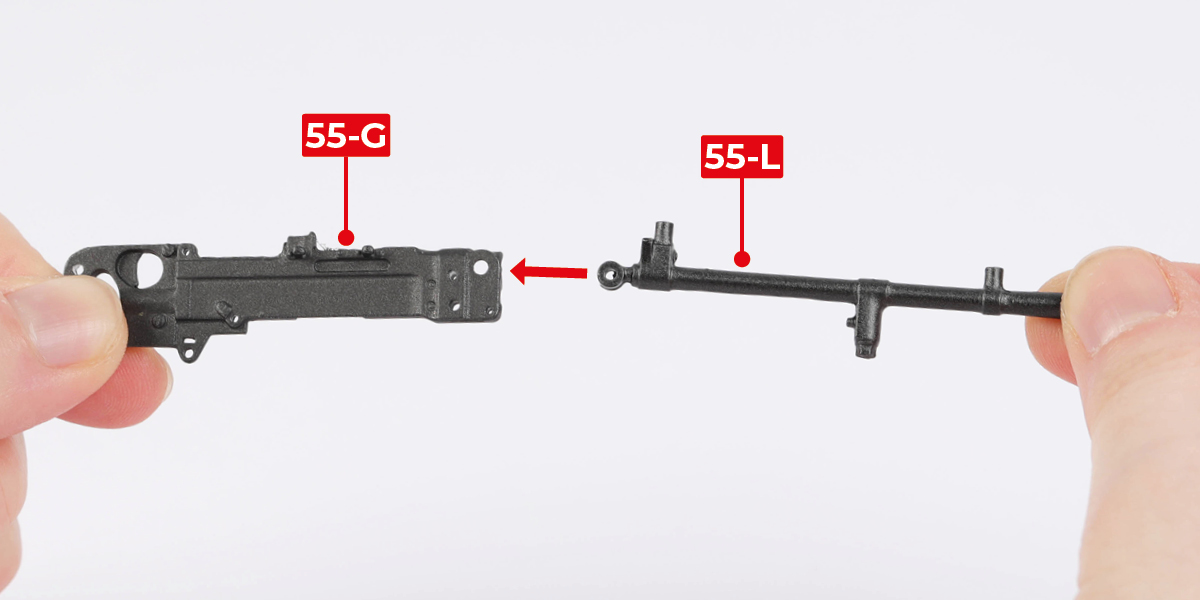

      Fit part 55-L to part 55-G with 1 DM screw.

      a
      b

      Step 8

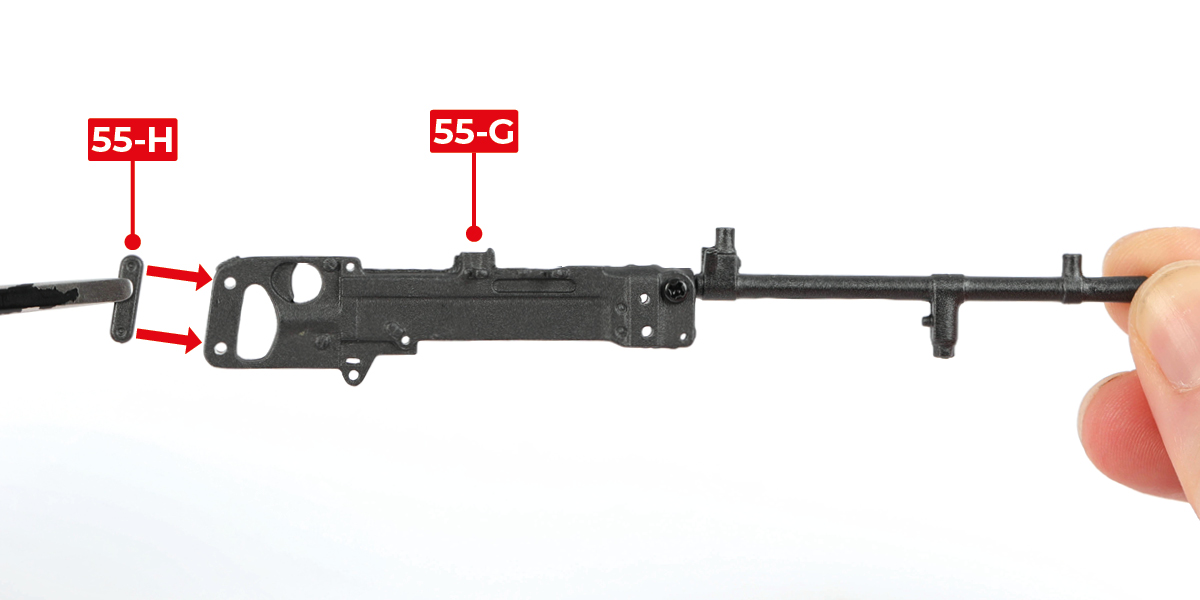

      Fit part 55-H to part 55-G.

      a
      b

      Step 9

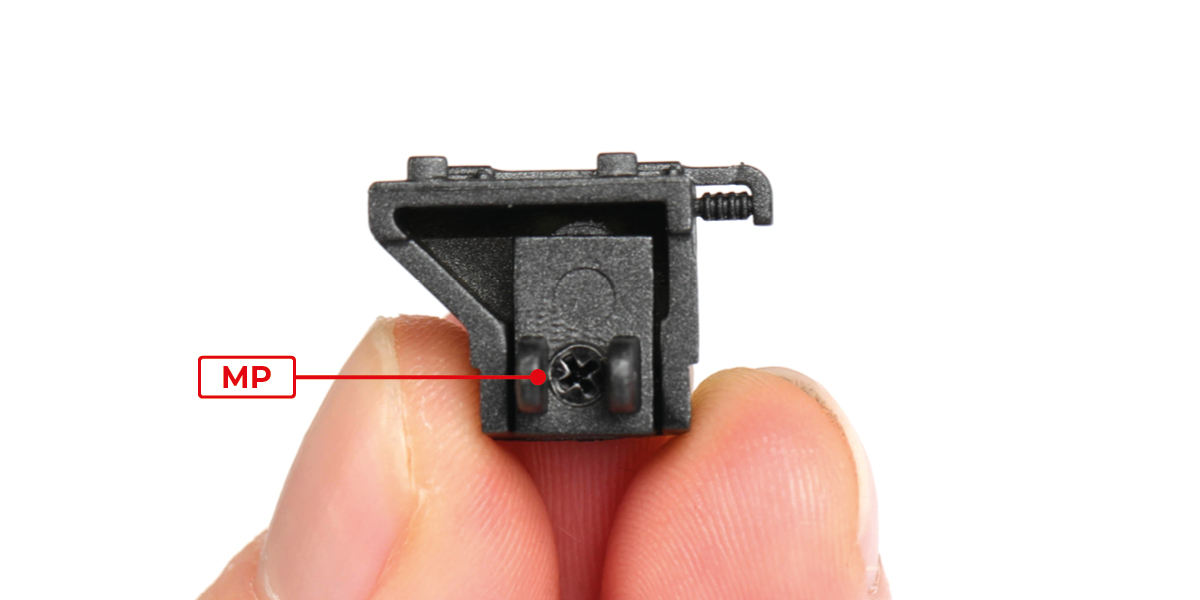

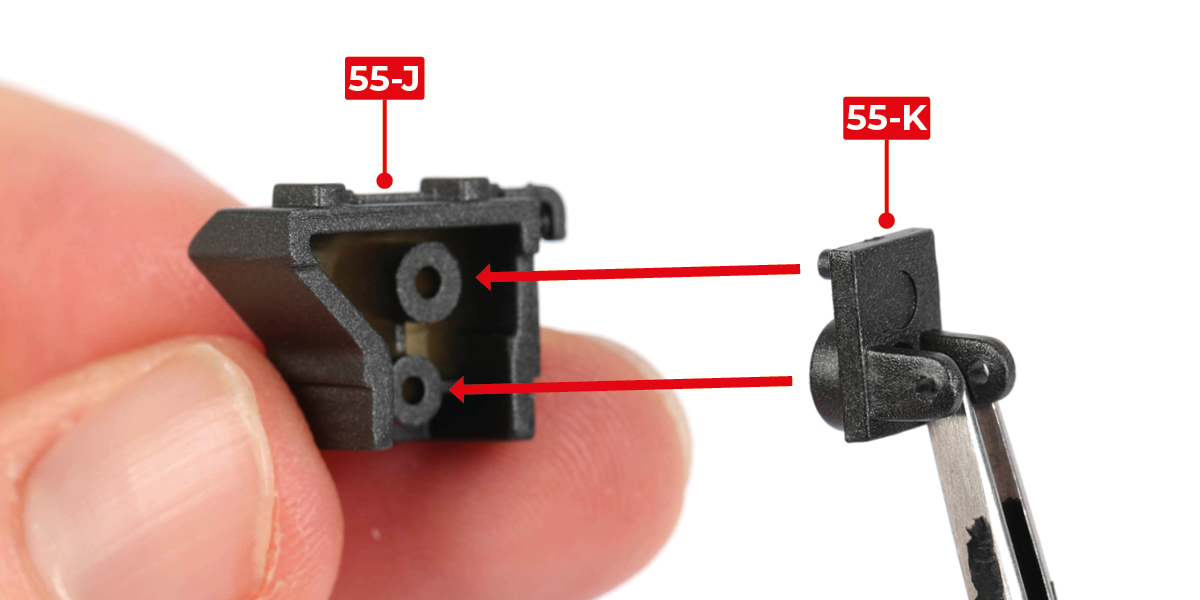

      Fit part 55-K to part 55-J with 1 MP screw.

      a
      b

      Step 10

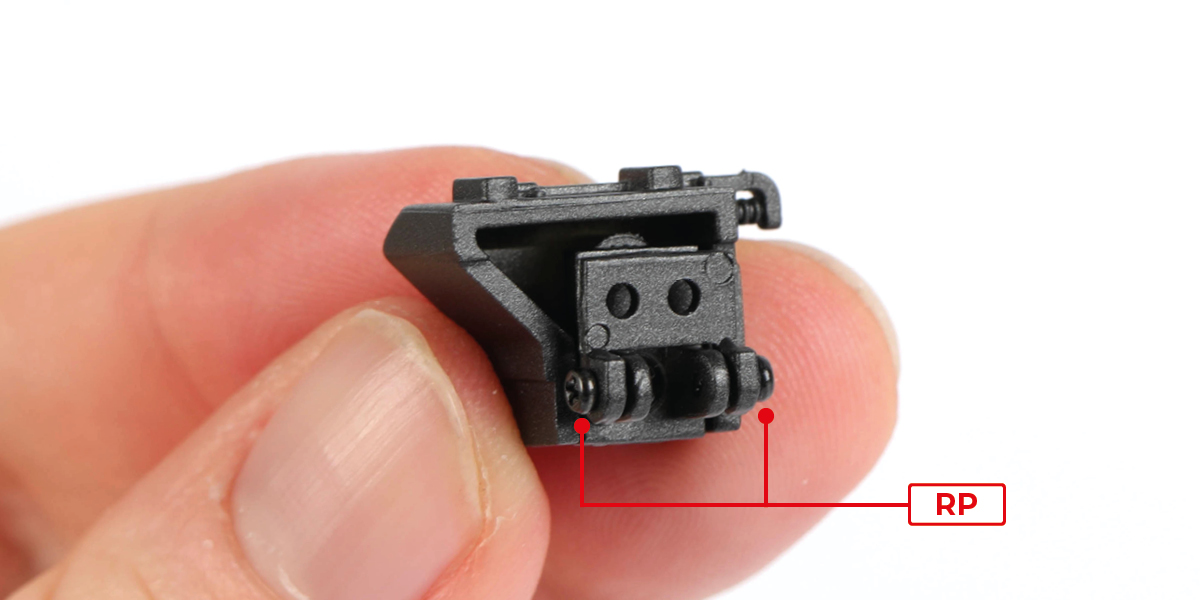

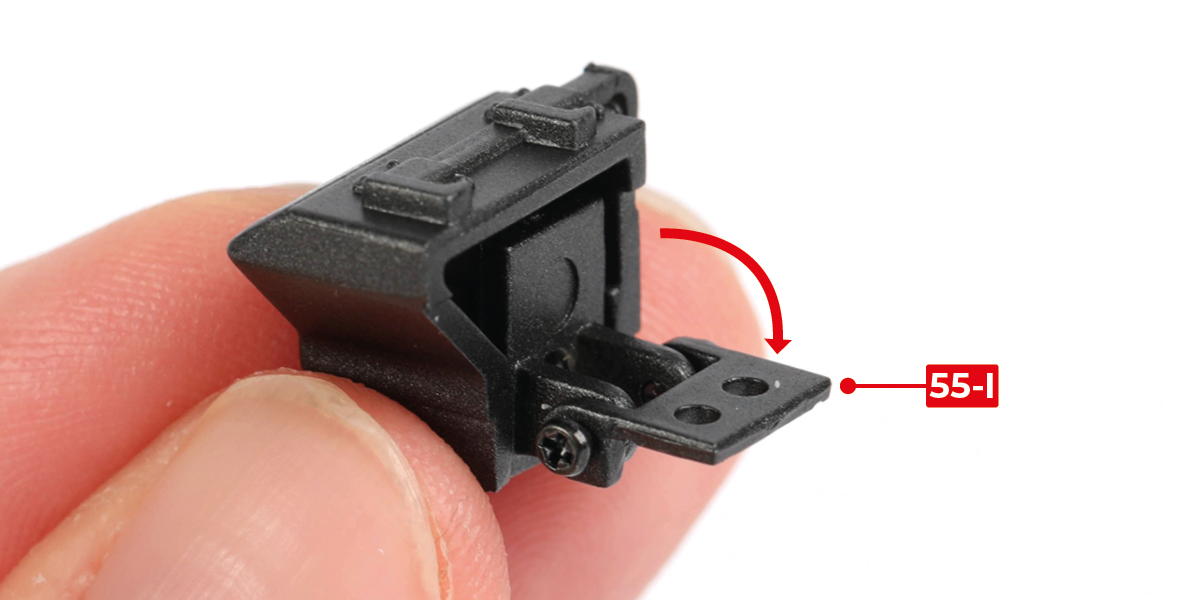

      Fit part 55-I to part 55-K with 2 RP screws.

      Position part 55-I as shown in image c.

      a
      b
      c

      Step 11

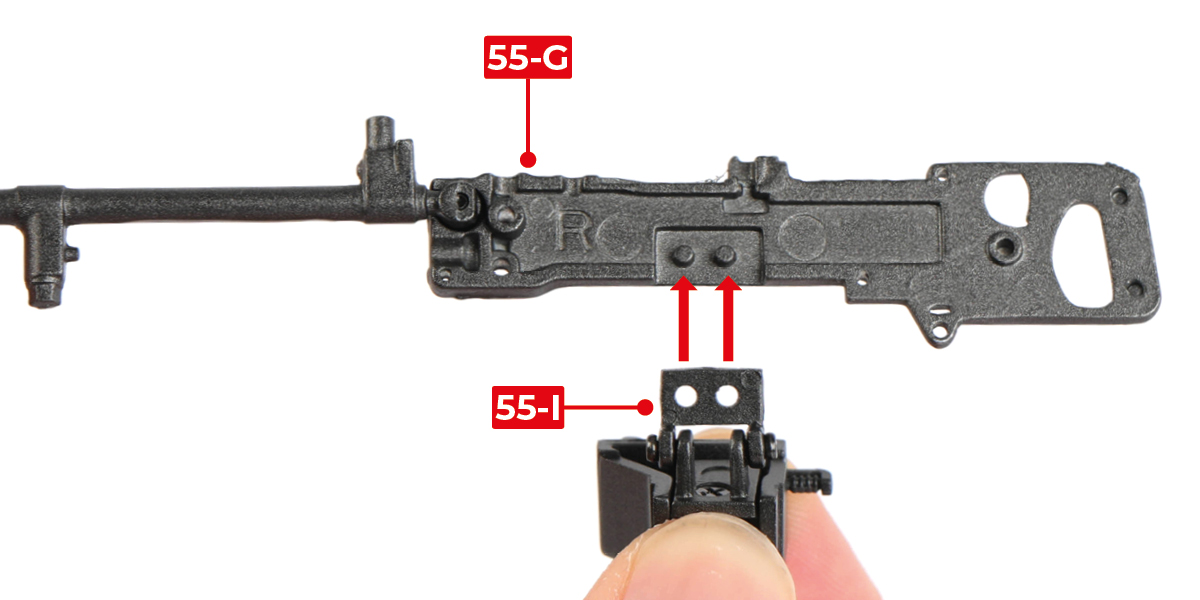

      Fit part 55-I to part 55-G.

      a
      b

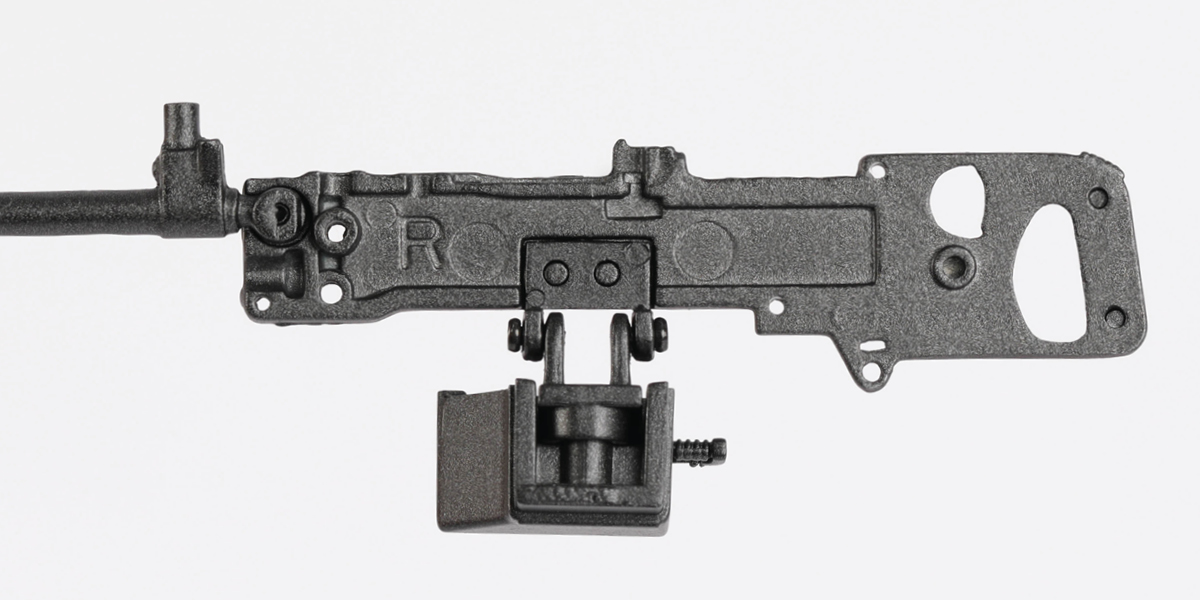

      Step 12

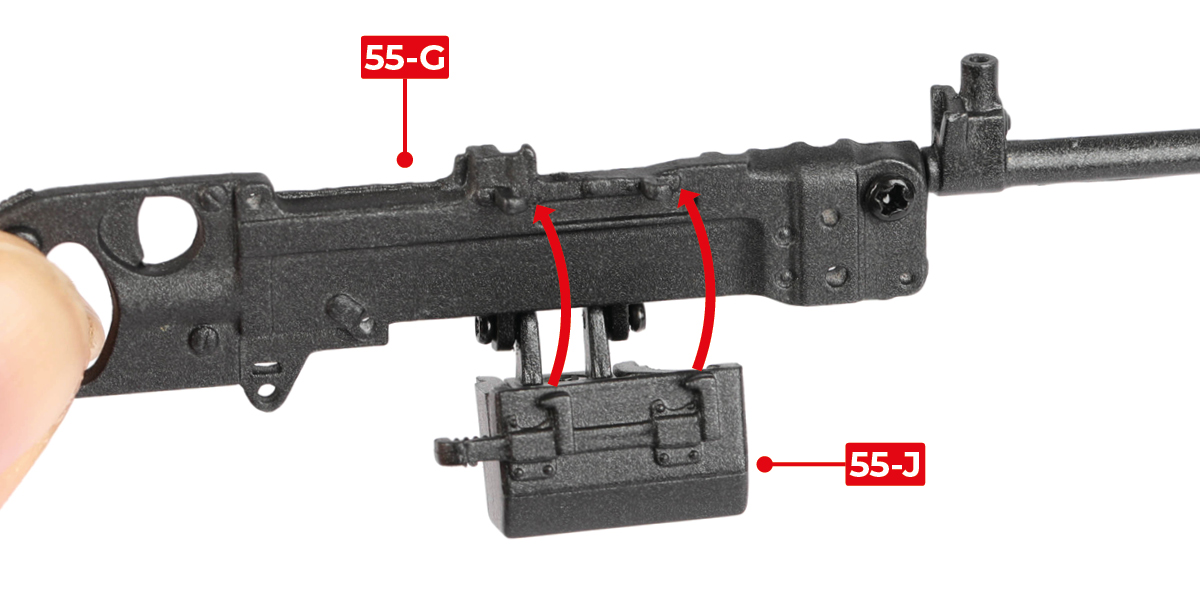

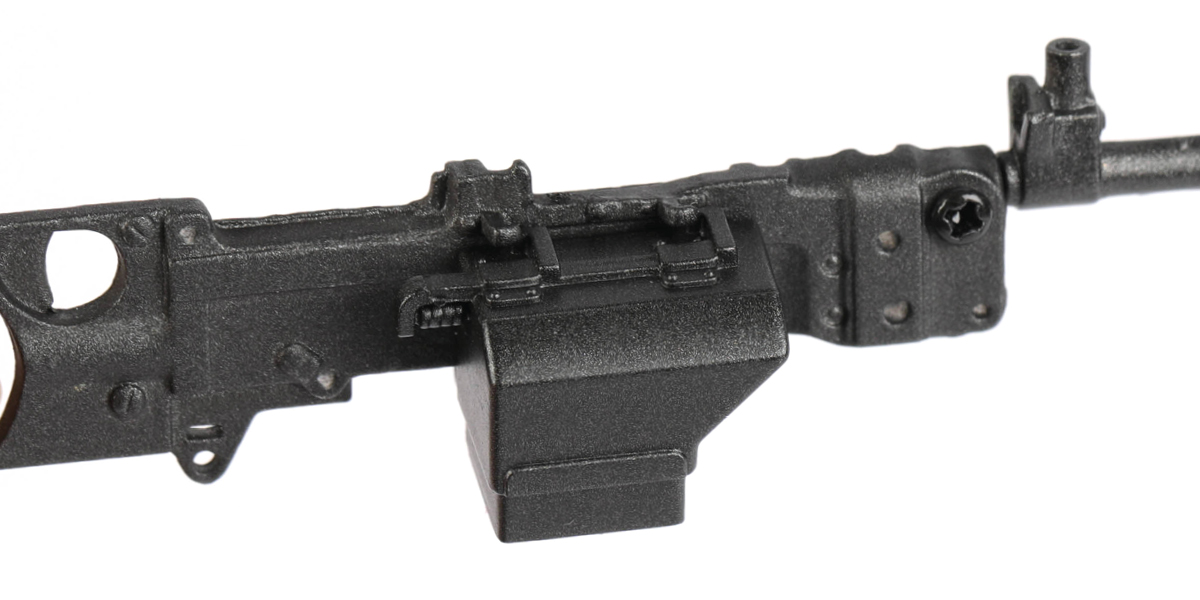

      Fit part 55-J to part 55-G, as shown.

      a
      b

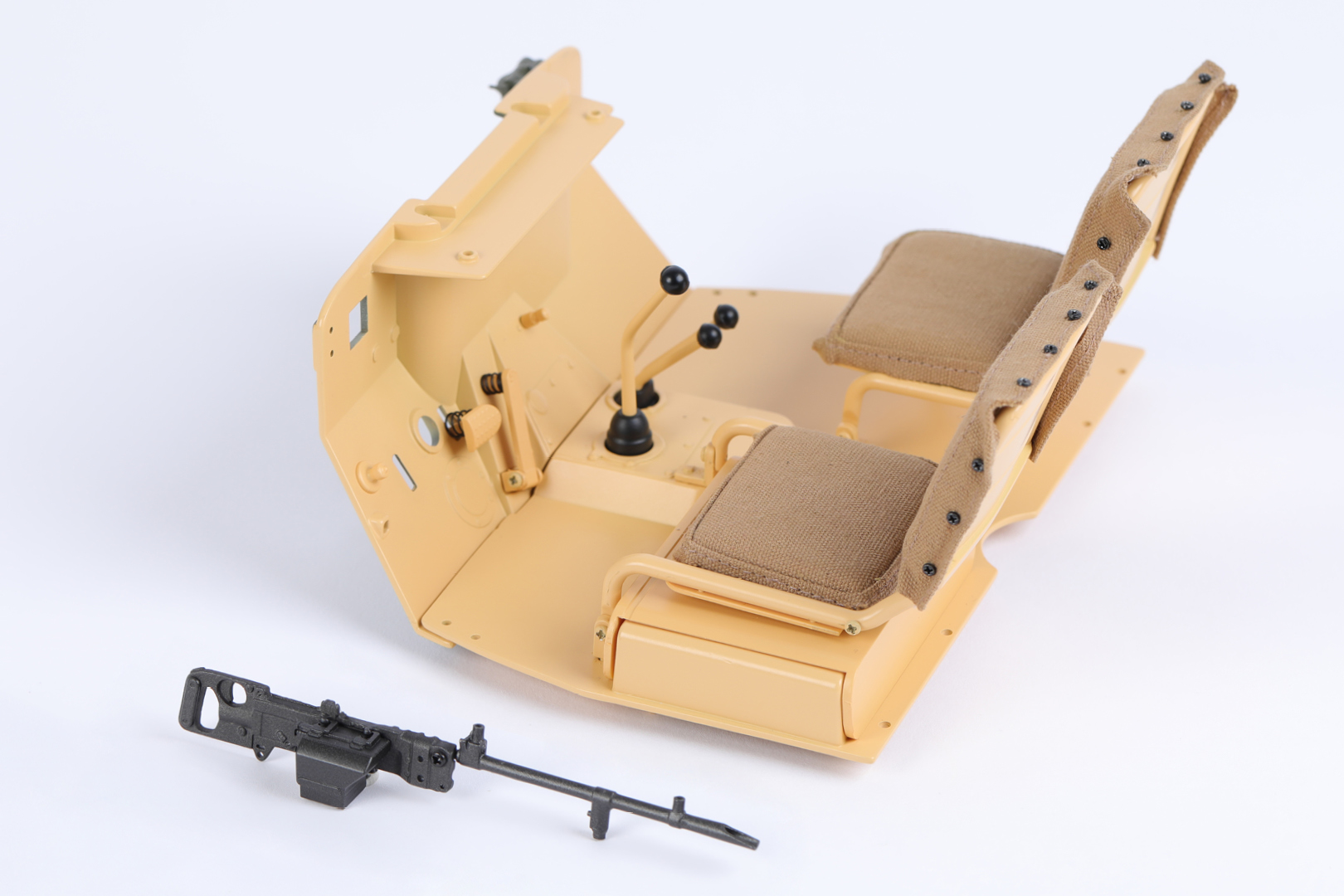

      STAGE COMPLETE

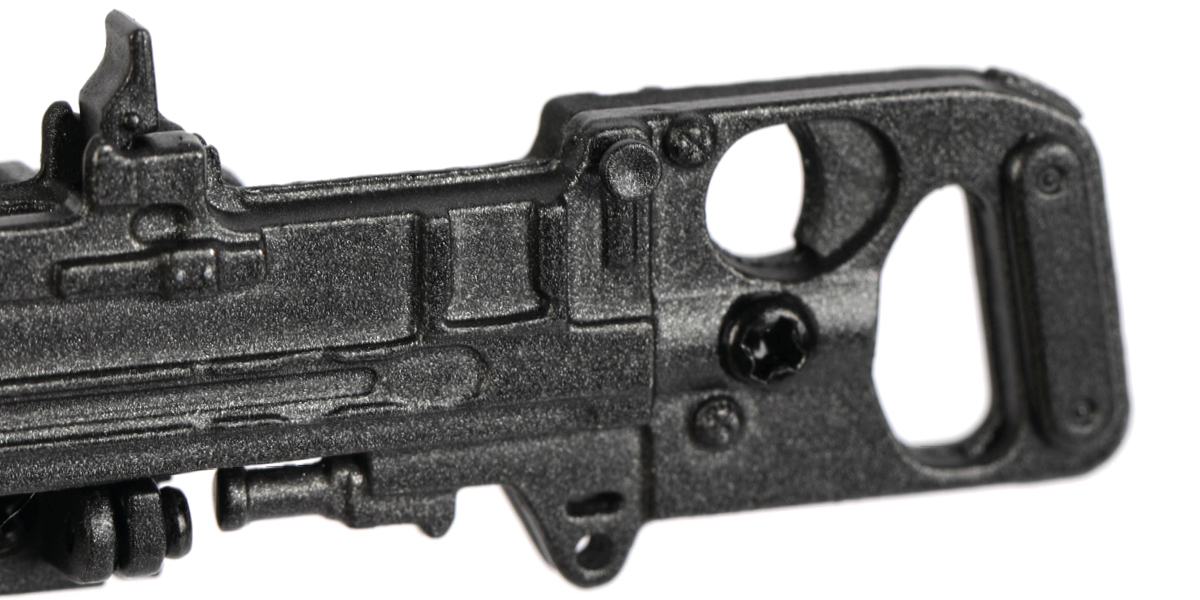

      Stage 56: Fitting the pedals and assembling a Vickers K machine gun (2)

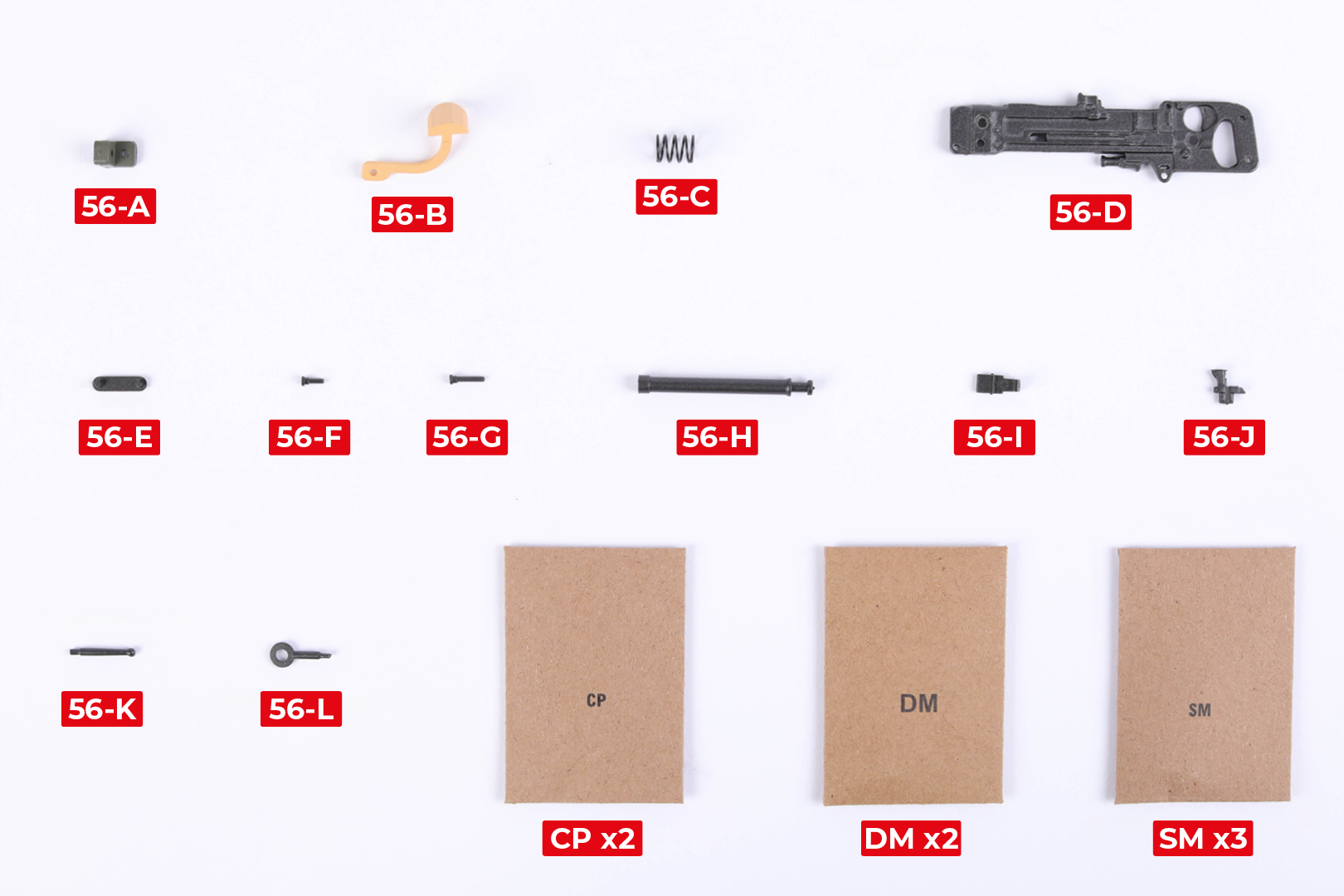

      STAGE 56 PARTS

      Step 1

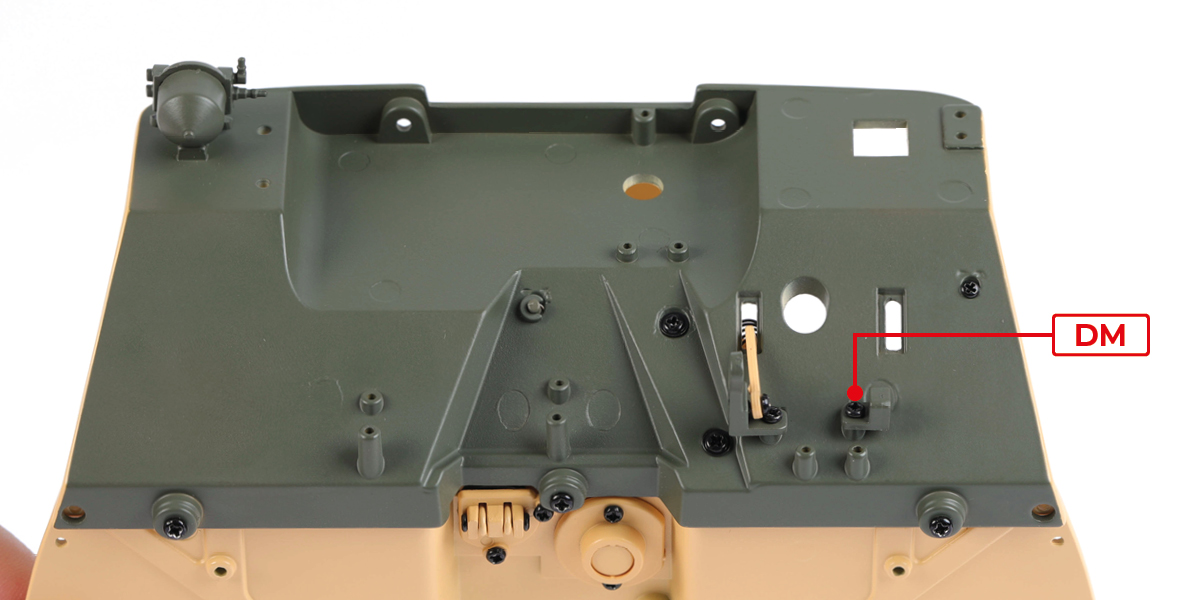

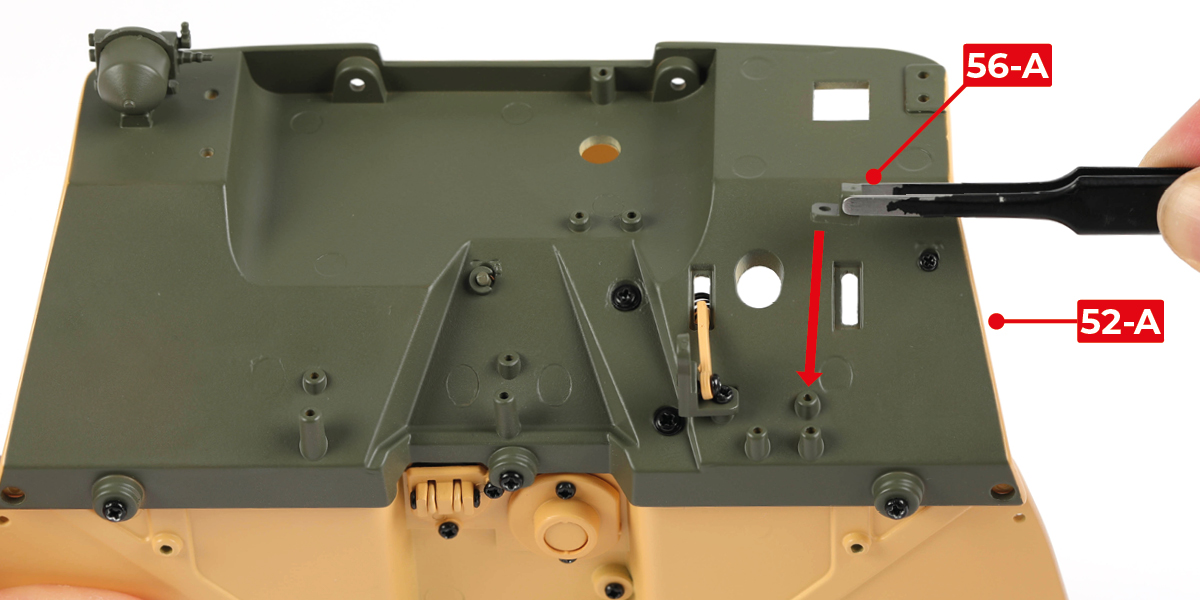

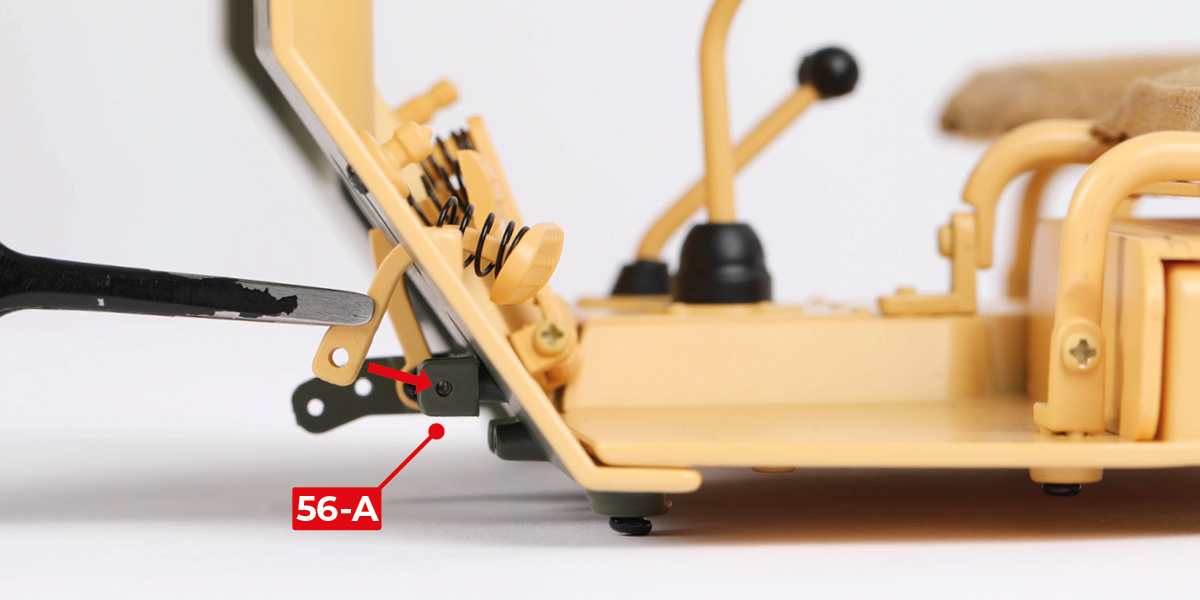

      Fit part 56-A to part 52-A with 1 DM screw.

      a
      b

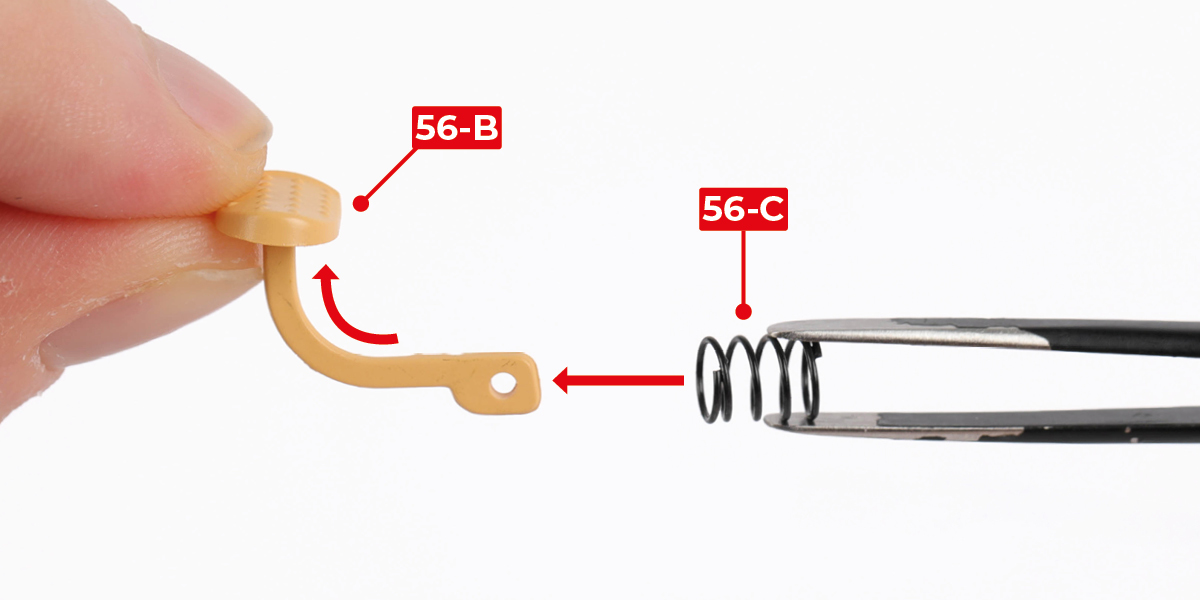

      Step 2

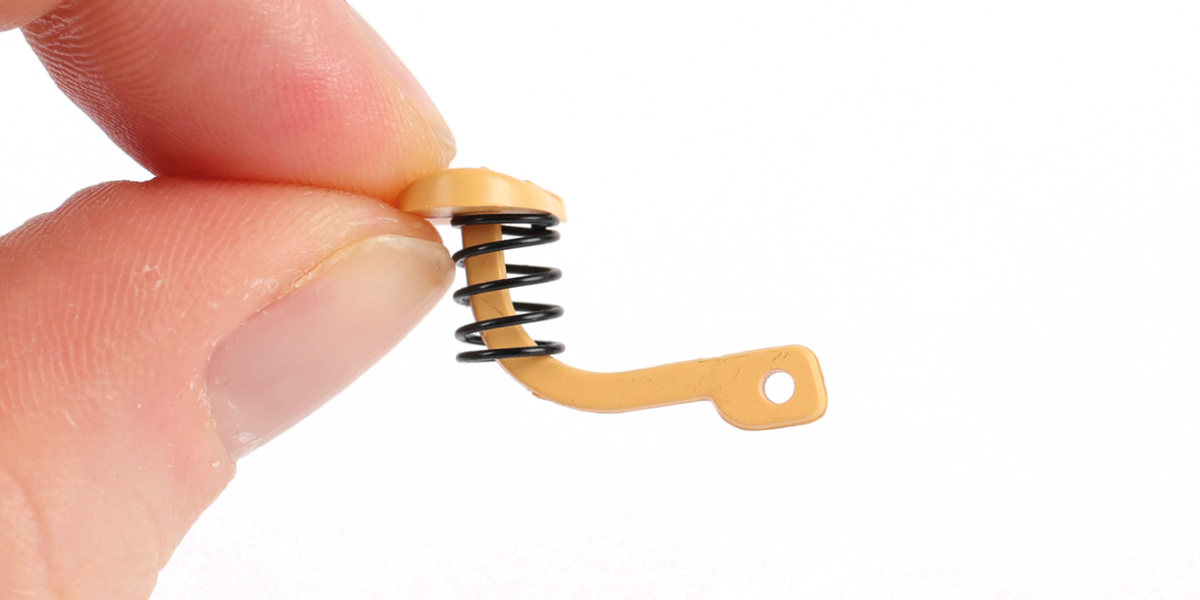

      Fit part 56-C to part 56-B, as shown.

      a
      b

      Step 3

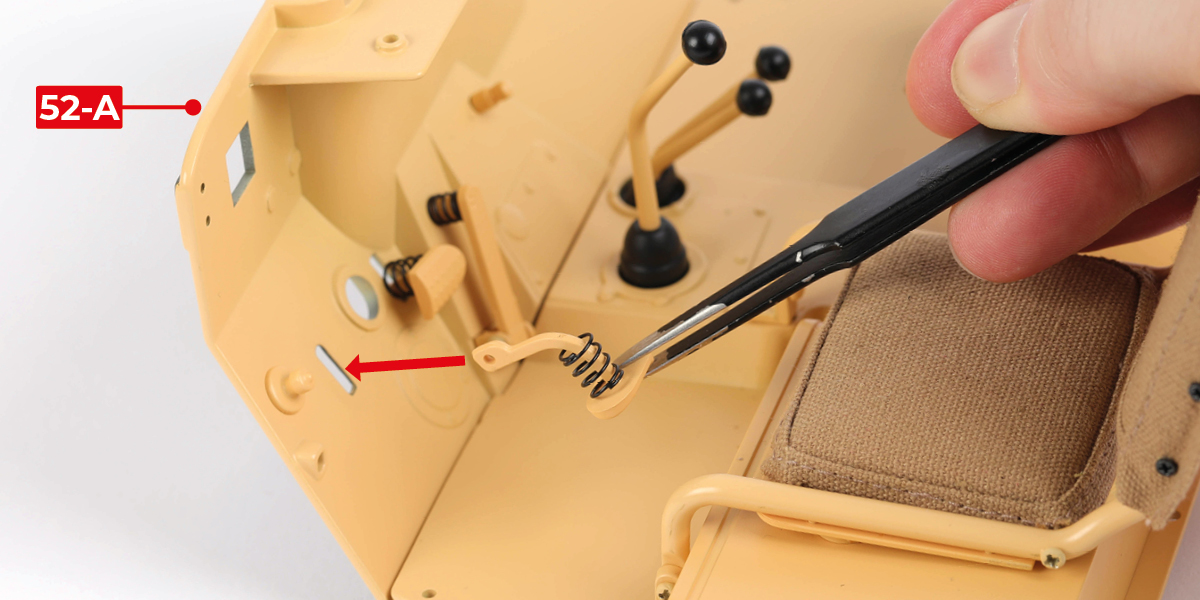

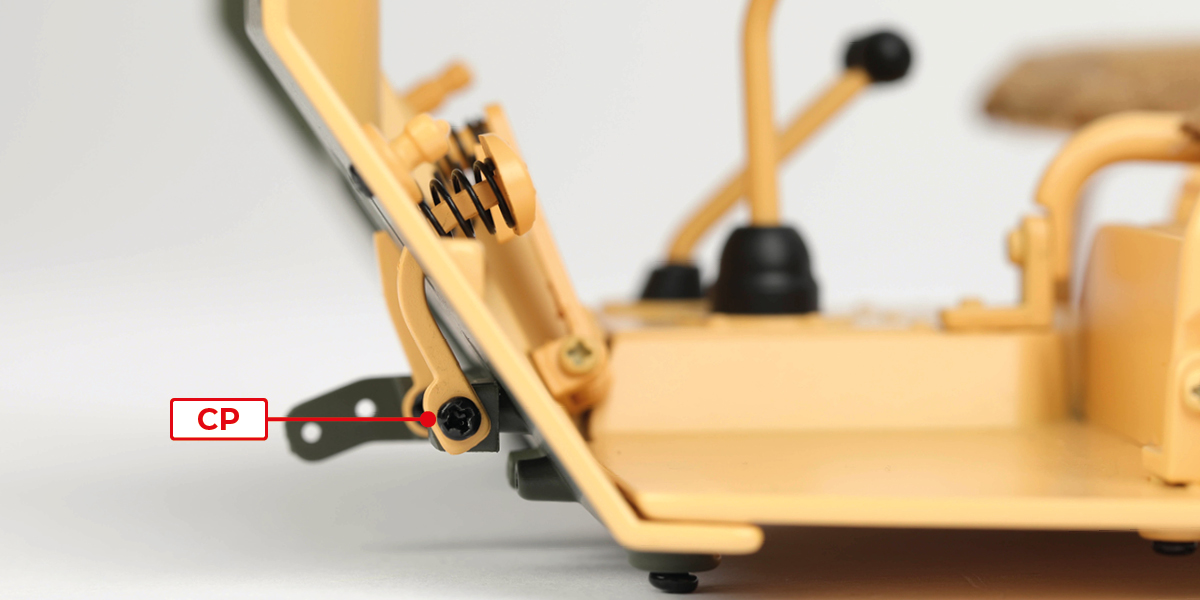

      Fit the clutch pedal through part 52-A and onto part 56-A with 1 CP screw.

      a
      b
      c

      Step 4

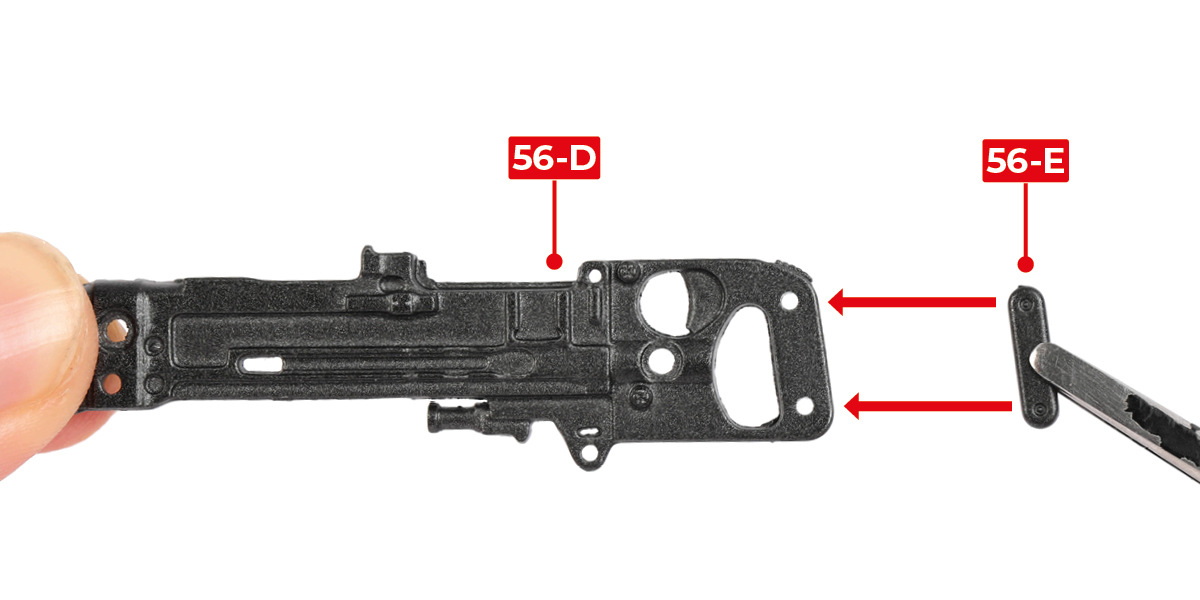

      Fit part 56-E to part 56-D.

      a
      b

      Step 5

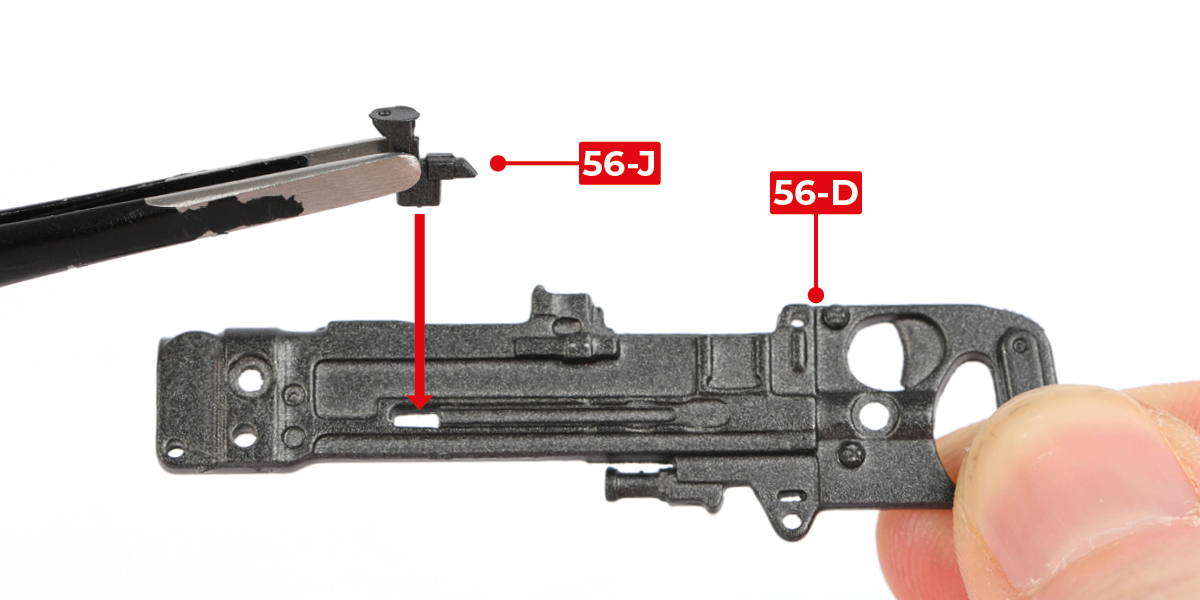

      Fit part 56-J to part 56-D.

      a
      b

      Step 6

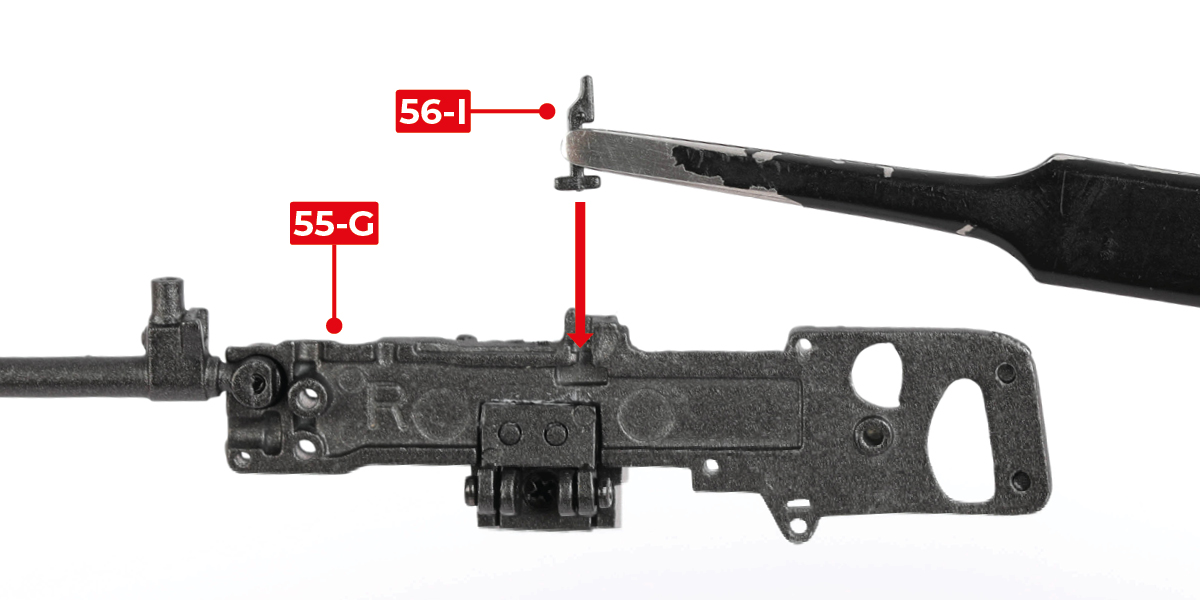

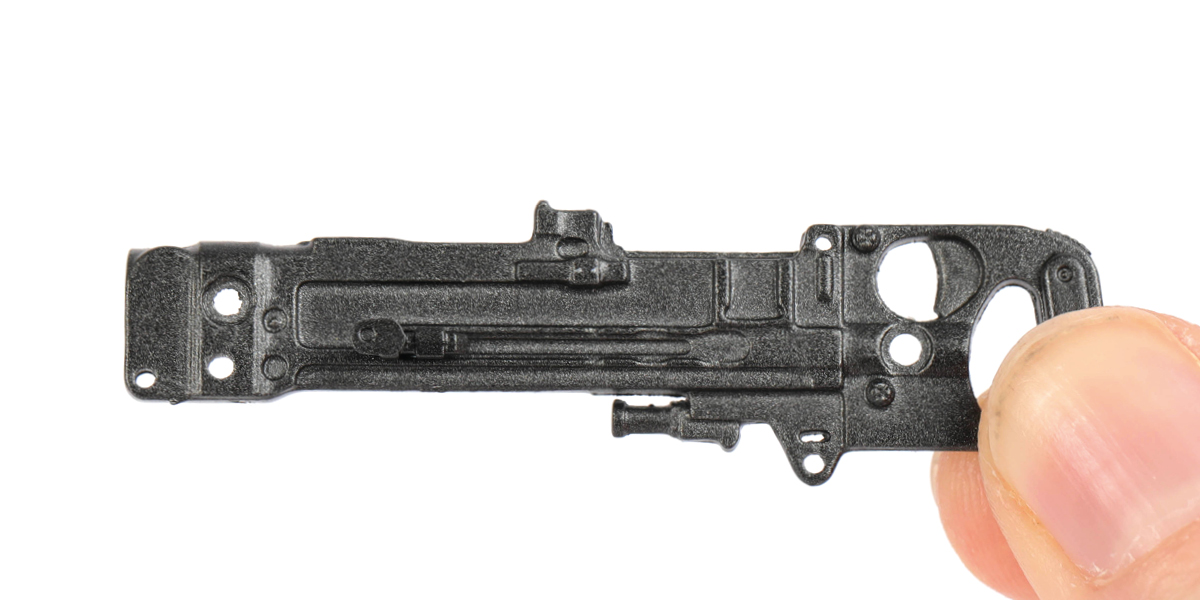

      Fit part 56-I to part 55-G (stage 55).

      a
      b

      Step 7

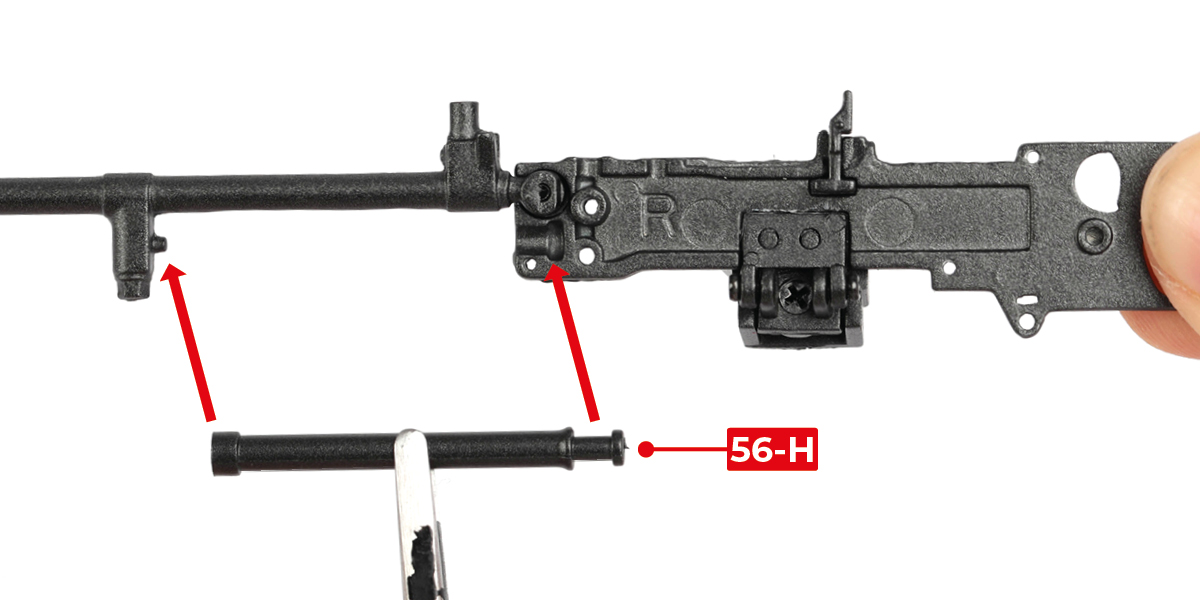

      Fit part 56-H to the assembly.

      a
      b

      Step 8

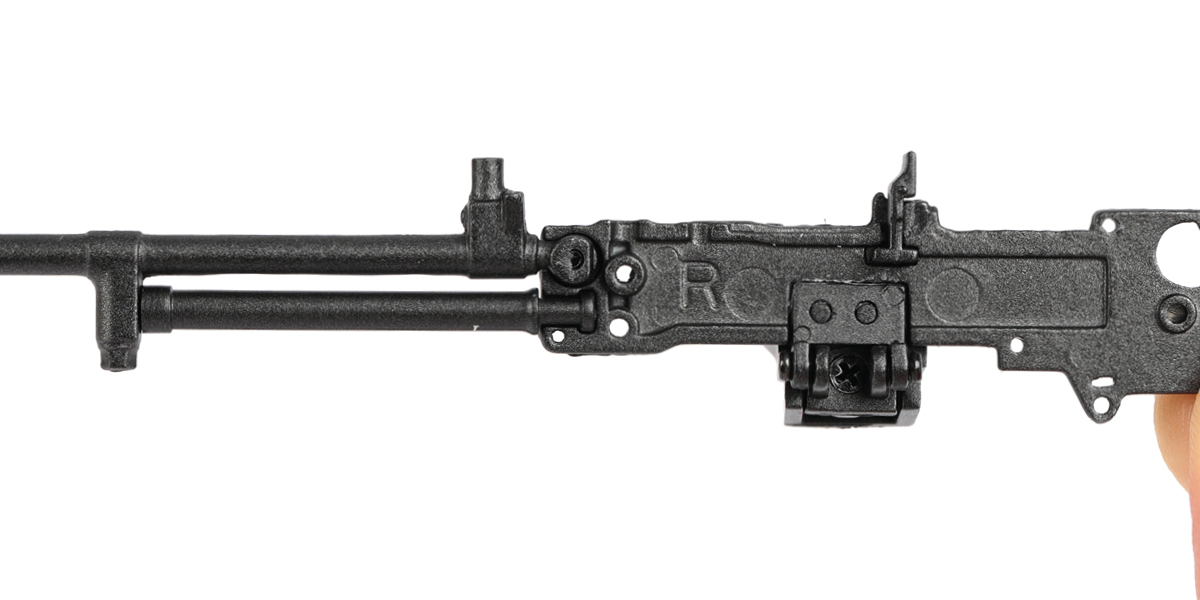

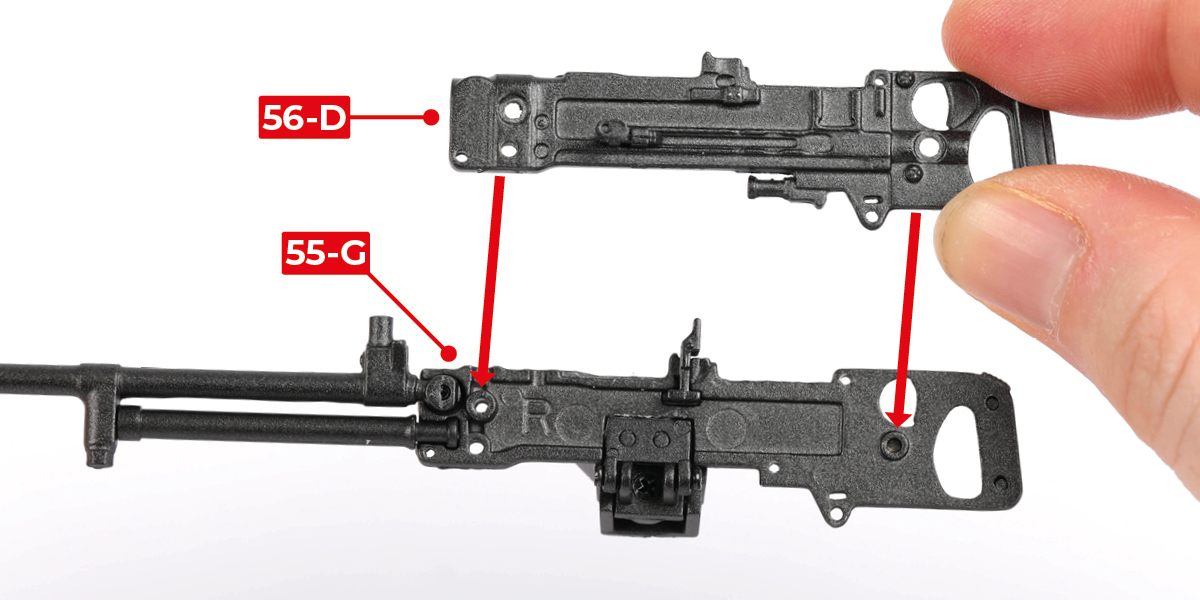

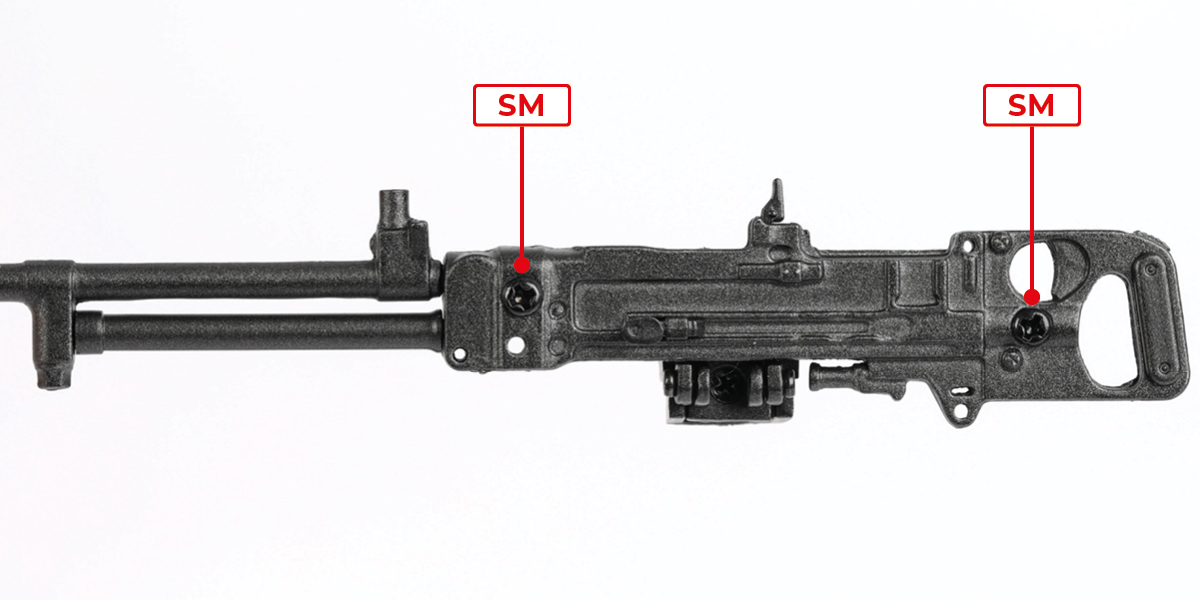

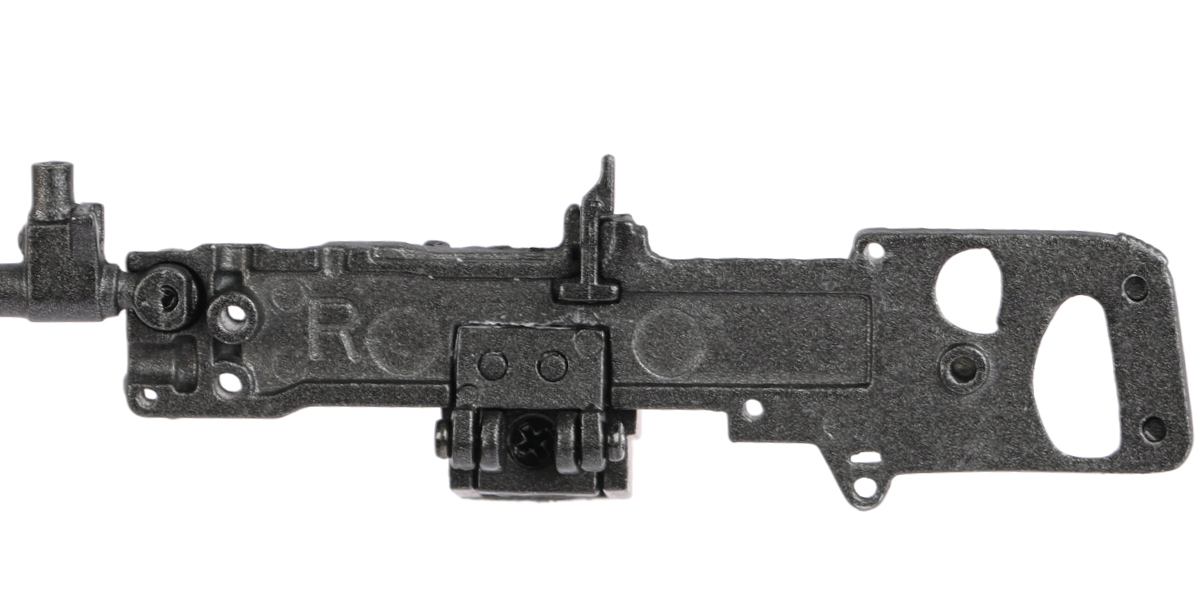

      Fit part 56-D to part 55-G with 2 SM screws.

      a
      b

      Step 9

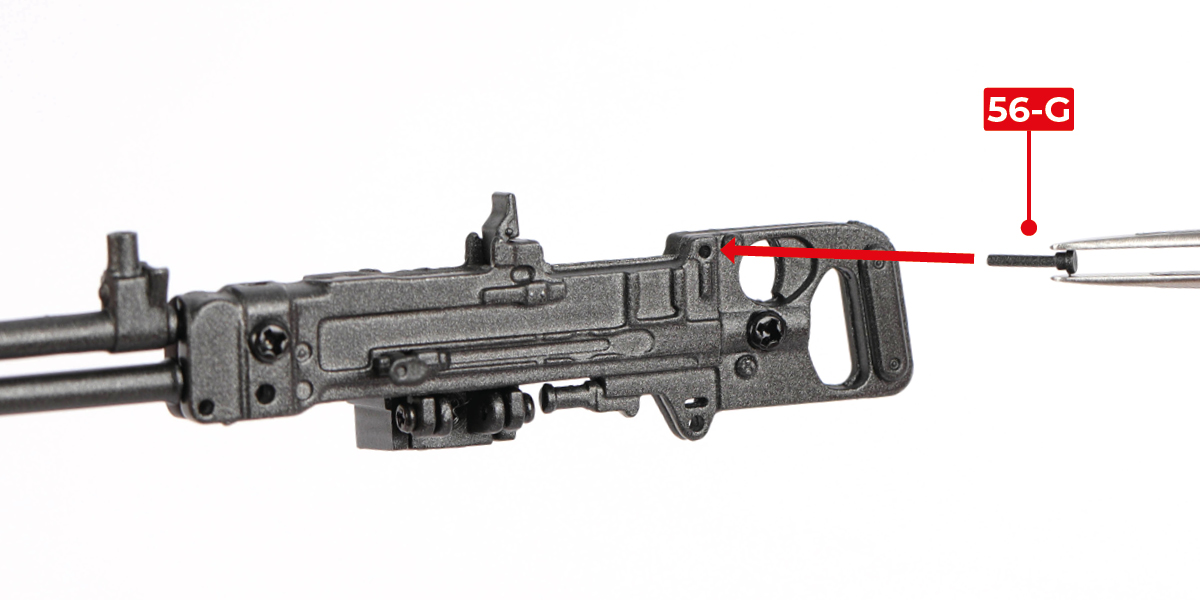

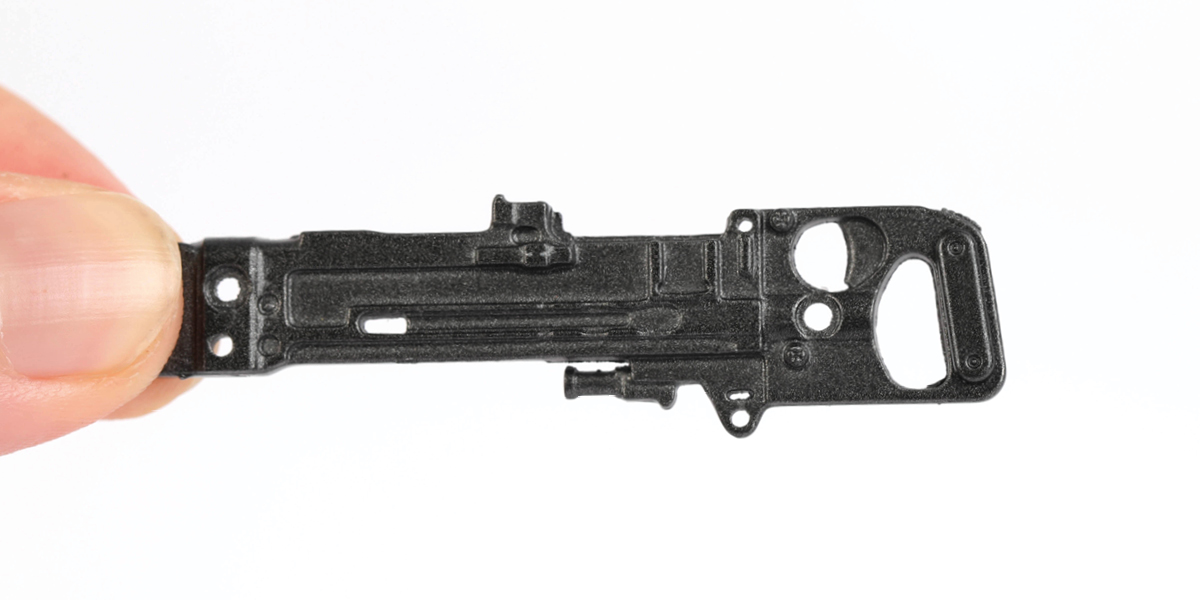

      Fit part 56-G into the assembly.

      a
      b

      Step 10

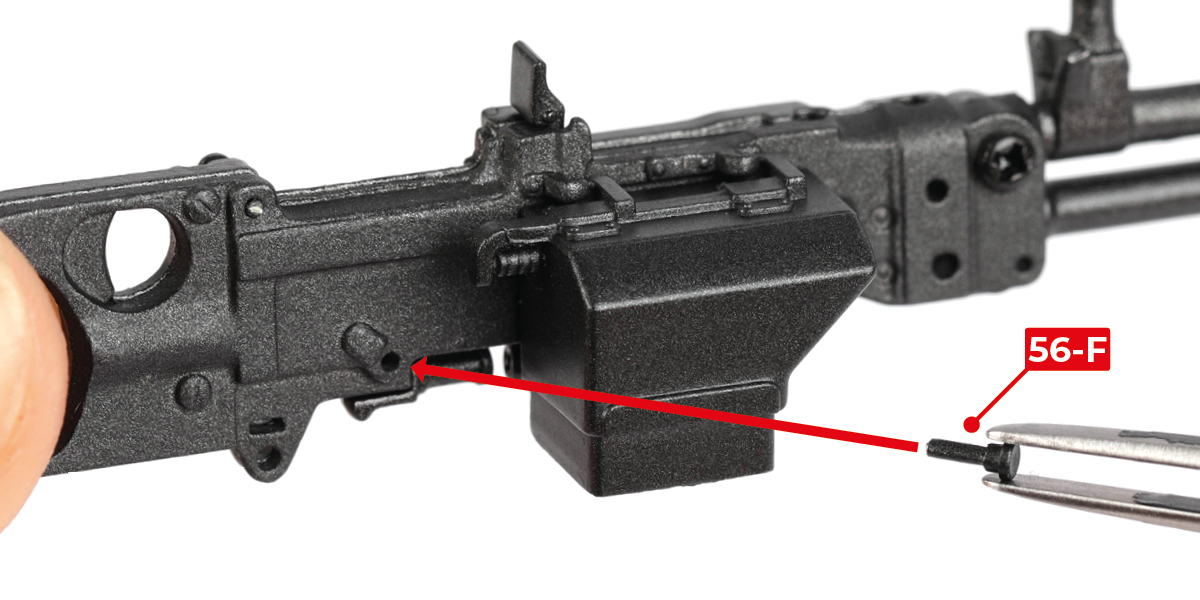

      Fit part 56-F into the assembly.

      a
      b

      Step 11

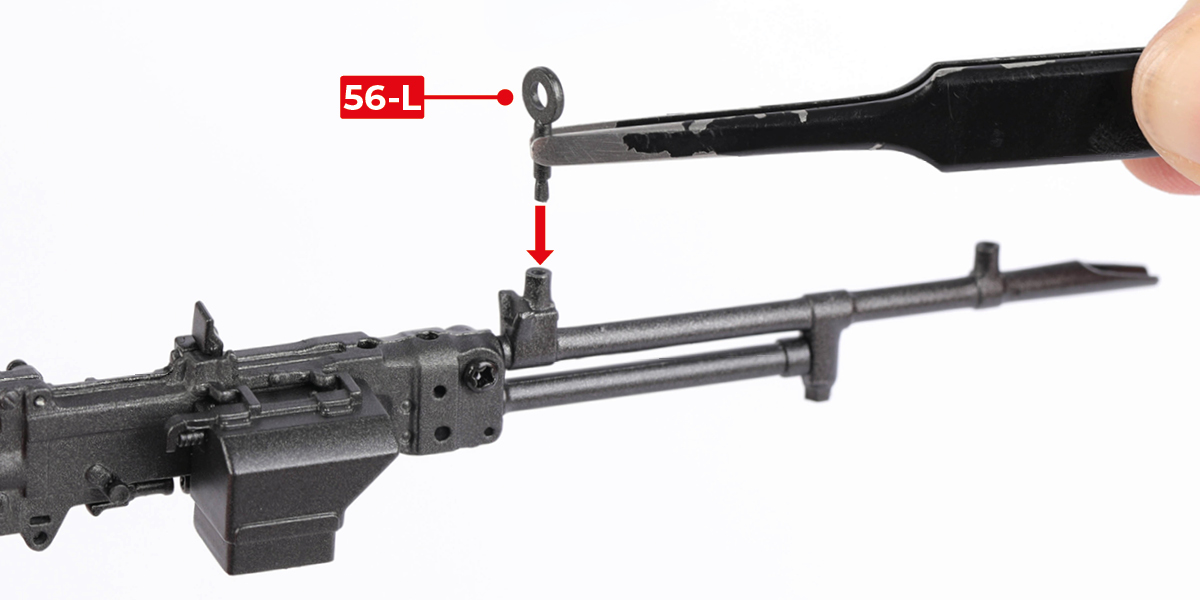

      Fit part 56-L to the assembly.

      a
      b

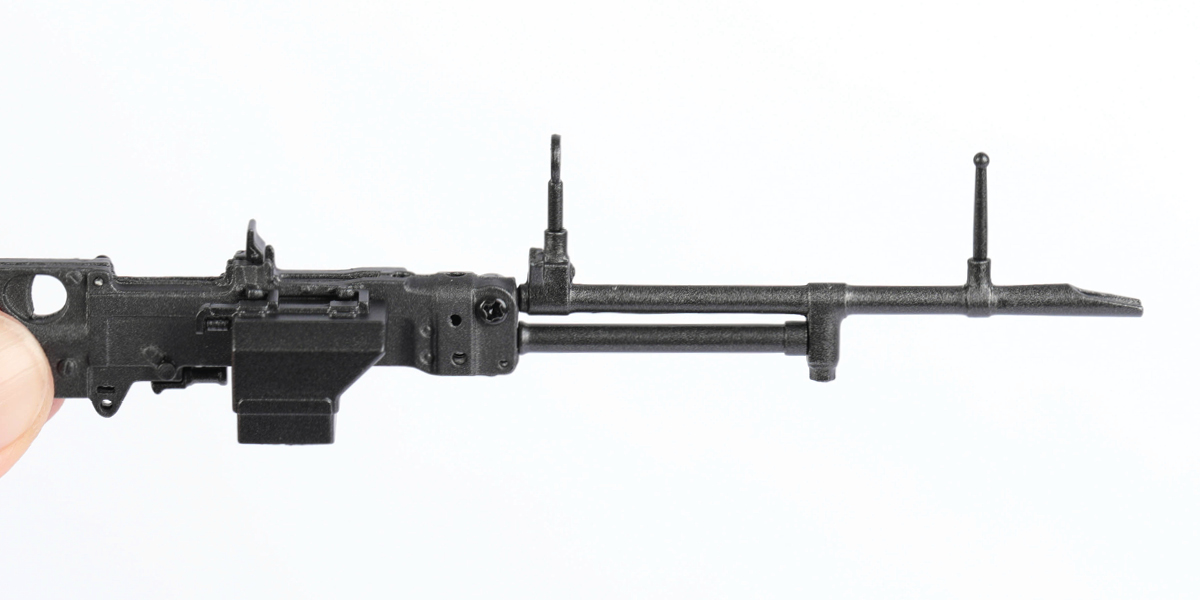

      Step 12

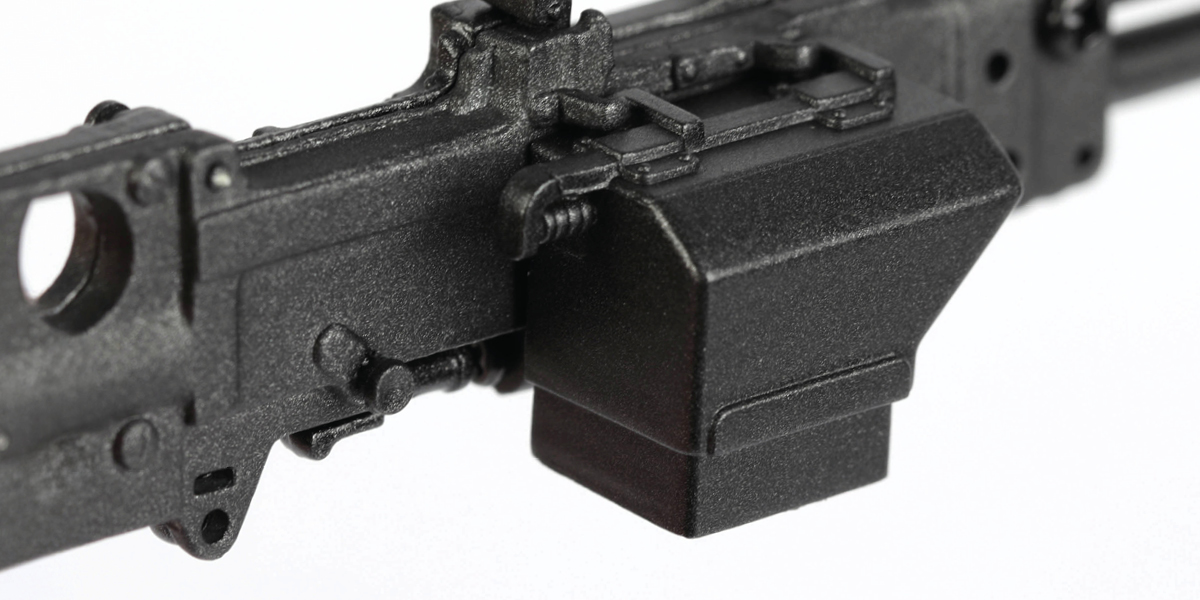

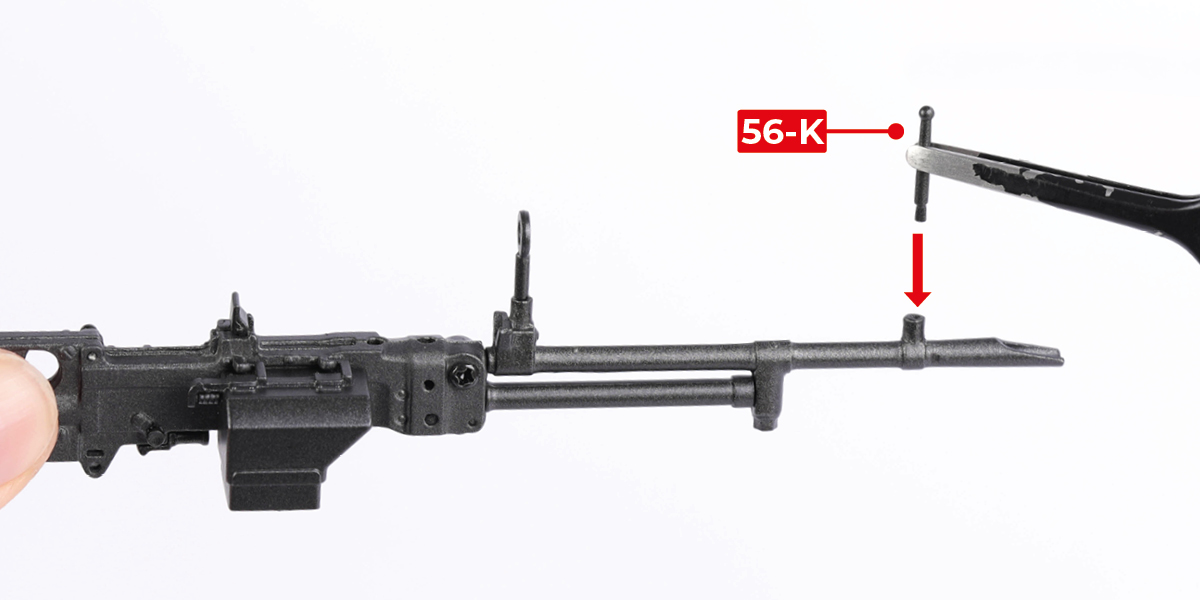

      Fit part 56-K to the assembly.

      a
      b

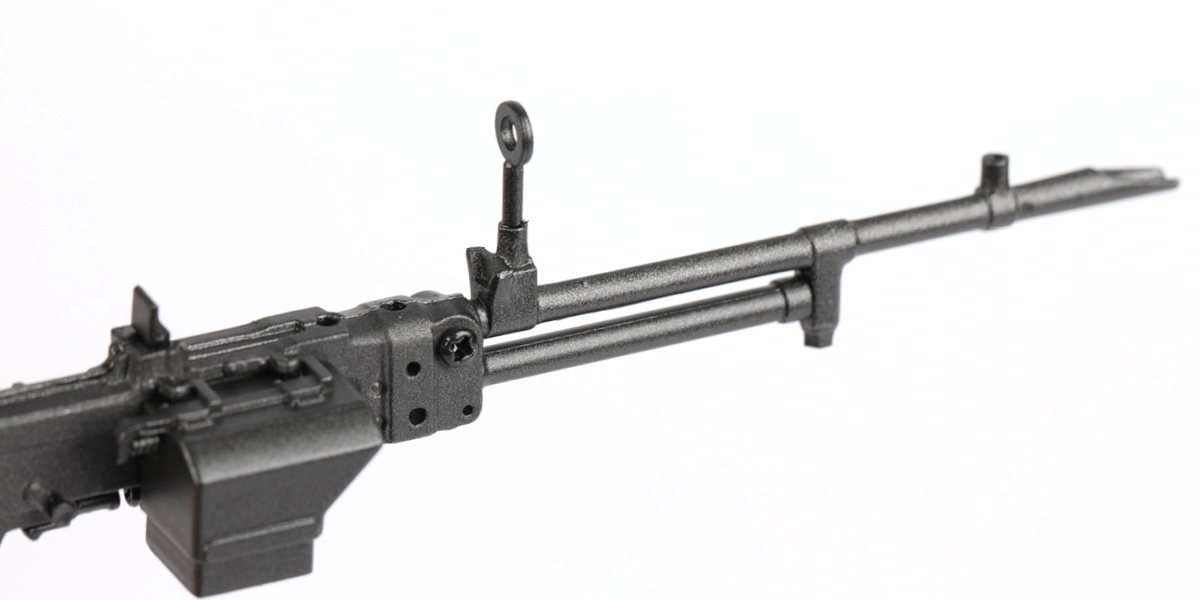

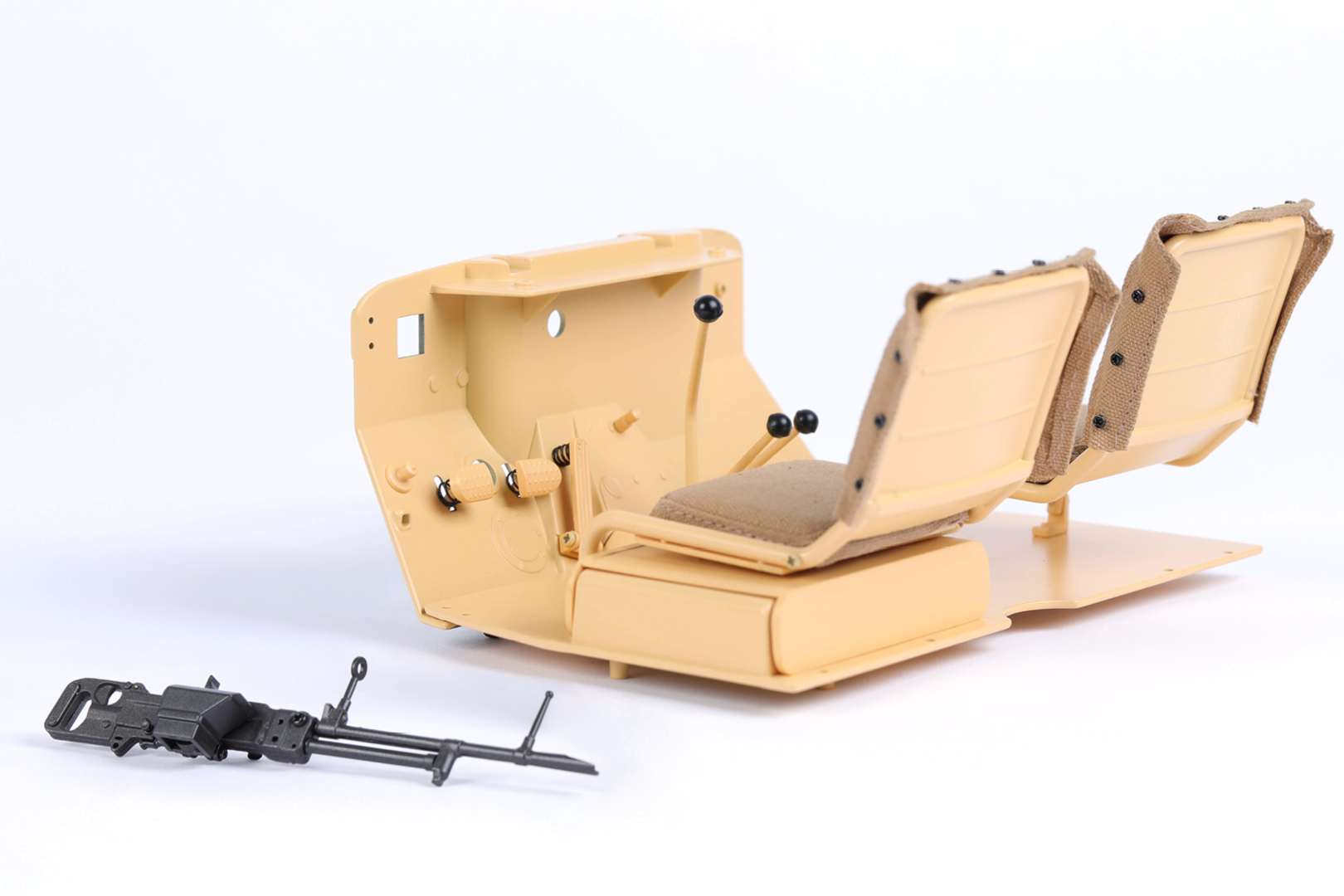

      STAGE COMPLETE

      Stage 57: Fitting the air cleaner and the pan magazine

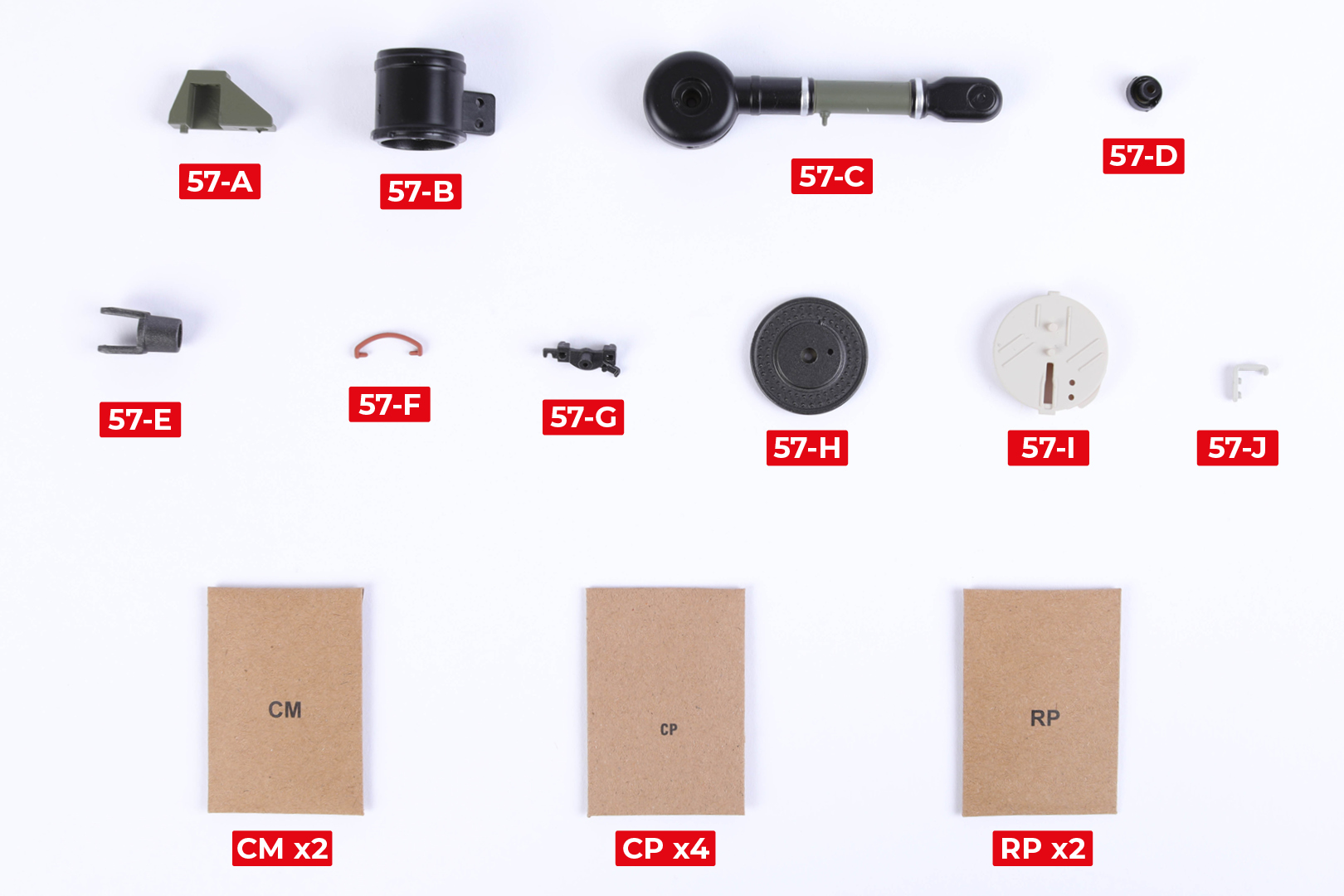

      STAGE 57 PARTS

      Step 1

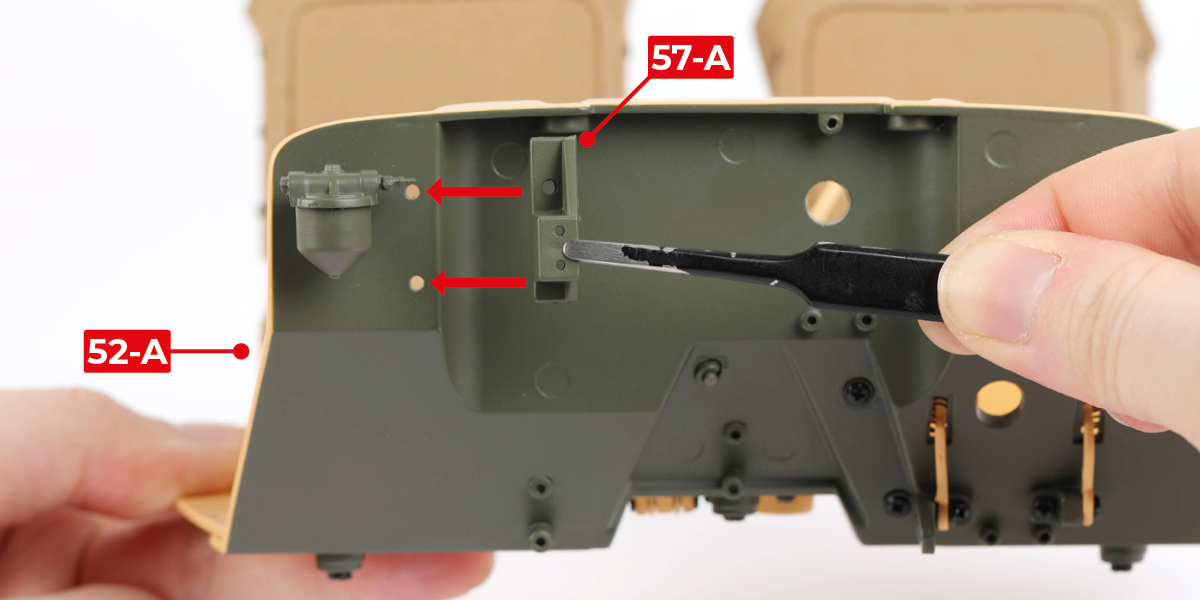

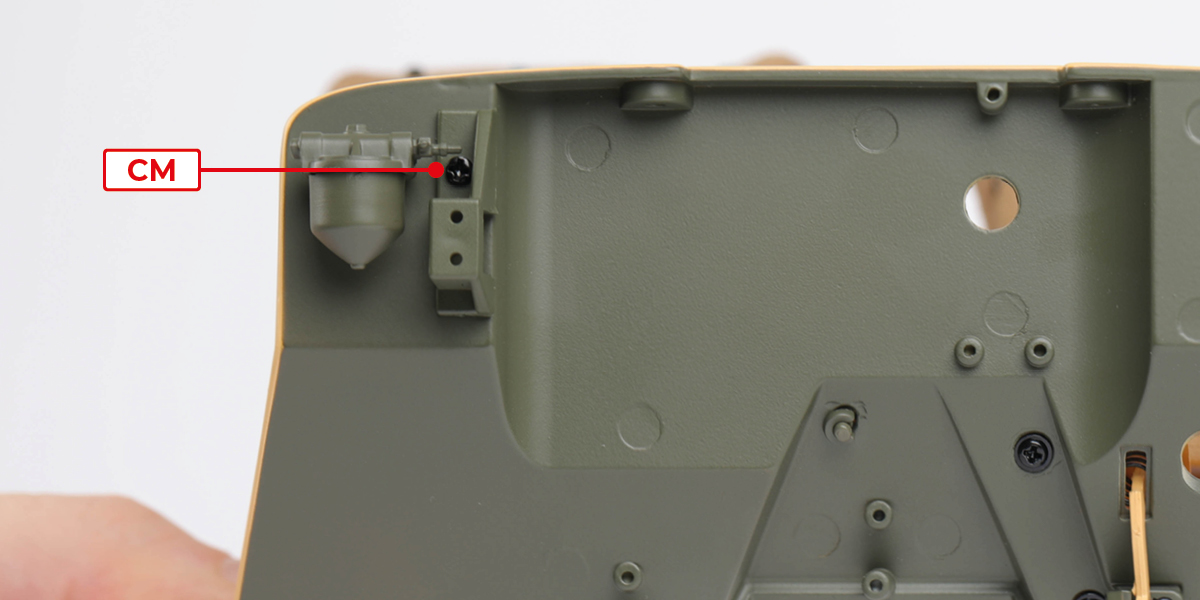

      Fit part 57-A to part 52-A with 1 CM screw.

      a
      b

      Step 2

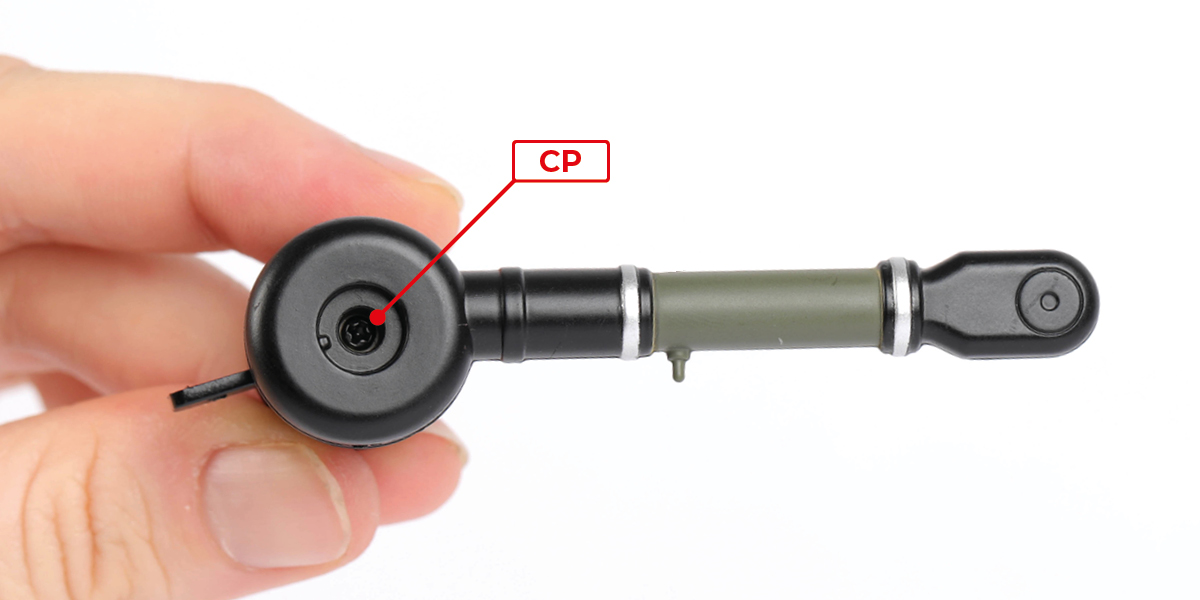

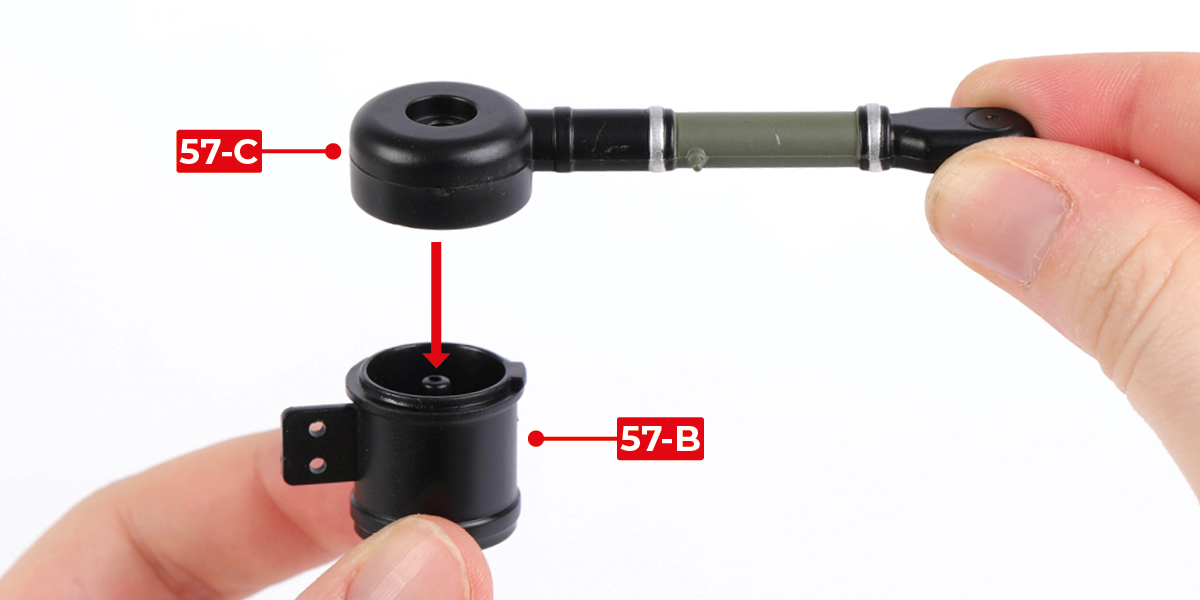

      Fit part 57-C to part 57-B with 1 CP screw.

      a
      b

      Step 3

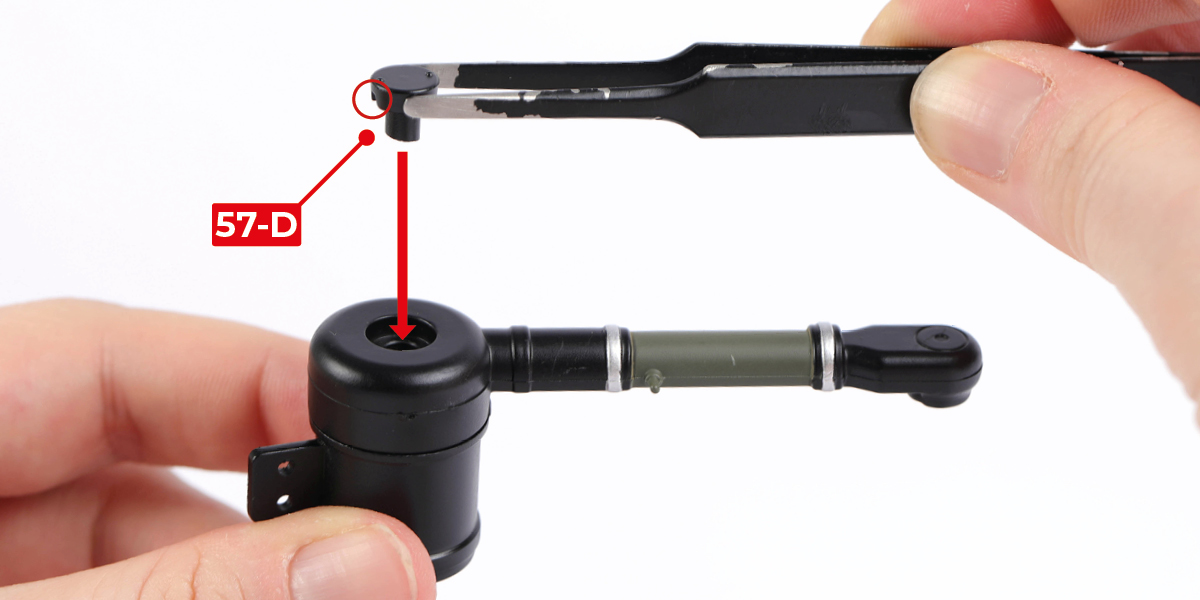

      Fit part 57-D into part 57-C. The circled notch shows the correct orientation.

      a
      b

      Step 4

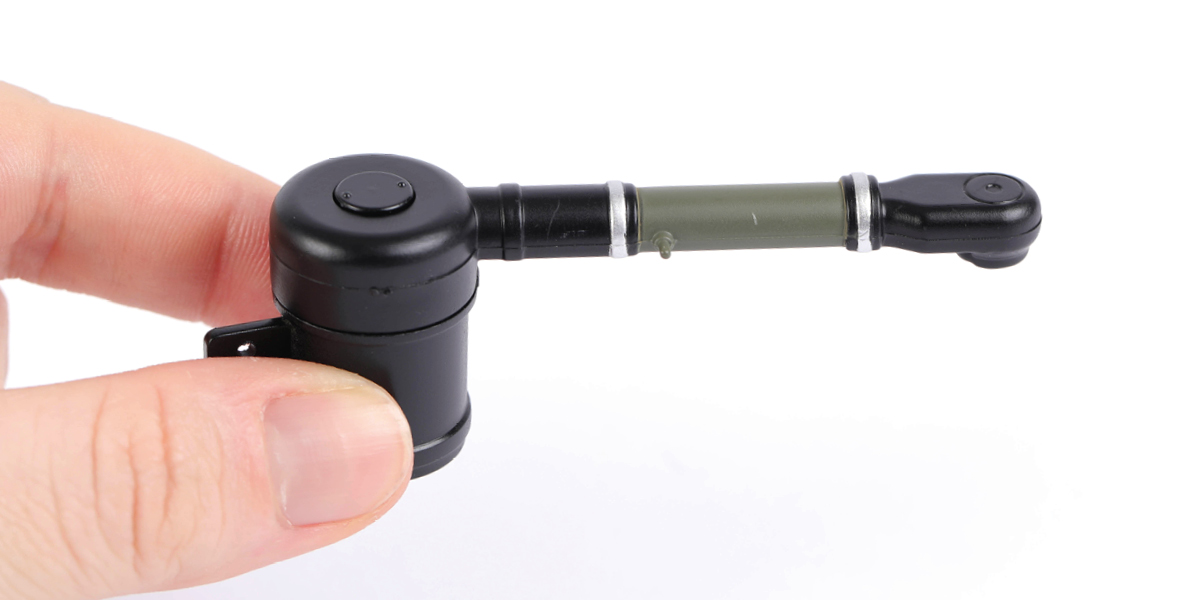

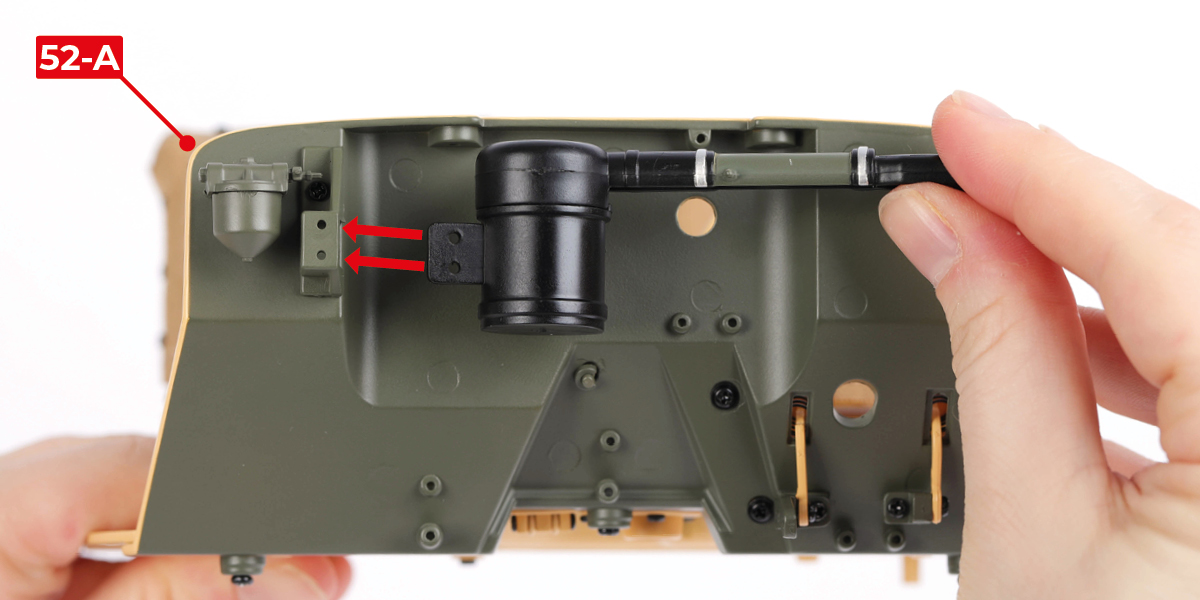

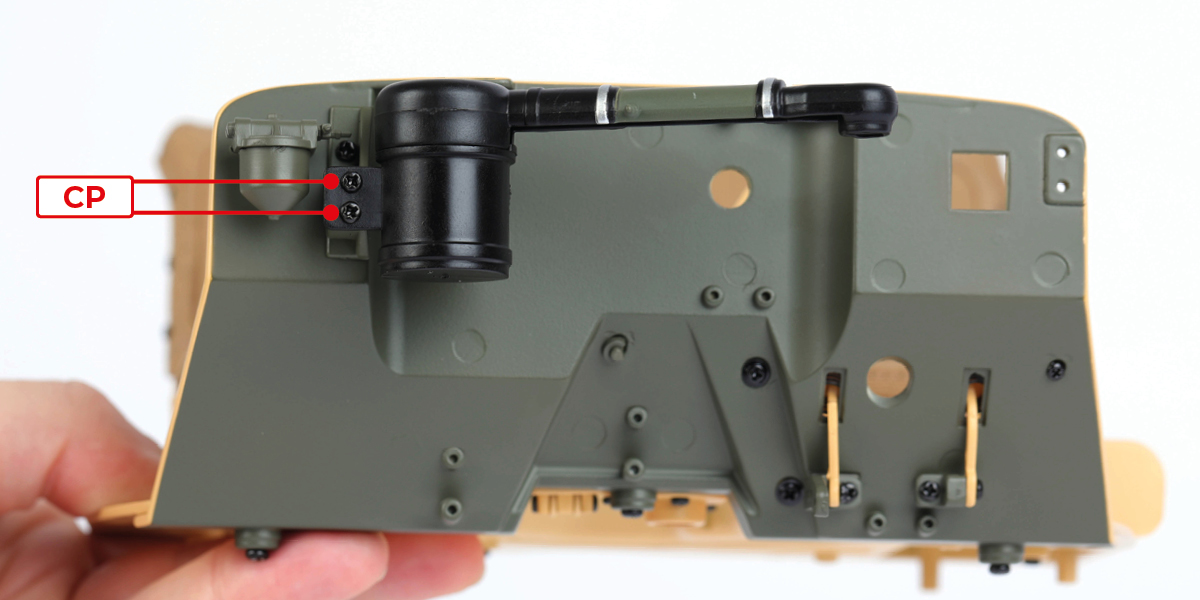

      Fit the air cleaner assembly to part 52-A with 2 CP screws.

      a
      b

      Step 5

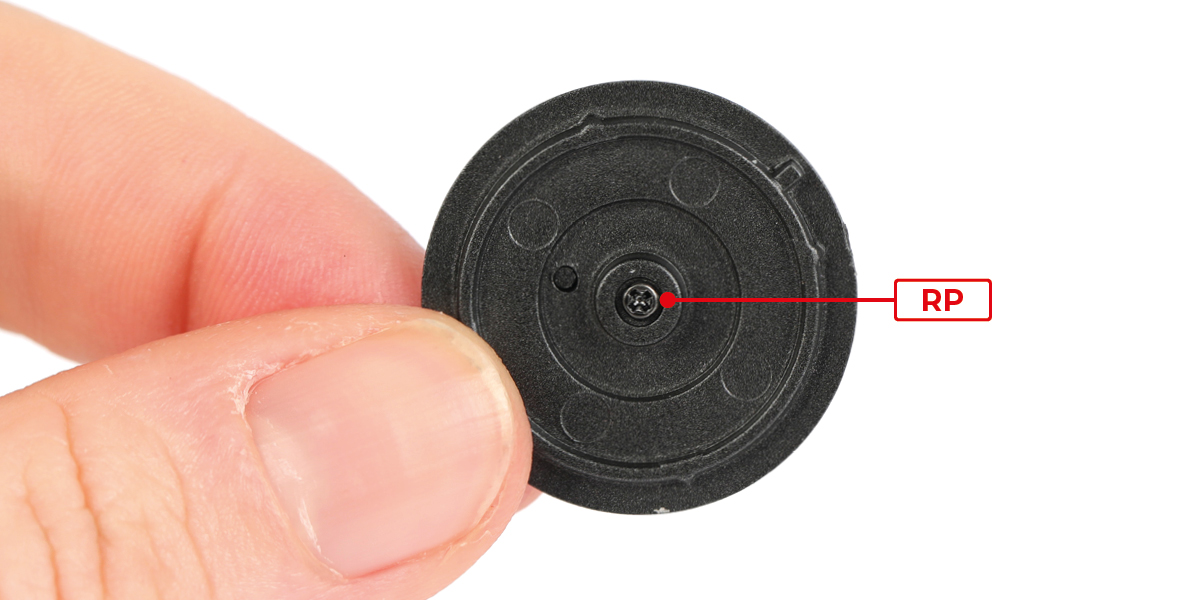

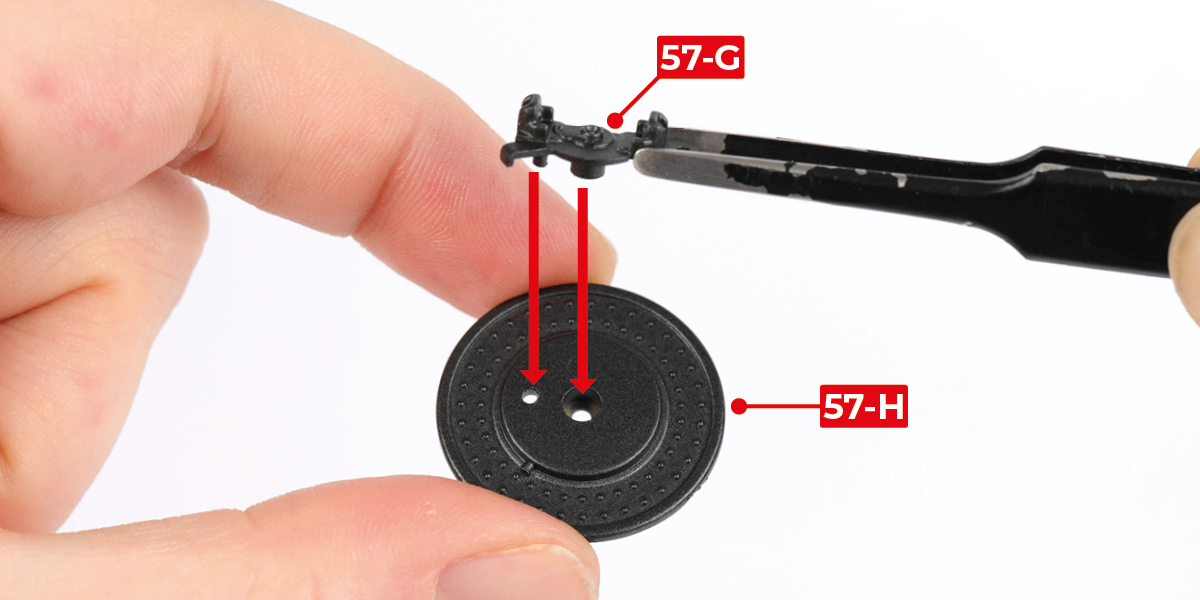

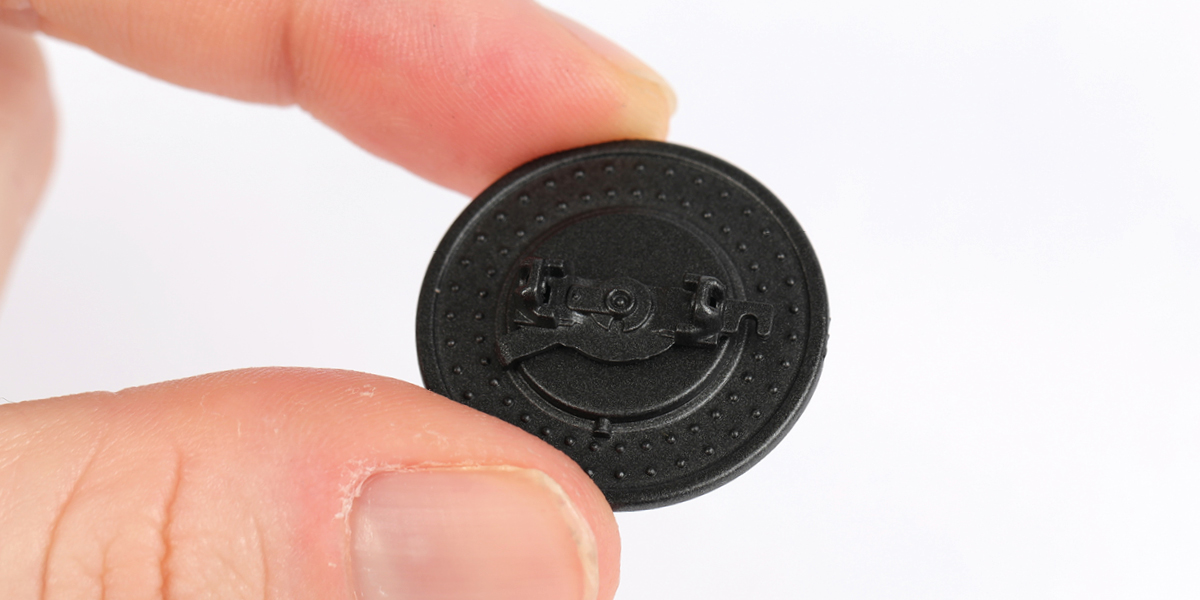

      Fit part 57-G to part 57-H with 1 RP screw.

      a
      b
      c

      Step 6

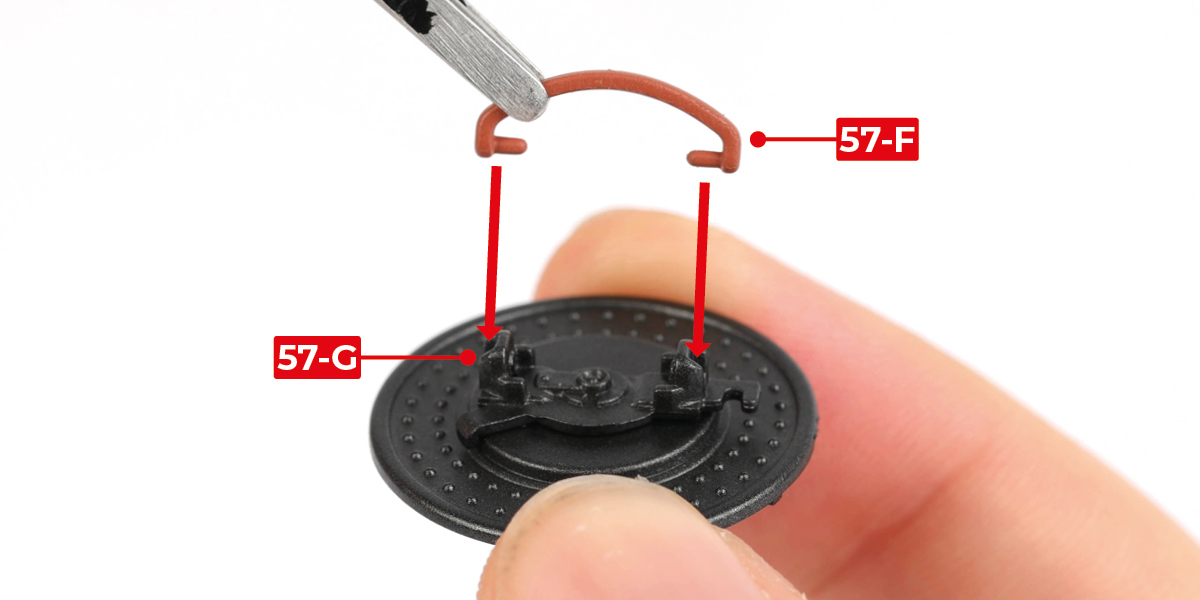

      Fit part 57-F to part 57-G.

      a
      b

      Step 7

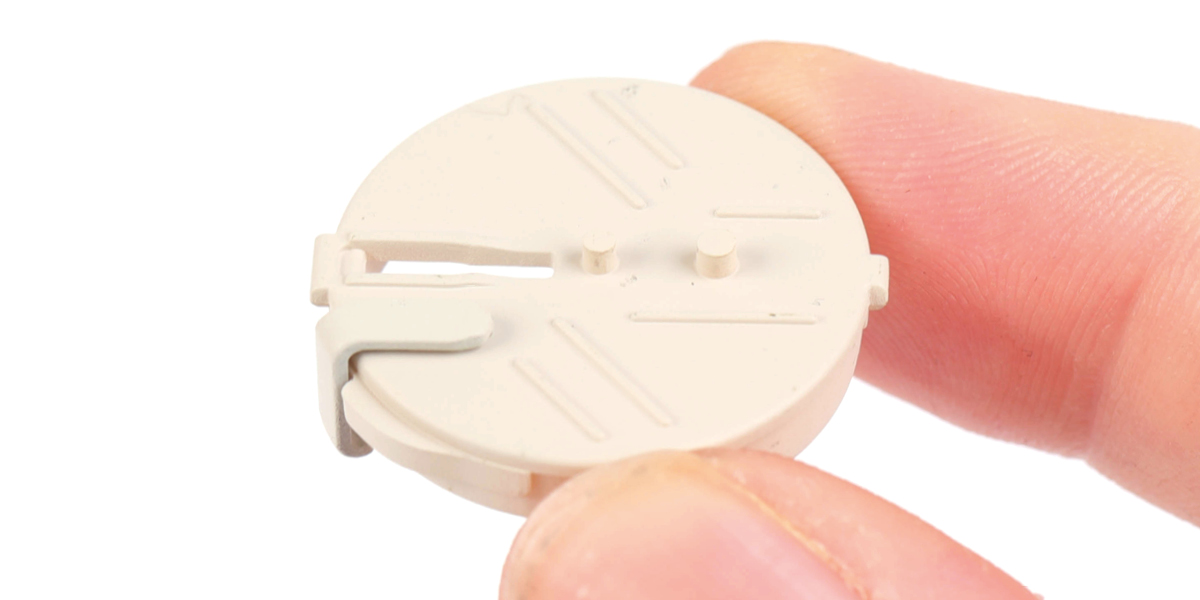

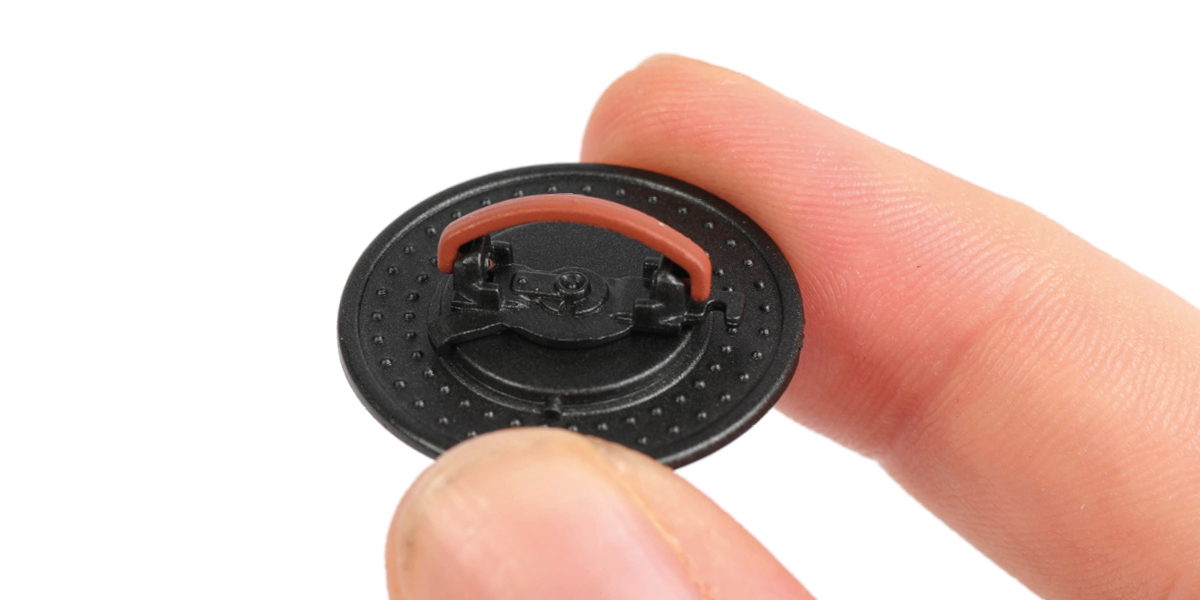

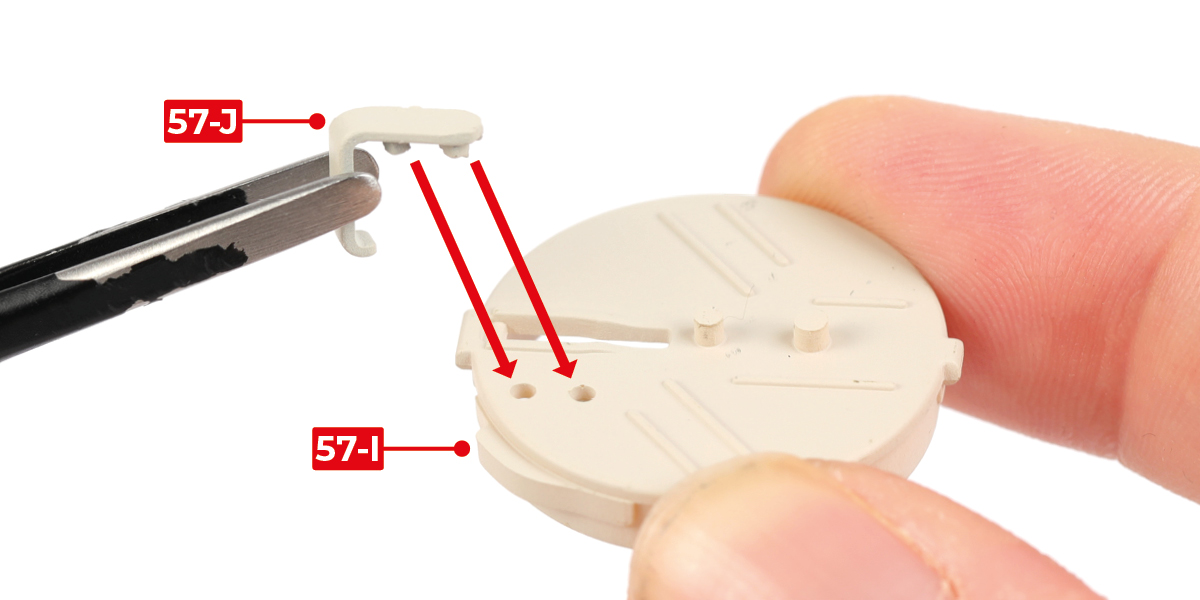

      Fit part 57-J to part 57-I.

      a
      b

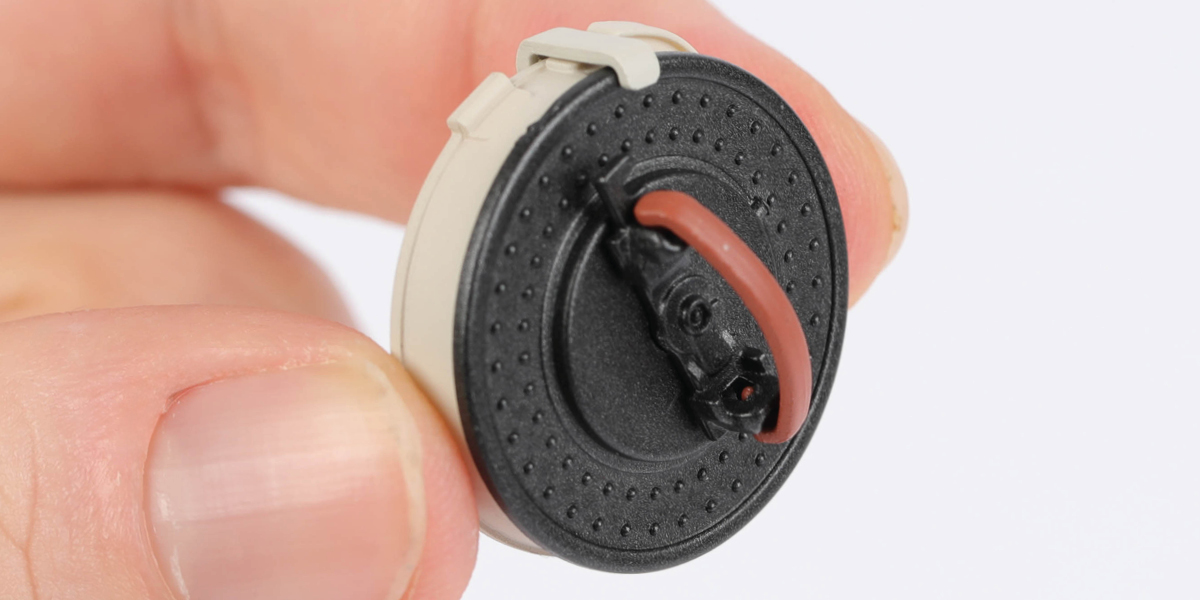

      Step 8

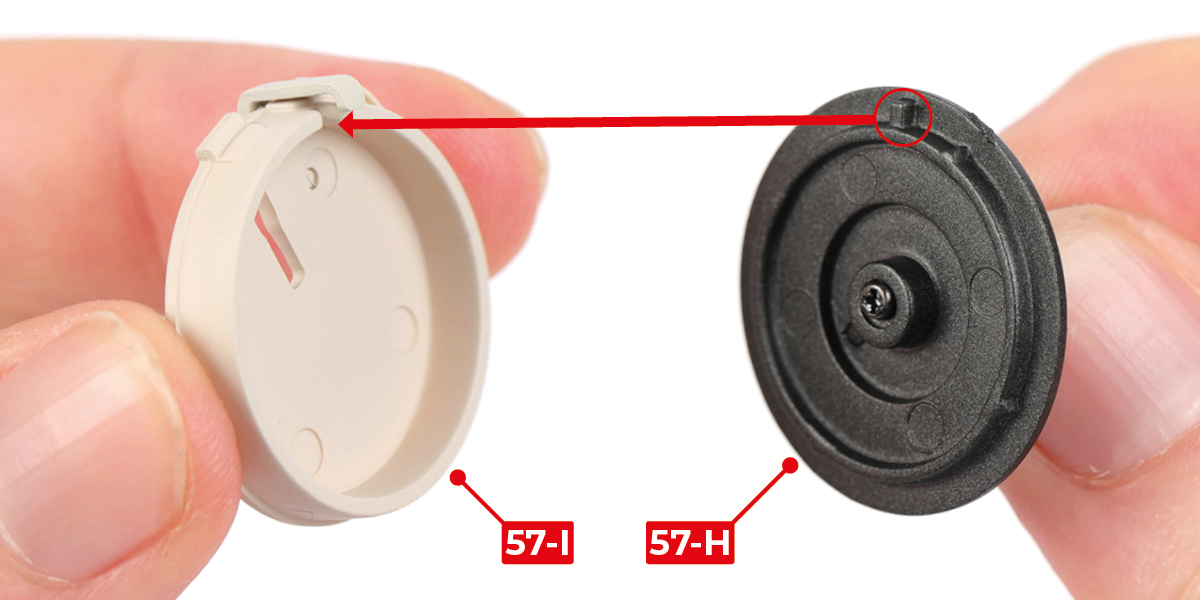

      Fit part 57-H to part 57-I. The circled notch shows the correct orientation.

      You may prefer to fit part 57-H after the cartridges have been added (see stage 58, step 10).

      a
      b

      Step 9

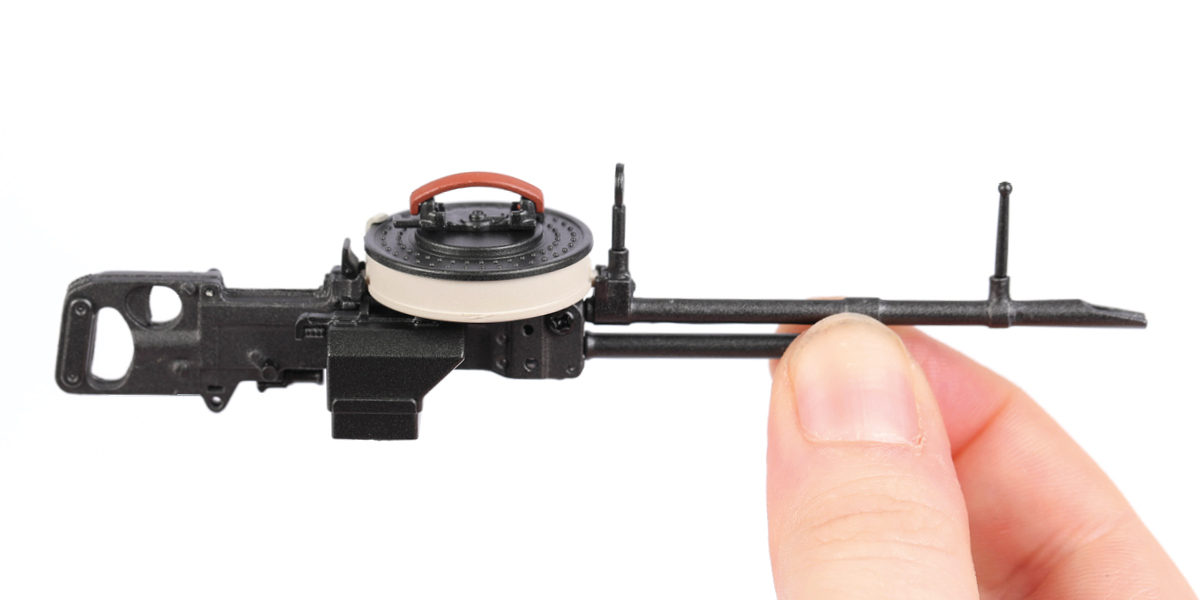

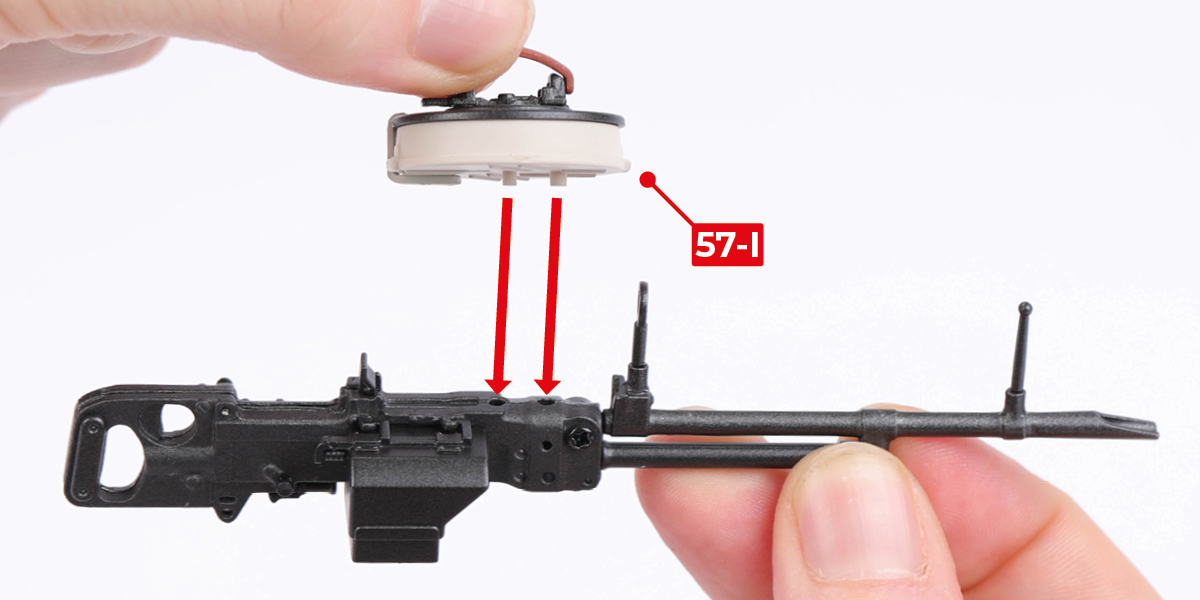

      Fit part 57-I to the machine gun assembly (stage 56).

      a
      b

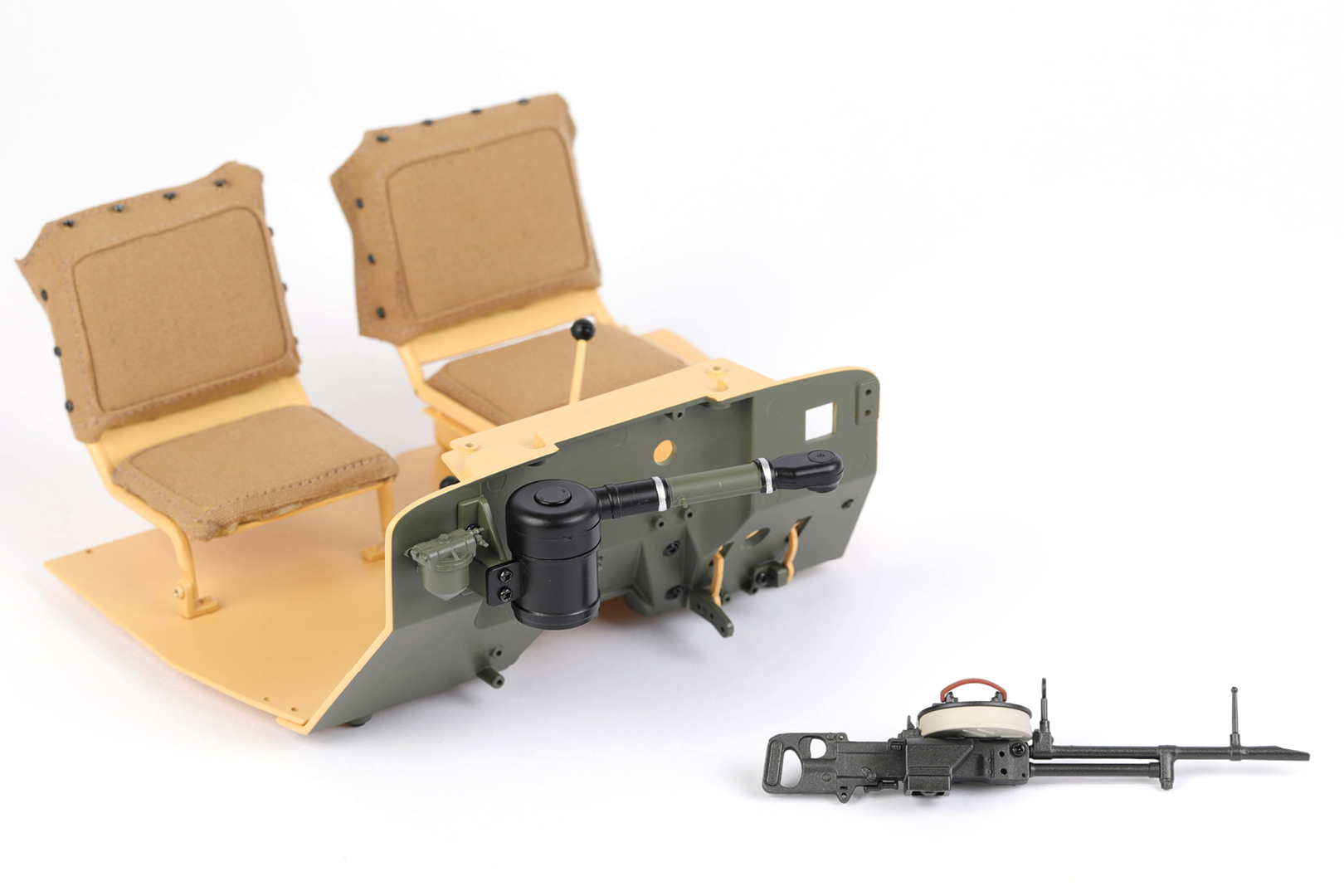

      STAGE COMPLETE

      Stage 58: Fitting a machine gun mount and inserting cartridges

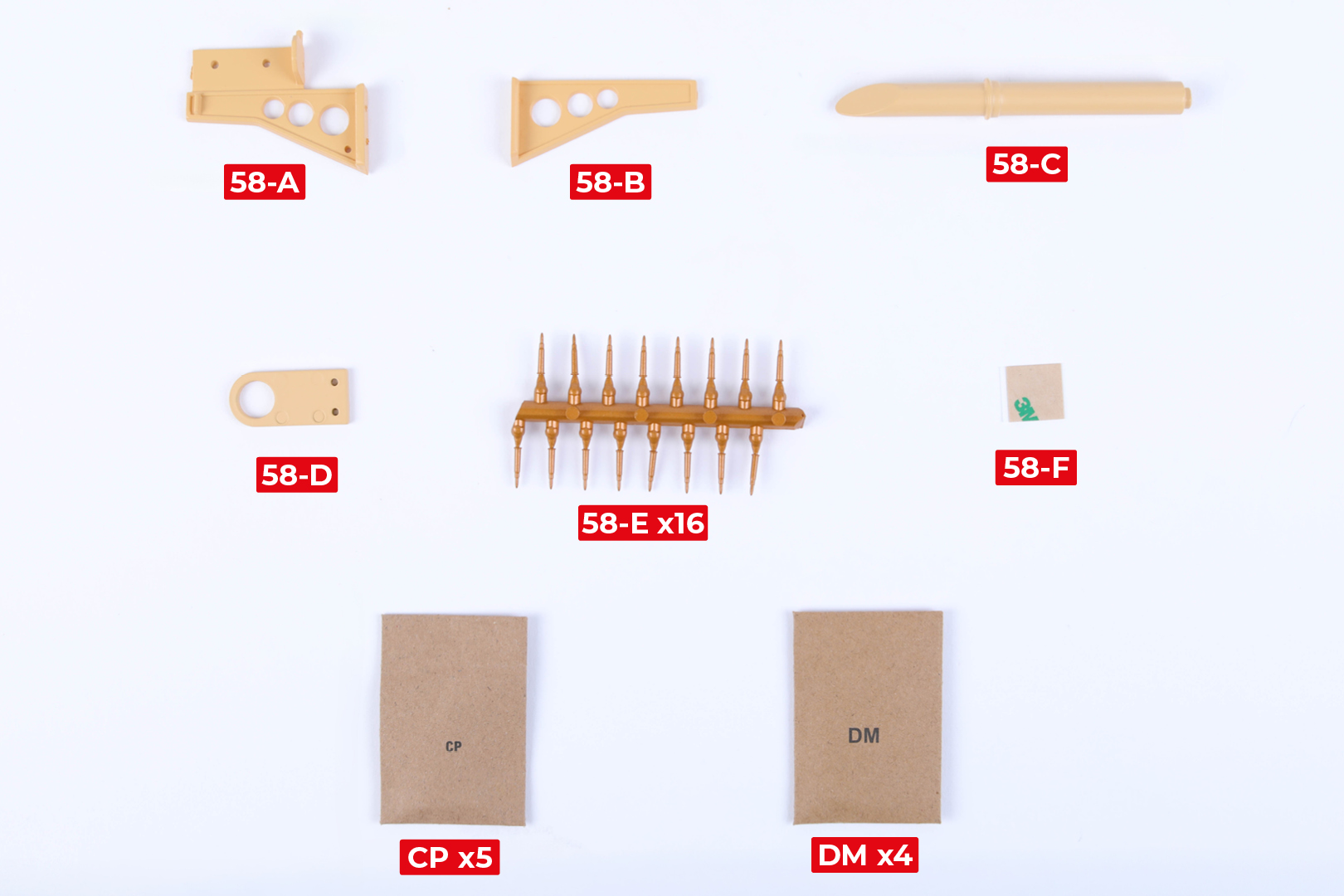

      STAGE 58 PARTS

      Step 1

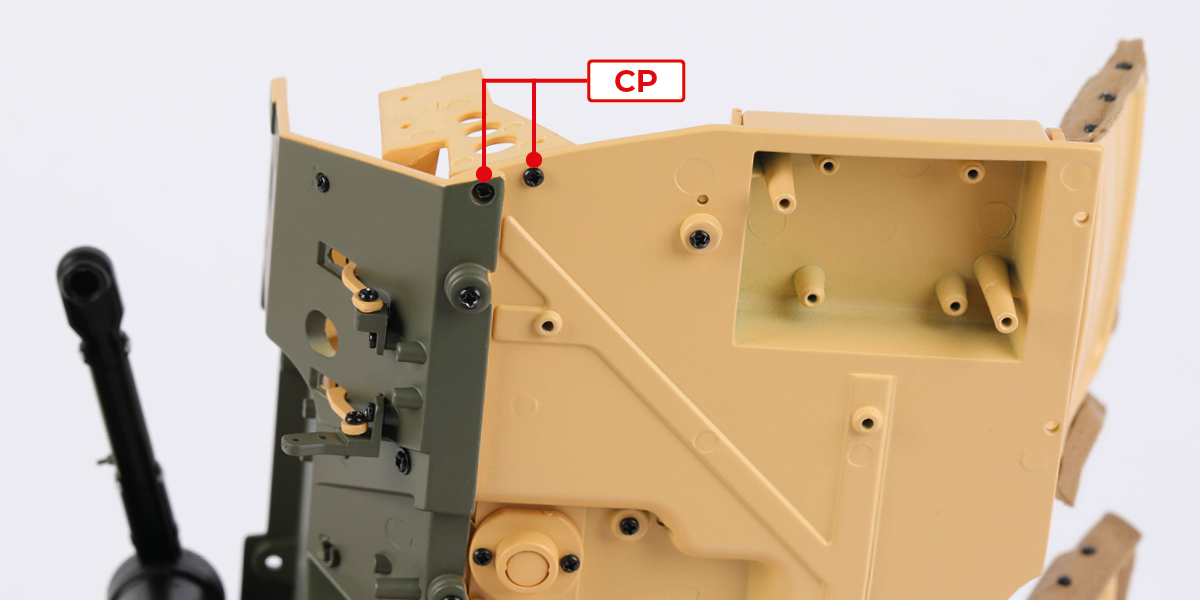

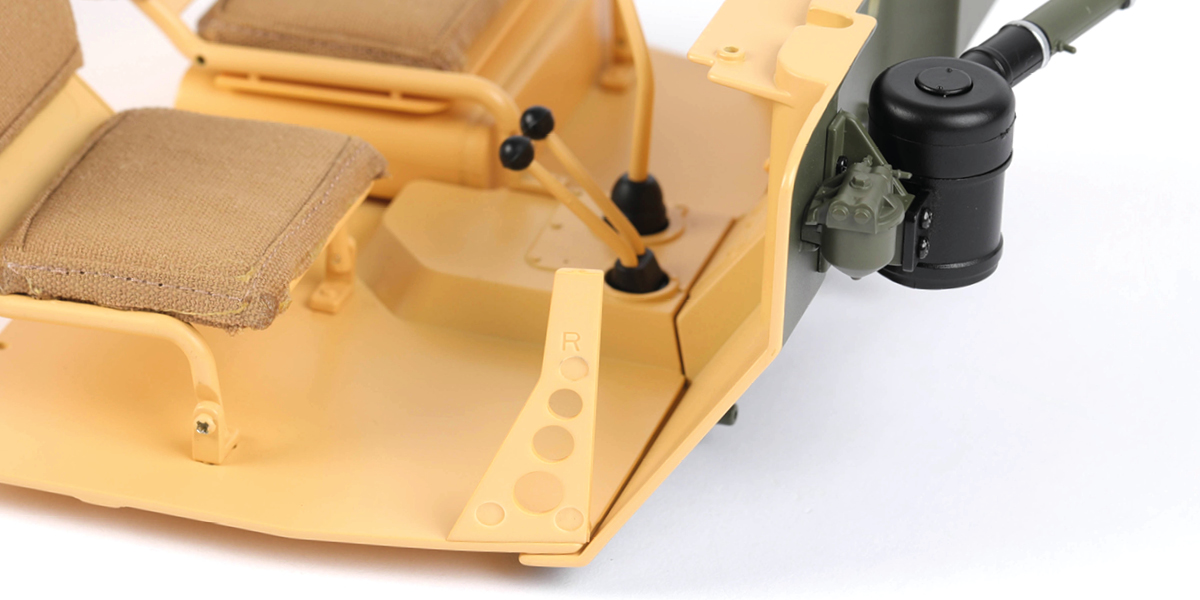

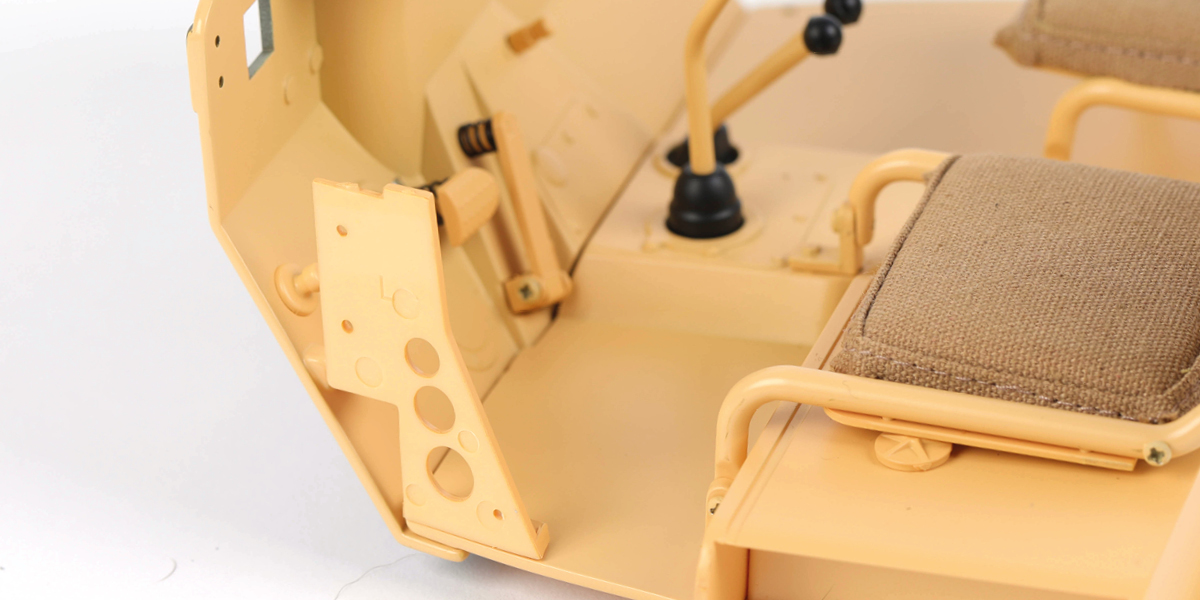

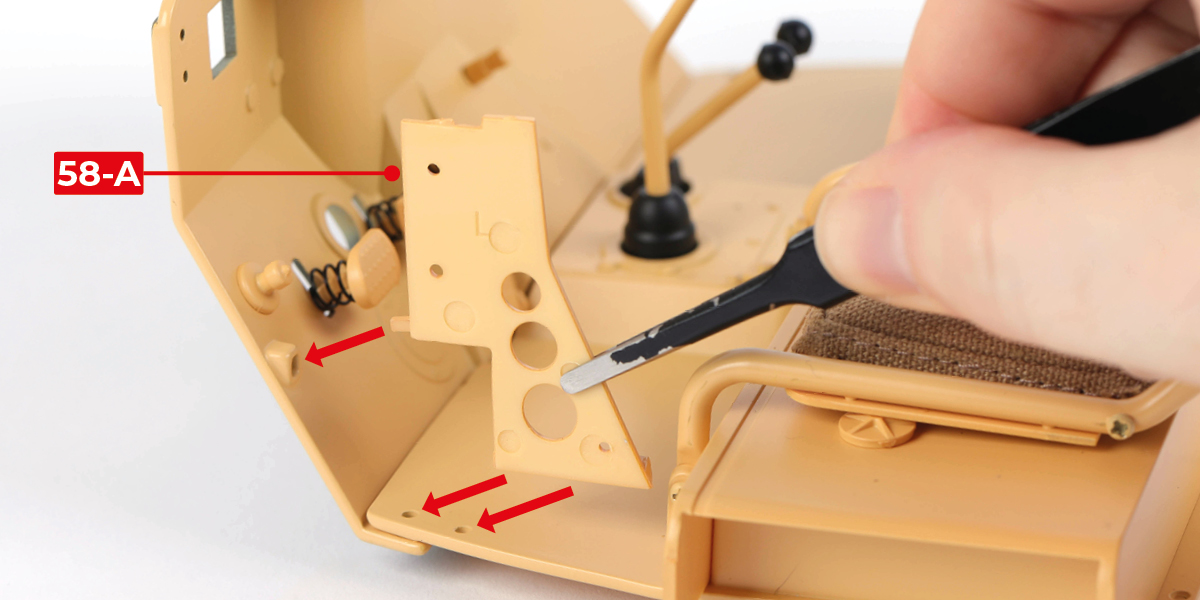

      Fit part 58-A to the cockpit assembly (stage 57) with 2 CP screws.

      a
      b
      c

      Step 2

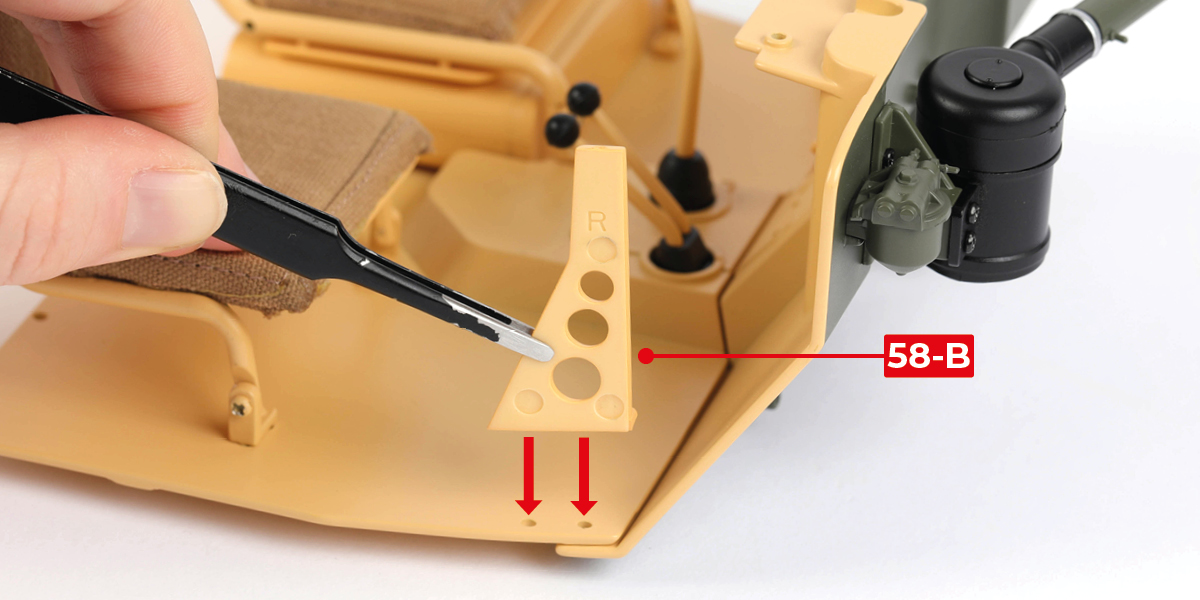

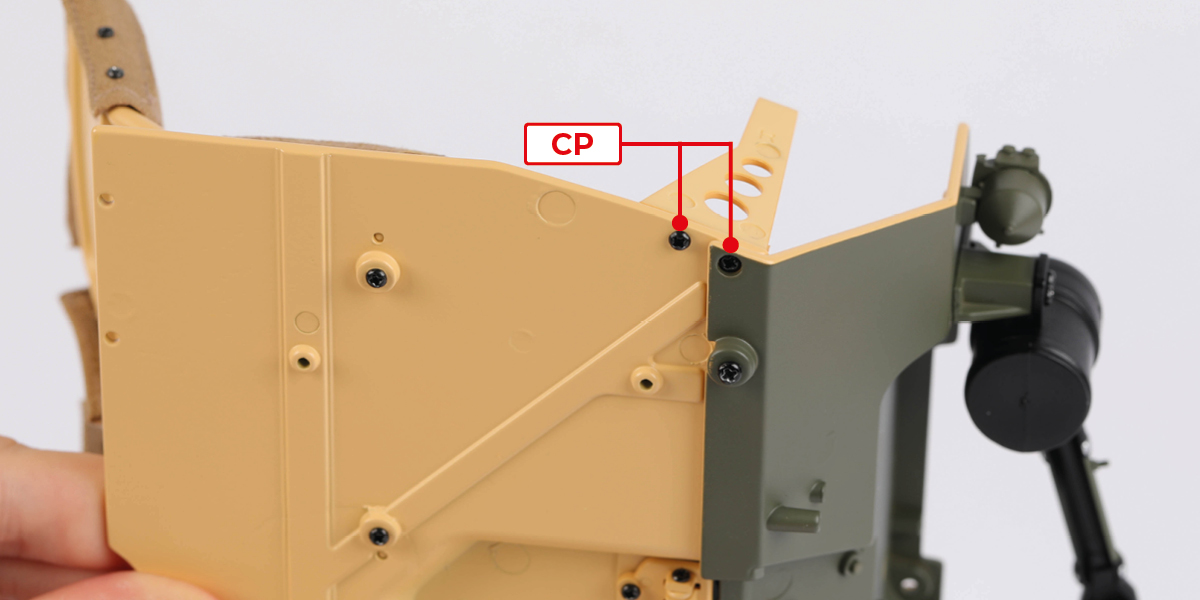

      Fit part 58-B to the cockpit assembly with 2 CP screws.

      a
      b
      c

      Step 3

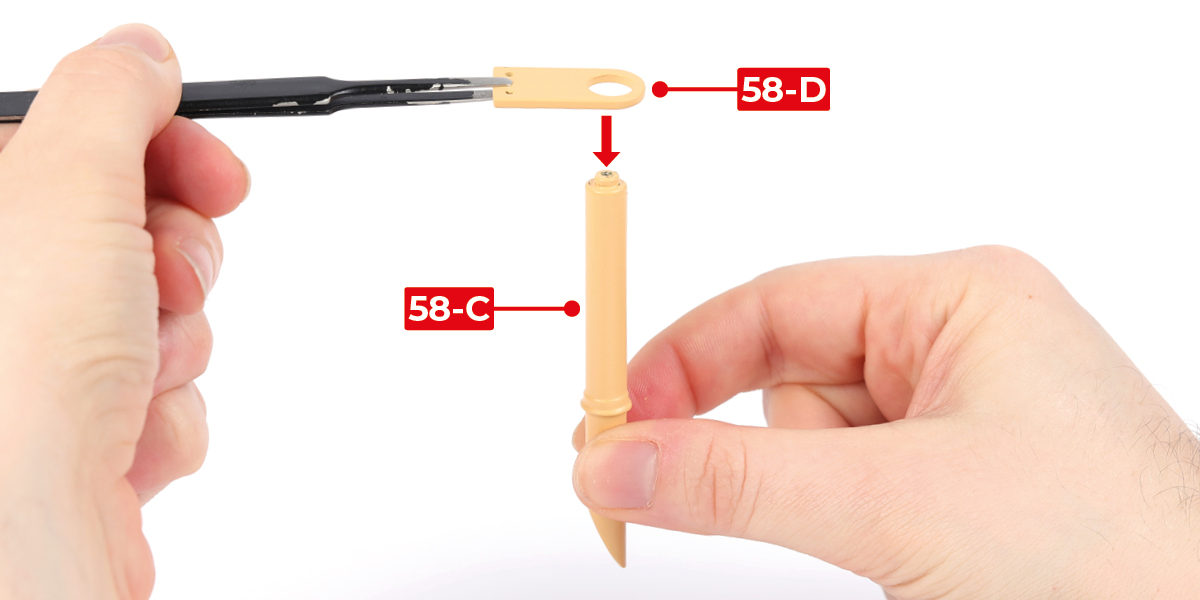

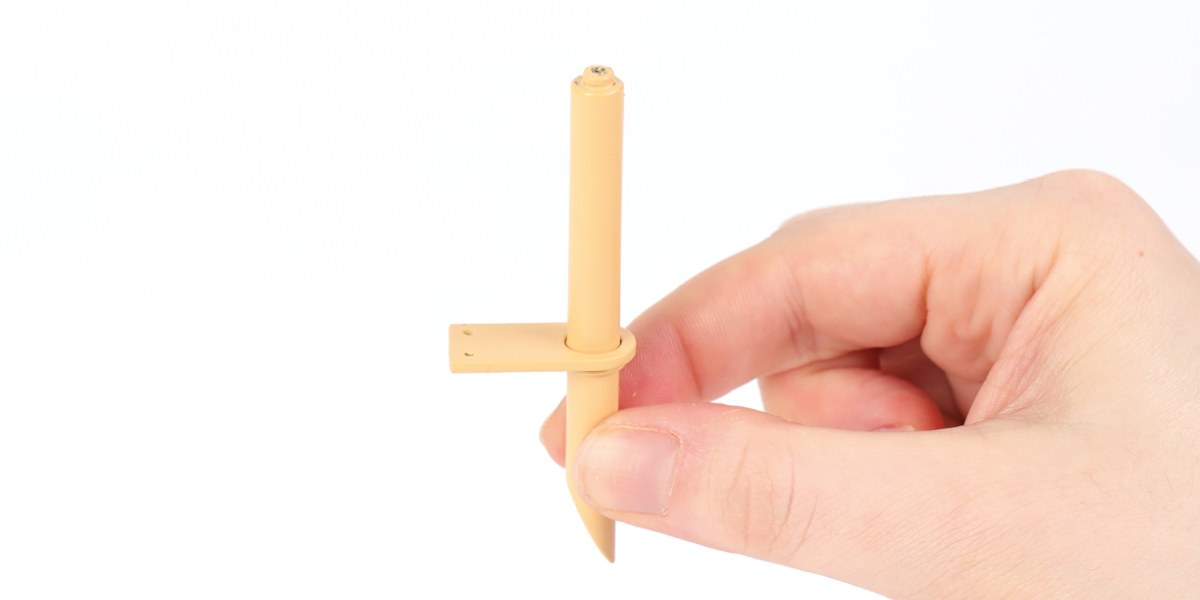

      Fit part 58-D onto part 58-C.

      a
      b

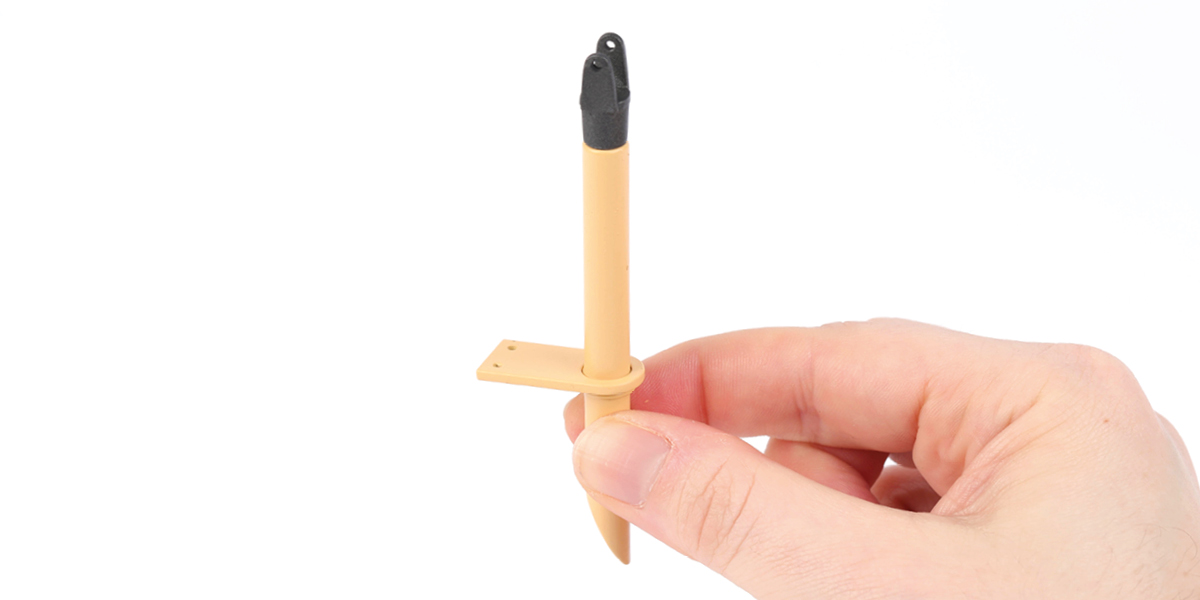

      Step 4

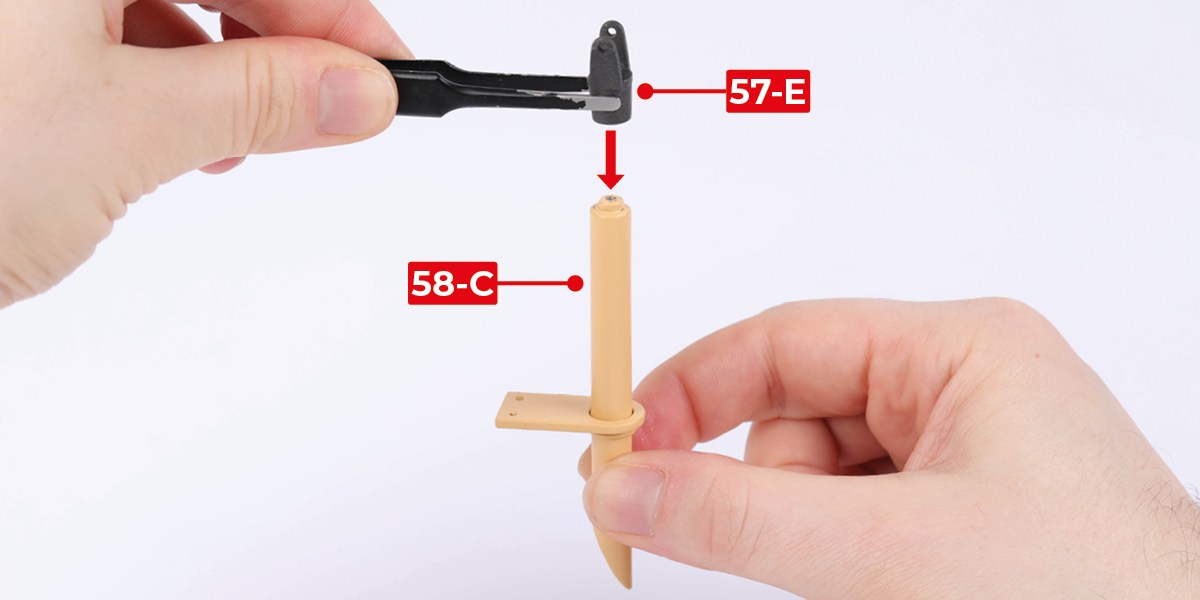

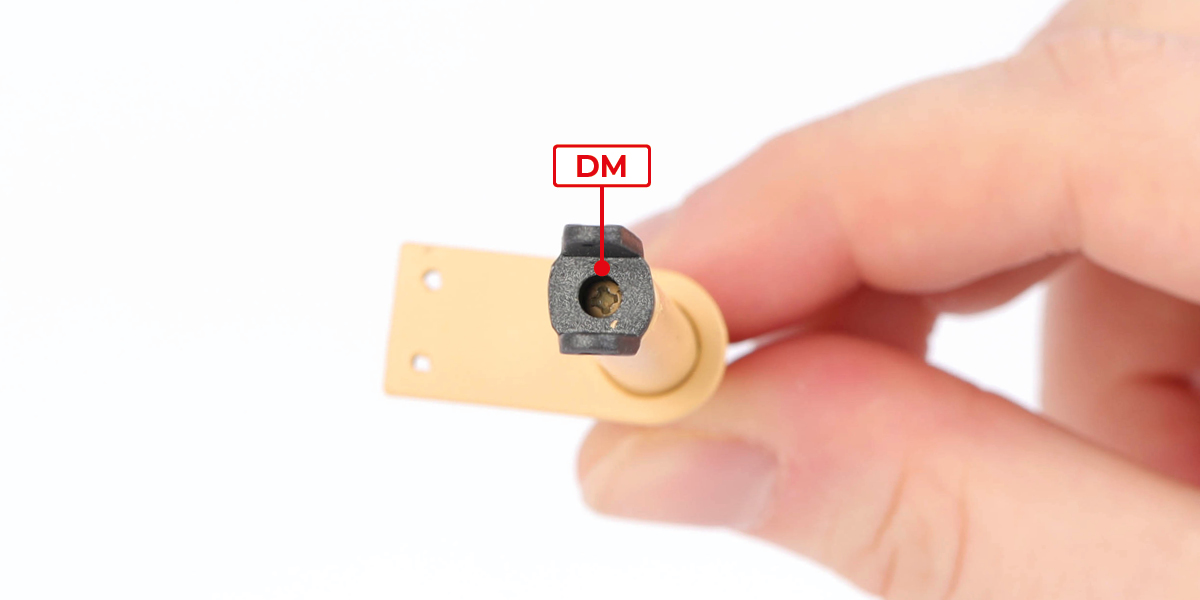

      Fit part 57-E (stage 57) to part 58-C with 1 DM screw.

      a
      b
      c

      Step 5

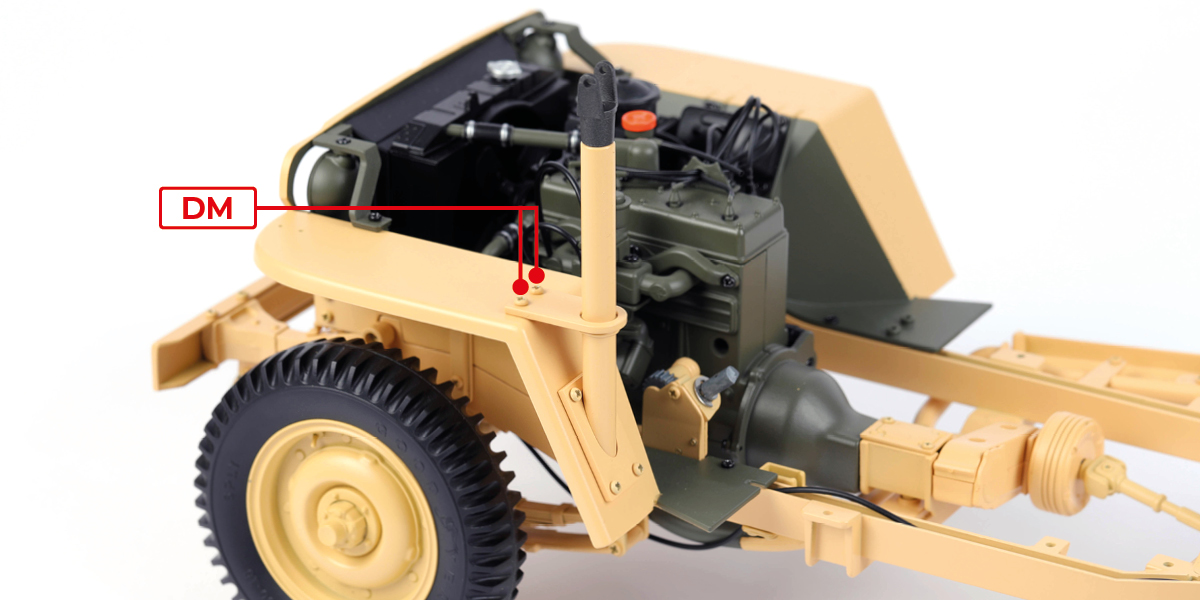

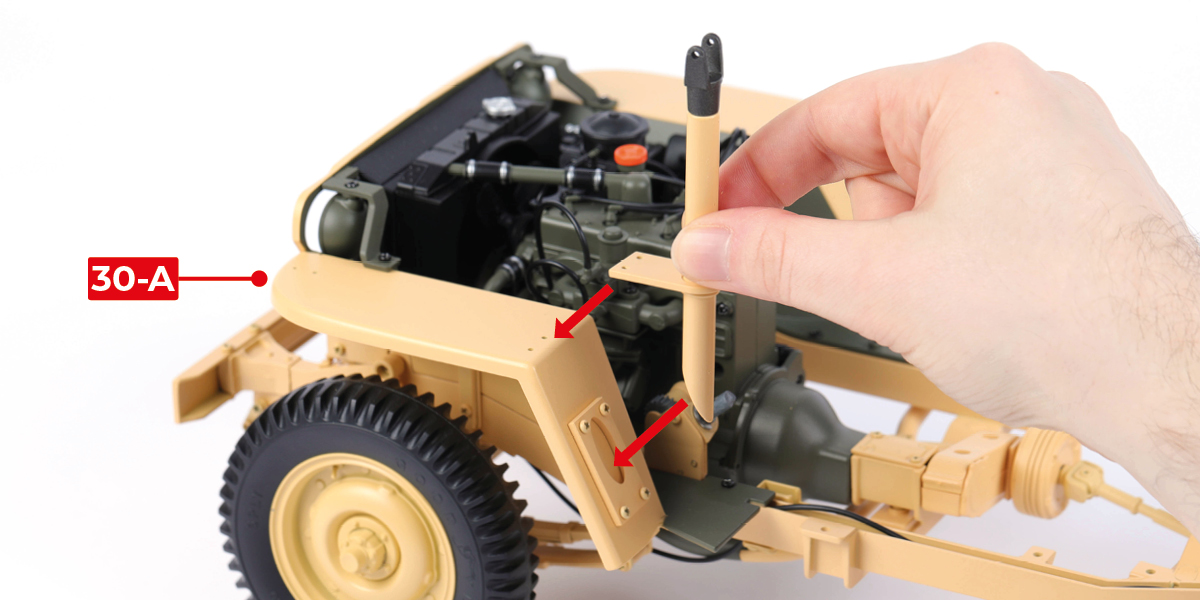

      Fit the gun mount assembly to part 30-A with 2 DM screws, as shown.

      a
      b

      Step 6

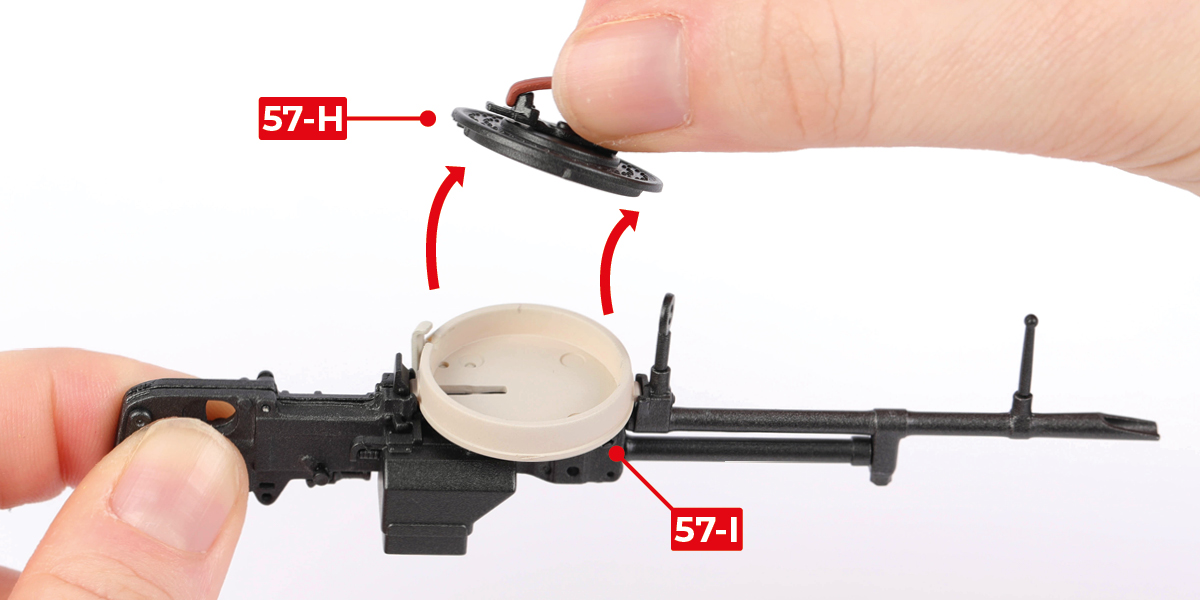

      Remove part 57-H from part 57-I.

      a

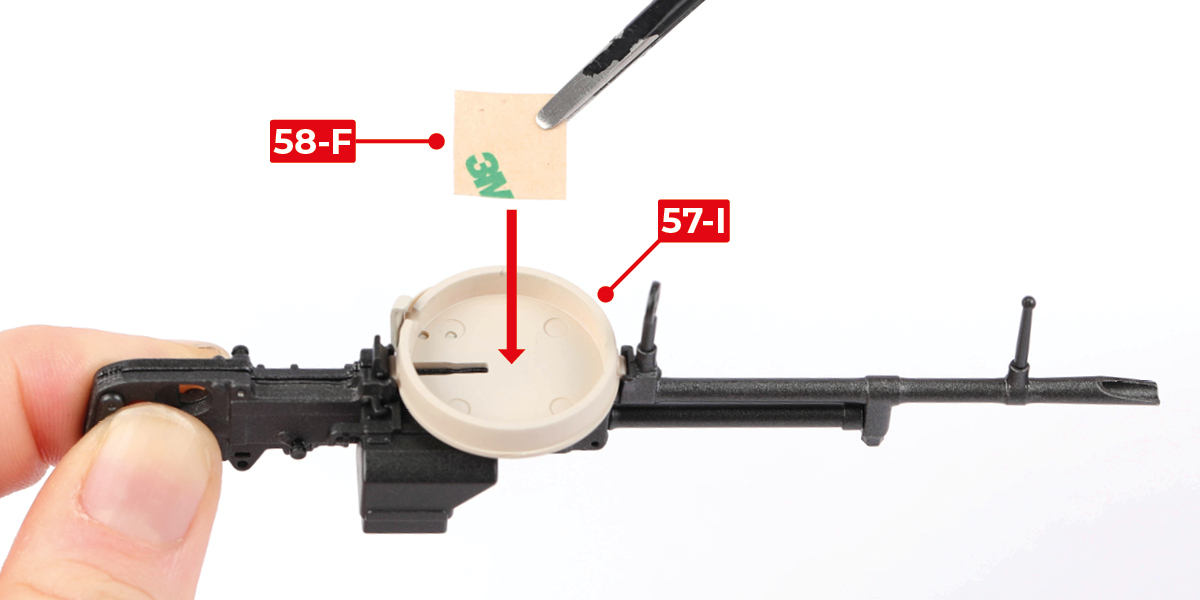

      Step 7

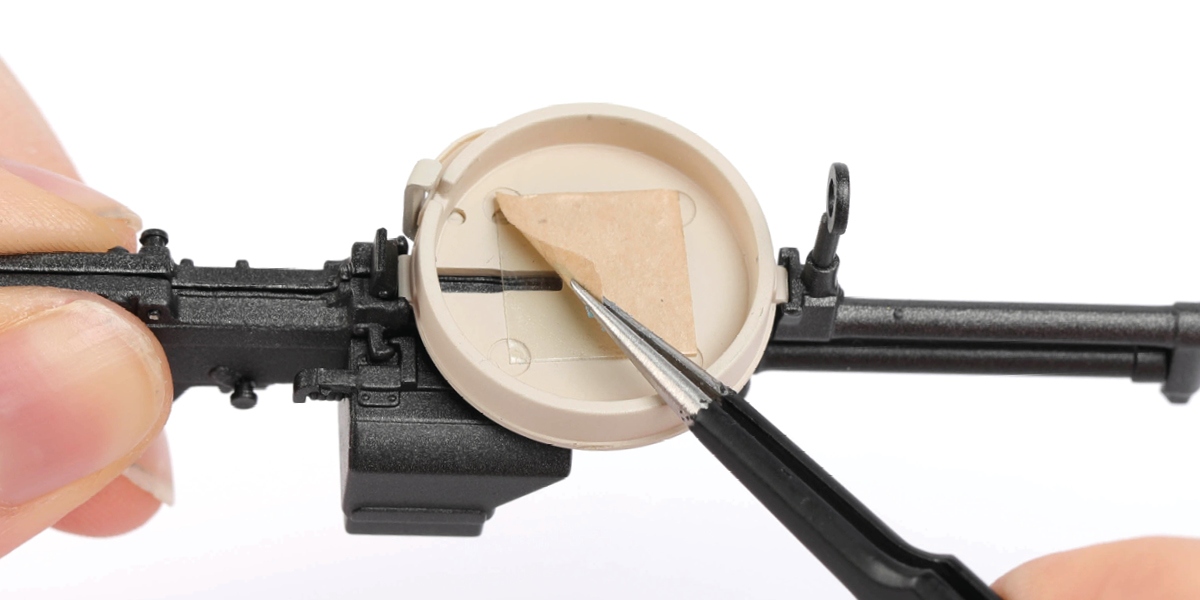

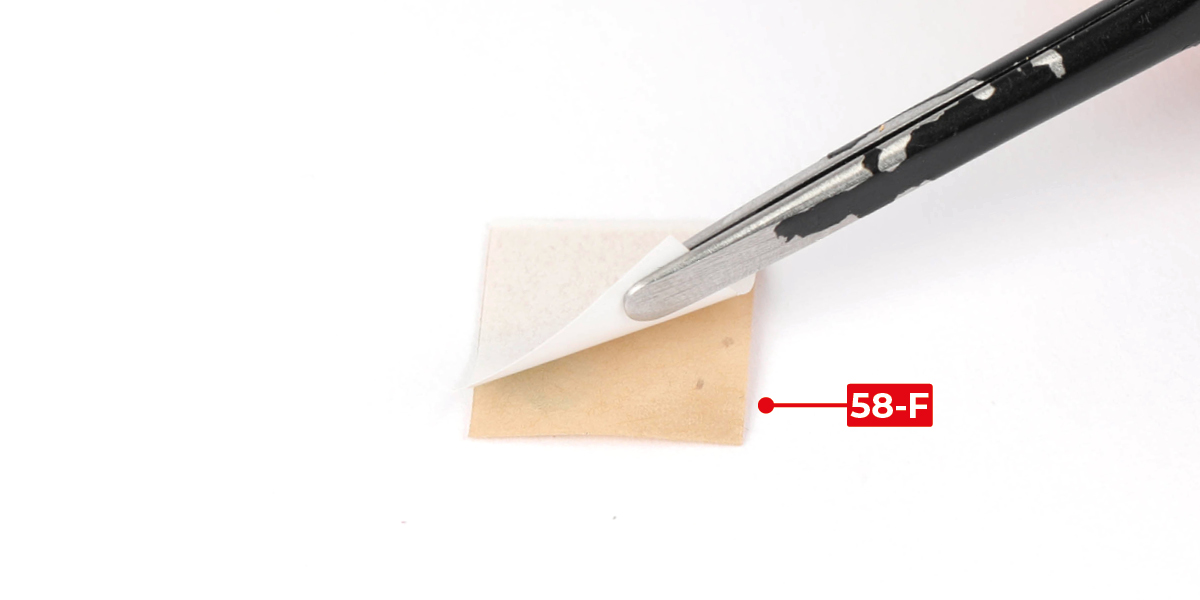

      Peel the backing paper from part 58-F, then stick part 58-F to part 57-I. Remove the protective top layer.

      a
      b
      c

      Step 8

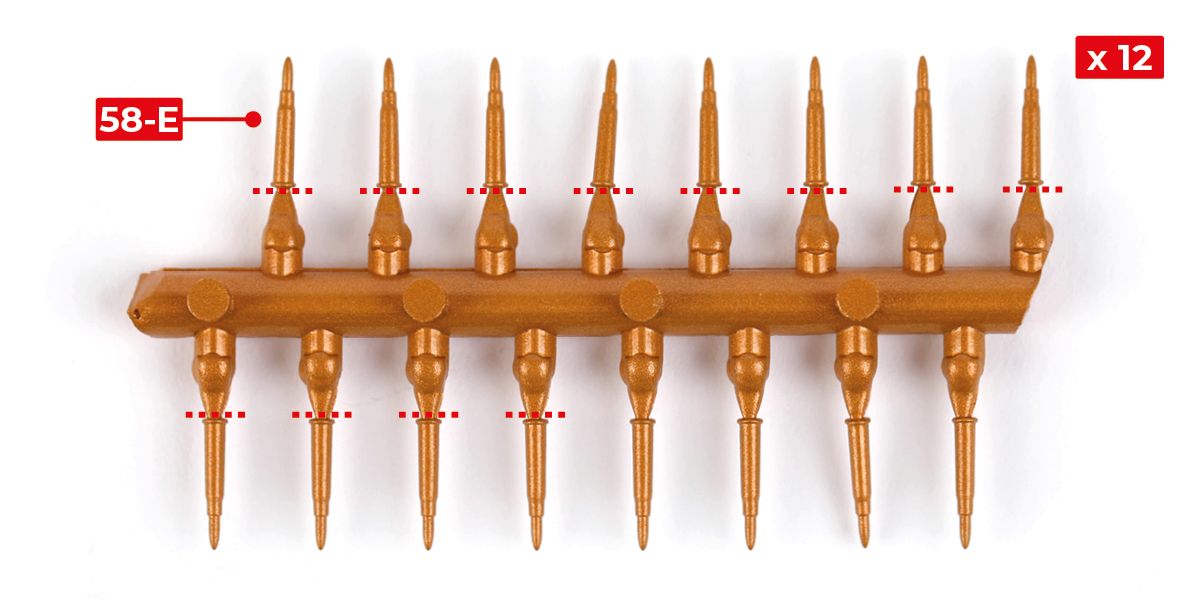

      Cut off 12 parts 58-E from the sprue.

      a

      Step 9

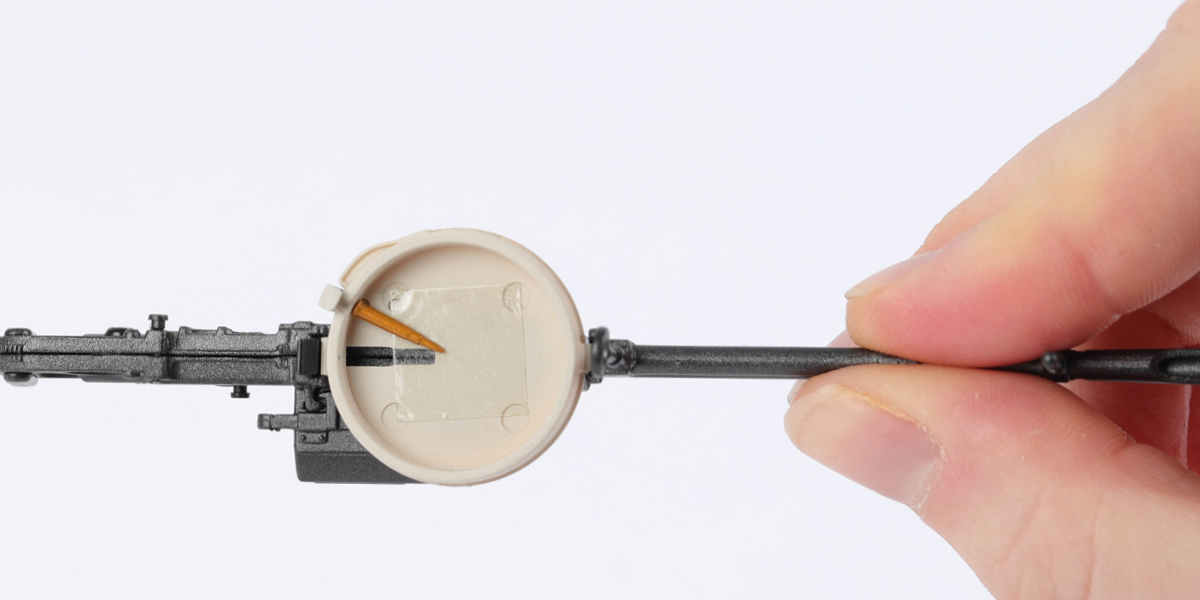

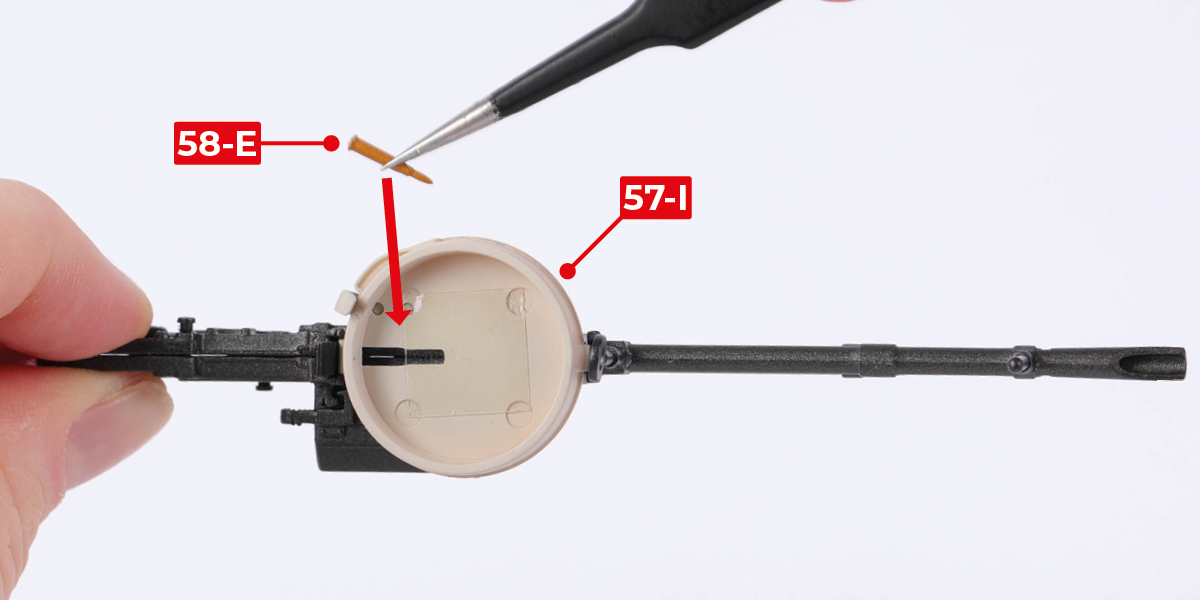

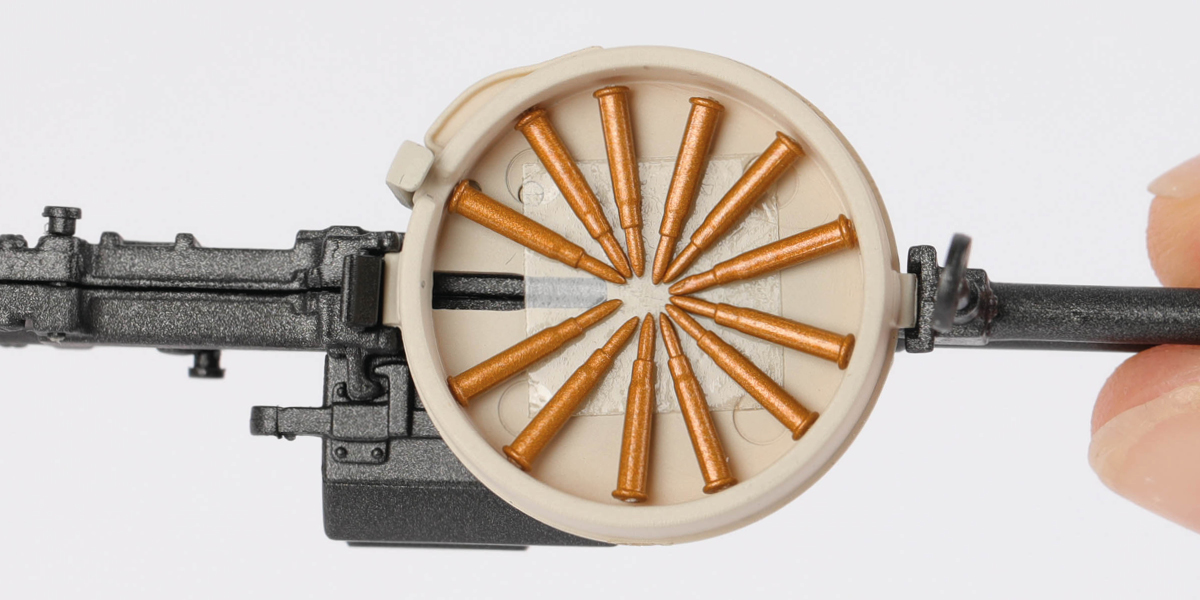

      Stick parts 58-E to part 57-I, spacing them evenly.

      a
      b
      c

      Step 10

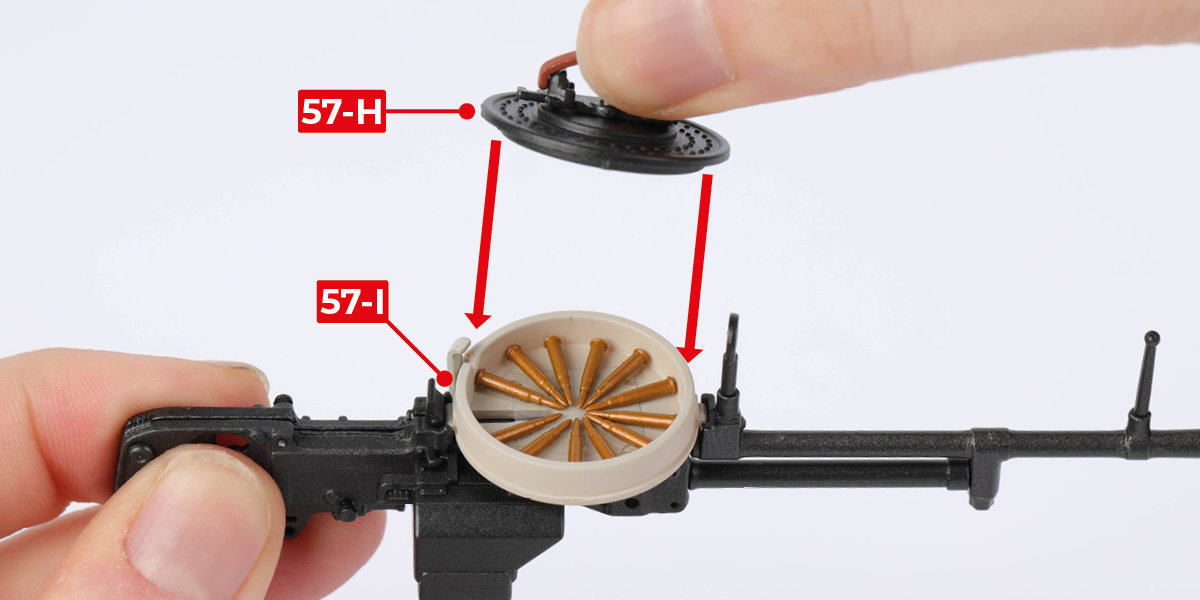

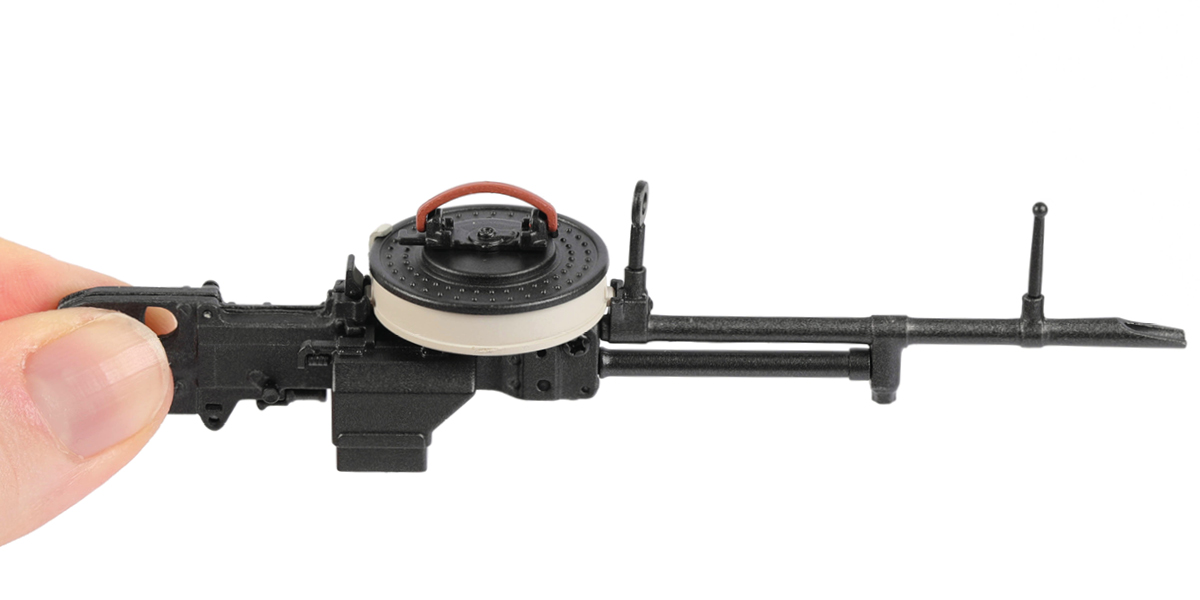

      Fit part 57-H to part 57-I.

      a
      b

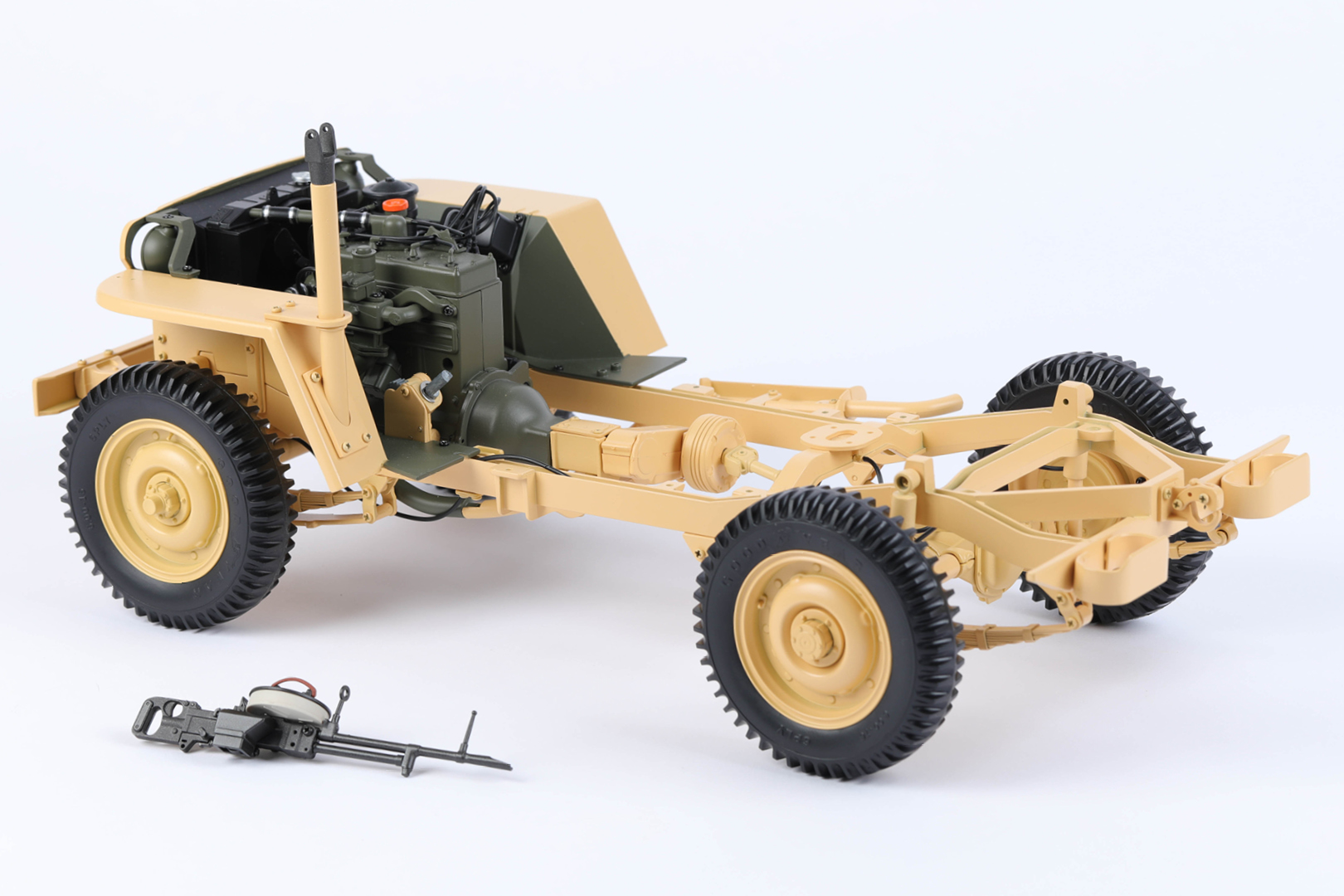

      STAGE COMPLETE

      Stage 59: Adding fixtures to the dashboard

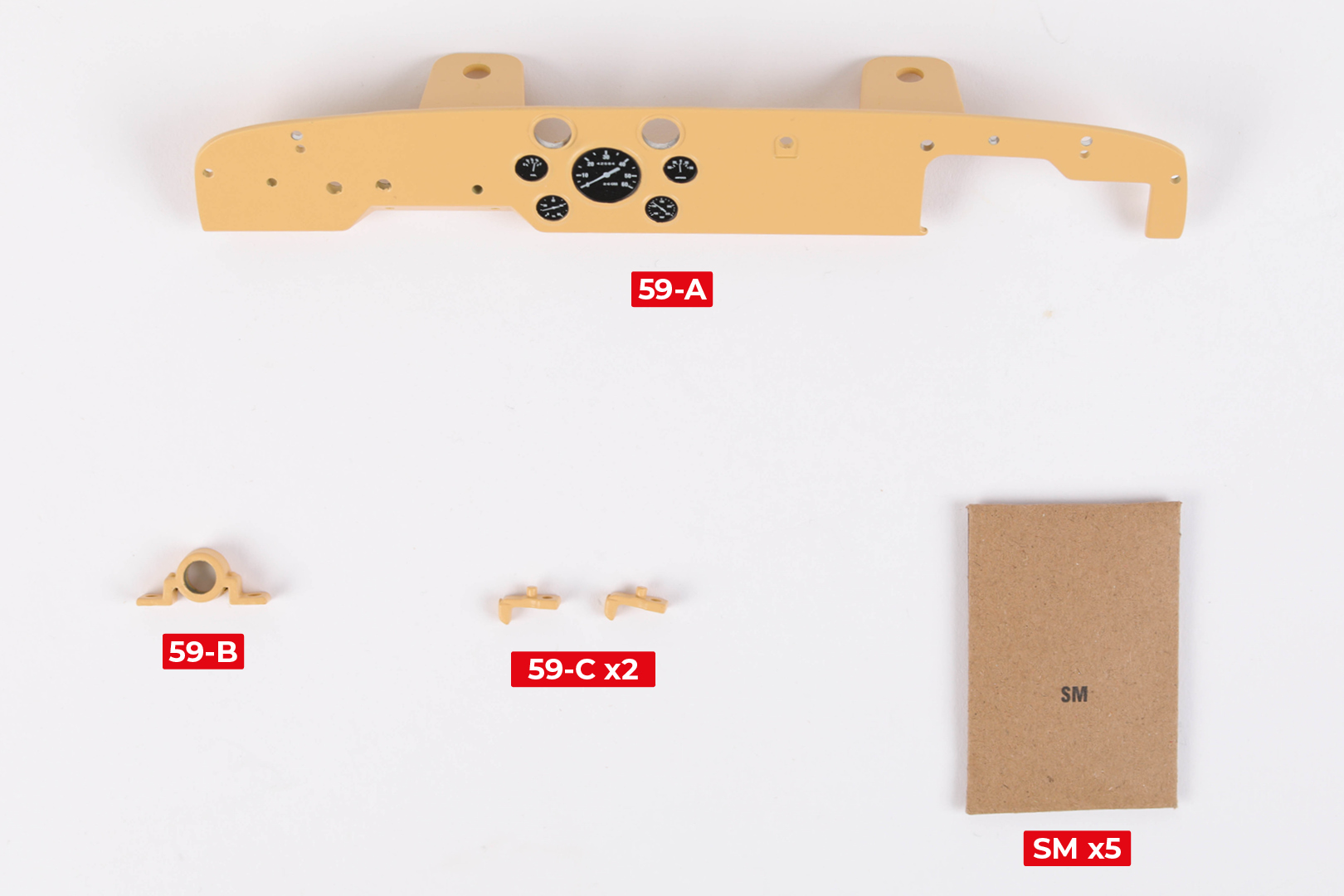

      STAGE 59 PARTS

      Step 1

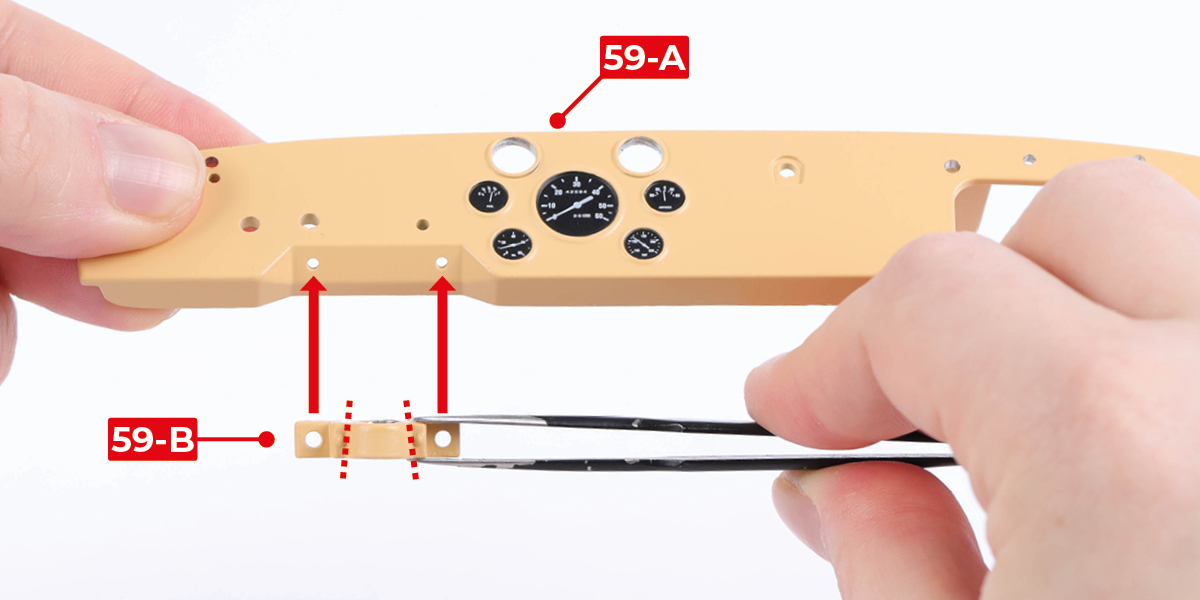

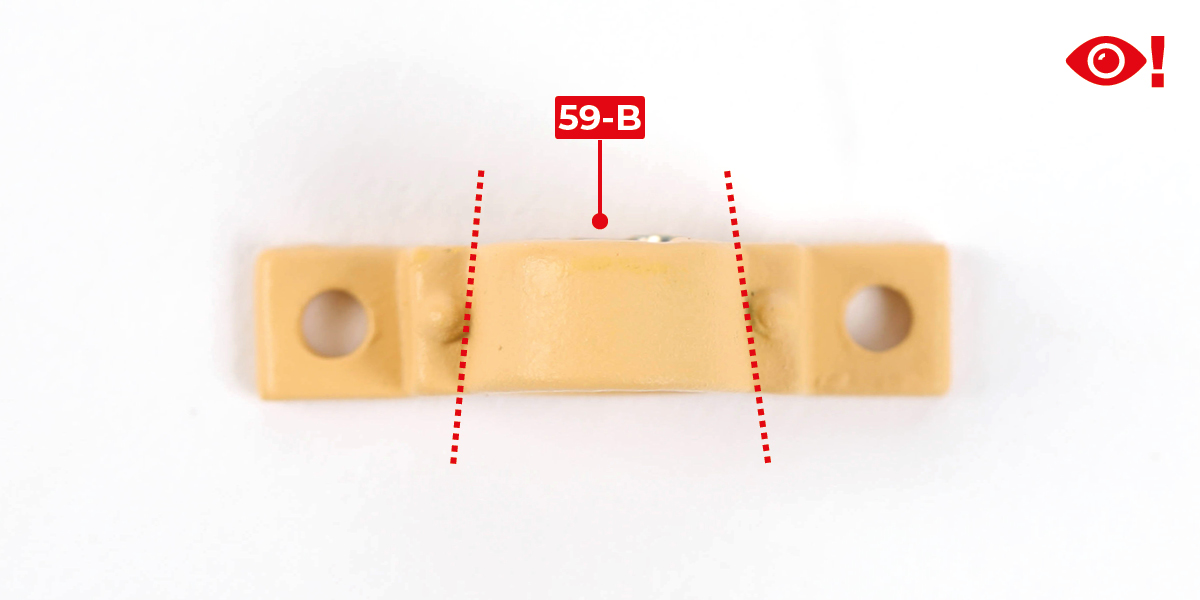

      Note part 59-B is slightly tapered as shown in image a.

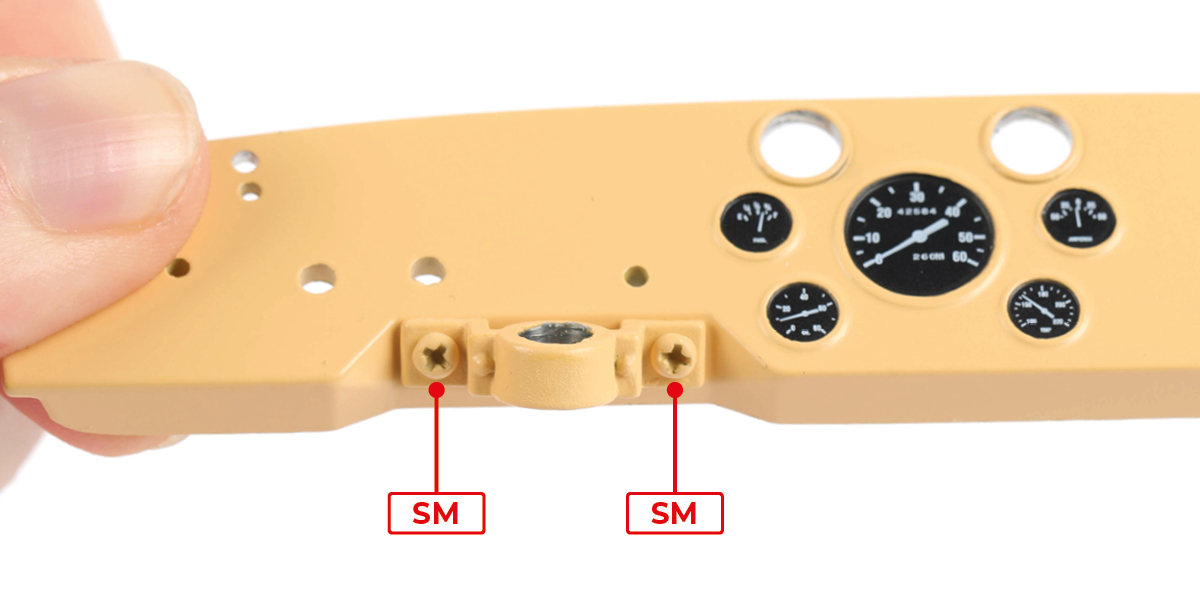

      Fit part 59-B to part 59-A with 2 SM screws.

      a
      b
      c

      Step 2

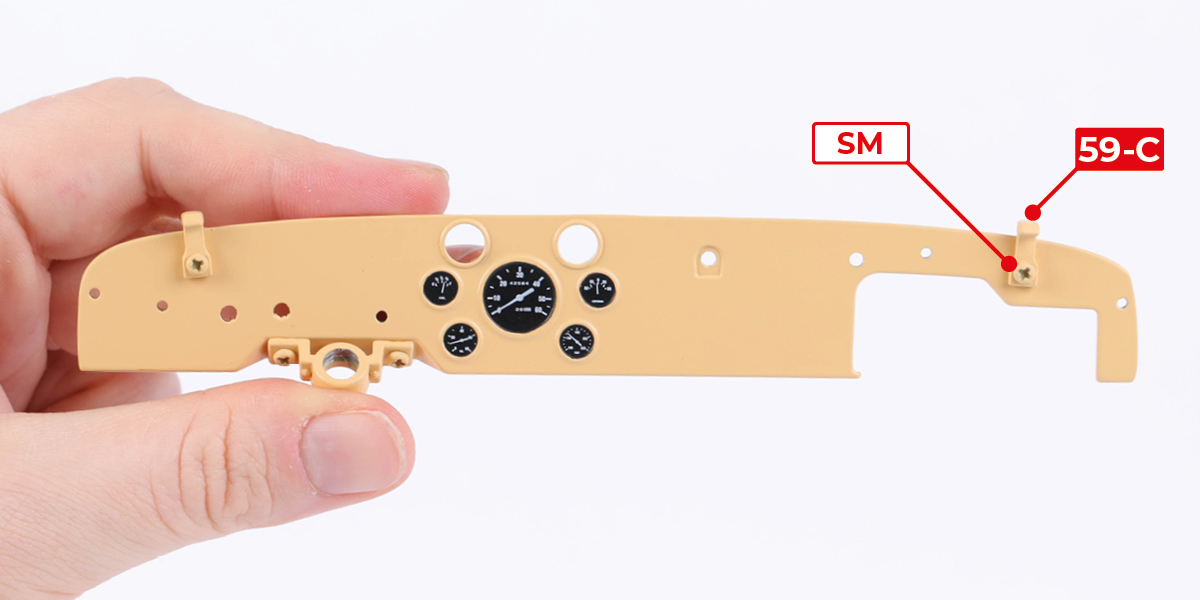

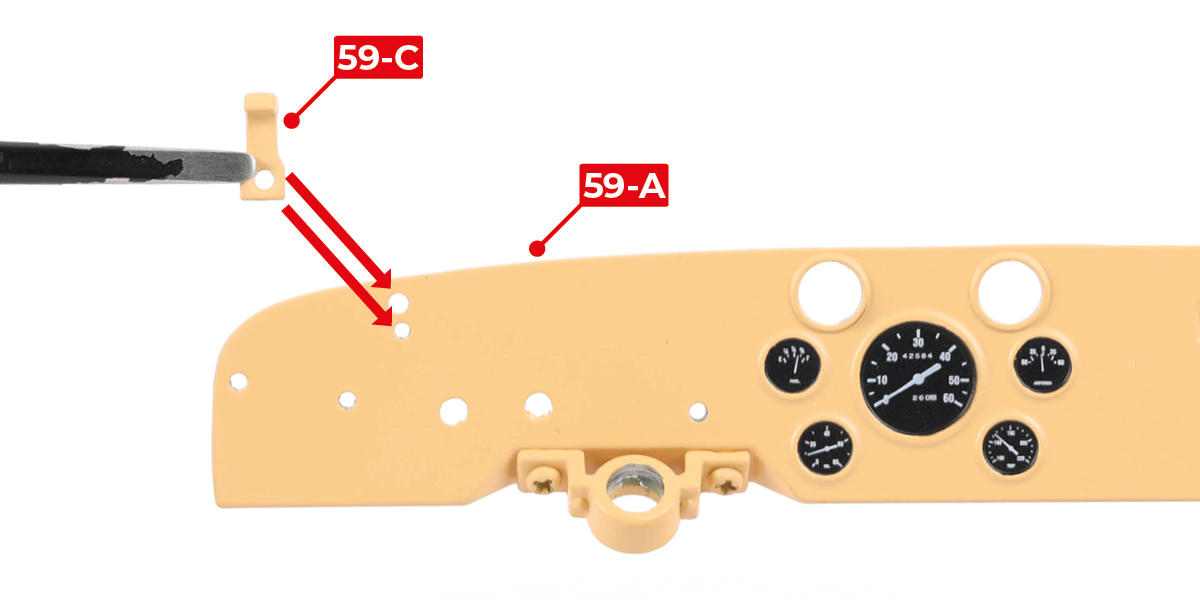

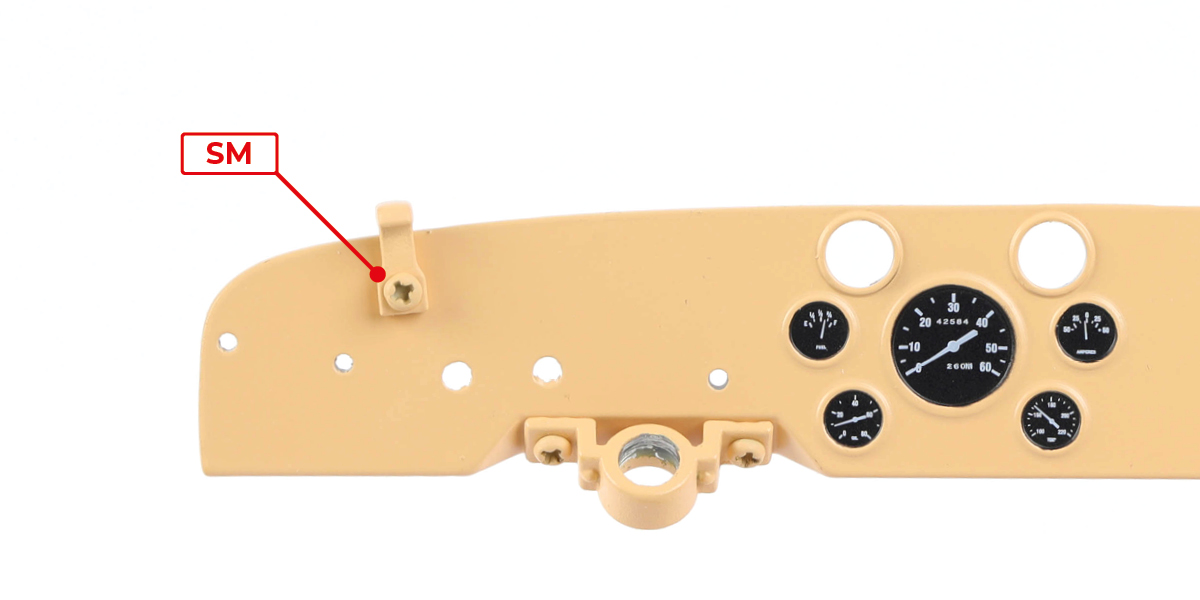

      Fit parts 59-C to part 59-A with 2 SM screws.

      a
      b
      c

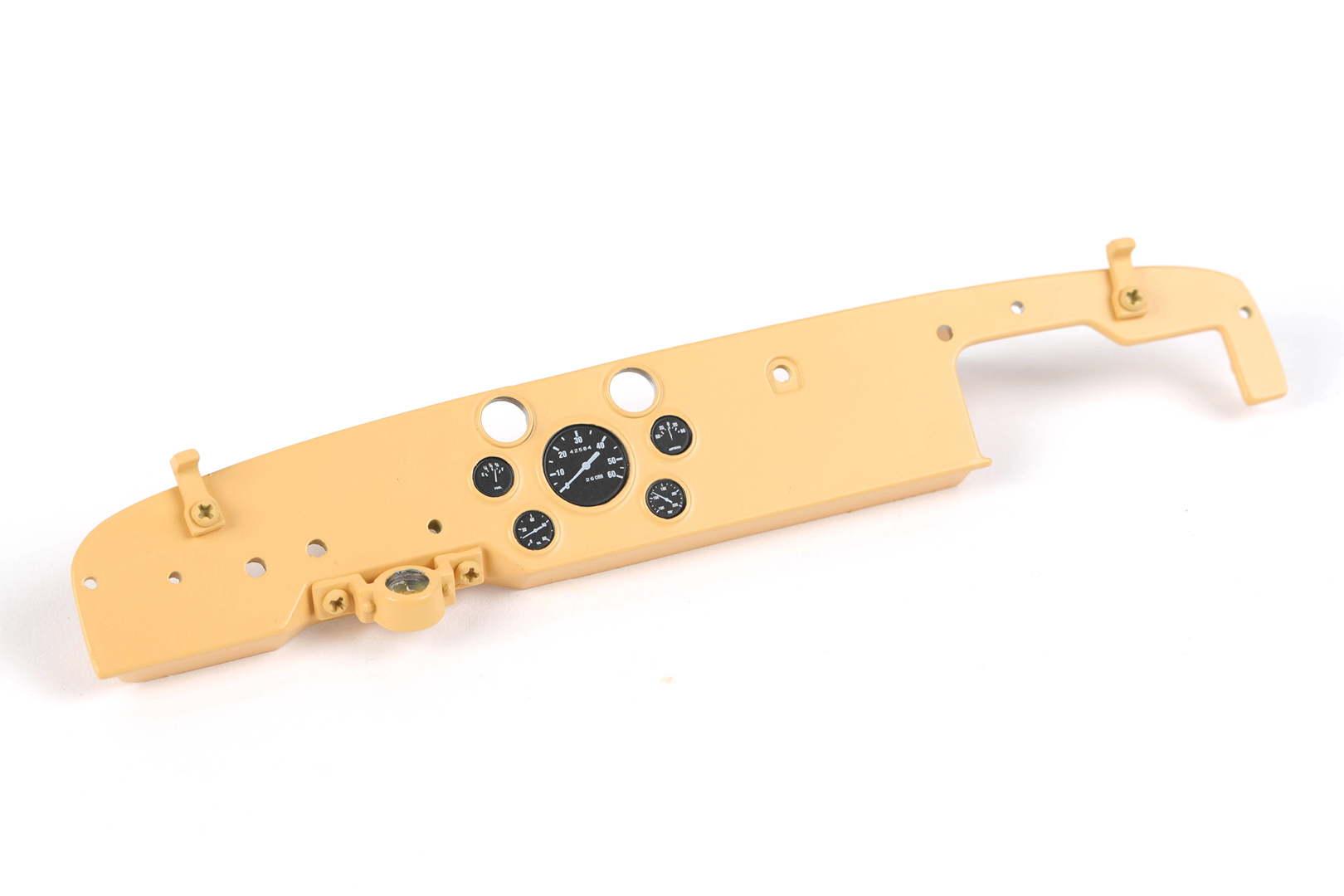

      STAGE COMPLETE

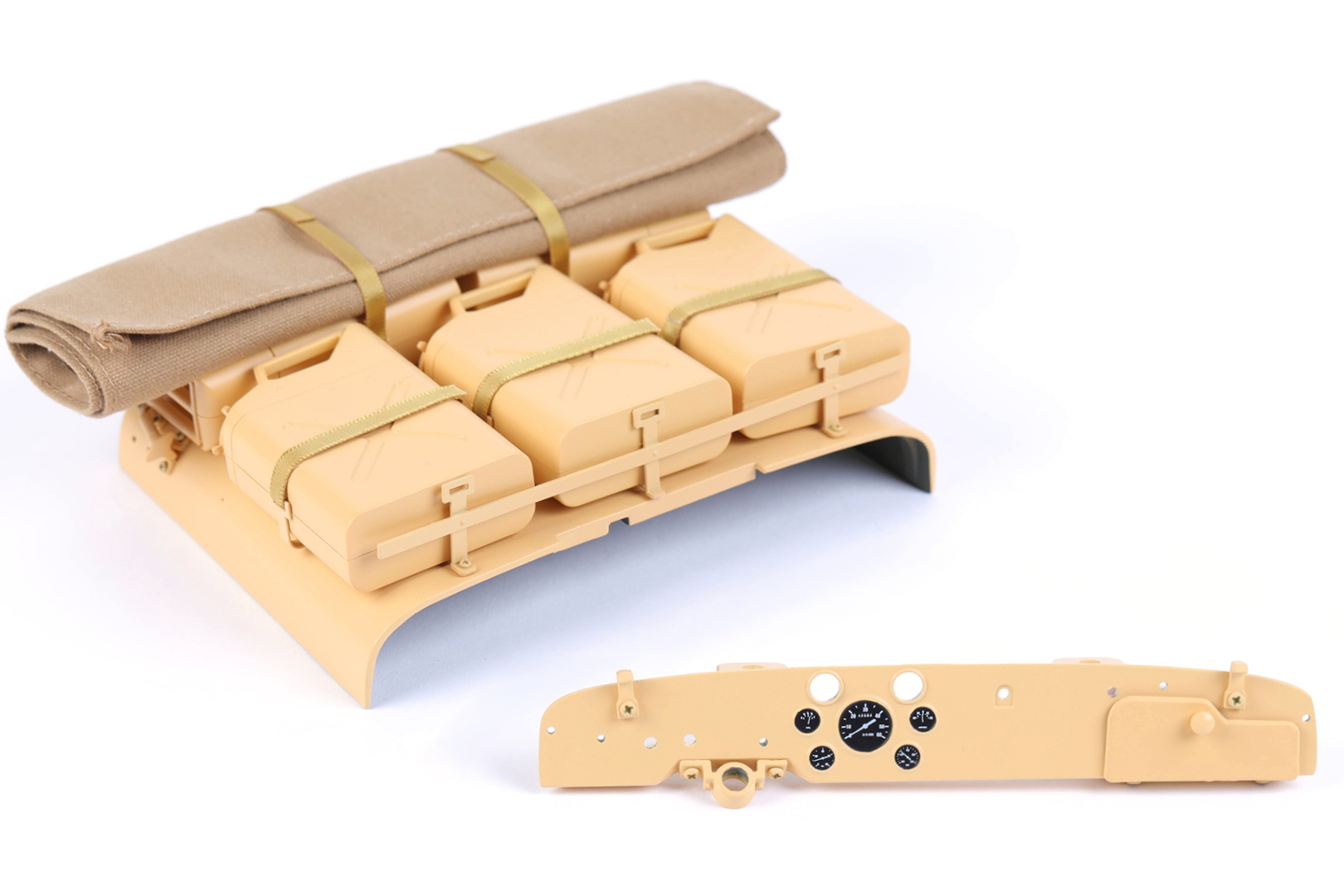

      Stage 60: Fitting the glove box

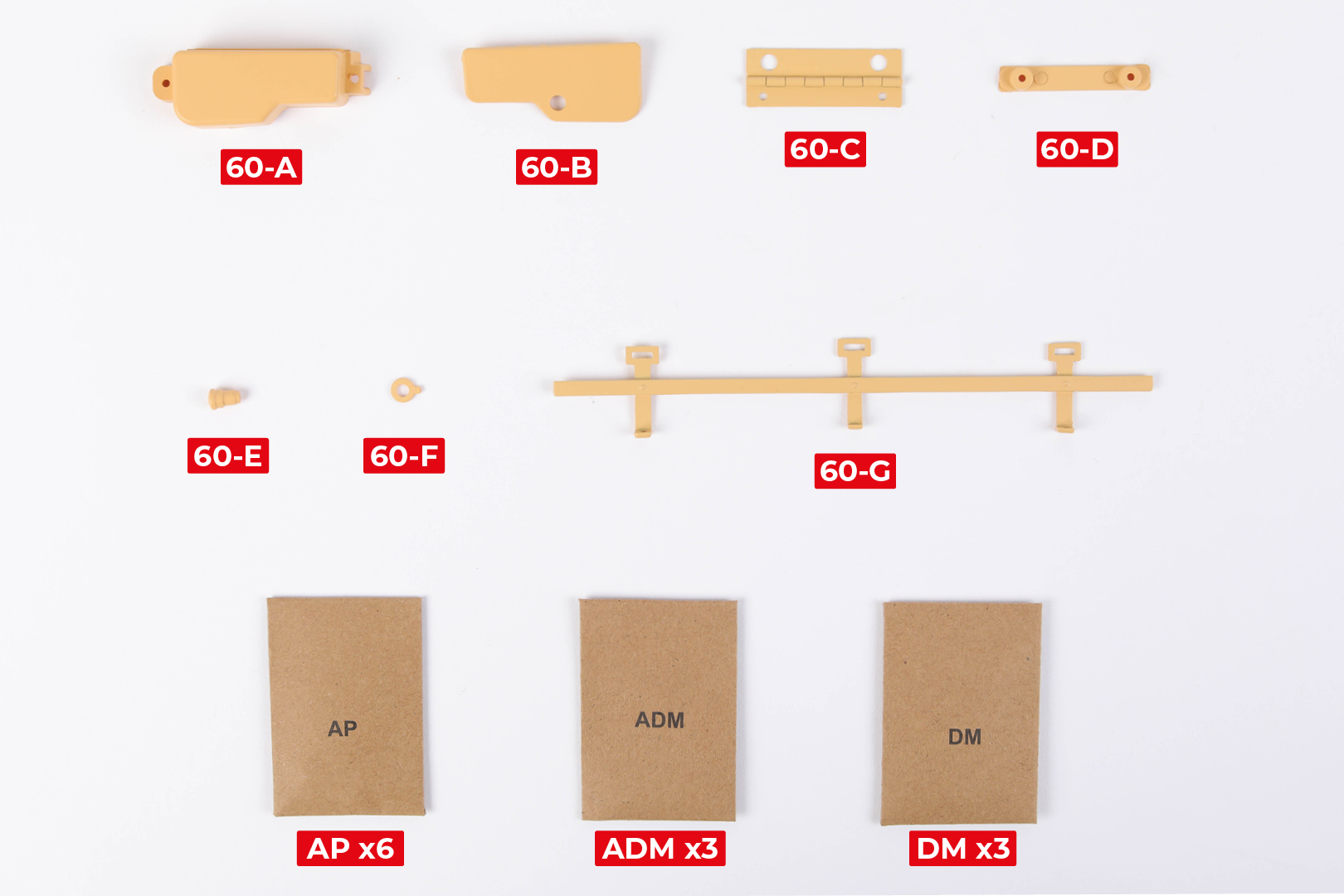

      STAGE 60 PARTS

      Step 1

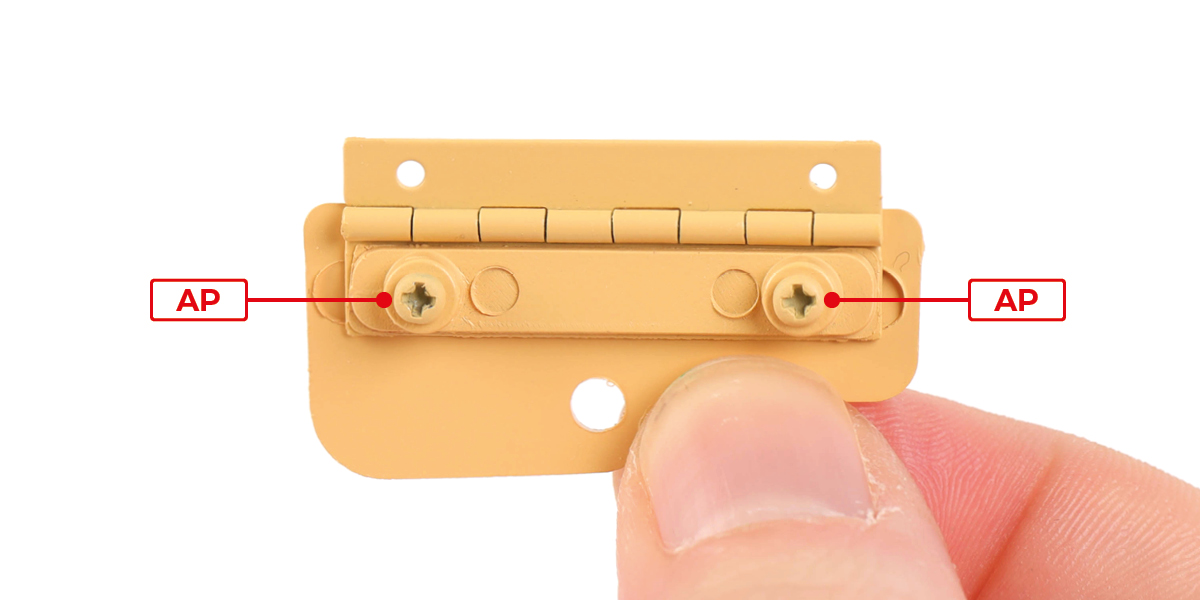

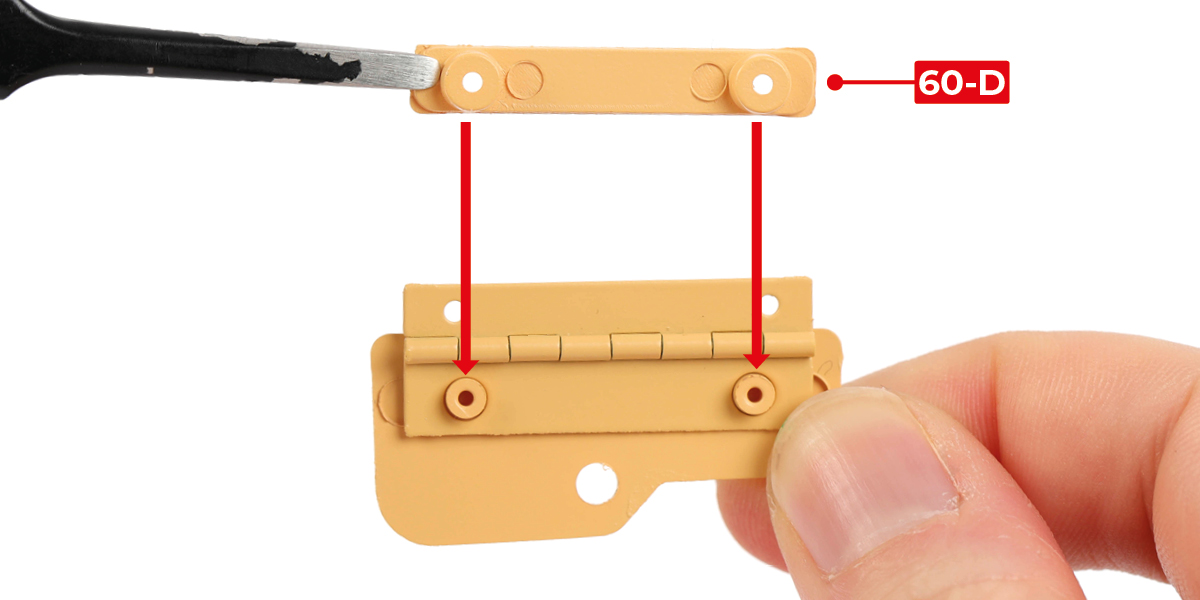

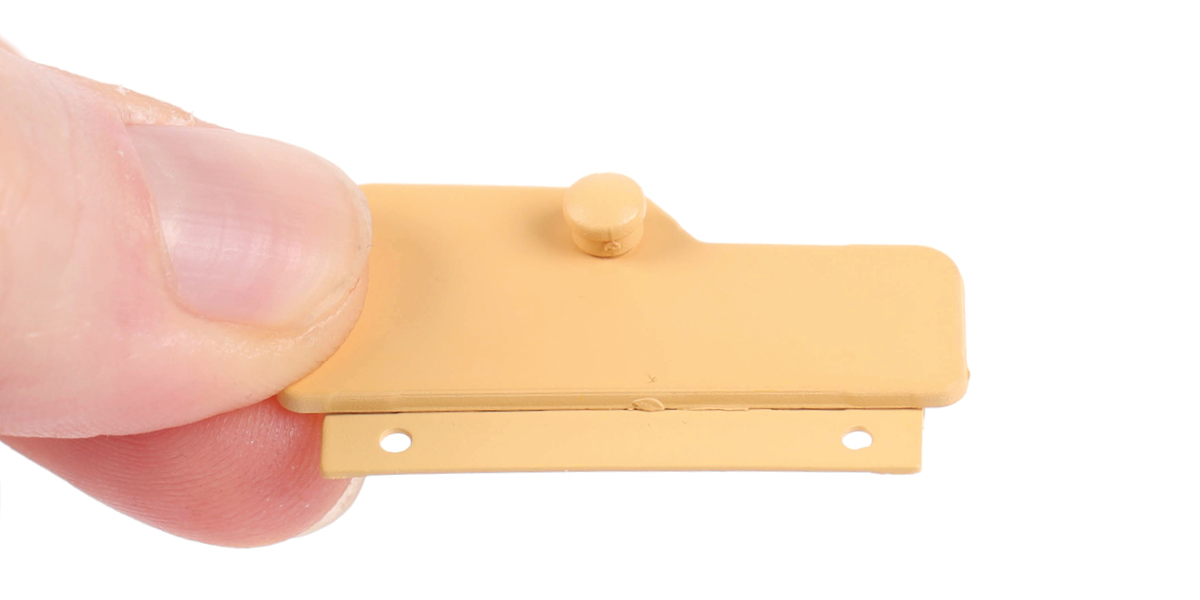

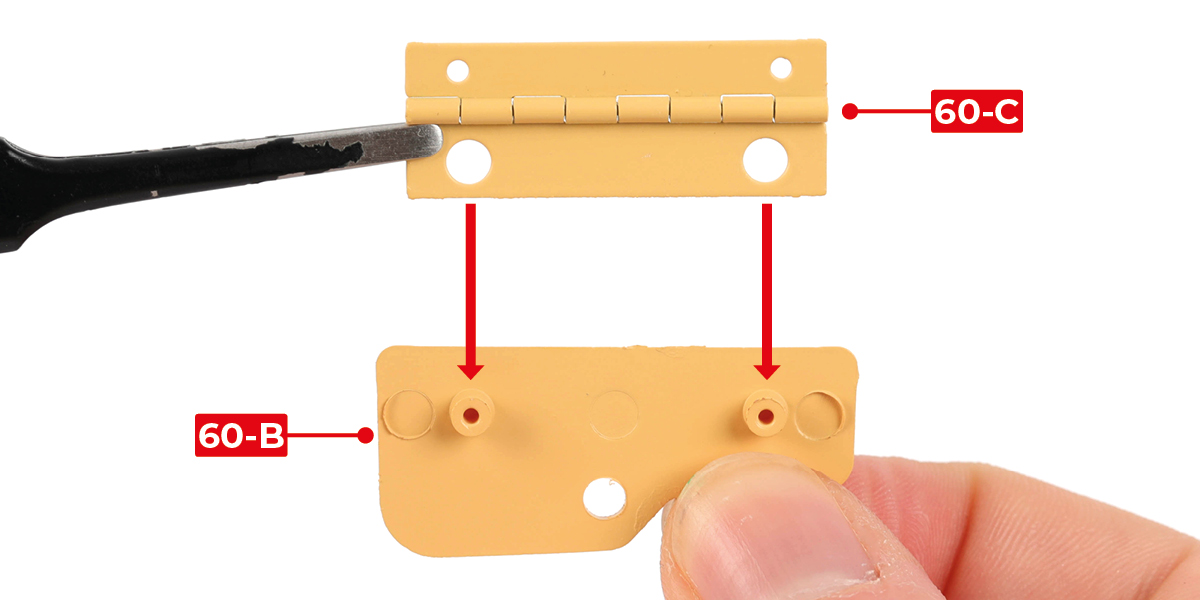

      Fit part 60-C to part 60-B, then fit part 60-D to the assembly with 2 AP screws.

      a
      b
      c

      Step 2

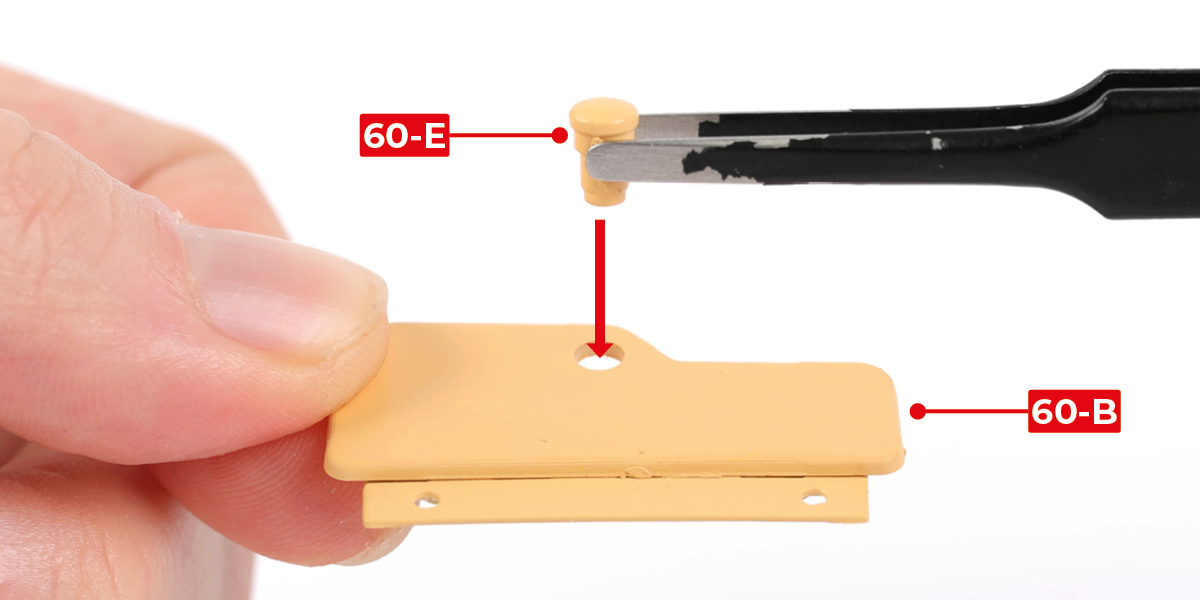

      Fit part 60-E into part 60-B.

      a
      b

      Step 3

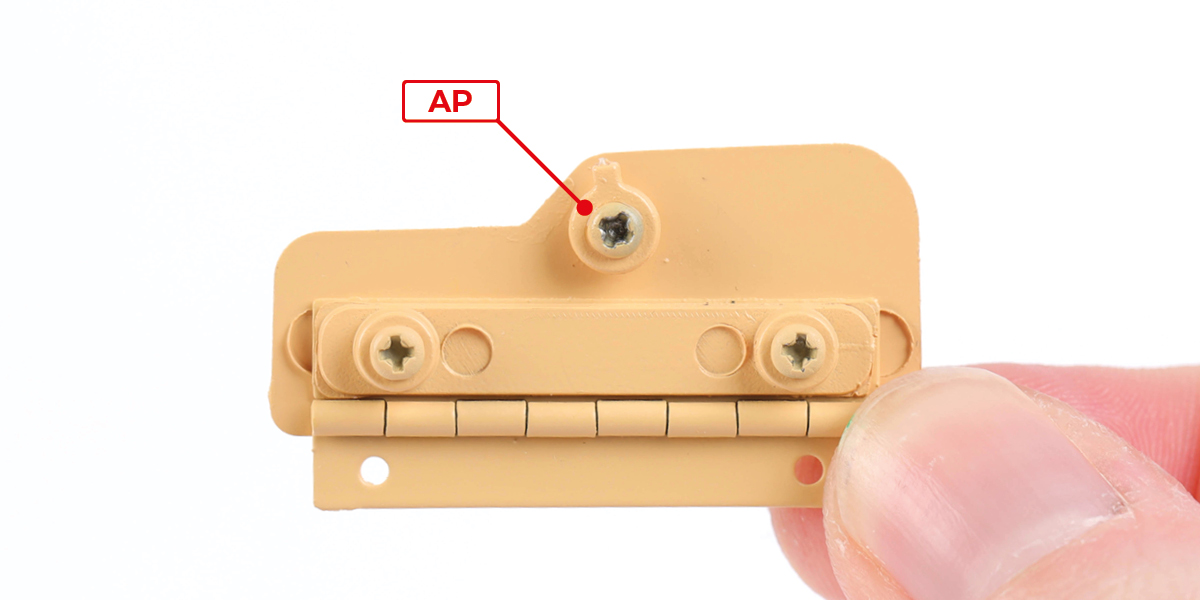

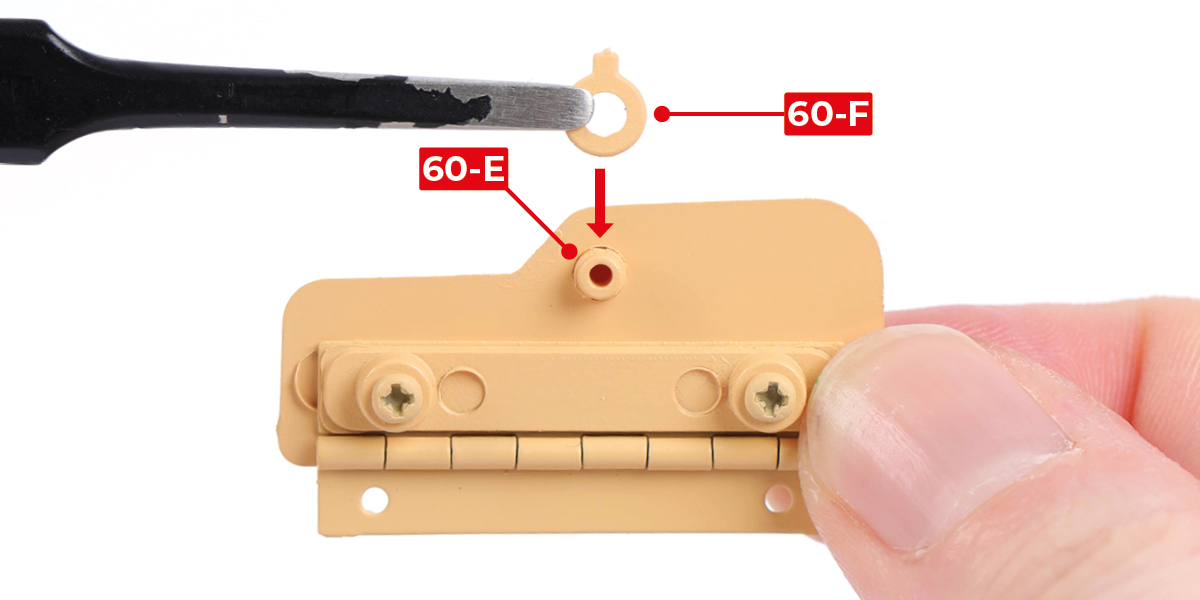

      Fit part 60-F to part 60-E with 1 AP screw.

      a
      b

      Step 4

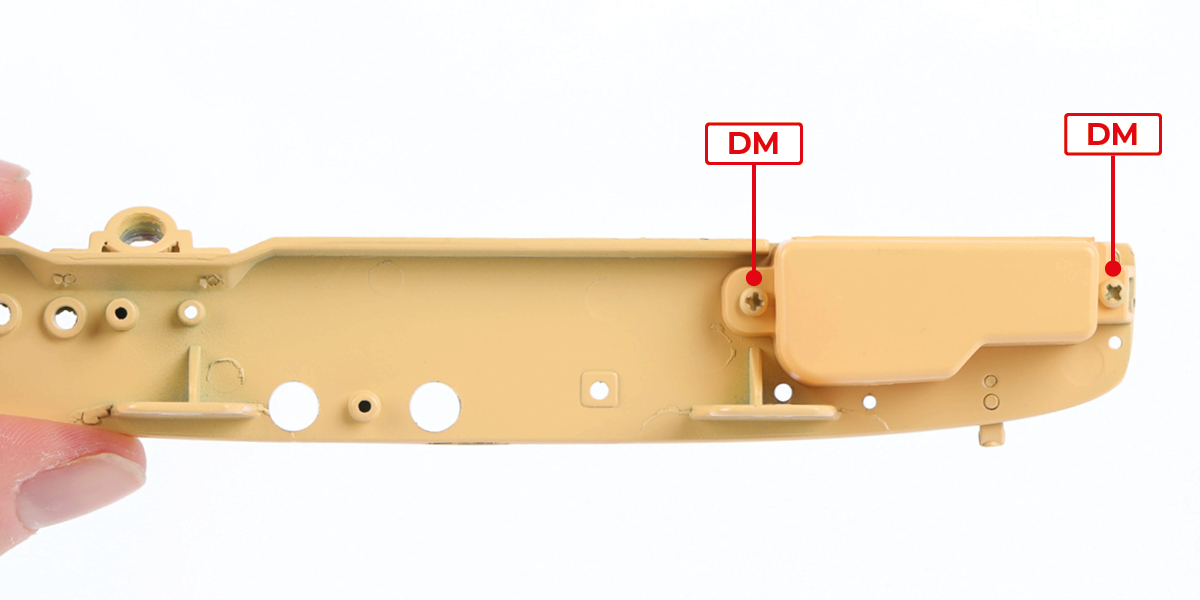

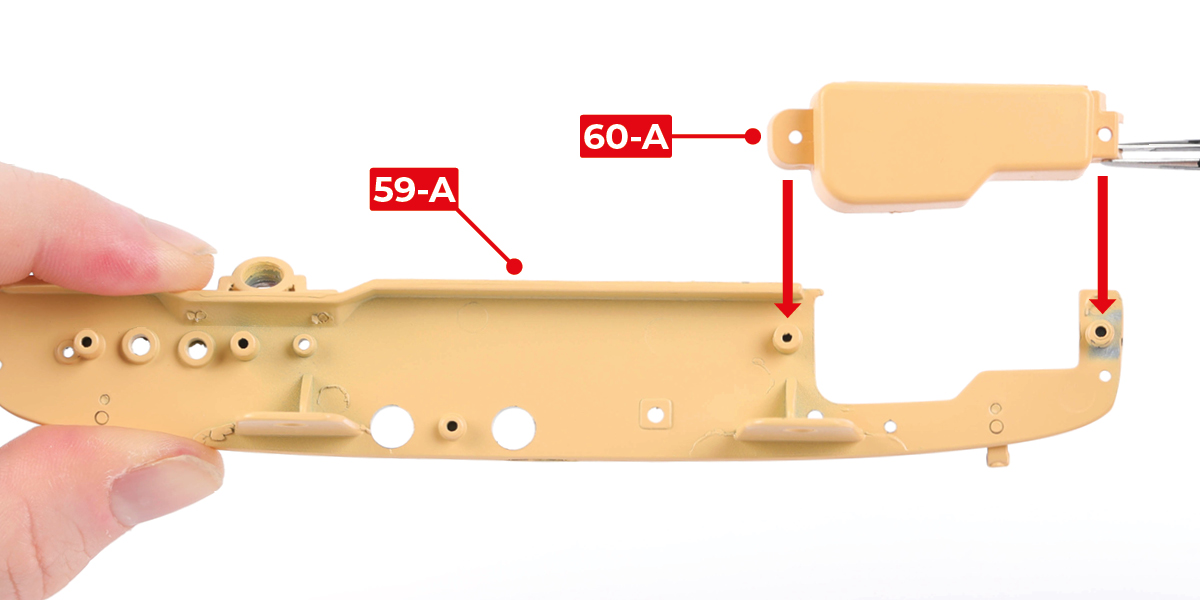

      Fit part 60-A to part 59-A (stage 59) with 2 DM screws.

      a
      b

      Step 5

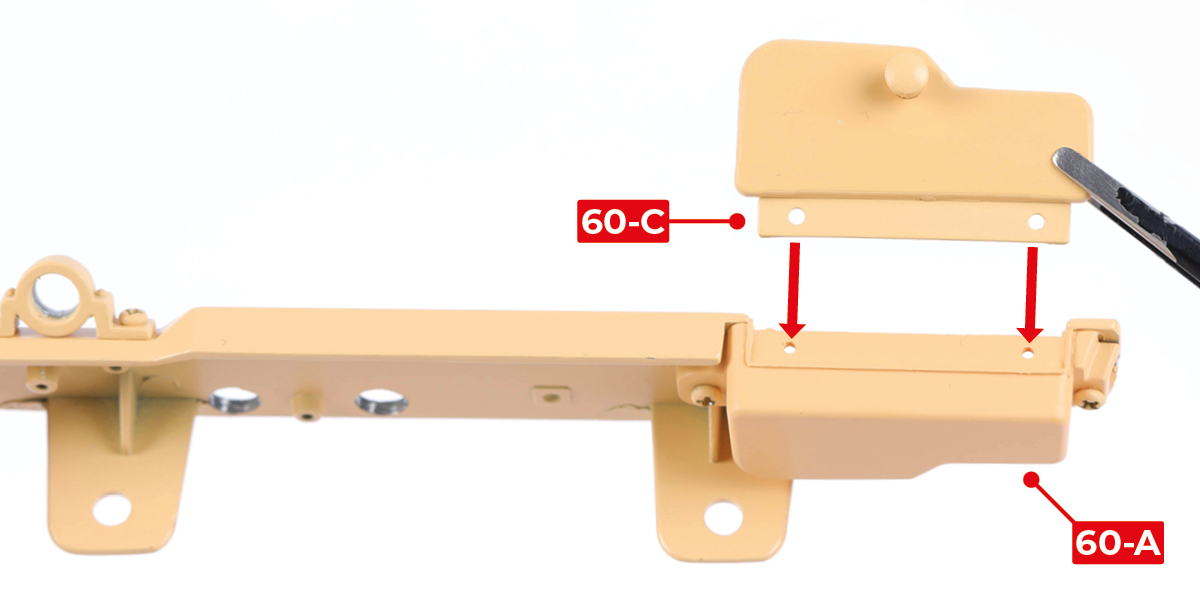

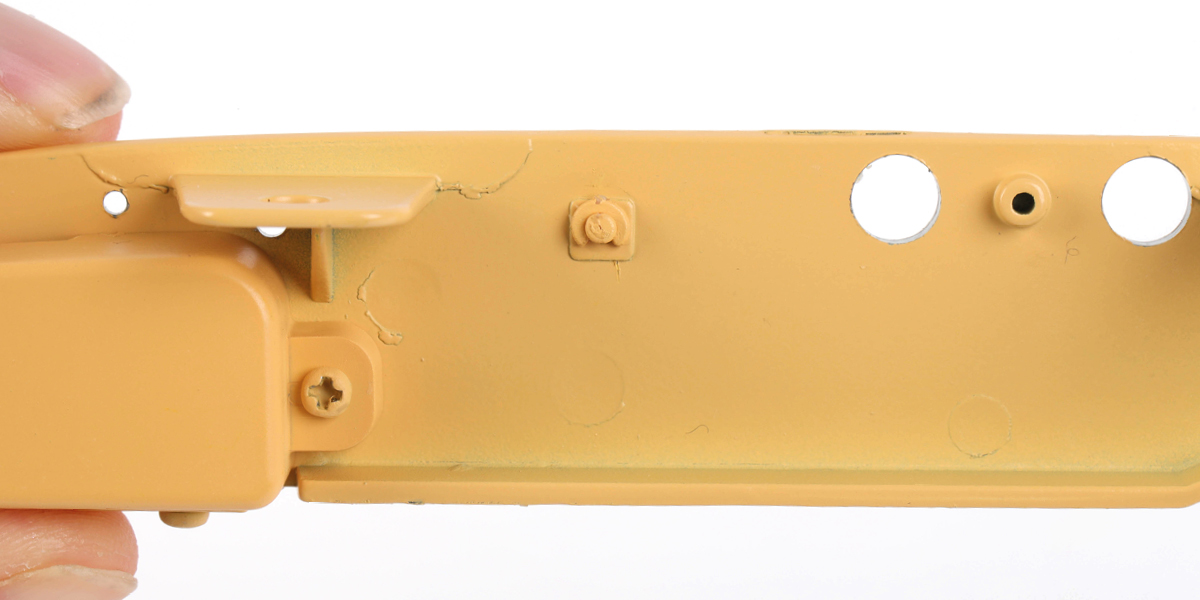

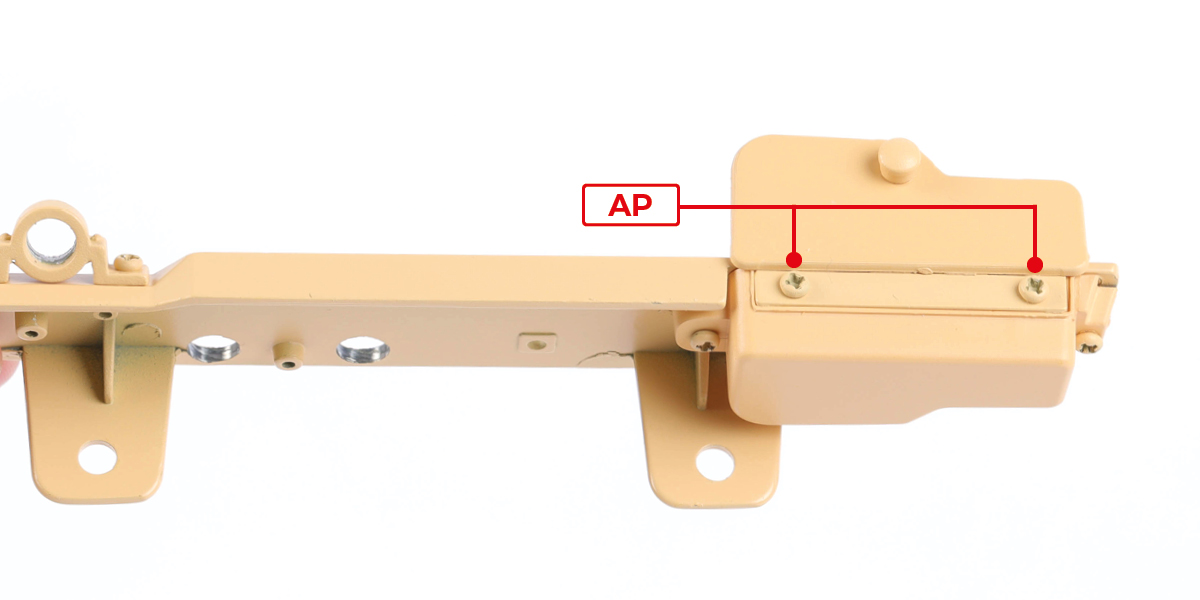

      Fit part 60-C to part 60-A with 2 AP screws.

      a
      b

      Step 6

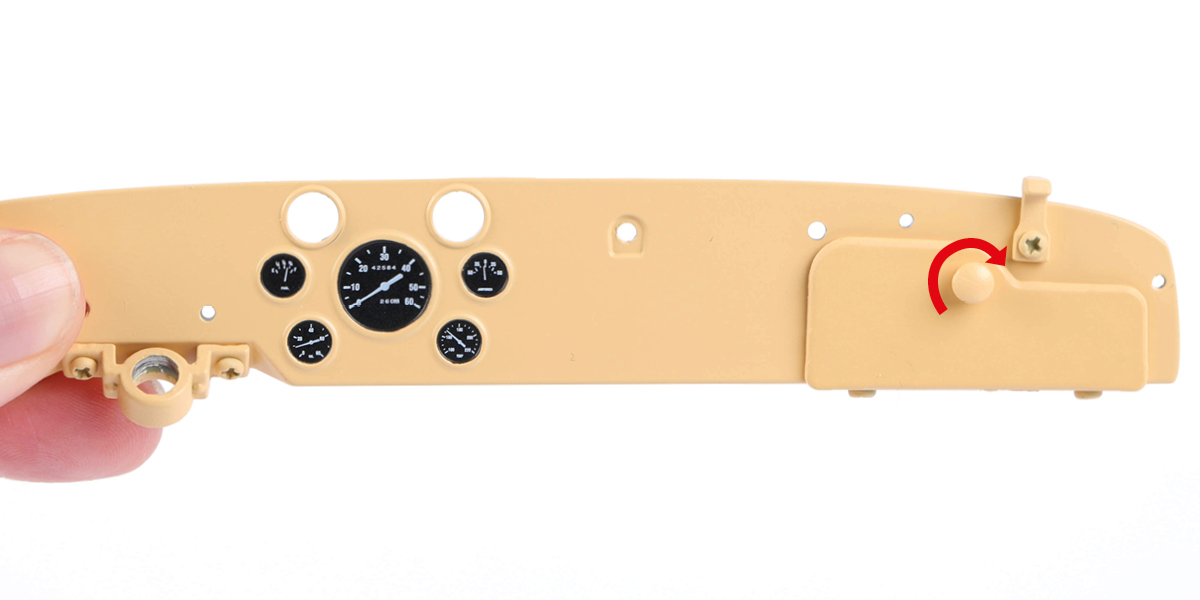

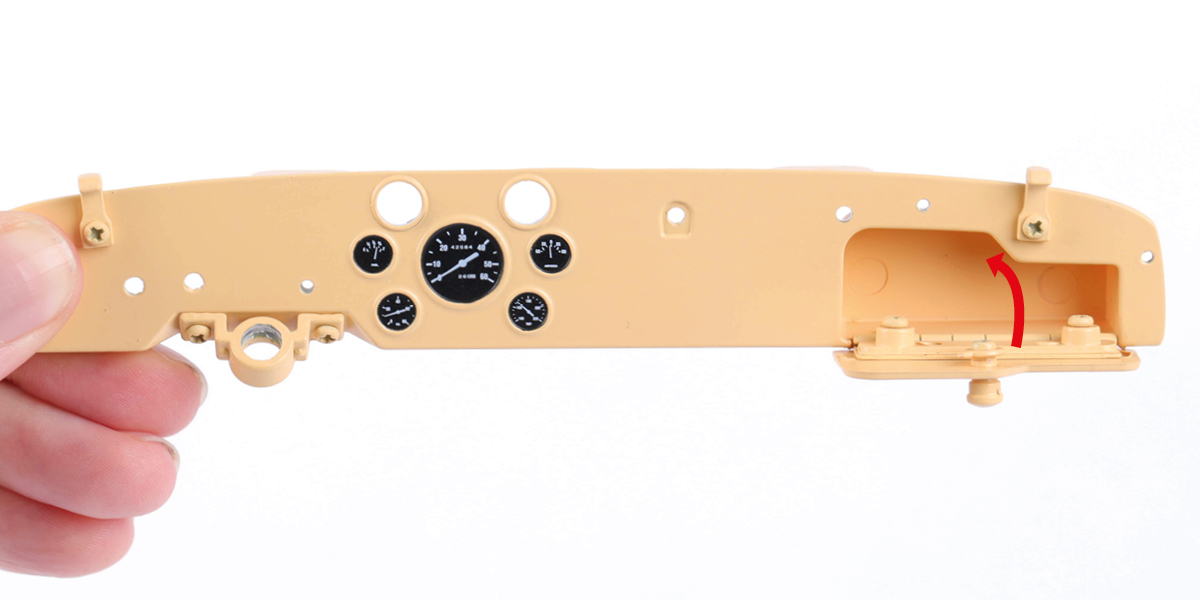

      Close the glove box and twist the handle to lock it, as shown.

      a
      b

      Step 7

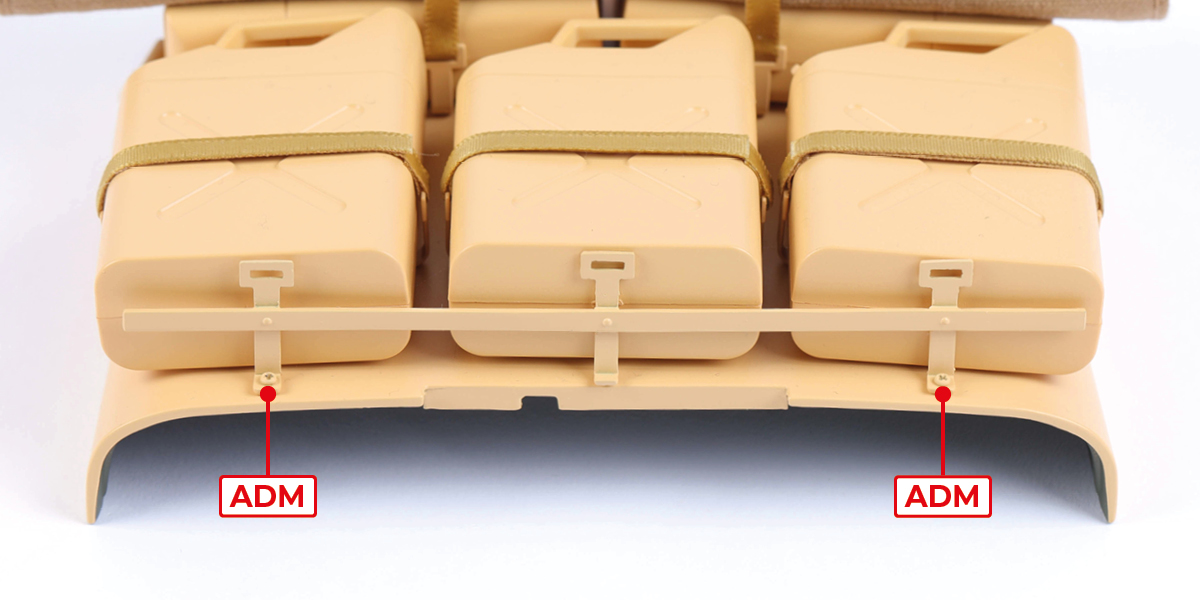

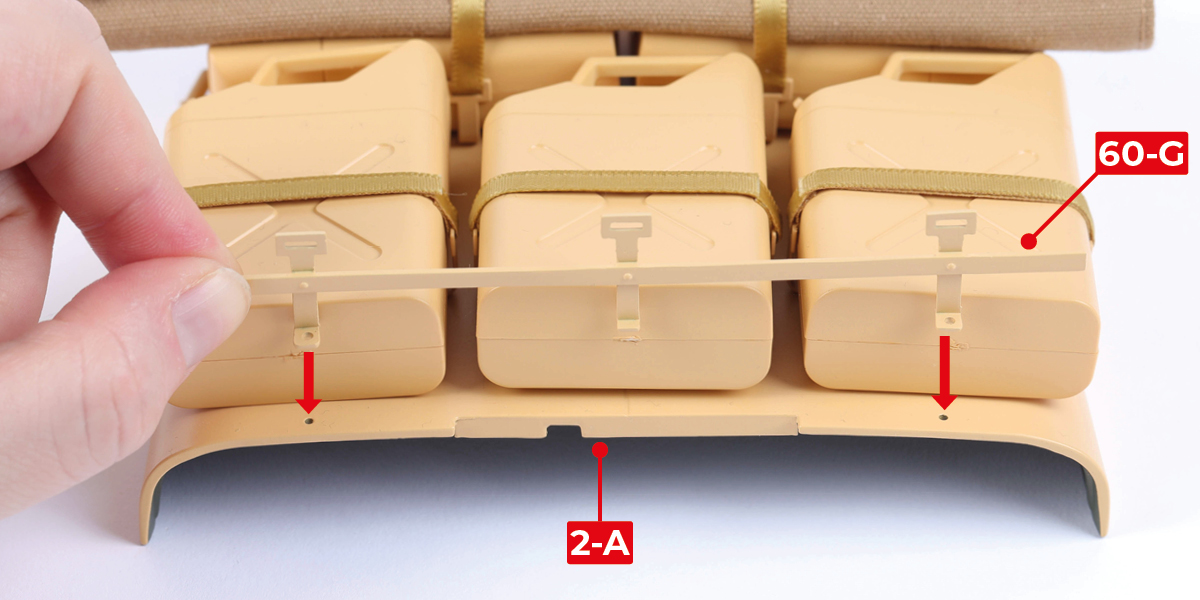

      Fit part 60-G to part 2-A with 2 ADM screws.

      a
      b

      STAGE COMPLETE

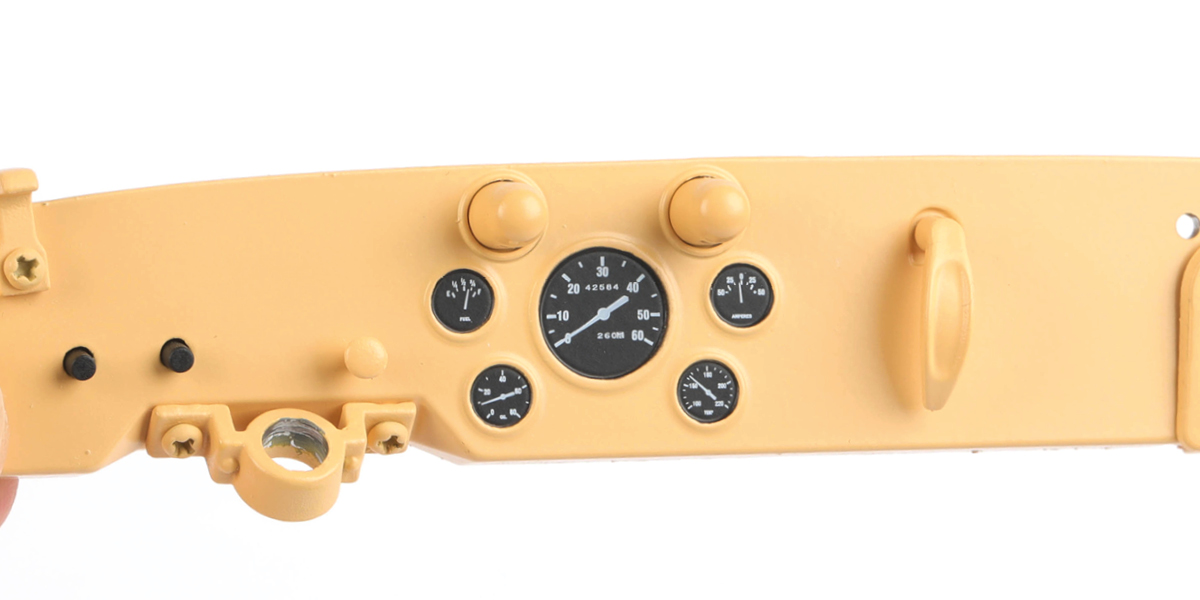

      Stage 61: Fitting the dashboard

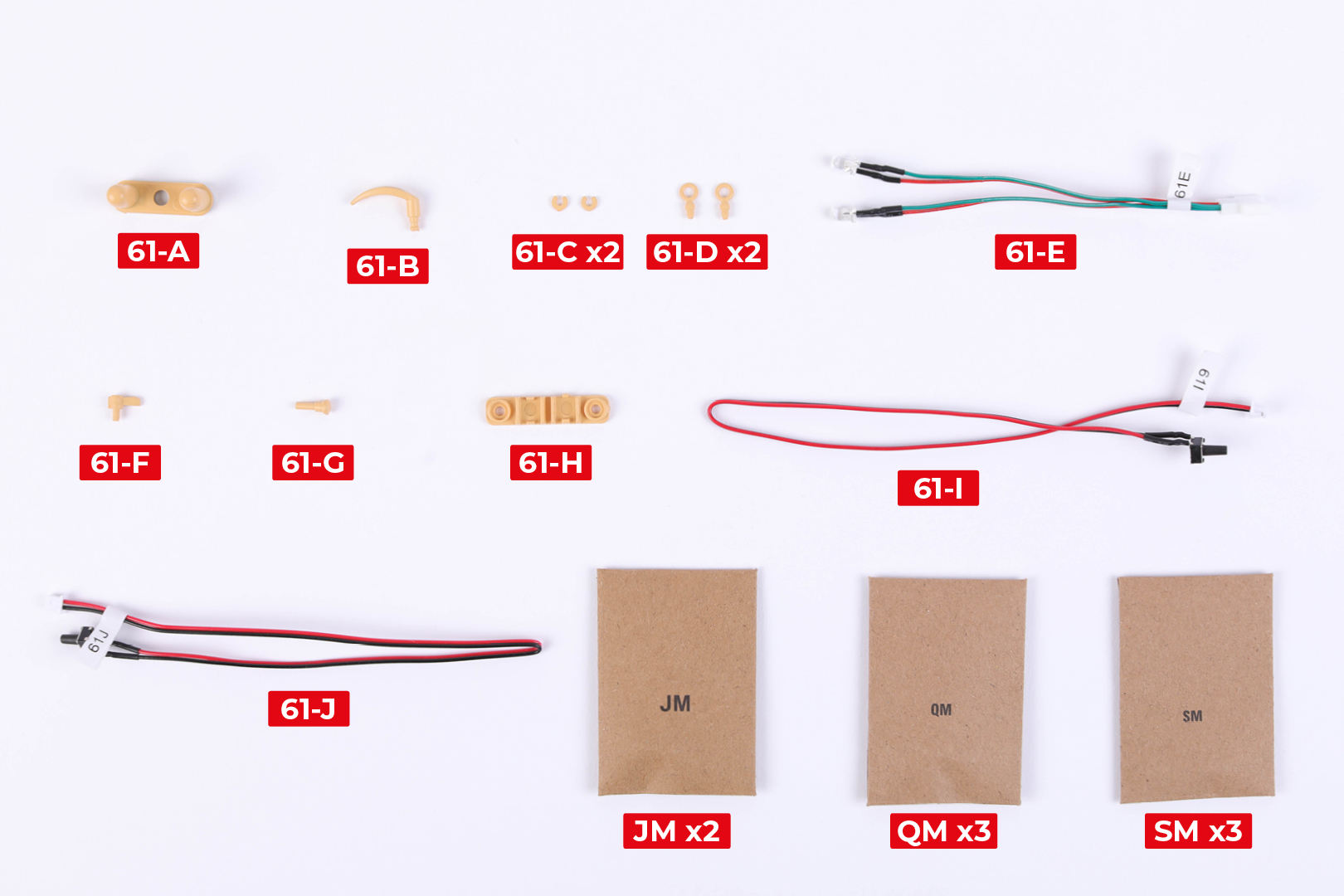

      STAGE 61 PARTS

      Step 1

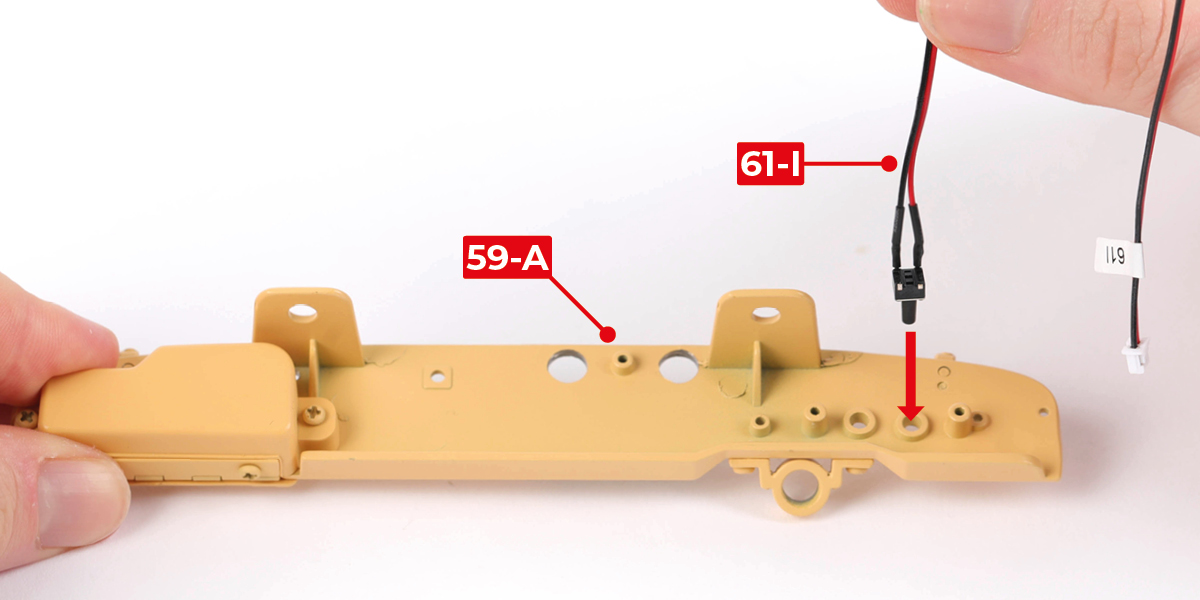

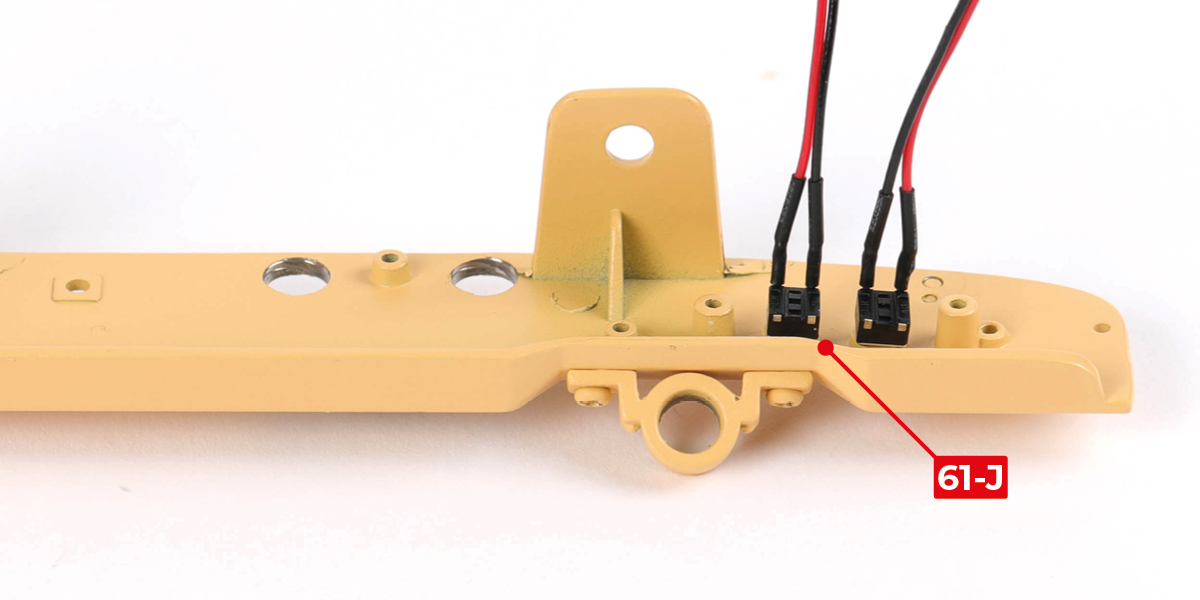

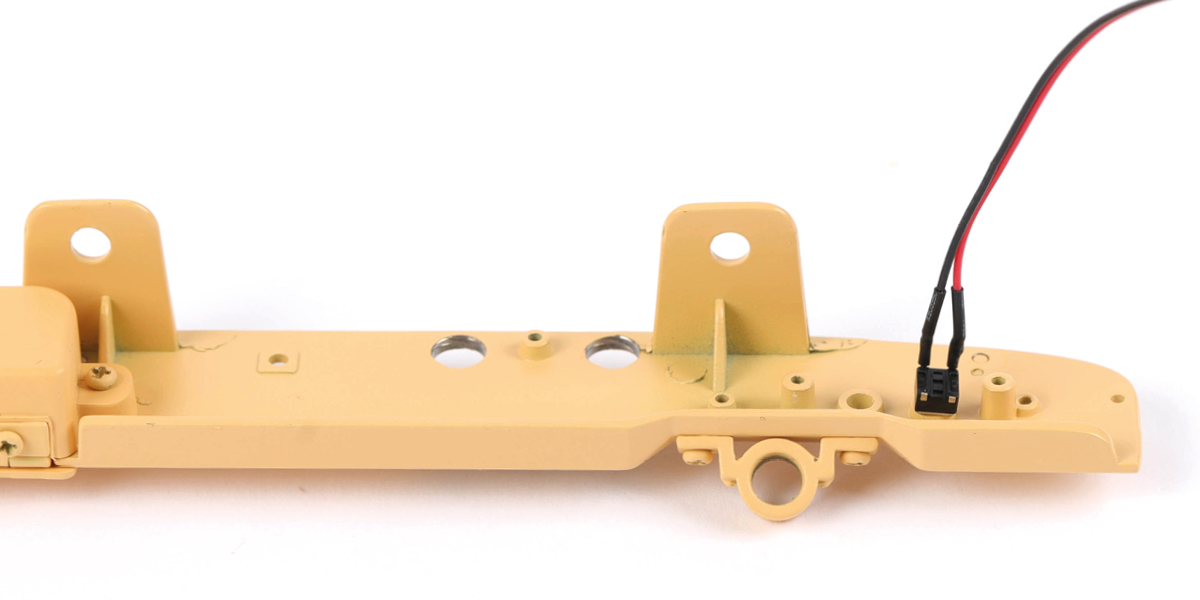

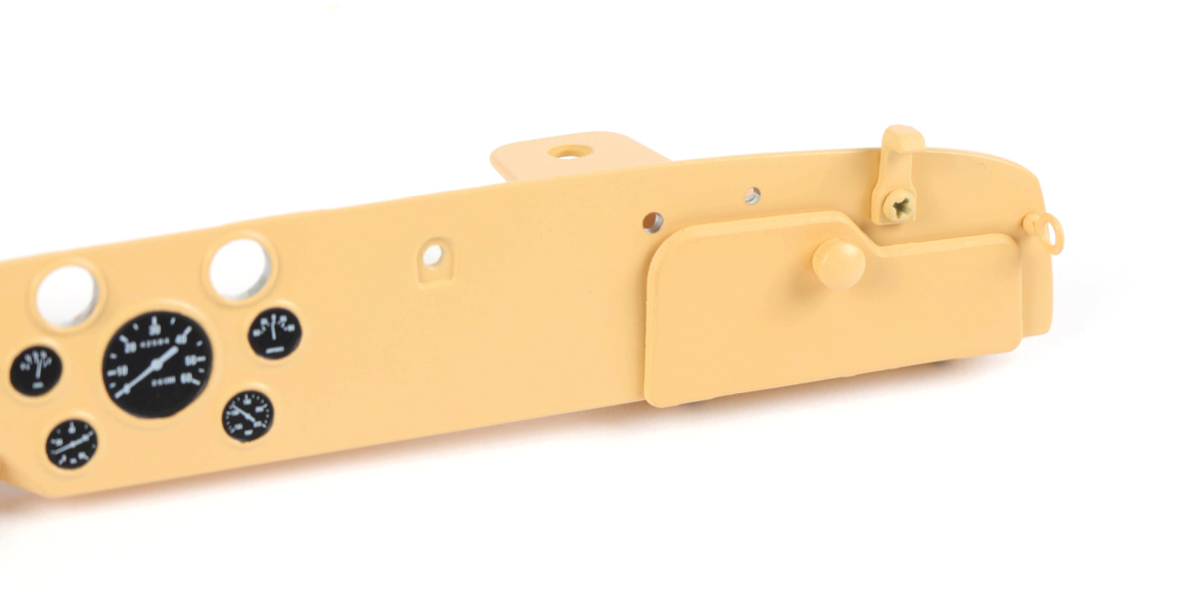

      Fit the switches (61-I and 61-J) into the dashboard assembly (stage 60).

      a
      b
      c

      Step 2

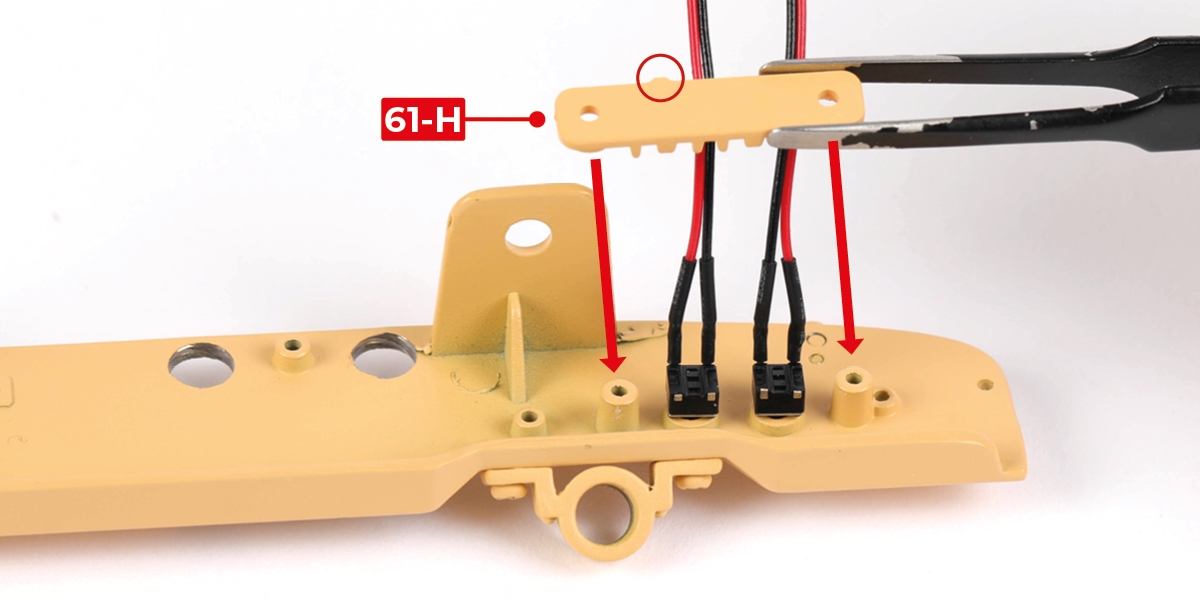

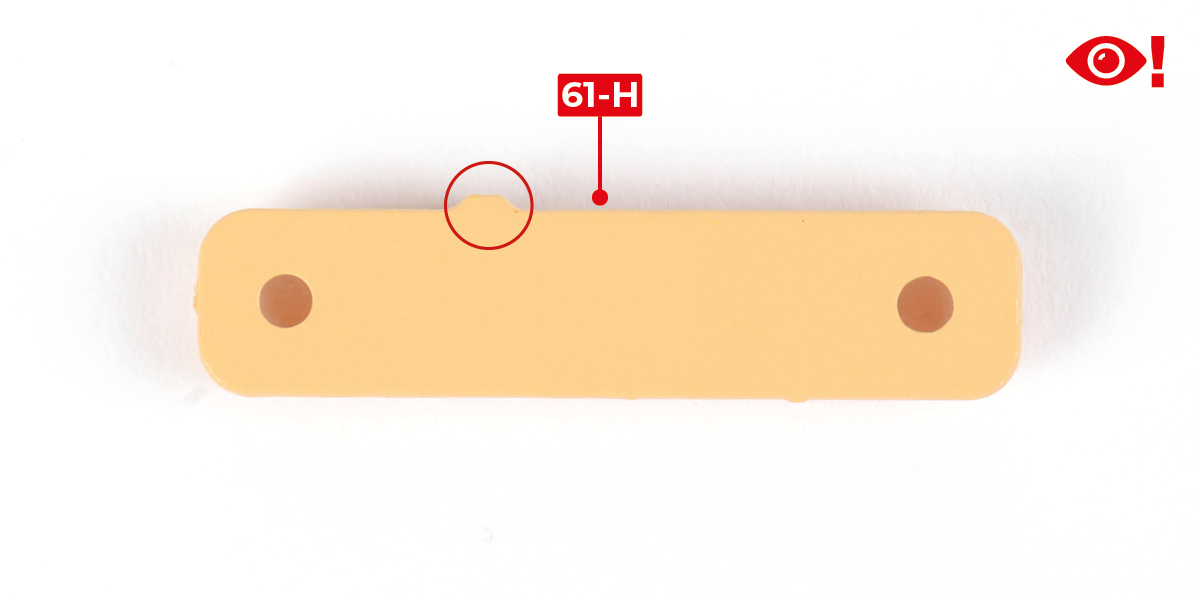

      The circled tab on part 61-H shows the correct orientation.

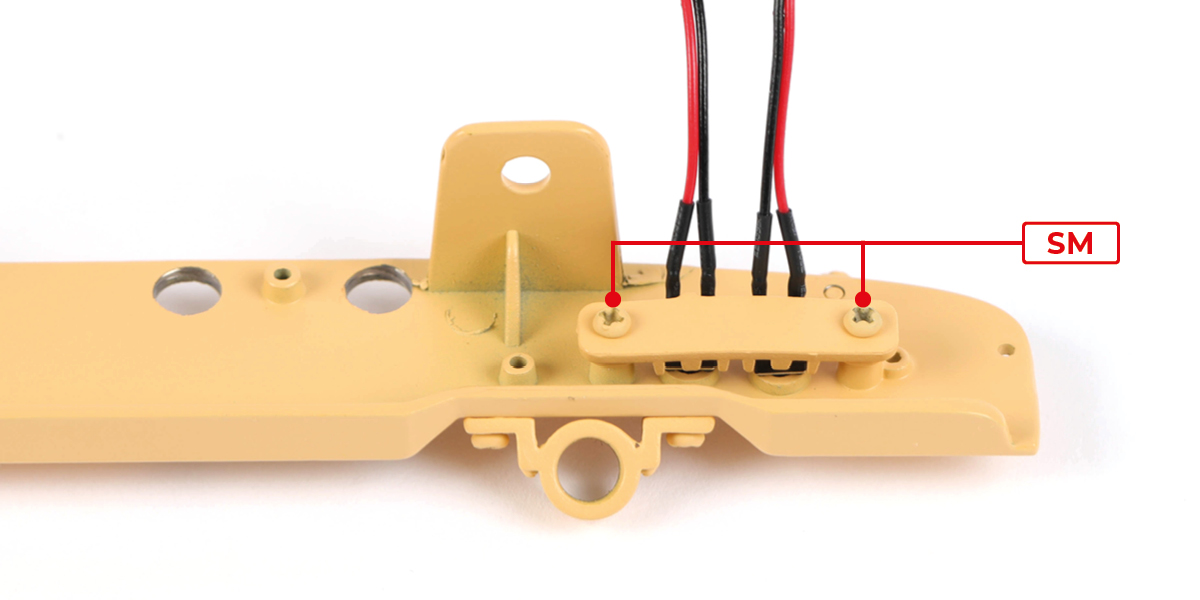

      Fit part 61-H to the dashboard assembly with 2 SM screws.

      a
      b
      c

      Step 3

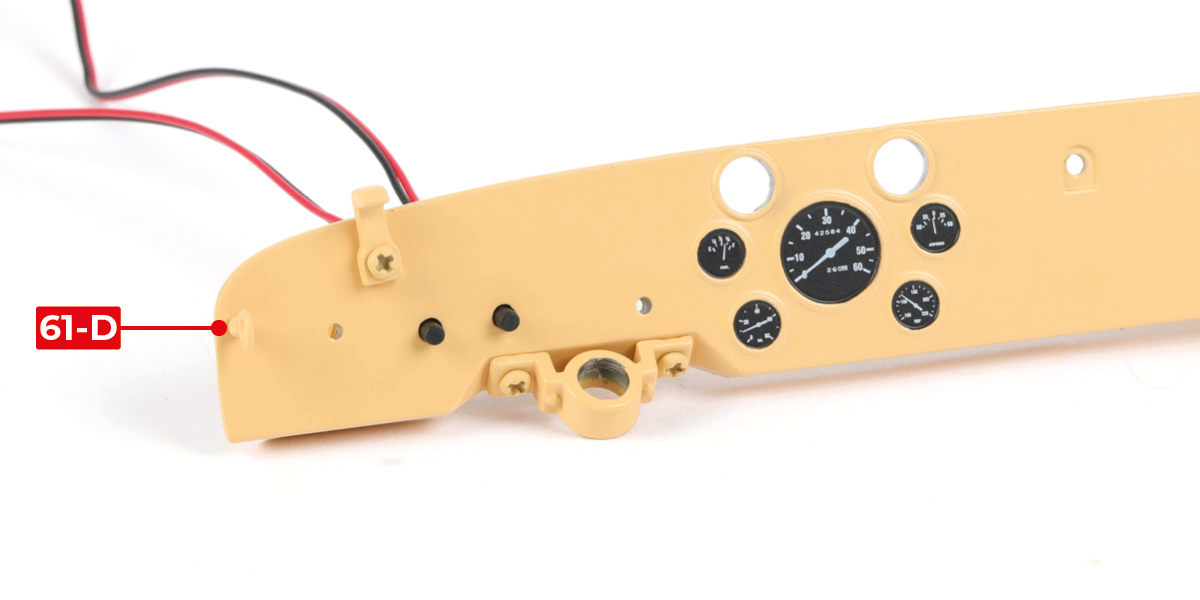

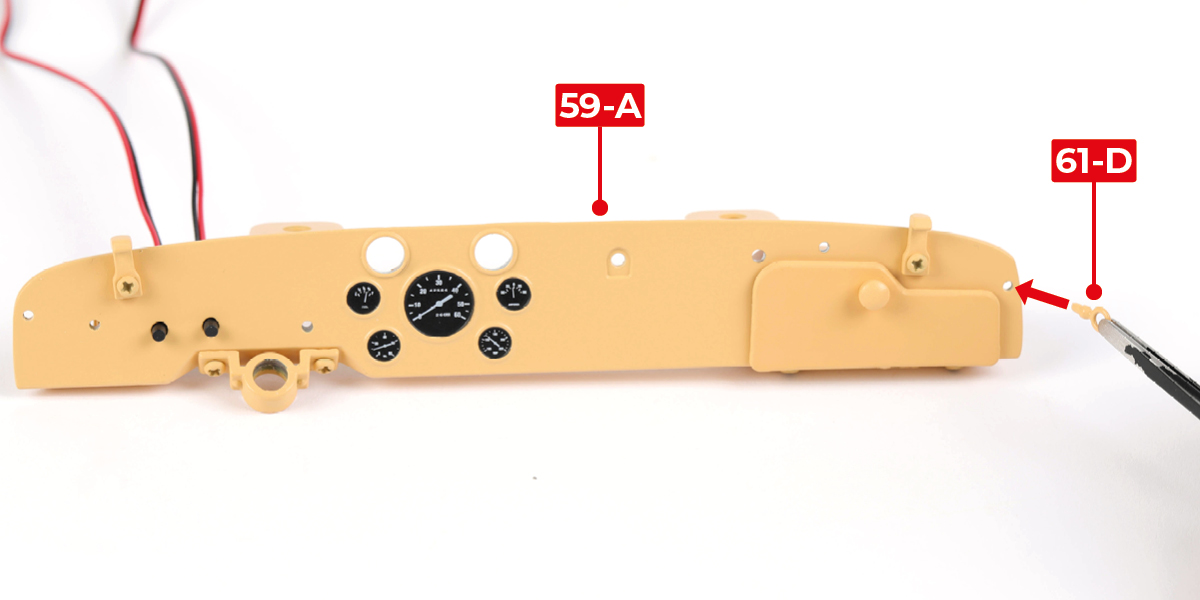

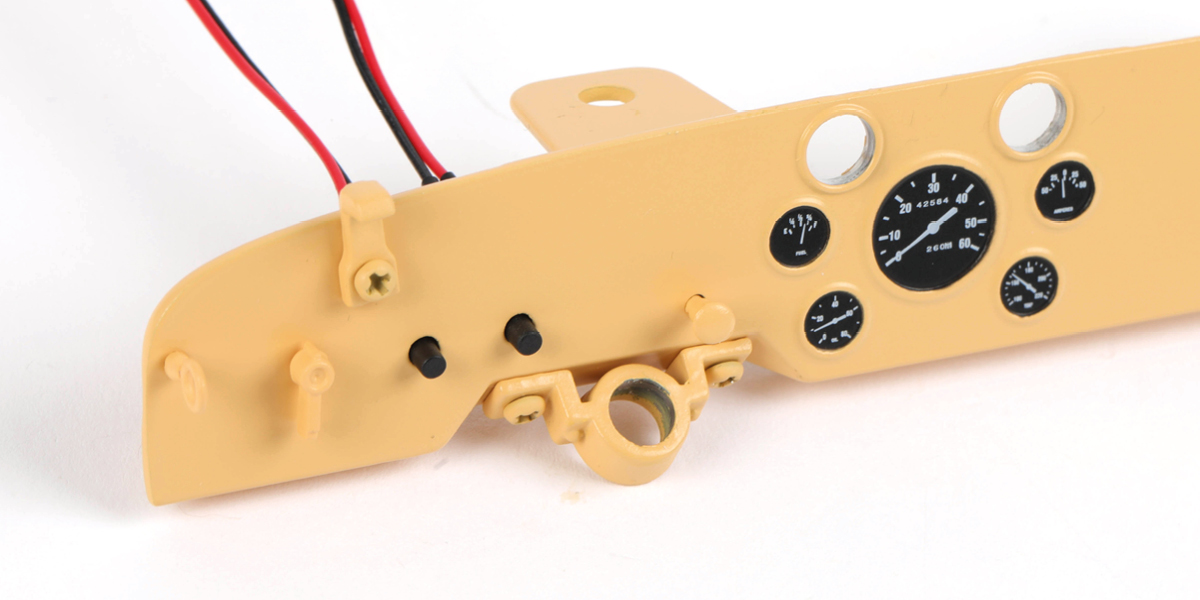

      Fit parts 61-D to part 59-A, as shown.

      a
      b
      c

      Step 4

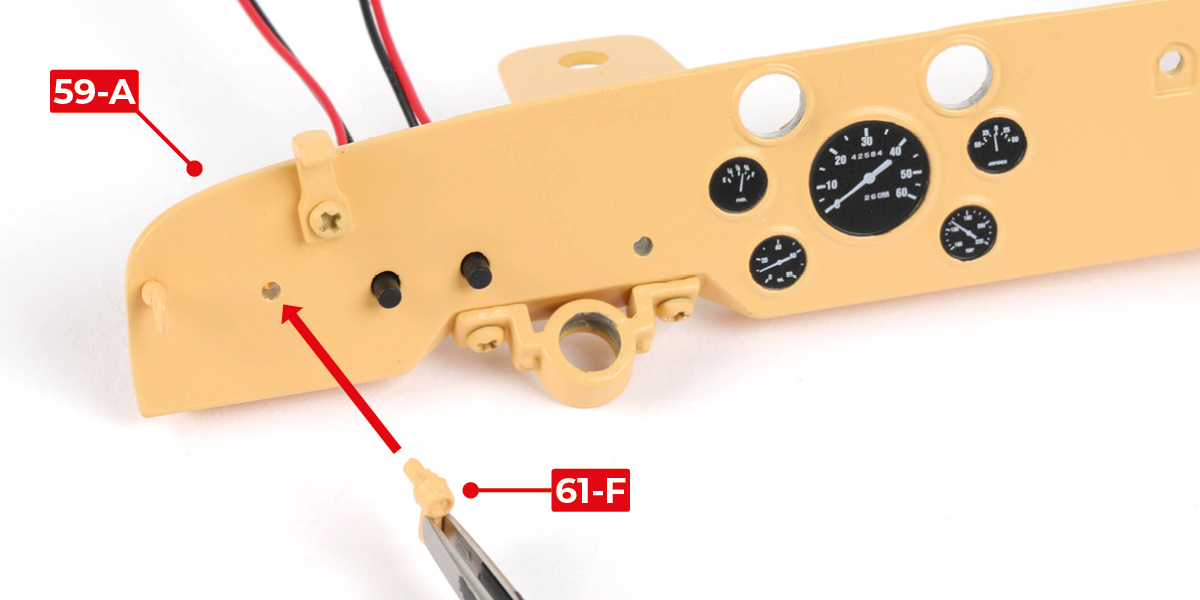

      Fit part 61-F to part 59-A.

      a
      b

      Step 5

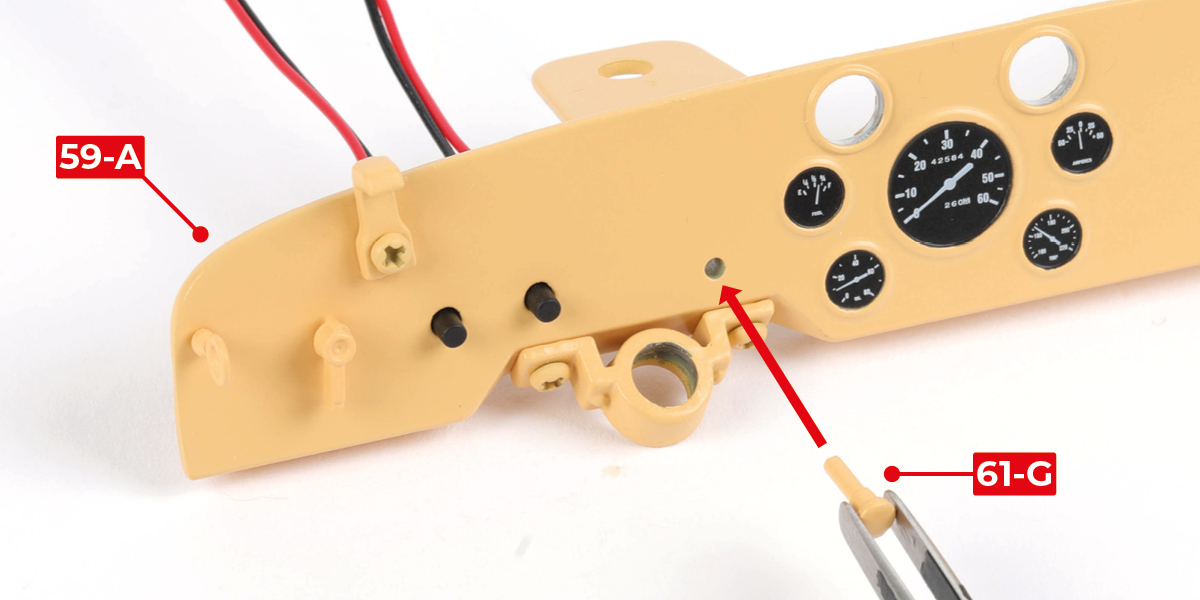

      Fit part 61-G to part 59-A.

      a
      b

      Step 6

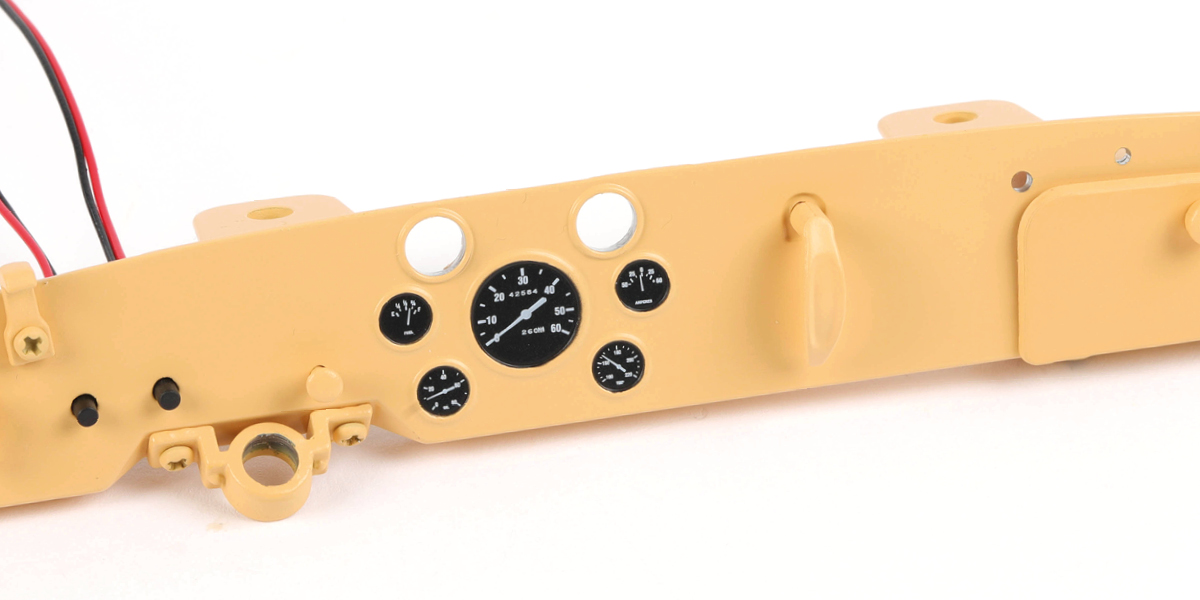

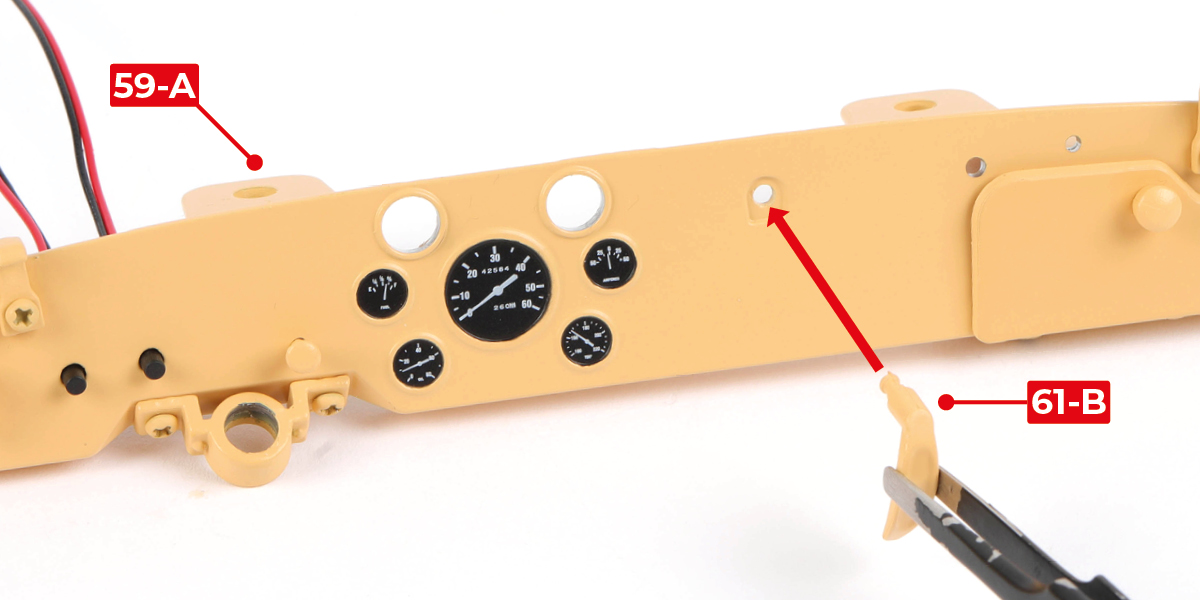

      Fit part 61-B to part 59-A.

      a
      b

      Step 7

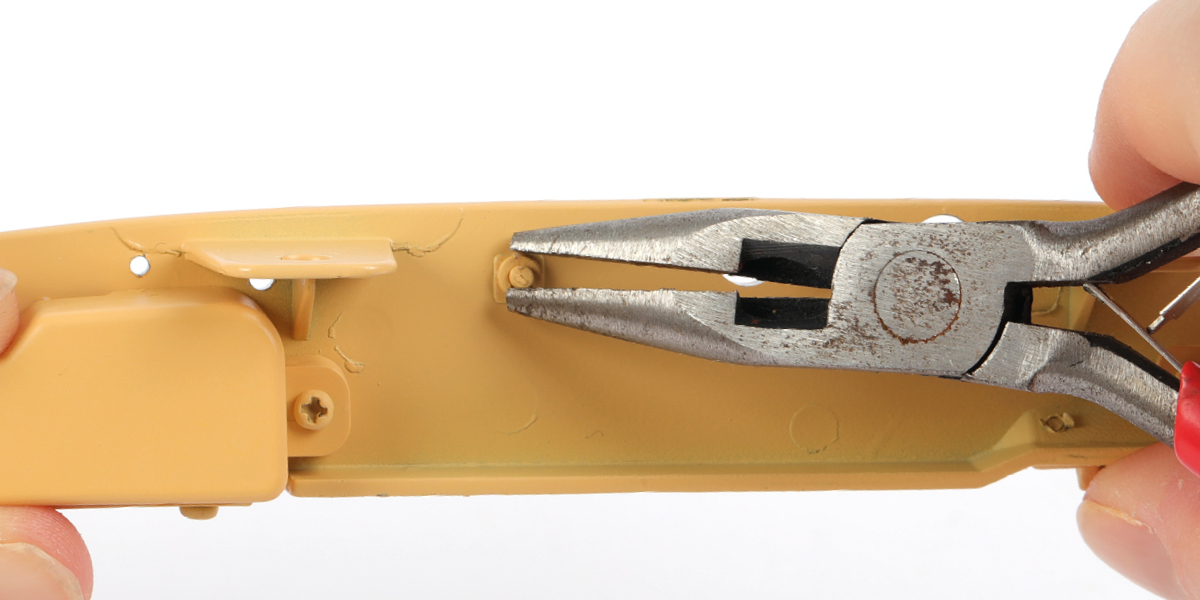

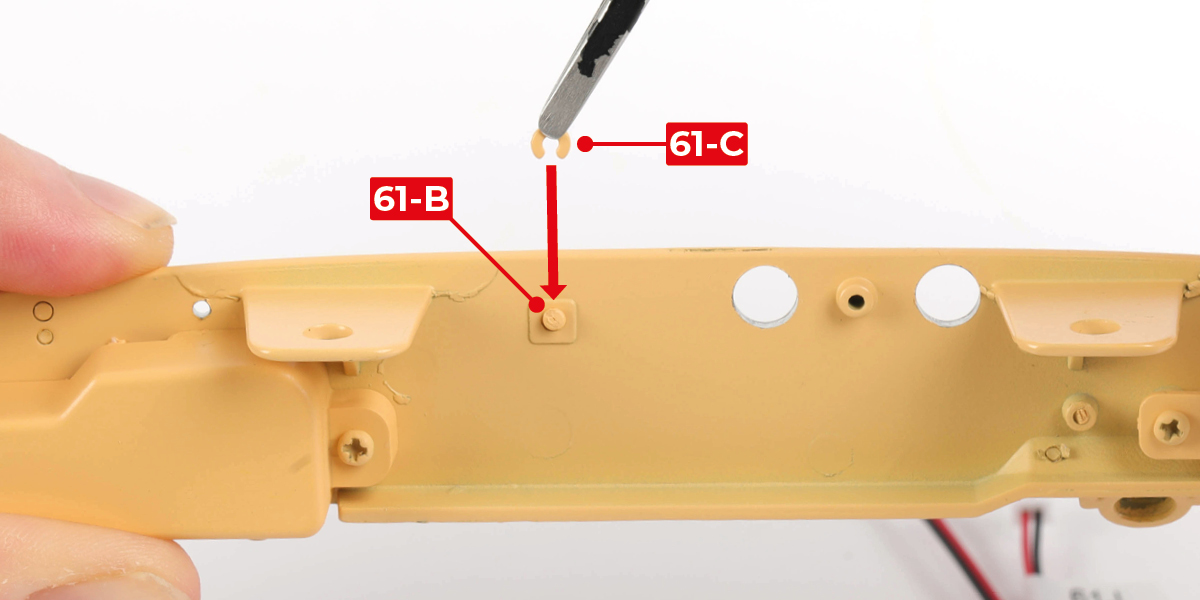

      Fit part 61-C to part 61-B using pliers, as shown.

      a
      b
      c

      Step 8

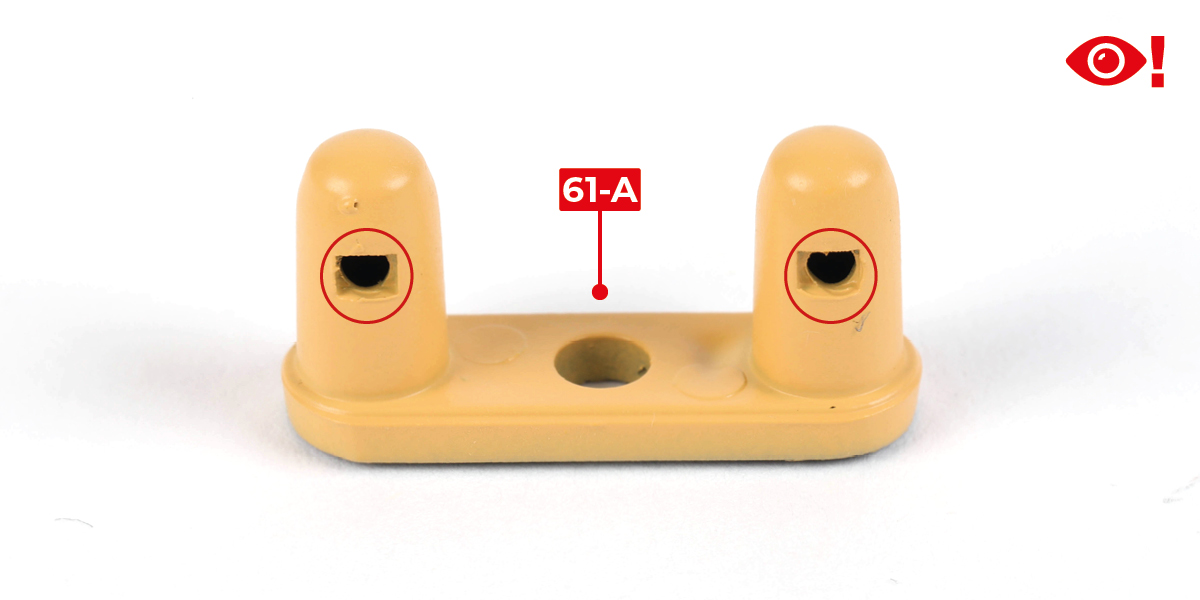

      Note that part 61-A has two holes (circled).

      a

      Step 9

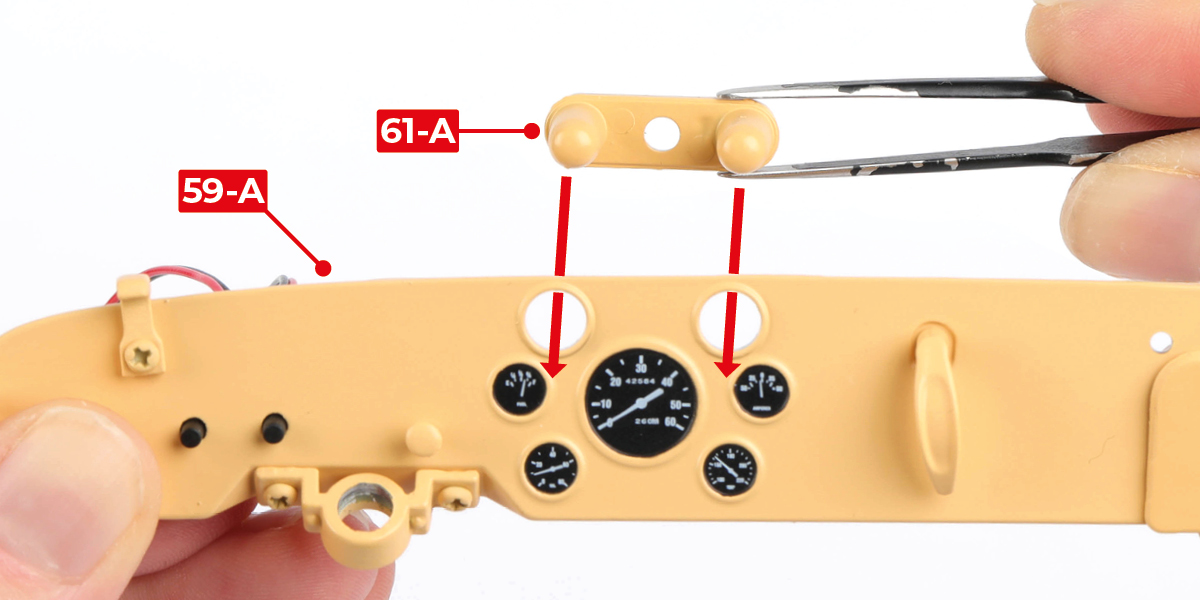

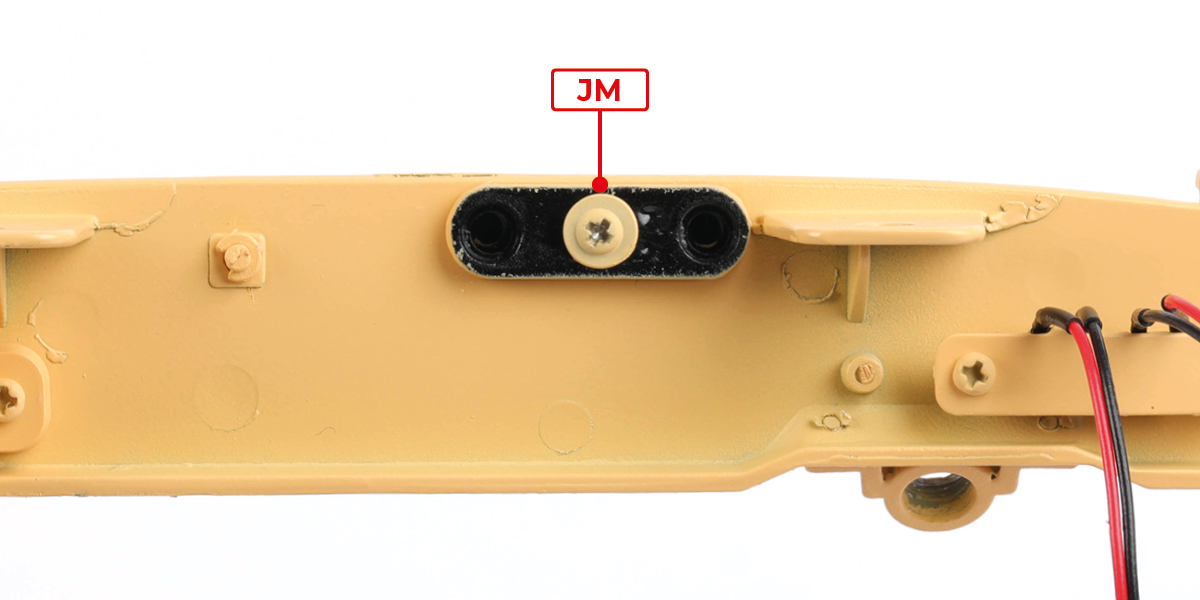

      With the openings facing downwards, fit part 61-A to part 59-A with 1 JM screw.

      a
      b
      c

      Step 10

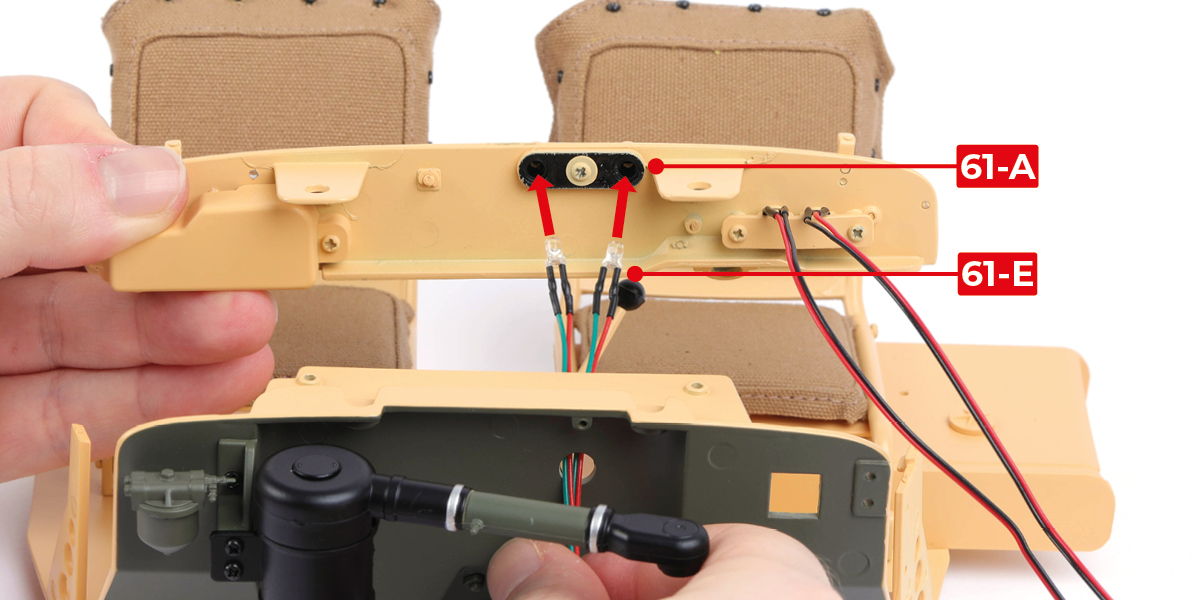

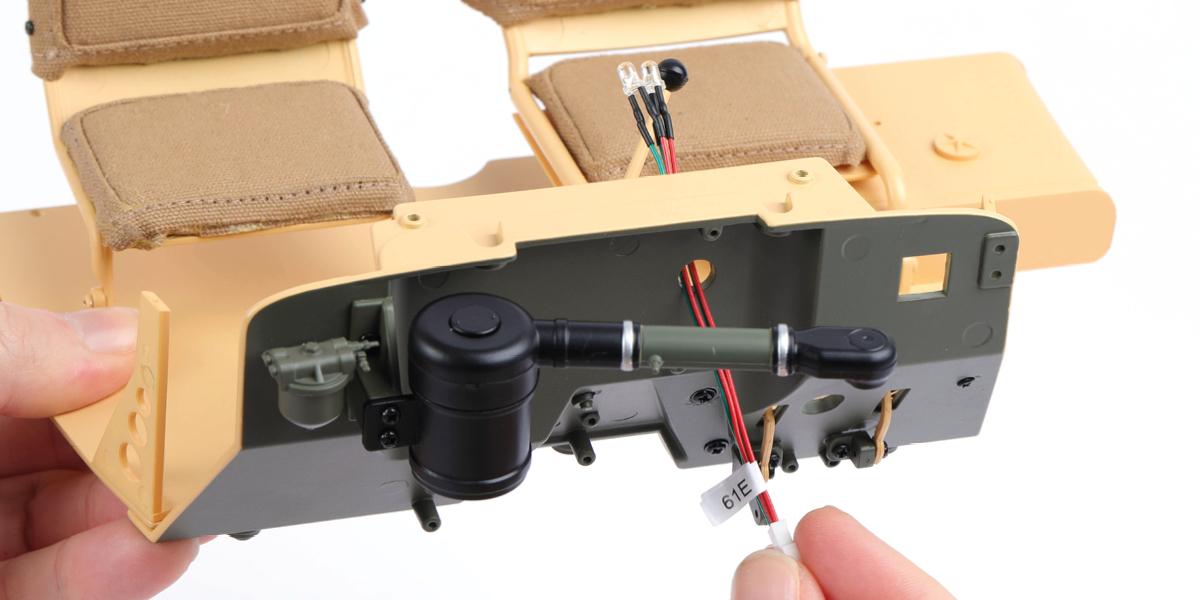

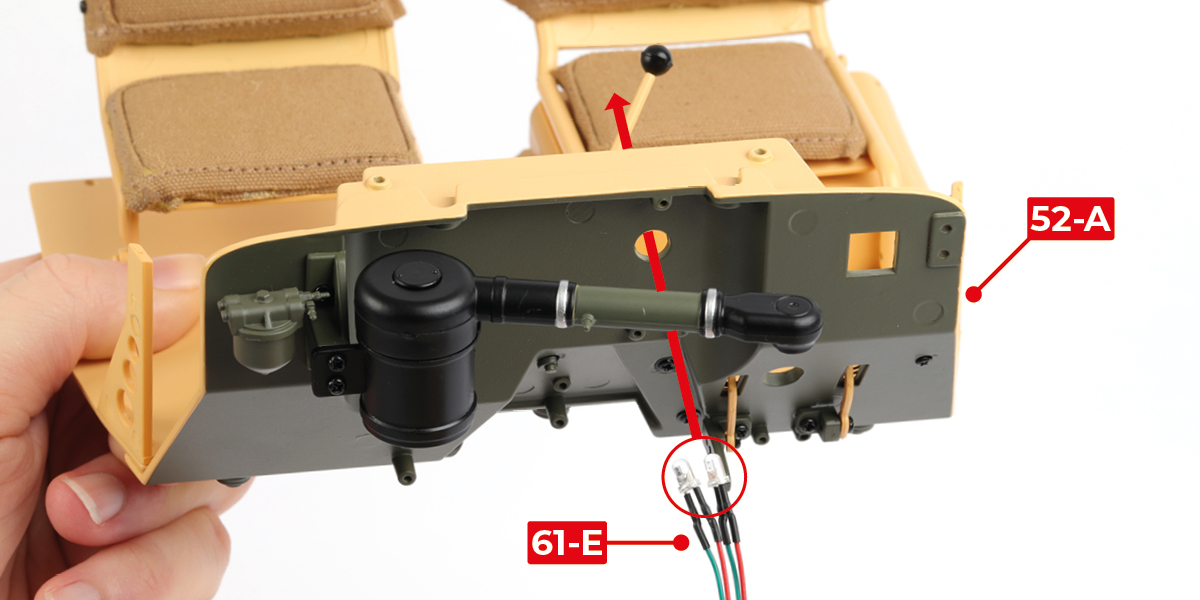

      Fit the LEDs from wire 61-E through part 52-A, as shown.

      a
      b

      Step 11

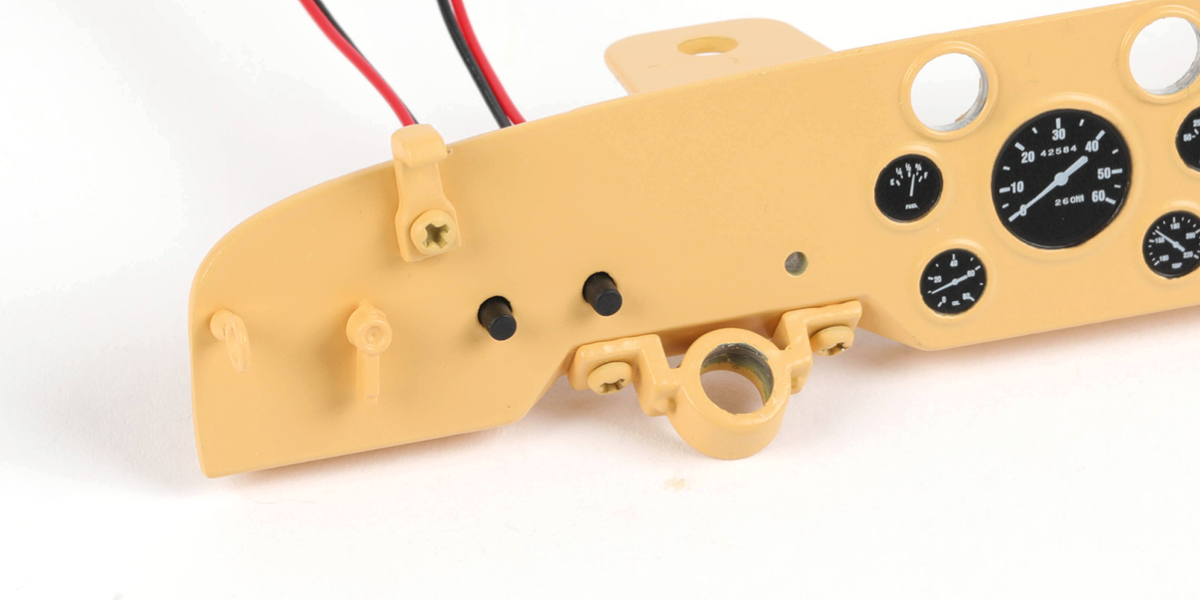

      Insert the LEDs into part 61-A.

      a
      b

      Step 12

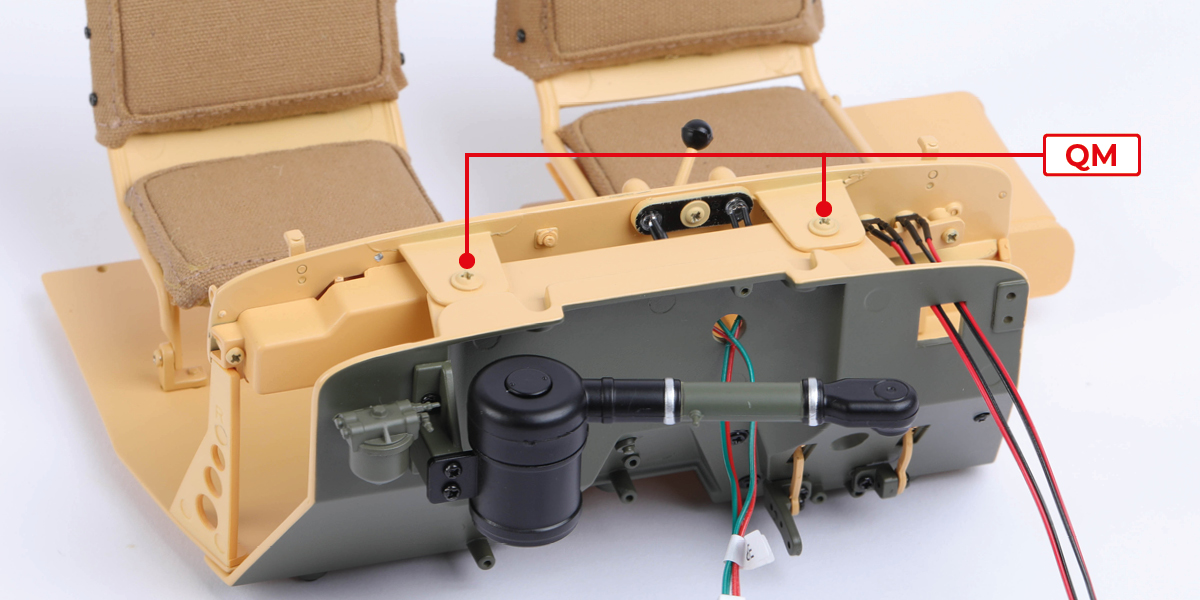

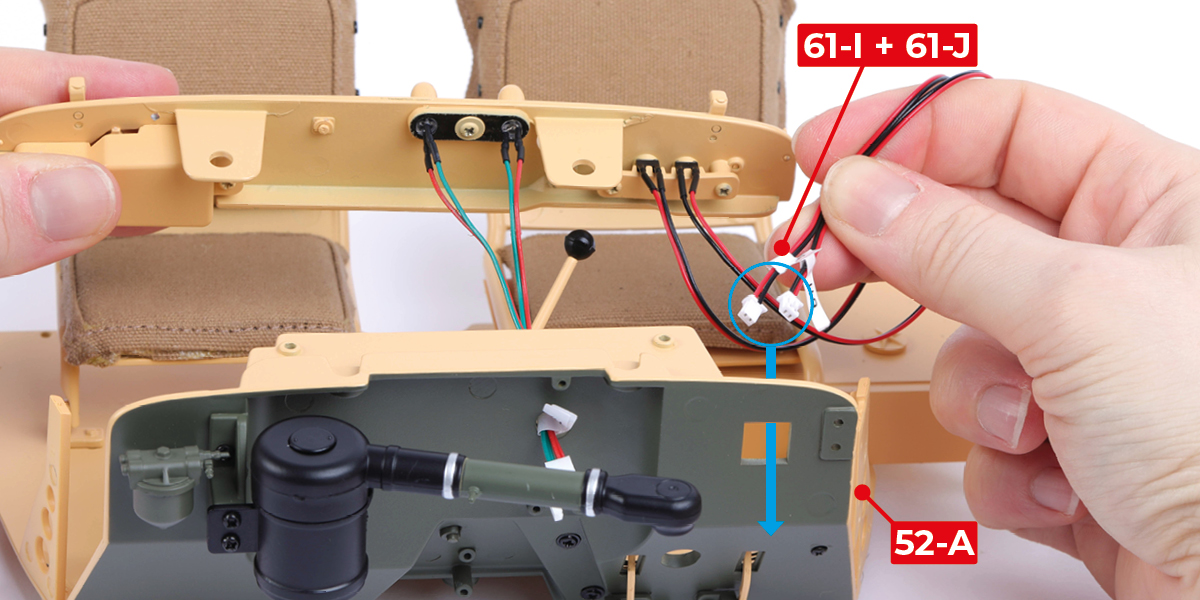

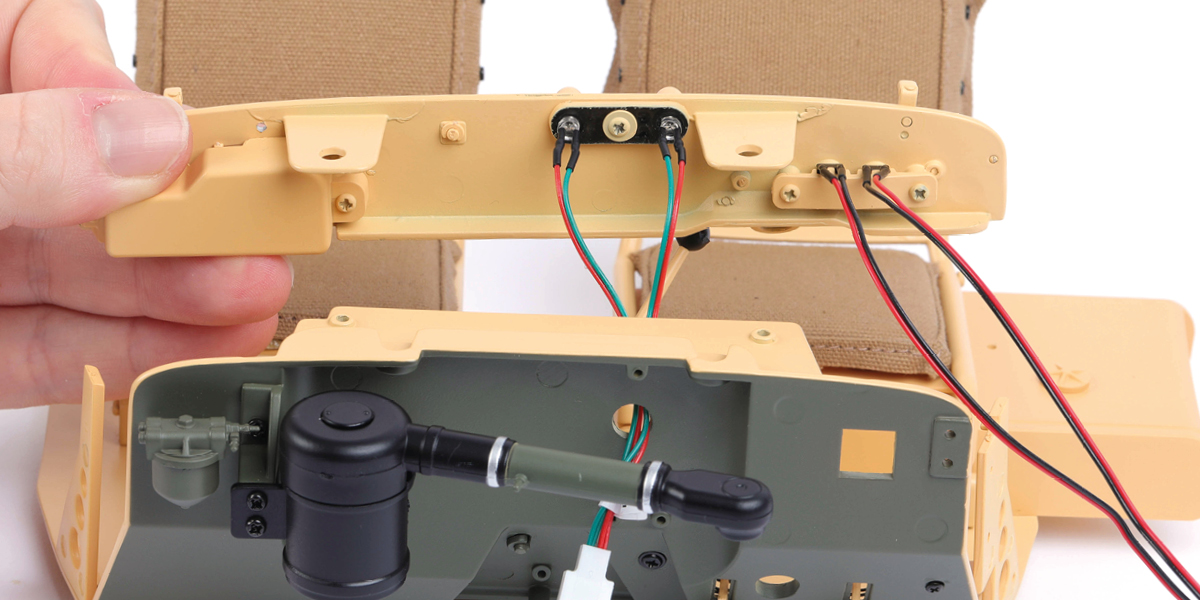

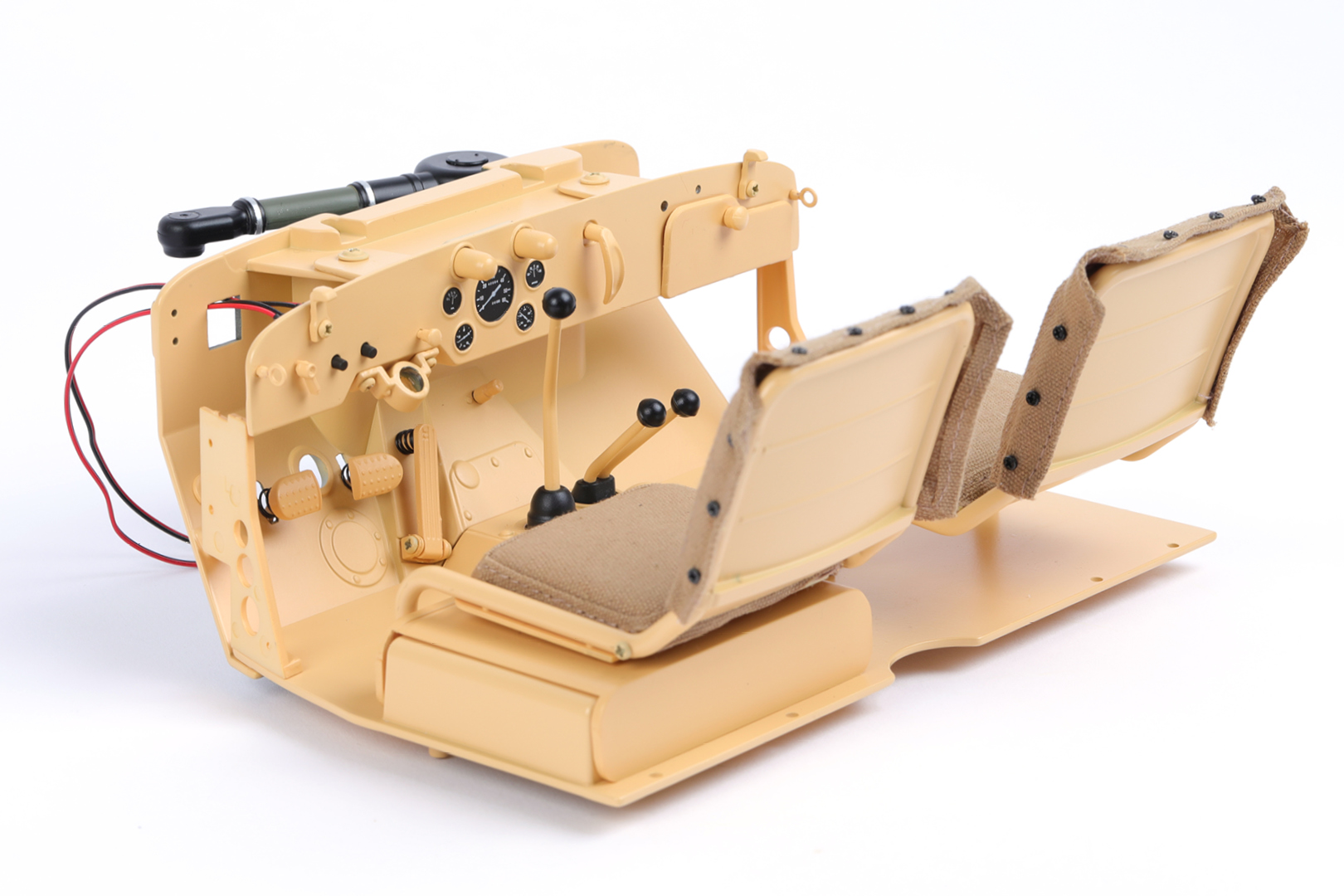

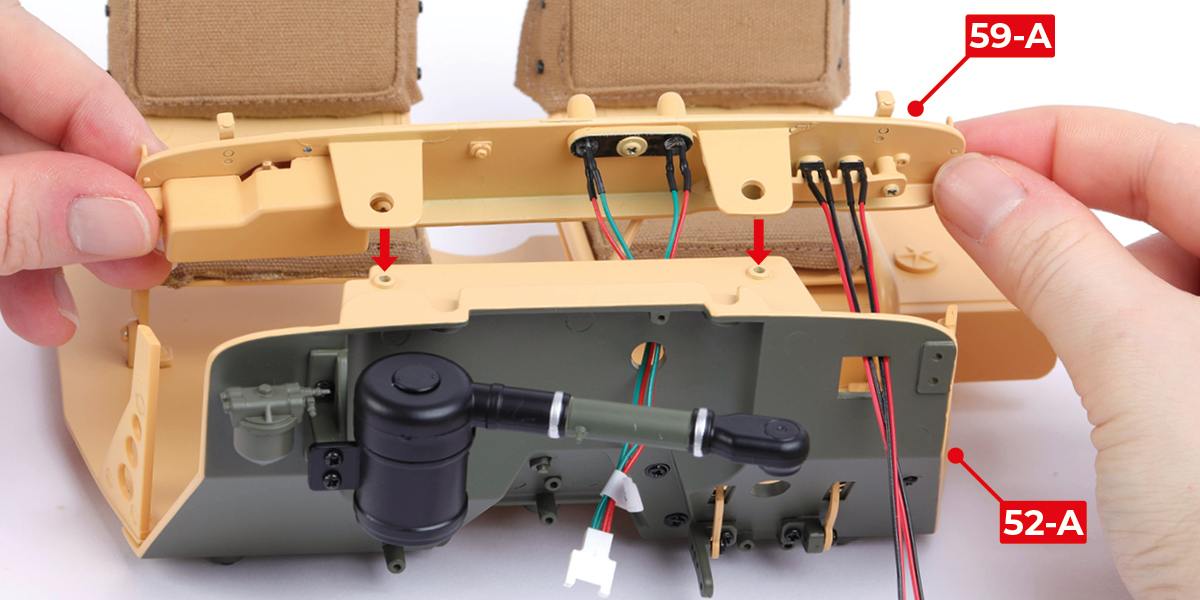

      Thread the plugs from wires 61-I and 61-J through the opening in part 52-A. Then fit the dashboard assembly to part 52-A with 2 QM screws.

      a
      b
      c

      STAGE COMPLETE

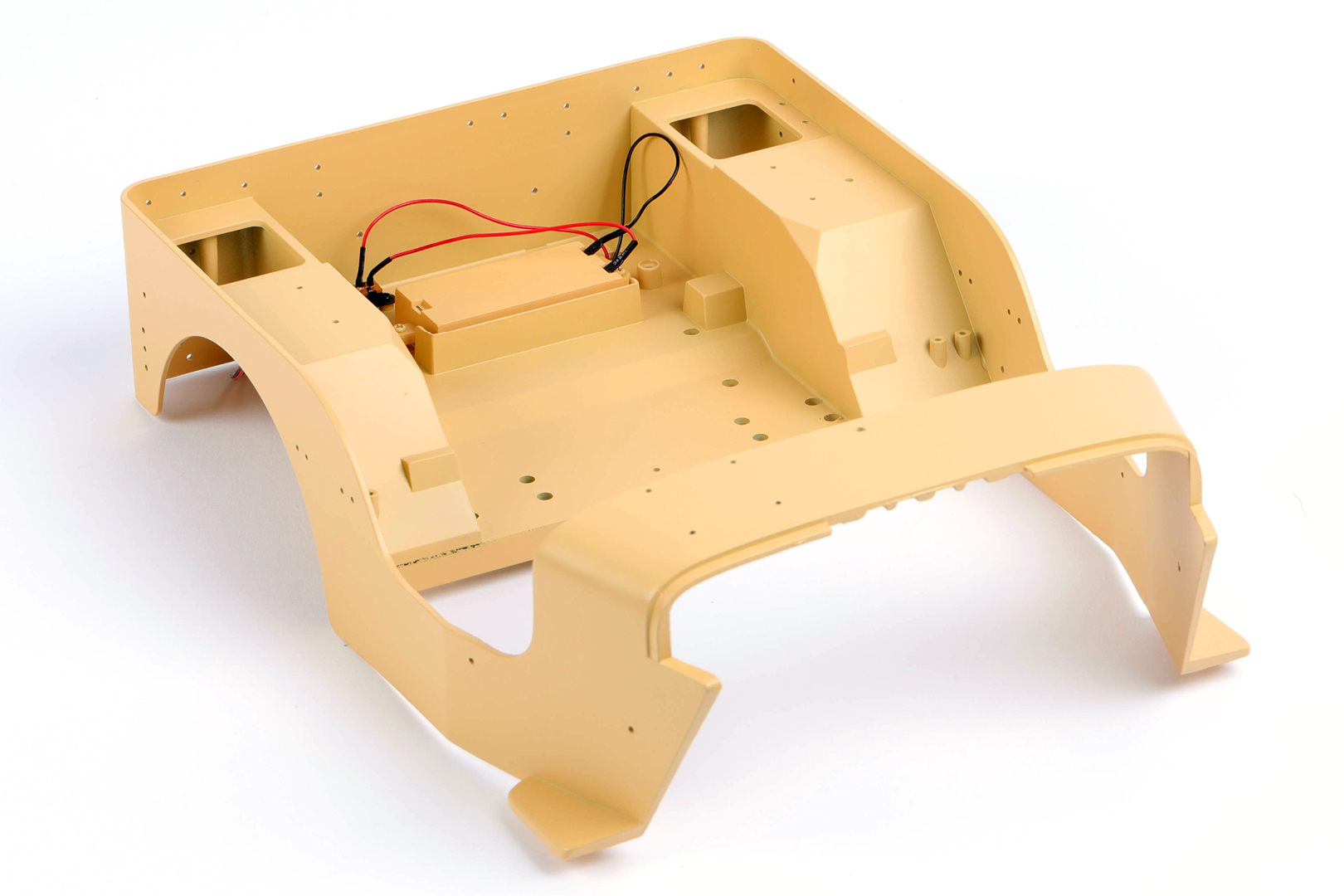

      Stage 62: Fitting the battery compartment and power switch

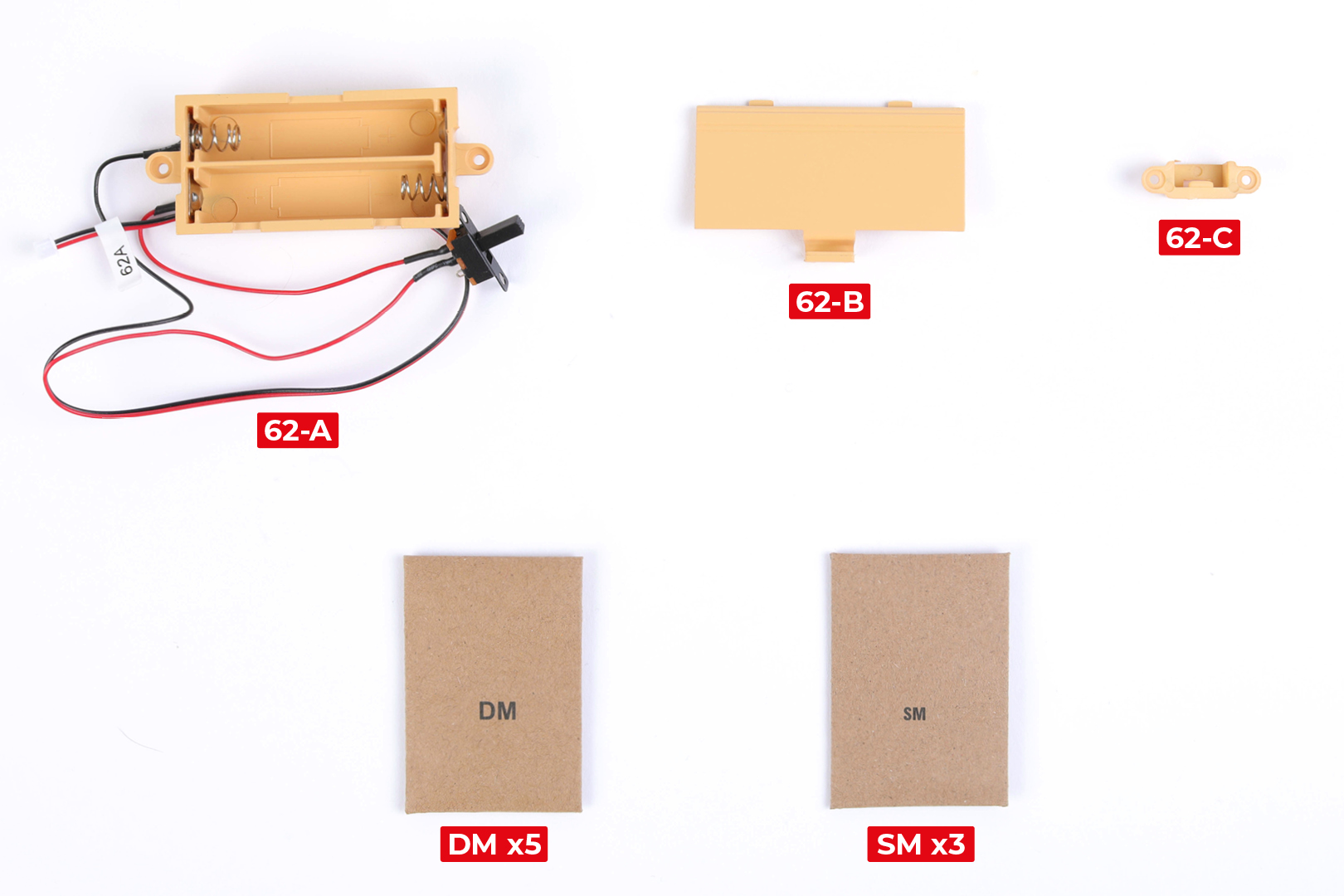

      STAGE 62 PARTS

      Step 1

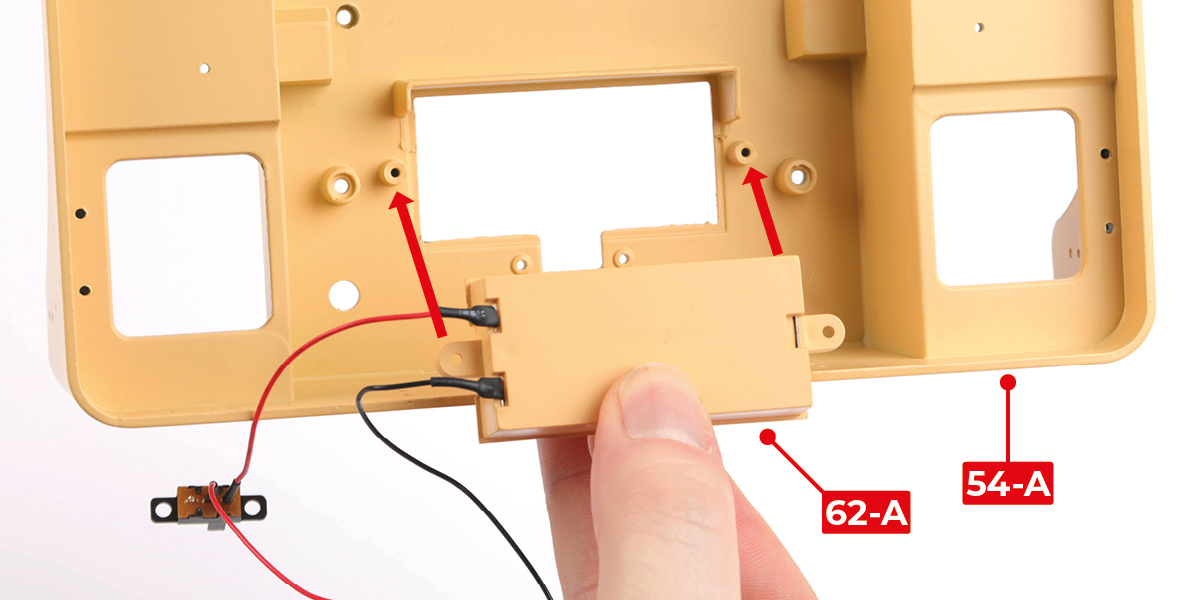

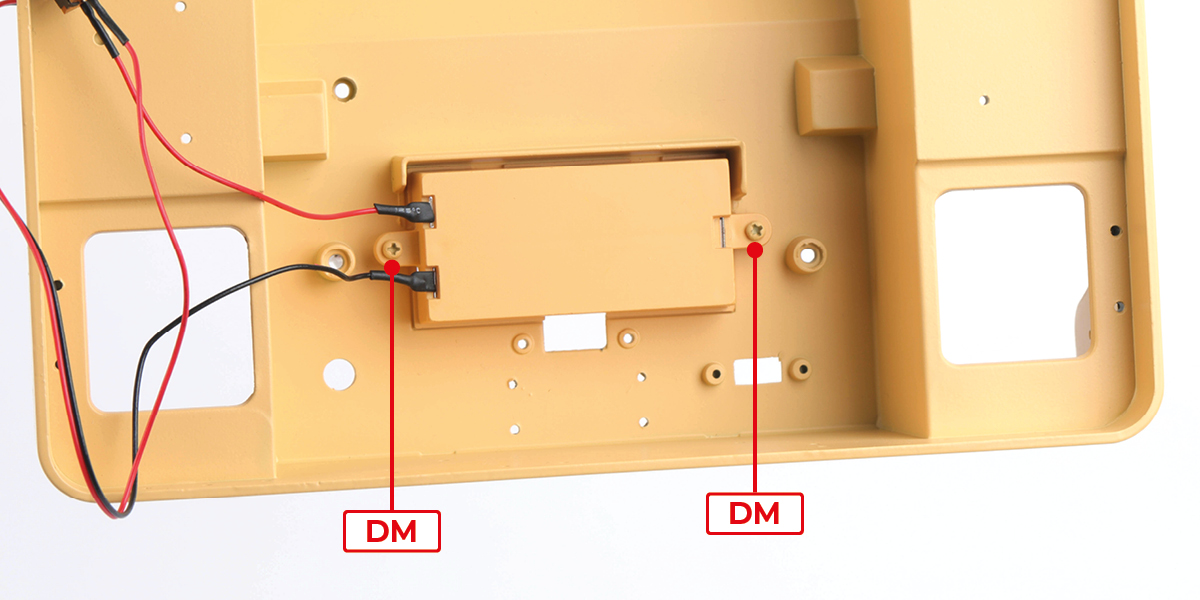

      Fit part 62-A to part 54-A (stage 54) with 2 DM screws.

      a
      b

      Step 2

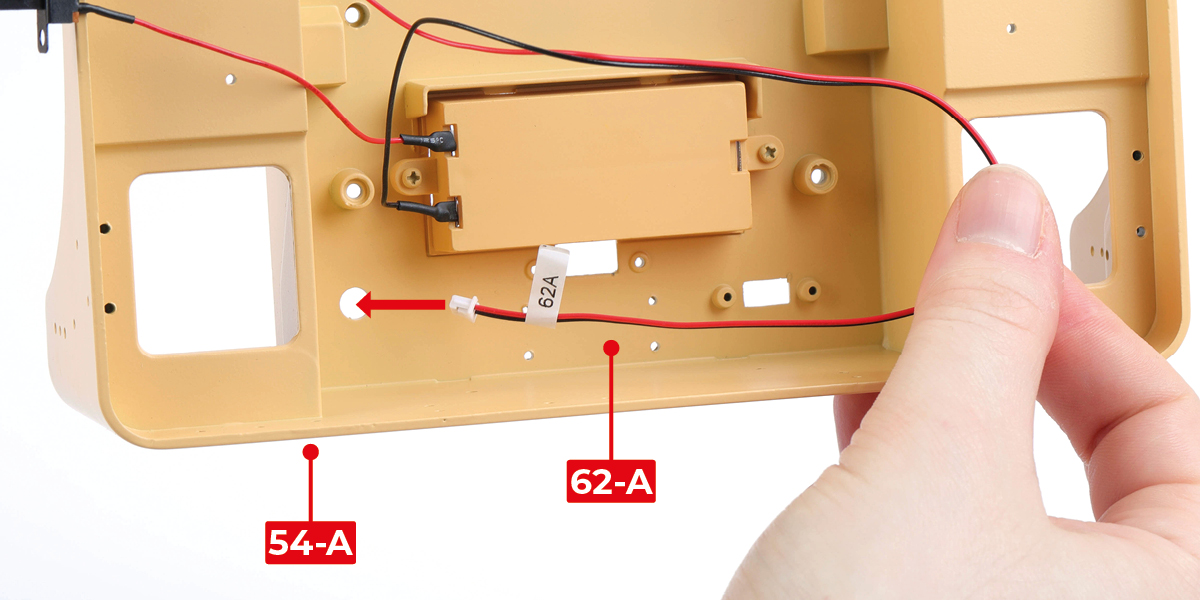

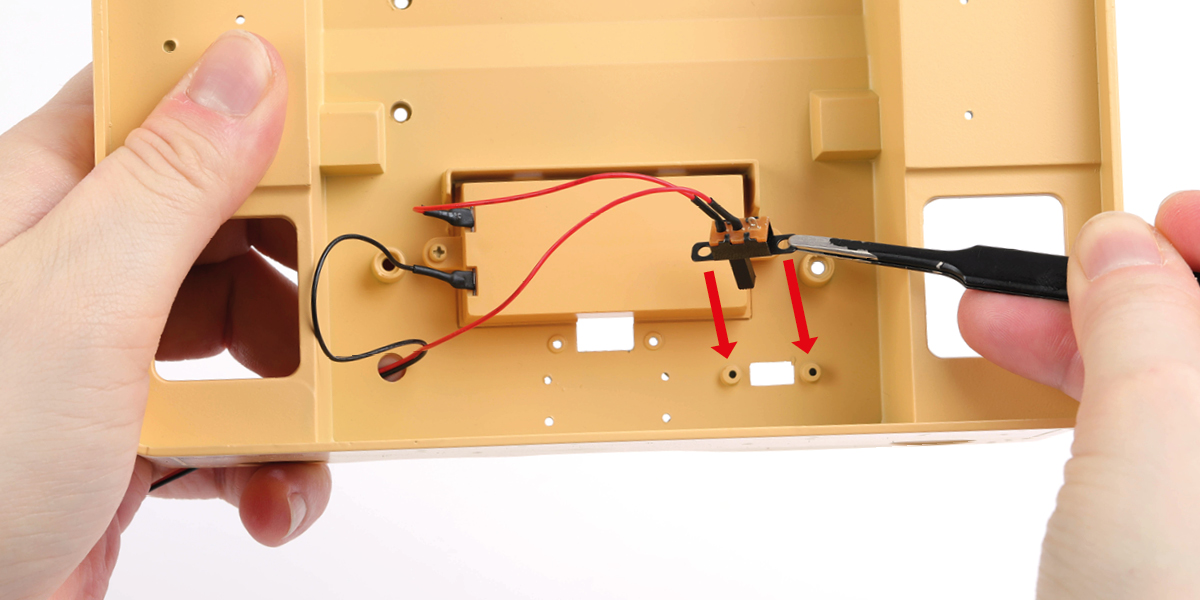

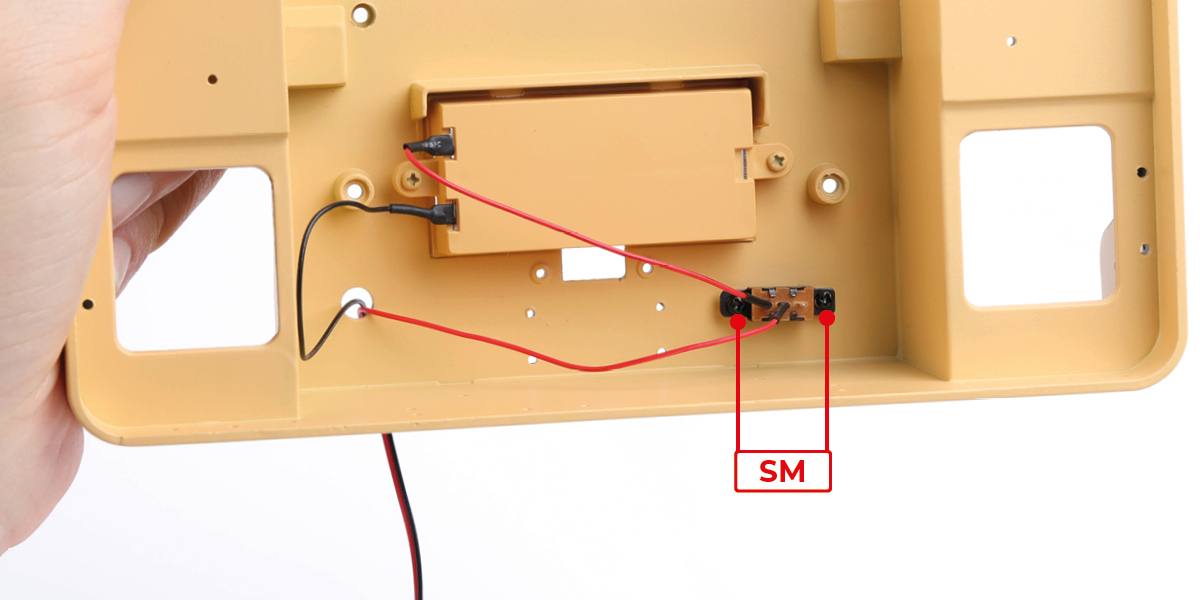

      Thread the plug from wire 62-A through part 54-A. Then fit the power switch with 2 SM screws.

      a
      b
      c

      Step 3

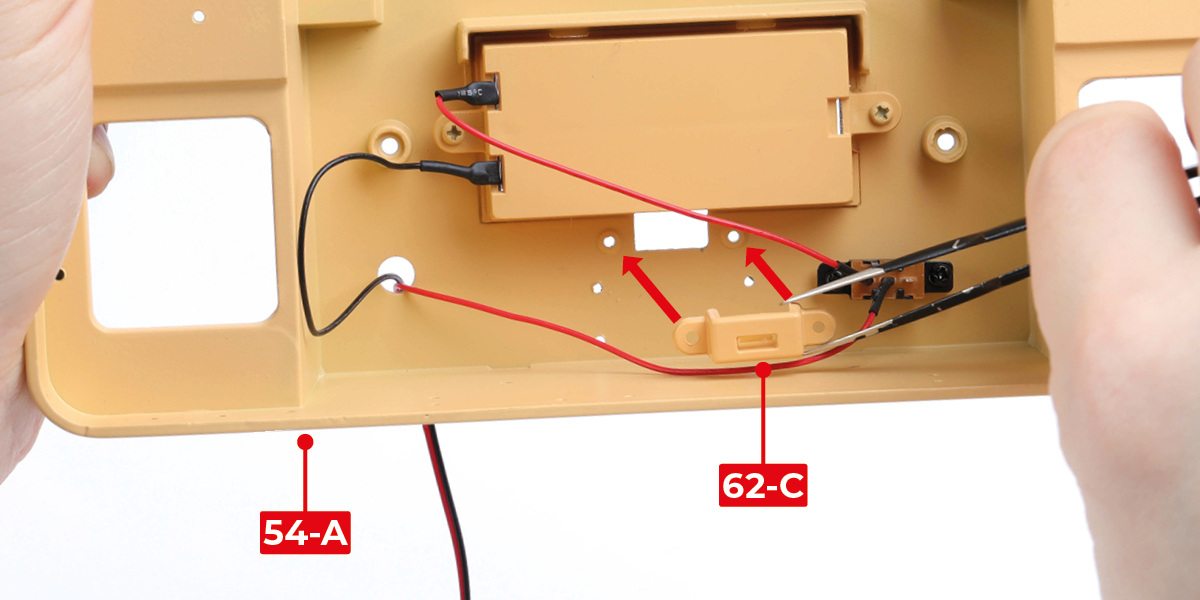

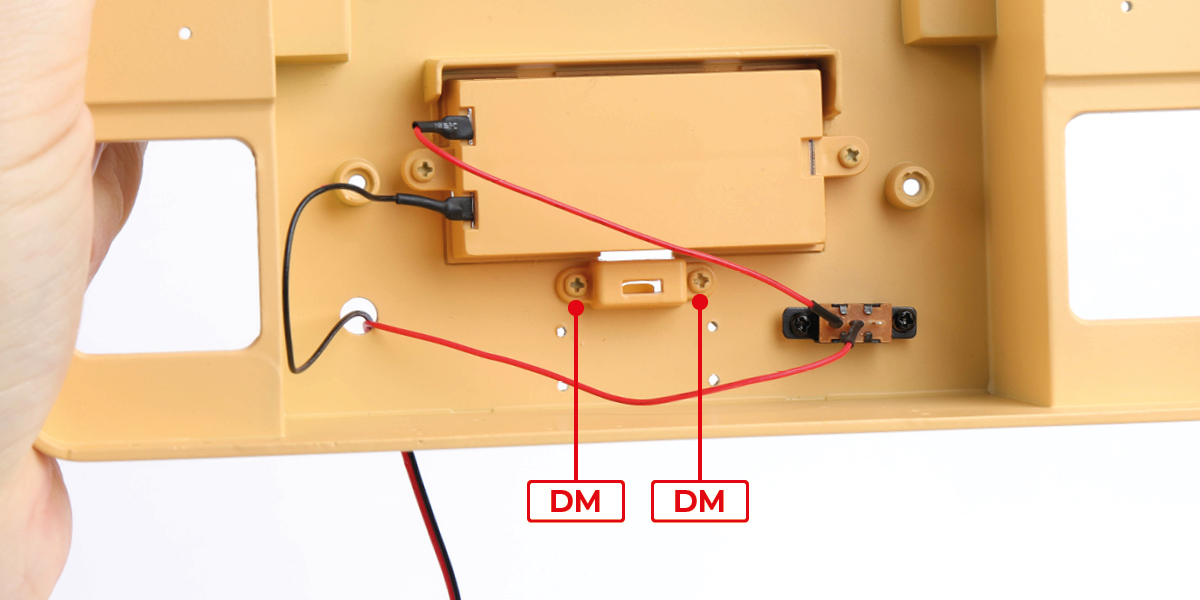

      Fit part 62-C to part 54-A with 2 DM screws.

      a
      b

      STAGE COMPLETE
