      Stage 076: Fitting the rear deck

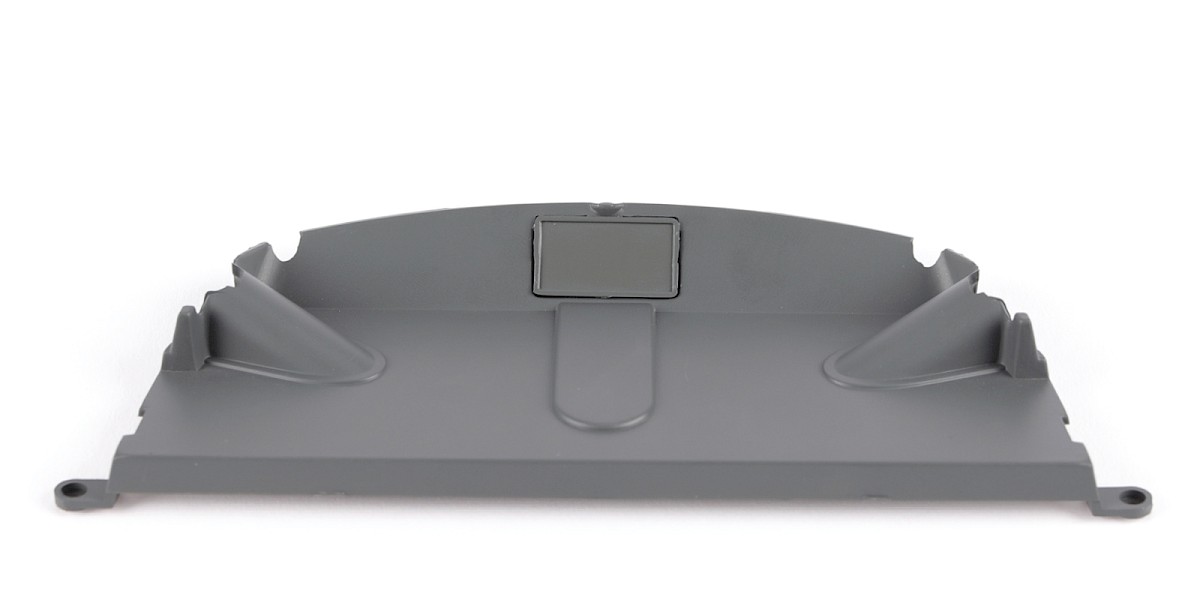

      PARTS LIST

      76-A Rear deck
      76-B Rear deck compartment lid
      3x DS06 screws
      2x PS12 screws

      Step 1

      Fit the rear deck compartment lid (76-B) to the rear deck (76-A).

      a
      b

      Step 2

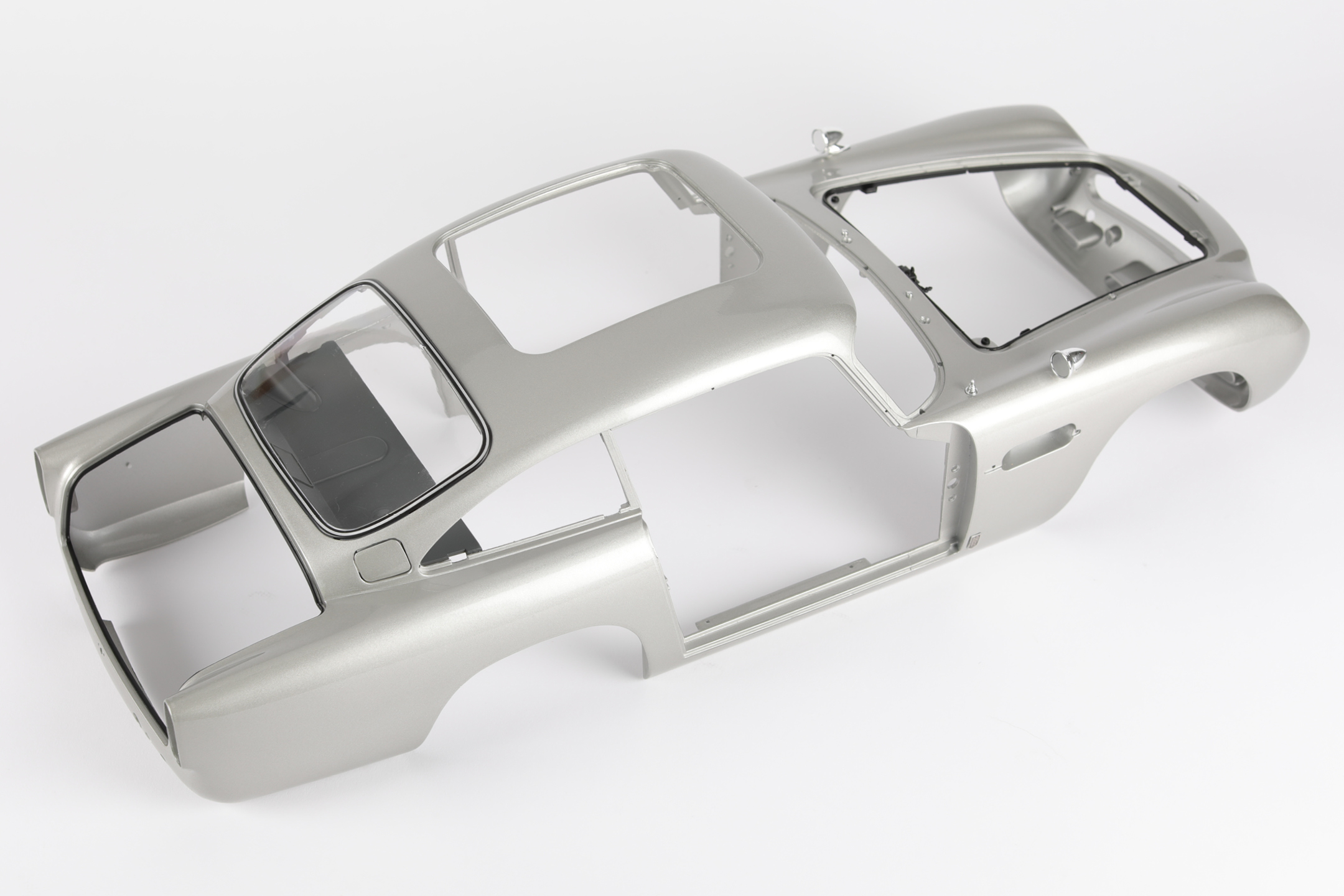

      Fit the assembly to the main body (stage 075).

      Remember to place a soft cloth on your work surface to protect the paintwork when working on the underside of your model.

      a

      Step 3

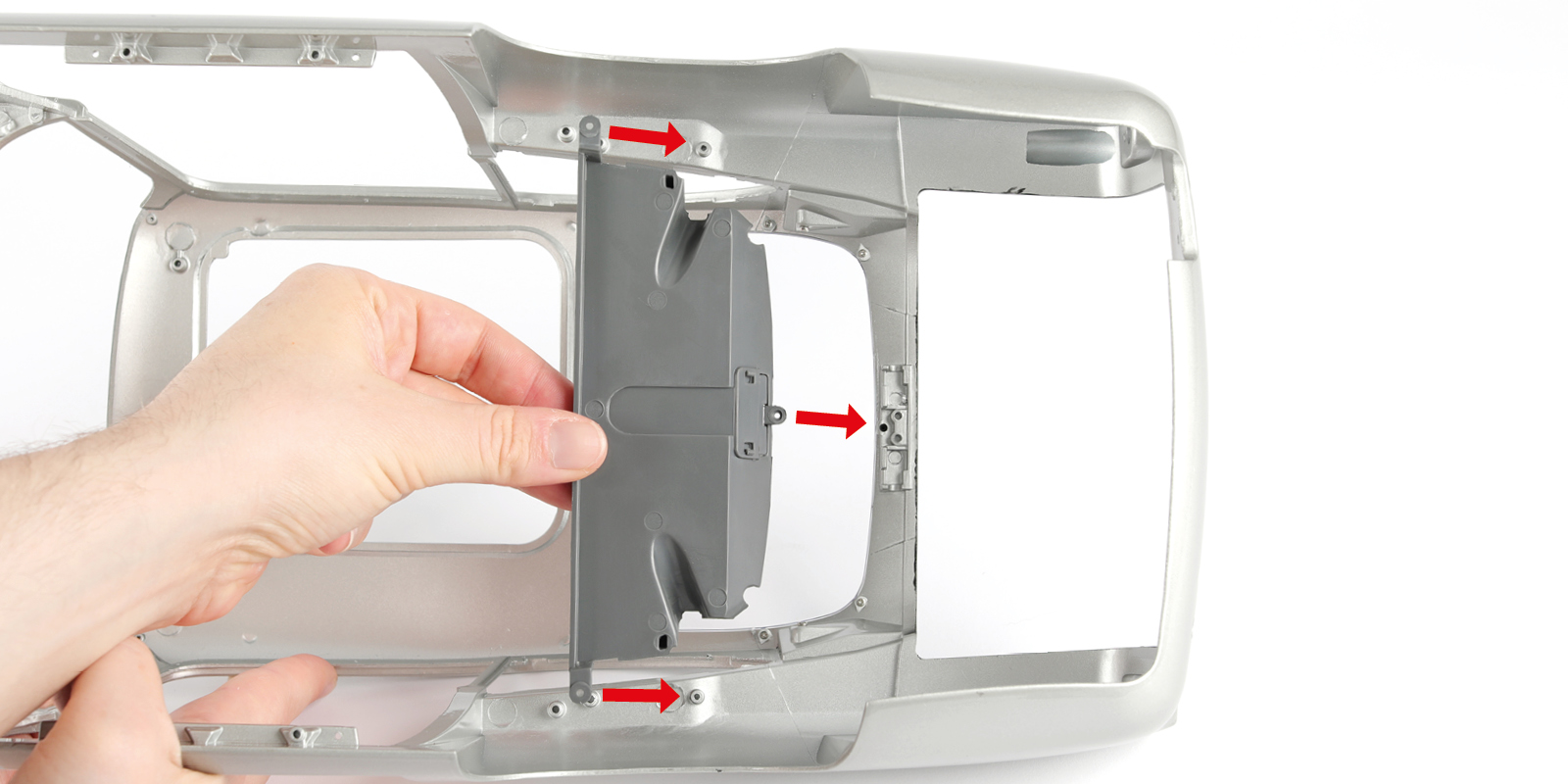

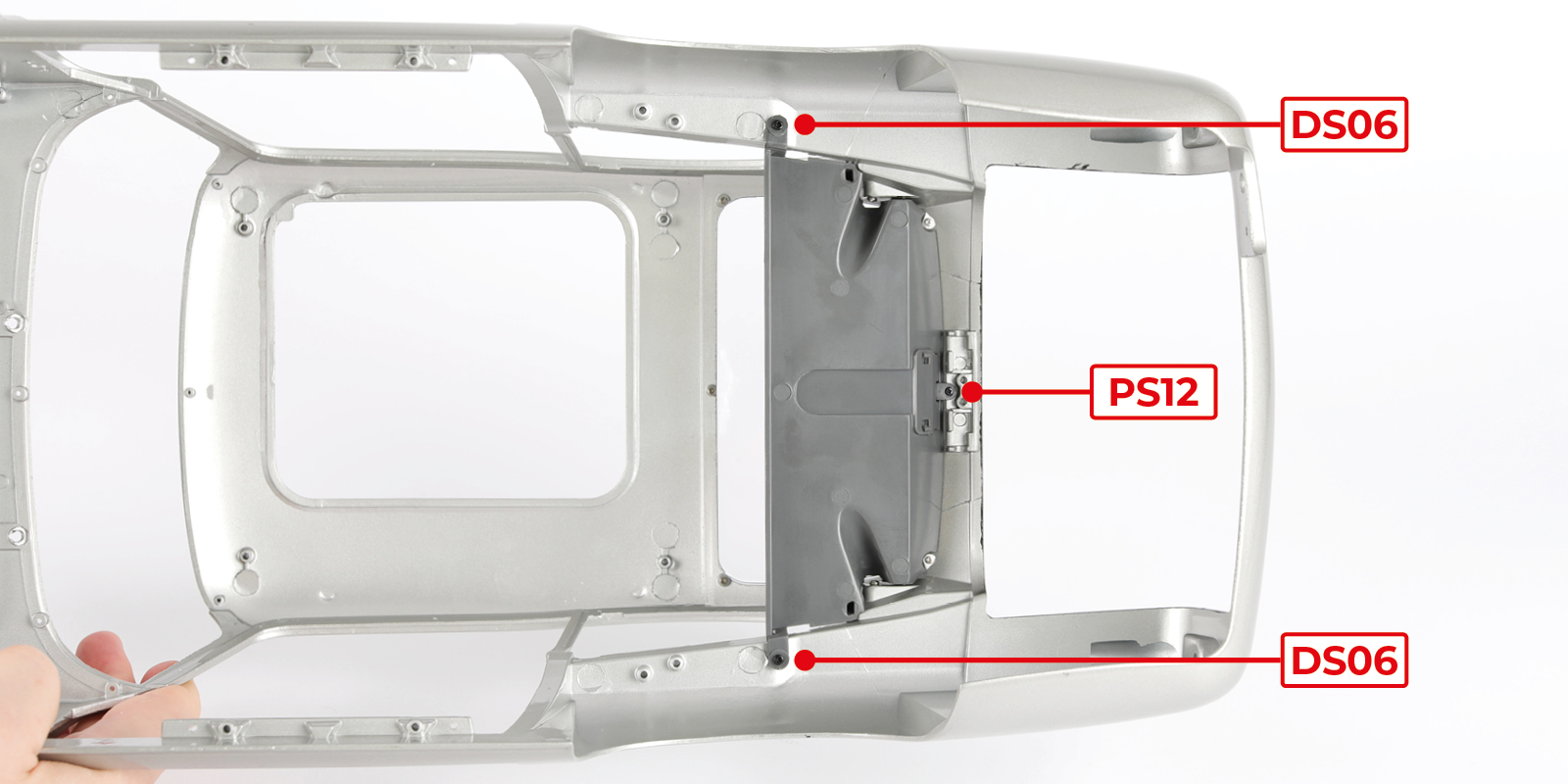

      Secure with 2x DS06 and 1x PS12.

      a

      STAGE COMPLETE

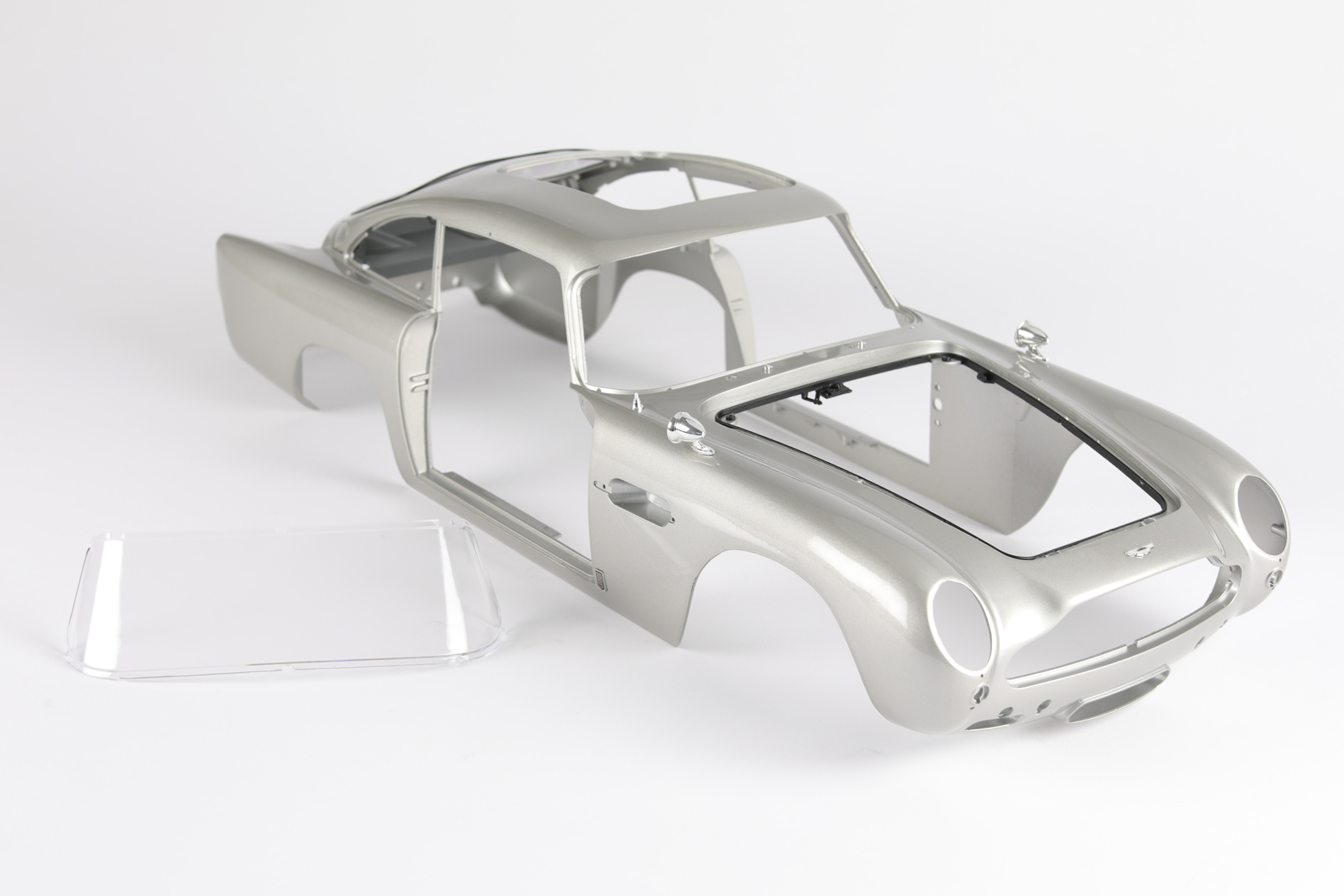

      Stage 077: The windshield

      There is no assembly in this stage, you can go straight to Stage 078.

      PARTS LIST

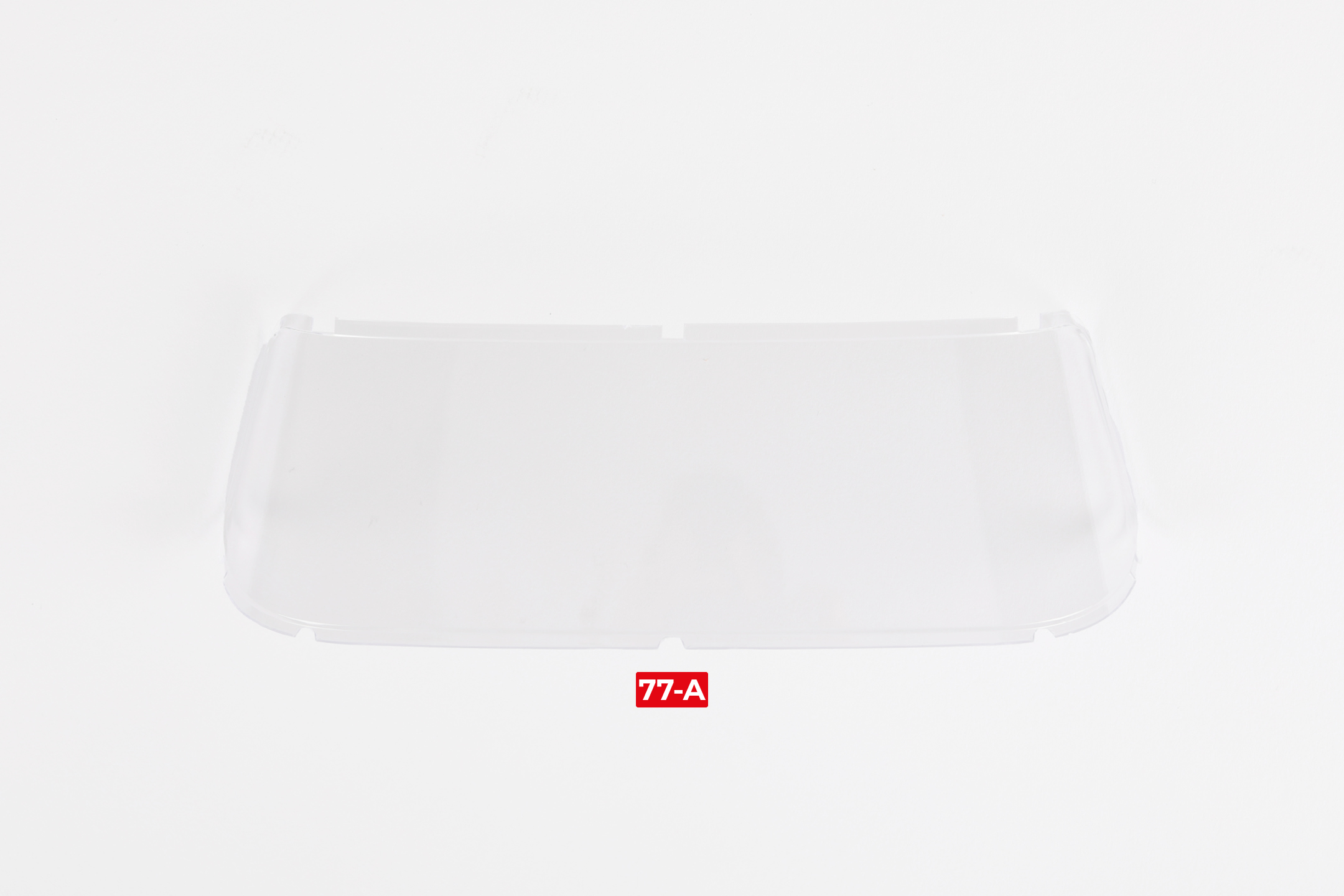

      77-A Windshield

      STAGE COMPLETE

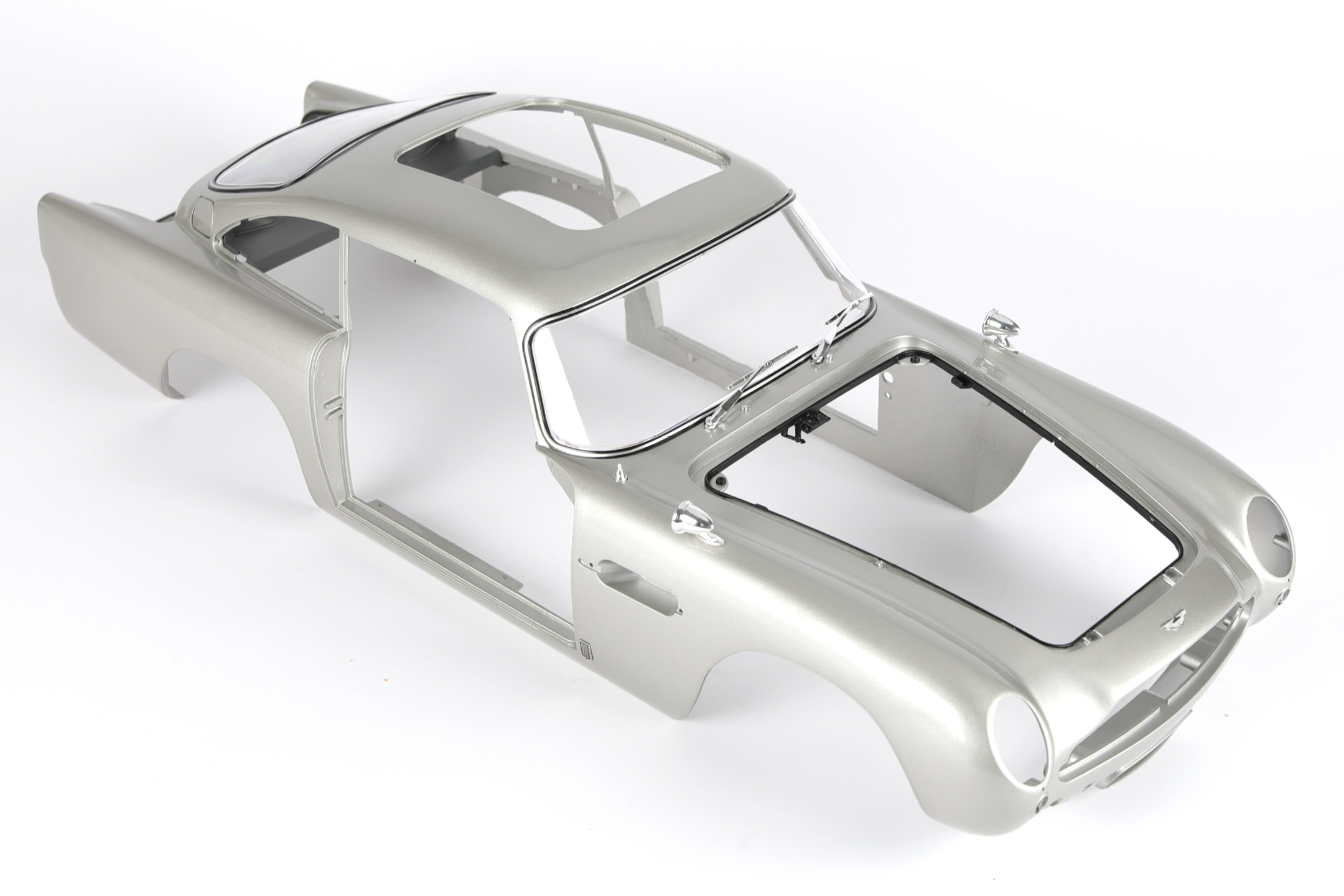

      Stage 078: Fitting the windshield and the wipers

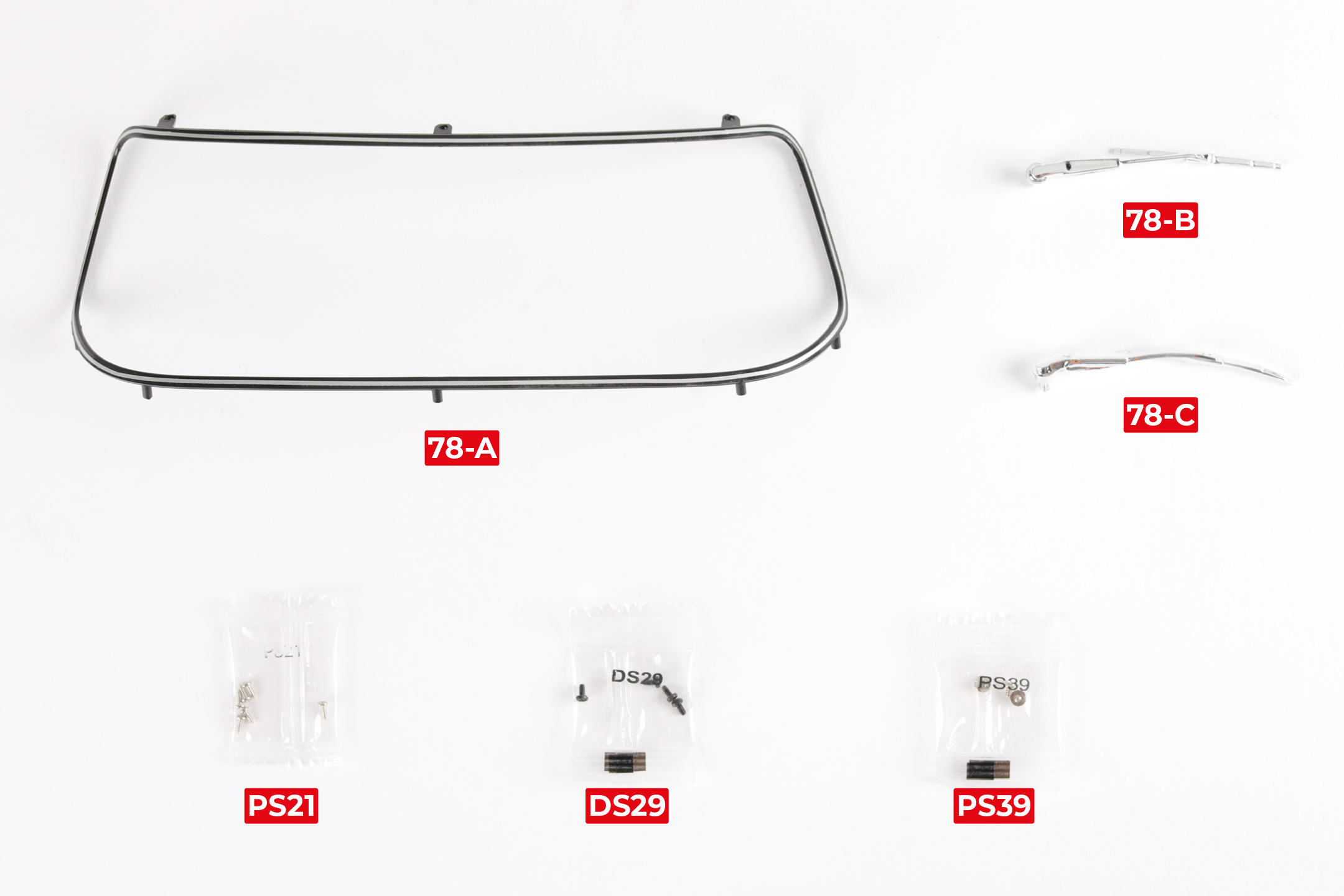

      PARTS LIST

      78-A Windshield frame6x PS21 screws
      78-B Right windshield wiper (R)4x DS29 screws
      78-C Left windshield wiper (L)3x PS39 screws

      Step 1

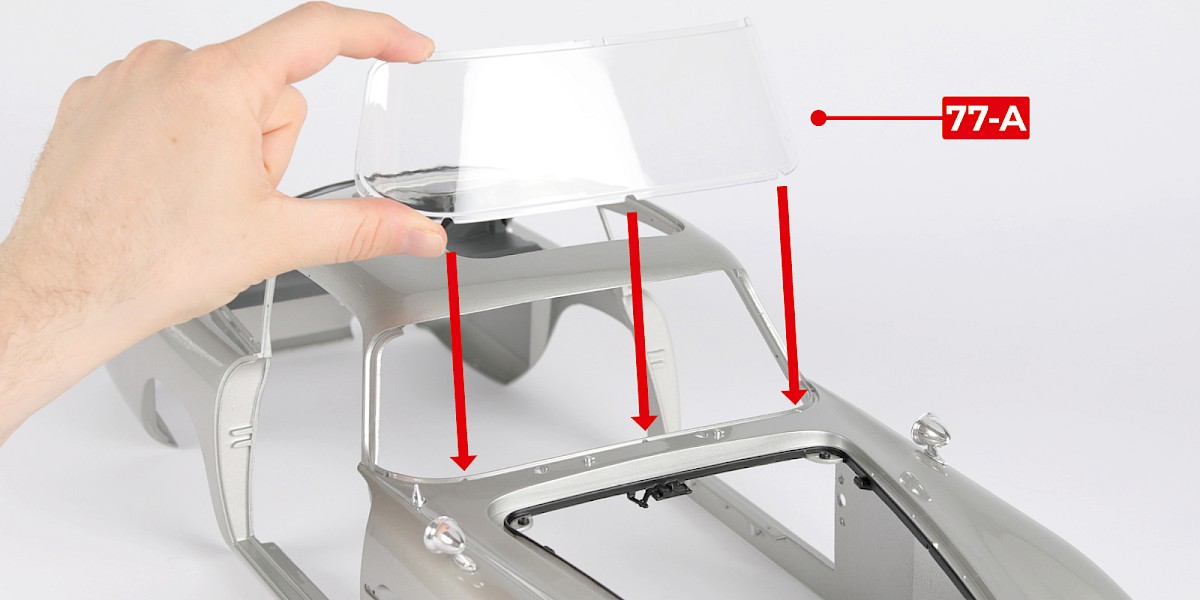

      Fit the windshield (77-A) to the main body (stage 076).

      a
      b

      Step 2

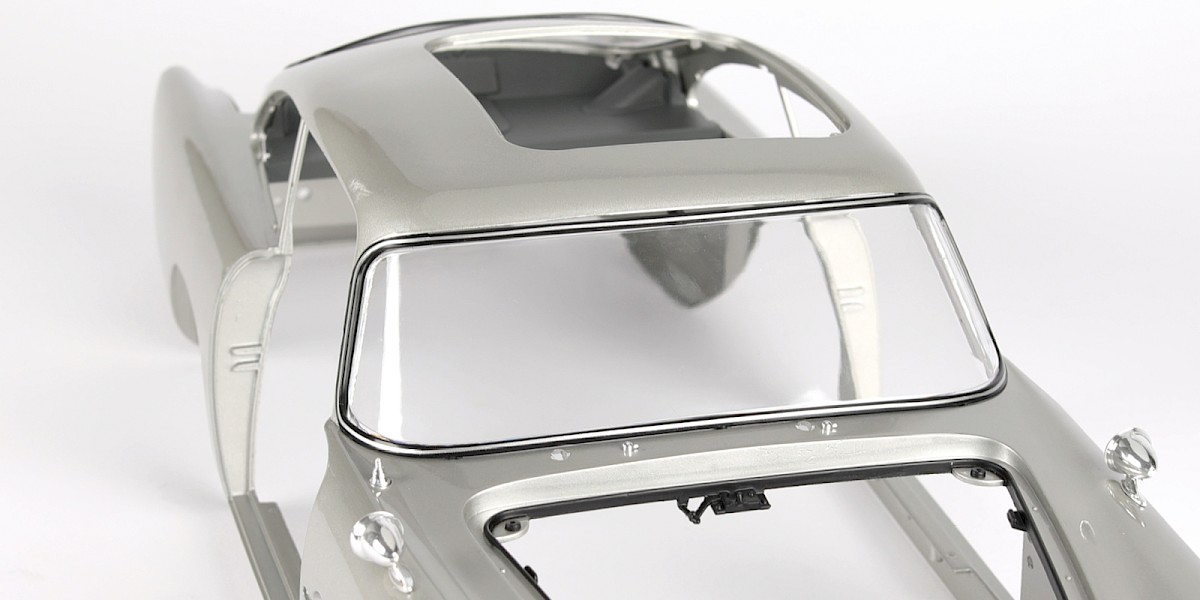

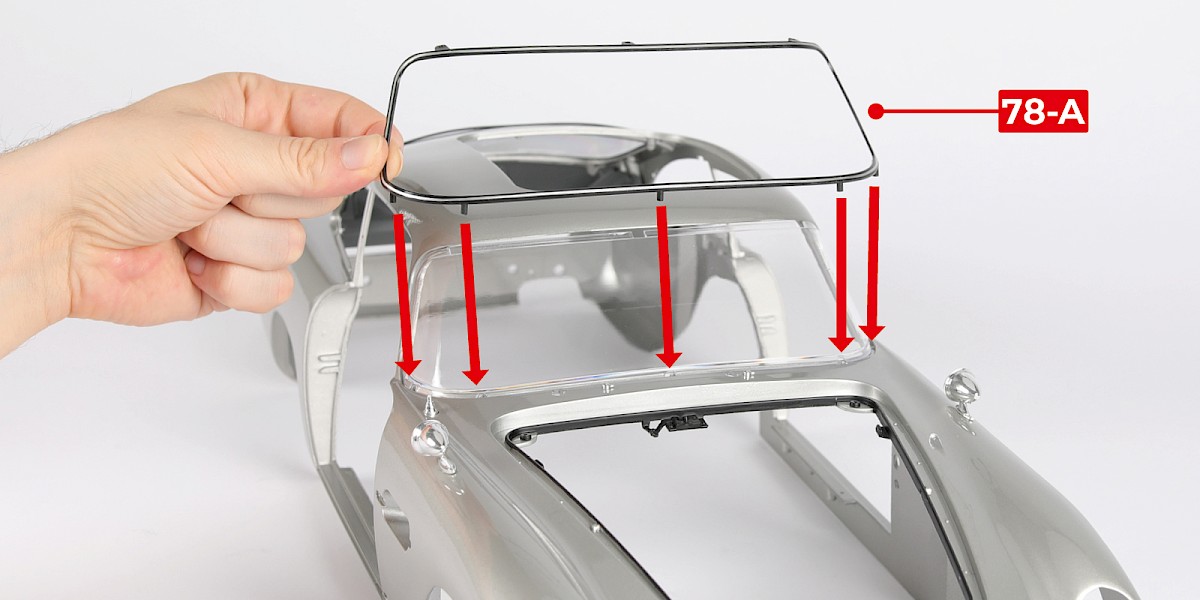

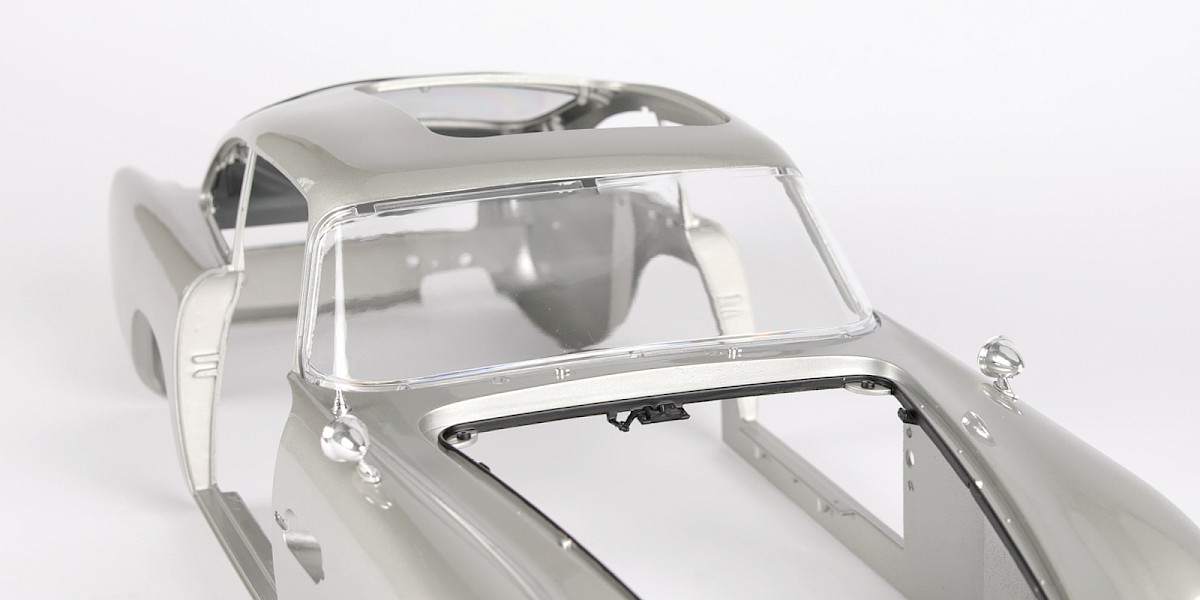

      Fit the windshield frame (78-A) to the assembly.

      a
      b

      Step 3

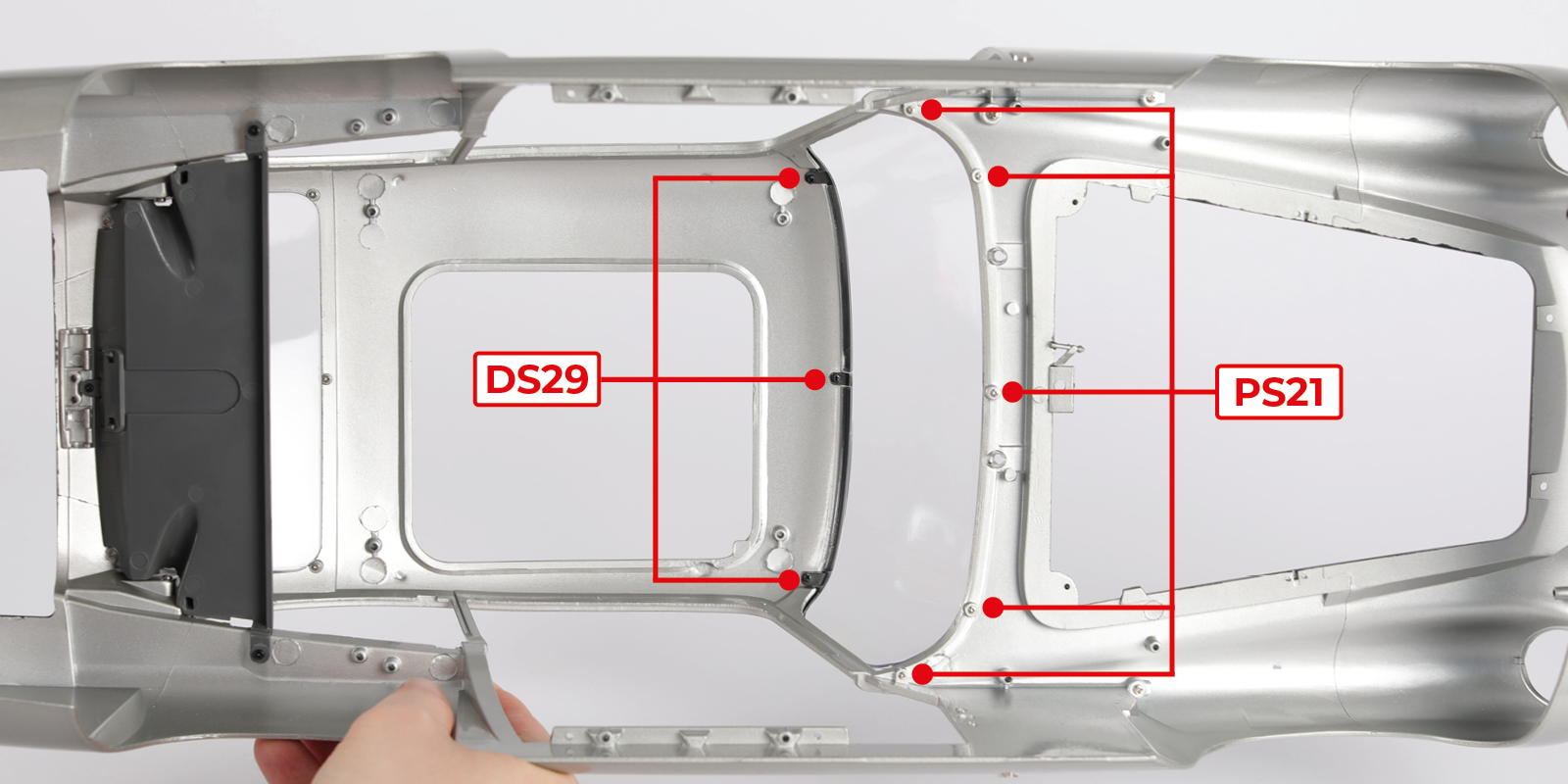

      Secure with 3x DS29 and 5x PS21.

      a

      Step 4

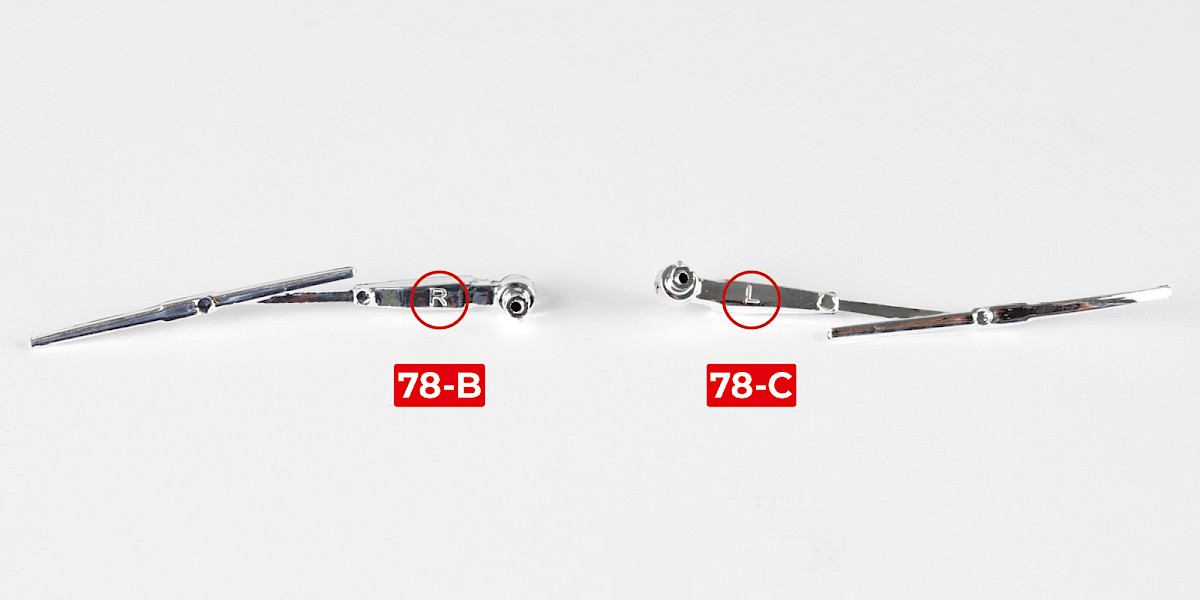

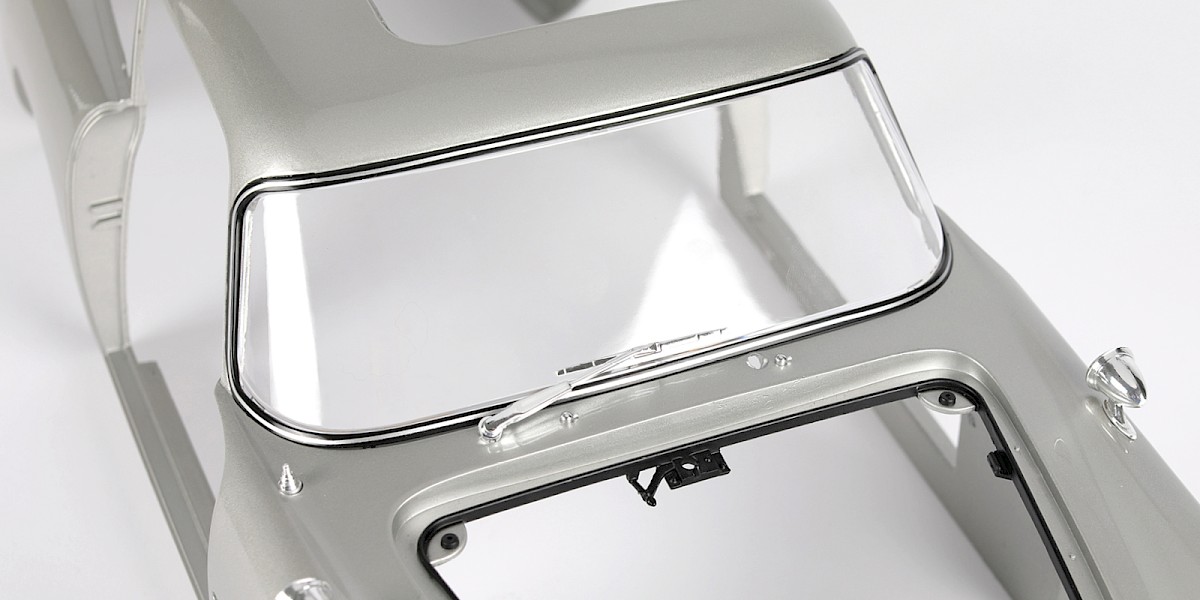

      The windshield wipers are marked with "R" for right (78-B) and "L" for left (78-C).

      a

      Step 5

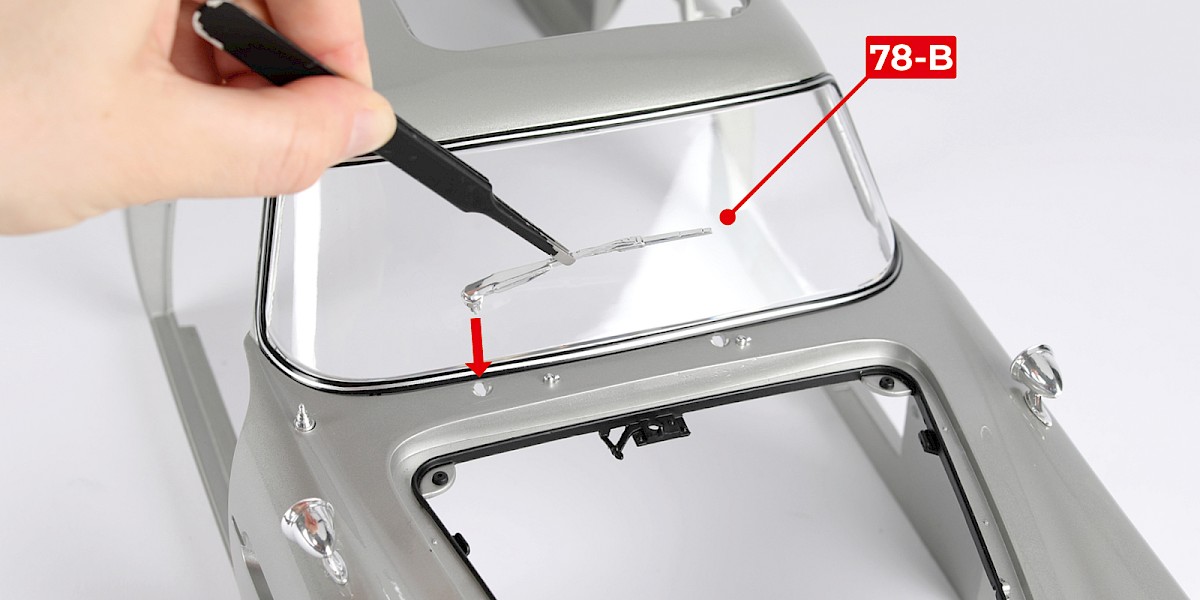

      Fit the right windshield wiper (78-B) to the assembly.

      a
      b

      Step 6

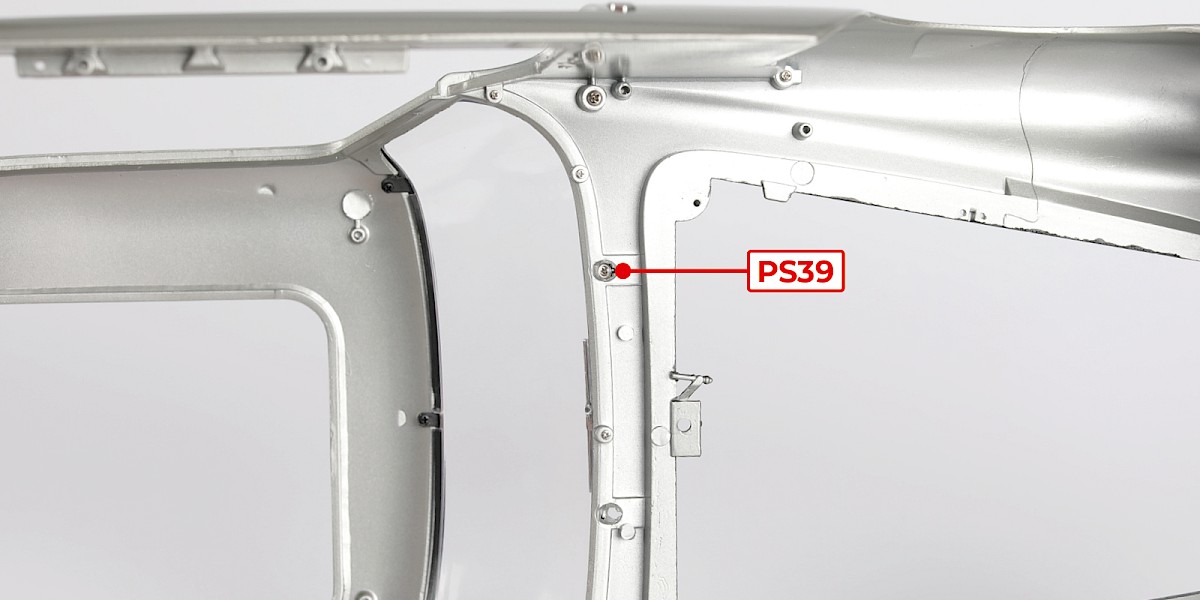

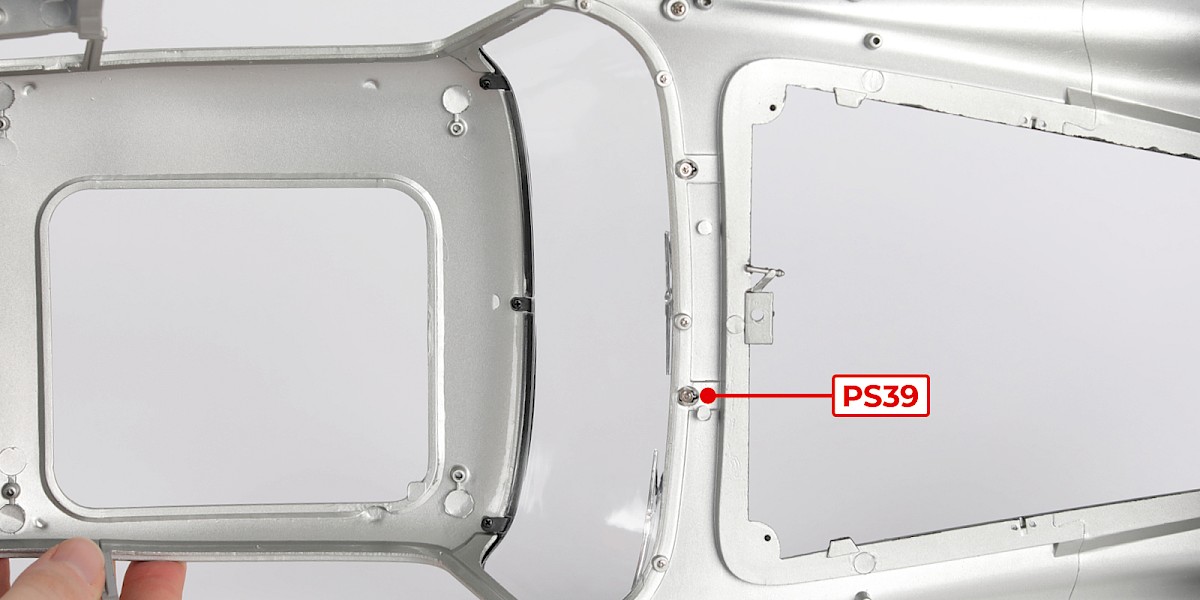

      Secure with 1x PS39.

      a

      Step 7

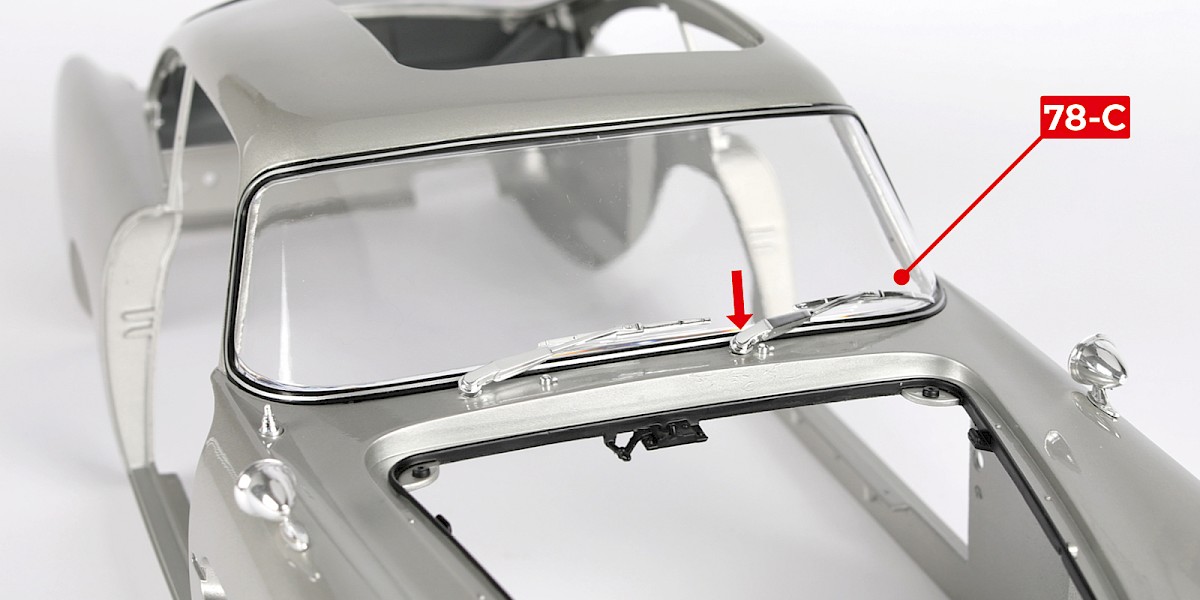

      Fit the left windshield wiper (78-C) to the assembly.

      Secure with 1x PS39.

      a
      b

      STAGE COMPLETE

      Stage 079: Assembling the roof liner

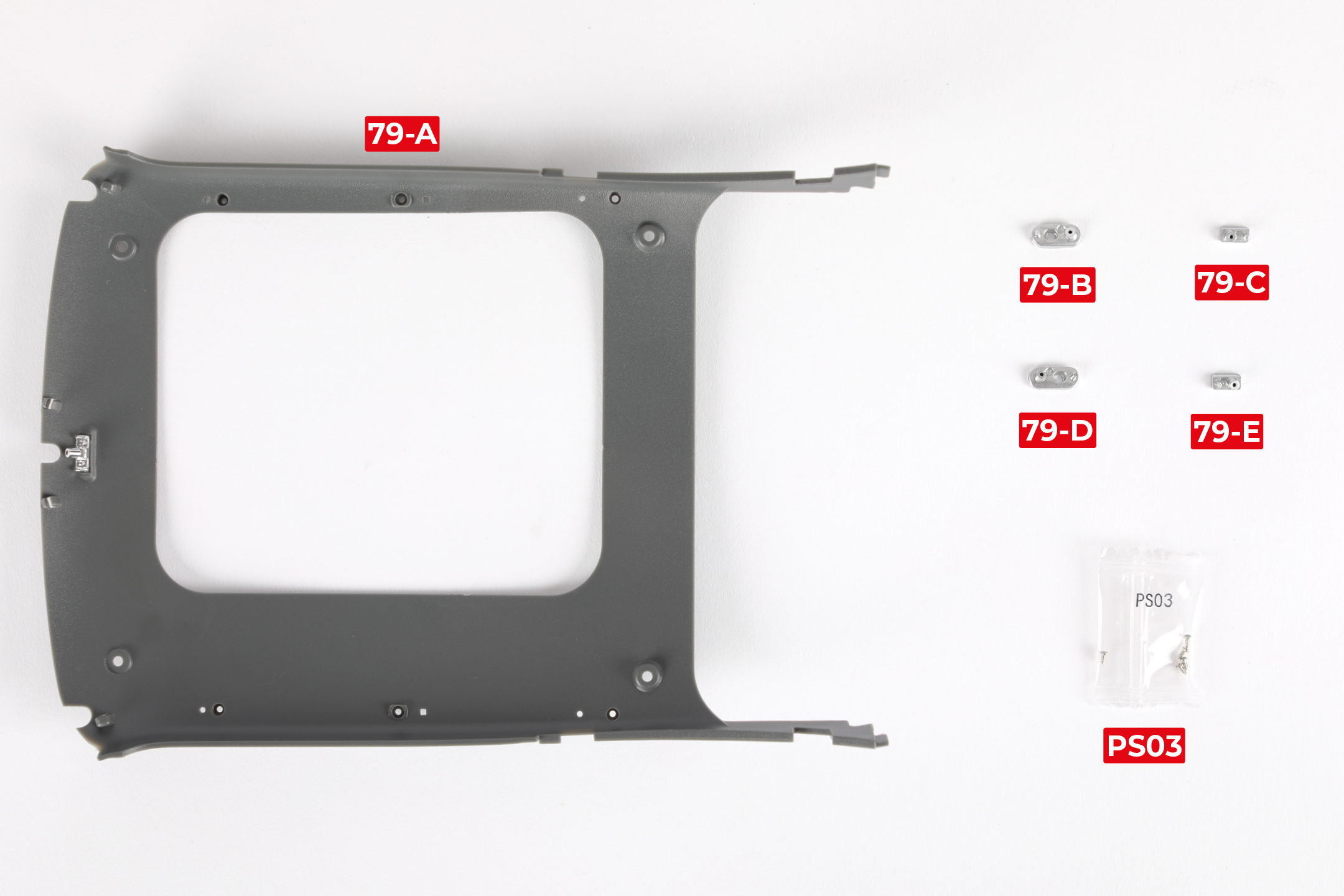

      PARTS LIST

      79-A Roof liner79-D Rear hook (R)
      79-B Rear hook (L)79-E Front hook (R)
      79-C Front hook (L)5x PS03 screws

      Step 1

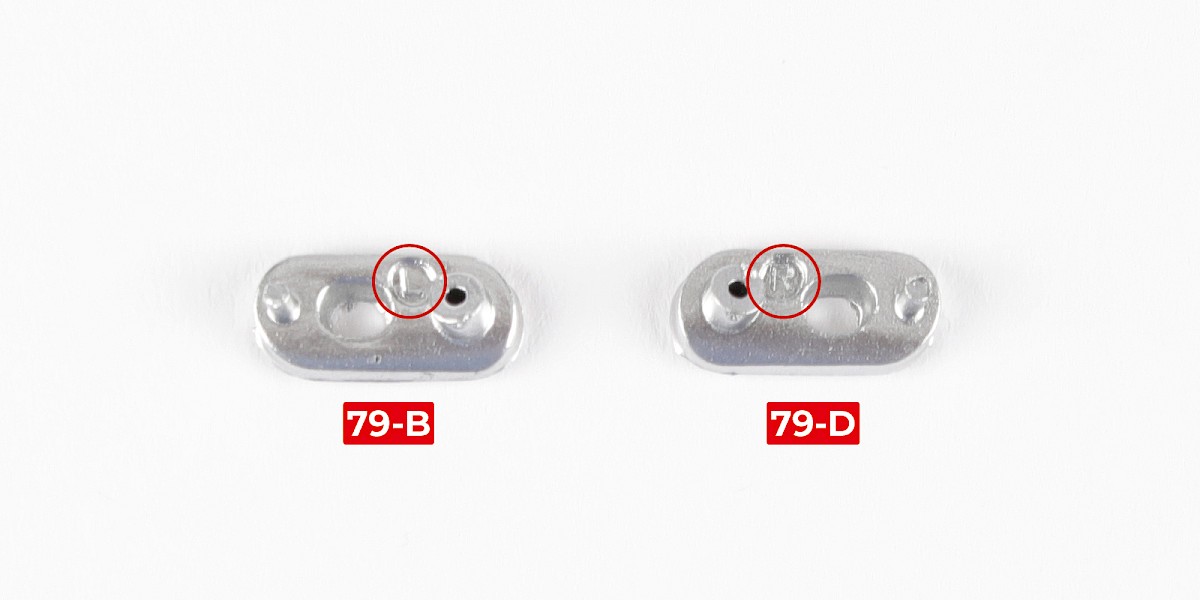

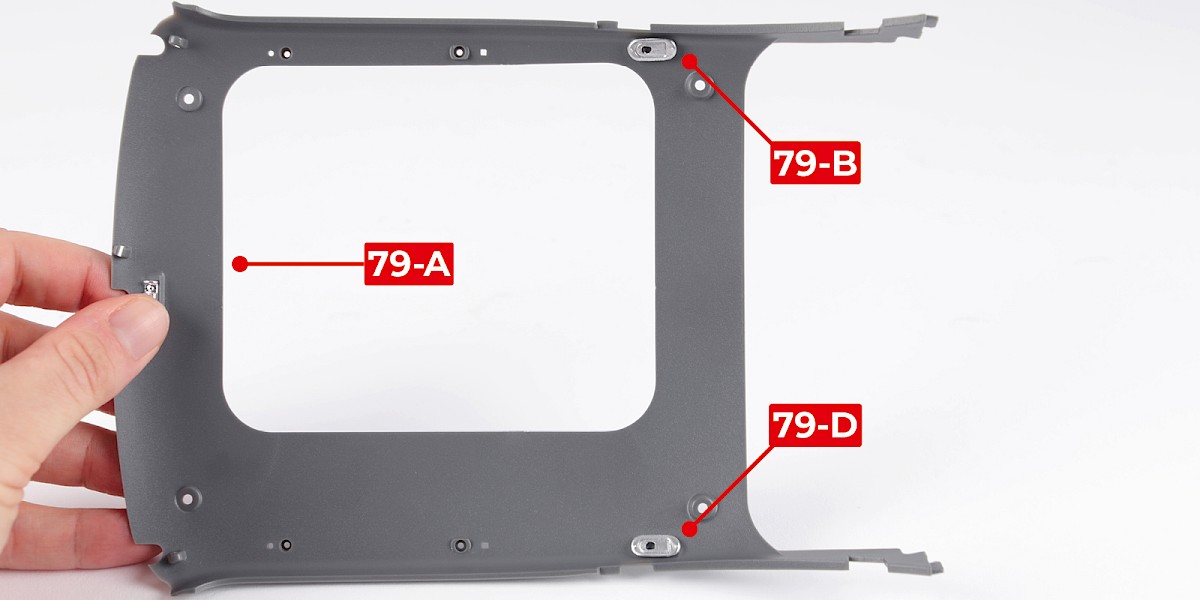

      The rear hooks are marked with "L" for left (79-B) and "R" for right (79-D).

      a

      Step 2

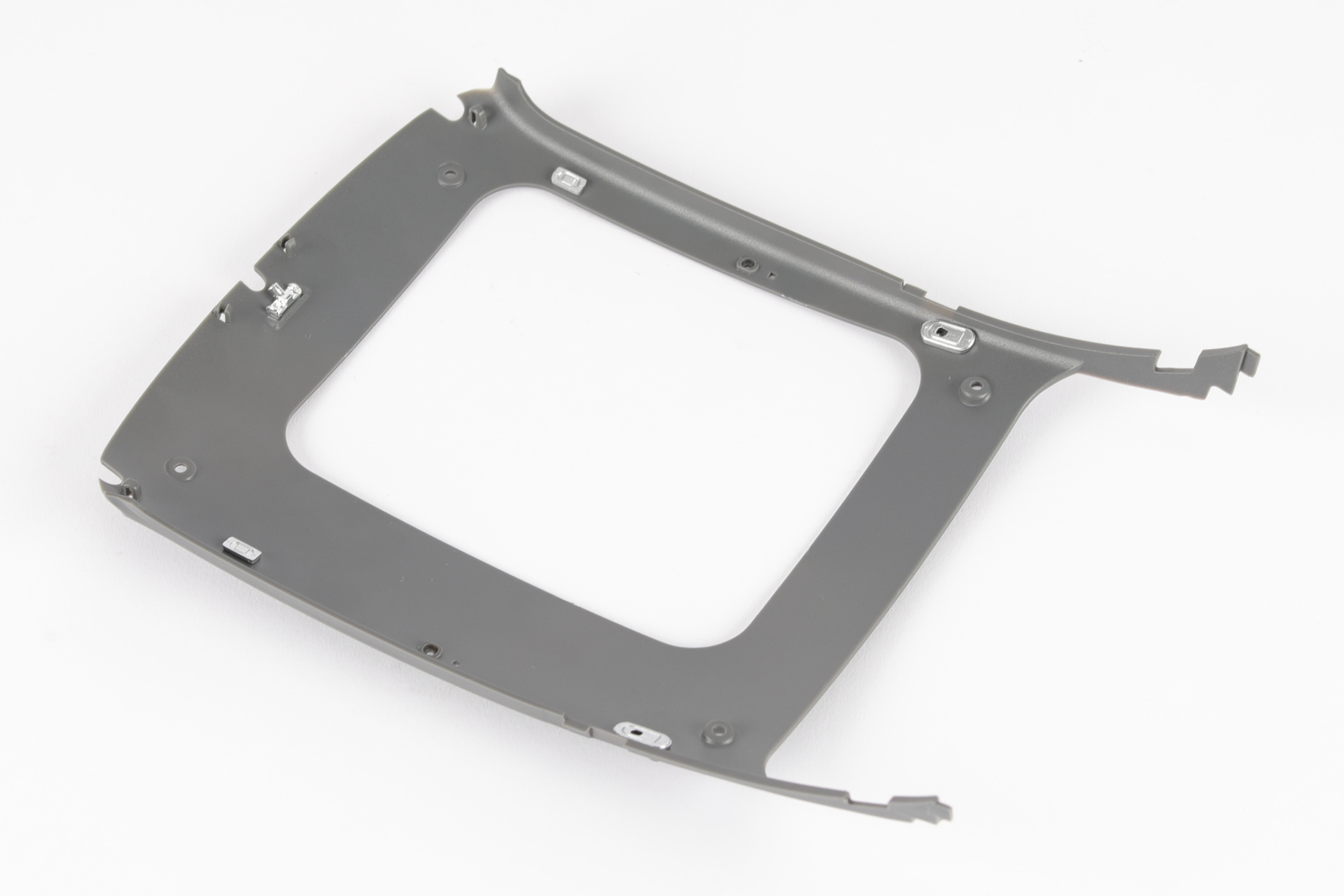

      Fit the rear hooks to the roof liner (79-A).

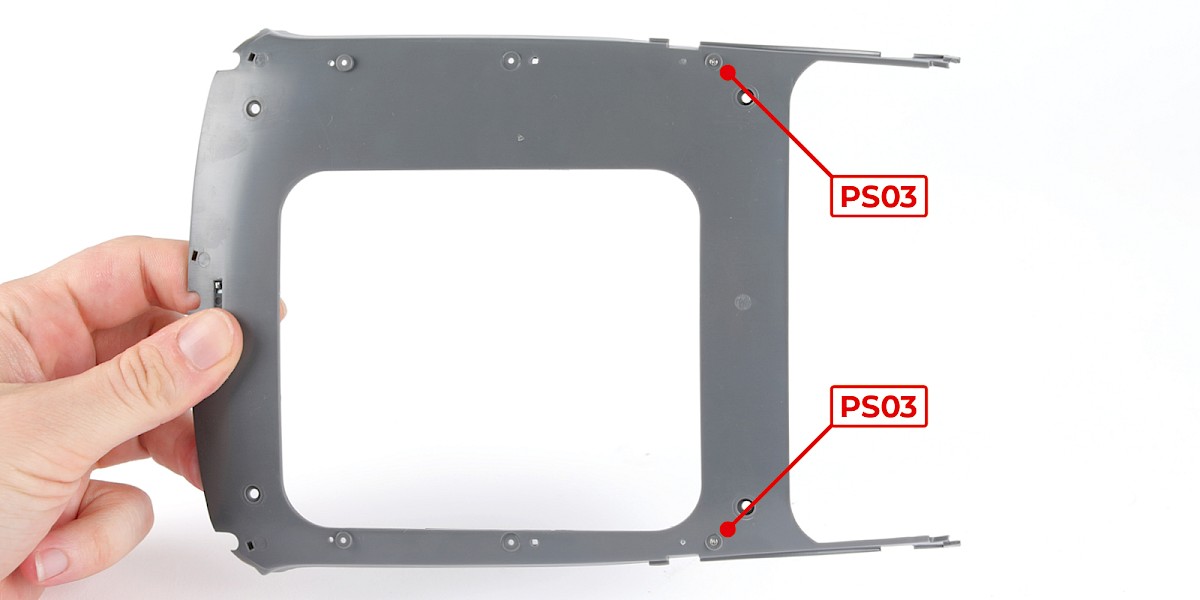

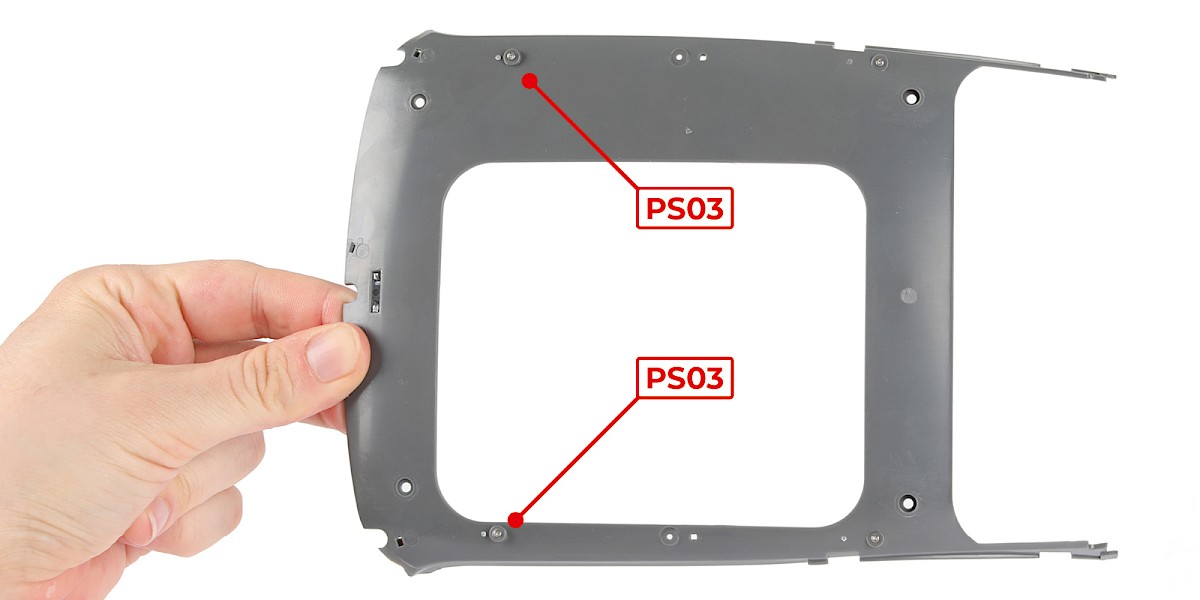

      Secure from the other side with 2x PS03.

      a
      b

      Step 3

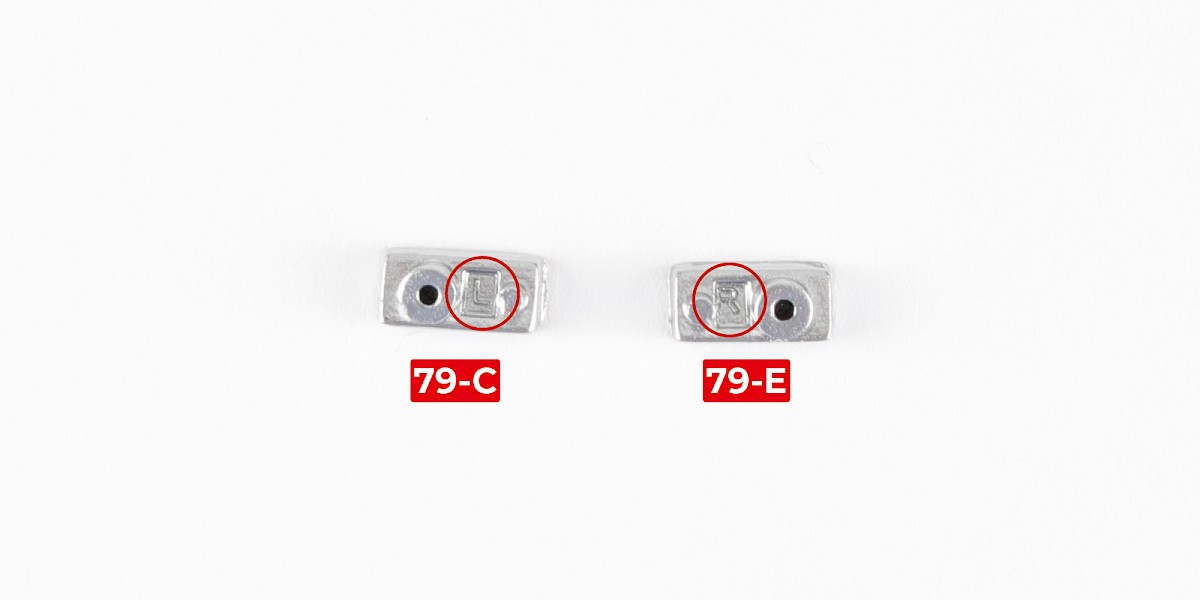

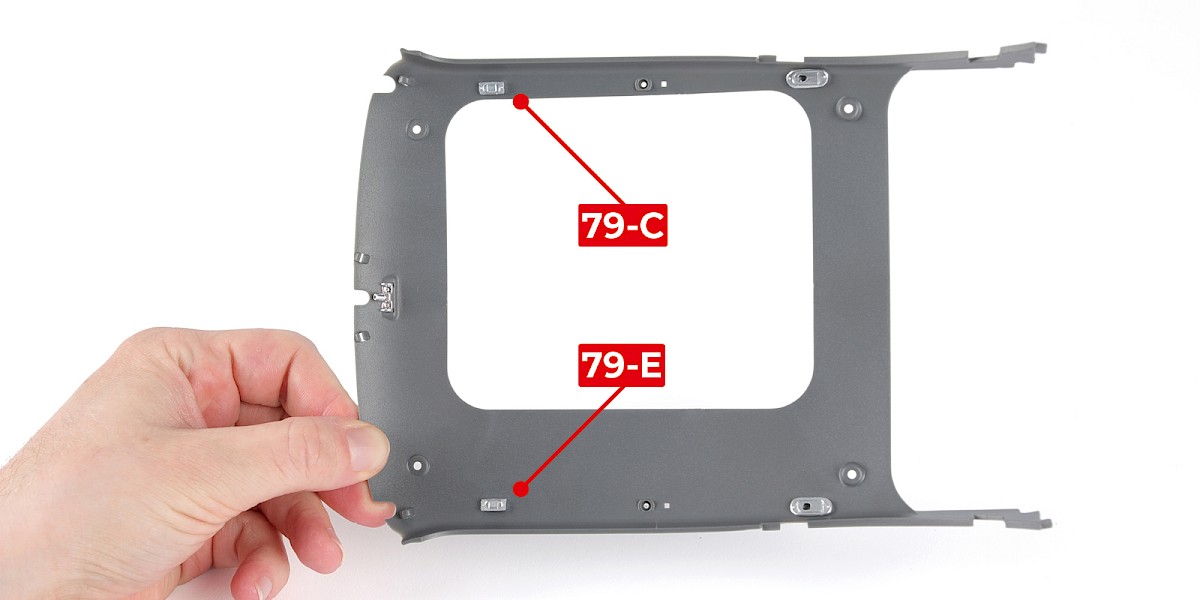

      The front hooks are marked with "L" for left (79-C) and "R" for right (79-E).

      a

      Step 4

      Fit the front hooks to the roof liner.

      Secure from the other side with 2x PS03.

      a
      b

      STAGE COMPLETE

      Stage 080: Fitting the sunvisors, the rearview mirror and the roof liner

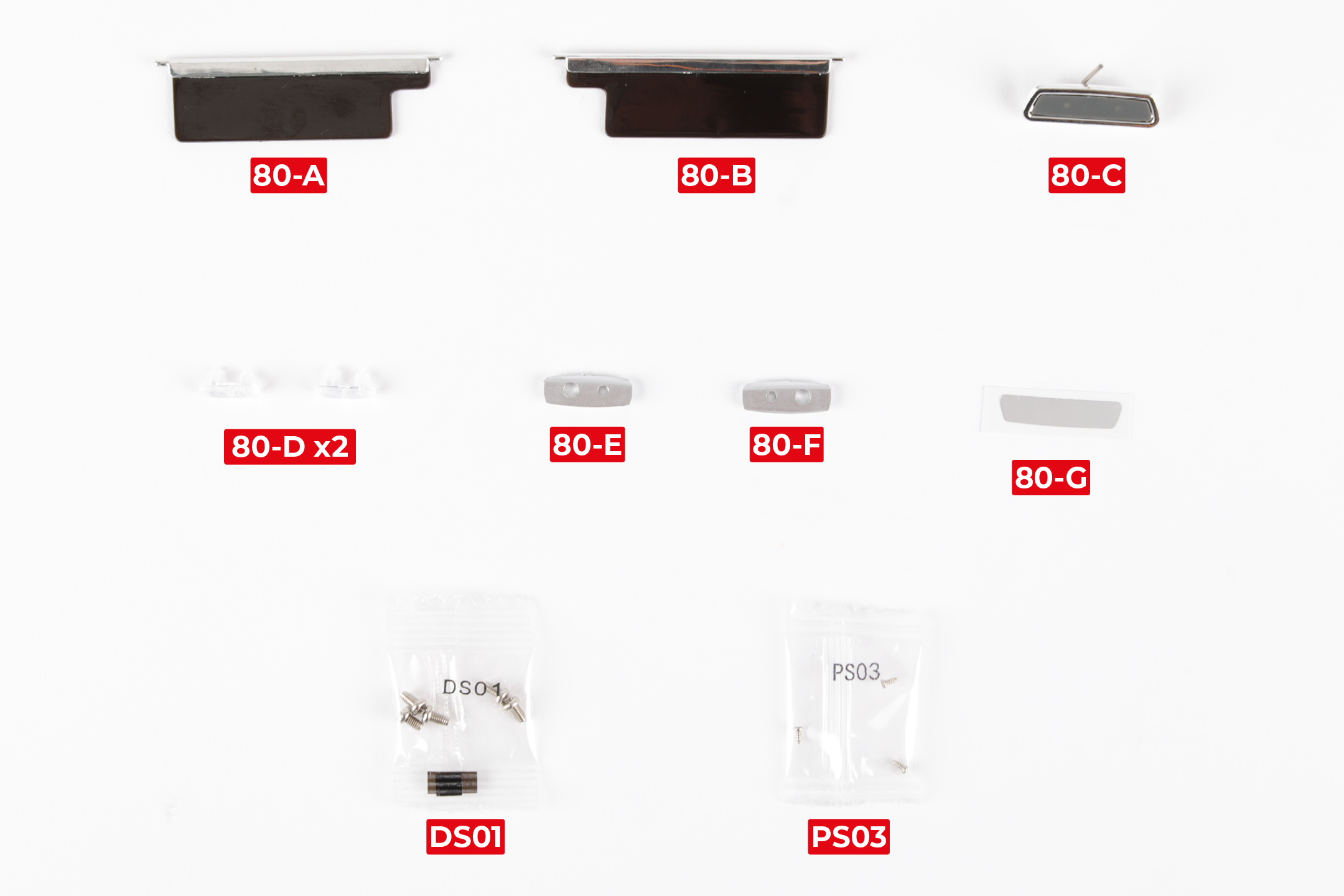

      PARTS LIST

      80-A Left sunvisor80-F Interior light reflector (R)
      80-B Right sunvisor80-G Rearview mirror sticker
      80-C Rearview mirror5x DS01 screws
      80-D Interior light lens x23x PS03 screws
      80-E Interior light reflector (L)

      Step 1

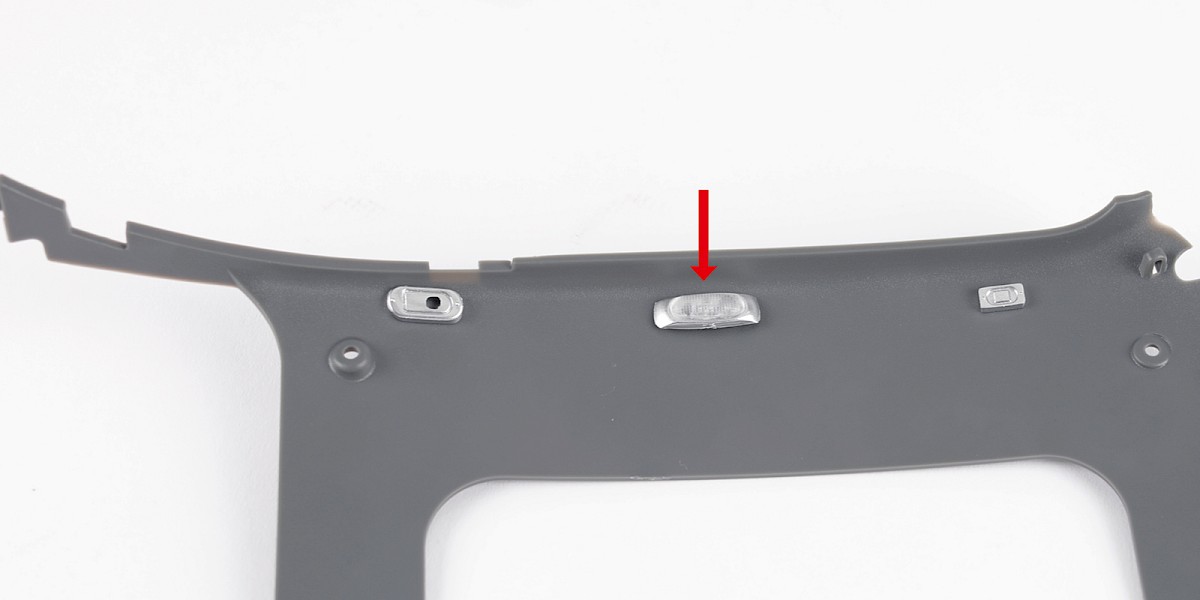

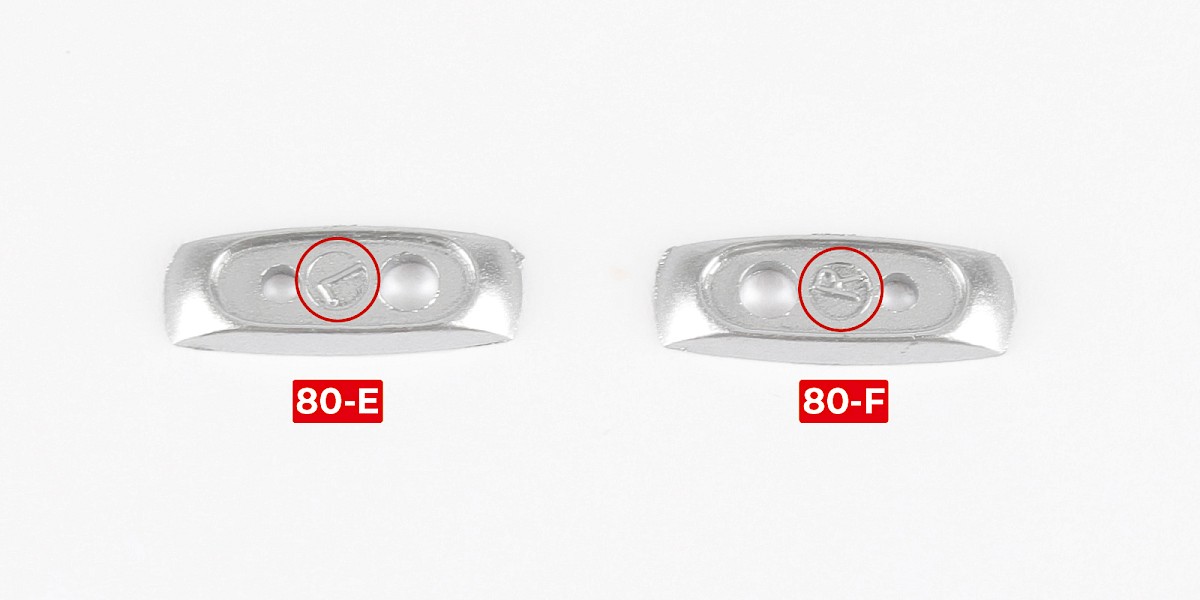

      The interior light reflectors are marked with "L" for left (80-E) and "R" for right (80-F).

      a

      Step 2

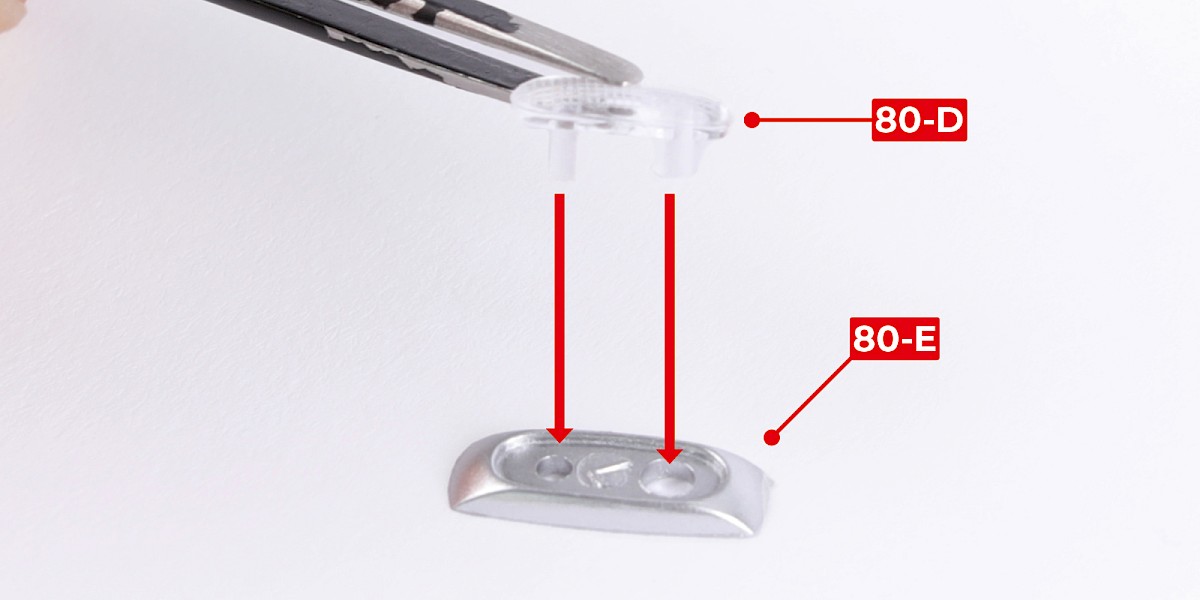

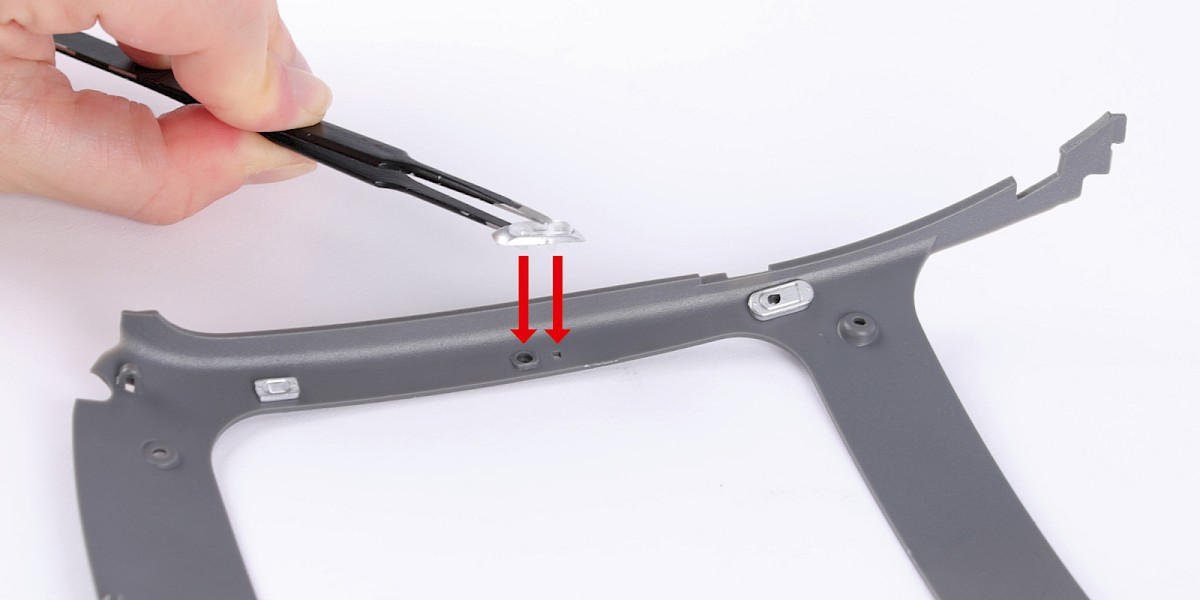

      Fit an interior light lens (80-D) to the left interior light reflector (80-E).

      a

      Step 3

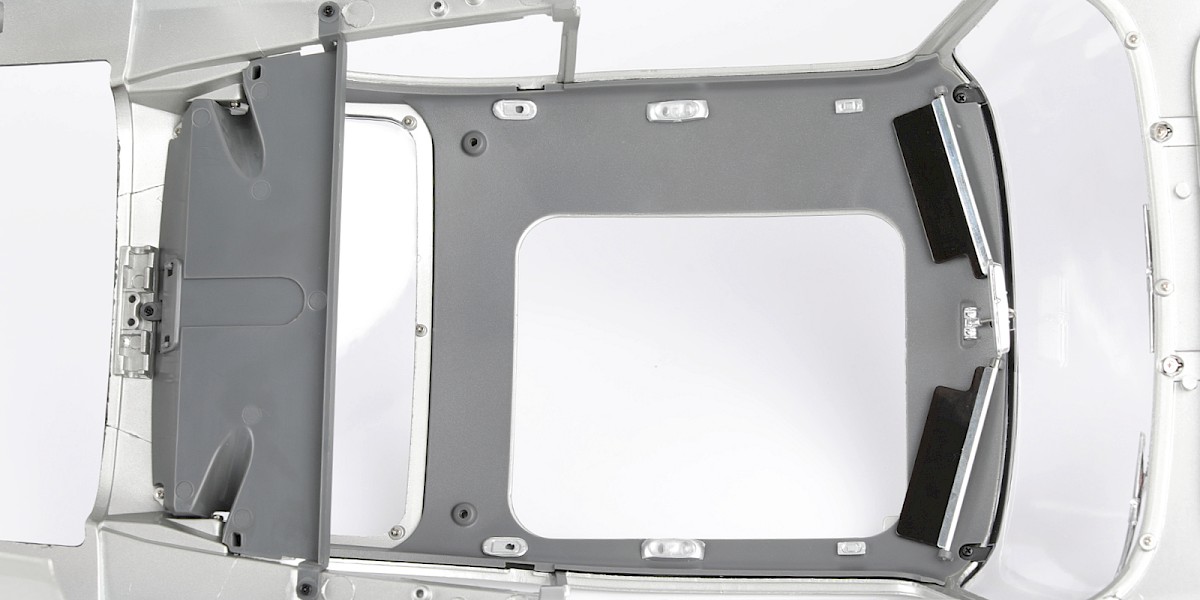

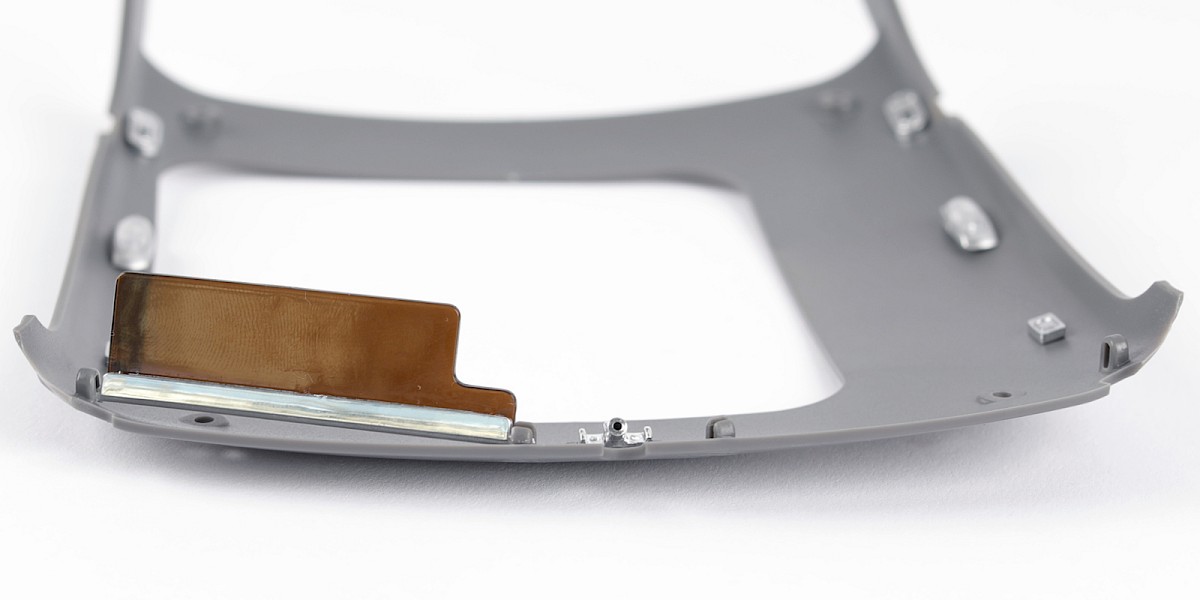

      Fit the assembly to the roof liner (stage 079).

      a
      b

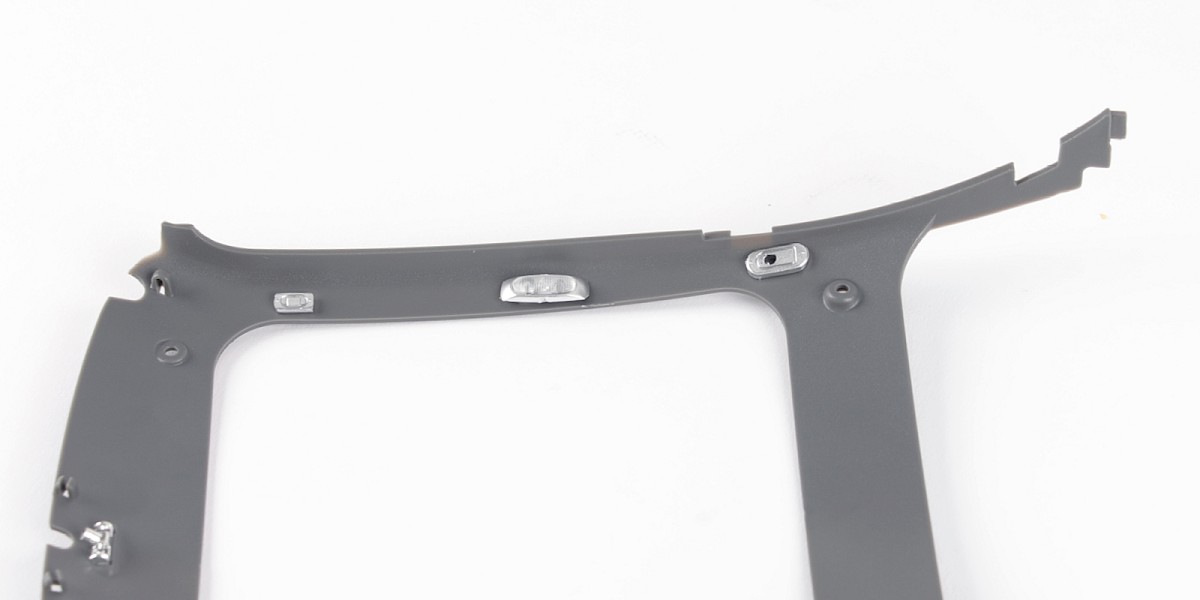

      Step 4

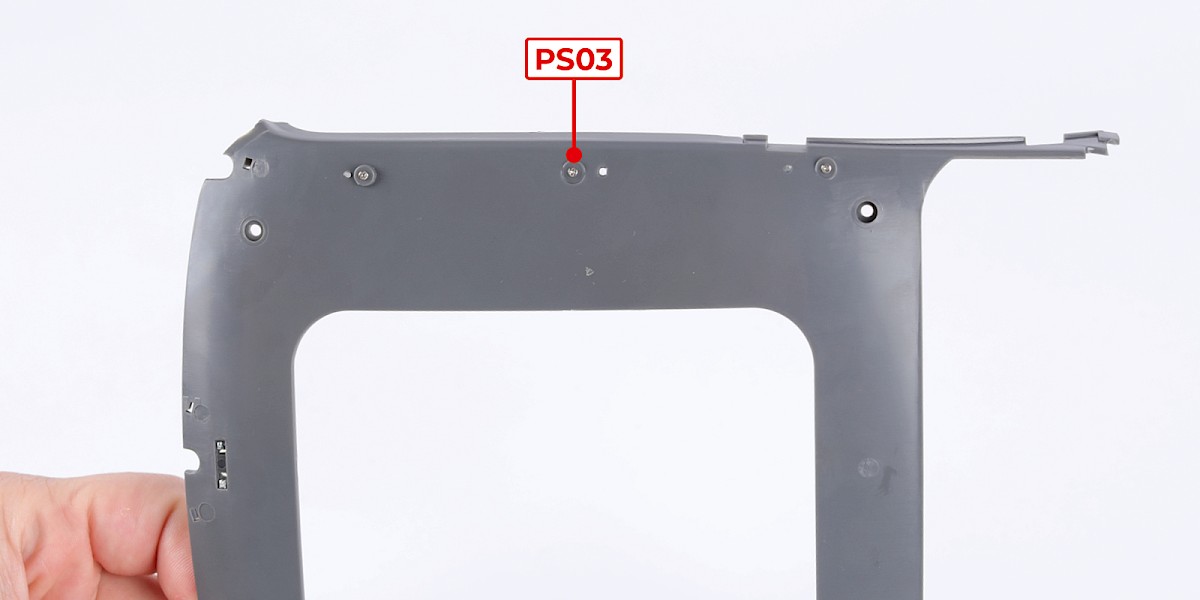

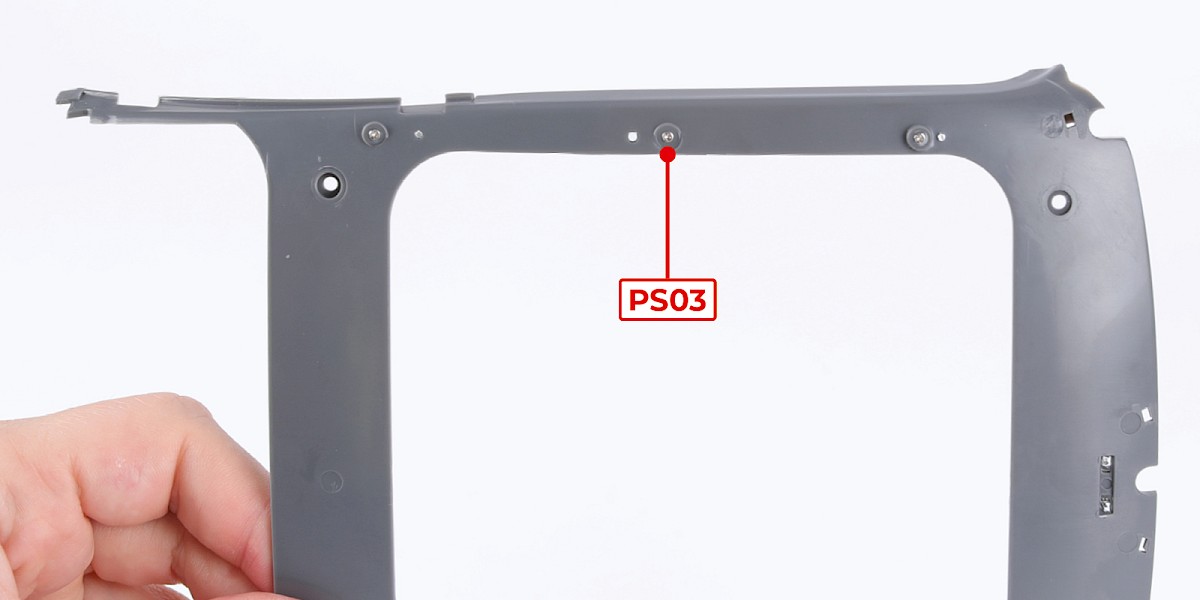

      Secure from the other side with 1x PS03.

      a

      Step 5

      Repeat step 2 to assemble the right interior light and fit the assembly to the roof liner.

      Secure with 1x PS03.

      a
      b

      Step 6

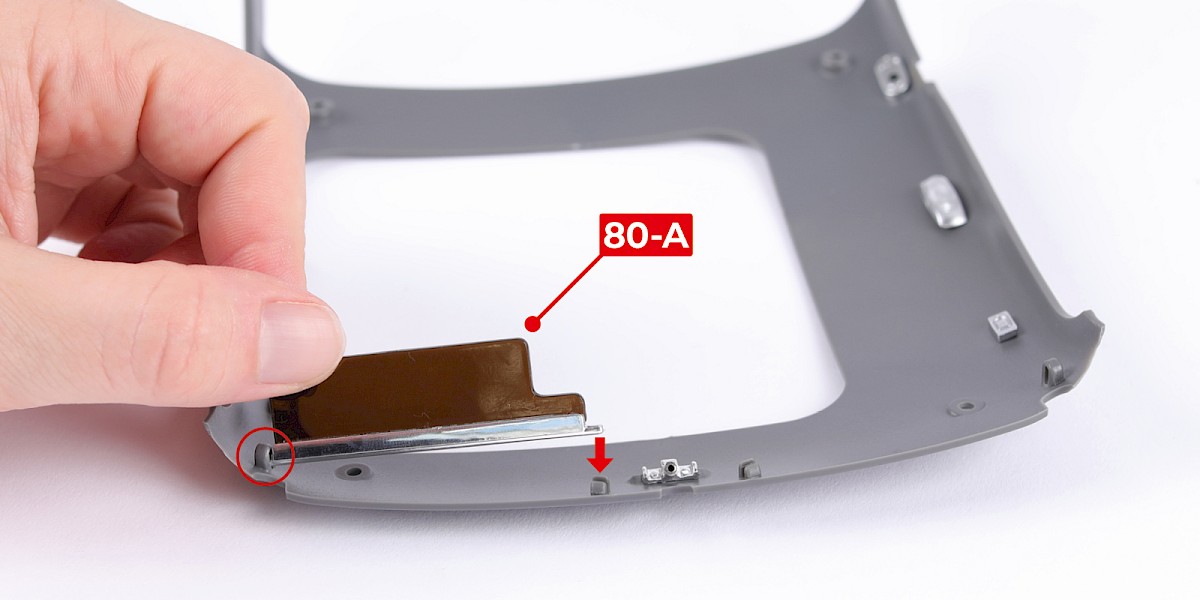

      Fit the left sunvisor (80-A) by placing the pin into the outer hole (circled) then pressing the other pin into the clip (arrow).

      a
      b

      Step 7

      Fit the right sunvisor (80-B) in the same way.

      a

      Step 8

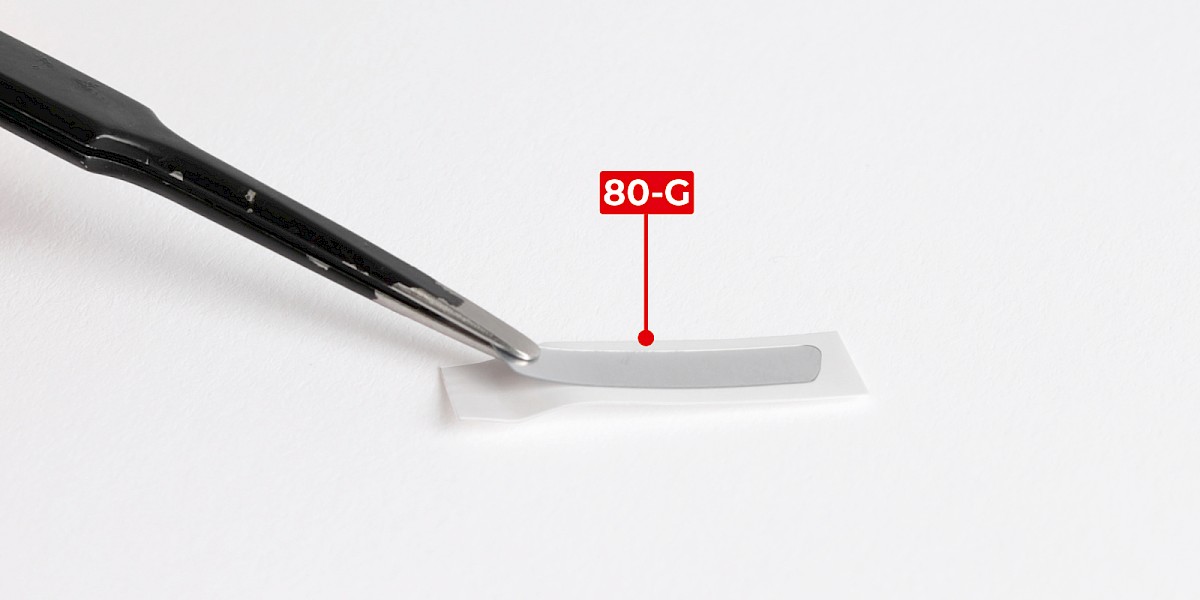

      Remove the rearview mirror sticker (80-G) from the backing paper.

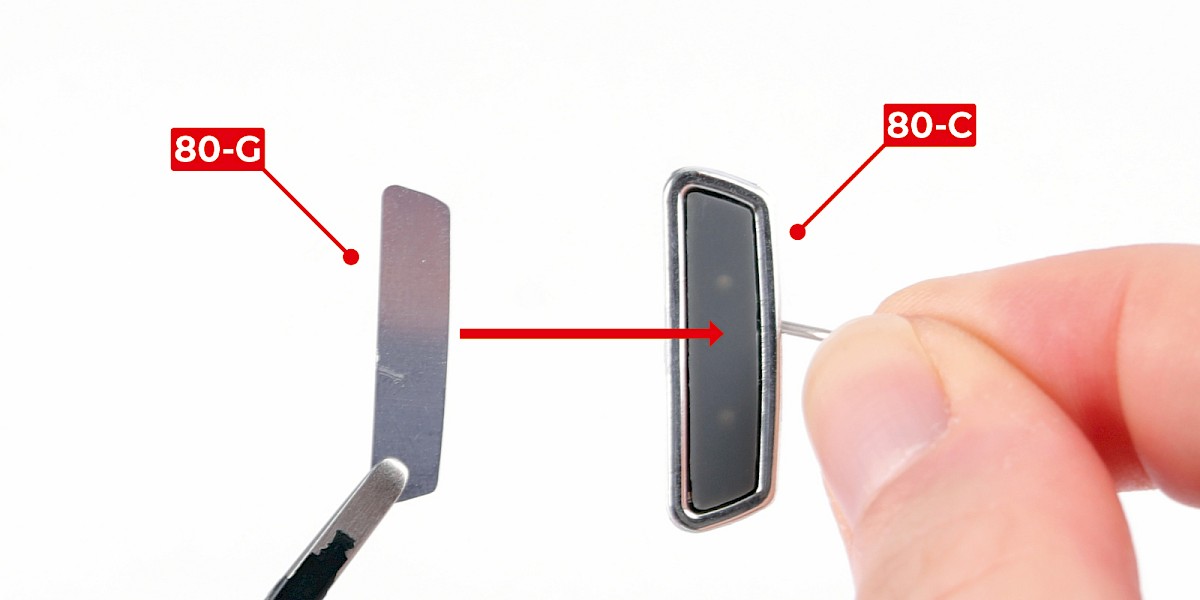

      Apply the rearview mirror sticker to the rearview mirror (80-C).

      a
      b

      Step 9

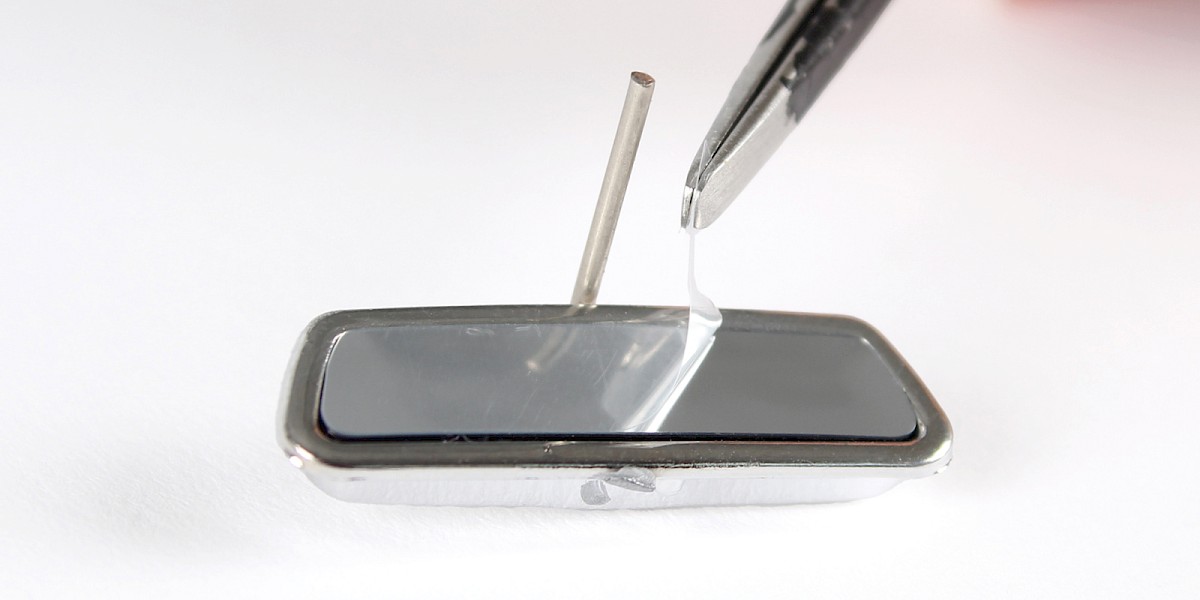

      Remove the protective film from the rearview mirror sticker.

      a

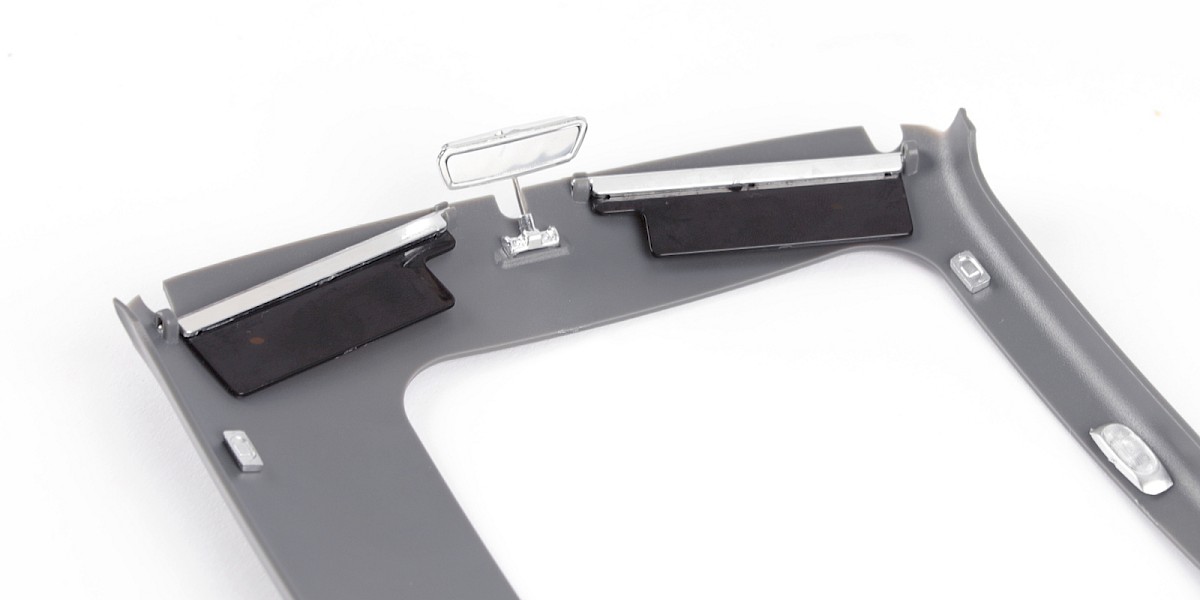

      Step 10

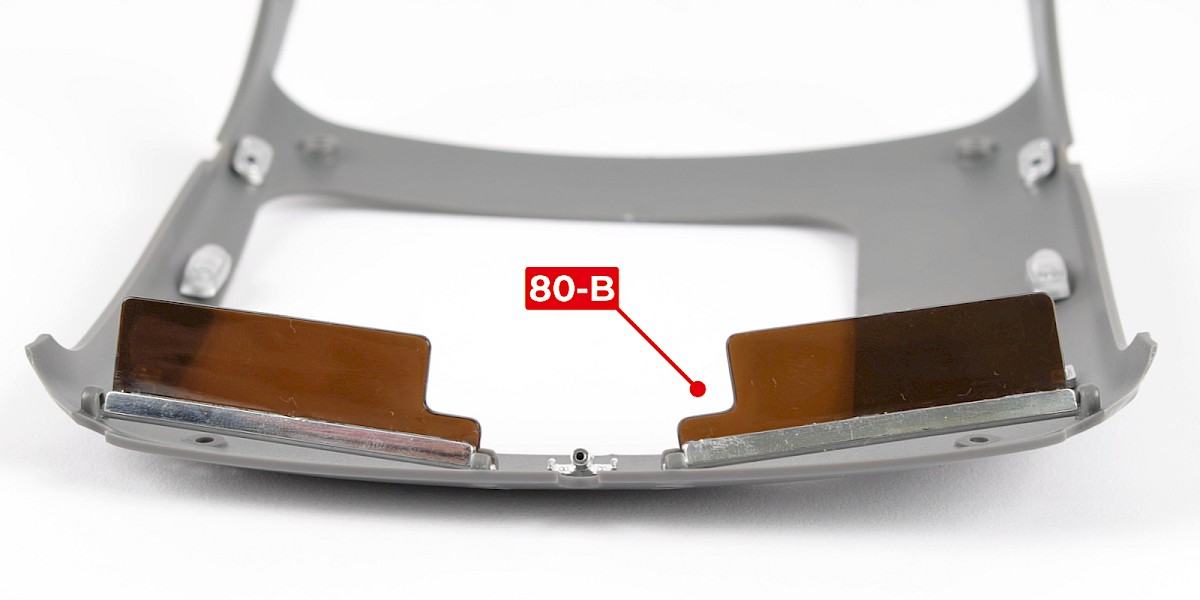

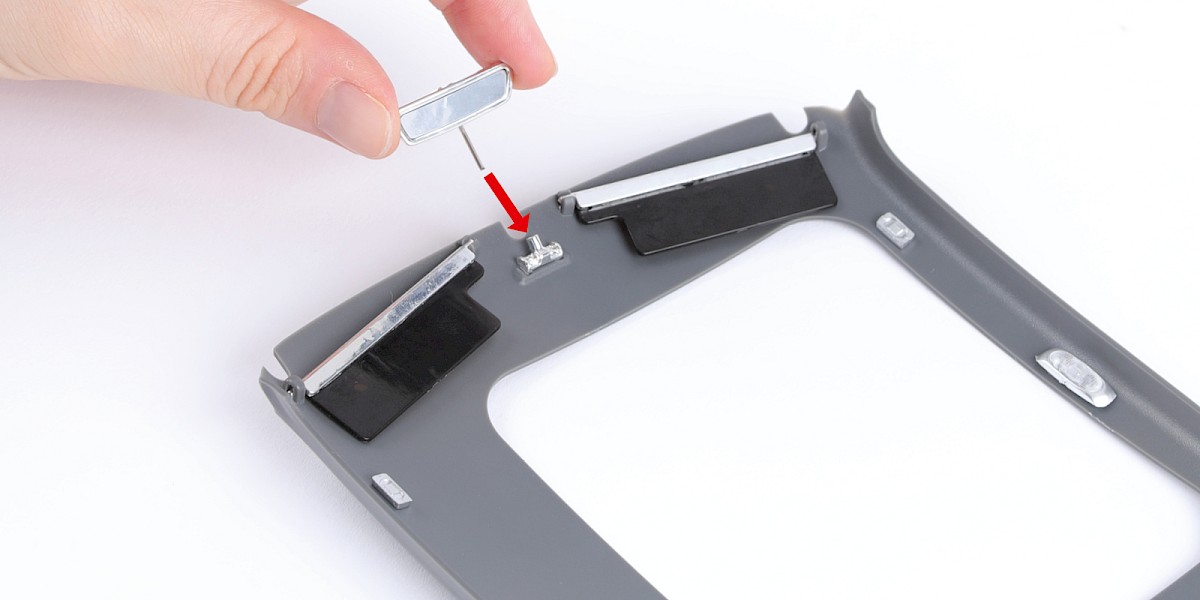

      Fit the assembly to the roof liner.

      a
      b

      Step 11

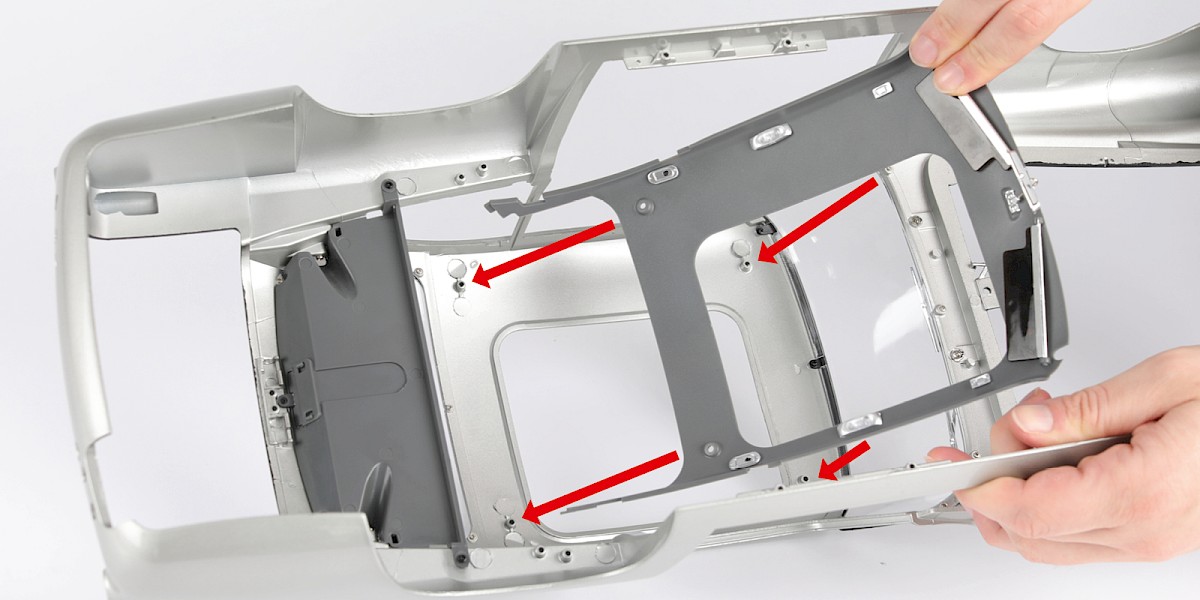

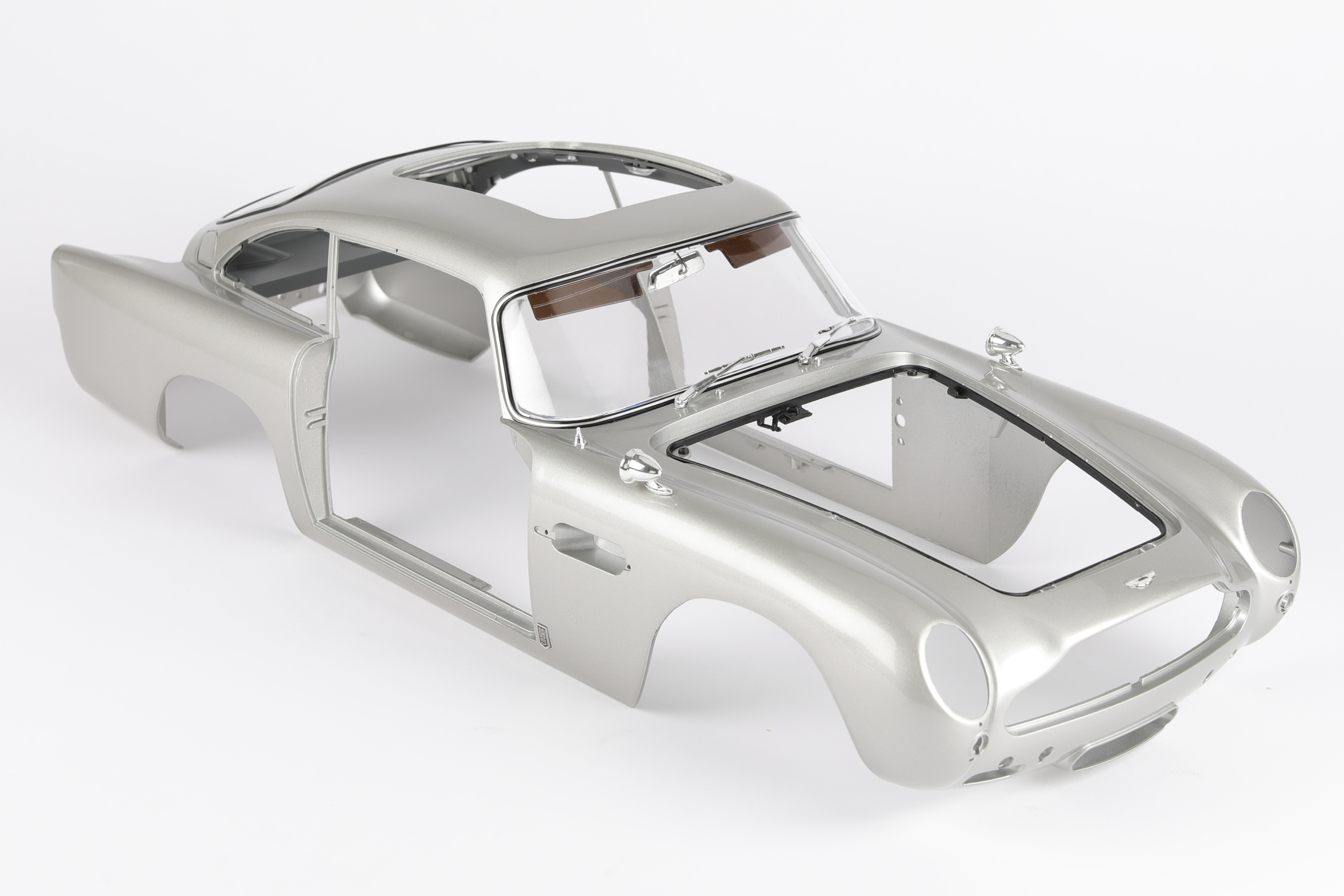

      Fit the roof liner to the main body (stage 076).

      a
      b

      Step 12

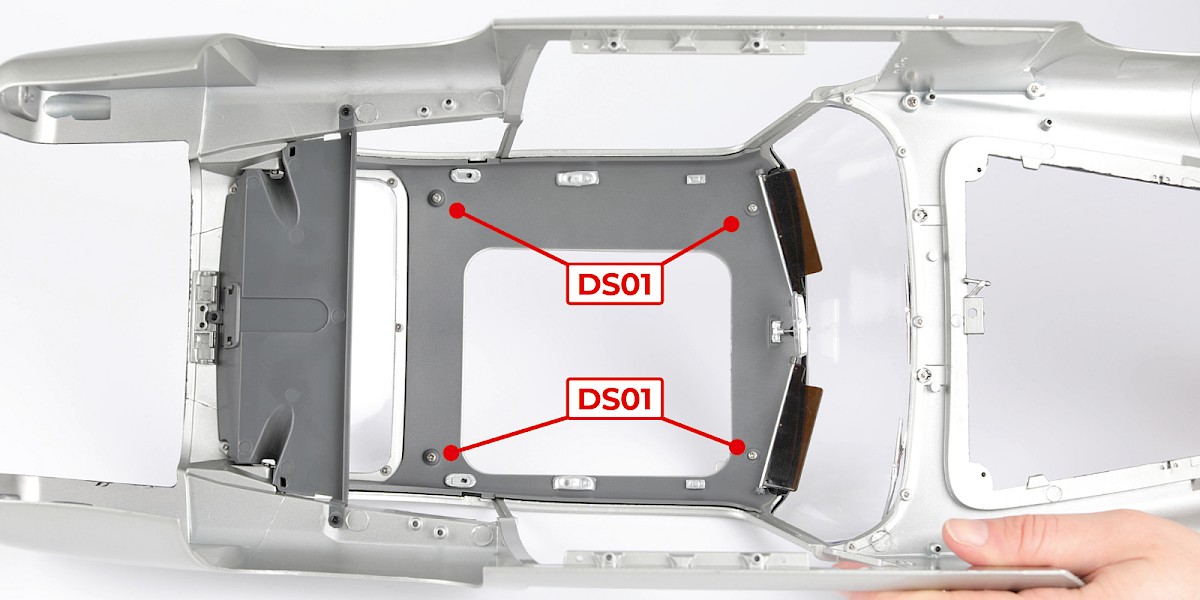

      Secure with 4x DS01.

      a

      STAGE COMPLETE

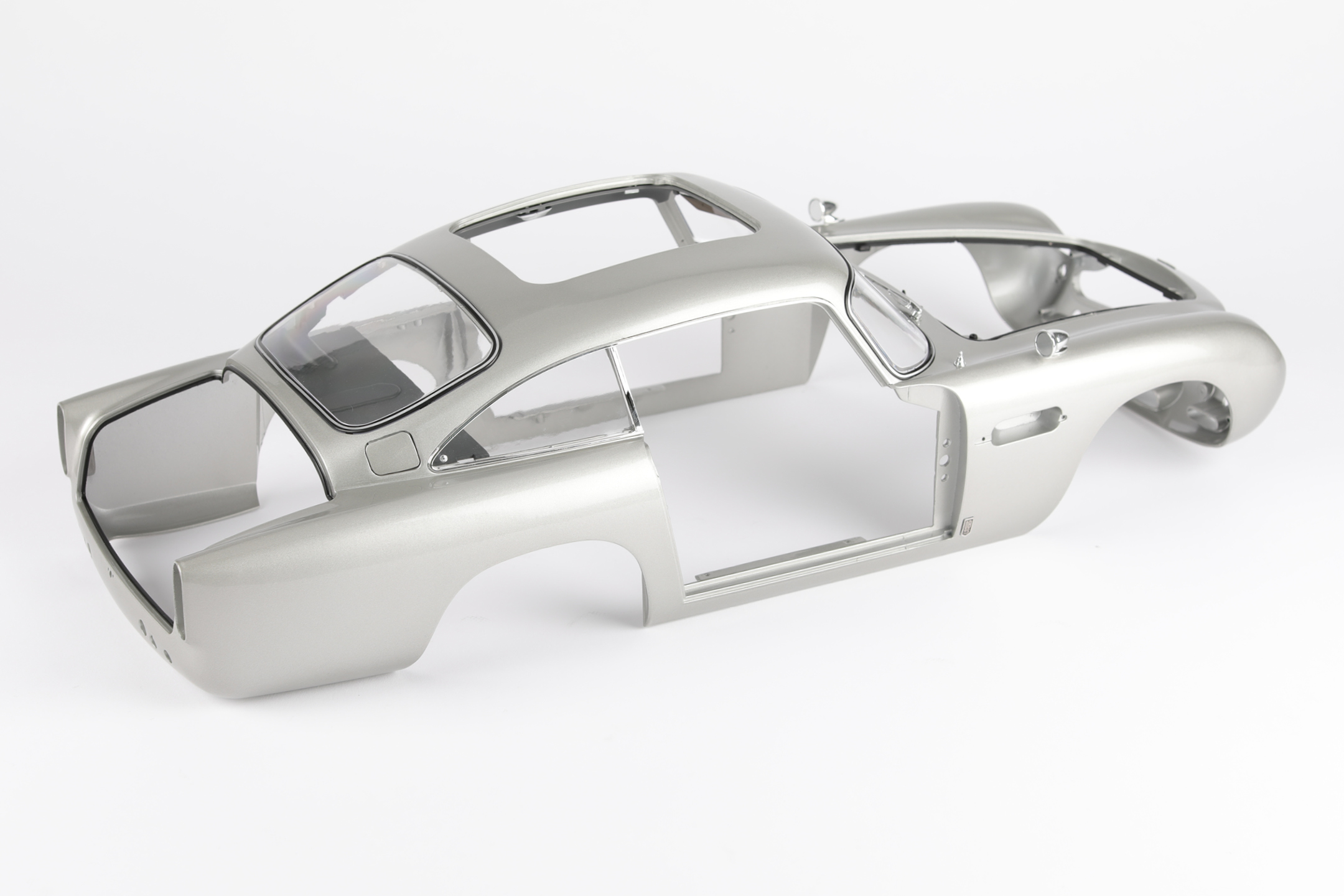

      Stage 081: Fitting the rear right window and the trim

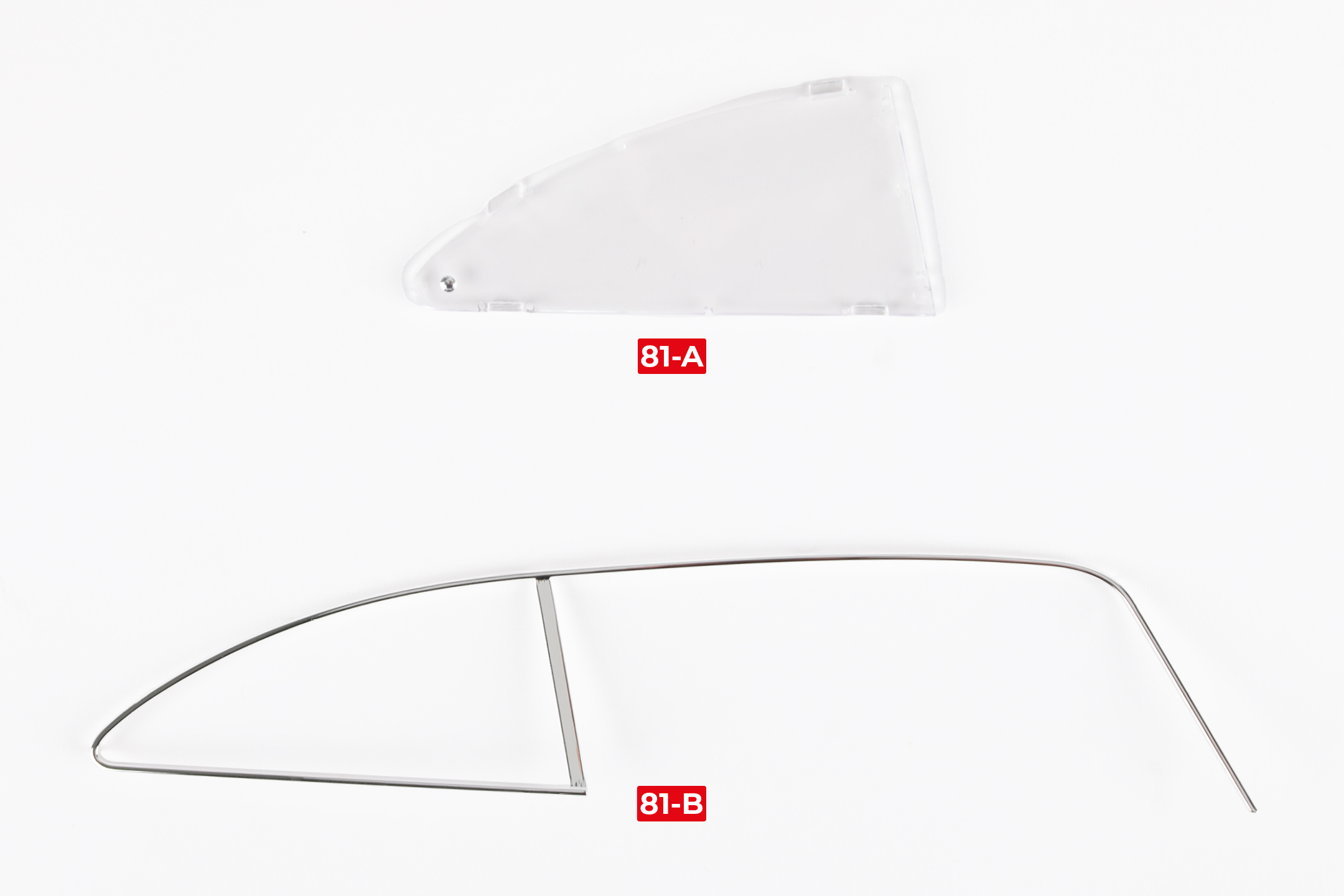

      PARTS LIST

      81-A Rear right window
      81-B Rear right window trim

      Step 1

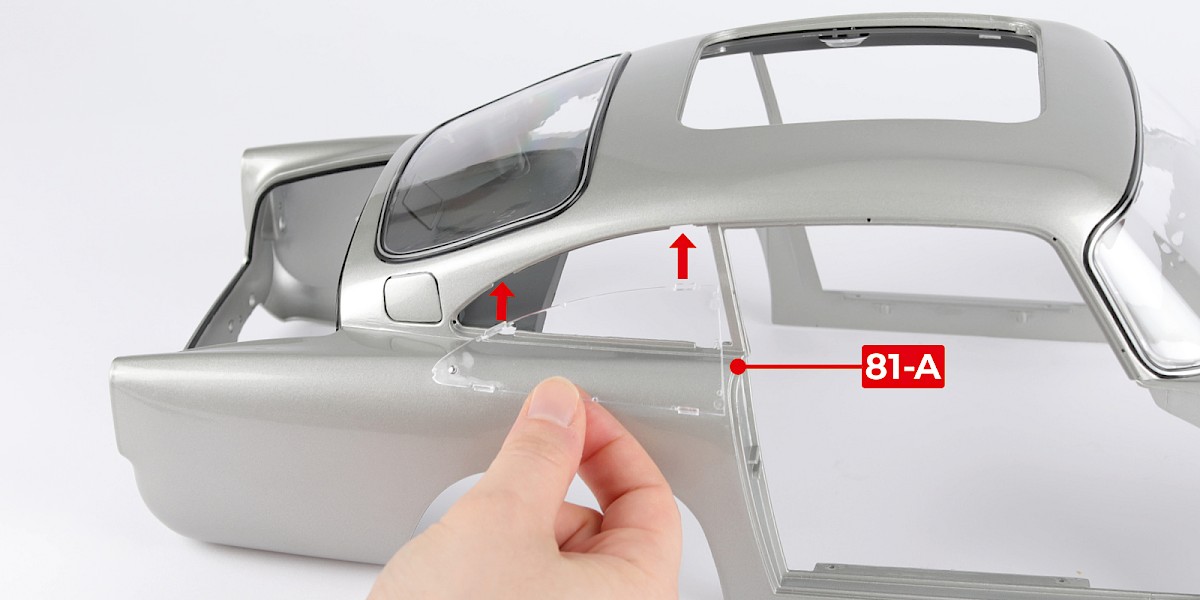

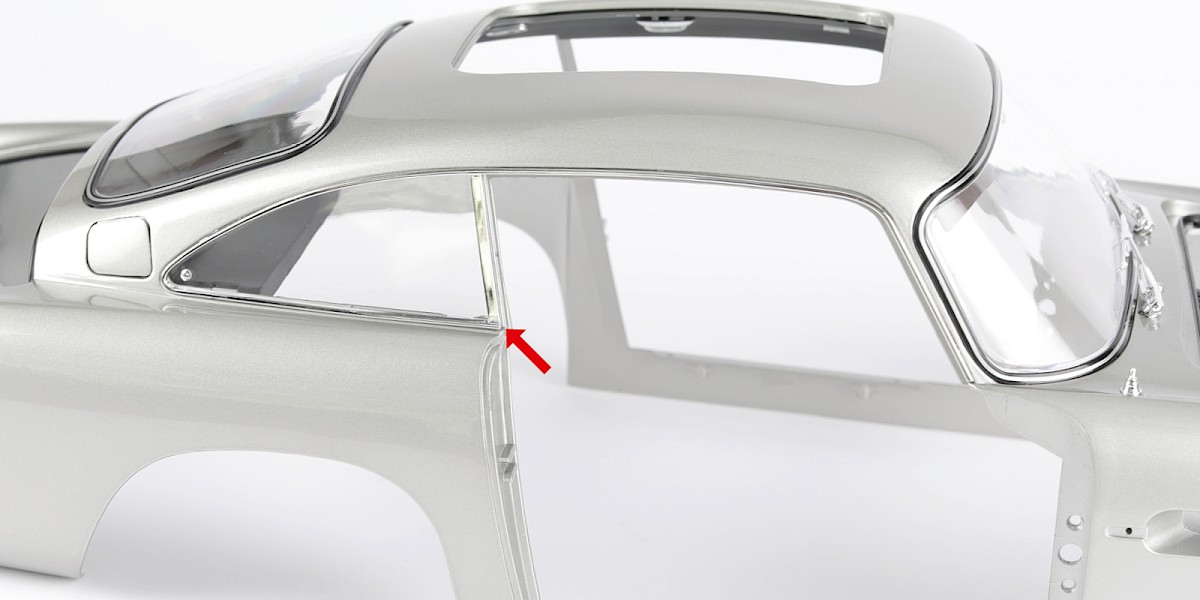

      Fit the rear right window (81-A) to the main body (stage 080). Start with the two tabs on the top edge then press the two tabs on the bottom edge.

      a
      b

      Step 2

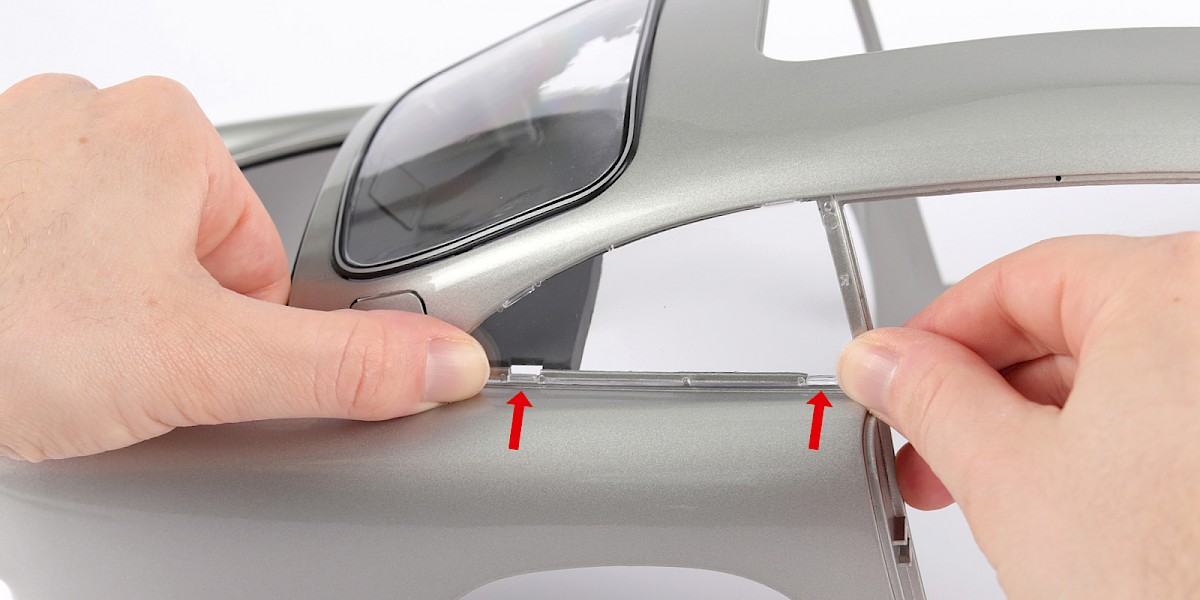

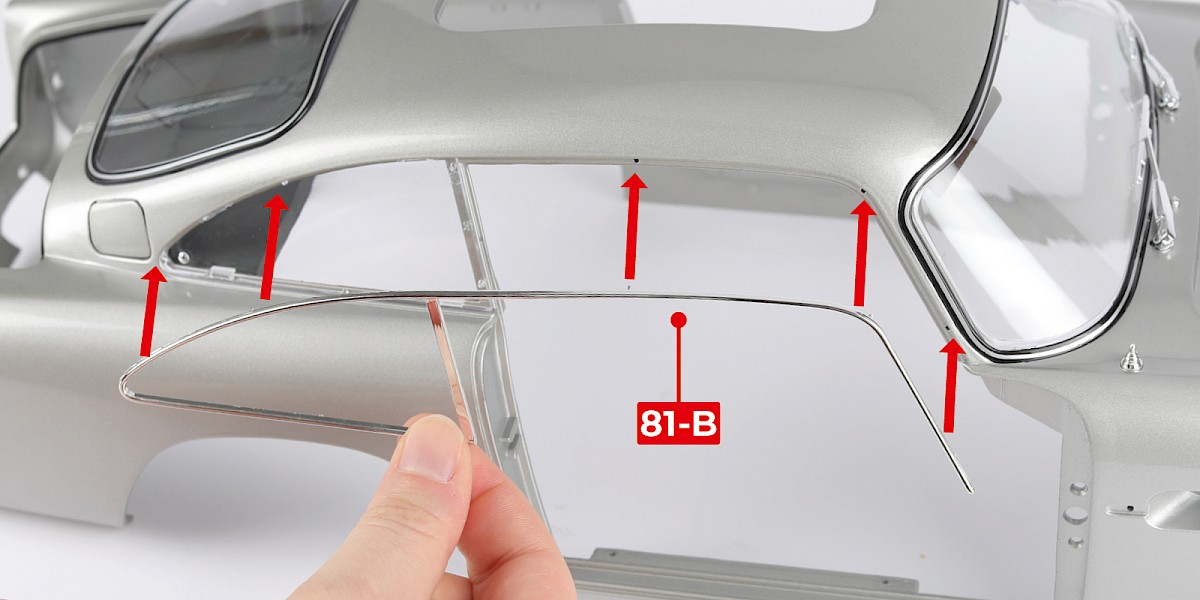

      Apply some PVA glue to the pins on the rear right window trim (81-B) then fit to the main body. You may need to apply some PVA glue to the corner (b).

      a
      b

      STAGE COMPLETE

      Stage 082: Fitting the rear left window and the trim

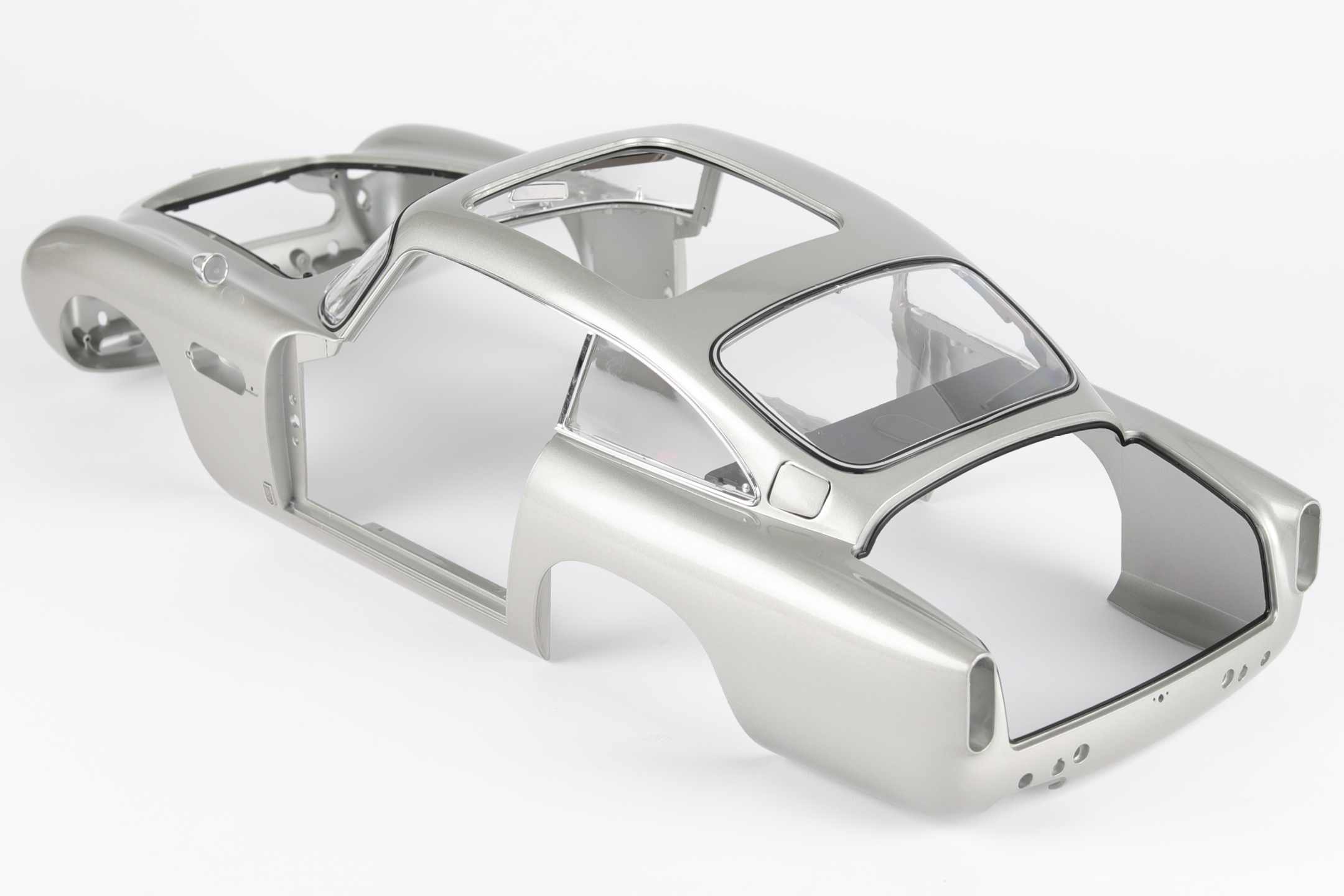

      PARTS LIST

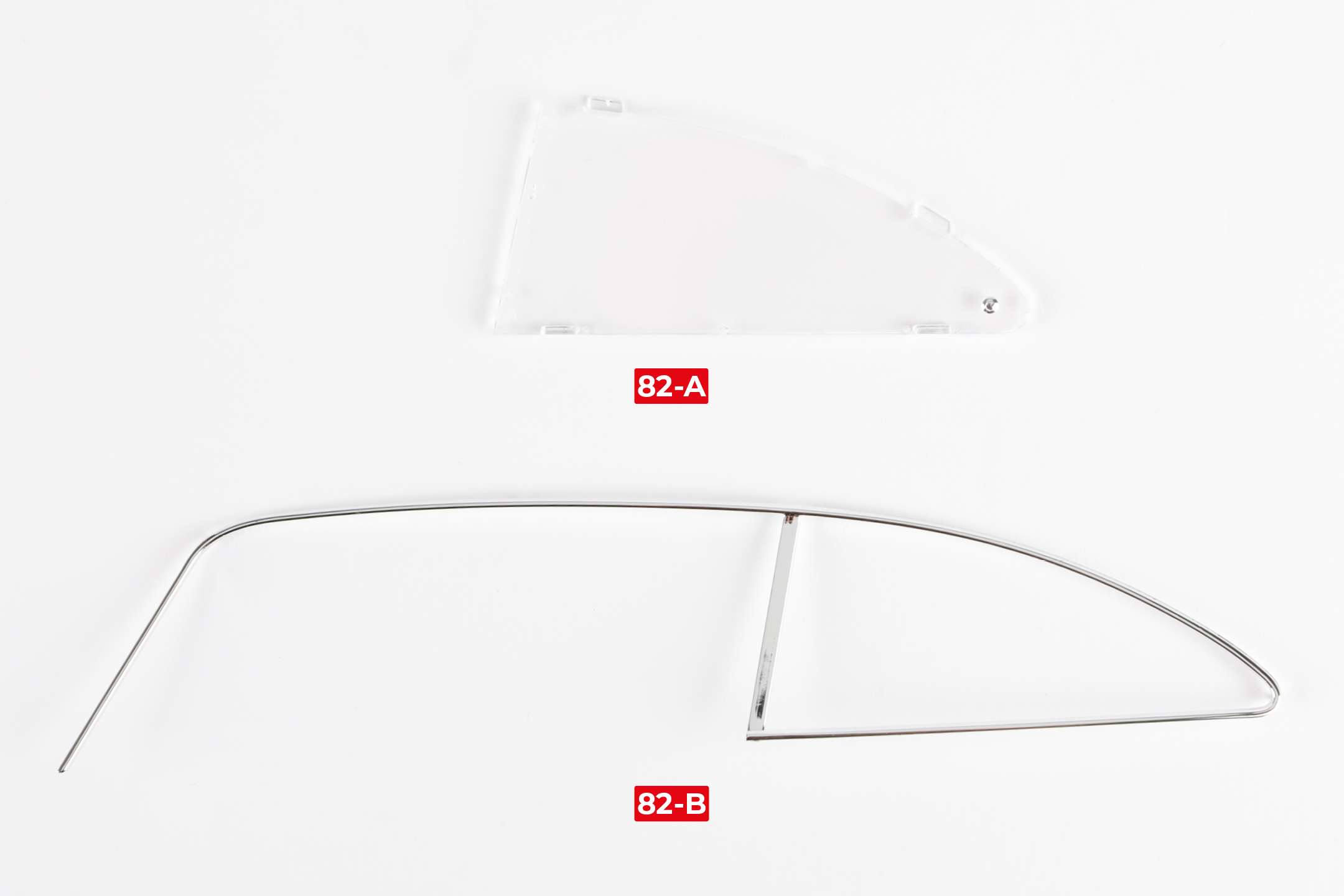

      82-A Rear left window
      82-B Rear left window trim

      Step 1

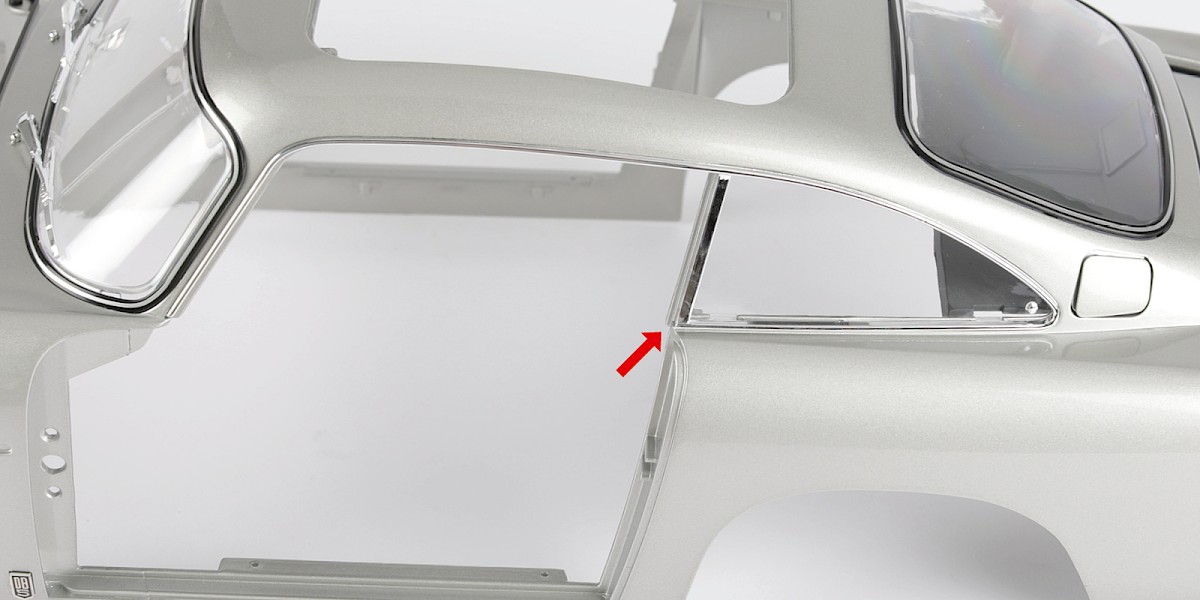

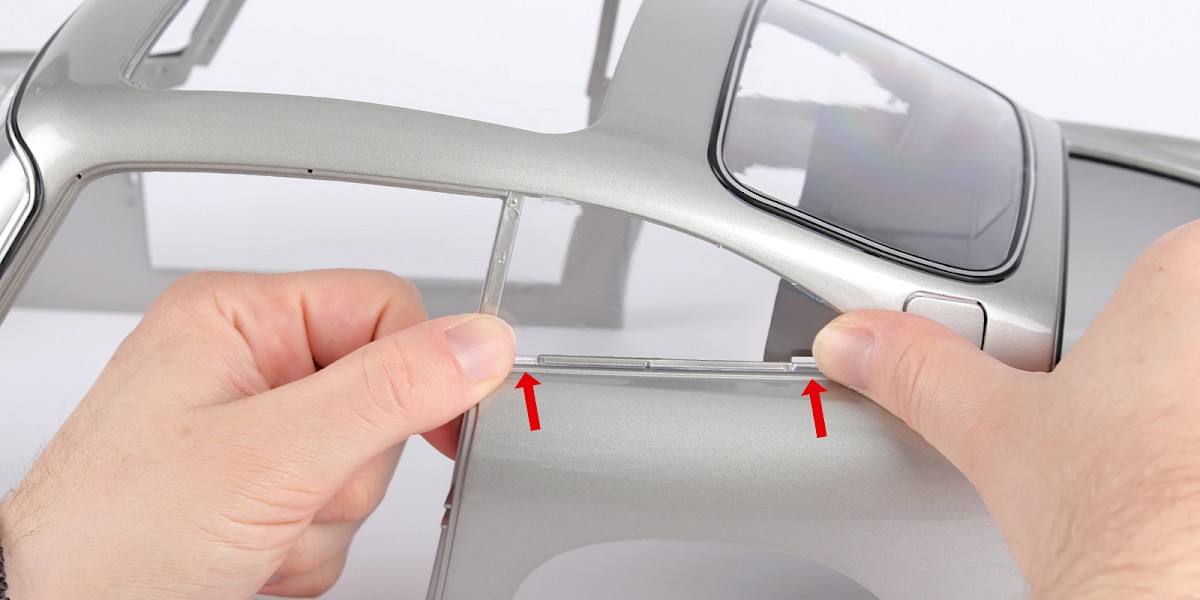

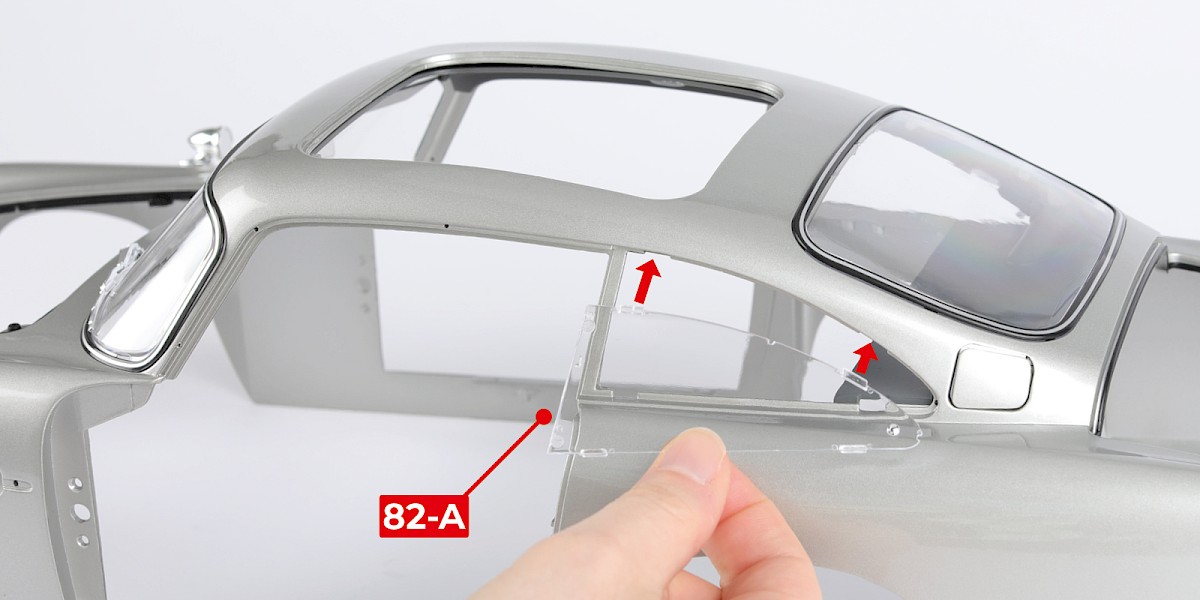

      Fit the rear left window (81-A) to the main body (stage 080). Start with the two tabs on the top edge then press the two tabs on the bottom edge.

      a
      b

      Step 2

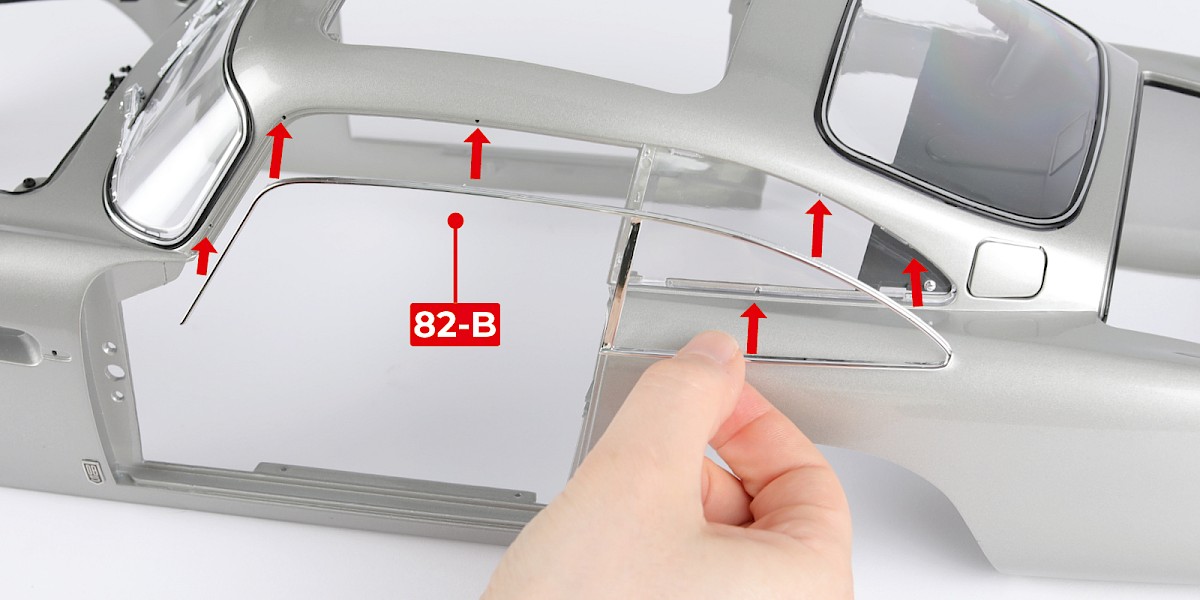

      Apply some PVA glue to the pins on the rear left window trim (81-B) then fit to the main body. You may need to apply some PVA glue to the corner (b).

      a
      b

      STAGE COMPLETE

      Stage 083: Fitting the right interior panel

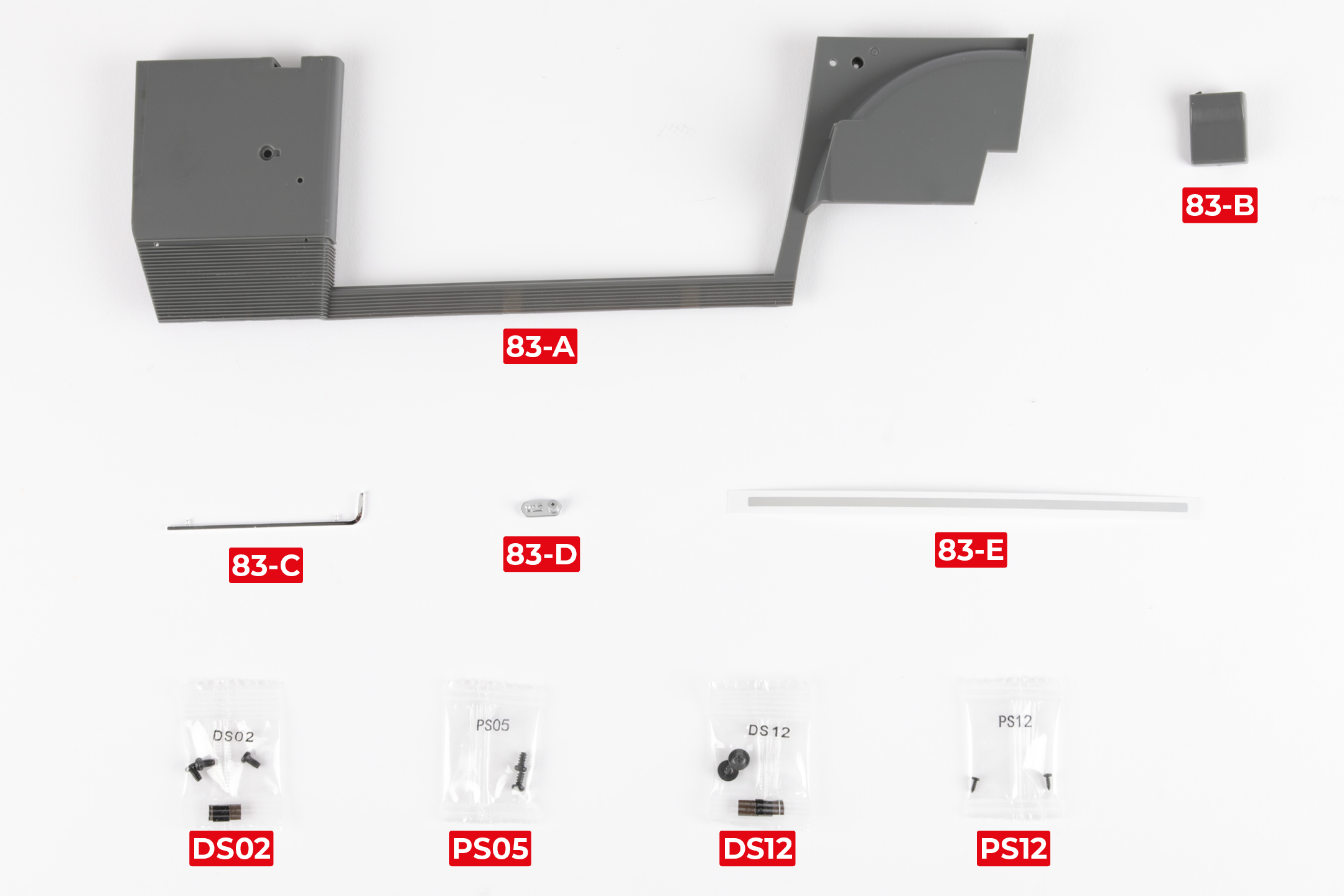

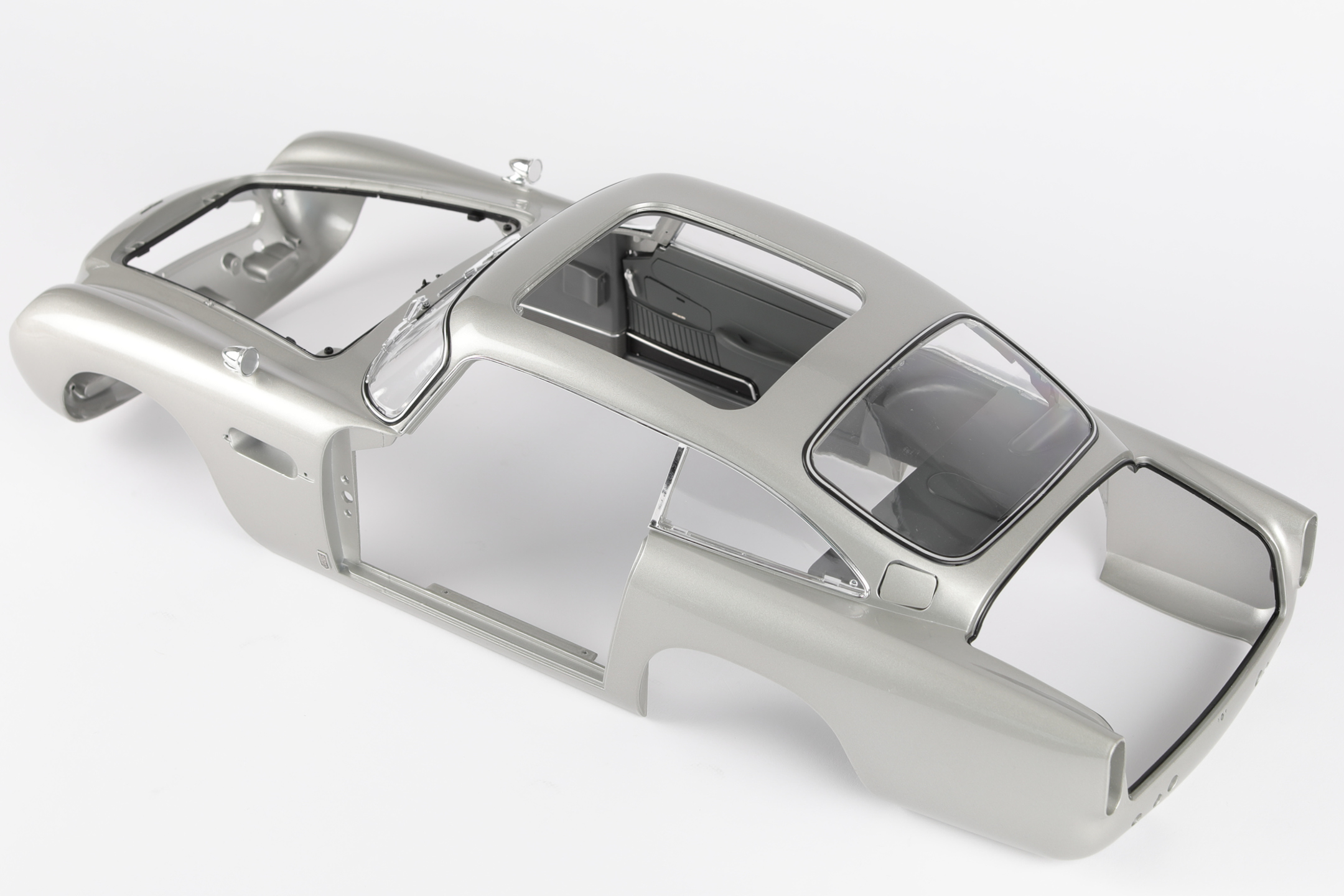

      PARTS LIST

      83-A Right interior panel3x DS02 screws
      83-B Air vent control2x PS05 screws
      83-C Interior panel trim2x DS12 screws
      83-D Ashtray2x PS12 screws
      83-E Door sill trim sticker

      Step 1

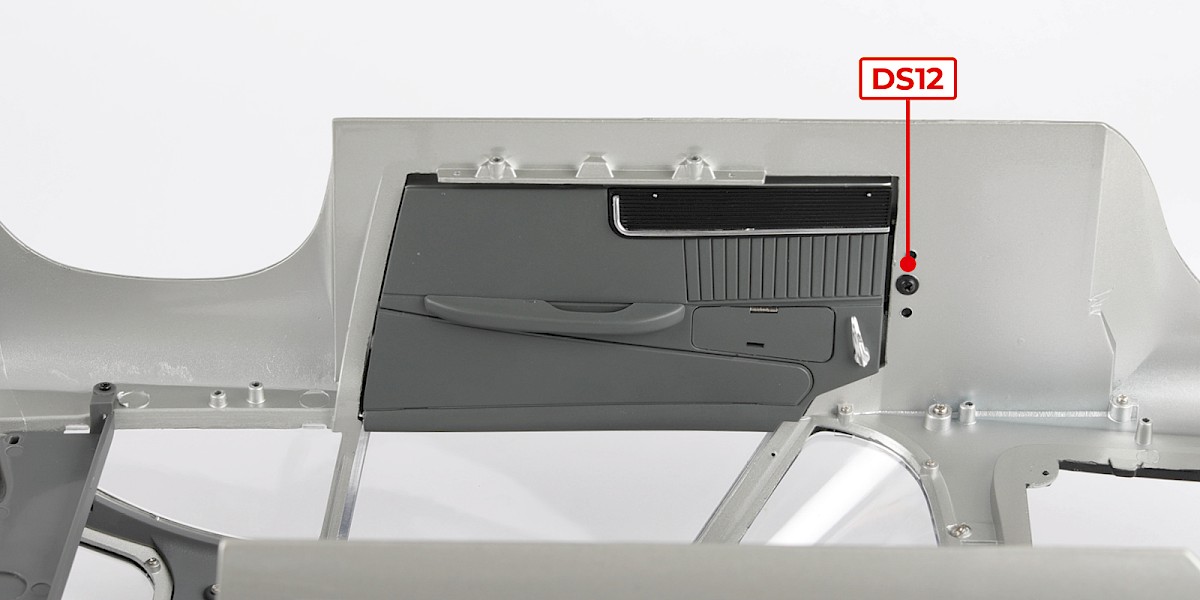

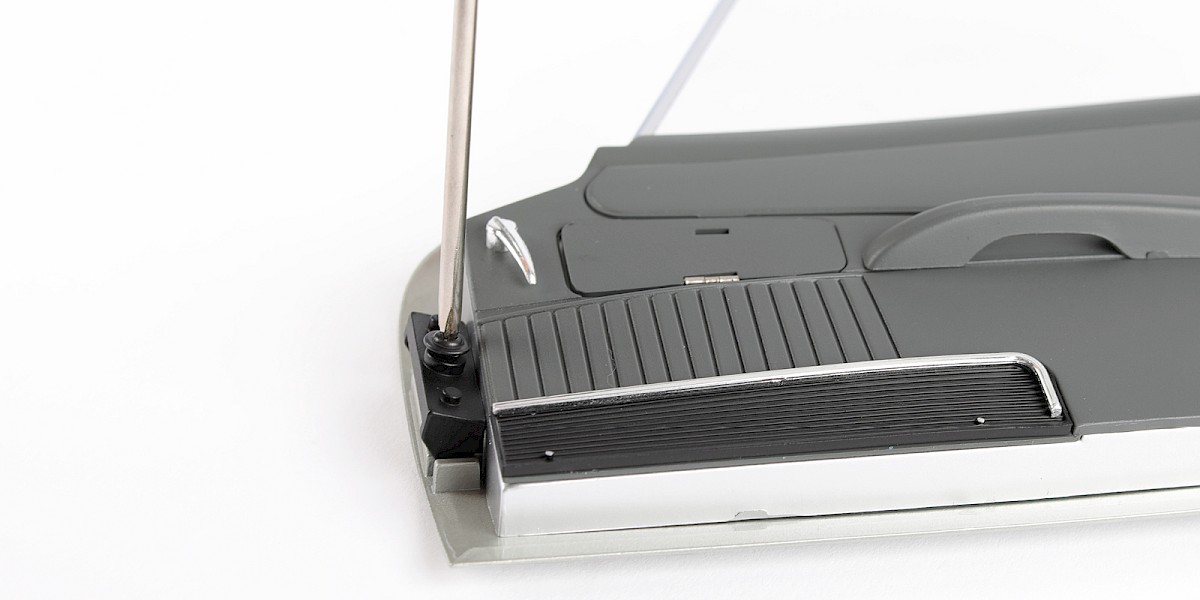

      Lubricate and pre-tap a DS12 screw into the right door hinge (stage 007) as shown. Unscrew the screw after pre-tapping.

      If the screw is difficult to tighten, remove any excess paint.

      a

      Step 2

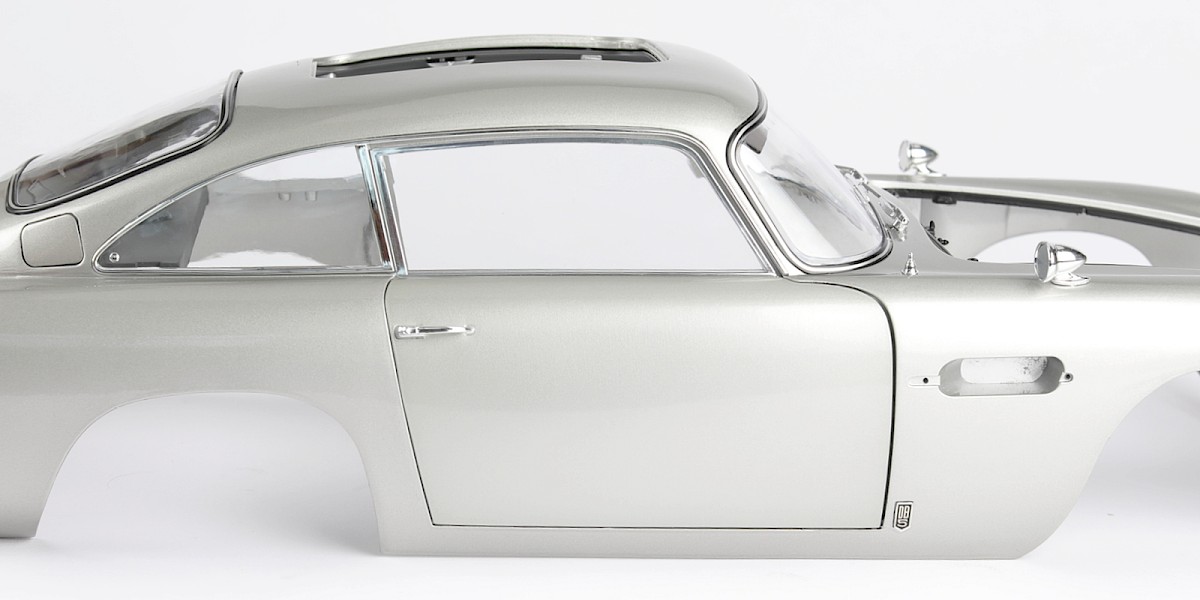

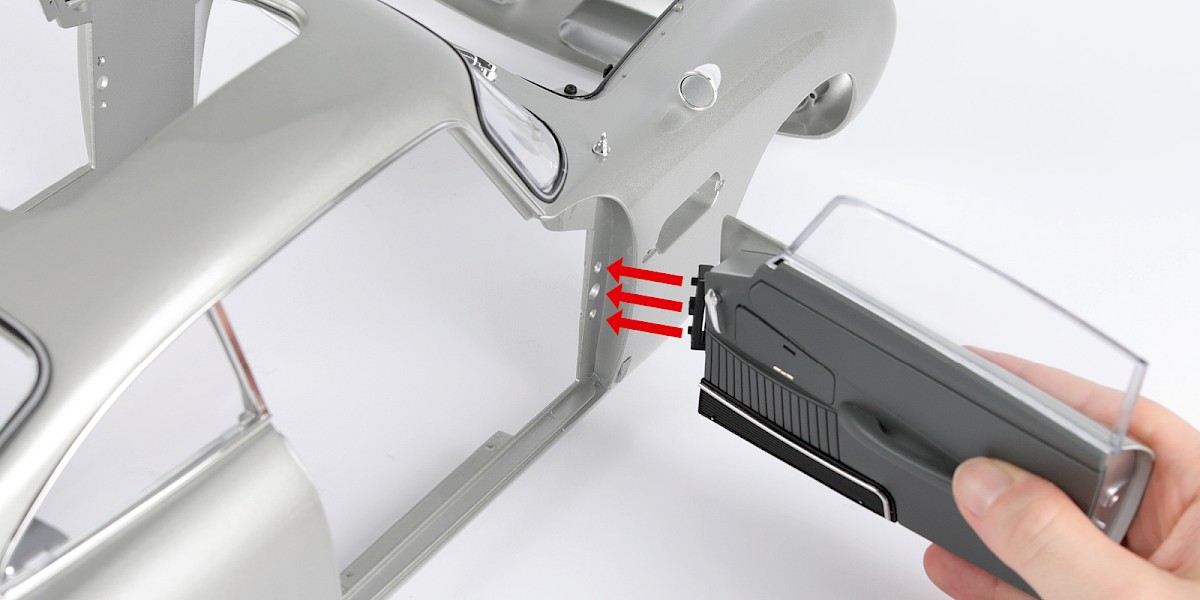

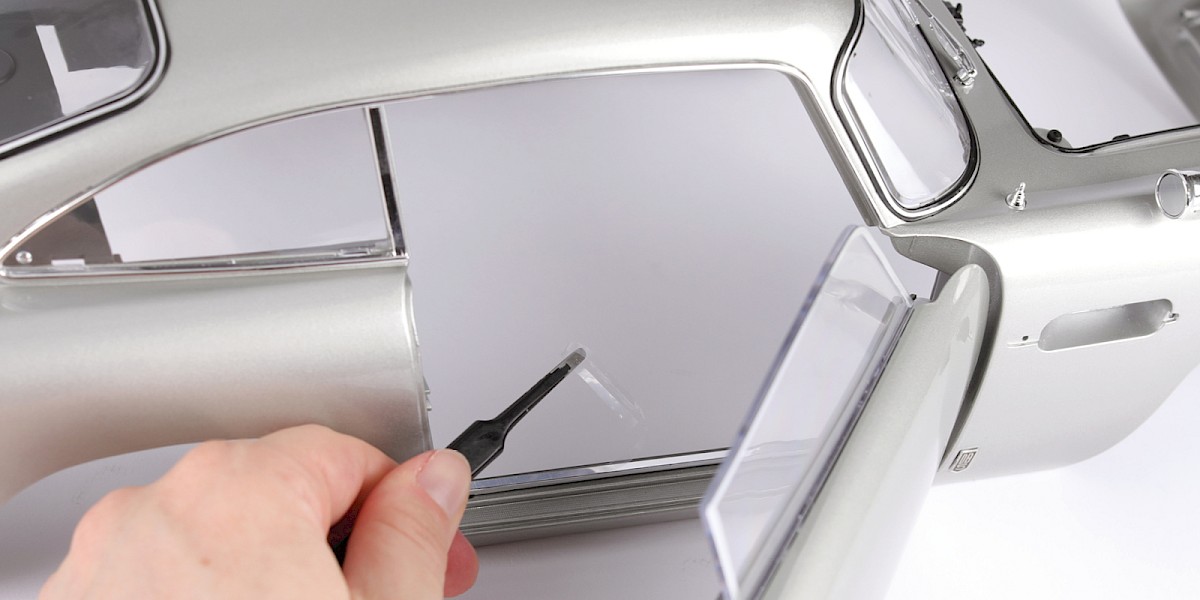

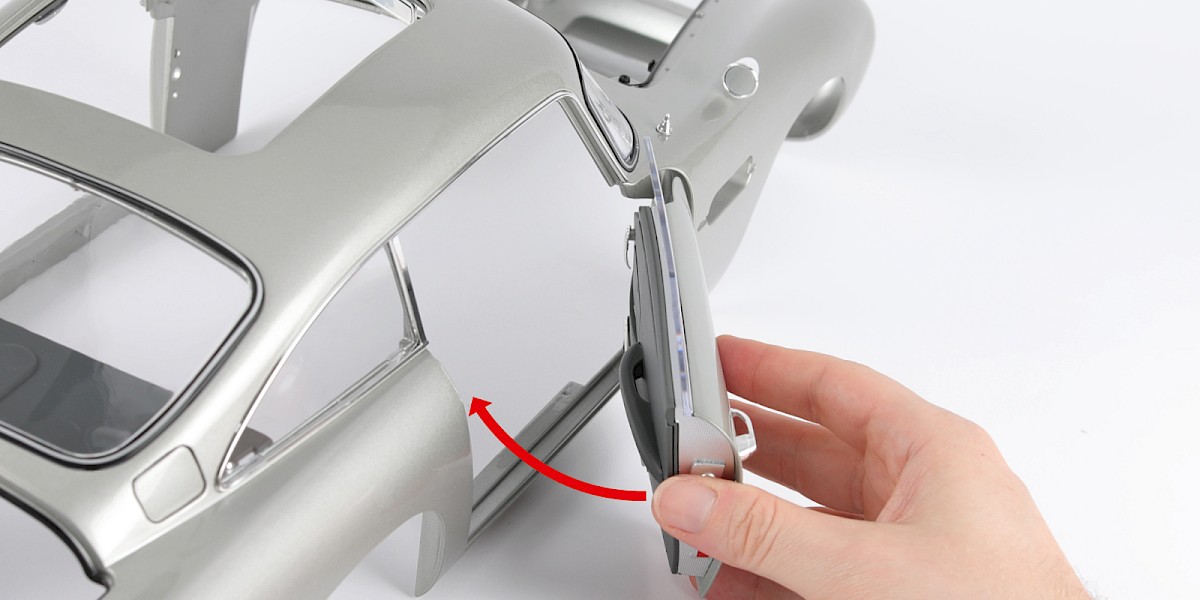

      Fit the right door to the main body (stage 082).

      Close the right door.

      a
      b

      Step 3

      Check that the door is fitted correctly before screwing it in place.

      Secure from the other side with 1x DS12. Check the door opens smoothly – if the door wobbles make sure the screw holding the mount is tight.

      a
      b

      Step 4

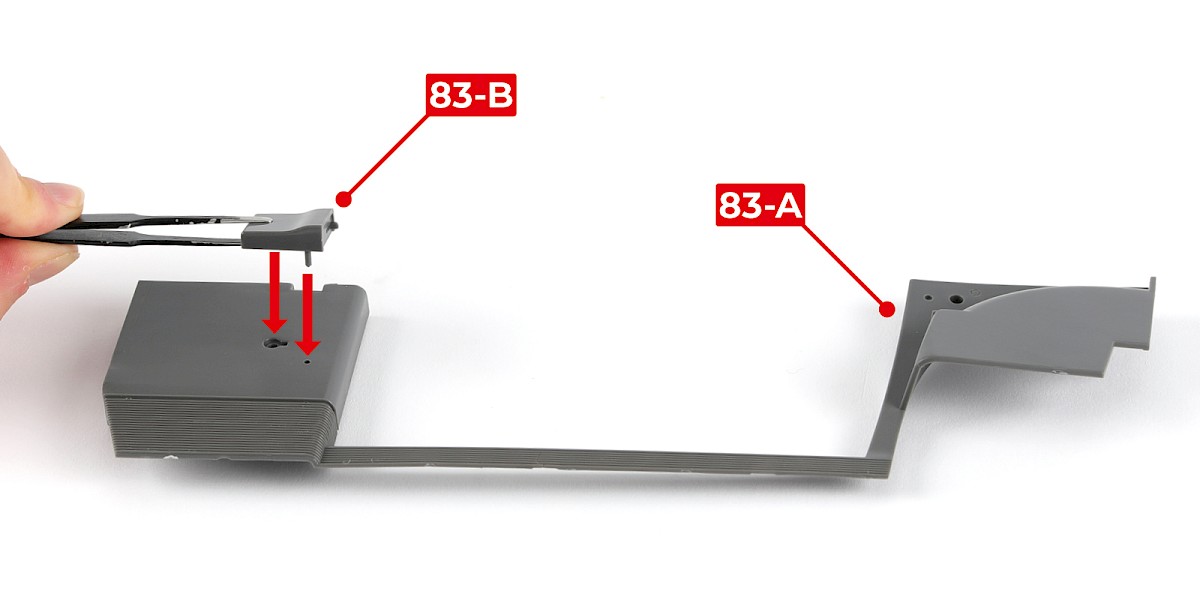

      Fit the air vent control (83-B) to the right interior panel (83-A).

      a
      b

      Step 5

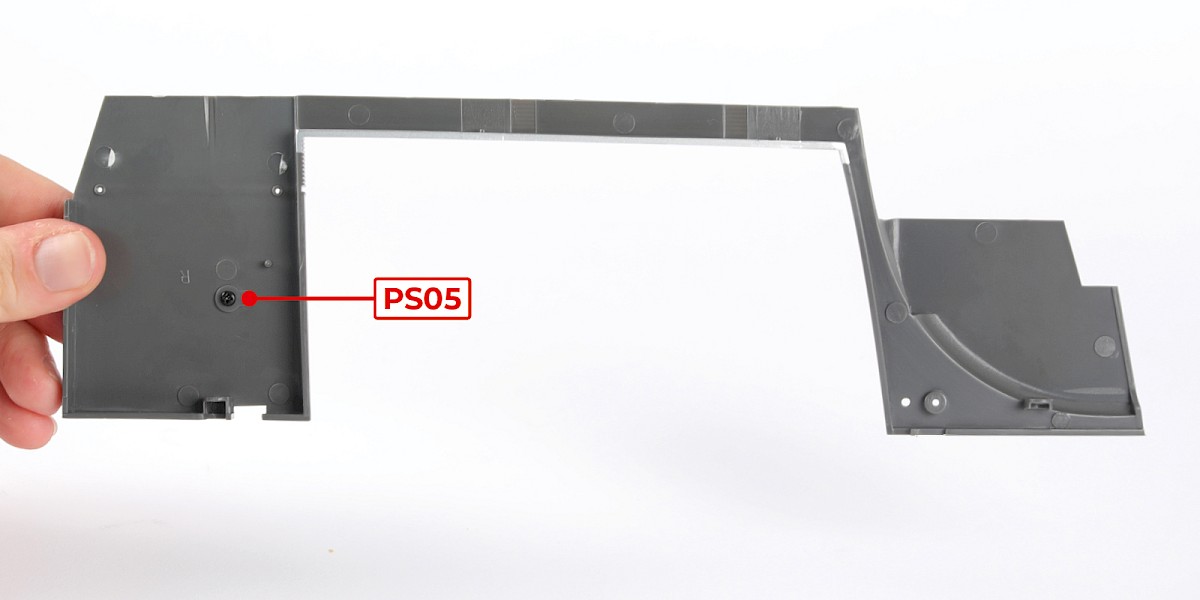

      Secure with 1x PS05.

      a

      Step 6

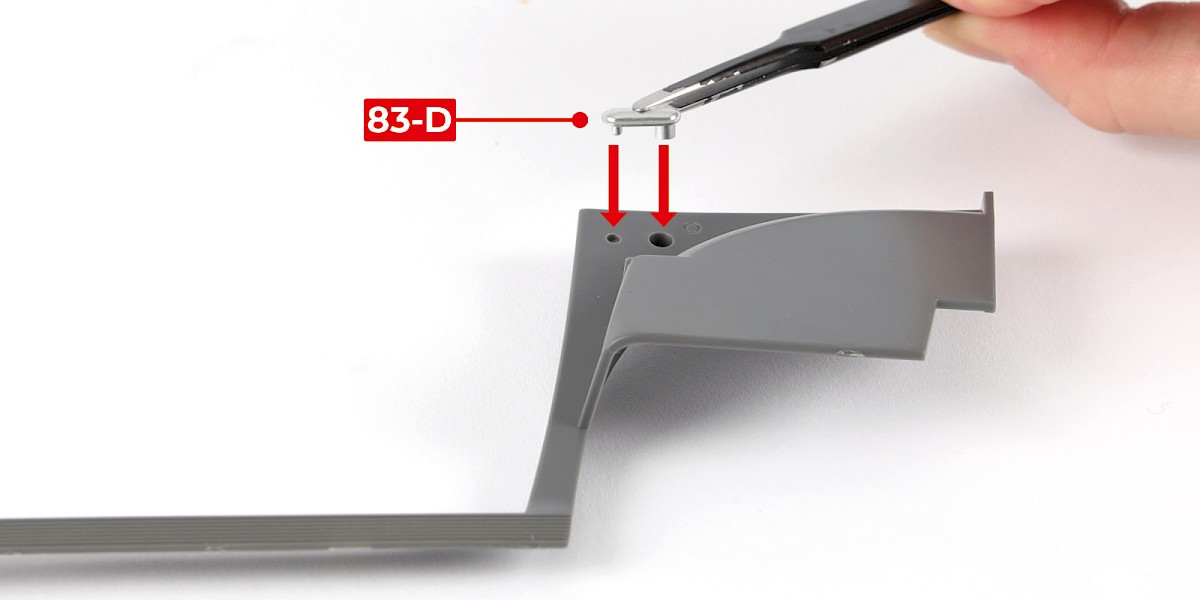

      Fit the ashtray (83-D) to the assembly.

      a
      b

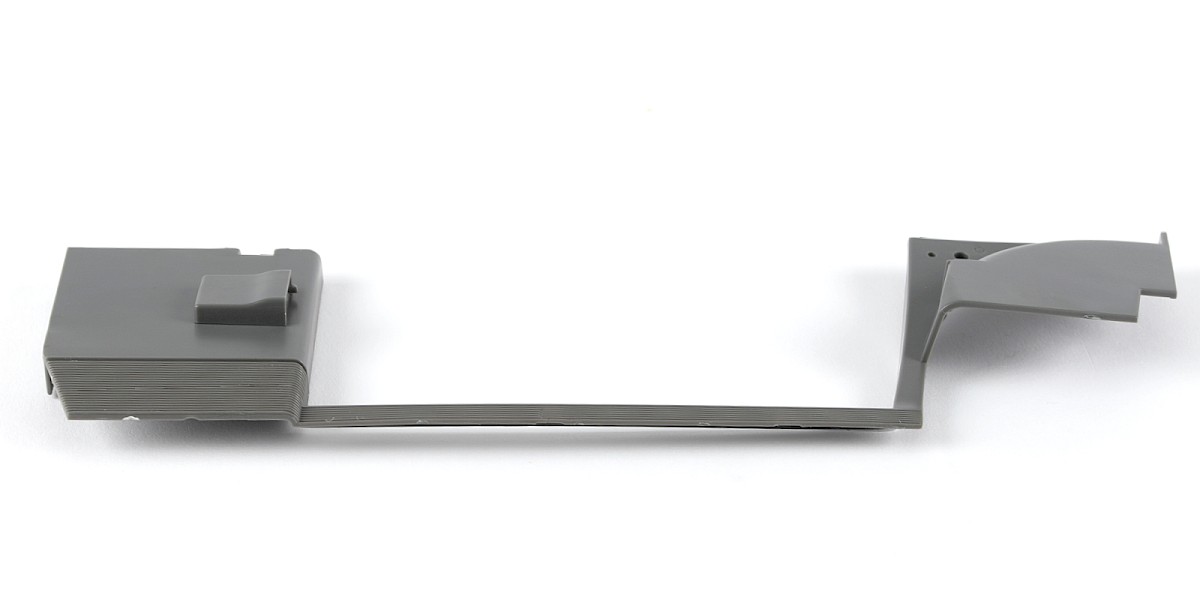

      Step 7

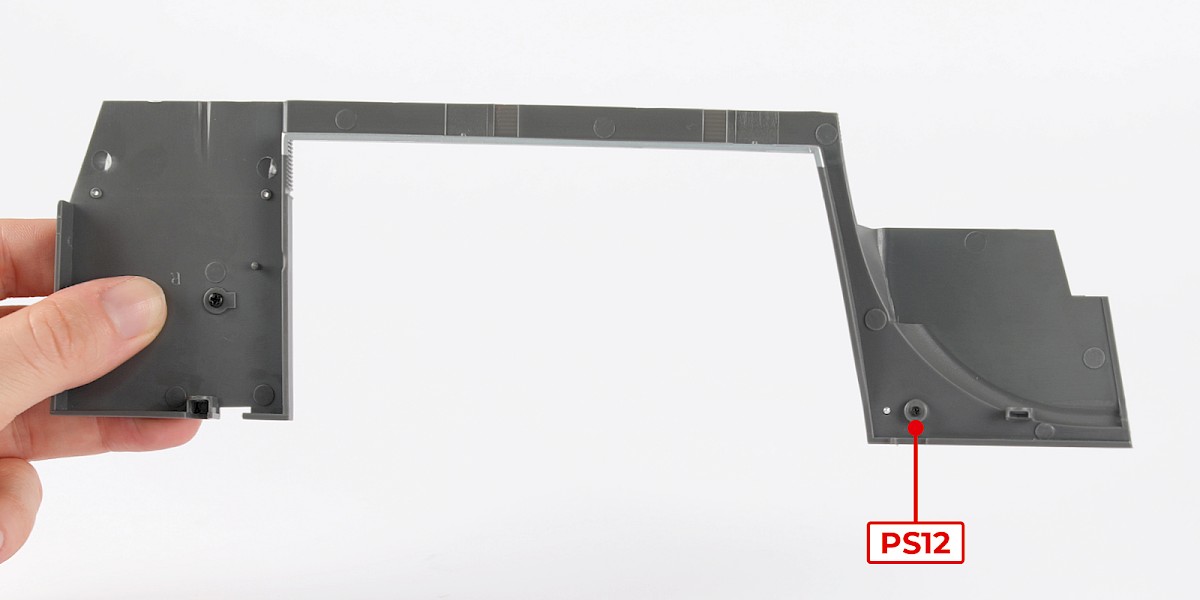

      Secure with 1x PS12.

      a

      Step 8

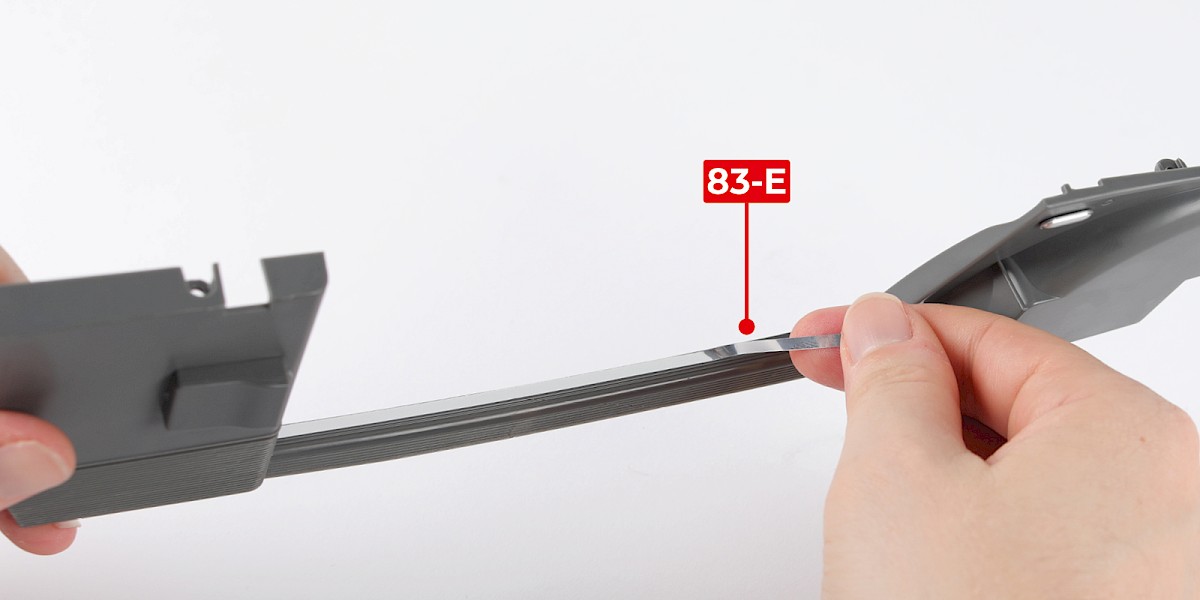

      Remove the backing paper from the door sill trim sticker (83-E).

      Stick the door sill trim sticker to the assembly.

      a
      b

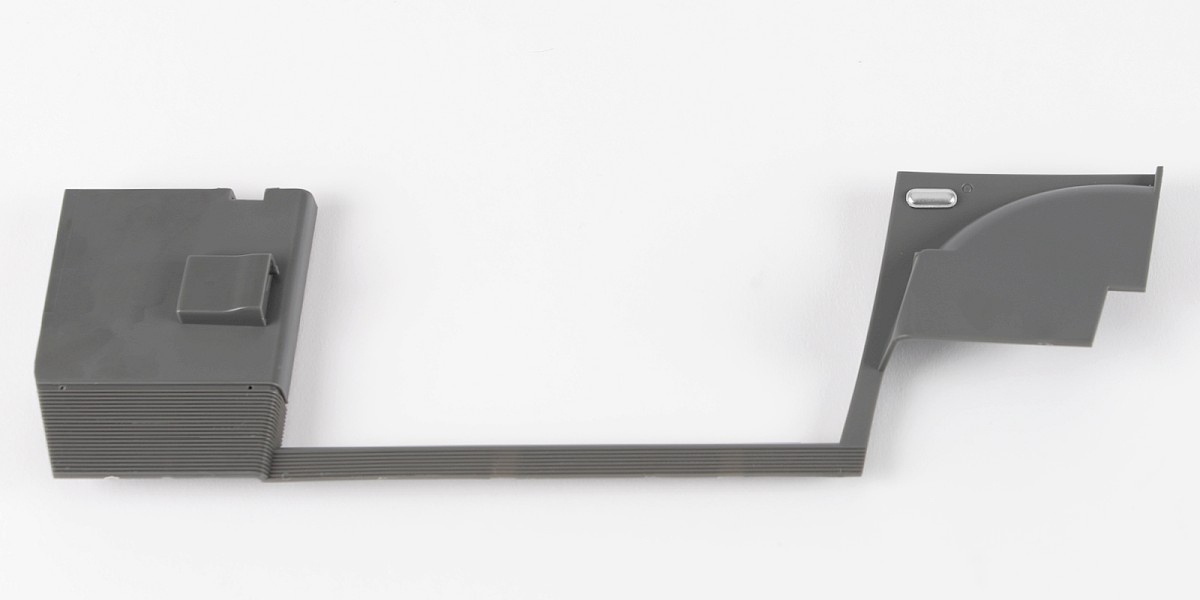

      Step 9

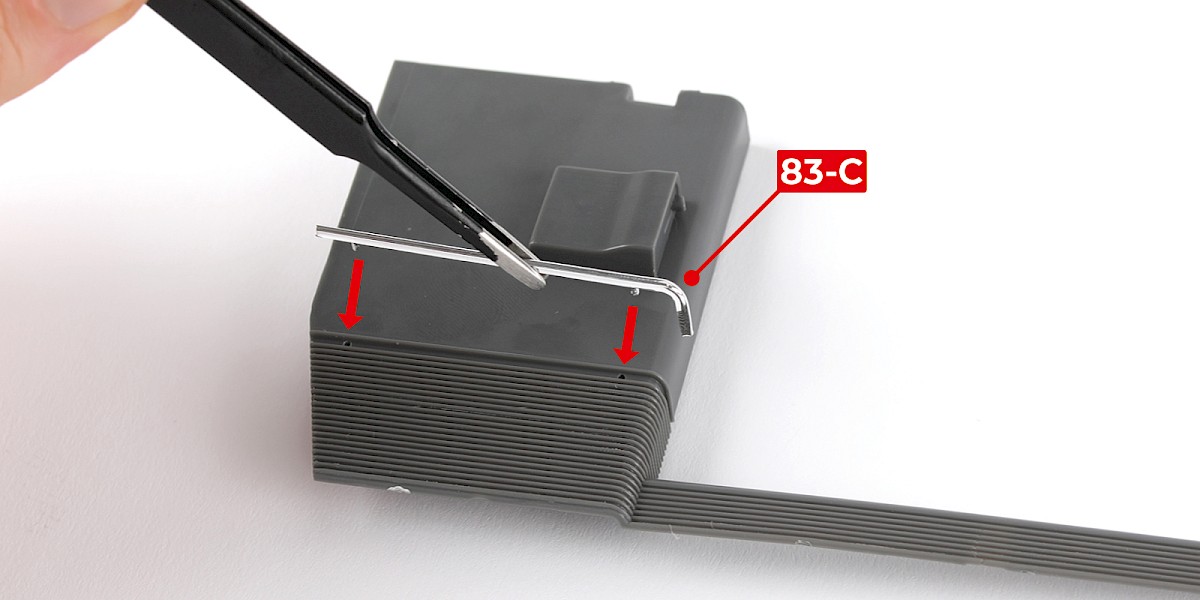

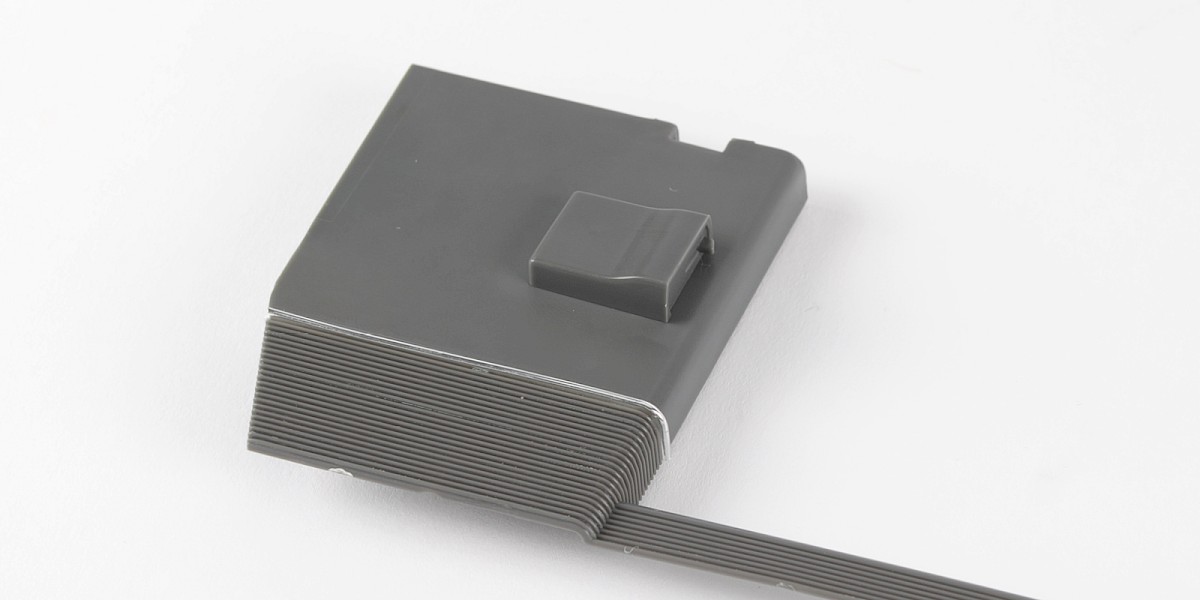

      Fit the interior panel trim (83-C) to the assembly.

      a
      b

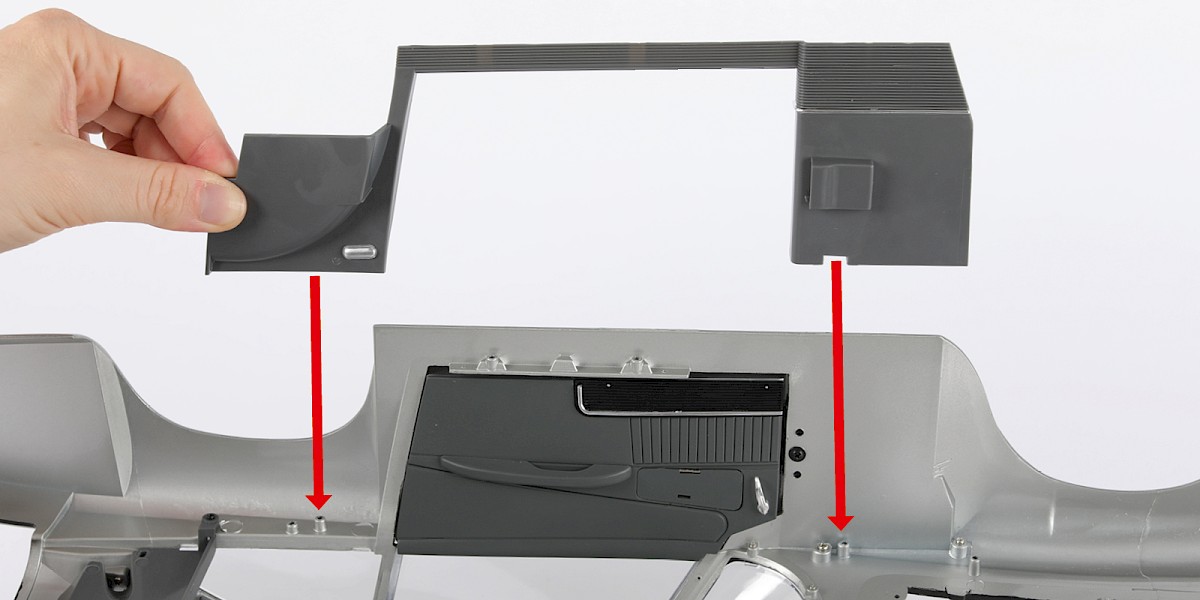

      Step 10

      Fit the assembly to the main body.

      a

      Step 11

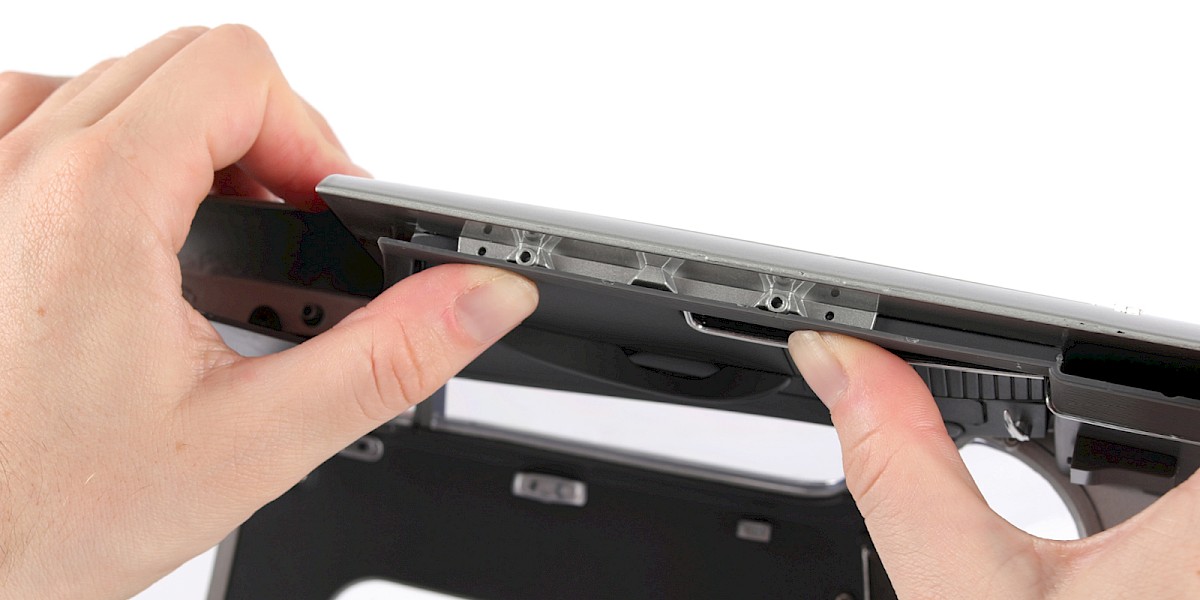

      Make sure to fit the panel underneath the door sill.

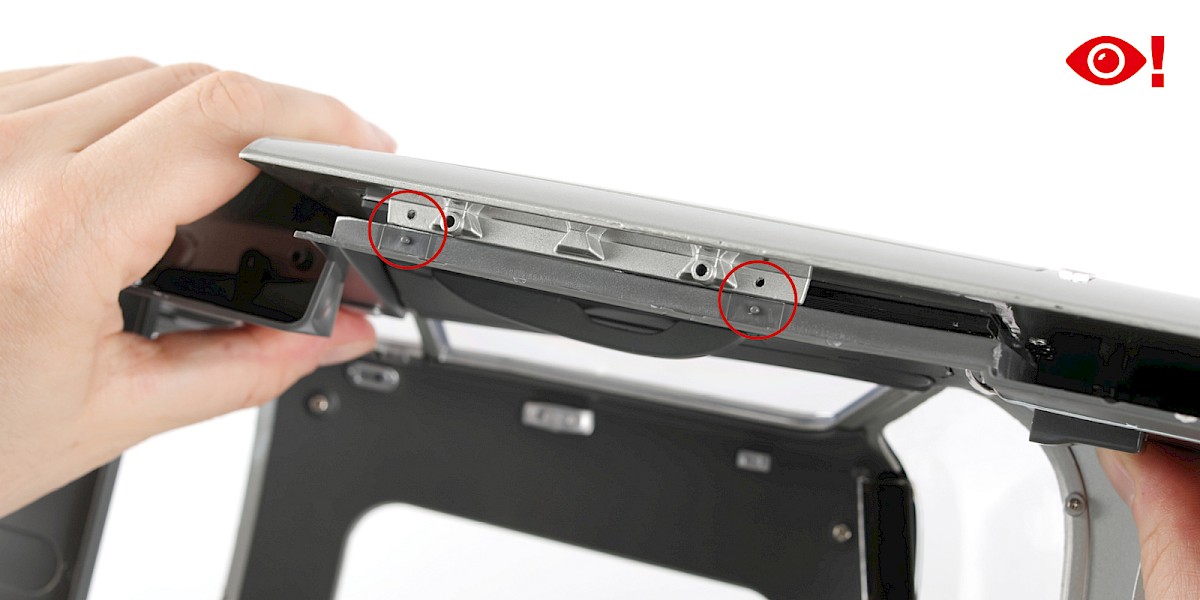

      Press the two pins into the holes as shown.

      a
      b

      Step 12

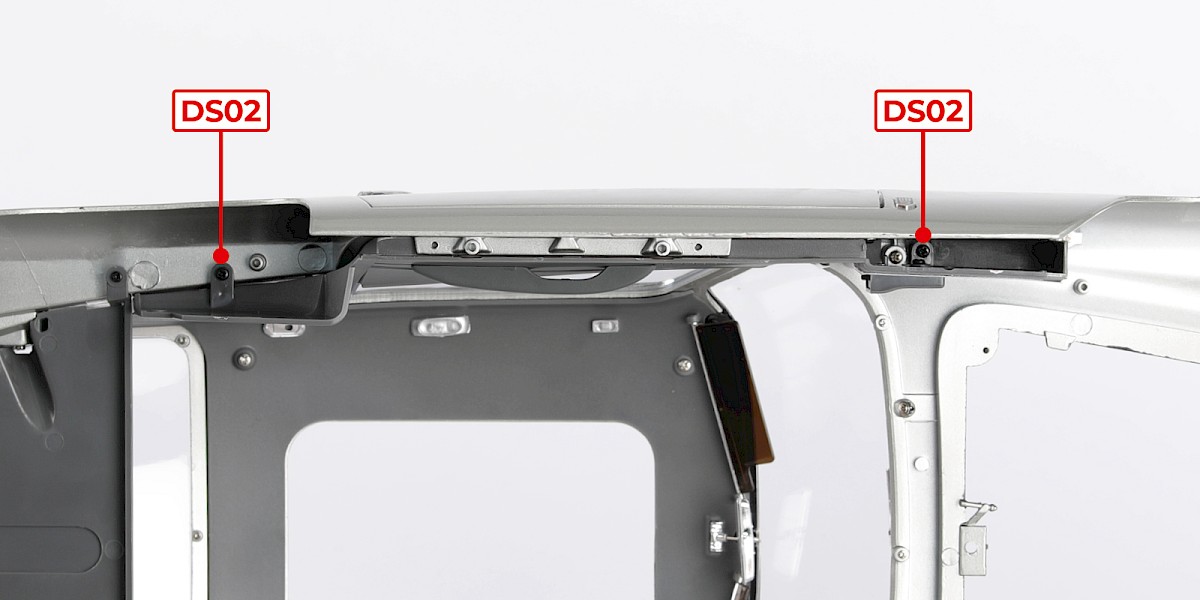

      Secure with 2x DS02.

      a

      STAGE COMPLETE

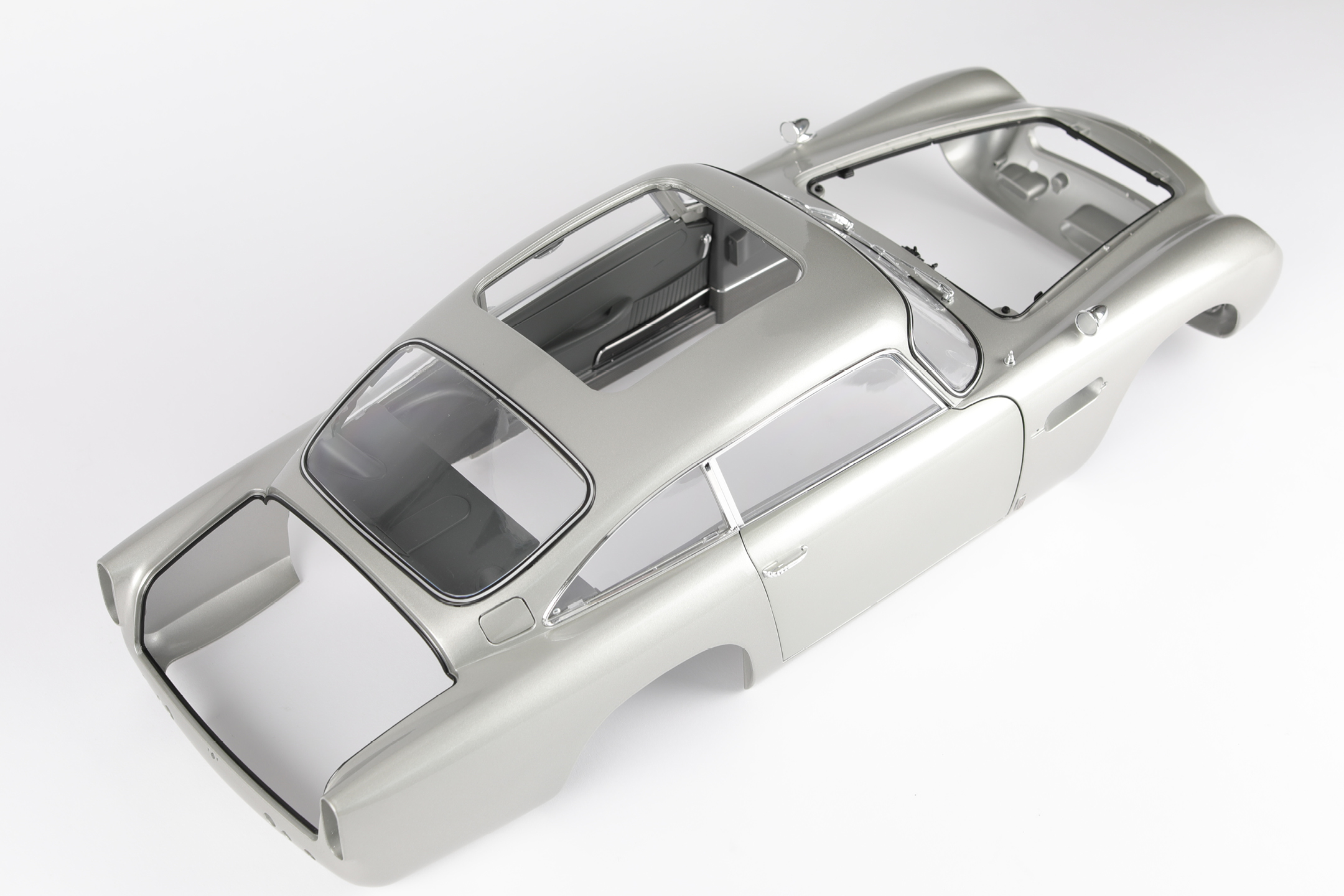

      Stage 084: Fitting the left interior panel

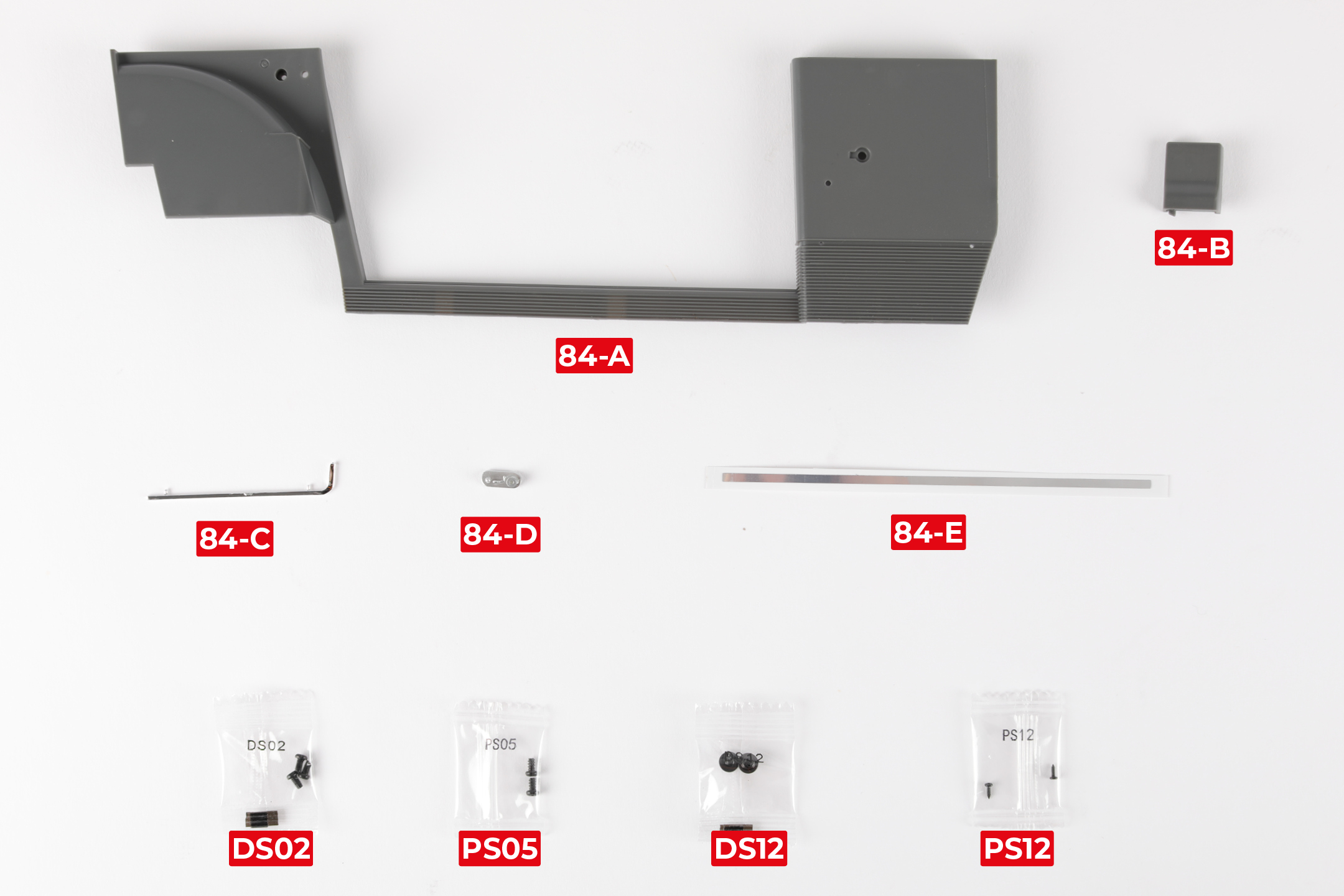

      PARTS LIST

      84-A Left interior panel3x DS02 screws
      84-B Air vent control2x PS05 screws
      84-C Interior panel trim2x DS12 screws
      84-D Ashtray2x PS12 screws
      84-E Door sill trim sticker

      Step 1

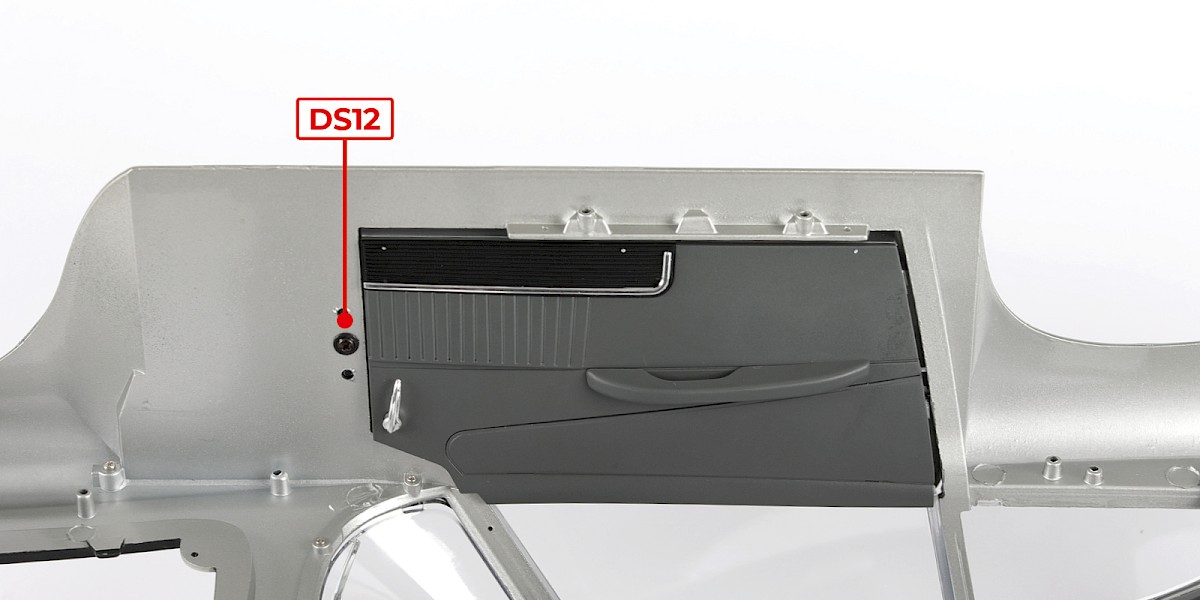

      Lubricate and pre-tap a DS12 screw into the left door hinge (stage 072) as shown. Unscrew the screw after pre-tapping.

      If the screw is difficult to tighten, remove any excess paint.

      a

      Step 2

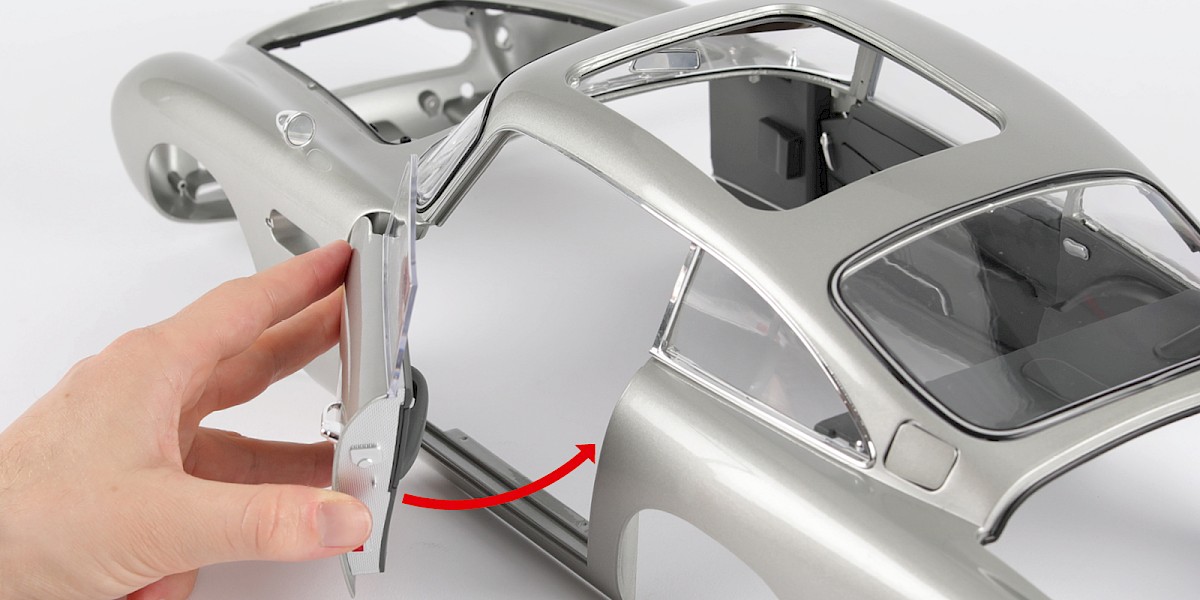

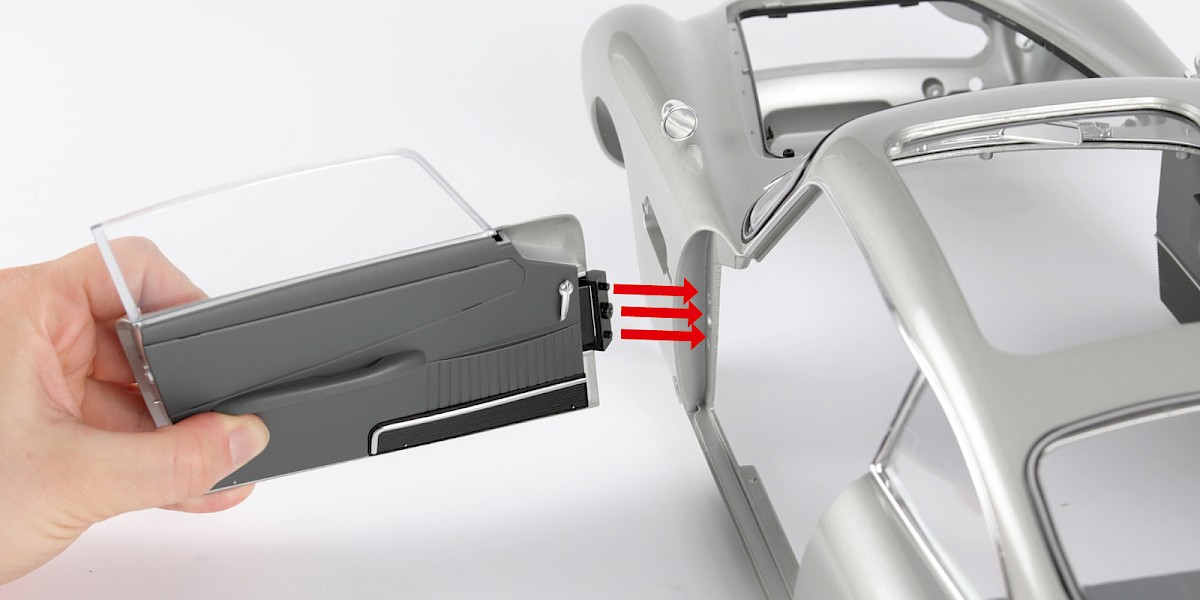

      Fit the left door to the main body (stage 083).

      Close the left door.

      a
      b

      Step 3

      Secure from the other side with 1x DS12. Check the door opens smoothly – if the door wobbles make sure the screw holding the mount is tight.

      a

      Step 4

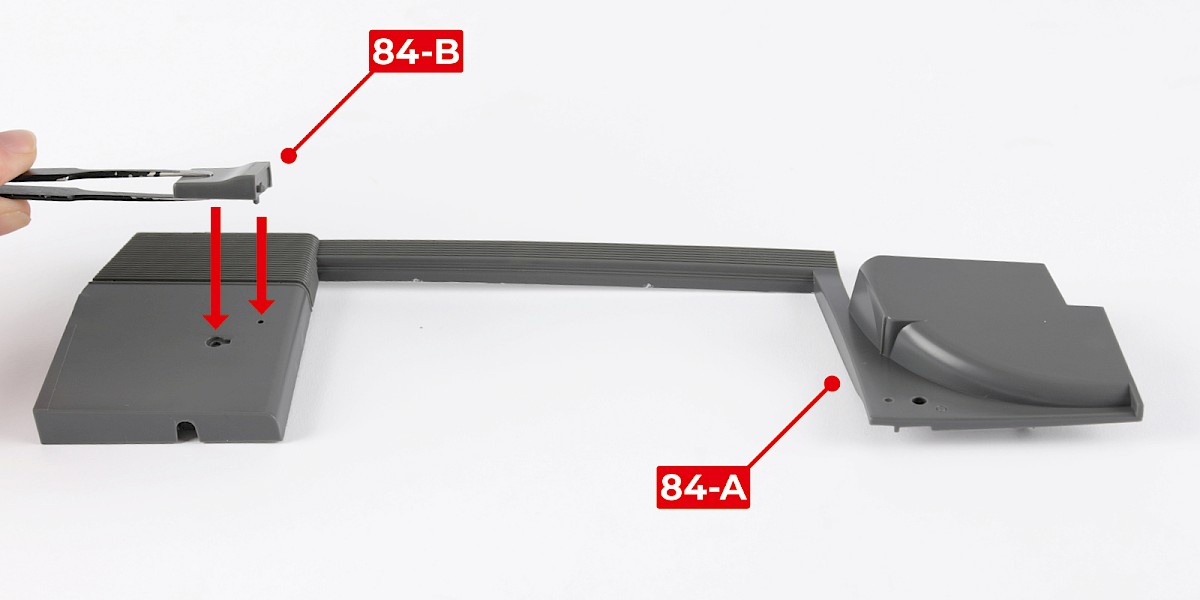

      Fit the air vent control (84-B) to the left interior panel (84-A).

      a
      b

      Step 5

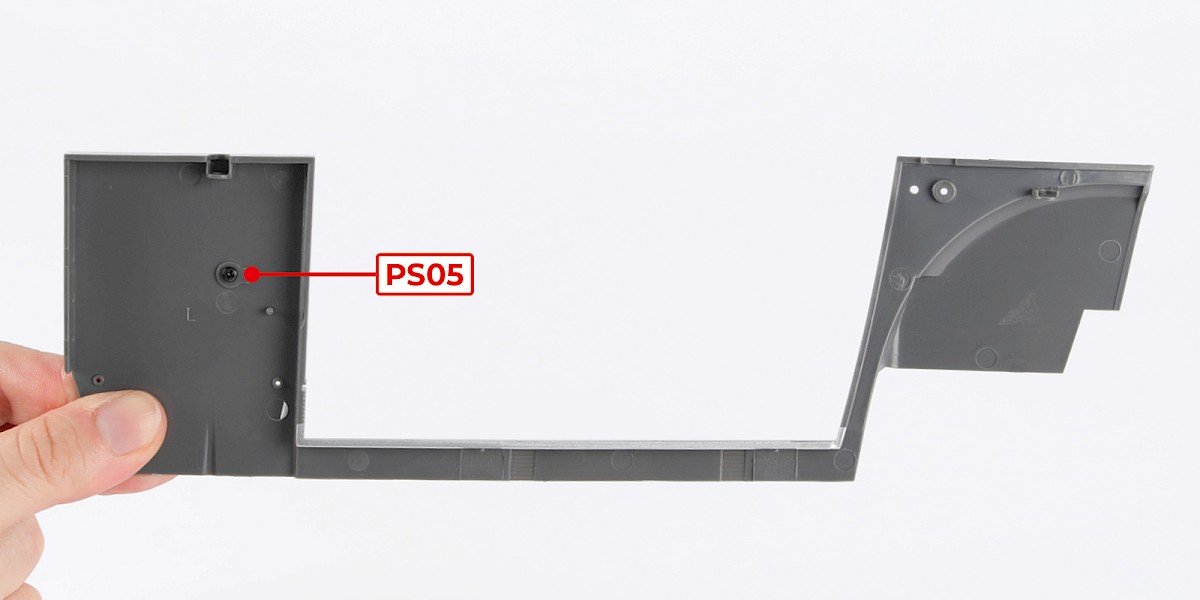

      Secure with 1x PS05.

      a

      Step 6

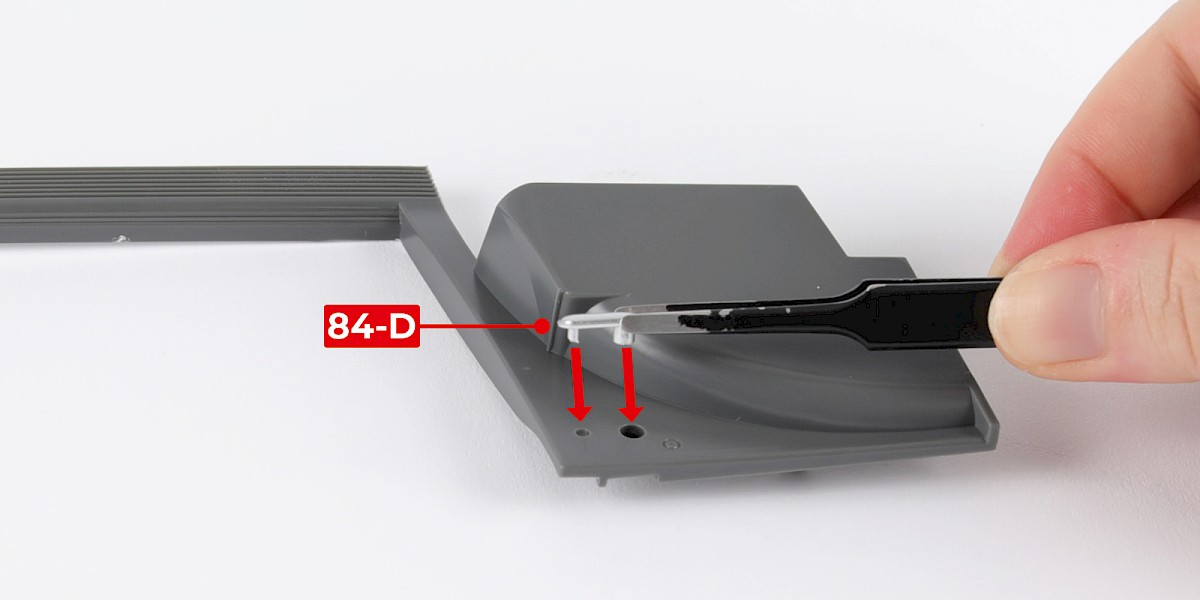

      Fit the ashtray (84-D) to the assembly.

      a
      b

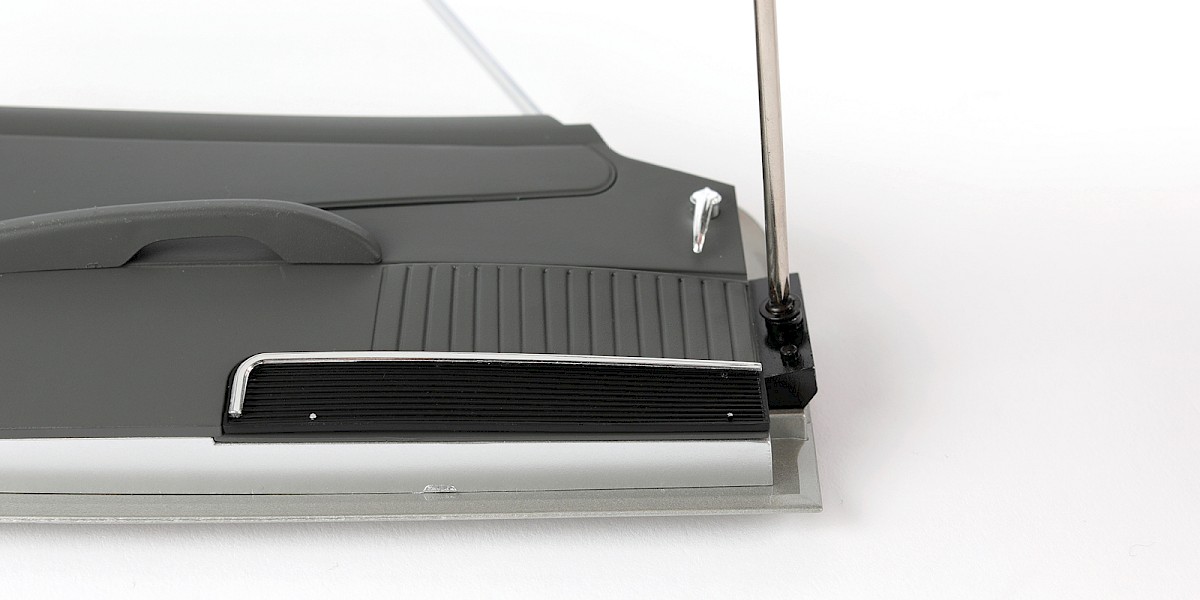

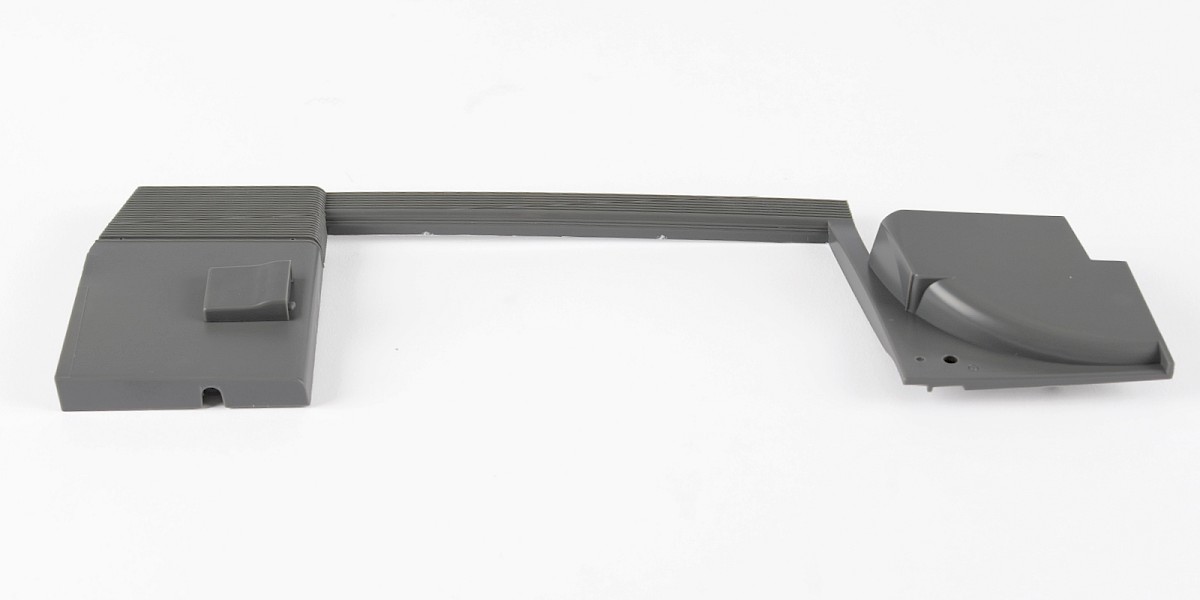

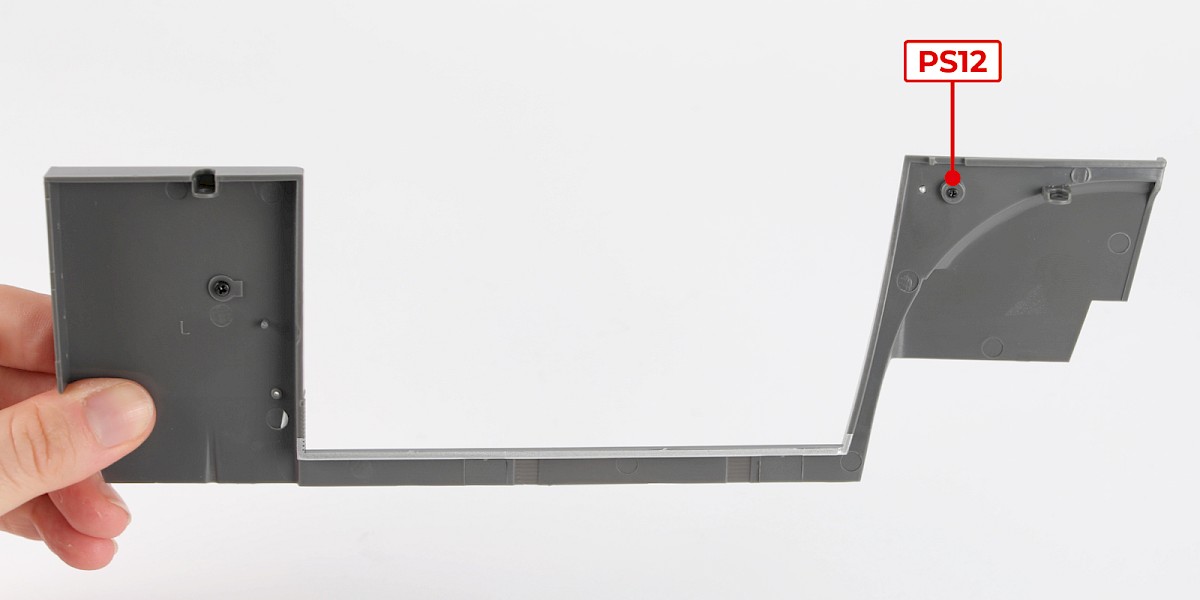

      Step 7

      Secure with 1x PS12.

      a

      Step 8

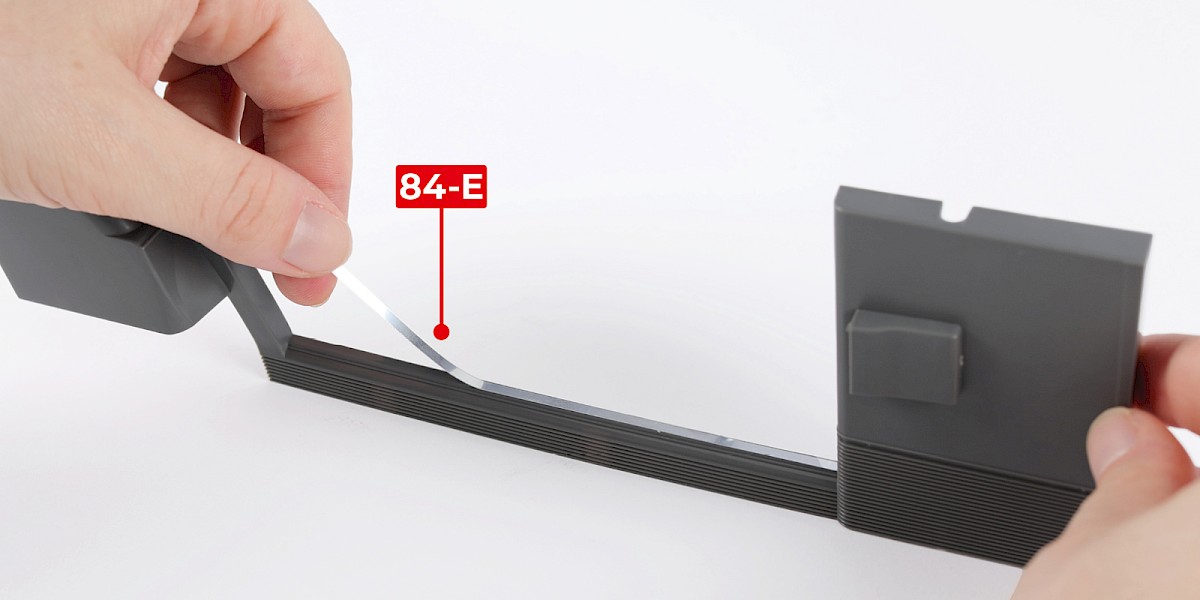

      Remove the backing paper from the door sill trim sticker (84-E).

      Stick the door sill trim sticker to the assembly.

      a
      b

      Step 9

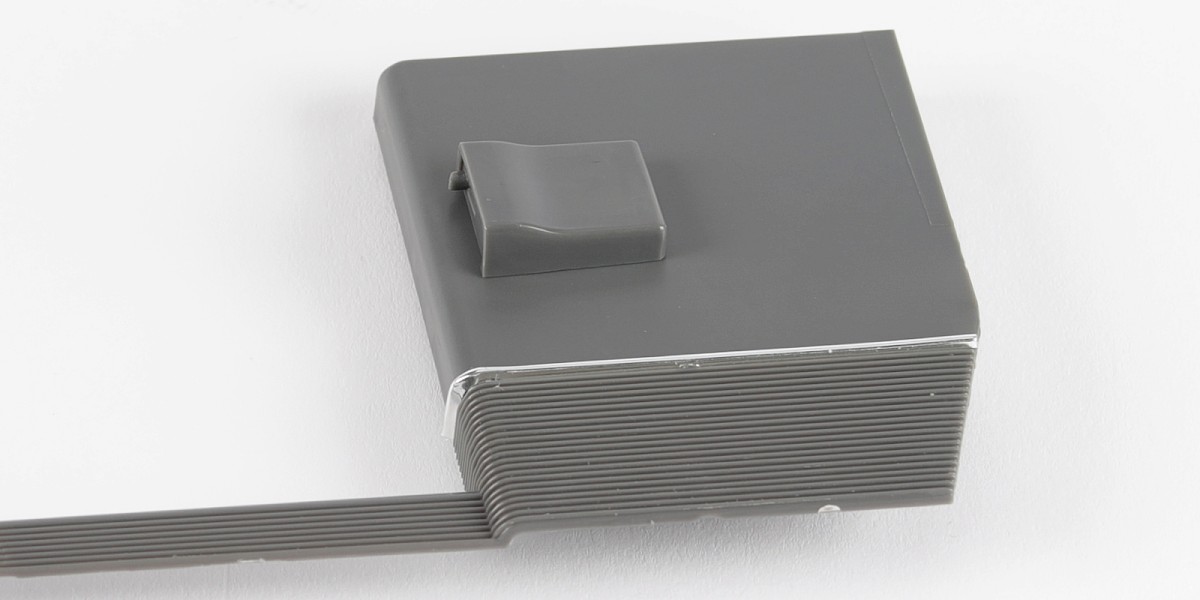

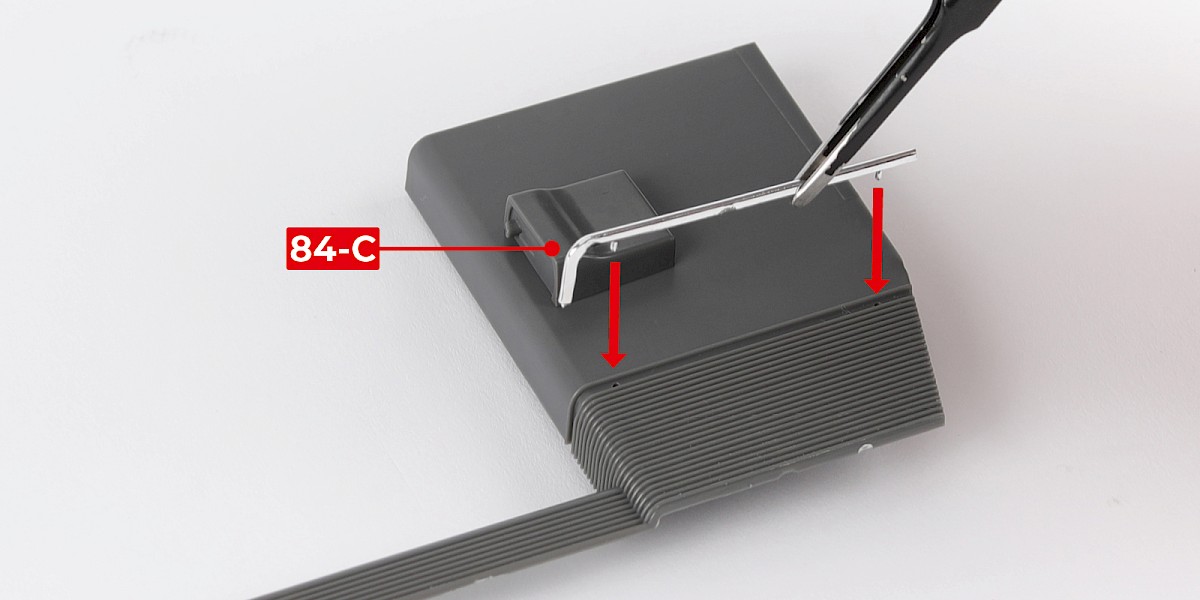

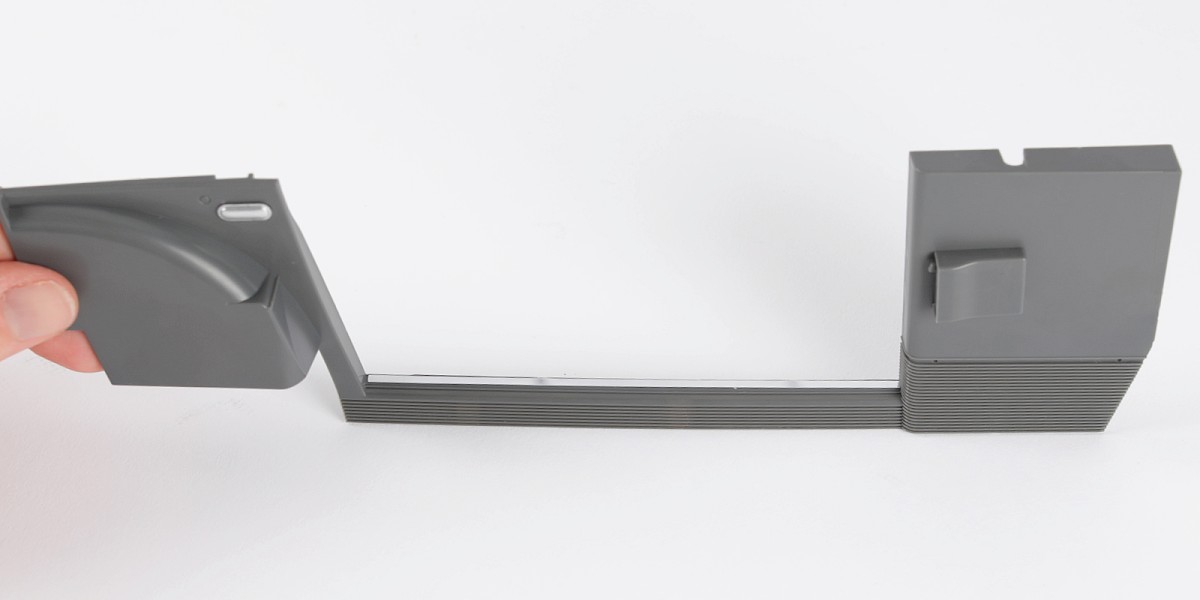

      Fit the interior panel trim (84-C) to the assembly.

      a
      b

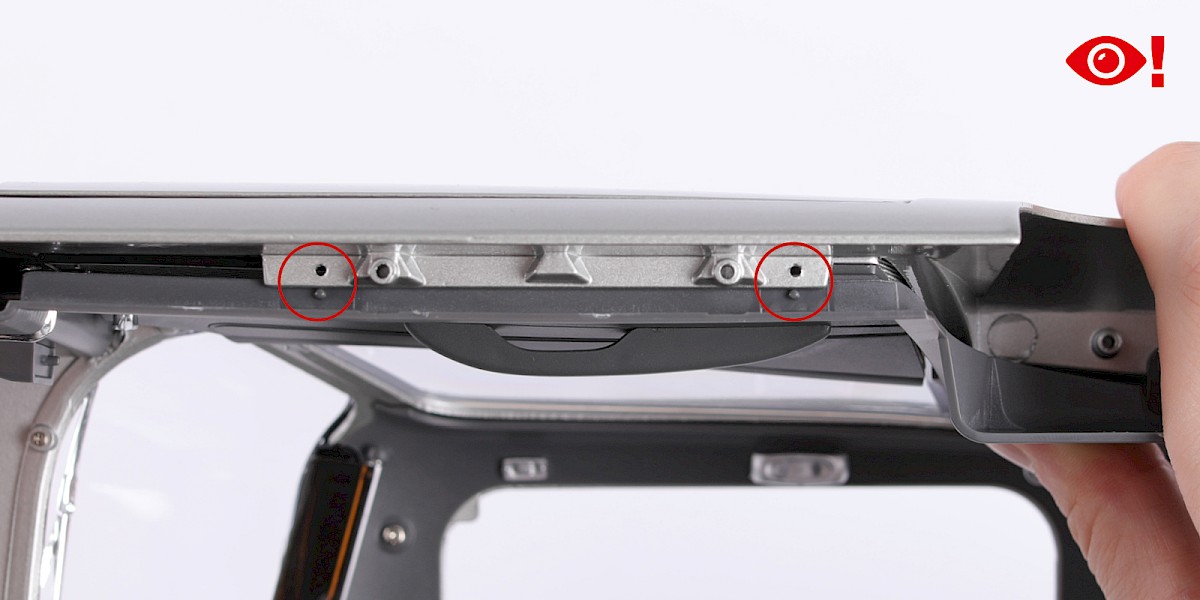

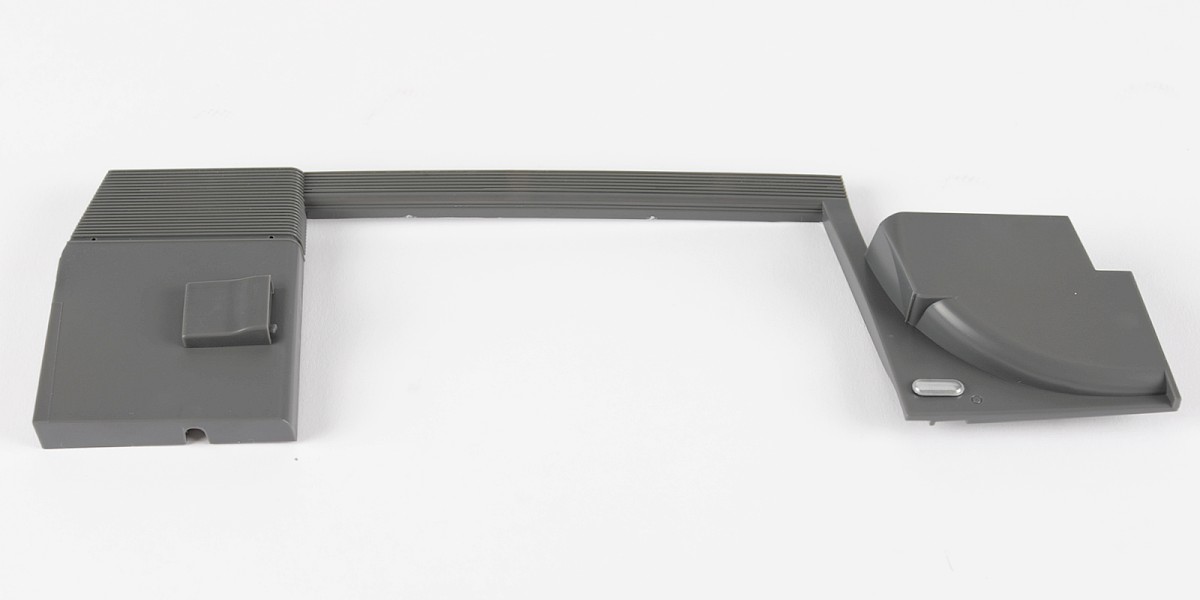

      Step 10

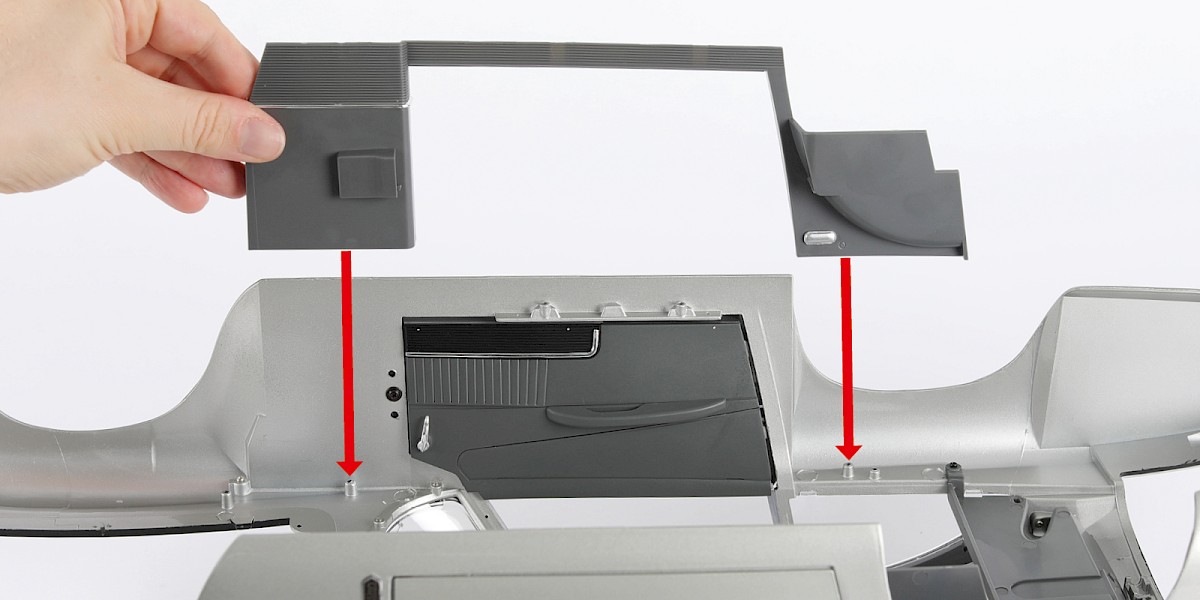

      Fit the assembly to the main body.

      a

      Step 11

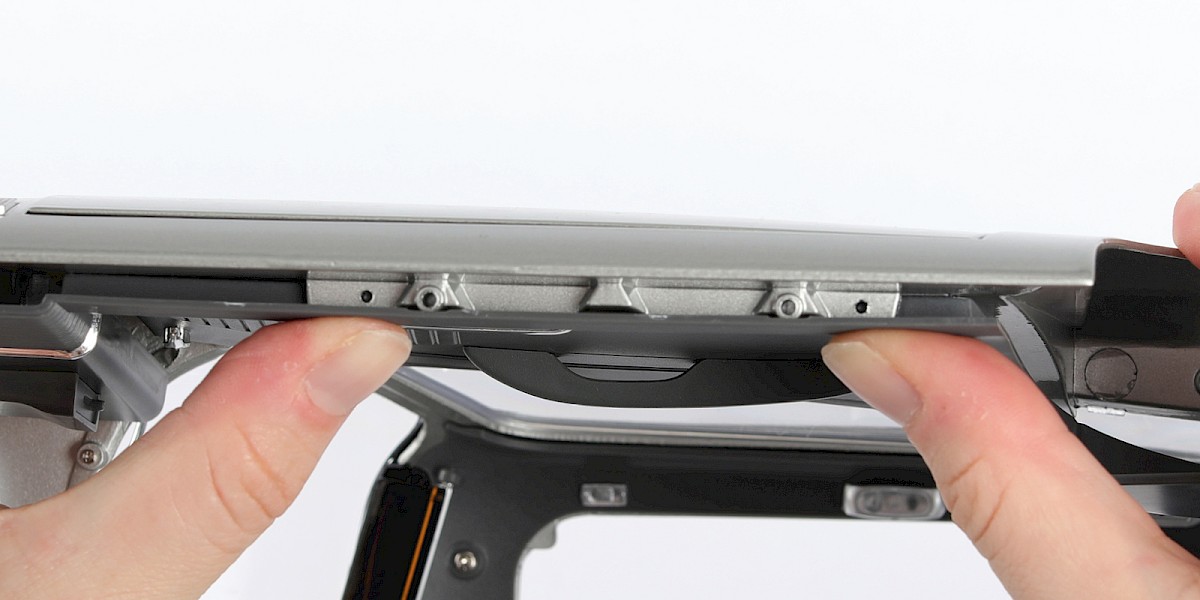

      Make sure to fit the panel underneath the door sill.

      Press the two pins into the holes as shown.

      a
      b

      Step 12

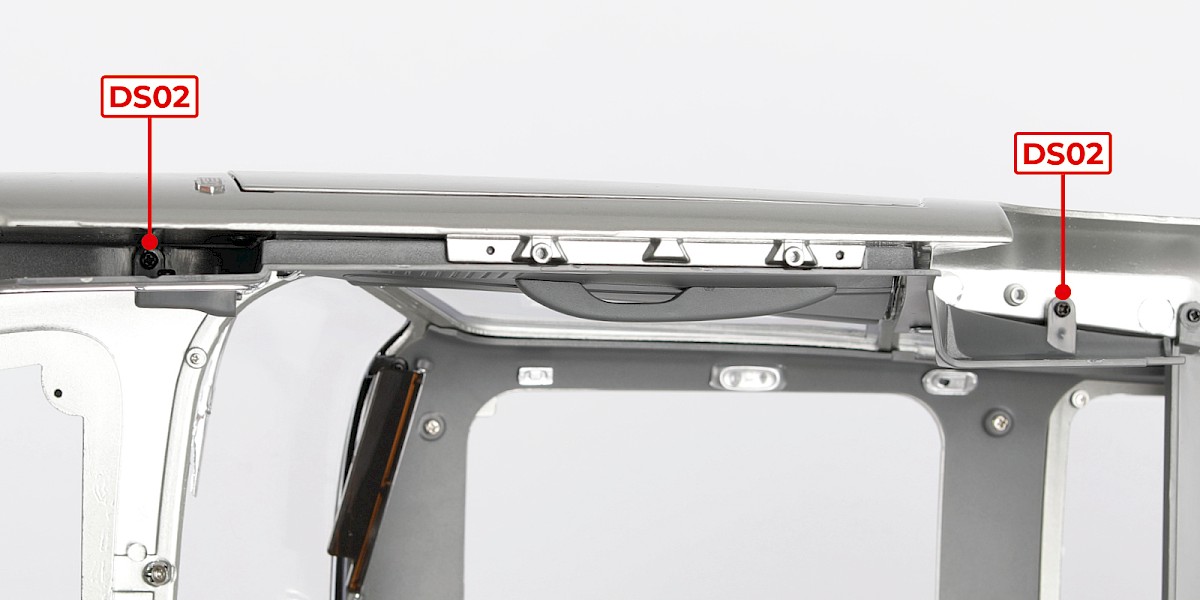

      Secure with 2x DS02.

      a

      Step 13

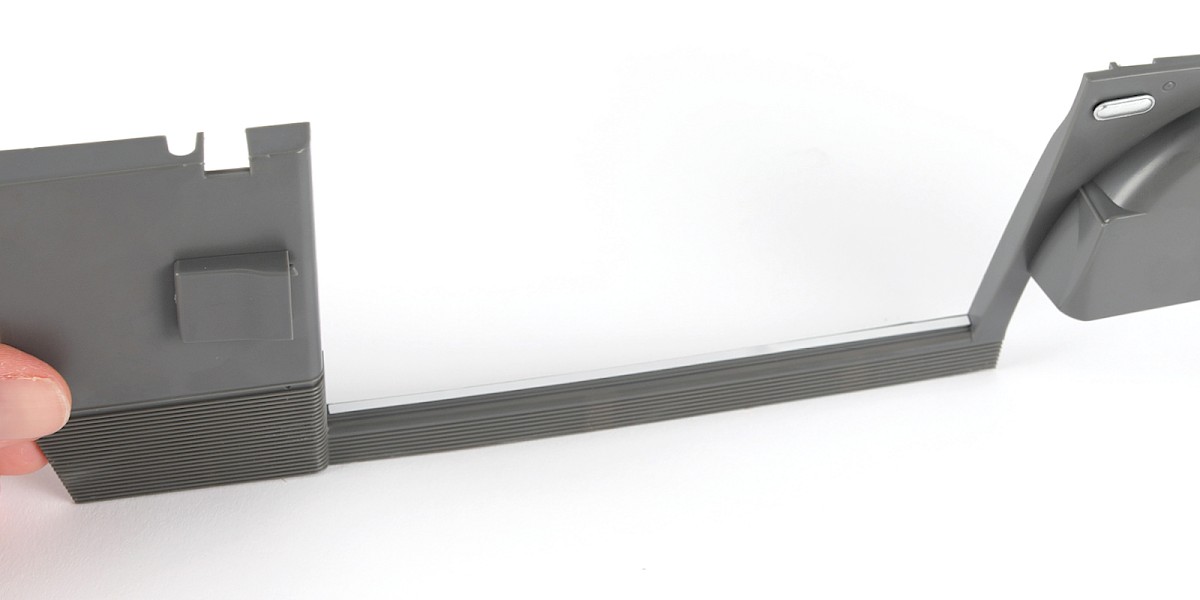

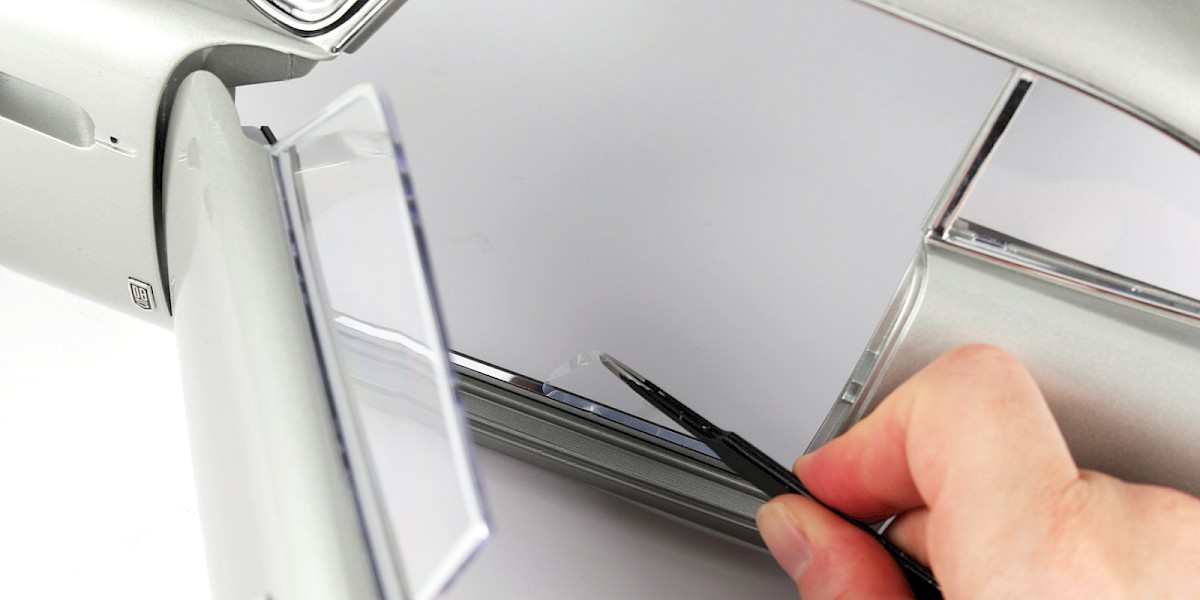

      Remove the protective film from both the left and right door sill trim stickers.

      a
      b

      STAGE COMPLETE
